Dometic RC2000 Parts Diagram · Cabinet Rear P#921050814

Refrigerator · 7 assemblies · 7 diagram sheets · 68 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RC2000 RV refrigerator: 7 assemblies (Cabinet Rear P#921050814, Cabinet Assembly P#921050804, Cabinet Rear P#921050801, Refrigerator Replacement, Cabinet Assembly P#921050801 and more) and 68 manufacturer part numbers. 22 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear P#921050814

Components

55 items

1. #Refrigerator Burner Tube; Use With Dometic Refrigerator Models RC2000 MFR # 2922675075 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Orifice MFR # 2928787031
3. #NUT USE 2922559006 MFR # 2922559022 Superseded: see description
4. #OLIVE RM182BEG RC150 TEG RM 182 MFR # 2922559006
5. #NUT,JET MFR # 2928733019
6. #Igniter Electrode MFR # 2928727037
7. #Stove Burner Tube MFR # 2928749023
8. #THERMOCOUPLE USE 2902551106 760MM MFR # 2928742036 Superseded: see description
9. #APPLIANCE COMPONENTS RV MFR # 2902551106
10. #TUBE,GAS MFR # 2922633124
11. #FUSE RC160TEG MFR # 2929354054
12. #Refrigerator Power Cord Fuse; Use With Dometic RC2000/ RM182AGA/ RC1600EGP Refrigerators MFR # 2929368039 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Strap Gas Bottle Holder MFR # 2945305007
14. #Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RC2000 MFR # 2963816059 Superseded: see description
15. #FILTER,GAS MFR # 2922212002
16. #PIEZO MFR # 2923024109
17. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
18. #LIGHTER,PIEZO MFR # 2923024208
19. #IGNITER,PIEZO USE 2923024208 MFR # 2922043068 Superseded: see description
20. #Refrigerator Thermostat Control Assembly; For Dometic RC160TEG/ RC2000/ RH200 Refrigerators MFR # 2922007048
21. #KNOB, T-STAT USE 531017708938 FC140 MFR # 2922644006 Superseded: see description
22. #Refrigerator Thermostat Control Knob; Use With Dometic RC1070/ RC1600EGP/ RC160TEG/ RC2000/ RC3000/ RC150TEG/ RC160E Refrigerators MFR # 531017708938 Superseded: see description
23. #HEATER 12V, 75W MFR # 2922671025
24. #ELEMENT,HEATING 120V 75W RC2000 MFR # 2969730049
25. #PLUG,LIGHTER 16 AMP MODE L # RC2000 MFR # 2929540041
26. #PANEL MFR # 2963601006
27. #DECAL CONTROL RC2000 MFR # 2963602012
28. #APPLIANCE COMPONENTS RV; Adapter Therm. MFR # 2929353007
29. #APPLIANCE COMPONENTS RV; Indicator Flame Use 29234 MFR # 2929353015 Superseded: see description
30. #Refrigerator Flame Indicator; Use With Dometic Refrigerators RC2000/ RM182AGA MFR # 2923499004 Superseded: see description
31. #CLIP MFR # 2922367103
32. #PLATE, BOTTOM (BURNER) MFR # 2922134008
33. #T-STAT,GAS RC150TEG MFR # 2922005018
34. #VALVE, SAFETY MFR # 293165
35. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
36. #VALVE, SAFETY USE 2931656017 MFR # 2922006016 Superseded: see description
37. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
38. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
39. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
40. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
41. #APPLIANCE COMPONENTS RV MFR # 2922396011
42. #APPLIANCE COMPONENTS RV MFR # 2922364019
43. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2942312121N
44. #COOLING UNIT RC160TEG RECON MFR # 2942312121R
45. #COOLING UNIT USE 2942312121N RC150TEG MFR # 2942312022N Superseded: see description
46. #COOLING UNIT USE 2942312121N MFR # 2942312402N Superseded: see description
47. #BAFFLE, FLUE MFR # 2942434008
48. #CAP, FLUE MFR # 2928633102
49. #INSULATION, BOILER MFR # 2922518051
50. #OPERATOR KIT, GAS RC150TEG MFR # 2922210555
51. #Appliance Components RV; Filter, Gas MFR # 2923191007
52. #Appliance Components RV; Filter Use 2923191007 MFR # 2922212010 Superseded: see description
53. #OPERATOR KIT, GAS RC150TEG MFR # 2922210333
54. #ADAPTER MFR # 2922210999
55. #VALVE KIT,GAS USE 2922210555 RC150TEG TX2173 MFR # 2922210777 Superseded: see description

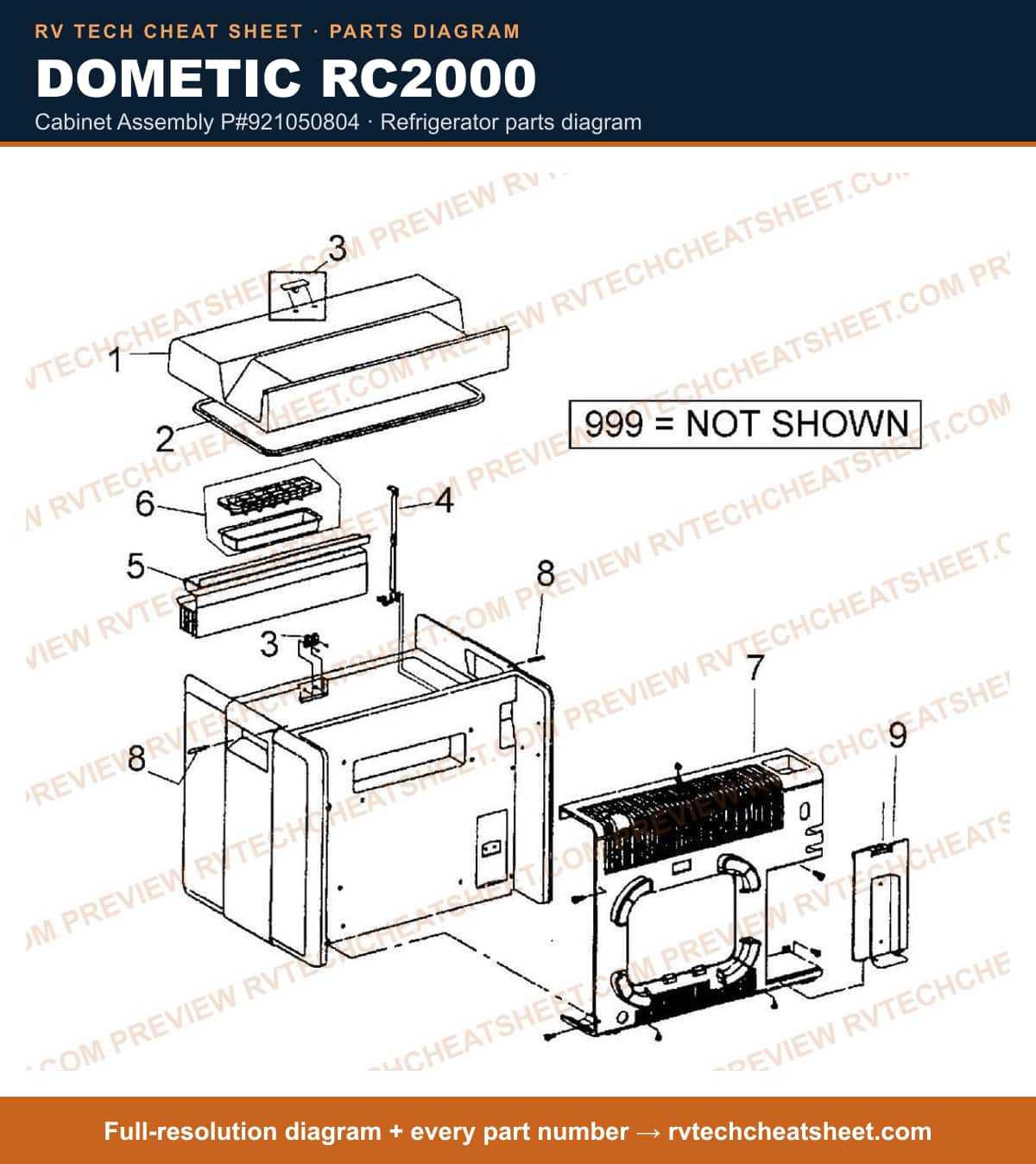

Cabinet Assembly P#921050804

Components

10 items

1. #LID W/HINGE BLUE MFR # 2942808011
2. #APPLIANCE COMPONENTS RV; Gasket MFR # 2945108005
3. #APPLIANCE COMPONENTS RV; Snap And Catch Rc2000 MFR # 2922380007
4. #APPLIANCE COMPONENTS RV; Lid Stay Rc 2000 MFR # 2928400031
5. #LID,STAY USE 2928400031 MFR # 2928460031 Superseded: see description
6. #Shelf, ice tray MFR # 2969607007
7. #APPLIANCE COMPONENTS RV; Tray Ice Complete W/Tray MFR # 2926998002
8. #COVER,COOLING UNIT GREY RC2000 MFR # 2963222043
9. #Refrigerator Bolt; Replacement For Dometic RC2000 Model Refrigerator MFR # 2942310026
10. #DOOR W/BOT HLDR USE 2942318110 MFR # 2963436106 Superseded: see description

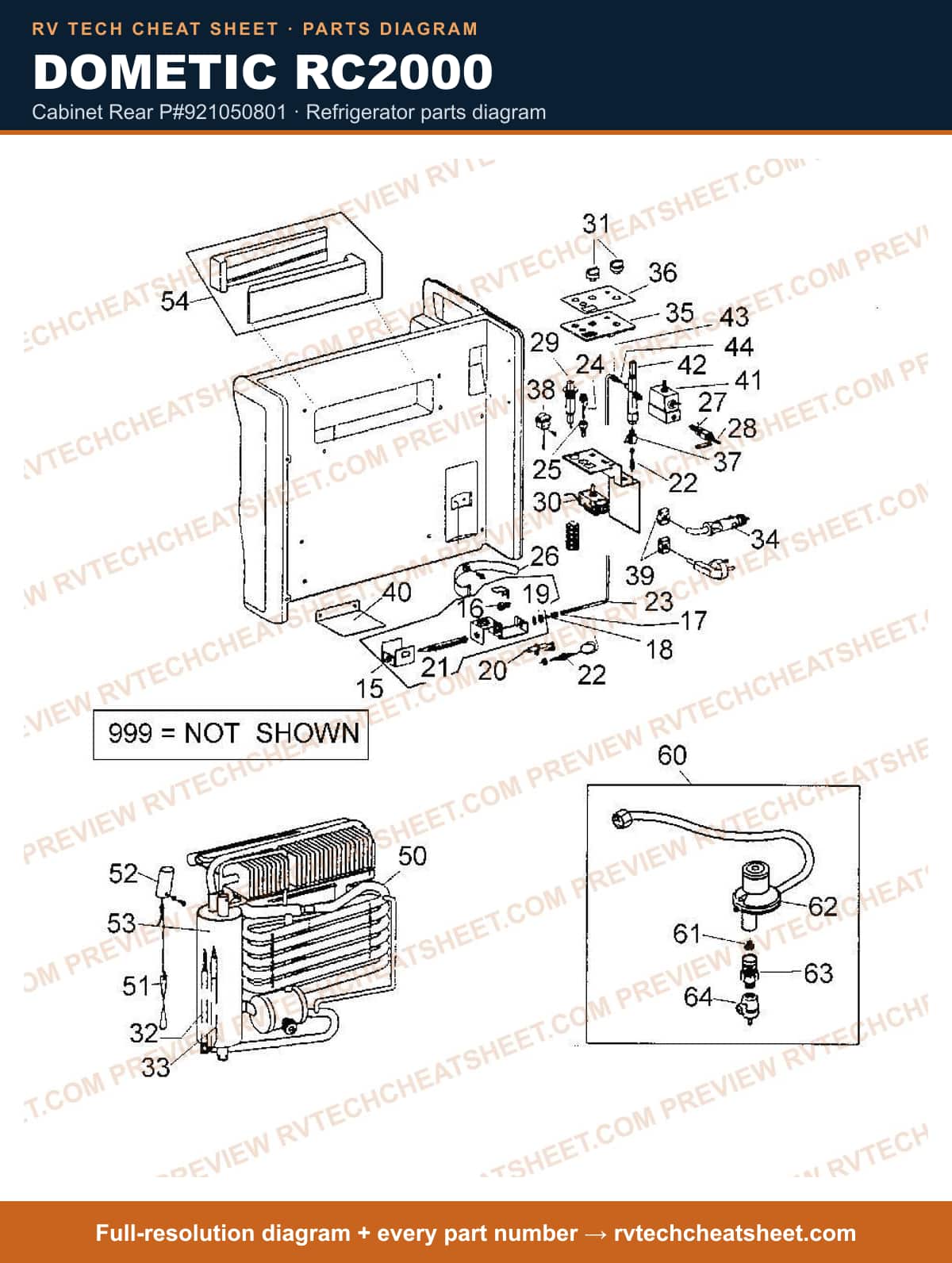

Cabinet Rear P#921050801

Components

55 items

1. #Refrigerator Burner Tube; Use With Dometic Refrigerator Models RC2000 MFR # 2922675075 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Orifice MFR # 2928787031
3. #NUT USE 2922559006 MFR # 2922559022 Superseded: see description
4. #OLIVE RM182BEG RC150 TEG RM 182 MFR # 2922559006
5. #NUT,JET MFR # 2928733019
6. #Igniter Electrode MFR # 2928727037
7. #Stove Burner Tube MFR # 2928749023
8. #APPLIANCE COMPONENTS RV MFR # 2902551106
9. #THERMOCOUPLE USE 2902551106 760MM MFR # 2928742036 Superseded: see description
10. #TUBE,GAS MFR # 2922633124
11. #FUSE RC160TEG MFR # 2929354054
12. #Refrigerator Power Cord Fuse; Use With Dometic RC2000/ RM182AGA/ RC1600EGP Refrigerators MFR # 2929368039 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Strap Gas Bottle Holder MFR # 2945305007
14. #Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RC2000 MFR # 2963816059 Superseded: see description
15. #FILTER,GAS MFR # 2922212002
16. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
17. #LIGHTER,PIEZO MFR # 2923024208
18. #IGNITER,PIEZO USE 2923024208 MFR # 2922043068 Superseded: see description
19. #PIEZO MFR # 2923024109
20. #Refrigerator Thermostat Control Assembly; For Dometic RC160TEG/ RC2000/ RH200 Refrigerators MFR # 2922007048
21. #KNOB, T-STAT USE 531017708938 FC140 MFR # 2922644006 Superseded: see description
22. #Refrigerator Thermostat Control Knob; Use With Dometic RC1070/ RC1600EGP/ RC160TEG/ RC2000/ RC3000/ RC150TEG/ RC160E Refrigerators MFR # 531017708938 Superseded: see description
23. #HEATER 12V, 75W MFR # 2922671025
24. #ELEMENT,HEATING 120V 75W RC2000 MFR # 2969730049
25. #PLUG,LIGHTER 16 AMP MODE L # RC2000 MFR # 2929540041
26. #PANEL MFR # 2963601006
27. #DECAL CONTROL RC2000 MFR # 2963602012
28. #APPLIANCE COMPONENTS RV; Adapter Therm. MFR # 2929353007
29. #Refrigerator Flame Indicator; Use With Dometic Refrigerators RC2000/ RM182AGA MFR # 2923499004 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Indicator Flame Use 29234 MFR # 2929353015 Superseded: see description
31. #CLIP MFR # 2922367103
32. #PLATE, BOTTOM (BURNER) MFR # 2922134008
33. #T-STAT,GAS RC150TEG MFR # 2922005018
34. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
35. #VALVE, SAFETY USE 2931656017 MFR # 2922006016 Superseded: see description
36. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
37. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
38. #VALVE, SAFETY MFR # 293165
39. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
40. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
41. #APPLIANCE COMPONENTS RV MFR # 2922396011
42. #APPLIANCE COMPONENTS RV MFR # 2922364019
43. #COOLING UNIT RC160TEG RECON MFR # 2942312121R
44. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2942312121N
45. #COOLING UNIT USE 2942312121N MFR # 2942312402N Superseded: see description
46. #COOLING UNIT USE 2942312121N RC150TEG MFR # 2942312022N Superseded: see description
47. #BAFFLE, FLUE MFR # 2942434008
48. #CAP, FLUE MFR # 2928633102
49. #INSULATION, BOILER MFR # 2922518051
50. #OPERATOR KIT, GAS RC150TEG MFR # 2922210555
51. #Appliance Components RV; Filter, Gas MFR # 2923191007
52. #Appliance Components RV; Filter Use 2923191007 MFR # 2922212010 Superseded: see description
53. #OPERATOR KIT, GAS RC150TEG MFR # 2922210333
54. #ADAPTER MFR # 2922210999
55. #VALVE KIT,GAS USE 2922210555 RC150TEG TX2173 MFR # 2922210777 Superseded: see description

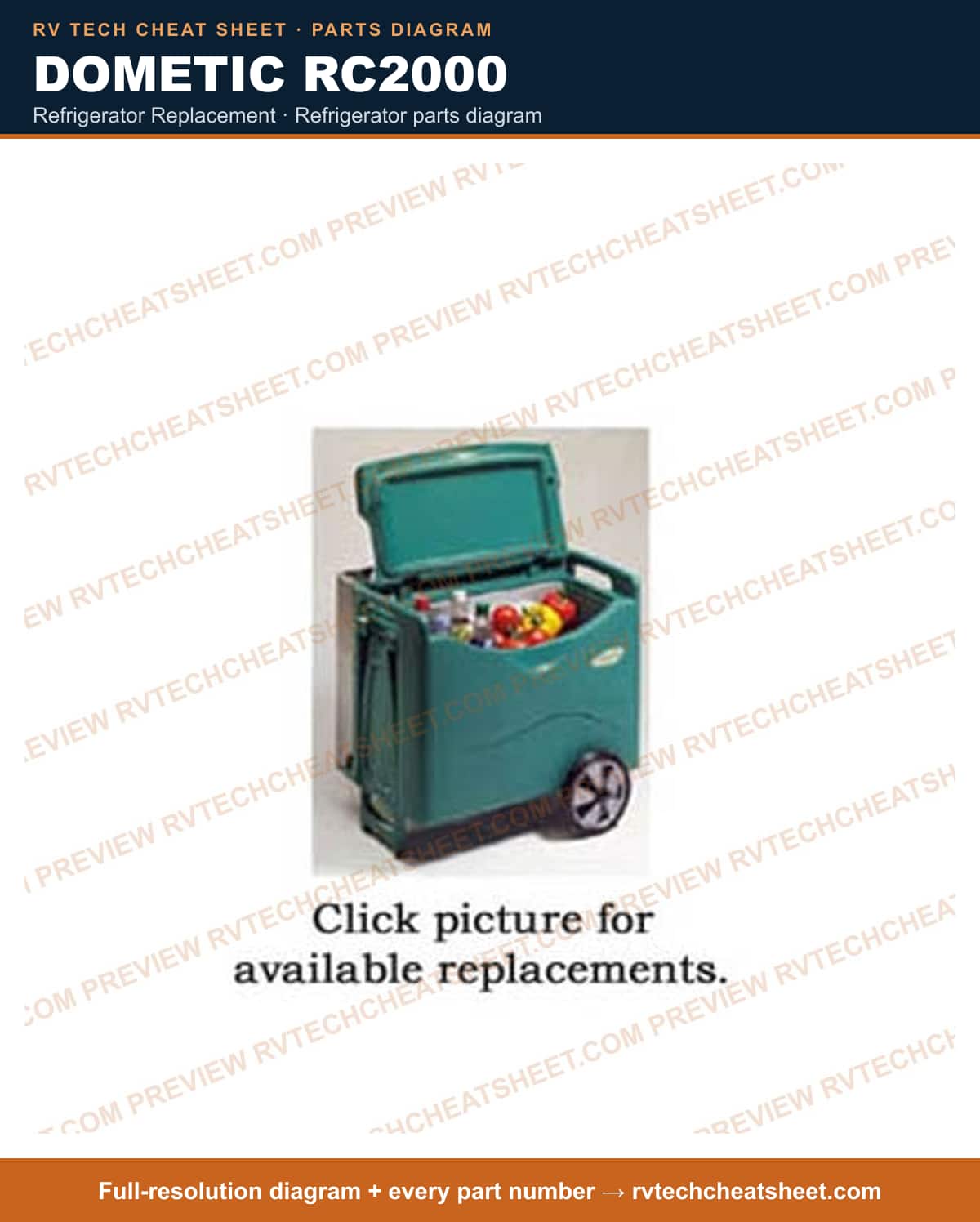

Refrigerator Replacement

Components

3 items

1. #REFER,1.5 CU FT 3 WAY MFR # RC4000
2. #REFER,1.5 CF 3- W USE RC4000 MFR # RC3000N Superseded: see description
3. #REFER,1.5 CU FT USE RC3000N 17.8" X 22.3" X 18.1" MFR # RC2000BN Superseded: see description

Cabinet Assembly P#921050801

Components

10 items

1. #LID W/HINGE BLUE MFR # 2942808011
2. #APPLIANCE COMPONENTS RV; Gasket MFR # 2945108005
3. #APPLIANCE COMPONENTS RV; Snap And Catch Rc2000 MFR # 2922380007
4. #APPLIANCE COMPONENTS RV; Lid Stay Rc 2000 MFR # 2928400031
5. #LID,STAY USE 2928400031 MFR # 2928460031 Superseded: see description
6. #Shelf, ice tray MFR # 2969607007
7. #APPLIANCE COMPONENTS RV; Tray Ice Complete W/Tray MFR # 2926998002
8. #COVER,COOLING UNIT GREY RC2000 MFR # 2963222043
9. #Refrigerator Bolt; Replacement For Dometic RC2000 Model Refrigerator MFR # 2942310026
10. #DOOR W/BOT HLDR USE 2942318110 MFR # 2963436106 Superseded: see description

Cabinet Rear P#921050804

Components

55 items

1. #Refrigerator Burner Tube; Use With Dometic Refrigerator Models RC2000 MFR # 2922675075 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Orifice MFR # 2928787031
3. #OLIVE RM182BEG RC150 TEG RM 182 MFR # 2922559006
4. #NUT USE 2922559006 MFR # 2922559022 Superseded: see description
5. #NUT,JET MFR # 2928733019
6. #Igniter Electrode MFR # 2928727037
7. #Stove Burner Tube MFR # 2928749023
8. #APPLIANCE COMPONENTS RV MFR # 2902551106
9. #THERMOCOUPLE USE 2902551106 760MM MFR # 2928742036 Superseded: see description
10. #TUBE,GAS MFR # 2922633124
11. #FUSE RC160TEG MFR # 2929354054
12. #Refrigerator Power Cord Fuse; Use With Dometic RC2000/ RM182AGA/ RC1600EGP Refrigerators MFR # 2929368039 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Strap Gas Bottle Holder MFR # 2945305007
14. #Refrigerator Gas Inlet Tube; Use With Dometic Refrigerator Model RC2000 MFR # 2963816059 Superseded: see description
15. #FILTER,GAS MFR # 2922212002
16. #LIGHTER,PIEZO MFR # 2923024208
17. #IGNITER,PIEZO USE 2923024208 MFR # 2922043068 Superseded: see description
18. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
19. #PIEZO MFR # 2923024109
20. #Refrigerator Thermostat Control Assembly; For Dometic RC160TEG/ RC2000/ RH200 Refrigerators MFR # 2922007048
21. #KNOB, T-STAT USE 531017708938 FC140 MFR # 2922644006 Superseded: see description
22. #Refrigerator Thermostat Control Knob; Use With Dometic RC1070/ RC1600EGP/ RC160TEG/ RC2000/ RC3000/ RC150TEG/ RC160E Refrigerators MFR # 531017708938 Superseded: see description
23. #HEATER 12V, 75W MFR # 2922671025
24. #ELEMENT,HEATING 120V 75W RC2000 MFR # 2969730049
25. #PLUG,LIGHTER 16 AMP MODE L # RC2000 MFR # 2929540041
26. #PANEL MFR # 2963601006
27. #DECAL CONTROL RC2000 MFR # 2963602012
28. #APPLIANCE COMPONENTS RV; Adapter Therm. MFR # 2929353007
29. #APPLIANCE COMPONENTS RV; Indicator Flame Use 29234 MFR # 2929353015 Superseded: see description
30. #Refrigerator Flame Indicator; Use With Dometic Refrigerators RC2000/ RM182AGA MFR # 2923499004 Superseded: see description
31. #CLIP MFR # 2922367103
32. #PLATE, BOTTOM (BURNER) MFR # 2922134008
33. #T-STAT,GAS RC150TEG MFR # 2922005018
34. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
35. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
36. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
37. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
38. #VALVE, SAFETY USE 2931656017 MFR # 2922006016 Superseded: see description
39. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
40. #VALVE, SAFETY MFR # 293165
41. #APPLIANCE COMPONENTS RV MFR # 2922396011
42. #APPLIANCE COMPONENTS RV MFR # 2922364019
43. #COOLING UNIT USE 2942312121N RC150TEG MFR # 2942312022N Superseded: see description
44. #COOLING UNIT USE 2942312121N MFR # 2942312402N Superseded: see description
45. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2942312121N
46. #COOLING UNIT RC160TEG RECON MFR # 2942312121R
47. #BAFFLE, FLUE MFR # 2942434008
48. #CAP, FLUE MFR # 2928633102
49. #INSULATION, BOILER MFR # 2922518051
50. #OPERATOR KIT, GAS RC150TEG MFR # 2922210555
51. #Appliance Components RV; Filter, Gas MFR # 2923191007
52. #Appliance Components RV; Filter Use 2923191007 MFR # 2922212010 Superseded: see description
53. #OPERATOR KIT, GAS RC150TEG MFR # 2922210333
54. #ADAPTER MFR # 2922210999
55. #VALVE KIT,GAS USE 2922210555 RC150TEG TX2173 MFR # 2922210777 Superseded: see description

Cabinet Assembly P#921050814

Components

10 items

1. #LID W/HINGE BLUE MFR # 2942808011
2. #APPLIANCE COMPONENTS RV; Gasket MFR # 2945108005
3. #APPLIANCE COMPONENTS RV; Snap And Catch Rc2000 MFR # 2922380007
4. #LID,STAY USE 2928400031 MFR # 2928460031 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Lid Stay Rc 2000 MFR # 2928400031
6. #Shelf, ice tray MFR # 2969607007
7. #APPLIANCE COMPONENTS RV; Tray Ice Complete W/Tray MFR # 2926998002
8. #COVER,COOLING UNIT GREY RC2000 MFR # 2963222043
9. #Refrigerator Bolt; Replacement For Dometic RC2000 Model Refrigerator MFR # 2942310026
10. #DOOR W/BOT HLDR USE 2942318110 MFR # 2963436106 Superseded: see description
