Dometic RC3000 Parts Diagram · Refrigerator Replacement

Refrigerator · 4 assemblies · 4 diagram sheets · 54 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RC3000 RV refrigerator: 4 assemblies (Refrigerator Replacement, Cabinet Asm, Thermostat-power Cord Asm, Controls) and 54 manufacturer part numbers. 8 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Refrigerator Replacement

Components

2 items

1. #REFER,1.5 CF 3- W USE RC4000 MFR # RC3000N Superseded: see description
2. #REFER,1.5 CU FT 3 WAY MFR # RC4000

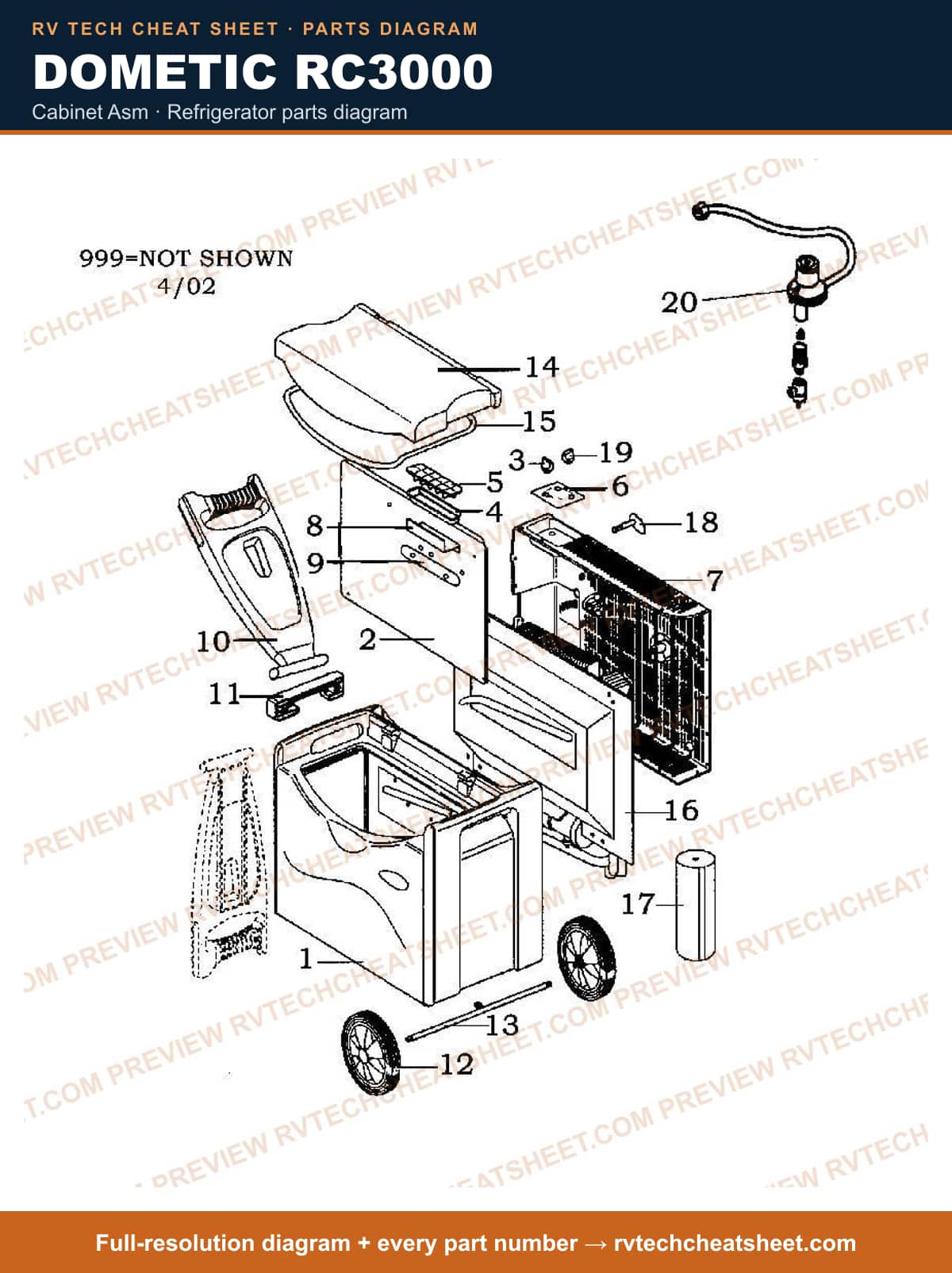

Cabinet Asm

Components

22 items

1. #CABINET,FOAMED MFR # 2070227018
2. #PLATE,EVAPORATOR MFR # 2074763018
3. #KNOB, T-STAT USE 531017708938 FC140 MFR # 2922644006 Superseded: see description
4. #Refrigerator Thermostat Control Knob; Use With Dometic RC1070/ RC1600EGP/ RC160TEG/ RC2000/ RC3000/ RC150TEG/ RC160E Refrigerators MFR # 531017708938 Superseded: see description
5. #TRAY,ICE USE 2926998002 ORDER DIVIDER SEPARATELY MFR # 2942518008 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Tray Ice Complete W/Tray MFR # 2926998002
7. #DIVIDER,TRAY USE 2926998002 MFR # 2942519006 Superseded: see description
8. #PANEL,CONTROL MFR # 2075047031
9. #APPLIANCE COMPONENTS RV; Cover Grill F/Cooling Uni MFR # 2071647016
10. #HOLDER,ICE TRAY MFR # 2074762010
11. #FASTENER,ICE TRAY HOLDER MFR # 2074568011
12. #APPLIANCE COMPONENTS RV; Handle MFR # 2071640011
13. #APPLIANCE COMPONENTS RV; Holder Handle MFR # 2074566023
14. #WHEEL MFR # 2074582012
15. #AXLE MFR # 2072212018
16. #LID,FOAMED MFR # 2071638510
17. #Refrigerator Gasket; Replacement For Dometic RC300 Model Refrigerator MFR # 2072811025
18. #COOLING UNIT MFR # 2071450023N
19. #INSULATION, BOILER MFR # 2922518051
20. #HOLDER,CABLE MFR # 2074565017
21. #KNOB, GAS VALVE MFR # 2922645003
22. #OPERATOR KIT, GAS RC150TEG MFR # 2922210555

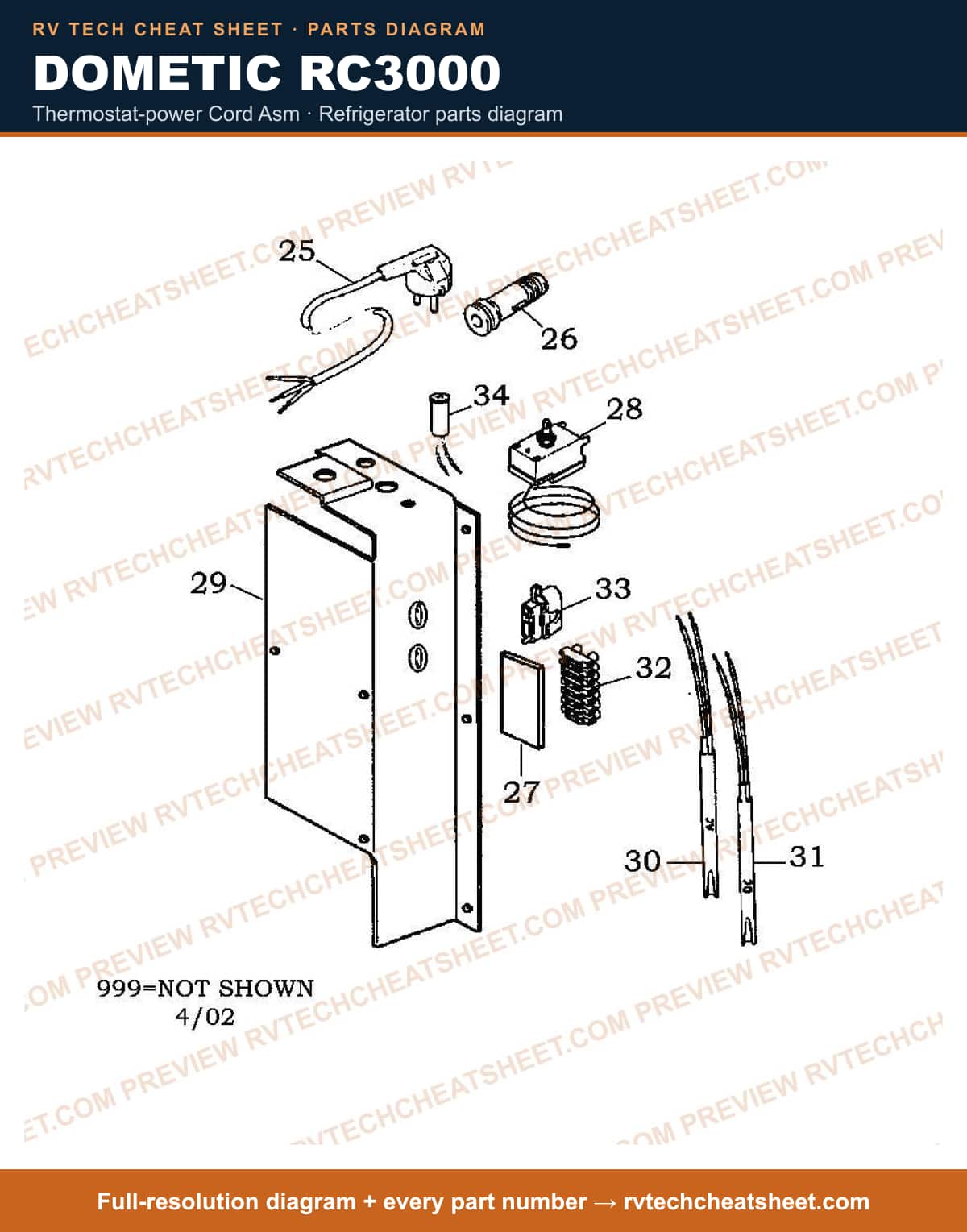

Thermostat-power Cord Asm

Components

10 items

1. #CORD,POWER 120VAC MFR # 2072613256
2. #Refrigerator Power Cord; For Use With Dometic RC3000 Model Refrigerators; 12 Volt DC MFR # 2072710029 Superseded: see description
3. #INSULATION MFR # 2071703017
4. #Refrigerator Thermostat Control Assembly; For Dometic RC160TEG/ RC2000/ RH200 Refrigerators MFR # 2922007048
5. #HOLDER MFR # 2071852012
6. #APPLIANCE COMPONENTS RV; Element Heating 120V 80W MFR # 2072520048
7. #APPLIANCE COMPONENTS RV; Element Heating 12V 80 MFR # 2072520022
8. #BLOCK,TERMINAL MFR # 2072707017
9. #TENSION RELIEF MFR # 2922367020
10. #LIGHT MFR # 2072740026

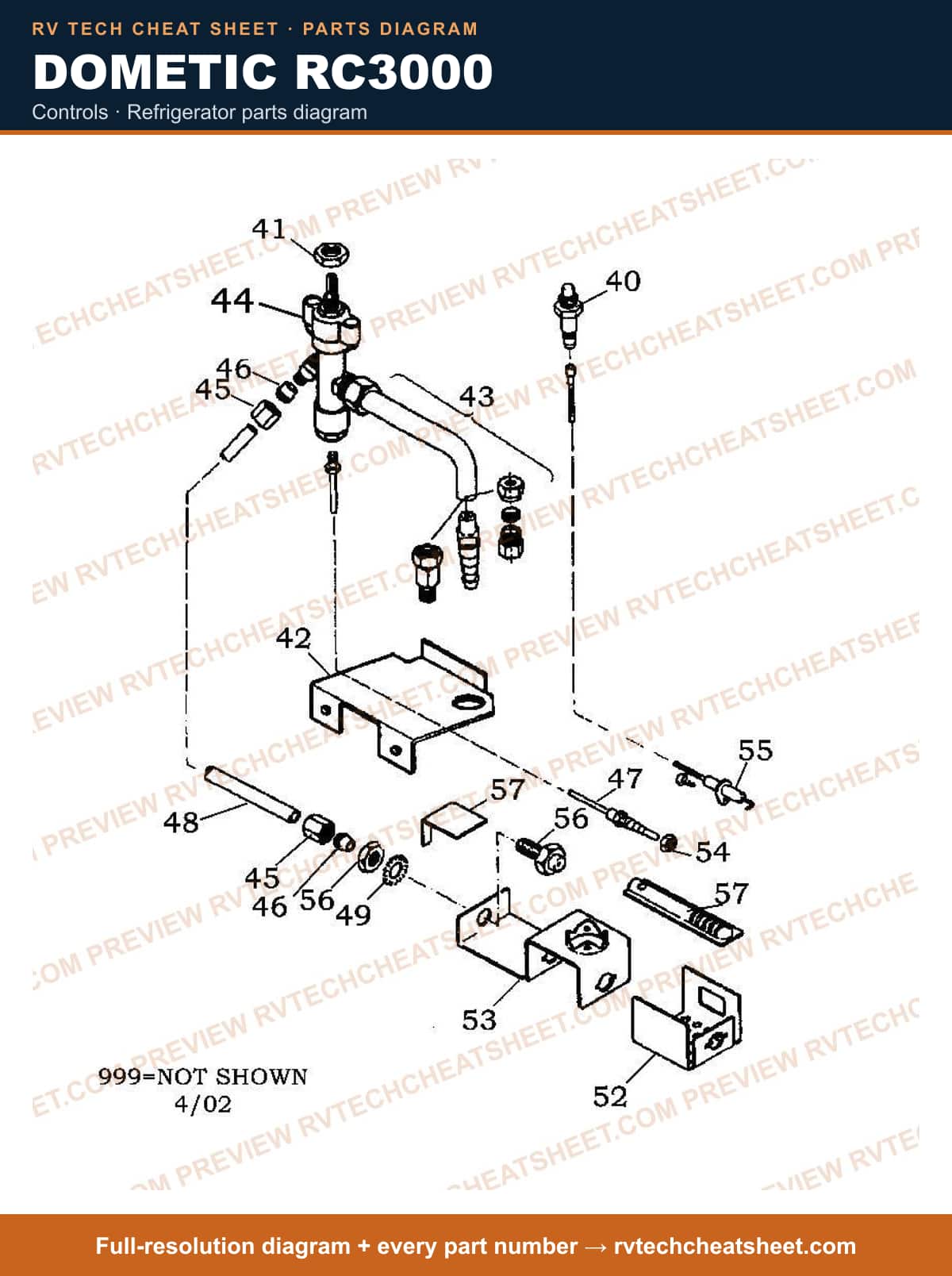

Controls

Components

20 items

1. #APPLIANCE COMPONENTS RV; Igniter Piezo MFR # 2072173012
2. #NUT,SAFETY VALVE MFR # 2072200013
3. #BRACKET,GAS INLET MFR # 2074756012
4. #CONNECTION,GAS MFR # 2072182047
5. #APPLIANCE COMPONENTS RV; Valve Safety MFR # 2072183011
6. #NUT USE 2922559006 MFR # 2922559022 Superseded: see description
7. #OLIVE RM182BEG RC150 TEG RM 182 MFR # 2922559006
8. #APPLIANCE COMPONENTS RV MFR # 2902551106
9. #THERMOCOUPLE USE 2902551106 760MM MFR # 2928742036 Superseded: see description
10. #TUBE,GAS MFR # 2072185016
11. #WASHER MFR # 7352164151
12. #BRACKET,BURNER MFR # 2963513011
13. #BRACKET,TOP BURNER MFR # 2928750013
14. #Nut MFR # 2928733001
15. #Igniter Electrode MFR # 2928727037
16. #NUT,JET MFR # 2928733019
17. #COVER MFR # 2928755004
18. #APPLIANCE COMPONENTS RV; Orifice MFR # 2928787031
19. #Stove Burner Tube MFR # 2928749023
20. #FILTER,GAS MFR # 2922212002
