Dometic RC65 Parts Diagram · Cabinet & Cooling Unit Product # 920233601 Usa

Refrigerator · 8 assemblies · 8 diagram sheets · 174 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RC65 RV refrigerator: 8 assemblies (Cabinet & Cooling Unit Product # 920233601 Usa, Refrigerator Replacement, Cabinet & Cooling Unit Product # 920233701 Usa, LP Gas Assembly, Kerosene Burner Assembly and more) and 174 manufacturer part numbers. 19 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet & Cooling Unit Product # 920233601 Usa

Components

17 items

1. #LID ASSMEBLY W/ LOCK MFR # 2963001009
2. #APPLIANCE COMPONENTS RV; Lid Freezer MFR # 2963001017
3. #DECORATION MFR # 2963032004
4. #COVER MFR # 2963029000
5. #HINGE, RH W/SPRING MFR # 2910522032
6. #HINGE, LH MFR # 2910522040
7. #BASKET MFR # 2910778006
8. #COOLING UNIT RC65 MFR # 2963004003N
9. #BAFFLE RC65-GAS MFR # 2910549027
10. #CHIMNEY USE 2910549027 MFR # 2910549035 Superseded: see description
11. #LEVEL MFR # 2930453002
12. #BUSHING MFR # 2910533005
13. #HOLDER MFR # 2910529003
14. #FEED PLUNGER MFR # 2910527005
15. #DOOR, LOWER MFR # 2963028002
16. #Refrigerator Door Lock; Use With Dometic RC65/ RC65G Model Refrigerators; With Key MFR # 2910565007 Superseded: see description
17. #FLUE, UPPER MFR # 2963309100

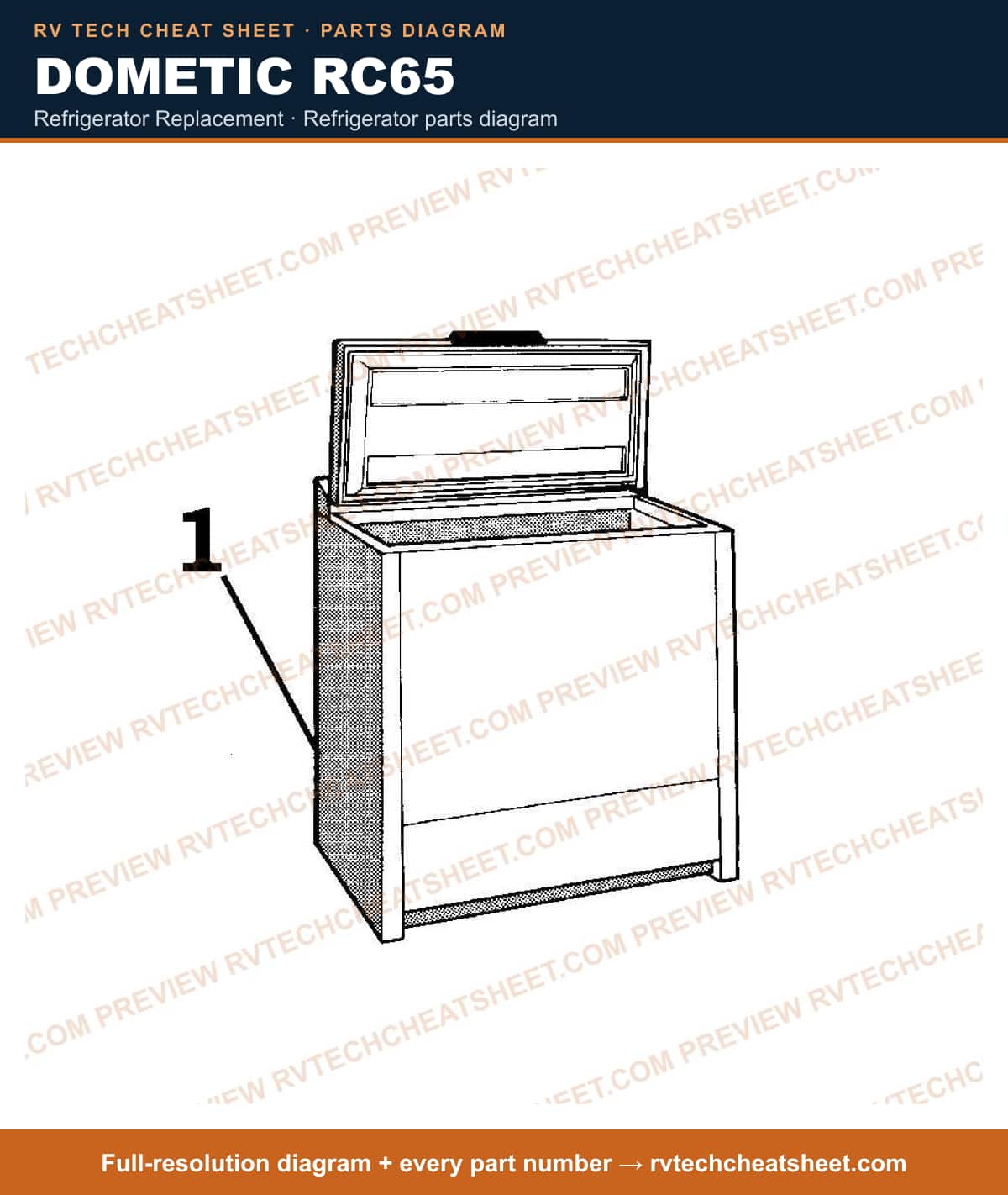

Refrigerator Replacement

Components

1 item

1. #FREEZER CHEST TYPE 40 1 5/16" X 20 5/8" X 18 3/4" MFR # RC65N

Cabinet & Cooling Unit Product # 920233701 Usa

Components

17 items

1. #LID ASSMEBLY W/ LOCK MFR # 2963001009
2. #APPLIANCE COMPONENTS RV; Lid Freezer MFR # 2963001017
3. #DECORATION MFR # 2963032004
4. #COVER MFR # 2963029000
5. #HINGE, RH W/SPRING MFR # 2910522032
6. #HINGE, LH MFR # 2910522040
7. #BASKET MFR # 2910778006
8. #COOLING UNIT RC65 MFR # 2963004003N
9. #BAFFLE RC65-GAS MFR # 2910549027
10. #CHIMNEY USE 2910549027 MFR # 2910549035 Superseded: see description
11. #LEVEL MFR # 2930453002
12. #BUSHING MFR # 2910533005
13. #HOLDER MFR # 2910529003
14. #FEED PLUNGER MFR # 2910527005
15. #DOOR, LOWER MFR # 2963028002
16. #Refrigerator Door Lock; Use With Dometic RC65/ RC65G Model Refrigerators; With Key MFR # 2910565007 Superseded: see description
17. #FLUE, UPPER MFR # 2963309100

LP Gas Assembly

Components

62 items

1. #Head, Burner Large MFR # 64398001
2. #APPLIANCE COMPONENTS RV; Burner Large MFR # 63568000
3. #WIRE MESH TOP MFR # 155032006
4. #NO PART # GIVEN BY VENDOR MFR # NPG
5. #Ring, Large MFR # 63567002
6. #HOLDER RC65 G MFR # 64387004
7. #LOCKING RING FOR HOLDER MFR # 64389000
8. #SCREW, KS 1/4"X22 MM, Z. PL. MFR # 76719004
9. #SCREW, RXS BIOXIO, Z. PL. MFR # 7295408012
10. #BURNER HOLDER MFR # 2002901003
11. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
12. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
13. #APPLIANCE COMPONENTS RV; Jet #42 MFR # 2960082143
14. #N/A FOOT,BURNER MFR # 2002906002
15. #LOCKING WASHER MFR # 7352179019
16. #NUT MFR # 2002907000
17. #SEALING RING MFR # 169381001
18. #NUT,CONNECTING MFR # 169382009
19. #GAS INLET PIPE MFR # 2002908016
20. #NIPPLE MFR # 2002915003
21. #PLUG MFR # 2002916001
22. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
23. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
24. #COMPRESSION NUT M 13XI MFR # 64521008
25. #VALVE, SAFETY MFR # 293165
26. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
27. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
28. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
29. #MAGNET,SAFETY USE 2931656017 MFR # 2000999009 Superseded: see description
30. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
31. #T-COUPLE USE 3253307304 MFR # 169373008 Superseded: see description
32. #APPLIANCE COMPONENTS RV; T-Couple 47" MFR # 3253307304
33. #Dometic RM2652 Refrigerator Ice Maker Wiring Harness MFR # 2910786009
34. #Thermostat Bypass Screw; Replaces #22 Bypass Screw On Ranco Gas Thermostat MFR # 172819013MC
35. #BY PASS SCREW S-22 USE ALT 172819013MC MFR # 172819013 Superseded: see description
36. #DIAL PLATE MFR # 2910056031
37. #THERMOSTAT KNOB MFR # 17291008
38. #SCREW RM2200A MFR # 7295277011
39. #SCREW, RX 3 X 6, Z. PL. MFR # 7241220016
40. #GAS PRESSURE REGULATOR RT80, COMPLETE MFR # 291404002
41. #NIPPLE MFR # 273200006
42. #VALVE,GAS RC65 MFR # 270584006
43. #NIPPLE MFR # 160096004
44. #PACKING MFR # 64617004
45. #CONNECTION MFR # 160097002
46. #LIGHTER, COMPLETE MFR # 342509056
47. #Wheel Stud; Knurled MFR # 270130008
48. #FLINT MFR # 270127004
49. #SPRING MFR # 270137003
50. #SPRING HOLDER MFR # 270135007
51. #SPRING MFR # 342512001
52. #CLAMP MFR # 66769001
53. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
54. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
55. #PROTECTION PLATE MFR # 2910569009
56. #BAFFLE RC65-GAS MFR # 2910549027
57. #PACKING MFR # 2002917009
58. #COOLING UNIT, 811A, COMPLETE MFR # 9288111009
59. #FLUE MFR # 2910231006
60. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
61. #PLUG MFR # 2910673009
62. #BOTTLED GAS EQUIPMENT, COMPLETE MFR # 2910774013

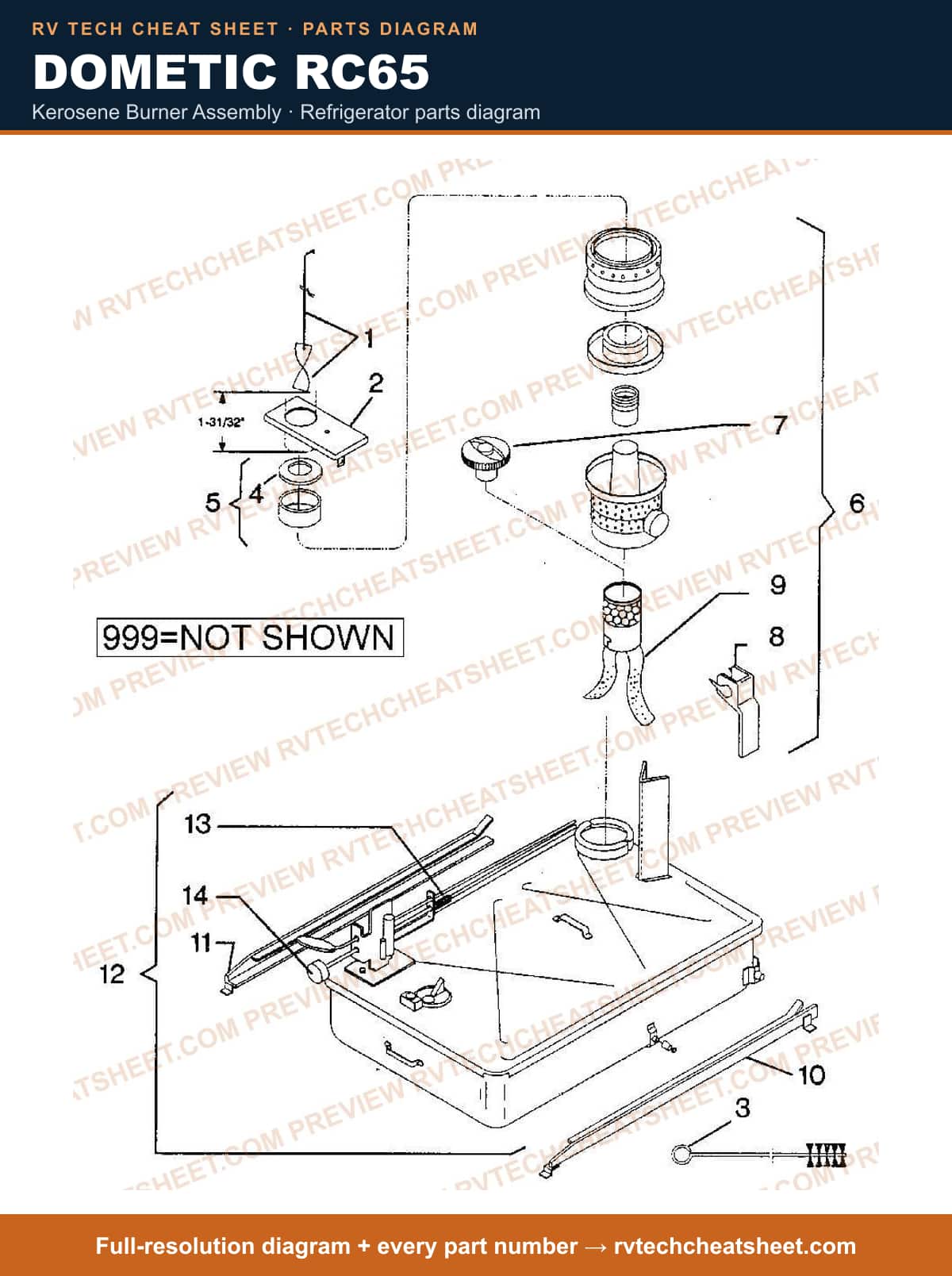

Kerosene Burner Assembly

Components

16 items

1. #CHIMNEY USE 2910549027 MFR # 2910549035 Superseded: see description
2. #BAFFLE RC65-GAS MFR # 2910549027
3. #PLATE MFR # 156968018
4. #BRUSH MFR # 157418005D
5. #SEALING RING MFR # 157051004D
6. #GLASS,LAMP ASSEMBLY MFR # 157052010
7. #Refrigerator Burner Tube; Replacement For Dometic RAK1302/ RC65K/ RK400 Refrigerators MFR # 2890060003
8. #WICK CLEANER MFR # 2890065002
9. #WICK CARRIER MFR # 2890061001
10. #WICK #23 MFR # 2890062009
11. #GUIDE RAIL, RH MFR # 2910531025
12. #GUIDE RAIL, LH MFR # 2910531017
13. #TANK,KEROSENE MFR # 160127007
14. #TANK,METAL USE 160127007 MFR # 160127023 Superseded: see description
15. #SPRING MFR # 156589004D
16. #KNOB MFR # 172497000D

Cabinet & Cooling Unit Product # 920233401 Canada

Components

18 items

1. #APPLIANCE COMPONENTS RV; Lid Freezer MFR # 2963001017
2. #LID ASSMEBLY W/ LOCK MFR # 2963001009
3. #DECORATION MFR # 2963032004
4. #COVER MFR # 2963029000
5. #HINGE, RH W/SPRING MFR # 2910522032
6. #HINGE, LH MFR # 2910522040
7. #BASKET MFR # 2910778006
8. #COOLING UNIT RC65 MFR # 2963004003N
9. #BAFFLE RC65-GAS MFR # 2910549027
10. #CHIMNEY USE 2910549027 MFR # 2910549035 Superseded: see description
11. #LEVEL MFR # 2930453002
12. #BUSHING MFR # 2910533005
13. #HOLDER MFR # 2910529003
14. #FEED PLUNGER MFR # 2910527005
15. #DOOR, LOWER MFR # 2963028002
16. #Refrigerator Door Lock; Use With Dometic RC65/ RC65G Model Refrigerators; With Key MFR # 2910565007 Superseded: see description
17. #FLUE, UPPER MFR # 2963309100
18. #PIPE, BURNER MFR # 2928749033

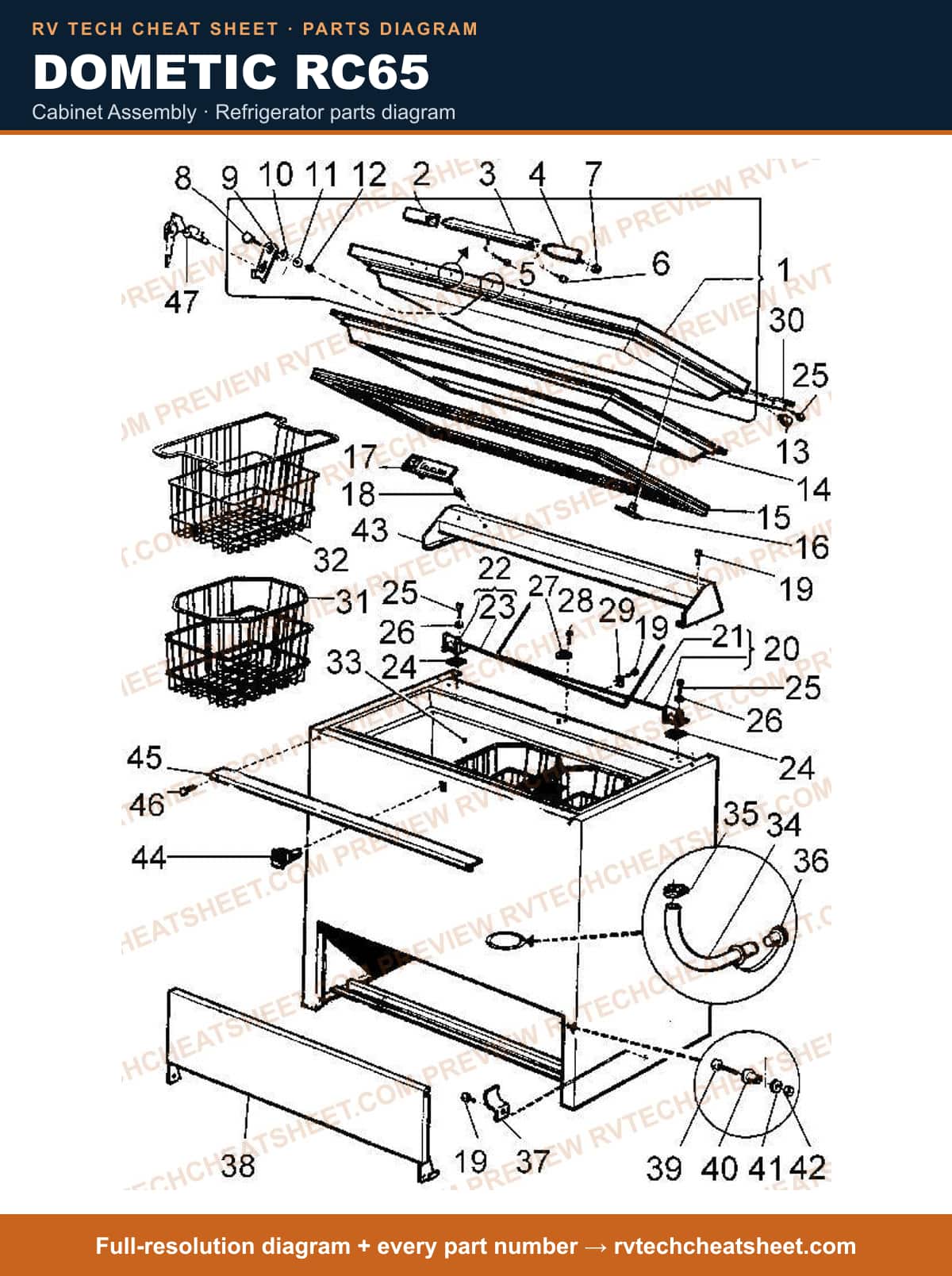

Cabinet Assembly

Components

49 items

1. #LID, INSULATED, WITH HANDLE MFR # 2910501044
2. #END PIECE, LH MFR # 2910495015
3. #HANDLE MFR # 2910497003
4. #END PIECE, RH MFR # 2910515044
5. #SCREW - RXS B8X13 - Z. PL. MFR # 7295342013
6. #SCREW RXS B6X5 MFR # 7295275015
7. #STOP WASHER MFR # 140087008
8. #SCREW MFR # 2910498001
9. #LOCK TONGUE MFR # 2910789003
10. #SPRING MFR # 2910790001
11. #LOCK WASHER, 4, 3, Z. PL. MFR # 7352136514
12. #NUT, M4, Z. PL. MFR # 7312312015
13. #GROMMET MFR # 2910537006
14. #INNER PANEL MFR # 2910494000
15. #GASKET USE 2910438163 MFR # 2910438163 Superseded: see description
16. #GASKET USE 2910438163 MFR # 2910438015 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Clip MFR # 4760206005
18. #CLIP USE 4760206005 MFR # 2910538004 Superseded: see description
19. #NAMEPLATE "ELECTROLUX" MFR # 2910765011
20. #MOUNTING SLEEVE MFR # 170811004
21. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
22. #HINGE,RIGHT MFR # 2910522016
23. #SPRING MFR # 2910539002
24. #APPLIANCE COMPONENTS RV; Hinge Left MFR # 2910522024
25. #SPRING MFR # 2910539010
26. #WASHER MFR # 2910553003
27. #SCREW, RX 5X10 Z. PL. MFR # 7241325013
28. #LOCK WASHER MFR # 2910543004
29. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
30. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
31. #LEVEL USE 2007645019 MFR # 2002875009 Superseded: see description
32. #SCREW, RXS B4 X 8, Z. PL. MFR # 7295223015
33. #HOLDER MFR # 2910715016
34. #DECORATION STRIP MFR # 2910478003
35. #BASKET MFR # 2910517008
36. #BASKET MFR # 2910778006
37. #HOSE MFR # 2910528005
38. #HOSE CLAMP MFR # 157809005
39. #PLUG MFR # 2910527007
40. #HOLDER MFR # 2910529003
41. #SCREW, RX 5 X 20, Z. PL. MFR # 7241331011
42. #BUSHING MFR # 2910533005
43. #Locking Washer MFR # 7352146018
44. #Nut M6M5, Zinc Plated MFR # 7312314011
45. #COVER MFR # 2910475033
46. #BUSHING,LOCK MFR # 2910532007
47. #FRONT STRIP MFR # 2910535000
48. #PLUG MFR # 2001354014
49. #Refrigerator Door Lock; Use With Dometic RC65/ RC65G Model Refrigerators; With Key MFR # 2910565007 Superseded: see description

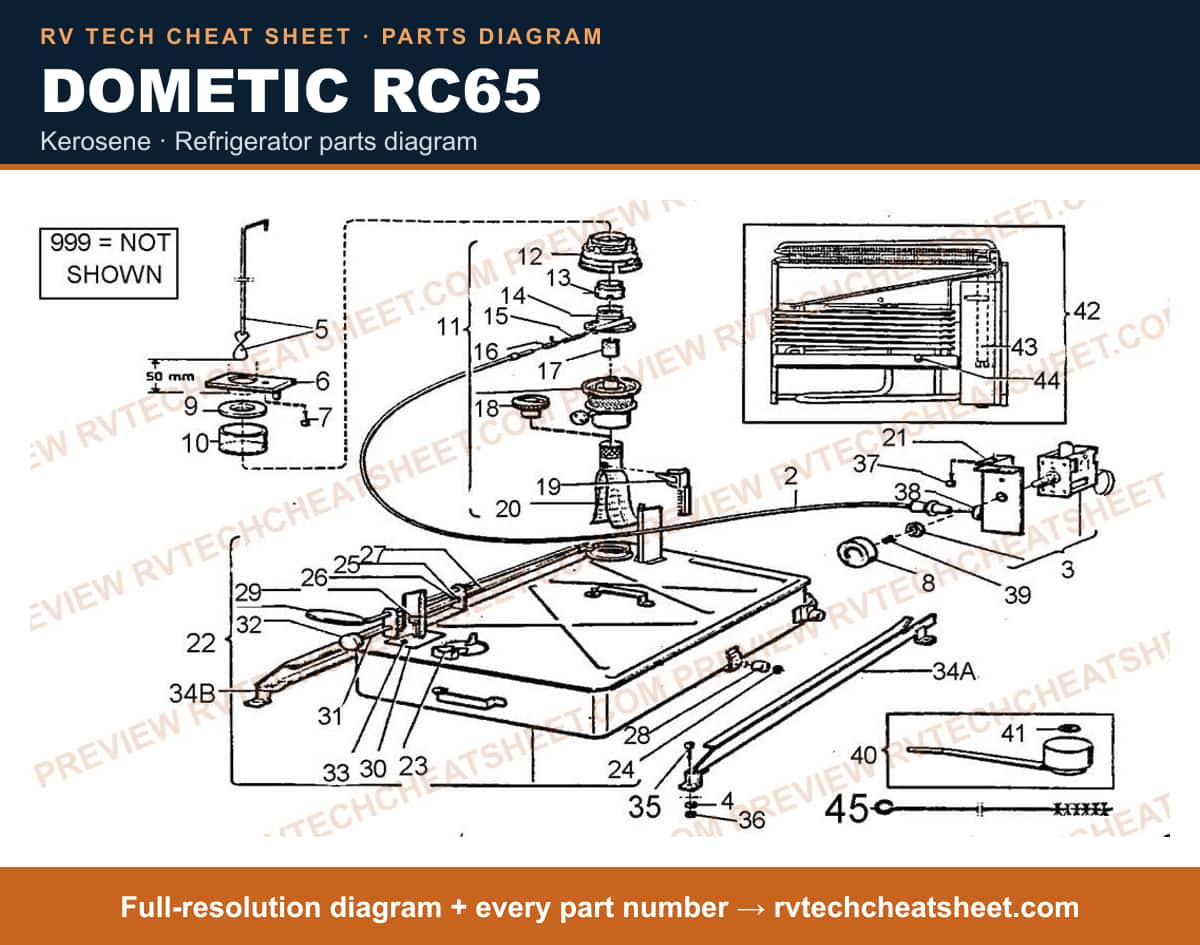

Kerosene

Components

46 items

1. #BOWDEN CABLE MFR # 2910389010
2. #THERMOSTAT, 050-2290 MFR # 2910769005
3. #LOCK WASHER, AZ 6.4, Z. PL MFR # 7352153014
4. #BAFFLE, COMPLETE MFR # 2910549019
5. #FASTENING PLATE WITH LOCATING PIN MFR # 156968000
6. #SCREW, RX 1/4" X 12, Z. PL. MFR # 149029001
7. #THERMOSTAT KNOB MFR # 2910775002
8. #CAP MFR # 157051004
9. #GLASS,LAMP ASSEMBLY MFR # 157052010
10. #GLASS,LAMP USE 157052010 L76,115 MFR # 157050006 Superseded: see description
11. #Refrigerator Burner Tube; Replacement For Dometic RAK1302/ RC65K/ RK400 Refrigerators MFR # 2890060003
12. #BURNER,COMPLETE USE 2890060003 MFR # 2910388004 Superseded: see description
13. #BURNER TOP MFR # 2910390000
14. #REGULATING RING MFR # 2910391008
15. #WICK GUIDE MFR # 2910392006
16. #SPRING MFR # 2910393004
17. #SLIDE MFR # 2910394002
18. #BURNER ASM MFR # 157054008
19. #WICK #23 MFR # 2890062009
20. #TANK,KEROSENE MFR # 2910776000
21. #TANK,KEROSENE MFR # 160127007
22. #Cover RM1302 MFR # 2930227000
23. #COVER,RM1302 USE 2930227000 MFR # 160124004 Superseded: see description
24. #LOOKING RING, SCO-1863-17-4 MFR # 160126009
25. #SPLIT COTTER PIN, SP 2xl2, BRASS, NI.PL. MFR # 7216150131
26. #WASHER, 8, 5 x l6, Z.PL. MFR # 7344963017
27. #SPRING MFR # 156589004
28. #ROLLER MFR # 160125001
29. #LEVEL INDICATOR MFR # 160076006
30. #NO PART # GIVEN BY VENDOR MFR # NPG
31. #KNOB MFR # 172495004
32. #KNOB MFR # 172497000
33. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
34. #GUIDE RAIL, LH MFR # 2910531017
35. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
36. #NUT M6, Z. PL. MFR # 7241371017
37. #SCREW, RXS Bl0 X 16, Z. PL. MFR # 7312316016
38. #SCREW, RXS Bl0 X 16, Z. PL. MFR # 7295412014
39. #SPRING MFR # 2910396007
40. #FUNNEL,FILLING MFR # 561026014
41. #FUNNEL,FILLING MFR # 166943001
42. #STRAINER MFR # 166942003
43. #COOLING UNIT, 811A, COMPLETE MFR # 9288111009
44. #FLUE MFR # 2910231006
45. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
46. #KEROSENE EQUIPMENT, COMPLETE MFR # 2910550017
