Dometic RG1350 Product # 958555809 Parts Diagram · Cabinet Rear View

Refrigerator · 6 assemblies · 6 diagram sheets · 86 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RG1350 Product # 958555809 RV refrigerator: 6 assemblies (Cabinet Rear View, Cabinet Exterior, Door Assembly, Cabinet Interior, Replacement Refrigerator and more) and 86 manufacturer part numbers. 8 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear View

Components

11 items

1. #S,TUBE,OVERFILL MFR # 2931829010
2. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
3. #Base Plate, Rear MFR # 3851204010
4. #S,PROTECTION PLATE,REAR MFR # 2932155019
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #S,DRAIN HOSE,1850MM,BLK MFR # 2932749175
7. #NEW FITS DOMETIC RM 1350 MFR # 6550
8. #Dometic RM2652 RM2662 Series Gas Valve Assembly MFR # 3313470015
9. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
10. #LABEL MFR # 3850600010
11. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054

Cabinet Exterior

Components

16 items

1. #FOOT, WINE CELLER MFR # 2955592015
2. #HINGE SUPPORT SVC KIT MFR # 3851550024
3. #GUIDING DEVICE,LOWER MFR # 3851103014
4. #APPLIANCE COMPONENTS RV; S,HINGE ASM,MID,R,BLK85K-1350/ MFR # 3851230049
5. #HINGE LOWER, BLACK, RH MFR # 3851230023
6. #HINGE LOWER, BLACK, LH MFR # 3851230015
7. #HINGE, MIDDLE, BLACK, LH MFR # 3851230031
8. #S,GUIDE,TOP FLAPR,BLK85K-1350 MFR # 3851102024
9. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
10. #HINGE KIT, UPPER LH, BLACK MFR # 3850989041
11. #HINGE KIT, UPPER RH, BLACK MFR # 3850989033
12. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
13. #S,HINGE PIN,LWR MFR # 2932649029
14. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
15. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
16. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057

Door Assembly

Components

18 items

1. #DOORS RV; S,DOOR ASM,FF,SS,R,RM1350 MFR # 3313470125
2. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
3. #3850973011 MFR # 3850973011
4. #SHELF,DOOR CLEAR MFR # 3851052013
5. #FREEZER DOOR RIGHT SS MFR # 3313470070
6. #Refrigerator Door Handle; Replacement For Dometic RM1350 Model Refrigerator; Fits Right Hand Side Freezer/ Left Hand Side Refrigerator; Black MFR # 3851159040
7. #Refrigerator Door Handle; Replacement For Dometic RM1350 Model Refrigerator; Fits Left Hand Side Freezer/ Right Hand Side Refrigerator; Black MFR # 3851159032
8. #APPLIANCE COMPONENTS RV; S,STOP,DR,L,VER 1,BLK8500-1350 MFR # 3851244016
9. #DOOR STOP RIGHT MFR # 3851244024
10. #FREEZER DOOR LEFT SS MFR # 3313470071
11. #Refrigerator Door; Replacement For Dometic RM1350 Series Refrigerator; Wrap Type; Lower Left; Stainless Steel MFR # 3313470126
12. #DOOR GASKET FREEZER MFR # 3851228027
13. #GASKET,DOOR REFER MFR # 3851228019
14. #DOOR FLAPPER SVC KIT MFR # 3851104046
15. #SCREW, RXS B8 4.2X16 MFR # 3858002276
16. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
17. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
18. #S,SCREW,EML,5*10,ZP,BLK-6-10/ MFR # 3858089018

Cabinet Interior

Components

16 items

1. #FOOT, WINE CELLER MFR # 2955592015
2. #HINGE SUPPORT SVC KIT MFR # 3851550024
3. #GUIDING DEVICE,LOWER MFR # 3851103014
4. #APPLIANCE COMPONENTS RV; S,HINGE ASM,MID,R,BLK85K-1350/ MFR # 3851230049
5. #HINGE LOWER, BLACK, RH MFR # 3851230023
6. #HINGE LOWER, BLACK, LH MFR # 3851230015
7. #HINGE, MIDDLE, BLACK, LH MFR # 3851230031
8. #S,GUIDE,TOP FLAPR,BLK85K-1350 MFR # 3851102024
9. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
10. #HINGE KIT, UPPER LH, BLACK MFR # 3850989041
11. #HINGE KIT, UPPER RH, BLACK MFR # 3850989033
12. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
13. #S,HINGE PIN,LWR MFR # 2932649029
14. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
15. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
16. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057

Replacement Refrigerator

Components

1 item

1. #FREESTANDING REFRIG, 13 CU FT, 4 DOOR MFR # RG1350W

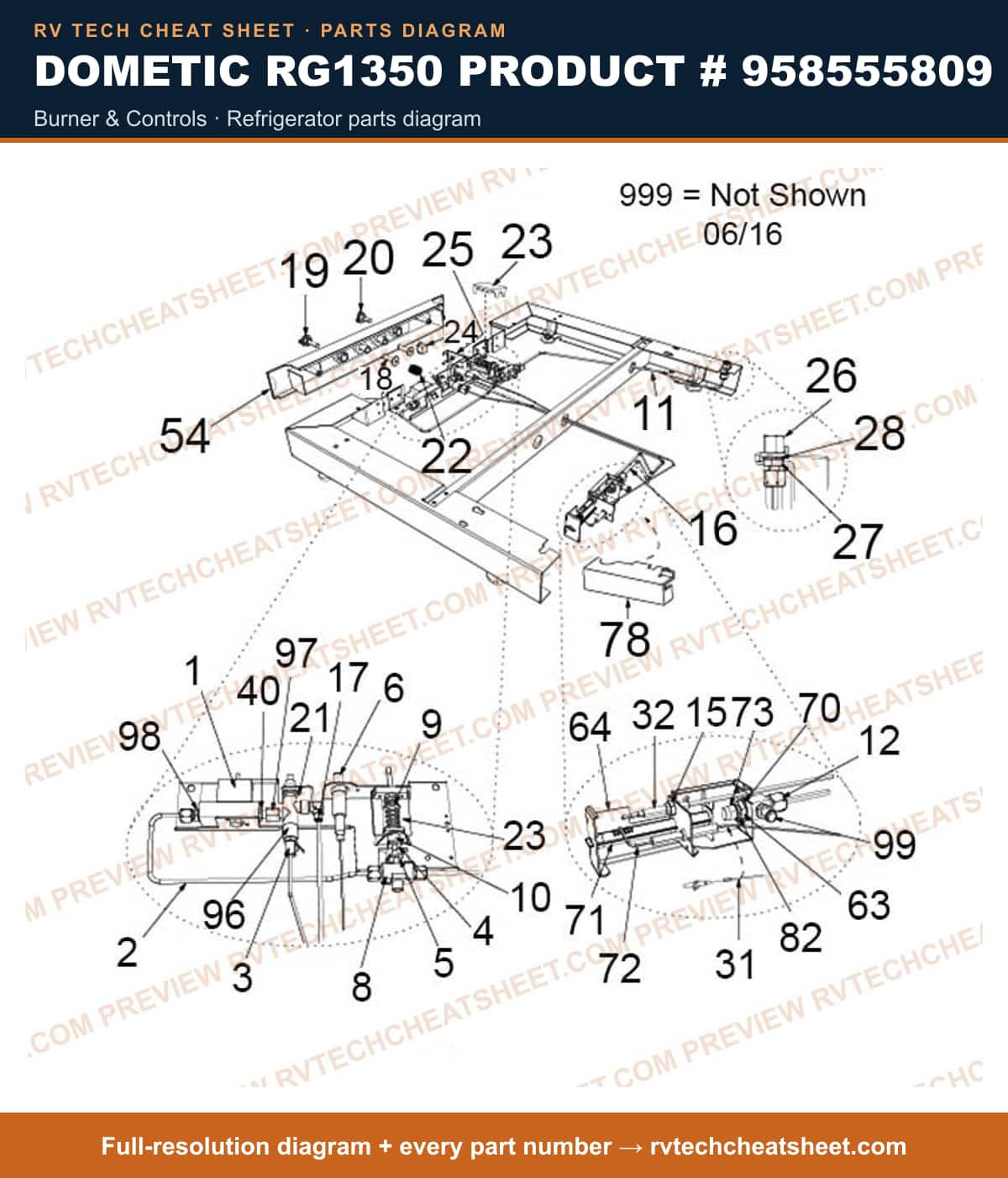

Burner & Controls

Components

40 items

1. #NO LONGER AVAILABLE MFR # 2931336032
2. #APPLIANCE COMPONENTS RV; Tube Gas MFR # 2932619014
3. #INTERRUPTER MFR # 2955033002
4. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
5. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
6. #S,PIEZO IGNITER,W/NUT,RM2352 MFR # 2931796011
7. #APPLIANCE COMPONENTS RV; Valve Manual Gas MFR # 2932617018
8. #Refrigerator Power Selector Switch; Replacement For Dometic RM2353/ RG1350/ RM2552 Refrigerators MFR # 2932614015
9. #Refrigerator Bushing; Replacement For Dometic RM2353/ RG1350 Refrigerators; For Power Selector Switch MFR # 2932602010
10. #GAS CONNECTION SVC TUBE KIT MFR # 3851539019
11. #APPLIANCE COMPONENTS RV; NIPPLE MFR # 2931227017
12. #Nut, T-Couple MFR # 2801043015
13. #GAS BURNER TUBE SVC KIT MFR # 3851540017
14. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RM2453/ RM2552/ RM2453/ RM2352/ RM253/ RG1350/ RM2604 Model Refrigerator MFR # 2930488008
15. #Button, Push Black MFR # 2932596030
16. #KNOB ASM SVC KIT MFR # 2932605054
17. #KNOB ASM SVC KIT MFR # 2932607050
18. #GUIDING DEVICE MFR # 2932595016
19. #Refrigerator Door Latch Spring; Replacement For Dometic RG1350/ RM2453/ RM2552 Model Refrigerator MFR # 2932594019
20. #Refrigerator Power Selector Switch Cover; Use With Dometic RM2352/ RM2353 Model Refrigerators MFR # 2954023004 Superseded: see description
21. #APPLIANCE COMPONENTS RV; INDICATOR, FLAME MFR # 2955037011
22. #VOLTMETER BRACKET SVC KIT MFR # 2933071017
23. #NIPPLE SVC KIT MFR # 2954068009
24. #BRASS NUT, 3/8" MFR # 2954069007
25. #WASHER SVC KIT, 10.5*16* MFR # 3858055019
26. #IGNITOR WIRING ASM SVC KIT MFR # 2931360065
27. #S,THERMOCOUPLE,RM2352 MFR # 2932337013
28. #Thermostat Housing Bolt; Use With Dometic RM2352/ RM2353 Refrigerators MFR # 2954070005 Superseded: see description
29. #BASE FRONT SVC KIT MFR # 2932476043
30. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
31. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
32. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
33. #NO GENERIC NAME;;REFRIGERATOR - BURNER TUBE ONLY - D MFR # 2007484047
34. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
35. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
36. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
37. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018
38. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
39. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
40. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2452/ RG1350/ RM2353 Refrigerators MFR # 2932591015
