Dometic RGE400 Product # 921172008 Parts Diagram · Cabinet Interior

Refrigerator · 6 assemblies · 6 diagram sheets · 135 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RGE400 Product # 921172008 RV refrigerator: 6 assemblies (Cabinet Interior, Burner & Control, Cabinet Rear View, Door Assembly, Cabinet Exterior and more) and 135 manufacturer part numbers. 26 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Interior

Components

25 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
3. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
4. #COOLING FLANGE MFR # 2932630029
5. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
6. #PLUG MFR # 2932112013
7. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
8. #HOSE MFR # 2932749050
9. #Dometic RM2652 RM2662 Gas Valve Solenoid Coil MFR # 2932625029
10. #Refrigerator Shelf; Replacement For Dometic RM2652/ RM4873/ RM4872 Refrigerators; Fresh Food Compartment; Wire MFR # 2932625045
11. #APPLIANCE COMPONENTS RV; Shelf Wire F/Rm4872 MFR # 2932625086
12. #Refrigerator Shelf; Replacement For Dometic RM3663/ RM4872/ RM3863 Refrigerators; Milk Compartment; Wire MFR # 2932626027
13. #S,CVR,CRISPER SHLF,CLR-400/410 MFR # 2931117085
14. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description
15. #Ice Bin; Replacement For Norcold 2117/ N1095/ N64X/ N84X/ N7LX/ N7LXIMF/ N8LX/ N8LXIMF/ N7LX/ N8LX/ NA8LX/ N10LX/ NA10LX Series Refrigerator; Clear MFR # 619007
16. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
17. #Refrigerator Crisper Bin; Replacement For Dometic RM2852/ RM2662 Refrigerators; White; Also Use New Number 29326210100 MFR # 2932621010 Superseded: see description
18. #CRISPER WHITE MFR # 9326210100
19. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
20. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
21. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
22. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
23. #Refrigerator Light Bulb; Replacement For Dometic RGE400 And RK400 Model Refrigerators; 6 Volt MFR # 2007290022
24. #COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description
25. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012

Burner & Control

Components

62 items

1. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
4. #S,THERMOCOUPLE-232MM MFR # 2931496042
5. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
6. #Coupling MFR # 2007518000
7. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
8. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
9. #Appliance Components RV; T-STAT MFR # 2007199041
10. #Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC
11. #APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021
12. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
13. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
14. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
15. #Appliance Components RV; Nut Union MFR # 172809006
16. #BRACKET MFR # 2932796028
17. #S,SWITCH,RM2410-2810 MFR # 2007432004
18. #Appliance Components RV; Cover Switch MFR # 2007439009
19. #Screw MFR # 140730011
20. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
21. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
22. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014
23. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
24. #Igniter, Piezo MFR # 2007423003
25. #Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description
26. #Appliance Components RV; Retainer MFR # 2007424001
27. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
28. #Bracket Mount MFR # 2007410000
29. #Washer; Replacement For Dometic RGE400/ RM663/ RA1302 Model Refrigerators; Use With Thermocouple MFR # 7344915108 Superseded: see description
30. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
31. #Block Terminal Small 3 Poi MFR # 7627202562
32. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
33. #Ring, Sealing 2 Req. MFR # 140748005
34. #CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description
35. #CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description
36. #Catch Snap 12/120 (Fus) MFR # 2930066028
37. #BURNER MFR # 20075036
38. #Ignition Module; Replacement For Dometic RM1280/ RM1350/ RM1462/ RM2400/ RM2600/ RM2601/ RM2604/ RM2800/ RM2801/ RM2802/ RM2850/ RM2851/ RM2852/ RM3000/ RM3800/ RM3600/ RM3800/ RM4800/ RM7300/ RM7732/ RM7832 MFR # 2930379006
39. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
40. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
41. #SHAFT MFR # 2007475045
42. #Retainer, Burner MFR # 2007651017
43. #Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007
44. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
45. #Washer; Replacement For Dometic RM2410/ RA1302/ RGE400 Model Refrigerators; E-Shape; Use Refrigerator Gas Valve Adapter Fitting MFR # 7353113215 Superseded: see description
46. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
47. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
48. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
49. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
50. #SCREW M4 X 10 S MFR # 7241289615
51. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
52. #Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007
53. #2932667047 MFR # 2932667047
54. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
55. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
56. #Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017
57. #LIGHT CONDUCTOR MFR # 2932797018
58. #SWITCH BAR MFR # 2007468115
59. #SWITCH BAR MFR # 2007468099
60. #SHAFT MFR # 2007471044
61. #ELEMENT,HEATING,325W,120V MFR # 173742271
62. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010

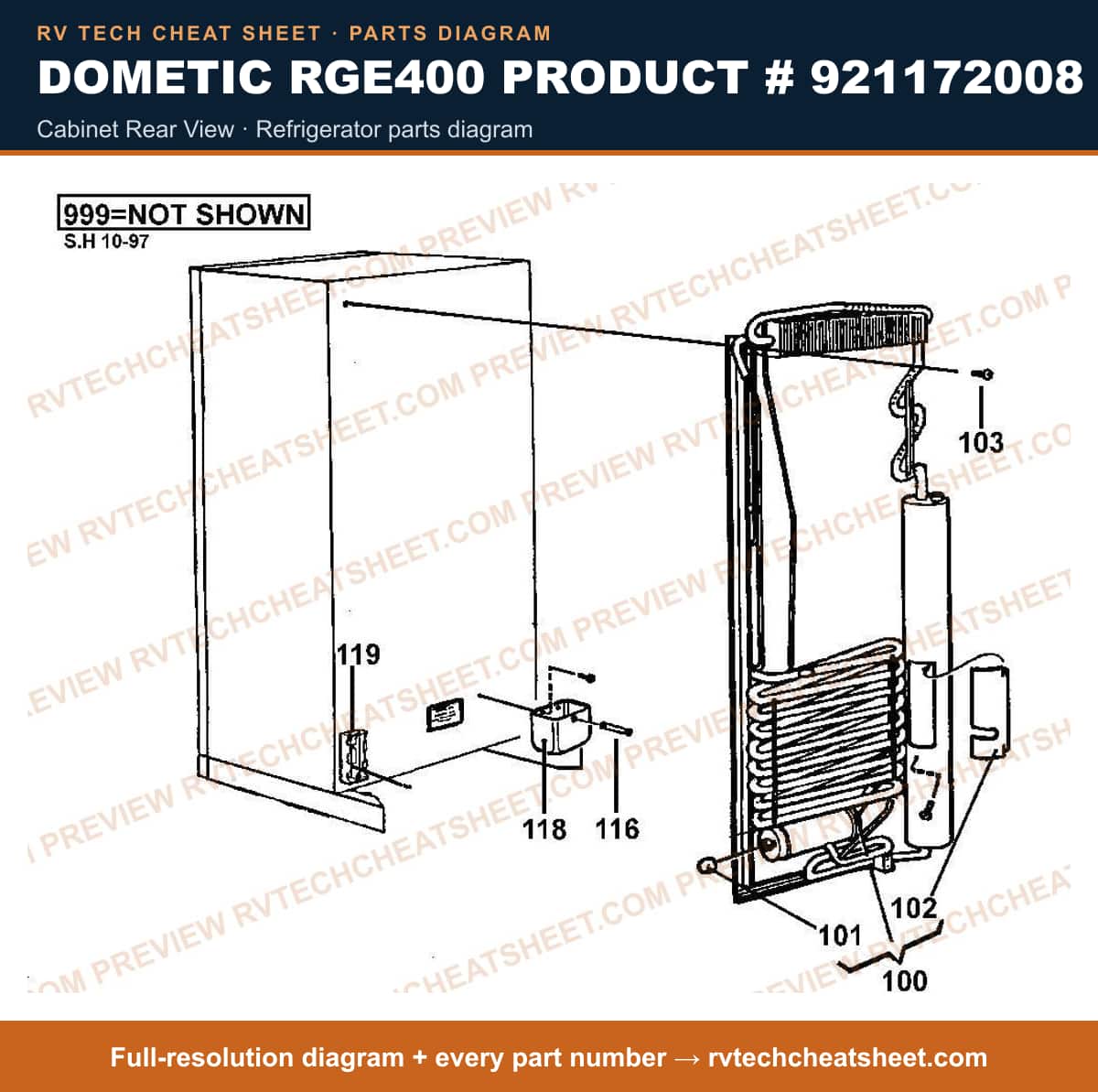

Cabinet Rear View

Components

8 items

1. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model RGE400 MFR # 2934807096N Superseded: see description
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
5. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
7. #S,TUBE,OVERFILL MFR # 2931829010
8. #Battery Box; Use With Dometic RGE400/ RK400 Refrigerators MFR # 2932849017 Superseded: see description

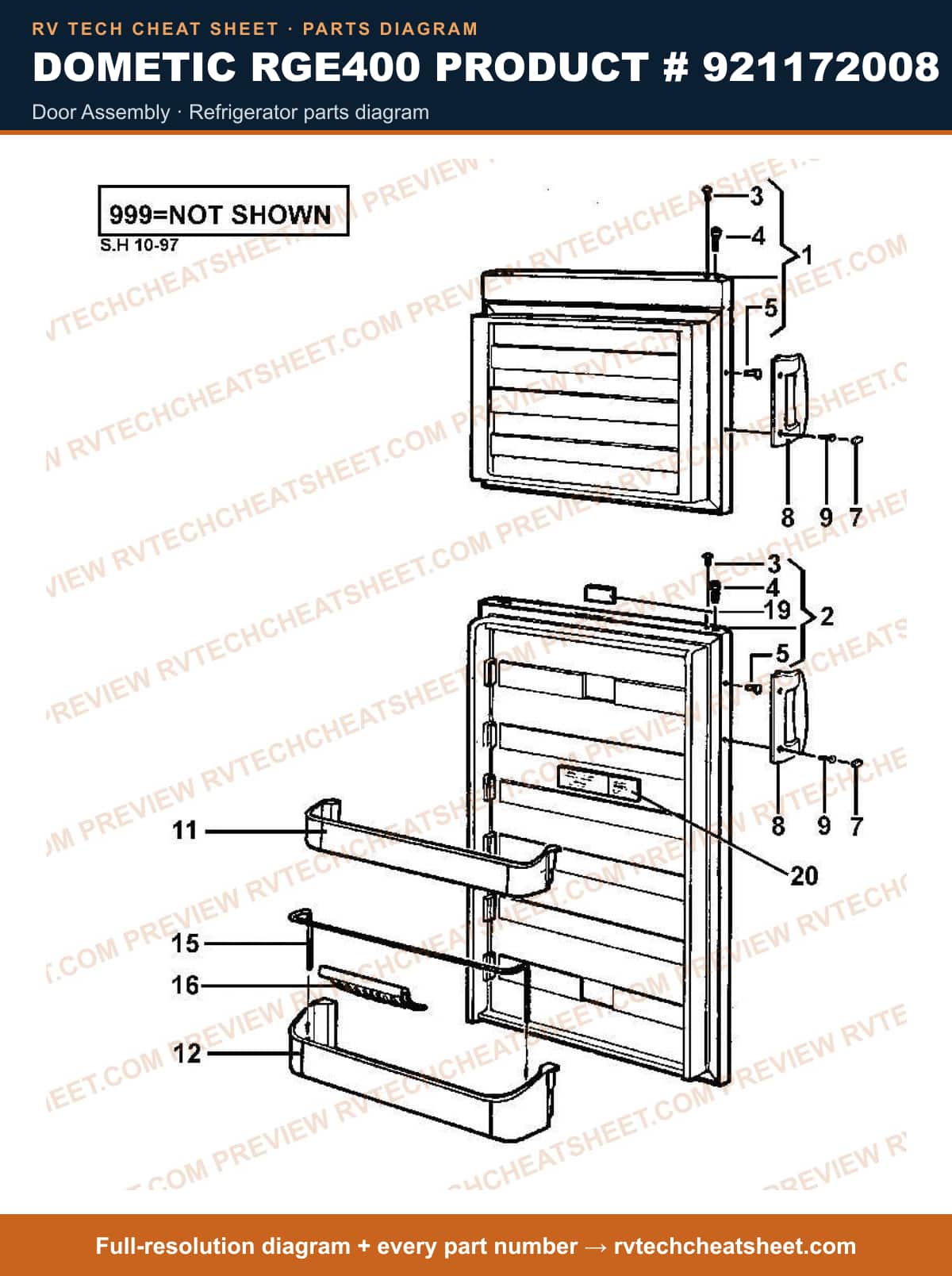

Door Assembly

Components

16 items

1. #DOOR REFRIGERATOR, BEIGE, ASSY MFR # 2932803139
2. #Refrigerator Gasket; Use With RGE400/ RK400 Series Refrigerators; Upper Door MFR # 3108708201 Superseded: see description
3. #Refrigerator Gasket; Replacement For Dometic RGE400/ RK400 Refrigerators; Lower Door Gasket; White MFR # 3108708219
4. #APPLIANCE COMPONENTS RV; Door Asm Lower Beige MFR # 2932805100
5. #PLUG, GREY MFR # 2059619037
6. #HINGE BUSHING, GREY MFR # 2059342036
7. #PLUG, GREY MFR # 2057493039
8. #PLUG,GREY MFR # 2230030062
9. #SCREW MFR # 2058288016
10. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
11. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
12. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
13. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
14. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
15. #NAME PLATE MFR # 2931307017
16. #LABEL MFR # 2932937002

Cabinet Exterior

Components

26 items

1. #PLUG, WHITE MFR # 2932736065
2. #LABEL MFR # 2932940006
3. #S,HINGE,UPR,R,WHT MFR # 2932787050
4. #PROTECTION BAR, WHITE MFR # 2932801059
5. #Refrigerator Door Hinge Pin; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Top Hinge MFR # 2932790013
6. #SCREW M5X12 Z. PL. MFR # 7243327611
7. #APPLIANCE COMPONENTS RV; S, FOOT, LEVELING MFR # 2004003006
8. #SIGN PLATE MFR # 2932934009
9. #Refrigerator Support Rail Screw; Replacement For Dometic RA1302/ RGE400 Model Refrigerators MFR # 2002599005
10. #HINGE, MIDDLE RGE400, RK400 MFR # 2932788058
11. #SCREW, RX 5 X 20, Z. PL. MFR # 7241331011
12. #NUT, WHITE MFR # 2940715010
13. #PUSH BUTTON,WHITE MFR # 2007479070
14. #KNOB THERMOSTAT,ASSY MFR # 2007480326
15. #KNOB,ASSY MFR # 2007480359
16. #Refrigerator Door Hinge Pin; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Lower Hinge MFR # 2932792019
17. #Refrigerator Door Hinge; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Lower Cabinet Side; Bottom Right Hand; White MFR # 2932789023
18. #Refrigerator Door Hinge Pin; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Center Hinge MFR # 2932791011
19. #SCREW, F X S, B10X22, ZINCPLATED MFR # 7296415016
20. #HINGE, LOWER, LEFT MFR # 2932789015
21. #SCREW,MRX,6X12 MFR # 3918367016
22. #PLUG, WHITE MFR # 2932373018
23. #S,COVER,CONTROLS-CLEAR MFR # 2932783018
24. #APPLIANCE COMPONENTS RV; Base Front White MFR # 2932782093
25. #BASE MFR # 2932836014
26. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model RGE400; Right To Left And Left To Right Reverse Door Hinge MFR # 2932372010 Superseded: see description

Direct Vent Kit

Components

1 item

1. #Refrigerator Vent; Use With Servel RGE400 Refrigerator MFR # 3108708540 Superseded: see description
