Dometic RH200 Minibar Product # 921517011 Parts Diagram · Cabinet Asm

Refrigerator · 2 assemblies · 2 diagram sheets · 28 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH200 Minibar Product # 921517011 RV refrigerator: 2 assemblies (Cabinet Asm, Door Asm) and 28 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

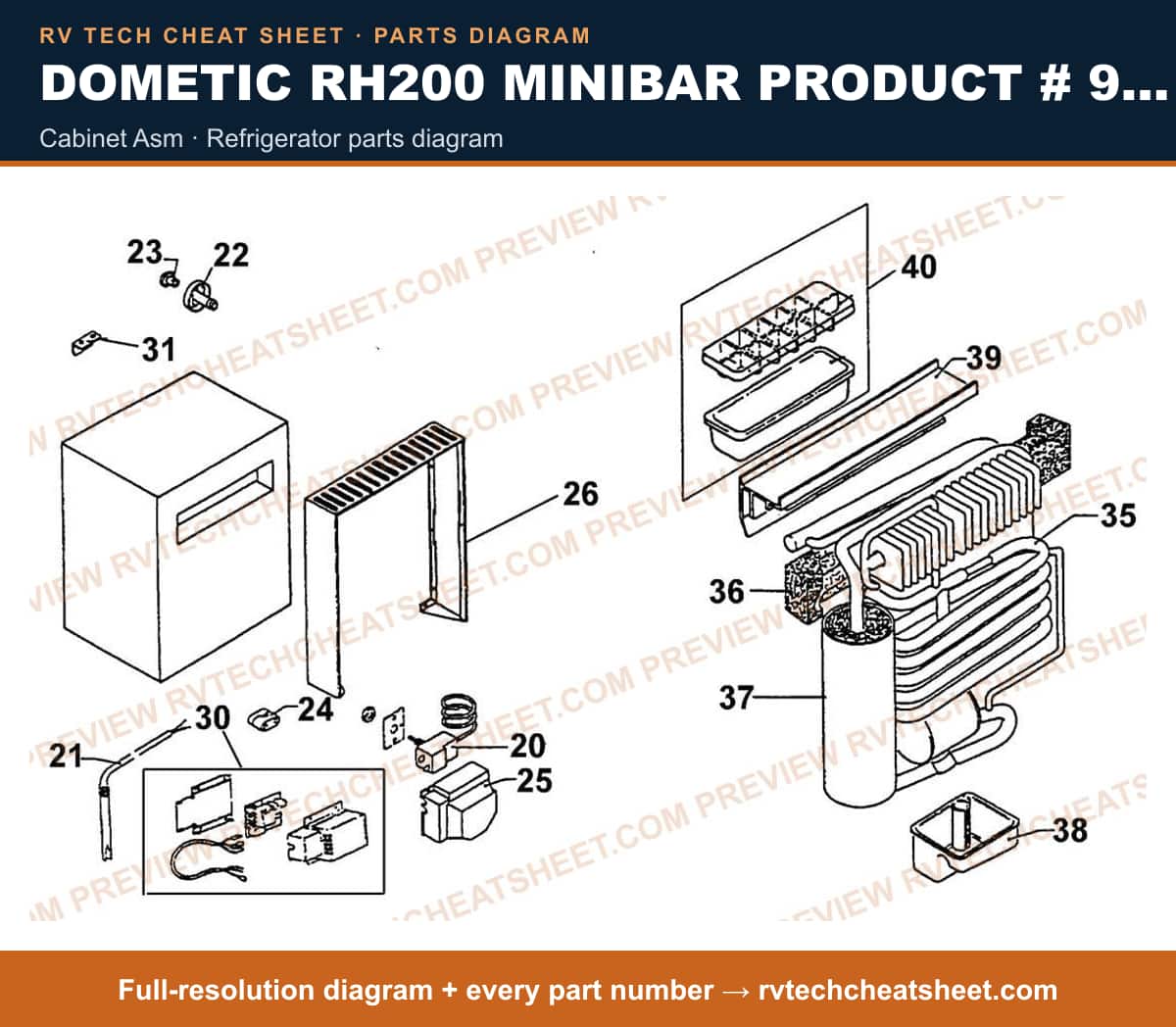

Cabinet Asm

Components

15 items

1. #Refrigerator Thermostat Control Assembly; For Dometic RC160TEG/ RC2000/ RH200 Refrigerators MFR # 2922007048
2. #IMMERSION, HEATER 65W, 120V MFR # 2929491773
3. #KNOB, THERMOSTAT , GRAY BLACK MFR # 2928999180
4. #COVER, GREY MFR # 2963410036
5. #CLIP MFR # 2922367103
6. #COVER, THERMOSTAT MFR # 2942515012
7. #COVER, COOLING UNIT VENT MFR # 2942507050
8. #TIMER MFR # 2942542040
9. #STRIKE, LOCK MFR # 2929021117
10. #COOLING UNIT, ASM , WITHOUT HEATER MFR # 2942312170
11. #INSULATION, BLOCK MFR # 2922640004
12. #INSULATION, BOILER MFR # 2922518051
13. #TRAY EVAPORATION MFR # 2942517000
14. #ICE TRAY SHELF MFR # 2942513017
15. #APPLIANCE COMPONENTS RV; Tray Ice Complete W/Tray MFR # 2926998002

Door Asm

Components

13 items

1. #DOOR , COMPLETE MFR # 2942531217
2. #HANDLE, DOOR MFR # 2942540051
3. #HINGE, UPPER RIGHT HAND MFR # 2929022057
4. #HINGE, LOWER RIGHT HAND MFR # 2929023055
5. #PIN, HINGE, LOWER MFR # 2963811001
6. #PIN, HINGE, UPPER MFR # 2963812009
7. #COVER, HINGE OPENING MFR # 2929025050
8. #SHELF, WIRE MFR # 2929427132
9. #Refrigerator Bushing; Replacement For Dometic Refrigerator Rc150Teg; Black MFR # 2922379009
10. #SHELF, DOOR MFR # 2942528015
11. #SLIDER FOR MINI SHELF MFR # 2923826016
12. #LOCK, ASM. MFR # 2935636114
13. #KEY, SIS LOCK MFR # 3102935016
