Dometic RH225 Parts Diagram · Door Assembly

Refrigerator · 3 assemblies · 3 diagram sheets · 33 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH225 RV refrigerator: 3 assemblies (Door Assembly, Rear View, Cabinet Assembly) and 33 manufacturer part numbers. 11 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

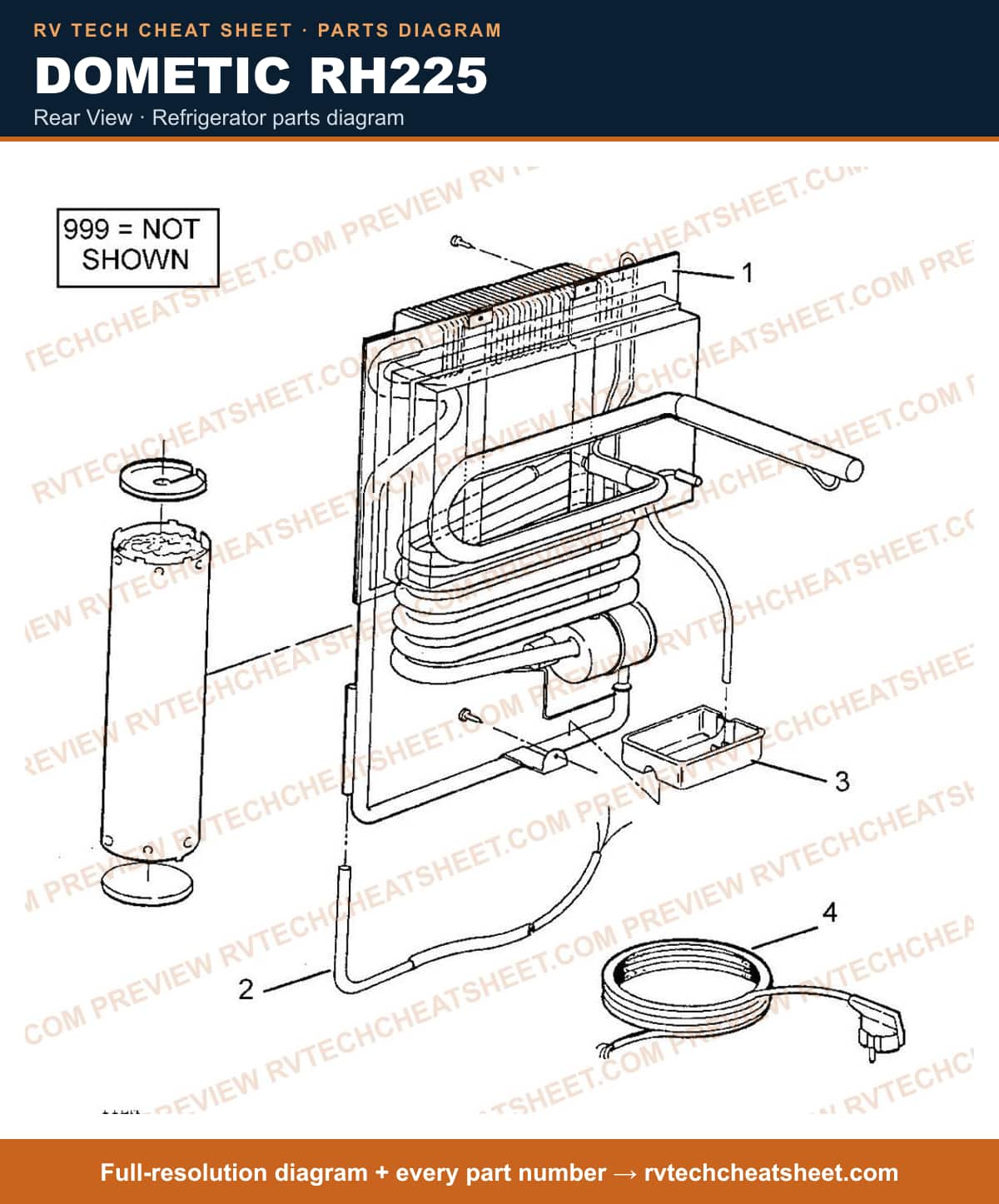

Rear View

Components

7 items

1. #ELEMENT, HTG USE 2923771006G RA125, RA138HD MFR # 2923771006 Superseded: see description
2. #ELEMENT, HEATING 3 WIRE 3/8" DIAM 90 DEG BEND 80W/120V MFR # 2951228002
3. #COOLING UNIT RECON MFR # 2923829002R
4. #ELEMENT, HEATING USE 2951228002 80W/120V MFR # 2923707059 Superseded: see description
5. #COOLING UNIT NEW MFR # 2923829002N
6. #EVAPORATOR TRAY MFR # 2923709006
7. #CORD, POWER MFR # 2923653006

Cabinet Assembly

Components

26 items

1. #CABINET,MINI BAR MFR # 2923971002
2. #BOX,MINI BAR MFR # 2923972000
3. #INNER LINER MFR # 2923973008
4. #VENT GRILL MFR # 2923062000
5. #COVER MFR # 2923028001
6. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
7. #T-STAT USE 2923738104 RA125HI,138HI MFR # 2923342006 Superseded: see description
8. #APPLIANCE COMPONENTS RV; T-Stat W/1000Mm Cap. MFR # 2923738104
9. #T-STAT USE AUTO DEF, 600MM CAP MFR # 2926533106 Superseded: see description
10. #THERMOSTAT USE 2926533106 MFR # 2923089003 Superseded: see description
11. #Refrigerator Thermostat Cover; Use With Dometic Refrigerators RA125H1/ RH225 MFR # 2923711002 Superseded: see description
12. #THERMOSTAT KNOB (RH225) MFR # 2923343004
13. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Thermostat Control Knob MFR # 2923379008 Superseded: see description
14. #BUTTON MFR # 2923344002
15. #HINGE, UPPER RIGHT MFR # 2923974006
16. #Refrigerator Door Hinge; Use With Dometic Refrigerators RH260/ RH225; Upper Right MFR # 2923975003 Superseded: see description
17. #HINGE, LOWER LEFT MFR # 2923977009
18. #HINGE, LOWER RIGHT MFR # 2923976001
19. #CASTER MFR # 2923978007
20. #TRAY, ICE USE 2922021015 MFR # 2923061002 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Tray Ice 2/Set MFR # 2922021015
22. #EVAPORATOR SHELF MFR # 29238223005
23. #DRIP TRAY USE 2935654109 MFR # 2923680009 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Shelf Rh225 MFR # 2923979005
25. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104
26. #TIMER, AUTO USE 2935492104 MFR # 2923873000 Superseded: see description
