Dometic RH238LD Minibar Prod# 921063211 Parts Diagram · Cabinet Components

Refrigerator · 3 assemblies · 3 diagram sheets · 45 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH238LD Minibar Prod# 921063211 RV refrigerator: 3 assemblies (Cabinet Components, Door Components, Rear View) and 45 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

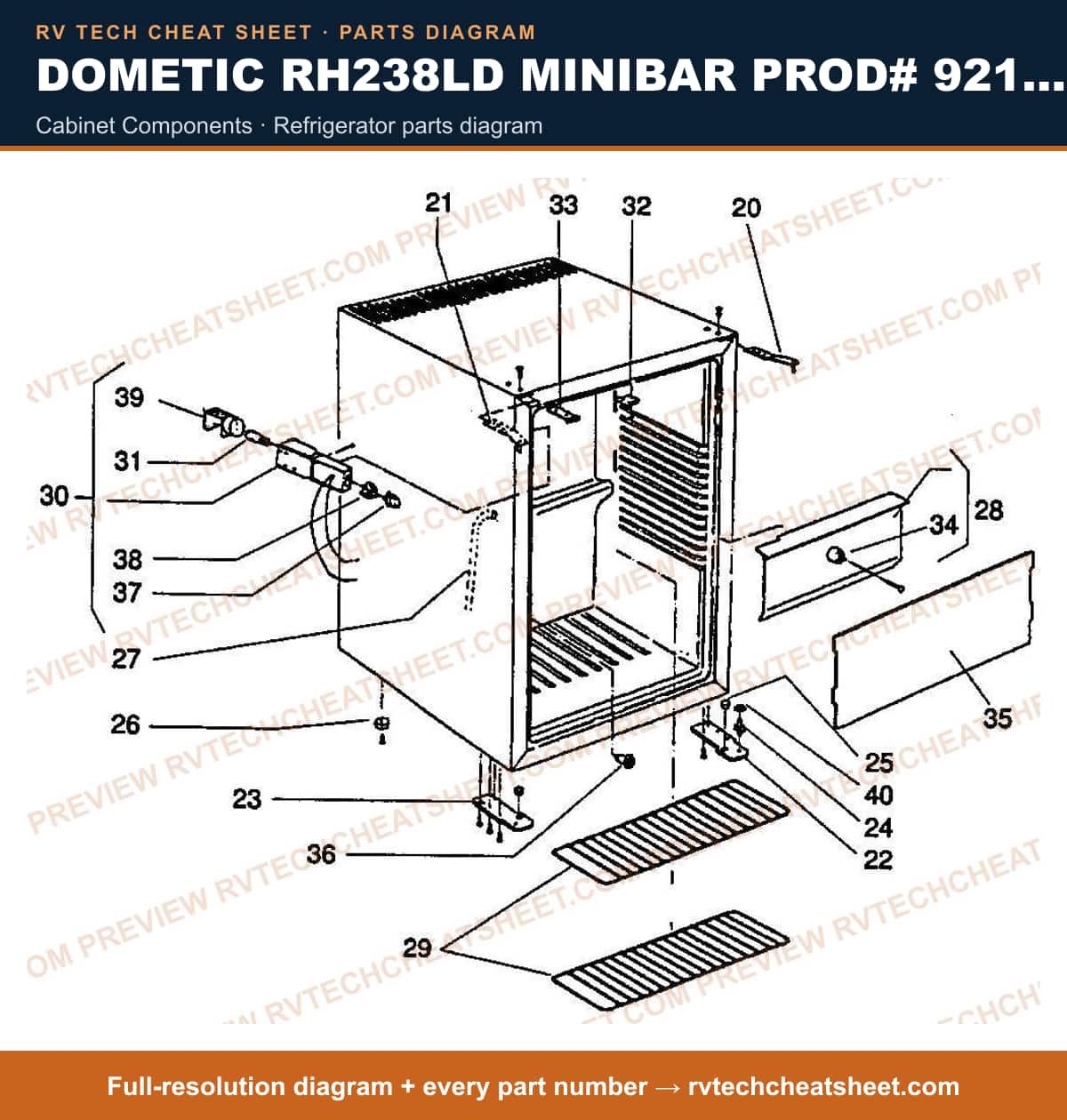

Cabinet Components

Components

22 items

1. #HINGE, UPPER RH MFR # 2951649009
2. #Refrigerator Door Hinge; Replacement For Dometic RM4180 Refrigerator; Fits Upper Door Side; Top Left Hand MFR # 2951648001
3. #HINDGE, LOWER RH MFR # 2951626007
4. #HINGE, LOWER LH MFR # 2951625009
5. #PIN, LOWER HINGE MFR # 2951629001
6. #COVER, HINGE LOWER MFR # 2951630009
7. #FOOT MFR # 2923297028
8. #HOSE, DRAIN USE 2923346056 MFR # 2923346072 Superseded: see description
9. #APPLIANCE COMPONENTS RV; HOSE, DRAIN MFR # 2923346056
10. #EVAPORATOR PLATE MFR # 2951617006
11. #SHELF, IT. GREY MFR # 2951411079
12. #LIGHT ASSEMBLY MFR # 2951799317
13. #BULB, 6/10W-110/140V MFR # 2923382309
14. #PLATE, STRIKE DOOR MFR # 2923677203
15. #COVER, HINGE MFR # 2926412012
16. #SPACER, EVAP. PLATE MFR # 2951638101
17. #RETAINER, PLATE MFR # 2951425004
18. #KNOB, T-STAT MFR # 2923835025
19. #BUTTON, PUSH INTERIOR LIGHT MFR # 2951797014
20. #SWITCH, INTERIOR LIGHT MFR # 2951847116
21. #COVER, LAMP MFR # 2942511607
22. #WASHER MFR # 2926572013

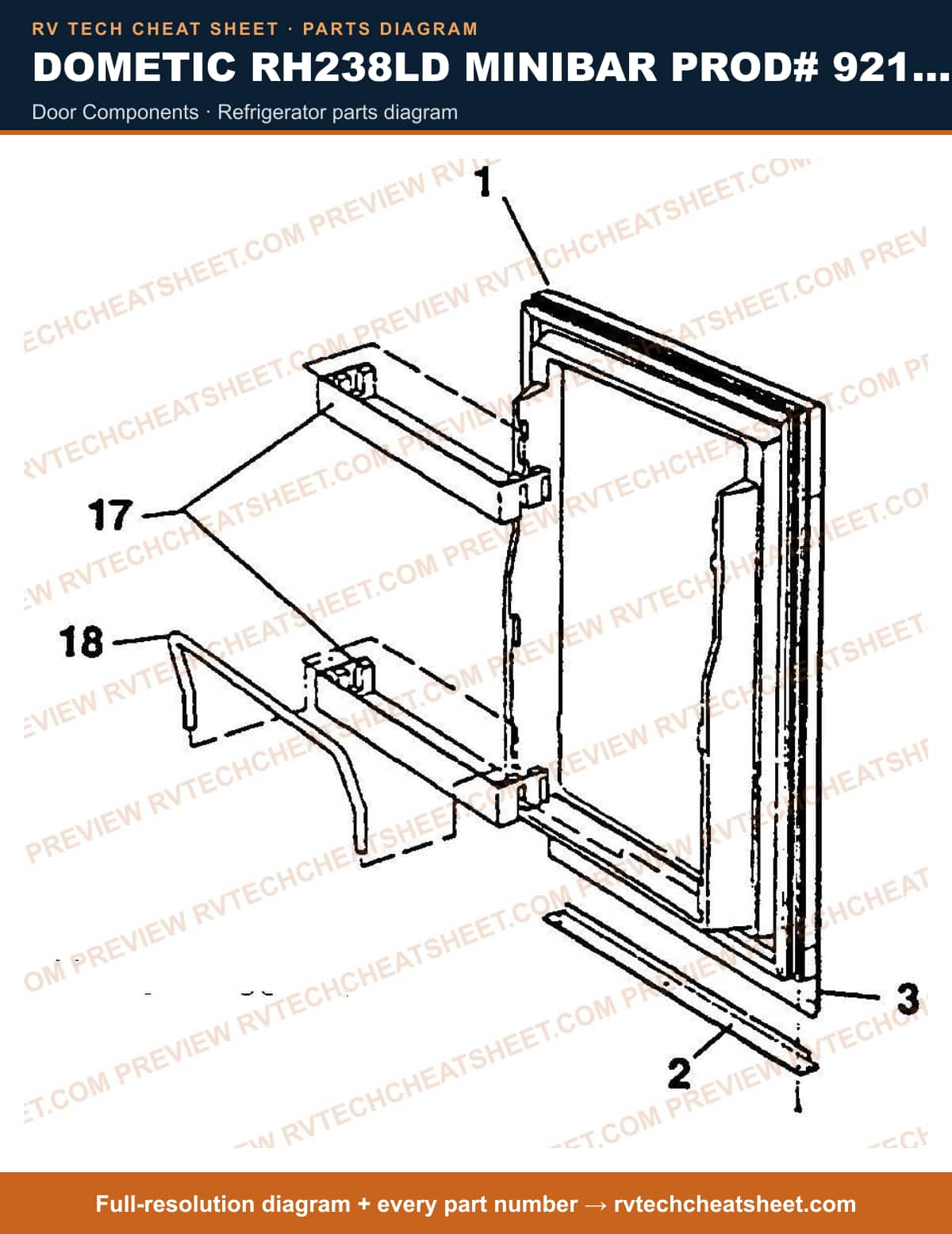

Door Components

Components

5 items

1. #DOOR COMPLETE MFR # 2936486303
2. #DOOR, LOWER TRIM MFR # 2951624101
3. #PLATE, DECORATION MFR # 2951696109
4. #SHELF , DOOR LOWER MFR # 2923946020
5. #BAR, SHELF MFR # 2923948000

Rear View

Components

18 items

1. #COVER MFR # 2924870211
2. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
3. #T-STAT USE AUTO DEF, 600MM CAP MFR # 2926533106 Superseded: see description
4. #NUT M10 RH25 MFR # 2927881009
5. #INSULATING PLATE MFR # 2923178004
6. #Refrigerator Terminal Block; For Dometic RM2193/ RM2202 Model Refrigerator; 3-Pole MFR # 2923466037
7. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
8. #CABLE, CLAMP, SIZE 8 MFR # 2926564002
9. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104
10. #SLEEVE, HOSE PROTECTION MFR # 2951236013
11. #POWER CORD' MFR # 2923772004
12. #COOLING UNIT W/HEATER MFR # 2935309506
13. #JACKET, BOILER MFR # 2924061100
14. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
15. #LID, UPPER, BOILER MFR # 2924063007
16. #LID, LOWER MFR # 2924062009
17. #EVAPORATOR TRAY MFR # 2923709006
18. #ELEMENT, HEATING 3 WIRE 3/8" DIAM 90 DEG BEND 80W/120V MFR # 2951228002
