Dometic RH238LD Minibar Prod# 921063240 Parts Diagram · Door Components

Refrigerator · 3 assemblies · 3 diagram sheets · 54 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH238LD Minibar Prod# 921063240 RV refrigerator: 3 assemblies (Door Components, Rear View, Cabinet Components) and 54 manufacturer part numbers. 4 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Components

Components

15 items

1. #DOOR, COMPLETE MFR # 293647605
2. #DOOR, LOWER TRIM MFR # 2951624101
3. #PLATE, DECORATION MFR # 2951696109
4. #BOW MFR # 2923825232
5. #SLIDER, MINIBAR, GRAY MFR # 2923826032
6. #BRACKET, BOW, GRAY MFR # 2923827022
7. #APPLIANCE COMPONENTS RV; Rivet Asm Drive Gray S MFR # 2927925012
8. #LOCK W/FALLING LATCH CHISMA MFR # 2935538419
9. #KEY, CHISMA, FACTORY VERSION MFR # 2935642104
10. #ROSETTE, BRASS MINIBARS MFR # 2924441104
11. #RED DOT MECHANISM MFR # 2926372026
12. #Key; Lock Key; Use With Dometic Minibar RH225/125 Refrigerator MFR # 2935657102 Superseded: see description
13. #SIGHT GLASS MFR # 2935709101
14. #PIPE RIVET MFR # 2926626017
15. #COVER MFR # 2951686100

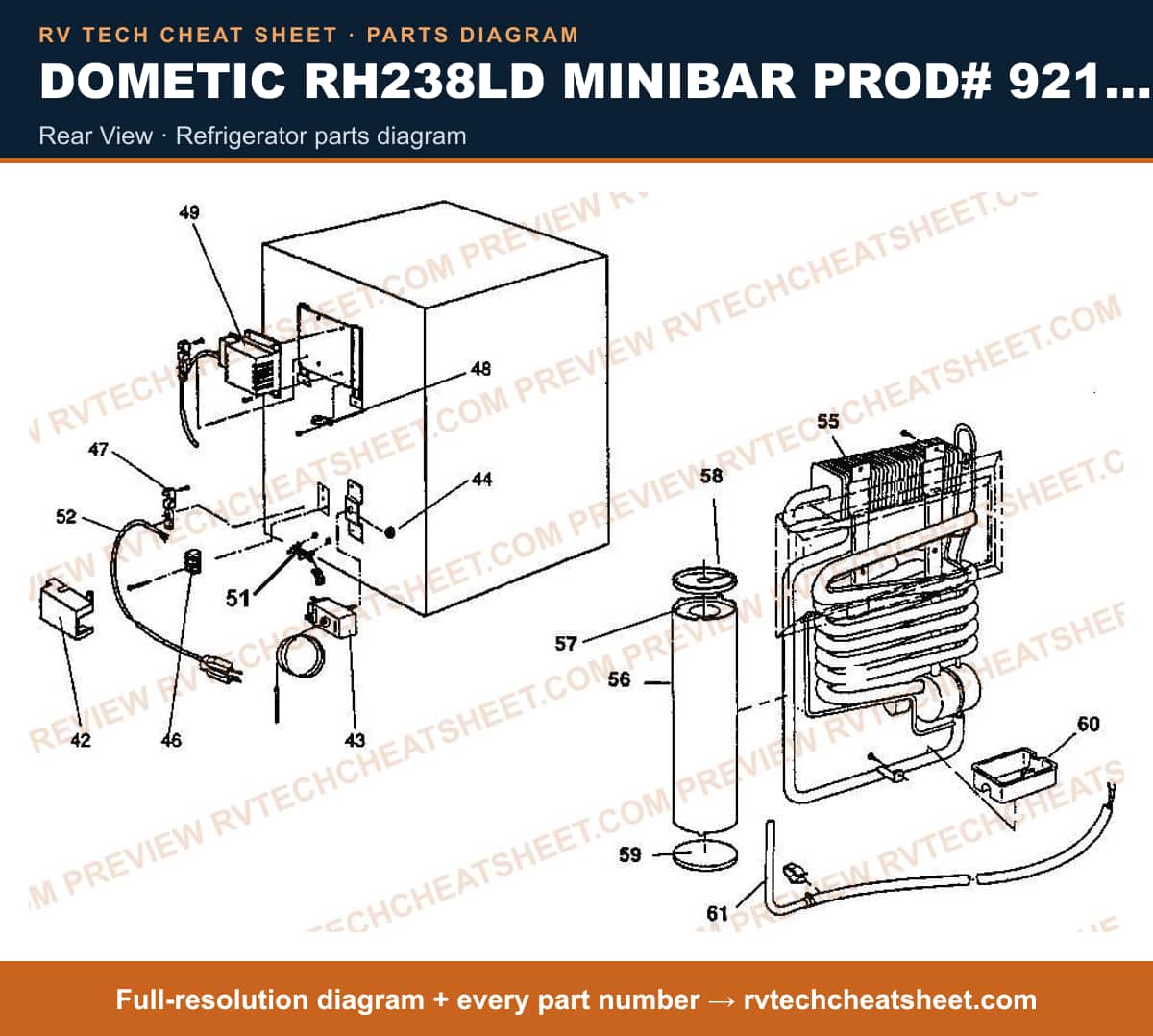

Rear View

Components

39 items

1. #HINGE, UPPER RH MFR # 2951649009
2. #Refrigerator Door Hinge; Replacement For Dometic RM4180 Refrigerator; Fits Upper Door Side; Top Left Hand MFR # 2951648001
3. #HINDGE, LOWER RH MFR # 2951626007
4. #HINGE, LOWER LH MFR # 2951625009
5. #PIN, LOWER HINGE MFR # 2951629001
6. #COVER, HINGE LOWER MFR # 2951630009
7. #FOOT MFR # 2923297028
8. #APPLIANCE COMPONENTS RV; HOSE, DRAIN MFR # 2923346056
9. #HOSE, DRAIN USE 2923346056 MFR # 2923346072 Superseded: see description
10. #EVAPORATOR PLATE MFR # 2951617006
11. #SHELF, IT. GREY MFR # 2951411079
12. #LIGHT ASSEMBLY MFR # 2951799317
13. #BULB, 6/10W-110/140V MFR # 2923382309
14. #PLATE, STRIKE DOOR MFR # 2923677203
15. #COVER, HINGE MFR # 2926412012
16. #SPACER, EVAP. PLATE MFR # 2951638101
17. #RETAINER, PLATE MFR # 2951425004
18. #KNOB, T-STAT MFR # 2923835025
19. #BUTTON, PUSH INTERIOR LIGHT MFR # 2951797014
20. #SWITCH, INTERIOR LIGHT MFR # 2951847116
21. #COVER, LAMP MFR # 2942511607
22. #WASHER MFR # 2926572013
23. #COVER MFR # 2924870211
24. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
25. #T-STAT USE AUTO DEF, 600MM CAP MFR # 2926533106 Superseded: see description
26. #NUT M10 RH25 MFR # 2927881009
27. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
29. #CABLE, CLAMP, SIZE 8 MFR # 2926564002
30. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104
31. #STRAIN RELIEF MFR # 2935319000
32. #POWER CORD' MFR # 2923772004
33. #COOLING UNIT W/HEATER MFR # 2935309506
34. #JACKET, BOILER MFR # 2924061100
35. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
36. #LID, UPPER, BOILER MFR # 2924063007
37. #LID, LOWER MFR # 2924062009
38. #EVAPORATOR TRAY MFR # 2923709006
39. #ELEMENT, HEATING 3 WIRE 3/8" DIAM 90 DEG BEND 80W/120V MFR # 2951228002

Cabinet Components

Components

20 items

1. #HINGE, UPPER RH MFR # 2951649009
2. #Refrigerator Door Hinge; Replacement For Dometic RM4180 Refrigerator; Fits Upper Door Side; Top Left Hand MFR # 2951648001
3. #HINDGE, LOWER RH MFR # 2951626007
4. #COVER, HINGE LOWER MFR # 2951630009
5. #PIN, LOWER HINGE MFR # 2951629001
6. #FOOT MFR # 2923297028
7. #HOSE, DRAIN USE 2923346056 MFR # 2923346072 Superseded: see description
8. #APPLIANCE COMPONENTS RV; HOSE, DRAIN MFR # 2923346056
9. #SHELF, IT. GREY MFR # 2951411079
10. #LIGHT ASSEMBLY MFR # 2951799317
11. #BULB, 6/10W-110/140V MFR # 2923382309
12. #PLATE, STRIKE DOOR MFR # 2923677203
13. #COVER, HINGE MFR # 2926412012
14. #SPACER, EVAP. PLATE MFR # 2951638101
15. #RETAINER, PLATE MFR # 2951425004
16. #KNOB, T-STAT MFR # 2923835025
17. #BUTTON, PUSH INTERIOR LIGHT MFR # 2951797014
18. #SWITCH, INTERIOR LIGHT MFR # 2951847116
19. #COVER, LAMP MFR # 2942511607
20. #WASHER MFR # 2926572013
