Dometic RH238LD Minibar Prod# 921063288 Parts Diagram · Rear View

Refrigerator · 3 assemblies · 3 diagram sheets · 53 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH238LD Minibar Prod# 921063288 RV refrigerator: 3 assemblies (Rear View, Door Components, Cabinet Components) and 53 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

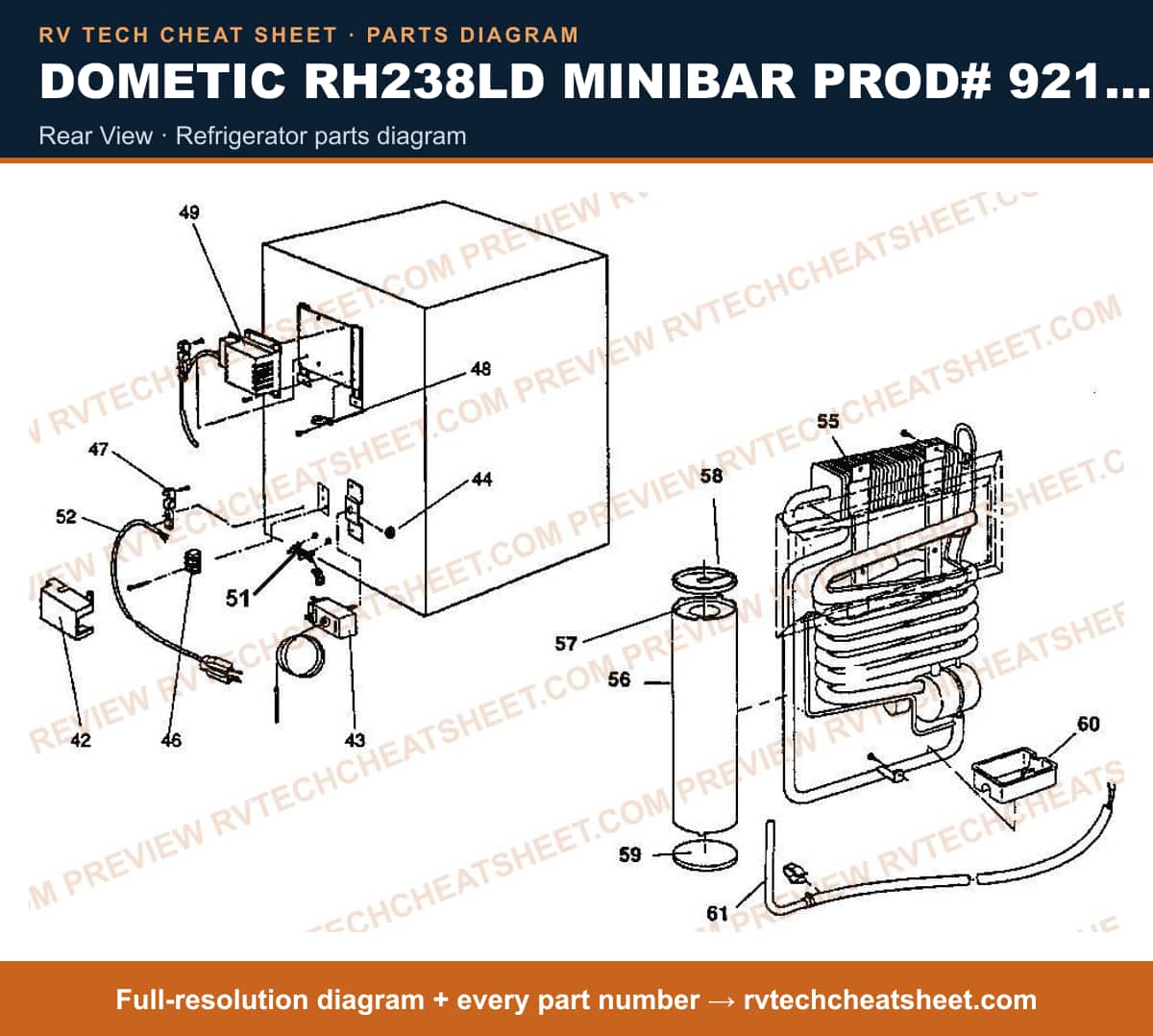

Rear View

Components

17 items

1. #COVER MFR # 2924870211
2. #T-STAT USE AUTO DEF, 600MM CAP MFR # 2926533106 Superseded: see description
3. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
4. #NUT M10 RH25 MFR # 2927881009
5. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
7. #CABLE, CLAMP, SIZE 8 MFR # 2926564002
8. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104
9. #STRAIN RELIEF MFR # 2935319000
10. #POWER CORD' MFR # 2923772004
11. #COOLING UNIT W/HEATER MFR # 2935309506
12. #JACKET, BOILER MFR # 2924061100
13. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
14. #LID, UPPER, BOILER MFR # 2924063007
15. #LID, LOWER MFR # 2924062009
16. #EVAPORATOR TRAY MFR # 2923709006
17. #ELEMENT, HEATING 3 WIRE 3/8" DIAM 90 DEG BEND 80W/120V MFR # 2951228002

Door Components

Components

15 items

1. #DOOR, COMPLETE MFR # 2936482609
2. #DOOR, LOWER TRIM (GRAY) MFR # 2951624309
3. #PLATE, DECORATION MFR # 2951696109
4. #SLIDER, MINIBAR, GRAY MFR # 2923826032
5. #LOCK W/FALLING LATCH CHISMA MFR # 2935538419
6. #KEY, CHISMA, FACTORY VERSION MFR # 2935642104
7. #ROSETTE, BRASS MINIBARS MFR # 2924441104
8. #RED DOT MECHANISM MFR # 2926372125D
9. #KEY MFR # 2935657201
10. #SIGHT GLASS MFR # 2935709101
11. #PIPE RIVET MFR # 2926626017
12. #COVER MFR # 2951686100
13. #SHELF , DOOR LOWER MFR # 2923946020
14. #BAR, SHELF MFR # 2923948000
15. #SHELF, DOOR, UPPER MFR # 2935367033

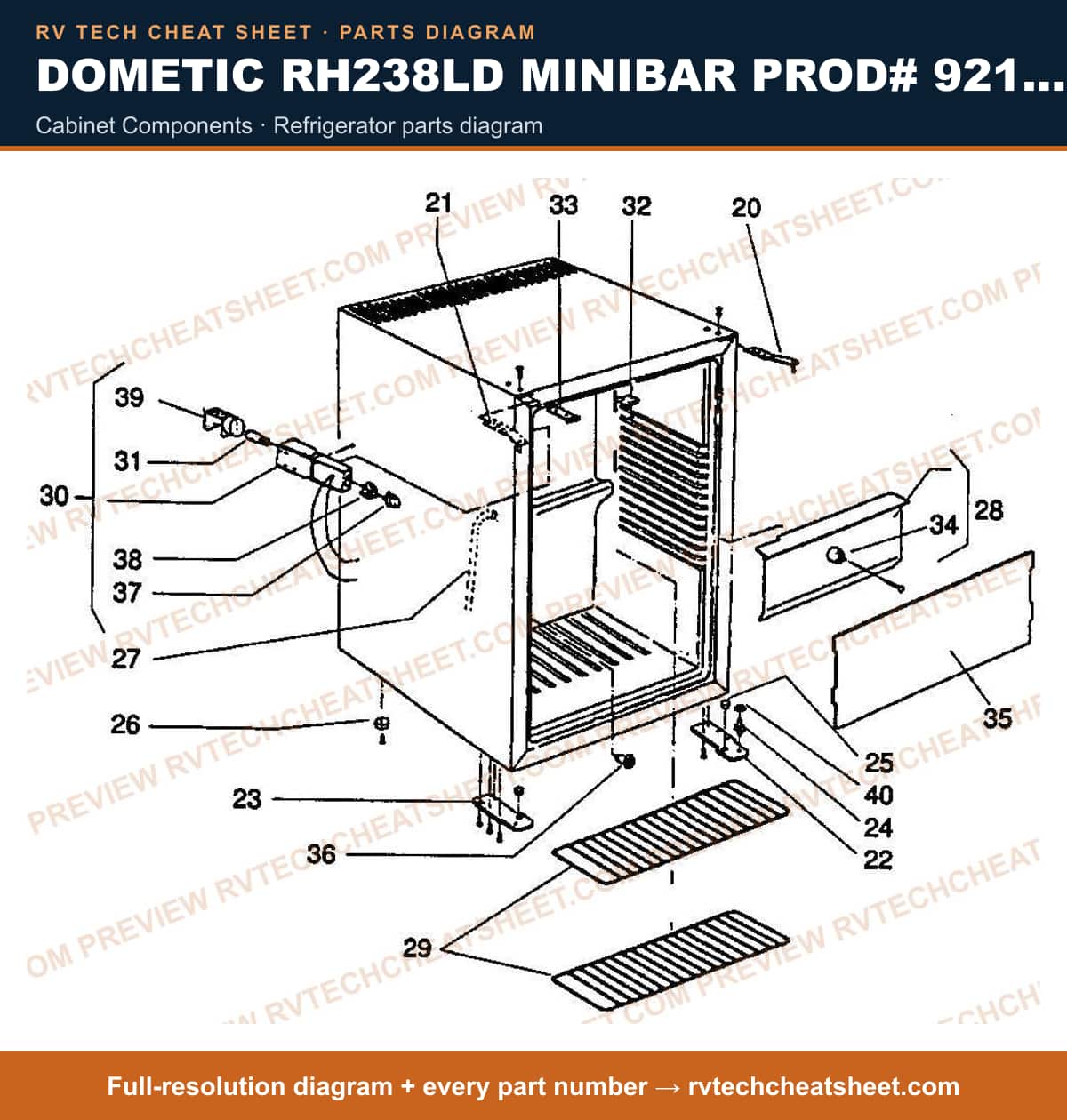

Cabinet Components

Components

21 items

1. #HINGE, UPPER RH MFR # 2951649009
2. #Refrigerator Door Hinge; Replacement For Dometic RM4180 Refrigerator; Fits Upper Door Side; Top Left Hand MFR # 2951648001
3. #HINDGE, LOWER RH MFR # 2951626007
4. #HINGE, LOWER LH MFR # 2951625009
5. #PIN, LOWER HINGE MFR # 2951629001
6. #COVER, HINGE LOWER MFR # 2951630009
7. #FOOT MFR # 2923297028
8. #HOSE, DRAIN USE 2923346056 MFR # 2923346072 Superseded: see description
9. #APPLIANCE COMPONENTS RV; HOSE, DRAIN MFR # 2923346056
10. #SHELF, IT. GREY MFR # 2951411079
11. #LIGHT ASSEMBLY MFR # 2951799317
12. #BULB, 6/10W-110/140V MFR # 2923382309
13. #PLATE, STRIKE DOOR MFR # 2923677203
14. #COVER, HINGE MFR # 2926412012
15. #SPACER, EVAP. PLATE MFR # 2951638101
16. #RETAINER, PLATE MFR # 2951425004
17. #KNOB, T-STAT MFR # 2923835025
18. #BUTTON, PUSH INTERIOR LIGHT MFR # 2951797014
19. #SWITCH, INTERIOR LIGHT MFR # 2951847116
20. #COVER, LAMP MFR # 2942511607
21. #WASHER MFR # 2926572013
