Dometic RH238LD Minibar Prod# 921063303 Parts Diagram · Rear View

Refrigerator · 3 assemblies · 3 diagram sheets · 51 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH238LD Minibar Prod# 921063303 RV refrigerator: 3 assemblies (Rear View, Door Components, Cabinet Components) and 51 manufacturer part numbers. 2 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Rear View

Components

17 items

1. #COVER, BLACK MFR # 2924870005
2. #T-STAT USE AUTO DEF, 600MM CAP MFR # 2926533106 Superseded: see description
3. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
4. #NUT M10 RH25 MFR # 2927881009
5. #TERMINAL BLOCK 5 POLE MFR # 2923611038
6. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
7. #CABLE, CLAMP, SIZE 8 MFR # 2926564002
8. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104
9. #SLEEVE, HOSE PROTECTION MFR # 2951236013
10. #POWER CORD' MFR # 2923772004
11. #COOLING UNIT W/HEATER MFR # 2935309324
12. #JACKET, BOILER MFR # 2924061100
13. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
14. #LID, UPPER, BOILER MFR # 2924063007
15. #LID, LOWER MFR # 2924062009
16. #EVAPORATOR TRAY MFR # 2923709006
17. #HEATER, 80W/120V MFR # 2952176010

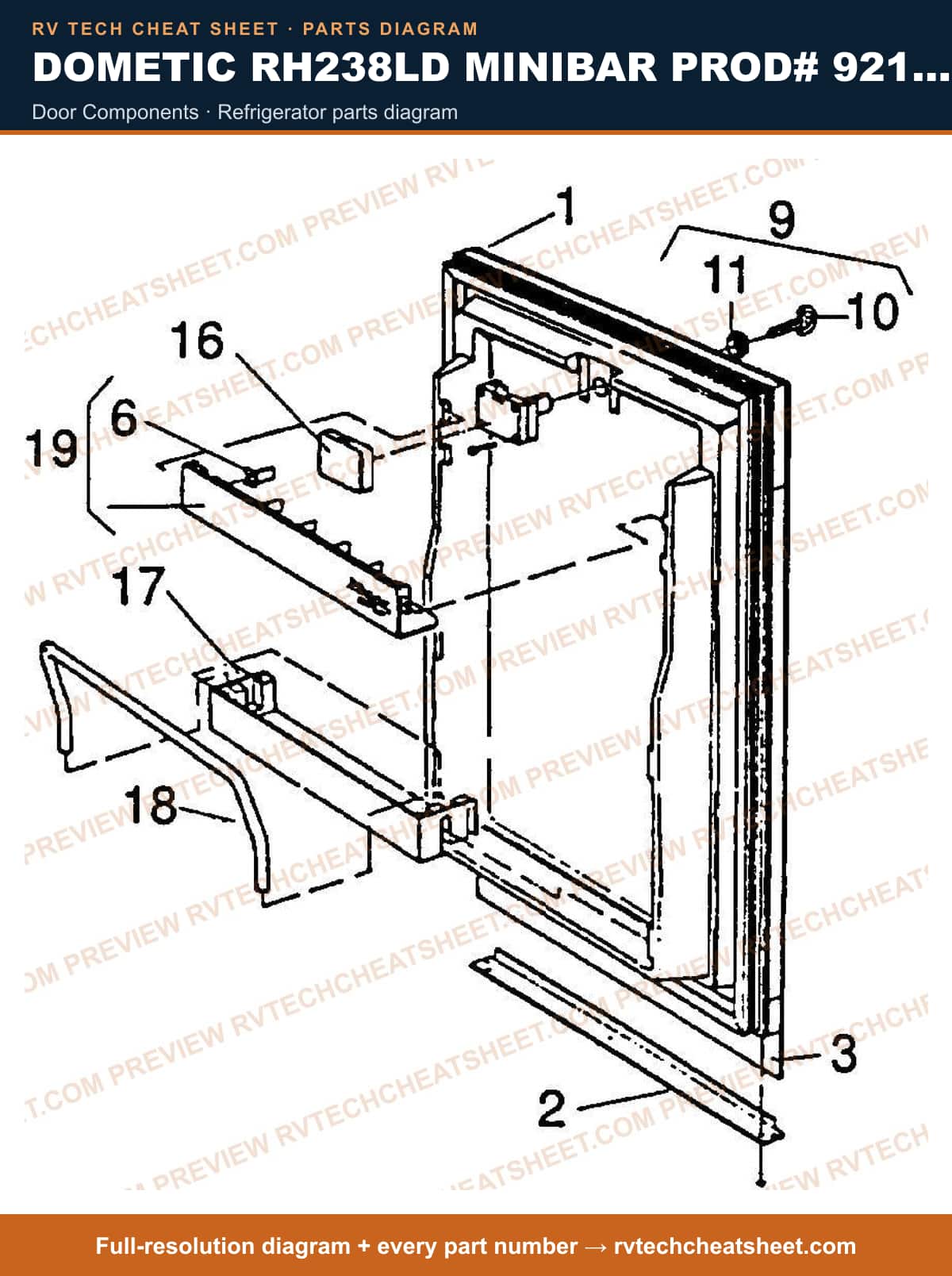

Door Components

Components

11 items

1. #DOOR, COMPLETE MFR # 2936462007
2. #DOOR, LOWER TRIM (GRAY) MFR # 2951624309
3. #PLATE, DECORATION MFR # 2951696000
4. #SLIDER, MINIBAR, GRAY MFR # 2923826032
5. #LOCK W/FALLING CATCH MFR # 2952077119
6. #KEY, W/CAP, GREY MFR # 2951835004
7. #ROSETTE MFR # 2951813001
8. #COVER MFR # 2951686100
9. #SHELF , DOOR LOWER MFR # 2923946020
10. #BAR, SHELF MFR # 2923948000
11. #SHELF, DOOR , UPPER W/ LOGO MFR # 2935367025

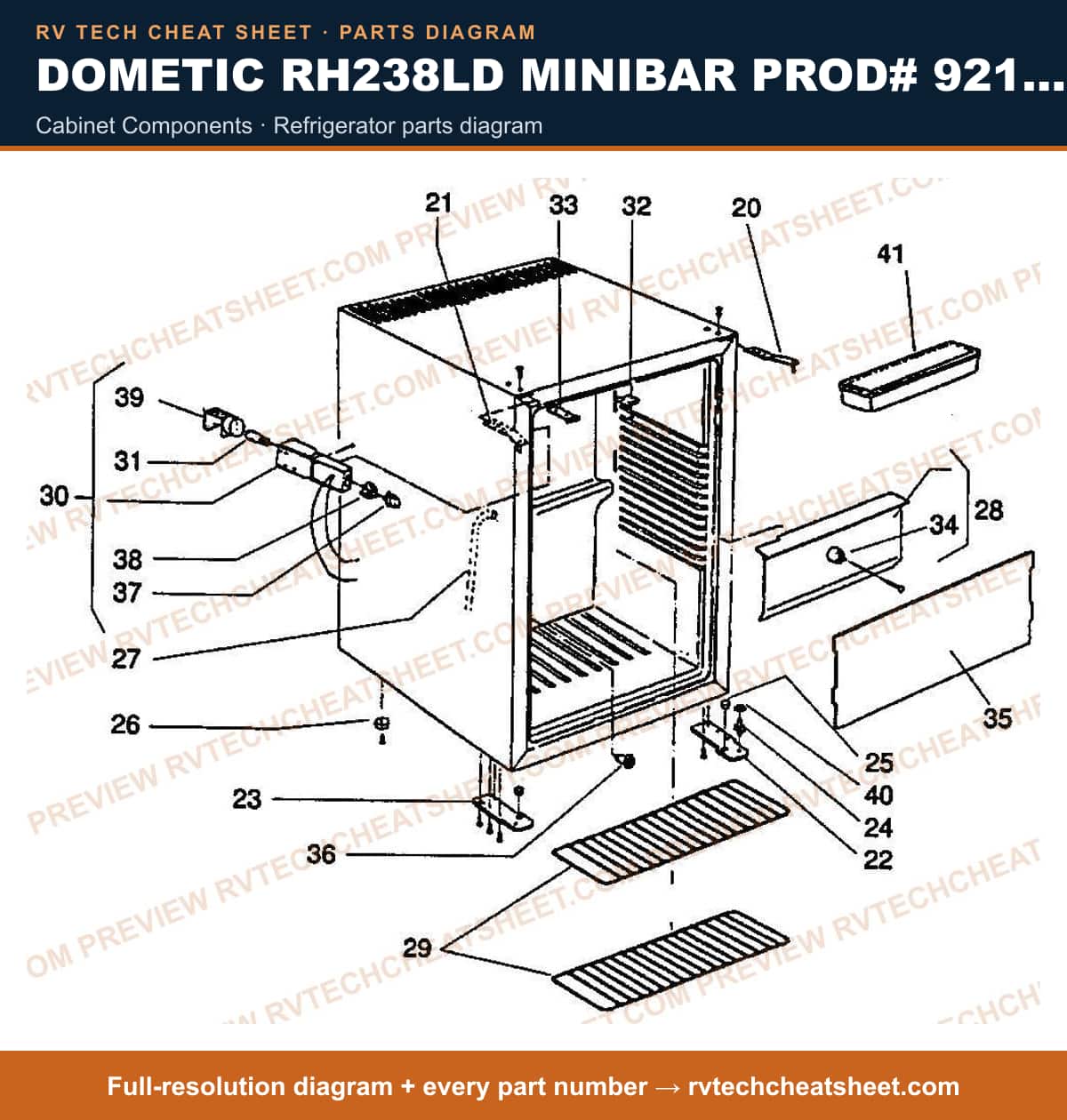

Cabinet Components

Components

23 items

1. #HINGE, UPPER RH MFR # 2951649009
2. #Refrigerator Door Hinge; Replacement For Dometic RM4180 Refrigerator; Fits Upper Door Side; Top Left Hand MFR # 2951648001
3. #HINDGE, LOWER RH MFR # 2951626007
4. #HINGE, LOWER LH MFR # 2951625009
5. #PIN, LOWER HINGE MFR # 2951629001
6. #COVER, HINGE LOWER MFR # 2951630009
7. #FOOT MFR # 2923297028
8. #APPLIANCE COMPONENTS RV; HOSE, DRAIN MFR # 2923346056
9. #HOSE, DRAIN USE 2923346056 MFR # 2923346072 Superseded: see description
10. #EVANP, PLATE MFR # 2951617105
11. #SHELF, IT. GREY MFR # 2951411079
12. #LIGHT ASSEMBLY MFR # 2951799317
13. #BULB, 6/10W-110/140V MFR # 2923382309
14. #PLATE, STRIKE DOOR MFR # 2923677203
15. #COVER, HINGE MFR # 2926412012
16. #SPACER, EVAP. PLATE MFR # 2951638101
17. #RETAINER, PLATE MFR # 2951425004
18. #KNOB, T-STAT MFR # 2923835025
19. #BUTTON, PUSH INTERIOR LIGHT MFR # 2951797014
20. #SWITCH, INTERIOR LIGHT MFR # 2951847116
21. #COVER, LAMP MFR # 2942511607
22. #WASHER MFR # 2926572013
23. #ICE TRAY W/LID MFR # 2926968002
