Dometic RH250 Series RH250D Minibar Parts Diagram · P#921860981 › Cabinet Components Assembly

Refrigerator · 32 assemblies · 32 diagram sheets · 67 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH250 Series RH250D Minibar RV refrigerator: 32 assemblies (P#921860981 › Cabinet Components Assembly, P#921860951 › Door Components Assembly, P#921860981 › Door Components Assembly, P#921860931 › Cooling Unit Components, P#921860951 › Cooling Unit Components and more) and 67 manufacturer part numbers. 7 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

P#921860981 › Cabinet Components Assembly

Components

21 items

1. #HINGE, UPPER RIGHT MFR # 2926415007
2. #HINGE, UPPER LEFT MFR # 2926414000
3. #HINGE, LOWER RIGHT MFR # 2923527002
4. #HINGE, LOWER LEFT MFR # 2923527004
5. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
6. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #FOOT MFR # 2923733006
9. #TUBE, DRAIN, NATURE MFR # 2926441128
10. #EVAPORATOR, RIGHT MFR # 2923851105
11. #EVAPORATOR, LEFT MFR # 2923852103
12. #RETAINER MFR # 2926236023
13. #RETAINER MFR # 2926235025
14. #SHELF, LOWER MFR # 2951002043
15. #SHELF, UPPER MFR # 2951011044
16. #PLATE, STRIKE DOOR MFR # 2923677203
17. #CAP, HINGE, RIGHT MFR # 2935457008
18. #CAP, HINGE, LEFT MFR # 2935457107
19. #HINGE, COVER, BROWN MFR # 2926412004
20. #SCREW, FOR CAP MFR # 2935600003
21. #Refrigerator Control Knob; Thermostat Control Knob; Use With Dometic Refrigerators RH250/ RH250D/ RH250LD1 MFR # 2923835009 Superseded: see description

P#921860951 › Door Components Assembly

Components

7 items

1. #DOOR W/O LOCK MFR # 2935770319
2. #SHELF, ASSEMBLY, UPPER MFR # 2923908004
3. #SHELF, BOTTLE LOWER DOOR MFR # 2924428010
4. #DECORATION PANEL SHORT MFR # 2927917100
5. #SHELF, ASSEMBLY, UPPER MFR # 2935366019
6. #SLIDER FOR MINI SHELF MFR # 2923826016
7. #Refrigerator Door Handle; Use With Dometic Minibar RH250D Refrigerators MFR # 2935697207 Superseded: see description

P#921860981 › Door Components Assembly

Components

11 items

1. #DOOR W/SIS LOCK MFR # 2935768719
2. #SHELF, ASSEMBLY, UPPER MFR # 2923908004
3. #SHELF FINGERS MFR # 2923958009
4. #SHELF, BOTTLE LOWER DOOR MFR # 2924428010
5. #DECORATION PANEL SHORT MFR # 2927917100
6. #SHELF, ASSEMBLY, UPPER MFR # 2935366019
7. #SLIDER FOR MINI SHELF MFR # 2923826016
8. #LOCK, SIS BRASS W/ROSETTE MFR # 2935538500
9. #KEY, SIS LOCK MFR # 3102935016
10. #ROSETTE MFR # 2924441005
11. #Refrigerator Door Handle; Use With Dometic Minibar RH250D Refrigerators MFR # 2935697207 Superseded: see description

P#921860931 › Cooling Unit Components

Components

9 items

1. #COOLING UNIT W/ HEATING ELEMENT RECON MFR # 2935311106R
2. #COOLING UNIT RH260 W/HTR & FREEZER TUBE - THIS COOLING UNIT HAS NO FREEZER TUBE, BUT IT DOES COME W/THE ELEMENT. FOR COOLING UNIT W/FREEZER TUBE, USE PART NUMBER 2935310108N MFR # 2935311106N Superseded: see description
3. #COAT, INSULATION MFR # 2924082007
4. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
5. #LID, UPPER, BOILER MFR # 2924063007
6. #LID LOWER BOILER MFR # 2924089002
7. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
8. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000
9. #ELEMENT, HEATING USE 2951229000 95W/120V - CAN USE 2951228002 AS A REPLACEMENT PER DOMETIC MFR # 2924439009 Superseded: see description

P#921860951 › Cooling Unit Components

Components

9 items

1. #COOLING UNIT RH260 W/HTR & FREEZER TUBE - THIS COOLING UNIT HAS NO FREEZER TUBE, BUT IT DOES COME W/THE ELEMENT. FOR COOLING UNIT W/FREEZER TUBE, USE PART NUMBER 2935310108N MFR # 2935311106N Superseded: see description
2. #COOLING UNIT W/ HEATING ELEMENT RECON MFR # 2935311106R
3. #COAT, INSULATION MFR # 2924082007
4. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
5. #LID, UPPER, BOILER MFR # 2924063007
6. #LID LOWER BOILER MFR # 2924089002
7. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
8. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000
9. #ELEMENT, HEATING USE 2951229000 95W/120V - CAN USE 2951228002 AS A REPLACEMENT PER DOMETIC MFR # 2924439009 Superseded: see description

P#921860991 › Cabinet Components Assembly

Components

21 items

1. #HINGE, UPPER RIGHT MFR # 2926415007
2. #HINGE, UPPER LEFT MFR # 2926414000
3. #HINGE, LOWER RIGHT MFR # 2923527002
4. #HINGE, LOWER LEFT MFR # 2923527004
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #FOOT MFR # 2923733006
9. #TUBE, DRAIN, NATURE MFR # 2926441128
10. #EVAPORATOR, RIGHT MFR # 2923851105
11. #EVAPORATOR, LEFT MFR # 2923852103
12. #RETAINER MFR # 2926236023
13. #RETAINER MFR # 2926235025
14. #SHELF, LOWER MFR # 2951002043
15. #SHELF, UPPER MFR # 2951011044
16. #PLATE, STRIKE DOOR MFR # 2923677203
17. #CAP, HINGE, RIGHT MFR # 2935457008
18. #CAP, HINGE, LEFT MFR # 2935457107
19. #HINGE, COVER, BROWN MFR # 2926412004
20. #SCREW, FOR CAP MFR # 2935600003
21. #Refrigerator Control Knob; Thermostat Control Knob; Use With Dometic Refrigerators RH250/ RH250D/ RH250LD1 MFR # 2923835009 Superseded: see description

P#921860971 › Cooling Unit Components

Components

9 items

1. #COOLING UNIT W/ HEATING ELEMENT RECON MFR # 2935311106R
2. #COOLING UNIT RH260 W/HTR & FREEZER TUBE - THIS COOLING UNIT HAS NO FREEZER TUBE, BUT IT DOES COME W/THE ELEMENT. FOR COOLING UNIT W/FREEZER TUBE, USE PART NUMBER 2935310108N MFR # 2935311106N Superseded: see description
3. #COAT, INSULATION MFR # 2924082007
4. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
5. #LID, UPPER, BOILER MFR # 2924063007
6. #LID LOWER BOILER MFR # 2924089002
7. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
8. #ELEMENT, HEATING USE 2951229000 95W/120V - CAN USE 2951228002 AS A REPLACEMENT PER DOMETIC MFR # 2924439009 Superseded: see description
9. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000

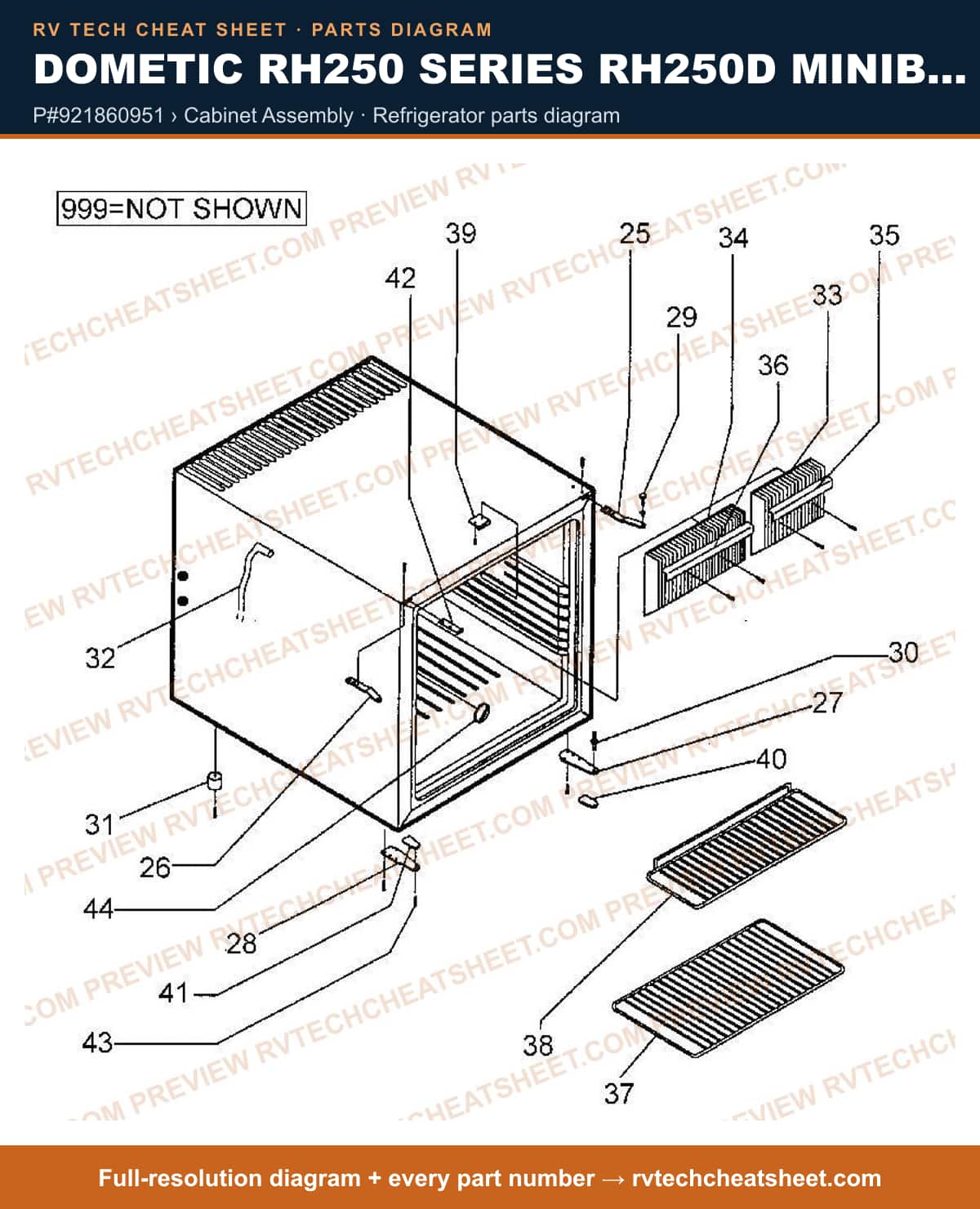

P#921860951 › Cabinet Assembly

Components

17 items

1. #HINGE, UPPER RIGHT MFR # 2926415007
2. #HINGE, UPPER LEFT MFR # 2926414000
3. #HINGE, LOWER RIGHT MFR # 2923527002
4. #HINGE, LOWER LEFT MFR # 2923527004
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #FOOT MFR # 2923733006
9. #TUBE, DRAIN, NATURE MFR # 2926441128
10. #EVAPORATOR, RIGHT MFR # 2923851105
11. #EVAPORATOR, LEFT MFR # 2923852103
12. #RETAINER MFR # 2926236023
13. #RETAINER MFR # 2926235025
14. #SHELF, LOWER MFR # 2951002043
15. #SHELF, UPPER MFR # 2951011044
16. #HINGE, COVER, BROWN MFR # 2926412004
17. #Refrigerator Control Knob; Thermostat Control Knob; Use With Dometic Refrigerators RH250/ RH250D/ RH250LD1 MFR # 2923835009 Superseded: see description

P#921860911 › Door Components Assembly

Components

12 items

1. #DOOR W/SLIDE LOCK MFR # 2935768115
2. #SHELF, ASSEMBLY, UPPER MFR # 2923908004
3. #SHELF FINGERS MFR # 2923958009
4. #SHELF, BOTTLE LOWER DOOR MFR # 2924428010
5. #DECORATION PANEL SHORT MFR # 2927917100
6. #SHELF, ASSEMBLY, UPPER MFR # 2935366019
7. #SLIDER FOR MINI SHELF MFR # 2923826016
8. #LOCK WITH FALLING LATCH, KABA MFR # 2935371506
9. #KEY USE 3106679016 #500-500 MFR # 2923705004 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Key Kaba Embossed Cut MFR # 3106679016
11. #ROSETTE MFR # 2924441005
12. #Refrigerator Door Handle; Use With Dometic Minibar RH250D Refrigerators MFR # 2935697207 Superseded: see description

P#921860981 › Cooling Unit Components

Components

9 items

1. #COOLING UNIT RH260 W/HTR & FREEZER TUBE - THIS COOLING UNIT HAS NO FREEZER TUBE, BUT IT DOES COME W/THE ELEMENT. FOR COOLING UNIT W/FREEZER TUBE, USE PART NUMBER 2935310108N MFR # 2935311106N Superseded: see description
2. #COOLING UNIT W/ HEATING ELEMENT RECON MFR # 2935311106R
3. #COAT, INSULATION MFR # 2924082007
4. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
5. #LID, UPPER, BOILER MFR # 2924063007
6. #LID LOWER BOILER MFR # 2924089002
7. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
8. #ELEMENT, HEATING USE 2951229000 95W/120V - CAN USE 2951228002 AS A REPLACEMENT PER DOMETIC MFR # 2924439009 Superseded: see description
9. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000

P#921860931 › Door Components Assembly

Components

15 items

1. #DOOR W/SLIDE LOCK MFR # 2935768115
2. #SHELF, ASSEMBLY, UPPER MFR # 2923908004
3. #SHELF FINGERS MFR # 2923958009
4. #SHELF, BOTTLE LOWER DOOR MFR # 2924428010
5. #DECORATION PANEL SHORT MFR # 2927917100
6. #SHELF, ASSEMBLY, UPPER MFR # 2935366019
7. #SLIDER FOR MINI SHELF MFR # 2923826016
8. #LOCK WITH FALLING LATCH, KABA MFR # 2935371506
9. #KEY USE 3106679016 #500-500 MFR # 2923705004 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Key Kaba Embossed Cut MFR # 3106679016
11. #ROSETTE MFR # 2924441005
12. #Refrigerator Door Handle; Use With Dometic Minibar RH250D Refrigerators MFR # 2935697207 Superseded: see description
13. #BRACKET, SLIDE BAR, BROWN MFR # 2921090003
14. #APPLIANCE COMPONENTS RV; Bracket Ra138 MFR # 2921091100
15. #BRACKET, SLIDE BAR, GUIDE MFR # 2921277006

P#921860921 › Rear View Assembly

Components

7 items

1. #COVER, GRAY FROM 3/1/1990 MFR # 2923629113
2. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
3. #NUT M10 RH25 MFR # 2927881009
4. #INSULATING PLATE MFR # 2923178004
5. #TERMINAL BLOCK, 4-POL. MFR # 2923079004
6. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
7. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104

P#921860971 › Door Components Assembly

Components

7 items

1. #DOOR W/O LOCK MFR # 2935770319
2. #SHELF, ASSEMBLY, UPPER MFR # 2923908004
3. #SHELF, BOTTLE LOWER DOOR MFR # 2924428010
4. #DECORATION PANEL SHORT MFR # 2927917100
5. #SHELF, ASSEMBLY, UPPER MFR # 2935366019
6. #SLIDER FOR MINI SHELF MFR # 2923826016
7. #Refrigerator Door Handle; Use With Dometic Minibar RH250D Refrigerators MFR # 2935697207 Superseded: see description

P#921860991 › Cooling Unit Components

Components

9 items

1. #COOLING UNIT W/ HEATING ELEMENT RECON MFR # 2935311106R
2. #COOLING UNIT RH260 W/HTR & FREEZER TUBE - THIS COOLING UNIT HAS NO FREEZER TUBE, BUT IT DOES COME W/THE ELEMENT. FOR COOLING UNIT W/FREEZER TUBE, USE PART NUMBER 2935310108N MFR # 2935311106N Superseded: see description
3. #COAT, INSULATION MFR # 2924082007
4. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
5. #LID, UPPER, BOILER MFR # 2924063007
6. #LID LOWER BOILER MFR # 2924089002
7. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
8. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000
9. #ELEMENT, HEATING USE 2951229000 95W/120V - CAN USE 2951228002 AS A REPLACEMENT PER DOMETIC MFR # 2924439009 Superseded: see description

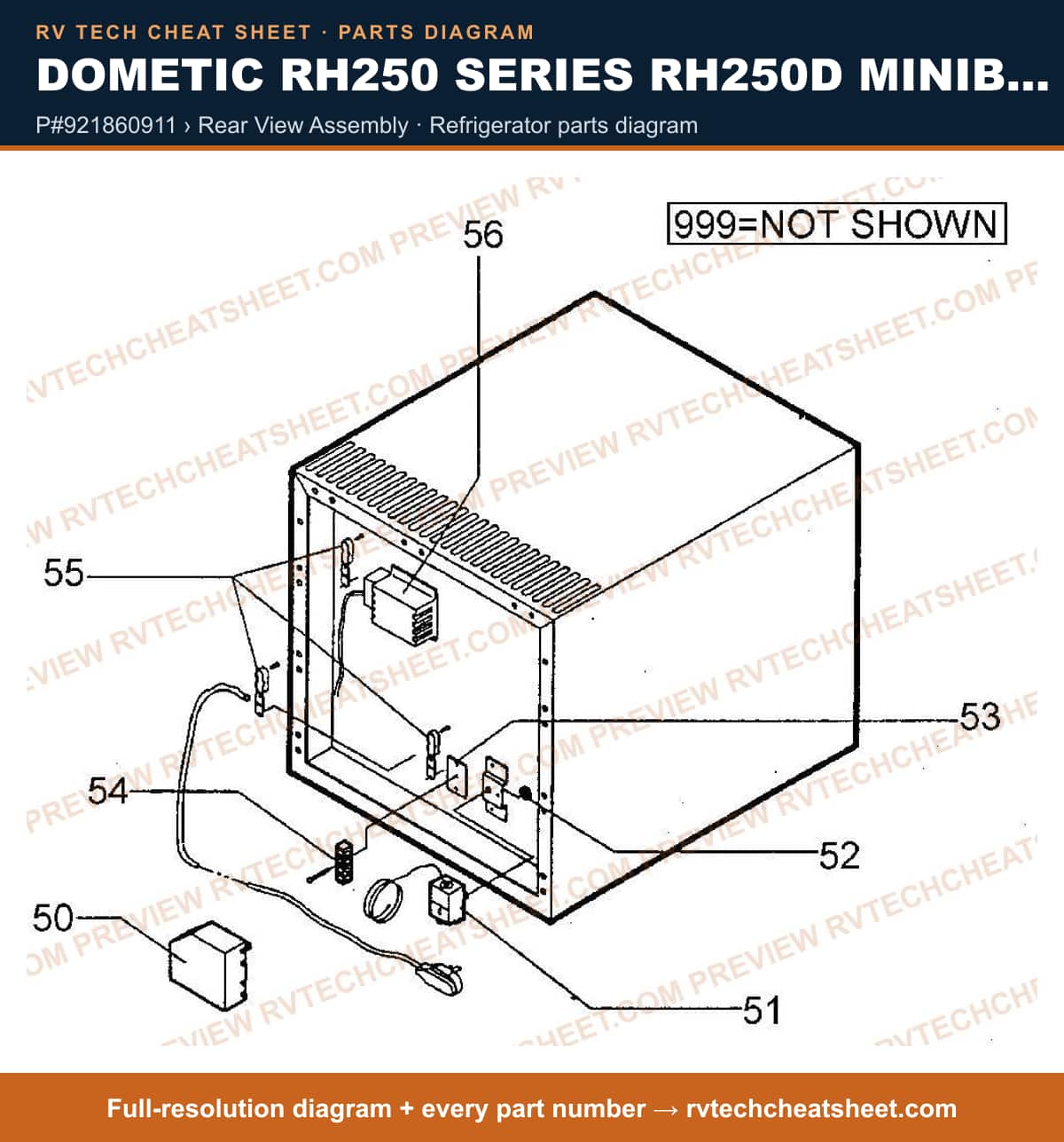

P#921860951 › Rear View Assembly

Components

7 items

1. #COVER, PLATE, UP TO FEB. 28, 1990 MFR # 2924944008
2. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
3. #NUT M10 RH25 MFR # 2927881009
4. #INSULATING PLATE MFR # 2923178004
5. #TERMINAL BLOCK, 4-POL. MFR # 2923079004
6. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
7. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104

P#921860961 › Door Components Assembly

Components

7 items

1. #DOOR W/O LOCK MFR # 2935770319
2. #SHELF, ASSEMBLY, UPPER MFR # 2923908004
3. #SHELF, BOTTLE LOWER DOOR MFR # 2924428010
4. #DECORATION PANEL SHORT MFR # 2927917100
5. #SHELF, ASSEMBLY, UPPER MFR # 2935366019
6. #SLIDER FOR MINI SHELF MFR # 2923826016
7. #Refrigerator Door Handle; Use With Dometic Minibar RH250D Refrigerators MFR # 2935697207 Superseded: see description

P#921860901 › Cooling Unit Components

Components

9 items

1. #COOLING UNIT W/ HEATING ELEMENT RECON MFR # 2935311106R
2. #COOLING UNIT RH260 W/HTR & FREEZER TUBE - THIS COOLING UNIT HAS NO FREEZER TUBE, BUT IT DOES COME W/THE ELEMENT. FOR COOLING UNIT W/FREEZER TUBE, USE PART NUMBER 2935310108N MFR # 2935311106N Superseded: see description
3. #COAT, INSULATION MFR # 2924082007
4. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
5. #LID, UPPER, BOILER MFR # 2924063007
6. #LID LOWER BOILER MFR # 2924089002
7. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
8. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000
9. #ELEMENT, HEATING USE 2951229000 95W/120V - CAN USE 2951228002 AS A REPLACEMENT PER DOMETIC MFR # 2924439009 Superseded: see description

P#921860941 › Cabinet Components Assembly

Components

17 items

1. #HINGE, UPPER RIGHT MFR # 2926415007
2. #HINGE, UPPER LEFT MFR # 2926414000
3. #HINGE, LOWER RIGHT MFR # 2923527002
4. #HINGE, LOWER LEFT MFR # 2923527004
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #FOOT MFR # 2923733006
9. #TUBE, DRAIN, NATURE MFR # 2926441128
10. #EVAPORATOR, RIGHT MFR # 2923851105
11. #EVAPORATOR, LEFT MFR # 2923852103
12. #RETAINER MFR # 2926236023
13. #RETAINER MFR # 2926235025
14. #SHELF, LOWER MFR # 2951002043
15. #SHELF, UPPER MFR # 2951011044
16. #HINGE, COVER, BROWN MFR # 2926412004
17. #Refrigerator Control Knob; Thermostat Control Knob; Use With Dometic Refrigerators RH250/ RH250D/ RH250LD1 MFR # 2923835009 Superseded: see description

P#921860901 › Cabinet Components Assembly

Components

21 items

1. #HINGE, UPPER RIGHT MFR # 2926415007
2. #HINGE, UPPER LEFT MFR # 2926414000
3. #HINGE, LOWER RIGHT MFR # 2923527002
4. #HINGE, LOWER LEFT MFR # 2923527004
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #FOOT MFR # 2923733006
9. #TUBE, DRAIN, NATURE MFR # 2926441128
10. #EVAPORATOR, RIGHT MFR # 2923851105
11. #EVAPORATOR, LEFT MFR # 2923852103
12. #RETAINER MFR # 2926236023
13. #RETAINER MFR # 2926235025
14. #SHELF, LOWER MFR # 2951002043
15. #SHELF, UPPER MFR # 2951011044
16. #PLATE, STRIKE DOOR MFR # 2923677203
17. #CAP, HINGE, RIGHT MFR # 2935457008
18. #CAP, HINGE, LEFT MFR # 2935457107
19. #HINGE, COVER, BROWN MFR # 2926412004
20. #SCREW, FOR CAP MFR # 2935600003
21. #Refrigerator Control Knob; Thermostat Control Knob; Use With Dometic Refrigerators RH250/ RH250D/ RH250LD1 MFR # 2923835009 Superseded: see description

P#921860941 › Cooling Unit Components

Components

9 items

1. #COOLING UNIT RH260 W/HTR & FREEZER TUBE - THIS COOLING UNIT HAS NO FREEZER TUBE, BUT IT DOES COME W/THE ELEMENT. FOR COOLING UNIT W/FREEZER TUBE, USE PART NUMBER 2935310108N MFR # 2935311106N Superseded: see description
2. #COOLING UNIT W/ HEATING ELEMENT RECON MFR # 2935311106R
3. #COAT, INSULATION MFR # 2924082007
4. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
5. #LID, UPPER, BOILER MFR # 2924063007
6. #LID LOWER BOILER MFR # 2924089002
7. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
8. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000
9. #ELEMENT, HEATING USE 2951229000 95W/120V - CAN USE 2951228002 AS A REPLACEMENT PER DOMETIC MFR # 2924439009 Superseded: see description

P#921860961 › Cabinet Components Assembly

Components

17 items

1. #HINGE, UPPER RIGHT MFR # 2926415007
2. #HINGE, UPPER LEFT MFR # 2926414000
3. #HINGE, LOWER RIGHT MFR # 2923527002
4. #HINGE, LOWER LEFT MFR # 2923527004
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #FOOT MFR # 2923733006
9. #TUBE, DRAIN, NATURE MFR # 2926441128
10. #EVAPORATOR, RIGHT MFR # 2923851105
11. #EVAPORATOR, LEFT MFR # 2923852103
12. #RETAINER MFR # 2926236023
13. #RETAINER MFR # 2926235025
14. #SHELF, LOWER MFR # 2951002043
15. #SHELF, UPPER MFR # 2951011044
16. #HINGE, COVER, BROWN MFR # 2926412004
17. #Refrigerator Control Knob; Thermostat Control Knob; Use With Dometic Refrigerators RH250/ RH250D/ RH250LD1 MFR # 2923835009 Superseded: see description

P#921860911 › Cabinet Components Assembly

Components

21 items

1. #HINGE, UPPER RIGHT MFR # 2926415007
2. #HINGE, UPPER LEFT MFR # 2926414000
3. #HINGE, LOWER RIGHT MFR # 2923527002
4. #HINGE, LOWER LEFT MFR # 2923527004
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #FOOT MFR # 2923733006
9. #TUBE, DRAIN, NATURE MFR # 2926441128
10. #EVAPORATOR, RIGHT MFR # 2923851105
11. #EVAPORATOR, LEFT MFR # 2923852103
12. #RETAINER MFR # 2926236023
13. #RETAINER MFR # 2926235025
14. #SHELF, LOWER MFR # 2951002043
15. #SHELF, UPPER MFR # 2951011044
16. #PLATE, STRIKE DOOR MFR # 2923677203
17. #CAP, HINGE, RIGHT MFR # 2935457008
18. #CAP, HINGE, LEFT MFR # 2935457107
19. #HINGE, COVER, BROWN MFR # 2926412004
20. #SCREW, FOR CAP MFR # 2935600003
21. #Refrigerator Control Knob; Thermostat Control Knob; Use With Dometic Refrigerators RH250/ RH250D/ RH250LD1 MFR # 2923835009 Superseded: see description

P#921860921 › Cabinet Components Assembly

Components

21 items

1. #HINGE, UPPER RIGHT MFR # 2926415007
2. #HINGE, UPPER LEFT MFR # 2926414000
3. #HINGE, LOWER RIGHT MFR # 2923527002
4. #HINGE, LOWER LEFT MFR # 2923527004
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #FOOT MFR # 2923733006
9. #TUBE, DRAIN, NATURE MFR # 2926441128
10. #EVAPORATOR, RIGHT MFR # 2923851105
11. #EVAPORATOR, LEFT MFR # 2923852103
12. #RETAINER MFR # 2926236023
13. #RETAINER MFR # 2926235025
14. #SHELF, LOWER MFR # 2951002043
15. #SHELF, UPPER MFR # 2951011044
16. #PLATE, STRIKE DOOR MFR # 2923677203
17. #CAP, HINGE, RIGHT MFR # 2935457008
18. #CAP, HINGE, LEFT MFR # 2935457107
19. #HINGE, COVER, BROWN MFR # 2926412004
20. #SCREW, FOR CAP MFR # 2935600003
21. #Refrigerator Control Knob; Thermostat Control Knob; Use With Dometic Refrigerators RH250/ RH250D/ RH250LD1 MFR # 2923835009 Superseded: see description

P#921860931 › Rear View Assembly

Components

7 items

1. #COVER, GRAY FROM 3/1/1990 MFR # 2923629113
2. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
3. #NUT M10 RH25 MFR # 2927881009
4. #INSULATING PLATE MFR # 2923178004
5. #TERMINAL BLOCK, 4-POL. MFR # 2923079004
6. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
7. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104

P#921860911 › Rear View Assembly

Components

7 items

1. #COVER, GRAY FROM 3/1/1990 MFR # 2923629113
2. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
3. #NUT M10 RH25 MFR # 2927881009
4. #INSULATING PLATE MFR # 2923178004
5. #TERMINAL BLOCK, 4-POL. MFR # 2923079004
6. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
7. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104

P#921860991 › Door Components Assembly

Components

16 items

1. #DOOR SIS LOCK & RED DOT MFR # 2935736617
2. #SHELF, ASSEMBLY, UPPER MFR # 2923908004
3. #SHELF FINGERS MFR # 2923958009
4. #SHELF, BOTTLE LOWER DOOR MFR # 2924428010
5. #DECORATION PANEL BROWN MFR # 2926362209
6. #SHELF, ASSEMBLY, UPPER MFR # 2935366019
7. #SLIDER FOR MINI SHELF MFR # 2923826016
8. #LOCK, SIS BRASS W/ROSETTE MFR # 2935538500
9. #KEY, SIS LOCK MFR # 3102935016
10. #ROSETTE MFR # 2924441005
11. #DOOR OPENING CONTROL, ASSEMBLY MFR # 2951142005
12. #KEY, RED DOT MECH. MFR # 2935657003
13. #LIGHT CONDUCTOR, ASSEMBLY MFR # 2926351012
14. #PIPE RIVET MFR # 2926626017
15. #SIGN PLATE, BROWN-BLACK, "DOMETIC" MFR # 2935717104
16. #Refrigerator Door Handle; Use With Dometic Minibar RH250D Refrigerators MFR # 2935697207 Superseded: see description

P#921860961 › Cooling Unit Components

Components

9 items

1. #COOLING UNIT W/ HEATING ELEMENT RECON MFR # 2935311106R
2. #COOLING UNIT RH260 W/HTR & FREEZER TUBE - THIS COOLING UNIT HAS NO FREEZER TUBE, BUT IT DOES COME W/THE ELEMENT. FOR COOLING UNIT W/FREEZER TUBE, USE PART NUMBER 2935310108N MFR # 2935311106N Superseded: see description
3. #COAT, INSULATION MFR # 2924082007
4. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
5. #LID, UPPER, BOILER MFR # 2924063007
6. #LID LOWER BOILER MFR # 2924089002
7. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
8. #ELEMENT, HEATING USE 2951229000 95W/120V - CAN USE 2951228002 AS A REPLACEMENT PER DOMETIC MFR # 2924439009 Superseded: see description
9. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000

P#921860941 › Door Components Assembly

Components

8 items

1. #DOOR W/SLIDE LOCK MFR # 2935749412
2. #SHELF FINGERS MFR # 2923958009
3. #SHELF, BOTTLE LOWER DOOR MFR # 2924428010
4. #SHELF, ASSEMBLY, UPPER MFR # 2935366019
5. #SLIDER FOR MINI SHELF MFR # 2923826016
6. #BRACKET, SLIDE BAR, BROWN MFR # 2921090003
7. #APPLIANCE COMPONENTS RV; Bracket Ra138 MFR # 2921091100
8. #BRACKET, SLIDE BAR, GUIDE MFR # 2921277006

P#921860911 › Cooling Unit Components

Components

9 items

1. #COOLING UNIT RH260 W/HTR & FREEZER TUBE - THIS COOLING UNIT HAS NO FREEZER TUBE, BUT IT DOES COME W/THE ELEMENT. FOR COOLING UNIT W/FREEZER TUBE, USE PART NUMBER 2935310108N MFR # 2935311106N Superseded: see description
2. #COOLING UNIT W/ HEATING ELEMENT RECON MFR # 2935311106R
3. #COAT, INSULATION MFR # 2924082007
4. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
5. #LID, UPPER, BOILER MFR # 2924063007
6. #LID LOWER BOILER MFR # 2924089002
7. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
8. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000
9. #ELEMENT, HEATING USE 2951229000 95W/120V - CAN USE 2951228002 AS A REPLACEMENT PER DOMETIC MFR # 2924439009 Superseded: see description

P#921860941 › Rear View Assembly

Components

7 items

1. #COVER, GRAY FROM 3/1/1990 MFR # 2923629113
2. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
3. #NUT M10 RH25 MFR # 2927881009
4. #INSULATING PLATE MFR # 2923178004
5. #TERMINAL BLOCK, 4-POL. MFR # 2923079004
6. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
7. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104

P#921860971 › Cabinet Components Assembly

Components

17 items

1. #HINGE, UPPER RIGHT MFR # 2926415007
2. #HINGE, UPPER LEFT MFR # 2926414000
3. #HINGE, LOWER RIGHT MFR # 2923527002
4. #HINGE, LOWER LEFT MFR # 2923527004
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #FOOT MFR # 2923733006
9. #TUBE, DRAIN, NATURE MFR # 2926441128
10. #EVAPORATOR, RIGHT MFR # 2923851105
11. #EVAPORATOR, LEFT MFR # 2923852103
12. #RETAINER MFR # 2926236023
13. #RETAINER MFR # 2926235025
14. #SHELF, LOWER MFR # 2951002043
15. #SHELF, UPPER MFR # 2951011044
16. #HINGE, COVER, BROWN MFR # 2926412004
17. #Refrigerator Control Knob; Thermostat Control Knob; Use With Dometic Refrigerators RH250/ RH250D/ RH250LD1 MFR # 2923835009 Superseded: see description

P#921860901 › Door Components Assembly

Components

12 items

1. #DOOR W/SLIDE LOCK MFR # 2935736112
2. #SHELF, ASSEMBLY, UPPER MFR # 2923908004
3. #SHELF FINGERS MFR # 2923958009
4. #SHELF, BOTTLE LOWER DOOR MFR # 2924428010
5. #DECORATION PANEL BROWN MFR # 2926362100
6. #SHELF, ASSEMBLY, UPPER MFR # 2935366019
7. #SLIDER FOR MINI SHELF MFR # 2923826016
8. #LOCK WITH FALLING LATCH, KABA MFR # 2935371506
9. #APPLIANCE COMPONENTS RV; Key Kaba Embossed Cut MFR # 3106679016
10. #KEY USE 3106679016 #500-500 MFR # 2923705004 Superseded: see description
11. #ROSETTE MFR # 2924441005
12. #Refrigerator Door Handle; Use With Dometic Minibar RH250D Refrigerators MFR # 2935697207 Superseded: see description
