Dometic RH252 Series P# 921064210 Parts Diagram · Door Assembly

Refrigerator · 4 assemblies · 4 diagram sheets · 50 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH252 Series P# 921064210 RV refrigerator: 4 assemblies (Door Assembly, Cabinet Front View, Cabinet Rear View, Cooling Unit) and 50 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

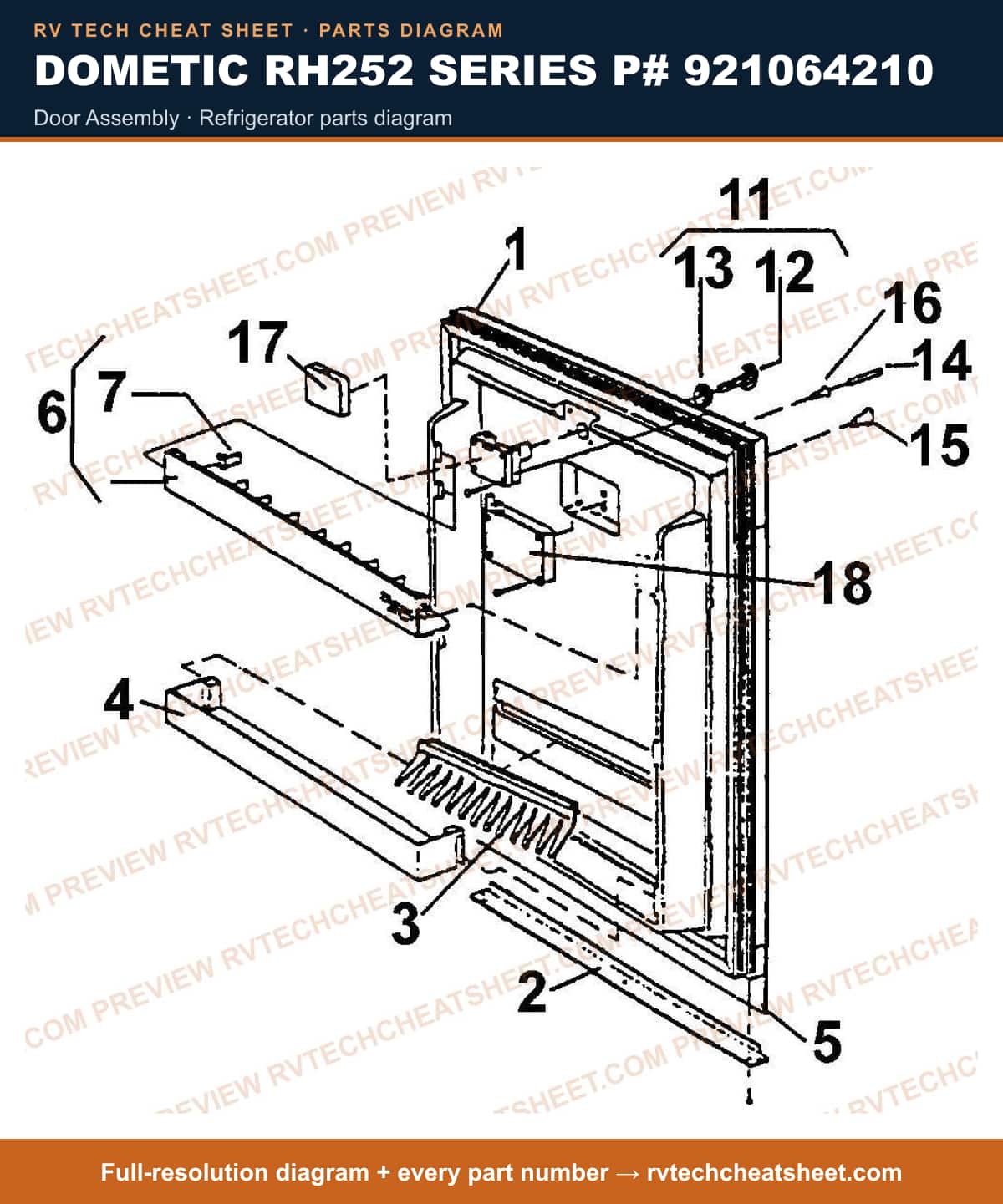

Door Assembly

Components

15 items

1. #DOOR COMPLETE MFR # 2936473616
2. #TRIM MFR # 2951624200
3. #HOLDER, BOTTLE MFR # 2923958025
4. #SHELF, BOTTLE MFR # 2924428028
5. #PANEL, DECORATION MFR # 2936803002
6. #SHELF, DOOR (DOMETIC) MFR # 2935366035
7. #SLIDER, MINIBAR, GRAY MFR # 2923826032
8. #LOCK W/FALLING LATCH CHISMA MFR # 2935538419
9. #KEY, CHISMA, FACTORY VERSION MFR # 2935642104
10. #ROSETTE, BRASS MINIBARS MFR # 2924441104
11. #KEY MFR # 2935657201
12. #SIGHT GLASS MFR # 2935709101
13. #PIPE RIVET MFR # 2926626017
14. #COVER MFR # 2951686100
15. #CONTROL, DOOR OPENING MFR # 2926372125

Cabinet Front View

Components

19 items

1. #HINDGE, LOWER RH MFR # 2951626007
2. #HINGE, LOWER LH MFR # 2951625009
3. #PIN, LOWER HINGE MFR # 2951629001
4. #FOOT MFR # 2923297028
5. #APPLIANCE COMPONENTS RV; HOSE, DRAIN MFR # 2923346056
6. #EVAPORATOR MFR # 2951516000
7. #APPLIANCE COMPONENTS RV; Shelf Lower Grey MFR # 2951002076
8. #SHELF, UPPER MFR # 2951011077
9. #LIGHT ASSEMBLY MFR # 2951799317
10. #BULB, 6/10W-110/140V MFR # 2923382309
11. #COVER, HINGE MFR # 2926412012
12. #Refrigerator Door Hinge; Replacement For Dometic RM4180 Refrigerator; Fits Upper Door Side; Top Left Hand MFR # 2951648001
13. #KNOB, T-STAT MFR # 2923835025
14. #PLATE, STRIKE DOOR MFR # 2923677203
15. #COVER, HINGE LOWER MFR # 2951630009
16. #BUTTON, PUSH INTERIOR LIGHT MFR # 2951797014
17. #SWITCH, INTERIOR LIGHT MFR # 2951847116
18. #COVER, LAMP MFR # 2942511607
19. #WASHER MFR # 7341146608

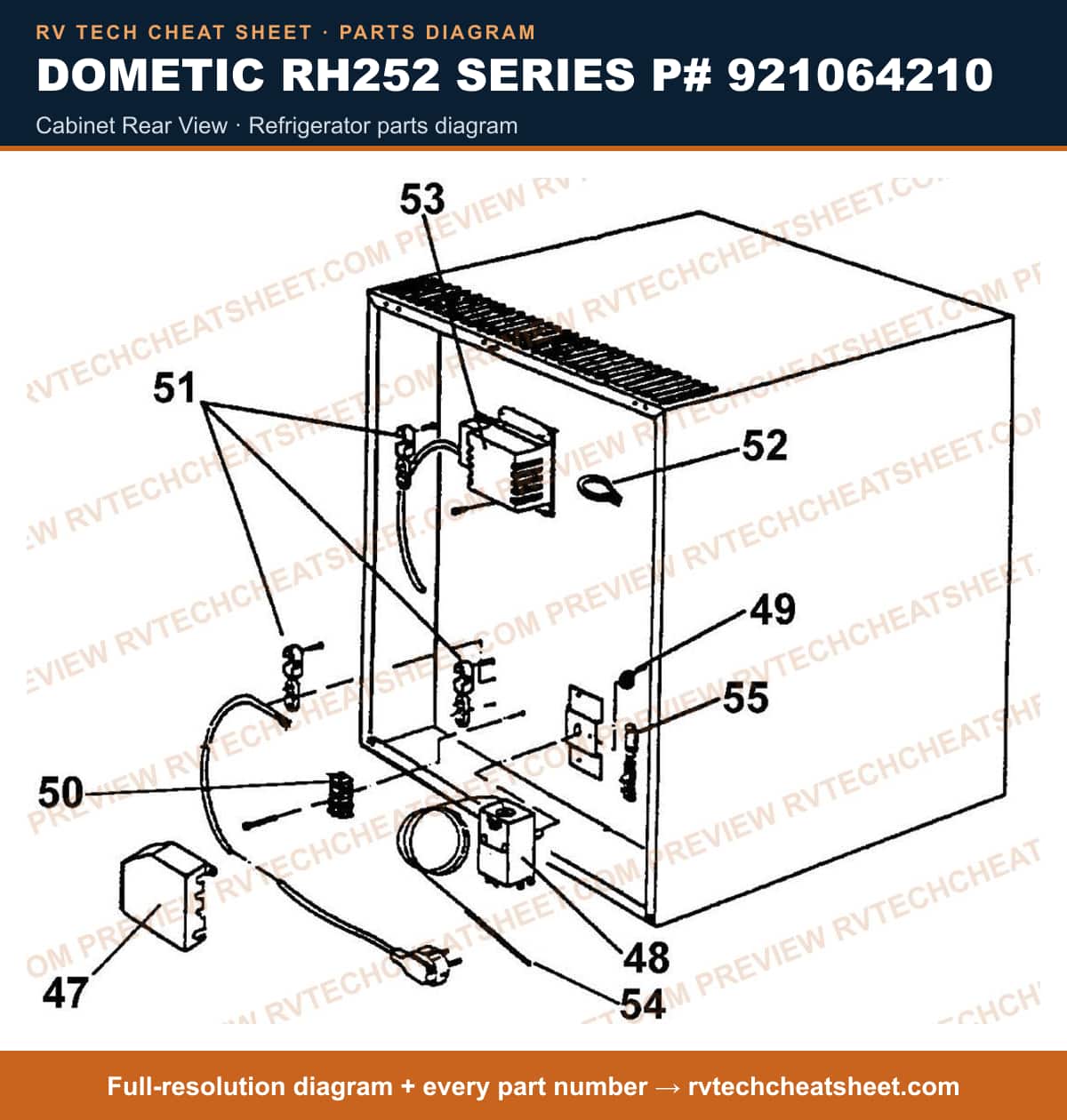

Cabinet Rear View

Components

9 items

1. #COVER MFR # 2923629212
2. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
3. #NUT M10 RH25 MFR # 2927881009
4. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
6. #CABLE, CLAMP, SIZE 8 MFR # 2926564002
7. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104
8. #SLEEVE, HOSE PROTECTION MFR # 2951236013
9. #STRAIN RELIEF MFR # 2935319000

Cooling Unit

Components

7 items

1. #COOLING UNIT WITH HEATER MFR # 2935850129
2. #TUBE MFR # 2924082205
3. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
4. #LID, UPPER, BOILER MFR # 2924063007
5. #LID LOWER BOILER MFR # 2924089002
6. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
7. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000
