Dometic RH260 Parts Diagram · Cabinet Assembly

Refrigerator · 3 assemblies · 3 diagram sheets · 59 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH260 RV refrigerator: 3 assemblies (Cabinet Assembly, Door Assembly, Rear View) and 59 manufacturer part numbers. 17 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

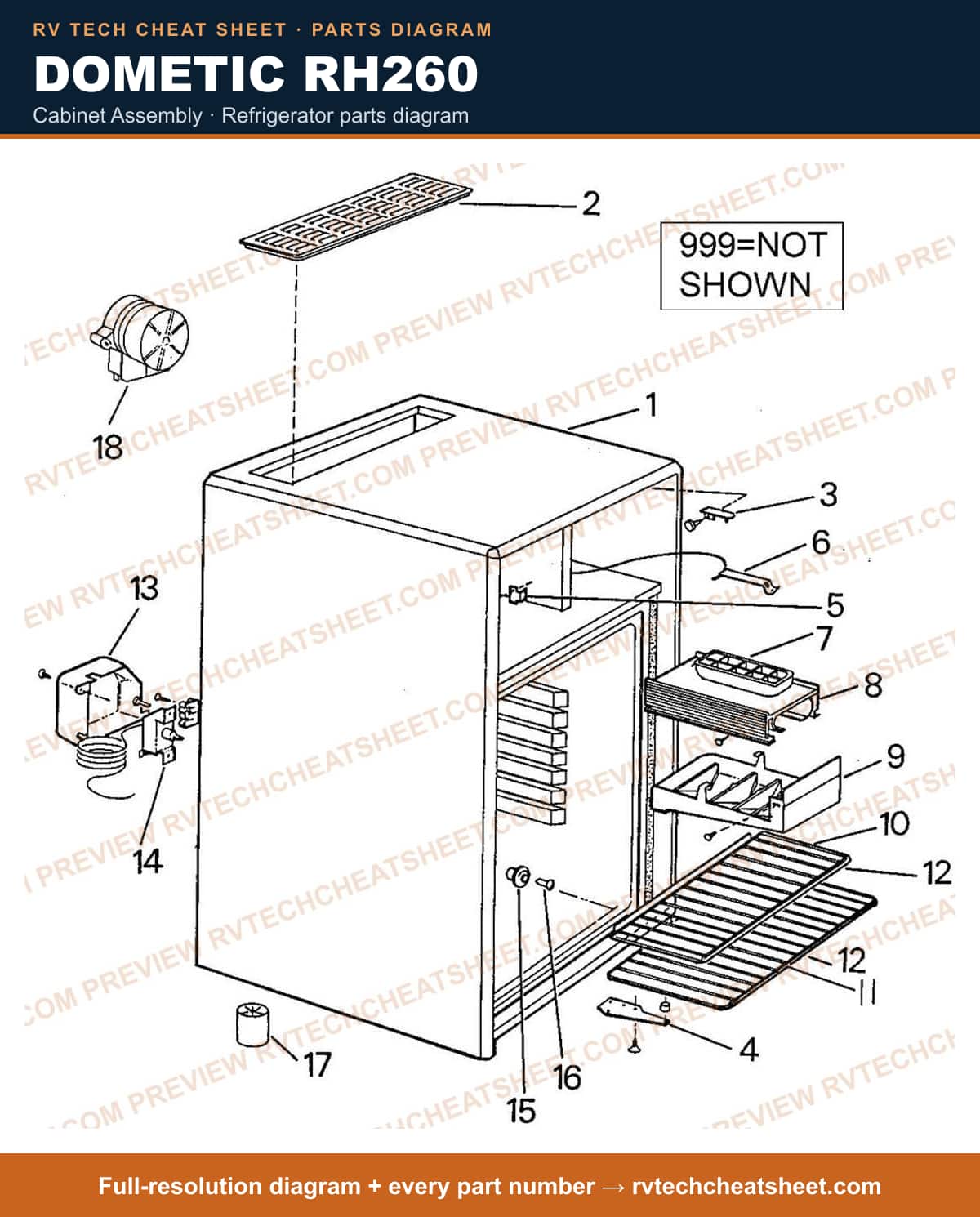

Cabinet Assembly

Components

28 items

1. #Refrigerator Door Hinge; Replacement For Dometic Minibar RH260 Series Refrigerators; Fits Cabinet Left MFR # 2924420009
2. #Refrigerator Door Hinge; Replacement For Dometic Minibar RH260 Series Refrigerators; Fits Cabinet Right MFR # 2924419001
3. #VENTILATOR MFR # 2924421007
4. #HINGE, UPPER RIGHT MFR # 2923974006
5. #Refrigerator Door Hinge; Use With Dometic Refrigerators RH260/ RH225; Upper Right MFR # 2923975003 Superseded: see description
6. #HINGE, LOWER LEFT MFR # 2923977009
7. #HINGE, LOWER RIGHT MFR # 2923976001
8. #RETAINER MFR # 2923677005
9. #OPENER, BOTTLE MFR # 2923077008
10. #TRAY, ICE USE 2922021015 MFR # 2923061002 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Tray Ice 2/Set MFR # 2922021015
12. #EVAPORATOR SHELF MFR # 2924422005
13. #DRIP TRAY MFR # 2924423003
14. #SHELF, UPPER MFR # 2923931006
15. #APPLIANCE COMPONENTS RV; Shelf Lower Grey MFR # 2951002076
16. #SHELF USE 2951002076 8"W X 16-1/4" LONG MFR # 2923324004 Superseded: see description
17. #SHELF, TRIM MFR # 2923161000
18. #COVER, ELECTRICAL MFR # 2923629006
19. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
20. #T-STAT USE AUTO DEF, 600MM CAP MFR # 2926533106 Superseded: see description
21. #APPLIANCE COMPONENTS RV; T-Stat W/1000Mm Cap. MFR # 2923738104
22. #T-STAT USE 2923738104 RA125HI,138HI MFR # 2923342006 Superseded: see description
23. #THERMOSTAT USE 2926533106 MFR # 2923089003 Superseded: see description
24. #Refrigerator Control Knob; Thermostat Control Knob; Use With Dometic Refrigerators RH250/ RH250D/ RH250LD1 MFR # 2923835009 Superseded: see description
25. #BUTTON MFR # 2923836007
26. #FOOT MFR # 2923801001
27. #APPLIANCE COMPONENTS RV; Timer Automatic MFR # 2935492104
28. #TIMER, AUTO USE 2935492104 MFR # 2923873000 Superseded: see description

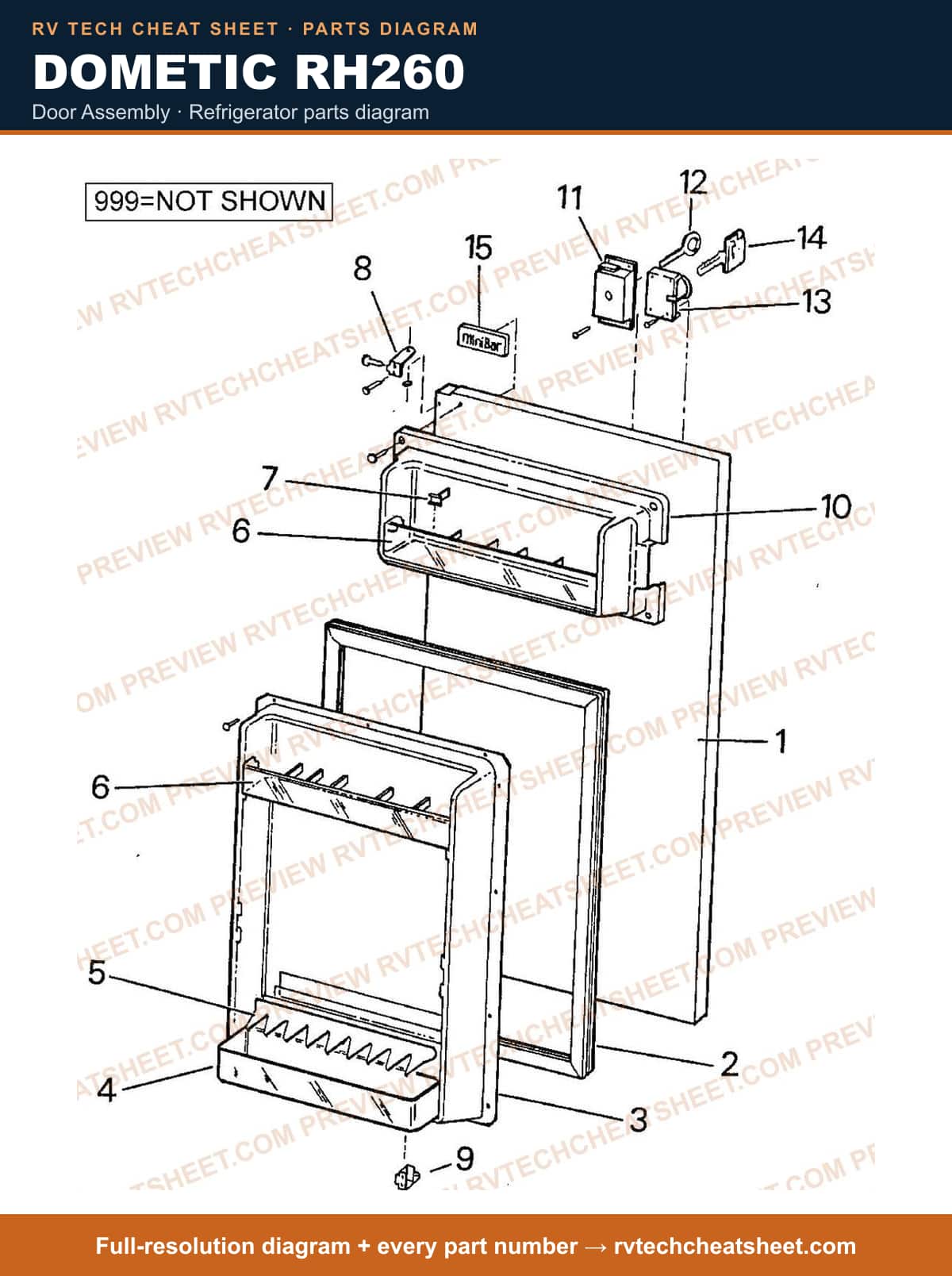

Door Assembly

Components

24 items

1. #Refrigerator Door Panel; Use With Dometic Refrigerator RH260; With Left Hinge MFR # 2924425008 Superseded: see description
2. #Refrigerator Door Panel; Use With Dometic Refrigerator RH260; With Right Hinge MFR # 2924424001 Superseded: see description
3. #Refrigerator Gasket; Use With Dometic Refrigerator RH260; Door Gasket MFR # 2924426006 Superseded: see description
4. #INNER LINER, DOOR MFR # 2924427004
5. #SHELF, BOTTLES MFR # 2924428002
6. #SHELF FINGERS MFR # 2923958009
7. #SHELF, MINIATURES MFR # 2924429000
8. #SPACER MFR # 2923826008
9. #HINGE, DOOR-UPPER LEFT MFR # 2923988006
10. #HINGE, DOOR-UPPER RIGHT MFR # 2923987008
11. #HINGE, DOOR-LOWER LEFT MFR # 2923990002
12. #HINGE, DOOR-LOWER RIGHT MFR # 2923989004
13. #INNER LINER, UNCOOLED ORDER LEFT OR RIGHT MFR # 2924430008
14. #RED DOT INDICATOR, LEFT HINGE MFR # 2923991000
15. #RED DOT INDICATOR, RIGHT HINGE MFR # 2923828004
16. #KEY, RED DOT IND. USE 2935657102 RH225/125 MFR # 2923909002 Superseded: see description
17. #Key; Lock Key; Use With Dometic Minibar RH225/125 Refrigerator MFR # 2935657102 Superseded: see description
18. #LOCK, DOOR MFR # 2924404003
19. #APPLIANCE COMPONENTS RV; Key Kaba Embossed Cut MFR # 3106679016
20. #KEY USE 2924405000 MFR # 2923992008 Superseded: see description
21. #KEY USE 3106679016 MFR # 2924405000 Superseded: see description
22. #DOOR PLATE MFR # 2923993006
23. #Refrigerator Door; Use With Dometic Refrigerator RH260; Right Hand MFR # 2924431006 Superseded: see description
24. #DOOR ASSEMBLY, LEFT HINGE, COMPLETE MFR # 2924432004

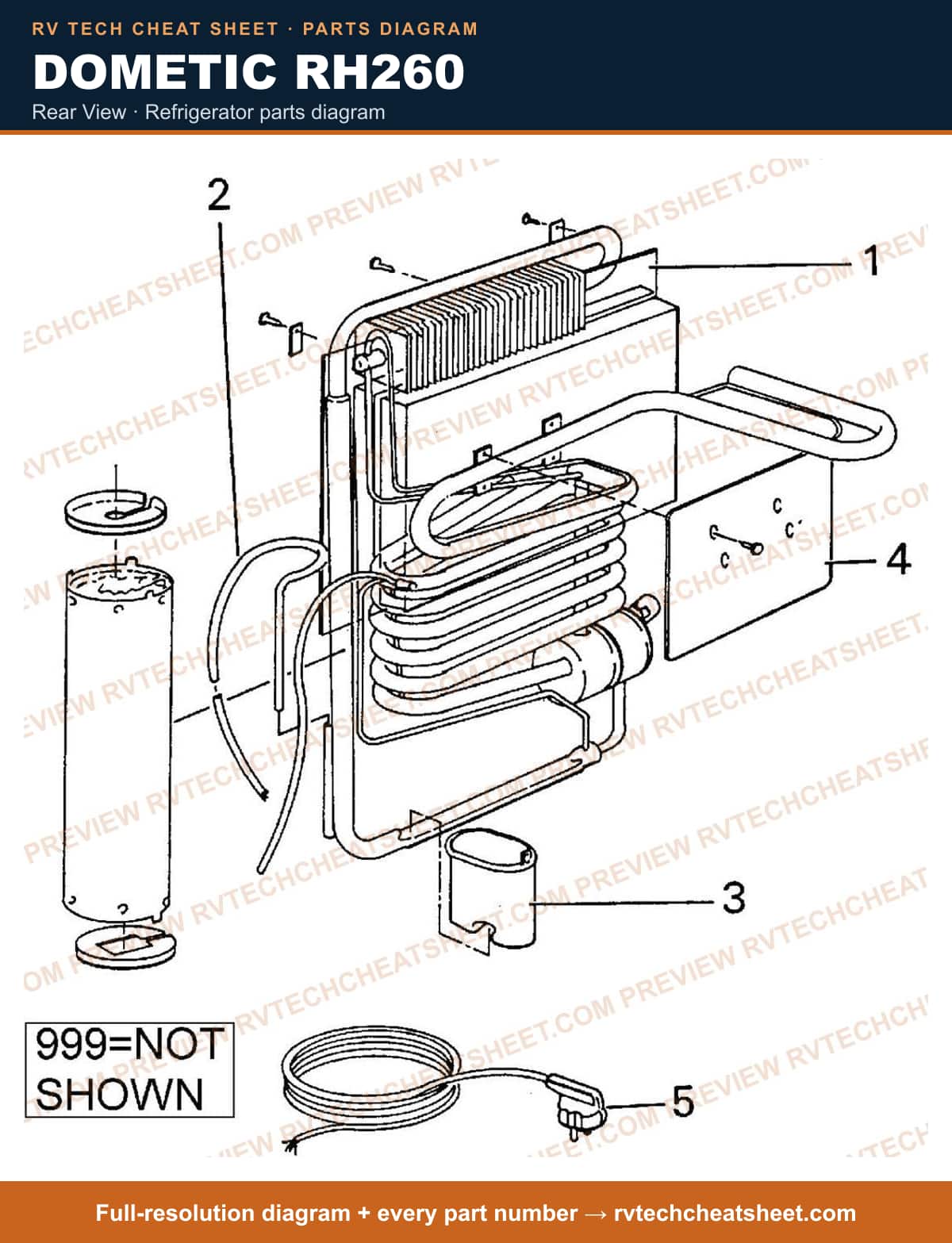

Rear View

Components

7 items

1. #COOLING UNIT NEW MFR # 2923567008N
2. #COOLING UNIT RECON MFR # 2923567008R
3. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RH250D/ RH26/ RH250D/ RH252/ RH250D Model Refrigerator; 95 Watt; 120 Volt MFR # 2951229000
4. #ELEMENT, HEATING USE 2951229000 95W/120V - CAN USE 2951228002 AS A REPLACEMENT PER DOMETIC MFR # 2924439009 Superseded: see description
5. #Refrigerator Drip Tray; Replacement For Dometic RML8330/ RML8555/ RM7851L Refrigerators; For Fresh Food Compartment; By Burner Assembly MFR # 2923320002
6. #PLATE MFR # 2924433002
7. #CORD, POWER MFR # 2923653006
