Dometic RH280D Parts Diagram · Cabinet Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 74 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH280D RV refrigerator: 5 assemblies (Cabinet Assembly, Thermostat & Liner, Rear View, Dry Storage Door Asm, Door Assembly) and 74 manufacturer part numbers. 5 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Assembly

Components

26 items

1. #GRATE-VENTILATOR MFR # 2924421002
2. #TOP ASSEMBLY (921650301) MFR # 2943061008
3. #TOP ASSEMBLY (921650201) MFR # 2943060000
4. #TOP ASSEMBLY (921650101) MFR # 2943059002
5. #NYLON SPACER MFR # 2943156006
6. #HINGE SUPPORT-TOP MFR # 2924763005
7. #RETAINER MFR # 2923677005
8. #CABINET ASSEMBLY (921650101) MFR # 2943004008
9. #CABINET ASSEMBLY (921650301) MFR # 2943006003
10. #CABINET ASSEMBLY (921650201) MFR # 2943005005
11. #RETAINER-MAGNET MFR # 2943071007
12. #HOLDER GRATE-WARM MFR # 2943093001
13. #APPLIANCE COMPONENTS RV; Basket Warm Rh280D MFR # 2943092003
14. #ROD-WARM MFR # 2943091005
15. #REC. PANHEAD MACH. SCREW #8 X 1-1/8 MFR # 2943033007
16. #BRACKET-LOWER HINGE (WARM) MFR # 2943032009
17. #WASHER-NYLON MFR # 2943277000
18. #HINGE SCREW MFR # 2923005005
19. #Refrigerator Door Hinge; Use With Dometic Refrigerators RA125HD/ RA125H1/ RH280D; Lower MFR # 2923560005 Superseded: see description
20. #BUSHING MFR # 2926650005
21. #KEPS NUT #8-32 MFR # 2943035002
22. #BRACKET-LOWER HINGE (COLD) MFR # 2924685005
23. #REC. PANHEAD MACH. SCREW M4X25 MFR # 7241297014
24. #EXT. TOOTH LOCKWASHER #8 MFR # 2943034005
25. #APPLIANCE COMPONENTS RV; Foot Rh280D MFR # 2923879004
26. #MAGNET MFR # 2943029005

Thermostat & Liner

Components

17 items

1. #LINER-INNER-FOAMED MFR # 2927684001
2. #LAMP ASSEMBLY MFR # 2943202008
3. #SHELF-UPPER-COLD MFR # 2943095006
4. #KNOB-THERMOSTAT MFR # 2927687005
5. #SHELF-LOWER-COLD MFR # 2943094009
6. #T-STAT USE 2926531100 MFR # 2926531001 Superseded: see description
7. #T-STAT, ELECTRIC W/CAPILLARY MFR # 2926531100
8. #BASE-THERMOSTAT MFR # 2943114005
9. #TERMINAL BLOCK-HIGH VOLTAGE MFR # 2943115002
10. #TIMER, DEFROST USE 2935492150 MFR # 2943118008 Superseded: see description
11. #TIMER, DEFROST USE 2935492150 MFR # 2943118006 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Timer Lodging Products MFR # 2935492150
13. #COVER-THERMOSTAT MFR # 2943122008
14. #ELECTRIC CONTROL BOX MFR # 2943068003
15. #COVER-ELECTRIC CONTROL BOX MFR # 2943069001
16. #COVER-LAMP WIRE MFR # 2943121000
17. #BULB, E14, 6-10W, 110-140V MFR # 2923382101

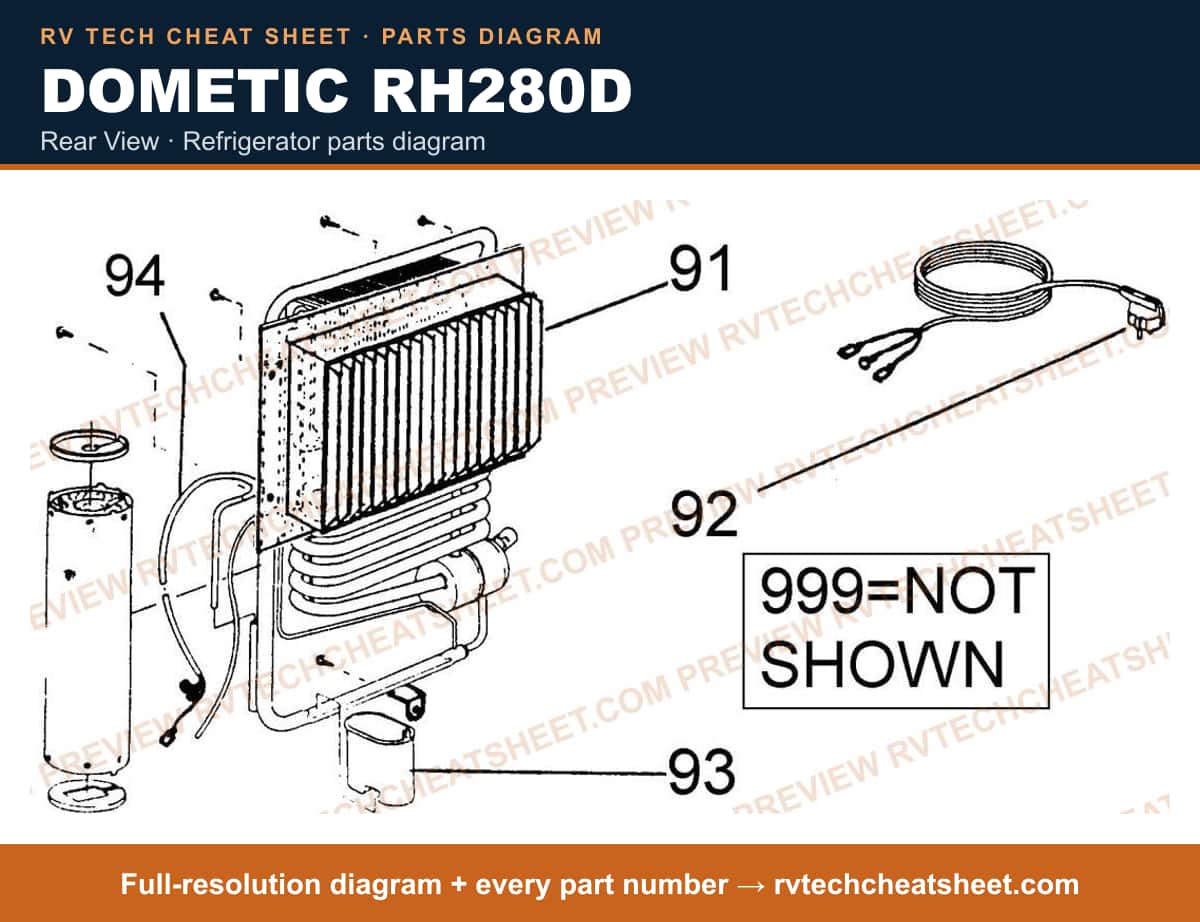

Rear View

Components

5 items

1. #RECON COOLING UNIT MFR # 2927688000R
2. #COOLING UNIT MFR # 2927688000N
3. #POWER CORD MFR # 2943076006
4. #CONTAINER-CONDENSATE MFR # 2923320004
5. #ELEMENT, HEATING 95W 120V RH280D MFR # 2943172003

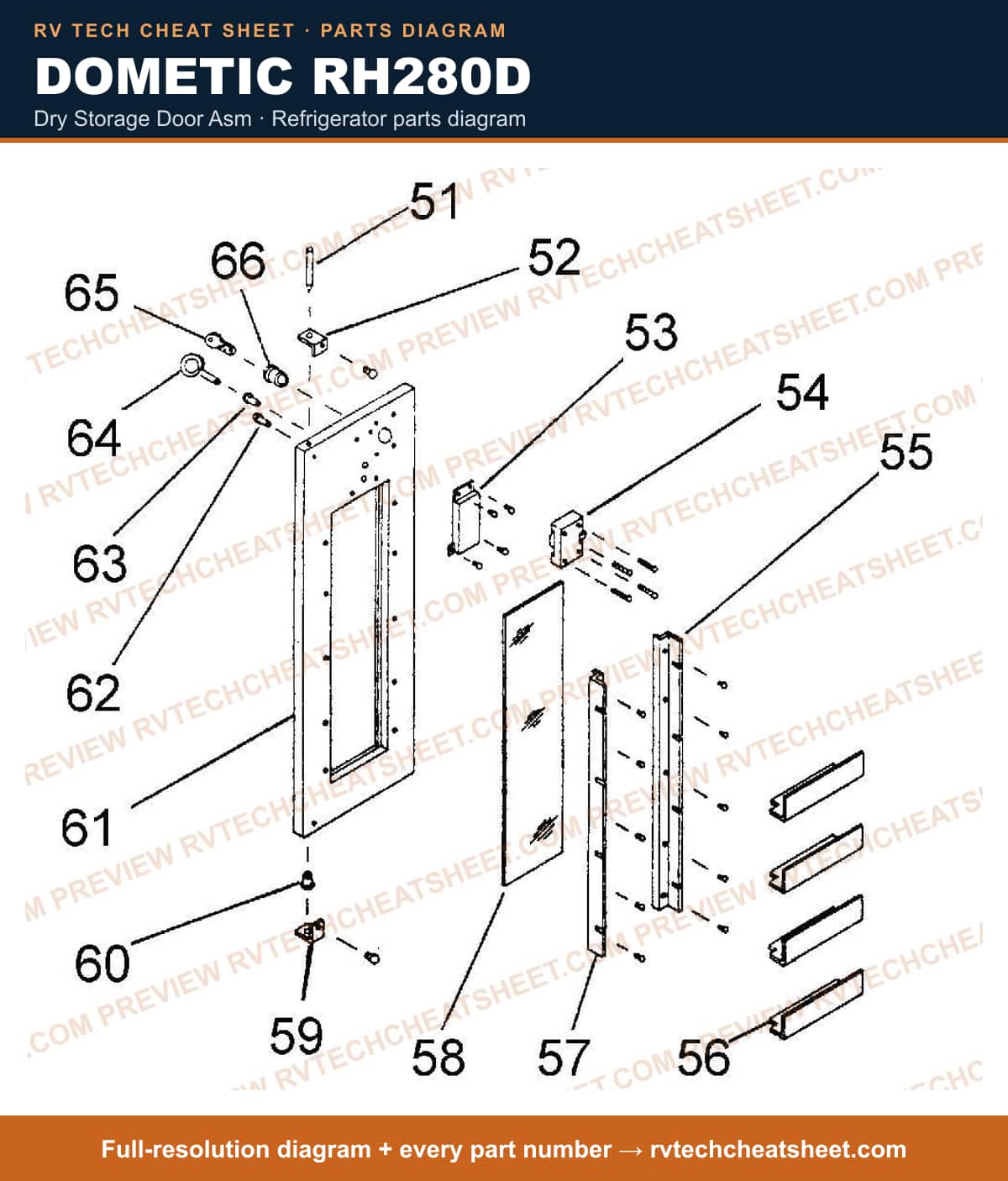

Dry Storage Door Asm

Components

19 items

1. #PIN-HINGE MFR # 2943044004
2. #HINGE SUPPORT-UPPER MFR # 2924021005
3. #RED DOT INDICATOR, RIGHT HINGE MFR # 2923828004
4. #LOCK, KABA RH125 MFR # 2923704007
5. #RAIL-DOOR-RH MFR # 2943110003
6. #SHELF-DOOR-WARM MFR # 2943112009
7. #RAIL-DOOR-LH MFR # 2943111001
8. #WINDOW-DOOR-WARM MFR # 2943113007
9. #HINGE SUPPORT-LOWER MFR # 2924020005
10. #RIVET-TUBE MFR # 2926608007
11. #DOOR-WARM (921650201) MFR # 2943041000
12. #DOOR-WARM (921650301) MFR # 2943042008
13. #DOOR-WARM (921650101) MFR # 2943040002
14. #TUBE RIVET MFR # 2926626009
15. #INDICATOR-RED DOT MFR # 2924740005
16. #RESET KEY MFR # 2923909005
17. #KEY USE 3106679016 #500-500 MFR # 2923705004 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Key Kaba Embossed Cut MFR # 3106679016
19. #LOCK COLLAR MFR # 2923949004

Door Assembly

Components

11 items

1. #PLATE-DOOR-COLD MFR # 2943052007
2. #DOOR-COLD (921650101) MFR # 2943049003
3. #HINGE SUPPORT-UPPER MFR # 2924021005
4. #PIN-HINGE MFR # 2943044004
5. #PLATE-BOTTLE OPENER MFR # 2943054003
6. #DOOR-GASKET MFR # 2927669002
7. #DOOR-LINER MFR # 2927670002
8. #BRACKET-BOTTLE OPENER MFR # 2943056008
9. #SHELF-DOOR-COLD MFR # 2943058004
10. #HINGE SUPPORT-LOWER MFR # 2924020005
11. #RIVET-TUBE MFR # 2926608007
