Dometic RH330 Series PR# 921061318 Parts Diagram · Door Asm

Refrigerator · 3 assemblies · 3 diagram sheets · 45 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH330 Series PR# 921061318 RV refrigerator: 3 assemblies (Door Asm, Cabinet Asm, Rear View) and 45 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

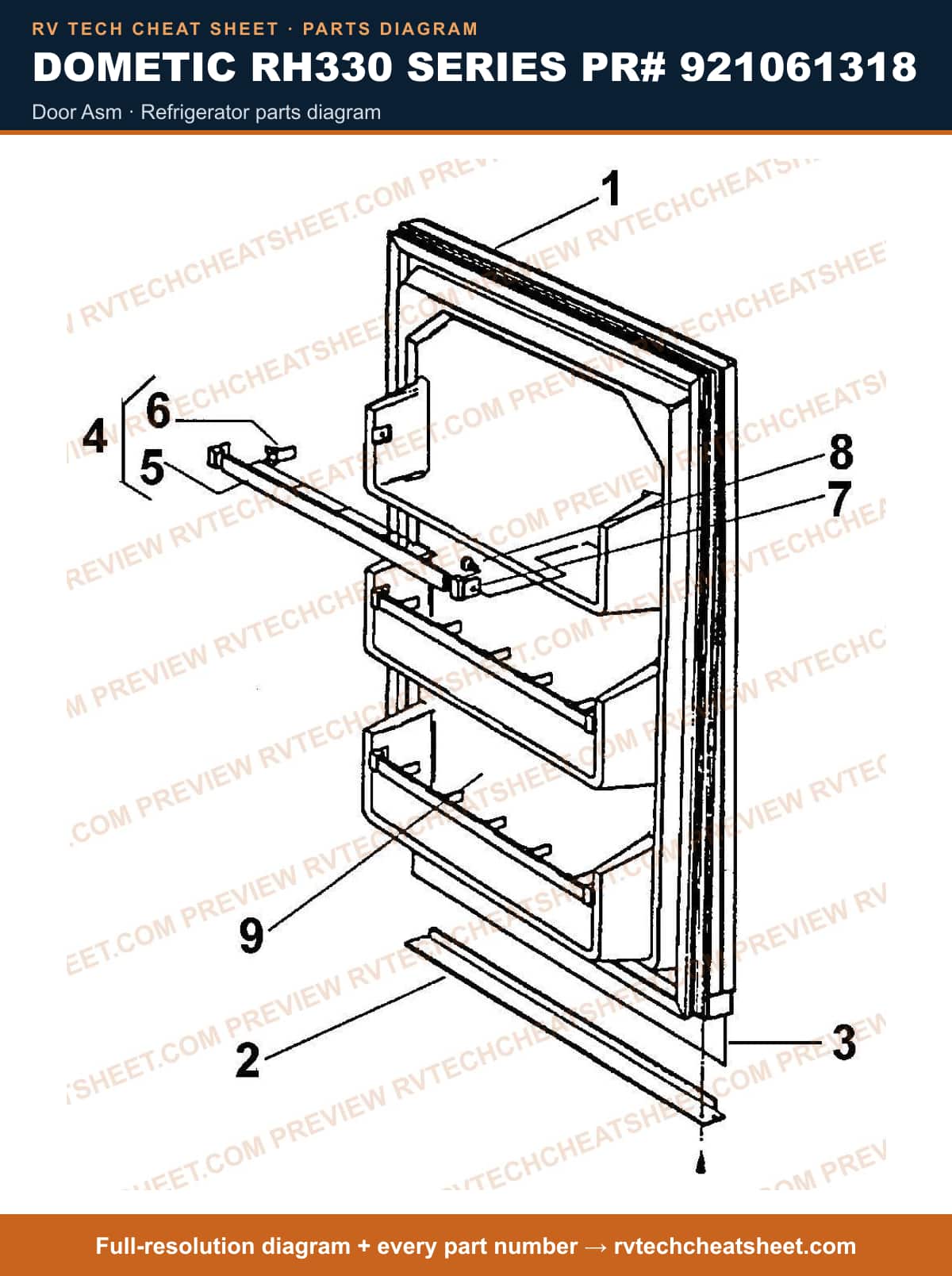

Door Asm

Components

9 items

1. #DOOR, COMPLETE MFR # 2936883301
2. #DOOR, STRIP LOWER GRAY MFR # 2951624051
3. #DECORATION PLATE MFR # 2951695010
4. #BOW ASSEMBLY MFR # 2924065028
5. #BAR, DOOR SHELF MFR # 2923825034
6. #SLIDER, MINIBAR, GRAY MFR # 2923826032
7. #BRACKET, BOW, GRAY MFR # 2923827022
8. #APPLIANCE COMPONENTS RV; Rivet Asm Drive Gray S MFR # 2927925012
9. #DOOR, ASM, INSIDE MFR # 2936867304

Cabinet Asm

Components

23 items

1. #HINDGE, LOWER RH MFR # 2951626007
2. #HINGE, LOWER LH MFR # 2951625009
3. #PIN, LOWER HINGE MFR # 2951629001
4. #FOOT MFR # 2923297028
5. #HOSE, DRAIN USE 2923346056 MFR # 2923346072 Superseded: see description
6. #APPLIANCE COMPONENTS RV; HOSE, DRAIN MFR # 2923346056
7. #EVANP, PLATE MFR # 2951617105
8. #SHELF, GRAY MFR # 2951466073
9. #COVER, HINGE BLACK MFR # 2926412038
10. #SPACER, EVAP. PLATE MFR # 2951638101
11. #PLATE, RETAINER (WHITE) MFR # 2951467006
12. #HINGE, UPPER RH MFR # 295164009
13. #Refrigerator Door Hinge; Replacement For Dometic RM4180 Refrigerator; Fits Upper Door Side; Top Left Hand MFR # 2951648001
14. #COVER, HINGE LOWER MFR # 2951630009
15. #KNOB, T-STAT MFR # 2923835025
16. #LIGHT ASM MFR # 2952339105
17. #BULB, 100-240V MFR # 2952319008
18. #COVER, LENS, GLASS MFR # 2951376017
19. #REFLECTOR MFR # 2952323000
20. #SENSOR, CABLE MFR # 2952320204
21. #WASHER MFR # 2926572013
22. #COVER, SENSOR, WHITE MFR # 2952238000
23. #SENSOR, ARM, TEMP CONTROL MFR # 2952248009

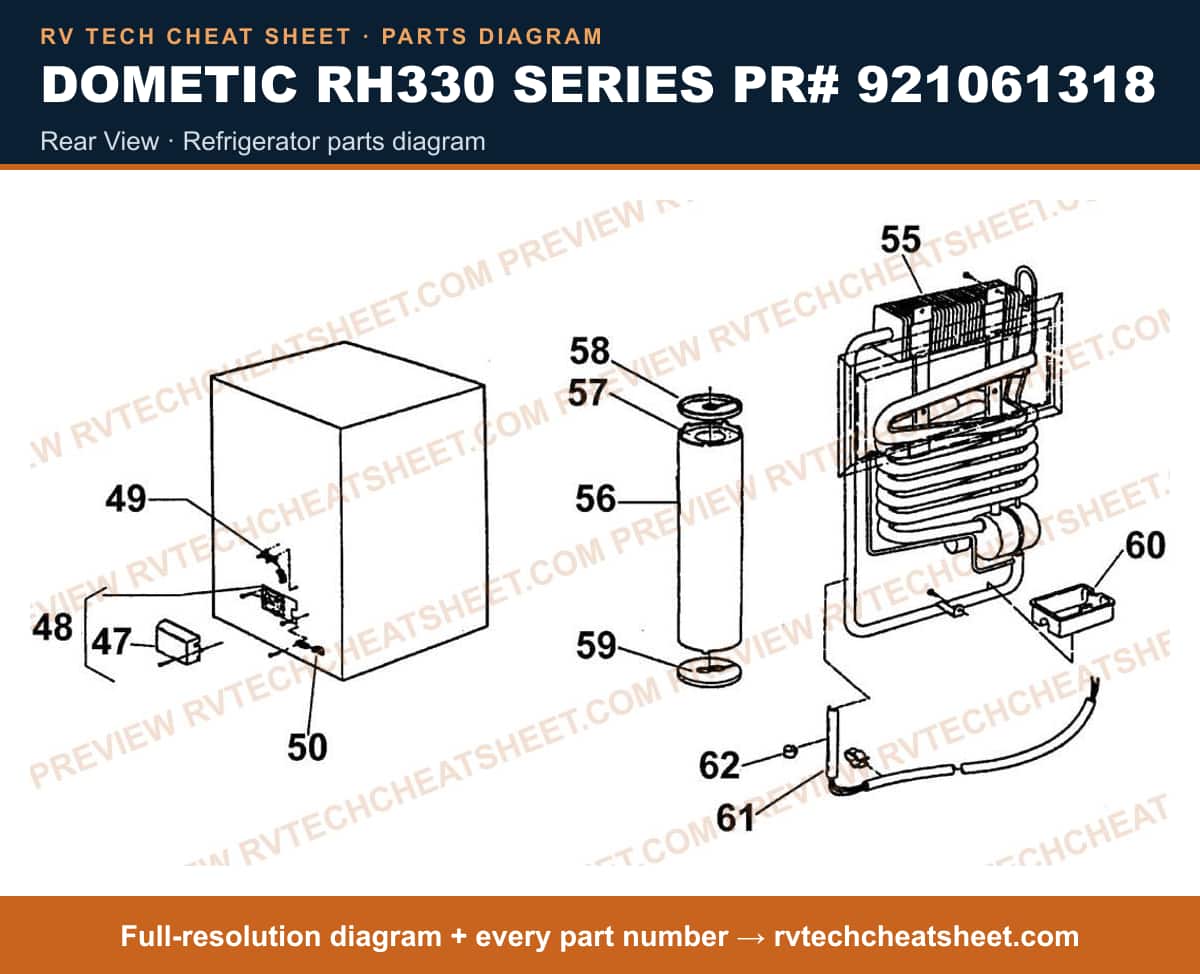

Rear View

Components

13 items

1. #COVER, CONTROL GRAY MFR # 2952235113
2. #APPLIANCE COMPONENTS RV; Electronic Control Kit (USE # FOR 2952267116) MFR # 2952267611 Superseded: see description
3. #CONTROL KIT USE 2952267611 ELECTRONIC W/COVER MFR # 2952267116 Superseded: see description
4. #STRAIN RELIEF MFR # 2935319000
5. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
6. #COOLING UNIT W/O HEATER MFR # 2936654108
7. #COVER, BOILING MFR # 2924061308
8. #INSULATION MFR # 2926680113
9. #LID, UPPER, BOILER MFR # 2924063007
10. #LID, LOWER MFR # 2924062009
11. #EVAPORATOR TRAY MFR # 2923709006
12. #HEATER, 65W/120V MFR # 2952143234
13. #CLIP, BRACKET, HEATER MFR # 2952221006
