Dometic RH356 Series RH356LDE150 Parts Diagram · PR# 921067151 › Door Assembly

Refrigerator · 16 assemblies · 16 diagram sheets · 81 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RH356 Series RH356LDE150 RV refrigerator: 16 assemblies (PR# 921067151 › Door Assembly, PR# 921067153 › Rear Cabinet Assembly, PR# 921067152 › Rear Cabinet Assembly, PR# 921067151 › Cabinet Assembly, PR# 921067151 › Rear Cabinet Assembly 2 and more) and 81 manufacturer part numbers. 4 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

PR# 921067151 › Door Assembly

Components

20 items

1. #DOOR ASM., COMPLETE RH MFR # 2936958004
2. #TRIM, LOWER MFR # 2951316021
3. #Refrigerator Trim; Replacement For Dometic RH356LDE150 Model Refrigerator; Door Top Trim MFR # 2951315023
4. #HOLDER, BOTTLE TURQUOISE-BLUE (2 REQ) MFR # 2951341003
5. #HOLDER, BOTTLE WARM DOOR, TURQUOISE-BLUE MFR # 2951634001
6. #SHELF, LOWER DOOR, TURQUOISE-BLUE MFR # 2951338009
7. #SHELF, DOOR MIDDLE, TURQUOISE-BLUE MFR # 2951339007
8. #SHELF, DOOR TOP, TURQUOISE-BLUE MFR # 2951340005
9. #LOCK ASM., CHISMA MFR # 2935538716
10. #KEY, CHISMA, FACTORY VERSION MFR # 2935642104
11. #Refrigerator Door Panel; Use With Dometic Minibar Model RH356LDE150; Clear MFR # 2951335005 Superseded: see description
12. #COVER, HINGE MFR # 2951325022
13. #COVER, LOCK MFR # 2951336003
14. #COVER, INDICATOR SLOT, ANTHRAZIT MFR # 2951326020
15. #DOOR STRIP, GRAY, RIGHT MFR # 2951318324
16. #PANEL, FRONT RH MFR # 2951333026
17. #SHELF ASM., MIDDLE, TURQUOISE-BLUE MFR # 2951435003
18. #SHELF ASM., WARM DOOR, TURQUOISE-BLUE MFR # 2951434006
19. #SHELF ASM., LOWER DOOR, TURQUOISE-BLUE MFR # 2951436001
20. #DOOR OPENING, CONTROL RH MFR # 2951817424

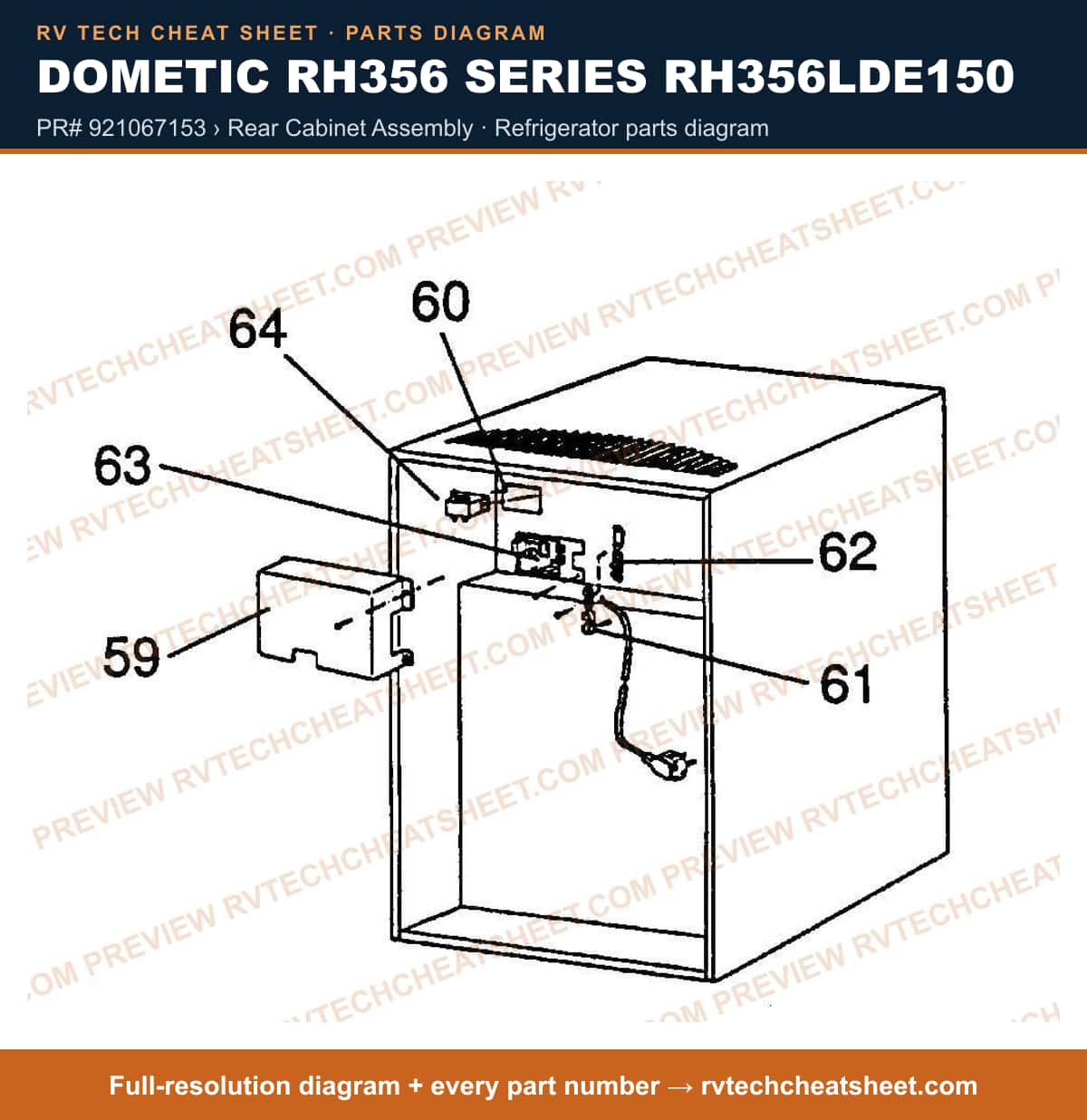

PR# 921067153 › Rear Cabinet Assembly

Components

7 items

1. #COVER, ELECTRIC MFR # 2951386115
2. #INSULATING PLATE MFR # 2926957008
3. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
4. #STRAIN RELIEF MFR # 2935319000
5. #CONTROL KIT USE 2952267611 ELECTRONIC W/COVER MFR # 2952267116 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Electronic Control Kit (USE # FOR 2952267116) MFR # 2952267611 Superseded: see description
7. #TRANSFORMER 120V/24V MFR # 2951391107

PR# 921067152 › Rear Cabinet Assembly

Components

7 items

1. #COVER, ELECTRIC MFR # 2951386115
2. #INSULATING PLATE MFR # 2926957008
3. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
4. #STRAIN RELIEF MFR # 2935319000
5. #APPLIANCE COMPONENTS RV; Electronic Control Kit (USE # FOR 2952267116) MFR # 2952267611 Superseded: see description
6. #CONTROL KIT USE 2952267611 ELECTRONIC W/COVER MFR # 2952267116 Superseded: see description
7. #TRANSFORMER 120V/24V MFR # 2951391107

PR# 921067151 › Cabinet Assembly

Components

28 items

1. #FOOT MFR # 2923297028
2. #HOSE, DRAIN MFR # 2923346031
3. #EVANP, PLATE MFR # 2951617105
4. #SHELF, WIRE, TURQUOISE-BLUE MFR # 2951353065
5. #APPLIANCE COMPONENTS RV; Light Assembly MFR # 2951642012
6. #LIGHT ASM., REFRIG. COMPARTMENT MFR # 2951641014
7. #BULB 28V MFR # 2951388004
8. #Refrigerator Door Latch; Travel Latch; Use With Dometic Minibar Model RH356LDE150 MFR # 2951352000 Superseded: see description
9. #COVER, HINGE BLACK MFR # 2926412038
10. #PLUG MFR # 2951221023
11. #PLATE, BACKING MFR # 2951351002
12. #SPACER, EVAP. PLATE MFR # 2951638101
13. #COVER, EVAP. MFR # 2951425103
14. #TRIM, SHELF, TURQUOISE-BLUE MFR # 2951354006
15. #SWITCH, PUSH BUTTON MFR # 2951645007
16. #REFLECTOR ASM., WARM SHELF MFR # 2951644000
17. #REFLECTOR ASM., LOWER COMPARTMENT MFR # 2951643002
18. #COVER, LENS, GLASS MFR # 2951376017
19. #SCREWS MFR # 2926544004
20. #HINGE, UPPER RH MFR # 2951561204
21. #HINGE, LOWER MFR # 2951559109
22. #APPLIANCE COMPONENTS RV; Lens Red Dot Indicator MFR # 2951327002
23. #KNOB, T-STAT TURQUOISE-BLUE MFR # 2951384102
24. #COVER, SENSOR MFR # 2952238109
25. #SENSOR MFR # 2952248108
26. #SLEEVE, LIGHT SENSOR MFR # 2951379003
27. #SENSOR, LIGHTING W/CABLE MFR # 2951380001
28. #WASHER MFR # 7341146608

PR# 921067151 › Rear Cabinet Assembly 2

Components

15 items

1. #COVER, ELECTRIC MFR # 2951386115
2. #INSULATING PLATE MFR # 2926957008
3. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
4. #STRAIN RELIEF MFR # 2935319000
5. #APPLIANCE COMPONENTS RV; Electronic Control Kit (USE # FOR 2952267116) MFR # 2952267611 Superseded: see description
6. #CONTROL KIT USE 2952267611 ELECTRONIC W/COVER MFR # 2952267116 Superseded: see description
7. #TRANSFORMER 120V/24V MFR # 2951391107
8. #COOLING UNIT W/O HEATER MFR # 2936654108
9. #COVER, BOILING MFR # 2924061308
10. #INSULATION MFR # 2926680113
11. #LID, UPPER, BOILER MFR # 2924063007
12. #LID, LOWER MFR # 2924062009
13. #EVAPORATOR TRAY MFR # 2923709006
14. #HEATER 65W/120V MFR # 295214333
15. #CLIP, BRACKET, HEATER MFR # 2952221006

PR# 921067152 › Cabinet Assembly

Components

36 items

1. #FOOT MFR # 2923297028
2. #HOSE, DRAIN MFR # 2923346031
3. #EVANP, PLATE MFR # 2951617105
4. #SHELF, WIRE, TURQUOISE-BLUE MFR # 2951353065
5. #APPLIANCE COMPONENTS RV; Light Assembly MFR # 2951642012
6. #LIGHT ASM., REFRIG. COMPARTMENT MFR # 2951641014
7. #BULB 28V MFR # 2951388004
8. #Refrigerator Door Latch; Travel Latch; Use With Dometic Minibar Model RH356LDE150 MFR # 2951352000 Superseded: see description
9. #COVER, HINGE BLACK MFR # 2926412038
10. #PLUG MFR # 2951221023
11. #PLATE, BACKING MFR # 2951351002
12. #SPACER, EVAP. PLATE MFR # 2951638101
13. #COVER, EVAP. MFR # 2951425103
14. #TRIM, SHELF, TURQUOISE-BLUE MFR # 2951354006
15. #SWITCH, PUSH BUTTON MFR # 2951645007
16. #REFLECTOR ASM., WARM SHELF MFR # 2951644000
17. #REFLECTOR ASM., LOWER COMPARTMENT MFR # 2951643002
18. #COVER, LENS, GLASS MFR # 2951376017
19. #SCREWS MFR # 2926544004
20. #HINGE, UPPER LH MFR # 2951561303
21. #HINGE, LOWER MFR # 2951559109
22. #APPLIANCE COMPONENTS RV; Lens Red Dot Indicator MFR # 2951327002
23. #KNOB, T-STAT TURQUOISE-BLUE MFR # 2951384102
24. #COVER, SENSOR MFR # 2952238109
25. #SENSOR MFR # 2952248108
26. #SLEEVE, LIGHT SENSOR MFR # 2951379003
27. #SENSOR, LIGHTING W/CABLE MFR # 2951380001
28. #WASHER MFR # 7341146608
29. #COOLING UNIT W/O HEATER MFR # 2936654108
30. #COVER, BOILING MFR # 2924061308
31. #INSULATION MFR # 2926680113
32. #LID, UPPER, BOILER MFR # 2924063007
33. #LID, LOWER MFR # 2924062009
34. #EVAPORATOR TRAY MFR # 2923709006
35. #HEATER 65W/120V MFR # 295214333
36. #CLIP, BRACKET, HEATER MFR # 2952221006

PR# 921067150 › Door Assembly

Components

20 items

1. #DOOR ASM., COMPLETE RH MFR # 2936958012
2. #TRIM, LOWER MFR # 2951316021
3. #Refrigerator Trim; Replacement For Dometic RH356LDE150 Model Refrigerator; Door Top Trim MFR # 2951315023
4. #HOLDER, BOTTLE LIGHT GRAY (2 REQ.) MFR # 2951341011
5. #HOLDER, BOTTLE WARM DOOR, LIGHT GRAY MFR # 2951634019
6. #SHELF, LOWER DOOR, LIGHT GRAY MFR # 2951338017
7. #SHELF, DOOR MIDDLE, LIGHT GRAY MFR # 2951339015
8. #SHELF, DOOR, TOP, LIGHT GRAY MFR # 2951340013
9. #LOCK ASM., CHISMA MFR # 2935538716
10. #KEY, CHISMA, FACTORY VERSION MFR # 2935642104
11. #Refrigerator Door Panel; Use With Dometic Minibar Model RH356LDE150; Clear MFR # 2951335005 Superseded: see description
12. #COVER, HINGE MFR # 2951325022
13. #COVER, LOCK MFR # 2951336003
14. #COVER, INDICATOR SLOT, ANTHRAZIT MFR # 2951326020
15. #DOOR STRIP, GRAY, RIGHT MFR # 2951318324
16. #PANEL, FRONT RH MFR # 2951333026
17. #SHELF ASM., MIDDLE, LIGHT GRAY MFR # 2951435011
18. #SHELF ASM., WARM DOOR, LIGHT GRAY MFR # 2951434014
19. #SHELF ASM., LOWER DOOR, LIGHT GRAY MFR # 2951436019
20. #DOOR OPENING, CONTROL RH MFR # 2951817424

PR# 921067153 › Cabinet Assembly

Components

27 items

1. #FOOT MFR # 2923297028
2. #HOSE, DRAIN MFR # 2923346031
3. #EVANP, PLATE MFR # 2951617105
4. #SHELF, WIRE, LIGHT GRAY MFR # 2951353073
5. #APPLIANCE COMPONENTS RV; Light Assembly MFR # 2951642012
6. #LIGHT ASM., REFRIG. COMPARTMENT MFR # 2951641014
7. #BULB 28V MFR # 2951388004
8. #Refrigerator Door Latch; Travel Latch; Use With Dometic Minibar Model RH356LDE150 MFR # 2951352000 Superseded: see description
9. #COVER, HINGE BLACK MFR # 2926412038
10. #PLUG MFR # 2951221023
11. #PLATE, BACKING MFR # 2951351002
12. #SPACER, EVAP. PLATE MFR # 2951638101
13. #COVER, EVAP. MFR # 2951425103
14. #TRIM, SHELF, LIGHT GRAY MFR # 2951354014
15. #SWITCH, PUSH BUTTON MFR # 2951645007
16. #REFLECTOR ASM., WARM SHELF MFR # 2951644000
17. #REFLECTOR ASM., LOWER COMPARTMENT MFR # 2951643002
18. #COVER, LENS, GLASS MFR # 2951376017
19. #SCREWS MFR # 2926544004
20. #HINGE, UPPER LH MFR # 2951561303
21. #HINGE, LOWER MFR # 2951559109
22. #KNOB, T-STAT LIGHT GRAY MFR # 2951384110
23. #COVER, SENSOR MFR # 2952238109
24. #SENSOR MFR # 2952248108
25. #SLEEVE, LIGHT SENSOR MFR # 2951379003
26. #SENSOR, LIGHTING W/CABLE MFR # 2951380001
27. #WASHER MFR # 7341146608

PR# 921067153 › Rear Cabinet Assembly 2

Components

8 items

1. #COOLING UNIT W/O HEATER MFR # 2936654108
2. #COVER, BOILING MFR # 2924061308
3. #INSULATION MFR # 2926680113
4. #LID, UPPER, BOILER MFR # 2924063007
5. #LID, LOWER MFR # 2924062009
6. #EVAPORATOR TRAY MFR # 2923709006
7. #HEATER 65W/120V MFR # 295214333
8. #CLIP, BRACKET, HEATER MFR # 2952221006

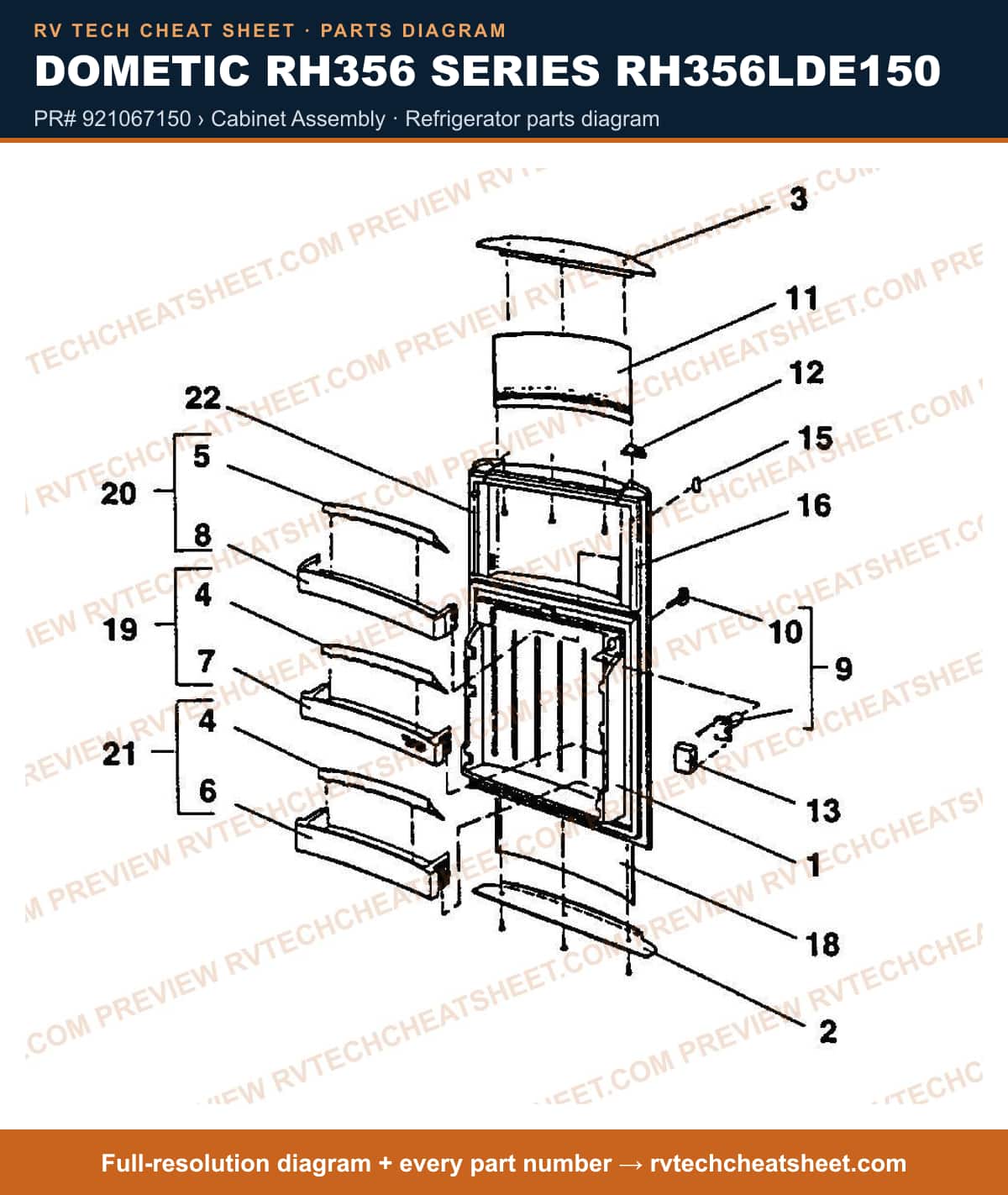

PR# 921067150 › Cabinet Assembly

Components

20 items

1. #DOOR ASM., COMPLETE RH MFR # 2936958012
2. #TRIM, LOWER MFR # 2951316021
3. #Refrigerator Trim; Replacement For Dometic RH356LDE150 Model Refrigerator; Door Top Trim MFR # 2951315023
4. #HOLDER, BOTTLE LIGHT GRAY (2 REQ.) MFR # 2951341011
5. #HOLDER, BOTTLE WARM DOOR, LIGHT GRAY MFR # 2951634019
6. #SHELF, LOWER DOOR, LIGHT GRAY MFR # 2951338017
7. #SHELF, DOOR MIDDLE, LIGHT GRAY MFR # 2951339015
8. #SHELF, DOOR, TOP, LIGHT GRAY MFR # 2951340013
9. #LOCK ASM., CHISMA MFR # 2935538716
10. #KEY, CHISMA, FACTORY VERSION MFR # 2935642104
11. #Refrigerator Door Panel; Use With Dometic Minibar Model RH356LDE150; Clear MFR # 2951335005 Superseded: see description
12. #COVER, HINGE MFR # 2951325022
13. #COVER, LOCK MFR # 2951336003
14. #COVER, INDICATOR SLOT, ANTHRAZIT MFR # 2951326020
15. #DOOR STRIP, GRAY, RIGHT MFR # 2951318324
16. #PANEL, FRONT RH MFR # 2951333026
17. #SHELF ASM., MIDDLE, LIGHT GRAY MFR # 2951435011
18. #SHELF ASM., WARM DOOR, LIGHT GRAY MFR # 2951434014
19. #SHELF ASM., LOWER DOOR, LIGHT GRAY MFR # 2951436019
20. #DOOR OPENING, CONTROL RH MFR # 2951817424

PR# 921067150 › Rear Cabinet Assembly 2

Components

8 items

1. #COOLING UNIT W/O HEATER MFR # 2936654108
2. #COVER, BOILING MFR # 2924061308
3. #INSULATION MFR # 2926680113
4. #LID, UPPER, BOILER MFR # 2924063007
5. #LID, LOWER MFR # 2924062009
6. #EVAPORATOR TRAY MFR # 2923709006
7. #HEATER 65W/120V MFR # 295214333
8. #CLIP, BRACKET, HEATER MFR # 2952221006

PR# 921067152 › Rear Cabinet Assembly 2

Components

8 items

1. #COOLING UNIT W/O HEATER MFR # 2936654108
2. #COVER, BOILING MFR # 2924061308
3. #INSULATION MFR # 2926680113
4. #LID, UPPER, BOILER MFR # 2924063007
5. #LID, LOWER MFR # 2924062009
6. #EVAPORATOR TRAY MFR # 2923709006
7. #HEATER 65W/120V MFR # 295214333
8. #CLIP, BRACKET, HEATER MFR # 2952221006

PR# 921067152 › Door Assembly

Components

20 items

1. #DOOR ASM., COMPLETE LH MFR # 2936961008
2. #TRIM, LOWER MFR # 2951316021
3. #Refrigerator Trim; Replacement For Dometic RH356LDE150 Model Refrigerator; Door Top Trim MFR # 2951315023
4. #HOLDER, BOTTLE TURQUOISE-BLUE (2 REQ) MFR # 2951341003
5. #HOLDER, BOTTLE WARM DOOR, TURQUOISE-BLUE MFR # 2951634001
6. #SHELF, LOWER DOOR, TURQUOISE-BLUE MFR # 2951338009
7. #SHELF, DOOR MIDDLE, TURQUOISE-BLUE MFR # 2951339007
8. #SHELF, DOOR TOP, TURQUOISE-BLUE MFR # 2951340005
9. #LOCK ASM., CHISMA MFR # 2935538716
10. #KEY, CHISMA, FACTORY VERSION MFR # 2935642104
11. #Refrigerator Door Panel; Use With Dometic Minibar Model RH356LDE150; Clear MFR # 2951335005 Superseded: see description
12. #COVER, HINGE MFR # 2951325022
13. #COVER, LOCK MFR # 2951336003
14. #COVER, INDICATOR SLOT, ANTHRAZIT MFR # 2951326020
15. #DOOR STRIP, GRAY, LEFT MFR # 2951317326
16. #PANEL, FRONT LH MFR # 2951333125
17. #SHELF ASM., MIDDLE, TURQUOISE-BLUE MFR # 2951435003
18. #SHELF ASM., WARM DOOR, TURQUOISE-BLUE MFR # 2951434006
19. #SHELF ASM., LOWER DOOR, TURQUOISE-BLUE MFR # 2951436001
20. #DOOR OPENING, CONTROL LH MFR # 2951817523

PR# 921067150 › Rear Cabinet Assembly

Components

7 items

1. #COVER, ELECTRIC MFR # 2951386115
2. #INSULATING PLATE MFR # 2926957008
3. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
4. #STRAIN RELIEF MFR # 2935319000
5. #APPLIANCE COMPONENTS RV; Electronic Control Kit (USE # FOR 2952267116) MFR # 2952267611 Superseded: see description
6. #CONTROL KIT USE 2952267611 ELECTRONIC W/COVER MFR # 2952267116 Superseded: see description
7. #TRANSFORMER 120V/24V MFR # 2951391107

PR# 921067151 › Rear Cabinet Assembly

Components

7 items

1. #COVER, ELECTRIC MFR # 2951386115
2. #INSULATING PLATE MFR # 2926957008
3. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
4. #STRAIN RELIEF MFR # 2935319000
5. #CONTROL KIT USE 2952267611 ELECTRONIC W/COVER MFR # 2952267116 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Electronic Control Kit (USE # FOR 2952267116) MFR # 2952267611 Superseded: see description
7. #TRANSFORMER 120V/24V MFR # 2951391107

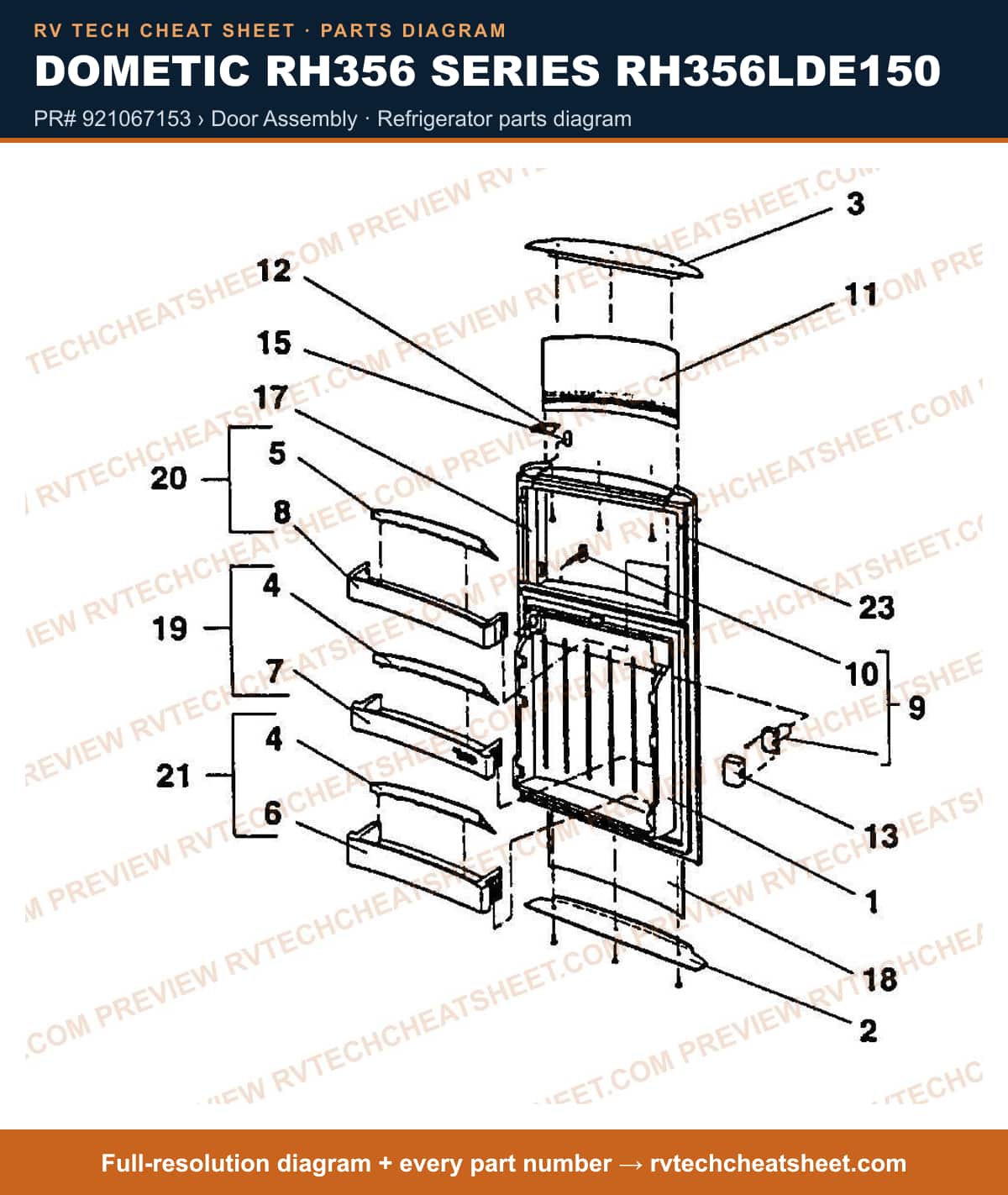

PR# 921067153 › Door Assembly

Components

20 items

1. #DOOR ASM., COMPLETE LH MFR # 2936961016
2. #TRIM, LOWER MFR # 2951316021
3. #Refrigerator Trim; Replacement For Dometic RH356LDE150 Model Refrigerator; Door Top Trim MFR # 2951315023
4. #HOLDER, BOTTLE LIGHT GRAY (2 REQ.) MFR # 2951341011
5. #HOLDER, BOTTLE WARM DOOR, LIGHT GRAY MFR # 2951634019
6. #SHELF, LOWER DOOR, LIGHT GRAY MFR # 2951338017
7. #SHELF, DOOR MIDDLE, LIGHT GRAY MFR # 2951339015
8. #SHELF, DOOR, TOP, LIGHT GRAY MFR # 2951340013
9. #LOCK ASM., CHISMA MFR # 2935538716
10. #KEY, CHISMA, FACTORY VERSION MFR # 2935642104
11. #Refrigerator Door Panel; Use With Dometic Minibar Model RH356LDE150; Clear MFR # 2951335005 Superseded: see description
12. #COVER, HINGE MFR # 2951325022
13. #COVER, LOCK MFR # 2951336003
14. #COVER, INDICATOR SLOT, ANTHRAZIT MFR # 2951326020
15. #DOOR STRIP, GRAY, LEFT MFR # 2951317326
16. #PANEL, FRONT LH MFR # 2951333125
17. #SHELF ASM., MIDDLE, LIGHT GRAY MFR # 2951435011
18. #SHELF ASM., WARM DOOR, LIGHT GRAY MFR # 2951434014
19. #SHELF ASM., LOWER DOOR, LIGHT GRAY MFR # 2951436019
20. #DOOR OPENING, CONTROL LH MFR # 2951817523
