Dometic RK400 Product # 921173006 Parts Diagram · Cabinet Interior

Refrigerator · 5 assemblies · 5 diagram sheets · 82 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RK400 Product # 921173006 RV refrigerator: 5 assemblies (Cabinet Interior, Cabinet Exterior, Kerosene Components, Door Assembly, Cabinet Rear View) and 82 manufacturer part numbers. 15 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

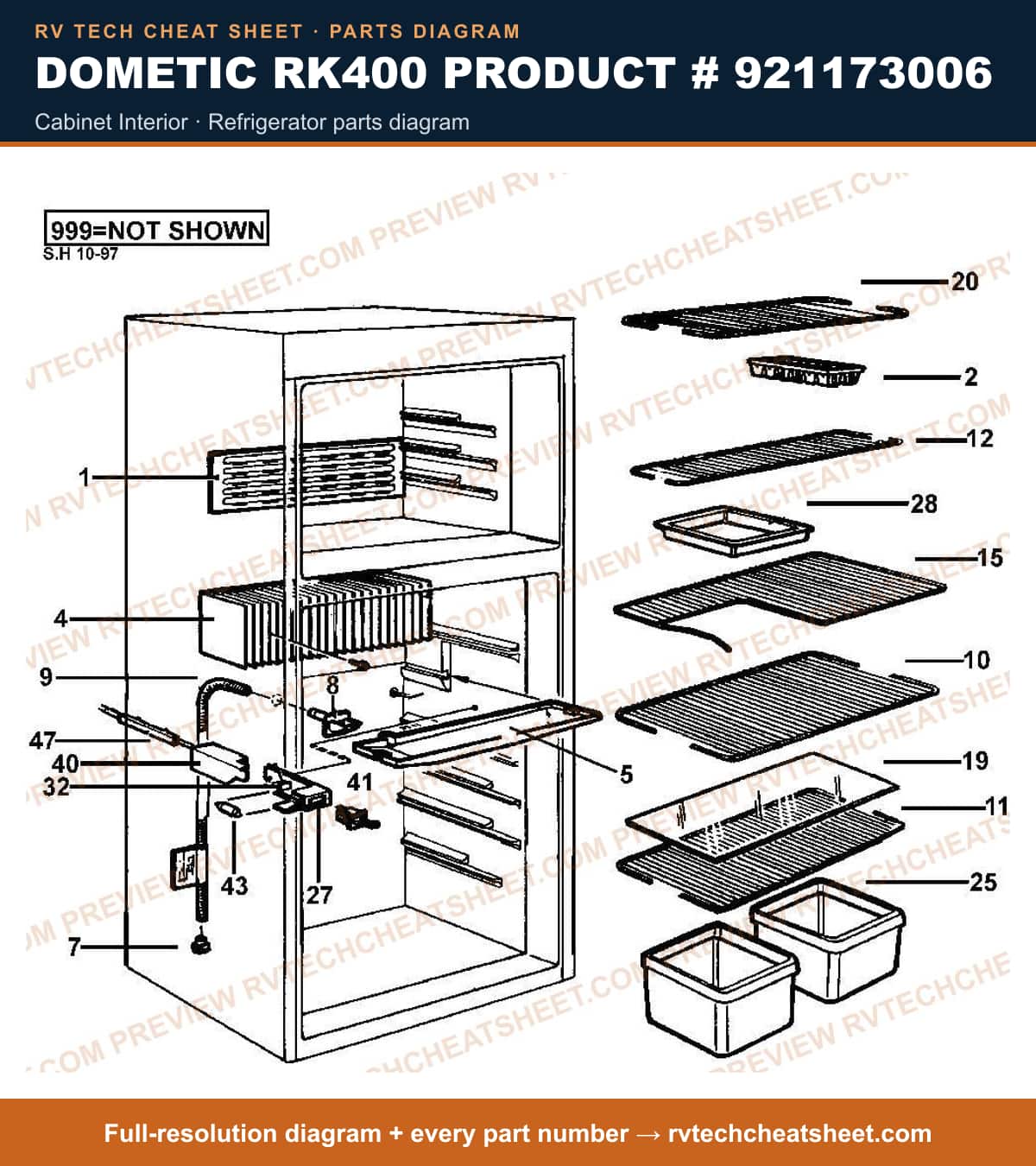

Cabinet Interior

Components

24 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
3. #COOLING FLANGE MFR # 2932630029
4. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
7. #HOSE MFR # 2932749050
8. #Dometic RM2652 RM2662 Gas Valve Solenoid Coil MFR # 2932625029
9. #Refrigerator Shelf; Replacement For Dometic RM2652/ RM4873/ RM4872 Refrigerators; Fresh Food Compartment; Wire MFR # 2932625045
10. #APPLIANCE COMPONENTS RV; Shelf Wire F/Rm4872 MFR # 2932625086
11. #Refrigerator Shelf; Replacement For Dometic RM3663/ RM4872/ RM3863 Refrigerators; Milk Compartment; Wire MFR # 2932626027
12. #S,CVR,CRISPER SHLF,CLR-400/410 MFR # 2931117085
13. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description
14. #Ice Bin; Replacement For Norcold 2117/ N1095/ N64X/ N84X/ N7LX/ N7LXIMF/ N8LX/ N8LXIMF/ N7LX/ N8LX/ NA8LX/ N10LX/ NA10LX Series Refrigerator; Clear MFR # 619007
15. #Refrigerator Crisper Bin; Replacement For Dometic RM2852/ RM2662 Refrigerators; White; Also Use New Number 29326210100 MFR # 2932621010 Superseded: see description
16. #CRISPER WHITE MFR # 9326210100
17. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
18. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
19. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
20. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
21. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
22. #Refrigerator Light Bulb; Replacement For Dometic RGE400 And RK400 Model Refrigerators; 6 Volt MFR # 2007290022
23. #APPLIANCE COMPONENTS RV; Cover Capillary MFR # 2004056012
24. #COVER, CAPILLARY USE 2004056012 MFR # 2004056046 Superseded: see description

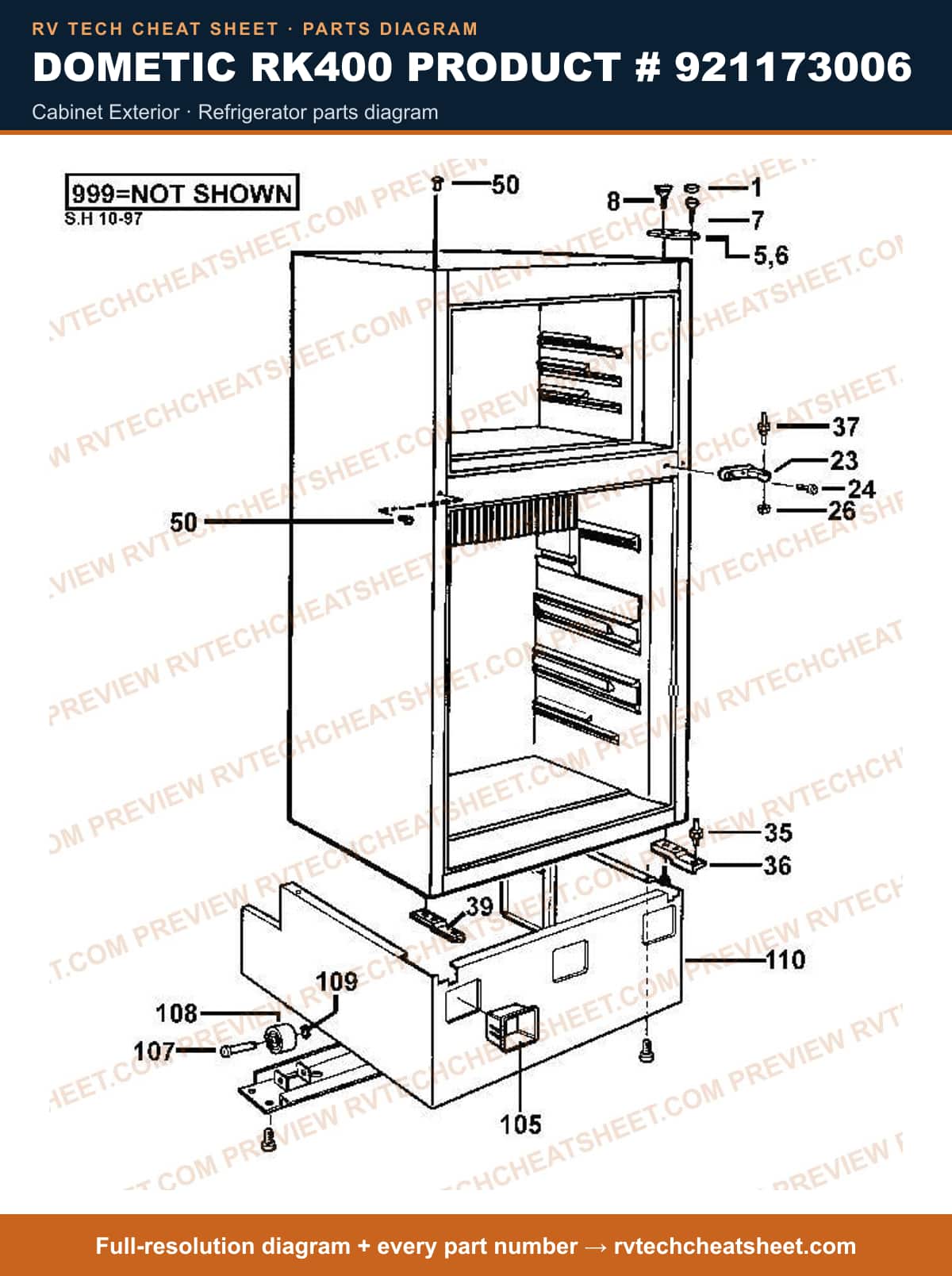

Cabinet Exterior

Components

21 items

1. #PLUG, WHITE MFR # 2932736065
2. #HINGE, BEIGE, UPPER, RIGHT MFR # 2932787126
3. #HINGE, BEIGE, UPPER, LEFT MFR # 2932787118
4. #Refrigerator Door Hinge Pin; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Top Hinge MFR # 2932790013
5. #SCREW M5X12 Z. PL. MFR # 7243327611
6. #APPLIANCE COMPONENTS RV; Hinge Middle MFR # 2932788116
7. #SCREW, RX 5 X 20, Z. PL. MFR # 7241331011
8. #NUT, WHITE MFR # 2940715010
9. #Refrigerator Door Hinge Pin; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Lower Hinge MFR # 2932792019
10. #Refrigerator Door Hinge; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Lower Cabinet Side; Bottom Right Hand; White MFR # 2932789023
11. #Refrigerator Door Hinge Pin; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Center Hinge MFR # 2932791011
12. #HINGE, LOWER, LEFT MFR # 2932789015
13. #PLUG, BEIGE MFR # 2932373026
14. #SLEEVE, GREY MFR # 2932890029
15. #SHAFT MFR # 2932894013
16. #WHEEL MFR # 2932897016
17. #E-RING, 4, RS, ZINCPLATED MFR # 7353108215
18. #AXLE BRACKET EXT 2' MFR # 2506
19. #SWITCH, MICRO MFR # 108
20. #SWITCH, SPDT MFR # 110
21. #DOOR REVERSING KIT, RIGHT-LEFT MFR # 2932372044

Kerosene Components

Components

16 items

1. #Cotter Pin; Replacement For Dometic RK400/ RAK1302 Refrigerators MFR # 2910082029
2. #APPLIANCE COMPONENTS RV; Baffle Flue MFR # 2930377003
3. #Refrigerator Cooling Unit Baffle Diffuser; Replacement For Dometic RK400/ RAK100/ RAK1302/ RC65K Refrigerators MFR # 157418005
4. #Refrigerator Burner Sight Glass; Use With Dometic RK400 Refrigerator MFR # 2932892017 Superseded: see description
5. #CAP MFR # 157051004
6. #Refrigerator Burner Tube; Replacement For Dometic RAK1302/ RC65K/ RK400 Refrigerators MFR # 2890060003
7. #BURNER ASM MFR # 157054008
8. #WICK CARRIER MFR # 2890061001
9. #WICK #23 MFR # 2890062009
10. #WICK CLEANER MFR # 2890065002
11. #KEROSENE TANK MFR # 2932900018
12. #KNOB MFR # 172497000
13. #RAIL MFR # 2932887017
14. #CONTROL BAR MFR # 2932889013
15. #CANTILEVER MFR # 2932885011
16. #RETAINER MFR # 2932886019

Door Assembly

Components

14 items

1. #DOOR REFRIGERATOR, BEIGE, ASSY MFR # 2932803139
2. #APPLIANCE COMPONENTS RV; Door Asm Lower Beige MFR # 2932805100
3. #PLUG, GREY MFR # 2059619037
4. #HINGE BUSHING, GREY MFR # 2059342036
5. #PLUG, GREY MFR # 2057493039
6. #PLUG, GREY MFR # 2230030
7. #HANDLE, GREY MFR # 2058283124
8. #SCREW MFR # 2058288016
9. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
10. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
11. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
12. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
13. #NAME PLATE MFR # 2931307017
14. #RACK MFR # 932585033

Cabinet Rear View

Components

7 items

1. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model RK400 MFR # 2934808094 Superseded: see description
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
5. #S,TUBE,OVERFILL MFR # 2931829010
6. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
7. #Battery Box; Use With Dometic RGE400/ RK400 Refrigerators MFR # 2932849017 Superseded: see description
