Dometic RK400 Product # 921173023 Parts Diagram · Cabinet Interior

Refrigerator · 4 assemblies · 4 diagram sheets · 72 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RK400 Product # 921173023 RV refrigerator: 4 assemblies (Cabinet Interior, Cabinet Rear View, Door Assembly, Cabinet Exterior) and 72 manufacturer part numbers. 17 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Interior

Components

26 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #COOLING FLANGE MFR # 3851121024
3. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
4. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
5. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
6. #HOSE MFR # 2932749050
7. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
8. #Refrigerator Shelf; Replacement For Dometic DM2862/ DM2663 Refrigerators; Clear; Plastic MFR # 2931117176
9. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324025
10. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324017
11. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 3850325014
12. #S,SHELF,WIRE,WHT MFR # 3850324033
13. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description
14. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
15. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
16. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
17. #CRISPER WHITE MFR # 9326210100
18. #Refrigerator Crisper Bin; Replacement For Dometic RM2852/ RM2662 Refrigerators; White; Also Use New Number 29326210100 MFR # 2932621010 Superseded: see description
19. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
20. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
21. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
22. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
23. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
24. #Refrigerator Light Bulb; Replacement For Dometic RGE400 And RK400 Model Refrigerators; 6 Volt MFR # 2007290022
25. #BAR, PROTECTION MFR # 2933091015
26. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description

Cabinet Rear View

Components

8 items

1. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model RK400 MFR # 2934808094 Superseded: see description
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #SCREW 4.8 X 16 MFR # 3858068012
5. #S,TUBE,OVERFILL MFR # 2931829010
6. #Refrigerator Drip Tray; Replacement For Dometic RM2352/ RM2611/ RM2811/ RM3607 Model Refrigerator MFR # 2931828012
7. #Battery Box; Use With Dometic RGE400/ RK400 Refrigerators MFR # 2932849017 Superseded: see description
8. #USER MANUAL MFR # 8227058032

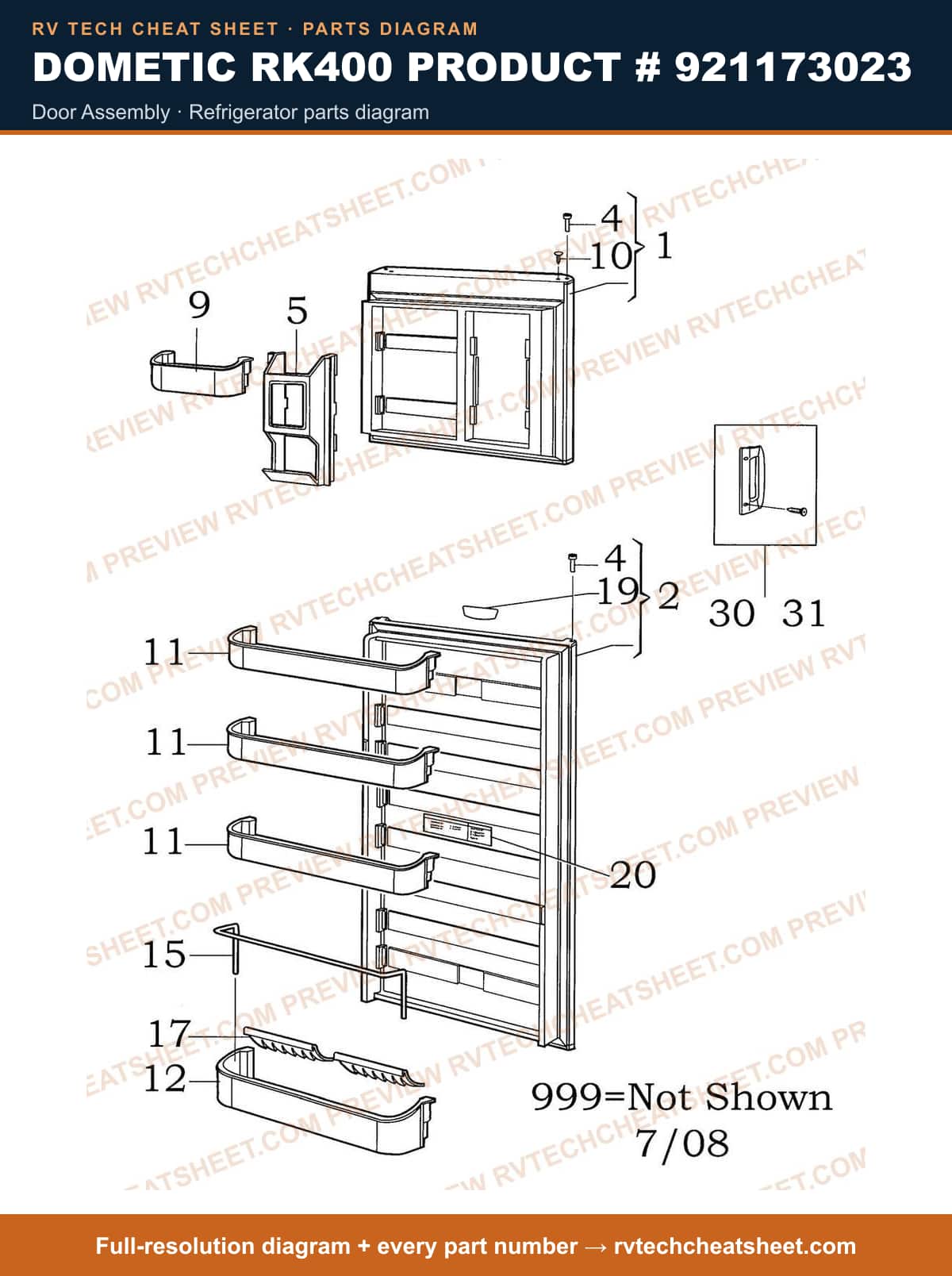

Door Assembly

Components

17 items

1. #Refrigerator Gasket; Use With RGE400/ RK400 Series Refrigerators; Upper Door MFR # 3108708201 Superseded: see description
2. #DOOR,FREEZER BISQUE MFR # 3851287049
3. #Refrigerator Gasket; Replacement For Dometic RGE400/ RK400 Refrigerators; Lower Door Gasket; White MFR # 3108708219
4. #DOOR,REFER BISQUE MFR # 3851283055
5. #HINGE BUSHING, GREY MFR # 2059342036
6. #RACK,JUICE WHITE MFR # 2932578020
7. #Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description
8. #PLUG, GREY MFR # 3850585021
9. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
10. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
11. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
12. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
13. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
14. #SHIELD, DOOR WHITE MFR # 2932288034
15. #LABEL MFR # 3851235006
16. #HANDLE KIT, GREY MFR # 2932973064
17. #HANDLE KIT, WHITE MFR # 2932973072

Cabinet Exterior

Components

24 items

1. #Refrigerator Crisper Bin Cover; Replacement For Dometic NDR1062/ RGE400/ RK400/ RM2652/ RM2852/ RM2862/ RM2863/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872/ RM4873 Refrigerators MFR # 2932728013
2. #COOLING FLANGE MFR # 3851121024
3. #SCREW, ZINC PLATED MFX M5X10 MFR # 3858056025
4. #S,HINGE,UPR,R,BISQUE MFR # 2932787134
5. #HINGE, UPPER BISQUE MFR # 2932787142
6. #Refrigerator Door Hinge Pin; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Top Hinge MFR # 2932790013
7. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
8. #HINGE, MIDDLE MFR # 2932788124
9. #SCREW, MRX M5X20 MFR # 3858004082
10. #NUT, HINGE MFR # 3858030012
11. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
12. #Refrigerator Door Hinge Pin; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Lower Hinge MFR # 2932792019
13. #Refrigerator Door Hinge; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Lower Cabinet Side; Bottom Right Hand; White MFR # 2932789023
14. #Refrigerator Door Hinge Pin; Replacement For Dometic RGE400/ RK400 Model Refrigerator; Fits Center Hinge MFR # 2932791011
15. #HINGE, LOWER, LEFT MFR # 2932789015
16. #PLUG, BEIGE MFR # 2932373026
17. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
18. #WASHER MFR # 3858010147
19. #SLEEVE, GREY MFR # 2932890029
20. #SHAFT MFR # 2932894013
21. #WHEEL MFR # 2932897016
22. #RING, RETAINING MFR # 3858034014
23. #BASE, COMPLETE BISQUE MFR # 2932926153
24. #DOOR REVERSING KIT RH-LH MFR # 2932372135
