Dometic RM100 Parts Diagram · Replacement Refrigerator

Refrigerator · 5 assemblies · 5 diagram sheets · 210 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM100 RV refrigerator: 5 assemblies (Replacement Refrigerator, Cabinet Assembly, Cooling Unit, Gas & Electric Assembly, Door Assembly) and 210 manufacturer part numbers. 57 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

12 items

1. #REFER,8 CU FT 3-WAY WHITE 59 7/8"H X 23 1/2"W X 24"D MFR # N8413WH
2. #REFER,8 CU FT 2-W WHITE 59 7/8"H X 29 1/2"W X MFR # N841WH
3. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N
4. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N841IMSS
5. #REFER,8 CU FT BLK 59 15/16" X 23 11/16" X 24" MFR # RM2852B
6. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Must Be Ordered Separately MFR # NXA841R
7. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841SSR
8. #Refrigerator - Built In; N841; 7.5 Cu Ft; 2 Door; Without Ice Maker; AC/ LP; 59-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Stainless Steel Wrap; Stainless Steel; Gas Absorption MFR # N841SS
9. #REFER,8CUFT BEIGE USE RM3862BN MFR # RM3862N Superseded: see description
10. #REFER,8 CU FT 3 WAY 59 15/16 X 23 11/16 X 24 MFR # RM3863N
11. #Refer, 7.5 Cu Ft W/IM 59 7/8"H X 29 1/2"W X 24"D MFR # N841IMWH
12. #Refrigerators & Ice Makers RV; Refrigerator/LP-AC/Black MFR # N841BK

Cabinet Assembly

Components

77 items

1. #NO PART # GIVEN BY VENDOR MFR # NPG
2. #DOLLY F/RETAINER MFR # 2002761001
3. #PROTECTION PLATE FOR RM75A MFR # 2002625024
4. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model RM77D MFR # 2002760029 Superseded: see description
5. #SCREWS RM10 0 MFR # 7241328017
6. #APPLIANCE COMPONENTS RV; Bracket MFR # 2002749006
7. #S,LOCK PIN MFR # 2002759005
8. #APPLIANCE COMPONENTS RV; Plate Hinge Rh MFR # 2002536007
9. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM66; Fits Upper Hinge 2000544-00/3 MFR # 2000544003 Superseded: see description
10. #WASHER,LOCK F/UPPER HINGE MFR # 7352160019
11. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
12. #APPLIANCE COMPONENTS RV; Latch Hinge MFR # 2002535009
13. #STOP,SHELF MFR # 2002635007
14. #SCREW MFR # 7295281658
15. #SHELF,TOP RM100 MFR # 2002652069
16. #STRIP,DECORATION MFR # 2002640007
17. #HOLDER MFR # 2002641005
18. #SCREW - RXS B10X32 - Z. PL. MFR # 140245036
19. #SHELF WIRE W/FLAP RM10 MFR # 2002651129
20. #FLAP MFR # 2001659065
21. #SHELF MFR # 2002652051
22. #RADIATOR MFR # 2002637003
23. #INSTRUCTION PLATE MFR # 2007008036
24. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
25. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description
27. #LID,CRISPER USE 2002727010 MFR # 2002727002 Superseded: see description
28. #CRISPER,YELLOW USE 2002726103 MFR # 2002726004 Superseded: see description
29. #S,DRAWER,VEG,WHT,RM2510/2620 MFR # 2002726061
30. #CRISPER,BLACK USE 2002726061 MFR # 2002726103 Superseded: see description
31. #CABINET BASE MFR # 2002533095
32. #SCREW - RXS B8X16 - Z. PL. MFR # 140245002
33. #APPLIANCE COMPONENTS RV; Pin Hinge Lower MFR # 2002367007
34. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
35. #WARNING LABEL MFR # 2007048008
36. #SHELF MFR # 2002642003
37. #PANEL,CONTROL YELLOW MFR # 2002664007
38. #PANEL,CONTROL YELLOW MFR # 2002664056
39. #SCREW, FXS 5X16 BRASS, Z. PL. MFR # 7243327132
40. #APPLIANCE COMPONENTS RV; Tray Drip MFR # 2002636005
41. #SNAP SPRING MFR # 2000547006
42. #KNOB,ELECTRIC USE 2002423032 T-STAT YELLOW MFR # 2002725030 Superseded: see description
43. #Refrigerator Thermostat Control Knob; Replacement For Dometic RM47D/ RM66F/ RM66/ RM66D/ RM67D/ RM36E/ RM100/ RM76D/ RM66E/ RM67/ RM46E Series Refrigerators MFR # 2002423032
44. #LOCK NUT SNJ 1915 MFR # 7337813062
45. #APPLIANCE COMPONENTS RV; Plug Face Beige MFR # 2002352017
46. #KNOB,SWITCH USE 2002423040 2W MFR # 2002725048 Superseded: see description
47. #S,KNOB 3-W SWITCH,BRN/BLK MFR # 2002423057
48. #KNOB, SWITCH *USE 2002423057 3W YEL MFR # 2002725055 Superseded: see description
49. #Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Power Selector Knob MFR # 2002423040 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
51. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
52. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
53. #TRAY,ICE W/RELEASER MFR # 2002337000
54. #PIN,RETAINING MFR # 2001281019
55. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
56. #KNOB,T-STAT GAS 2002423032 BROWN MFR # 2002423024
57. #KNOB,T-STAT GAS USE 2002423024 YELLOW MFR # 2002725022 Superseded: see description
58. #CLAMP 2800 MFR # 2002798003
59. #APPLIANCE COMPONENTS RV; Lamp Complete Rm100 MFR # 2002751010
60. #LAMP,6 VOLT MFR # 140315003
61. #LAMP,GLASS MFR # 2002748008
62. #KNOB,PIEZO MFR # 2002669006
63. #KNOB,LIGHTER YELLOW MFR # 2002724009
64. #APPLIANCE COMPONENTS RV; Knob Pull Off MFR # 3002168031
65. #KNOB USE 3002168031 MFR # 2002722003 Superseded: see description
66. #COVER MFR # 2002799001
67. #PIPE,DRAIN MFR # 2002260004
68. #NUT MFR # 2001674007
69. #HOSE USE 2002604029 MFR # 2002604003 Superseded: see description
70. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2002604029
71. #HOLDER MFR # 2002728000
72. #SCREW, RXS B10 X 16, STAINLESS (EAR. VERSION) MFR # 7295412402
73. #WASHER, 5.4, STAINLESS MFR # 7344890400
74. #Refrigerator Power Cord Fuse; Replacement For Dometic RM761/ RM1303/ RM760/ RM763/ RM1300/ RM1301/ RM24 Series Refrigerator; 8 Amp MFR # 2002578025
75. #CLIP FOR CAPILLARY TUBE MFR # 2002606008
76. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
77. #BULB 2/PK MFR # 2007290006

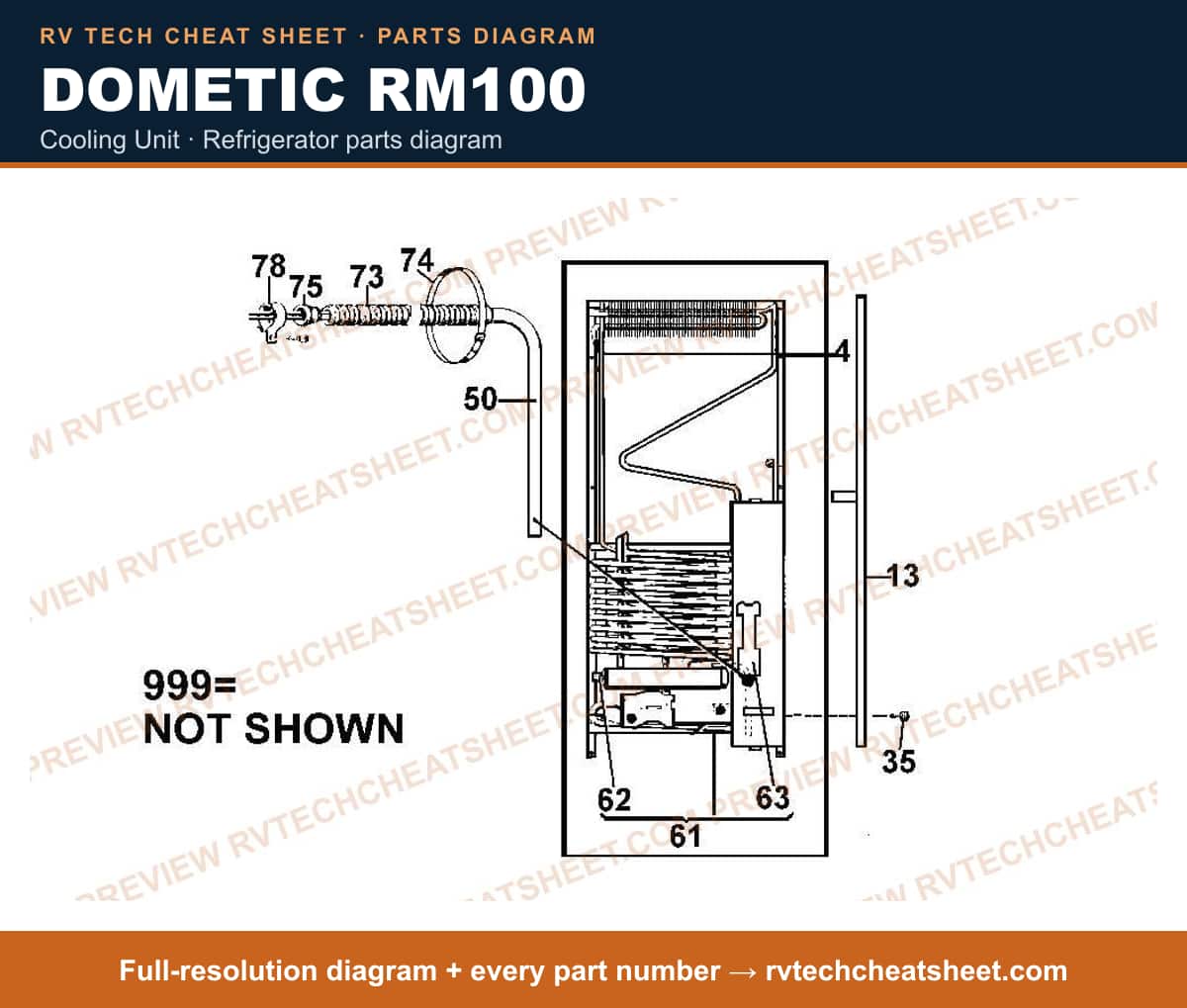

Cooling Unit

Components

21 items

1. #SCREW - RX 5X16 - Z. PL. MFR # 7241329015
2. #FLUE MFR # 2002472021
3. #Screw, RXS B6X25, Z. Pl. MFR # 7295287010
4. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM100; 12 Volt; 275 Watts MFR # 173725011MC Superseded: see description
5. #ELEMENT, HEATING **ALT 72-8897 12V 275W MFR # 173725011
6. #ELEMENT, HEATING (25) 11/16"D, 4 3/4"L 110V 275W MFR # 173714015
7. #ELEMENT, HEATING 11/16"D, 4 3/4"L 110V 275W MFR # CS000035
8. #APPLIANCE COMPONENTS RV; Element Heating Alt 48-9 MFR # 173720012
9. #ELEMENT, HEATING 110V 275W USE 173720012 MFR # 3800390092 Superseded: see description
10. #COOLING UNIT RM100 MFR # 9286109005N
11. #REMAN C/U USE 5510 RM100 MFR # 9286109005R Superseded: see description
12. #APPLIANCE COMPONENTS RV; Rebuilt Dometic Cooling Unit MFR # 5510
13. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
14. #COVER N/A MFR # 173430000
15. #PROTECTING HOSE MFR # 2007069004
16. #CLAMP MFR # 2004440028
17. #APPLIANCE COMPONENTS RV; Bushing MFR # 2007068006
18. #CLAMP MFR # 2007092004
19. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
20. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512

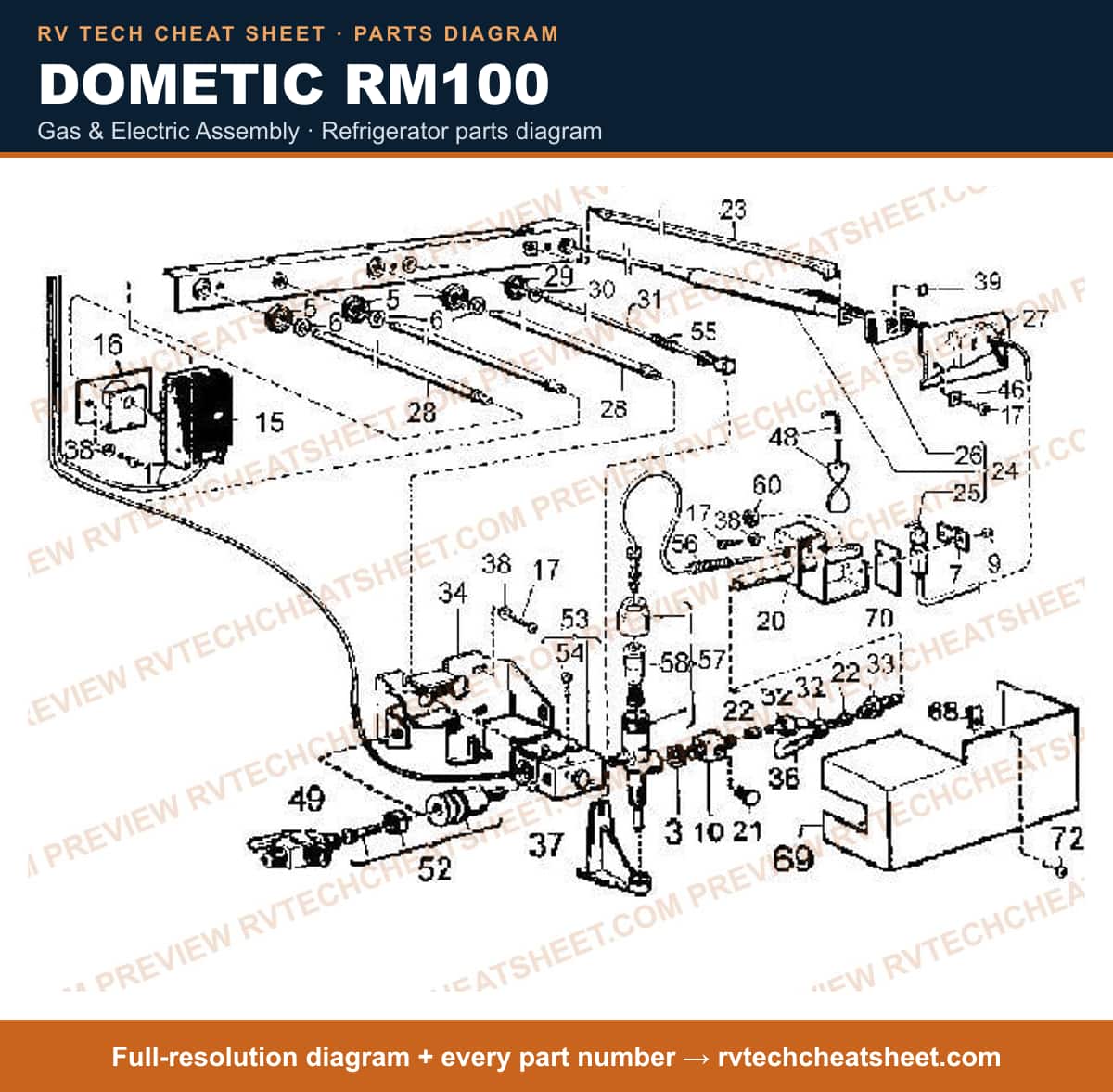

Gas & Electric Assembly

Components

73 items

1. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
2. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
3. #SEALING RING MFR # 2002224018
4. #WASHER RM36E MFR # 7344974014
5. #APPLIANCE COMPONENTS RV; Clamp MFR # 2002438006
6. #SCREW RXS B6X5 MFR # 7295275015
7. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
8. #T-STAT,ELECTRIC USE K50P1291 MFR # 2890032028 Superseded: see description
9. #T-STAT, ELECTRIC REPLACES: IS A USE # F/C302C, 2890032028, 2930758012, 50464, 671054120, 671401147, 172821027, C302B. FOR TRAV'LER MDLS 301-40 & 301-90 USE C... MFR # K50P1291 Superseded: see description
10. #APPLIANCE COMPONENTS RV; THERMOSTAT MFR # 2930758012
11. #BRACKET T-STAT MFR # 2890034008
12. #SCREW #17 MFR # 7241289011
13. #BURNER MFR # 2002644009
14. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
15. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
16. #CONDUCTOR,LIGHT 2007478023 MFR # 2002222038
17. #APPLIANCE COMPONENTS RV; Conductor Light MFR # 2007478023
18. #IGNITER,PIEZO **ALT 72-8227 14-1/2" LOT440 MFR # 2002609028
19. #PIEZO LIGHTER MFR # 440
20. #ELECTRODE,SQUARE USE 2002436000MC MFR # 2002436000 Superseded: see description
21. #ELECTRODE USE 2002436000 MFR # 2002436002 Superseded: see description
22. #Igniter Electrode; Use On Dometic Old M And RM Model Refrigerators; With Mounting Screw/ Gasket/ 2 Probes MFR # 2002436000MC Superseded: see description
23. #APPLIANCE COMPONENTS RV; Packing MFR # 2002304000
24. #APPLIANCE COMPONENTS RV; Holder Igniter MFR # 2002305007
25. #S,SHAFT,RM100 MFR # 2002300032
26. #RING,SEALING MFR # 2002224000
27. #WASHER RM66 MFR # 7344908012
28. #APPLIANCE COMPONENTS RV; Rod Pull MFR # 2002226039
29. #NUT, UNION FEMALE MFR # 2902553003
30. #NUT, UNION USE 2902553003 MFR # 173215005 Superseded: see description
31. #ORIFICE #58 MFR # 2002660211
32. #BRACKET MFR # 2002469001
33. #LINE, GAS USE 2002649008 MFR # 2002649008 Superseded: see description
34. #LINE, GAS RM100 MFR # 2007079003
35. #Refrigerator Gas Valve; Replacement For Dometic RM36E/ RM46D/ RM66D/ RM77D/ RM46E/ RM47/ RM60/ RM100/ RM36A/ RM67/ RM75/ RM76/ RM45A/ RM60A Series Refrigerators; Gas Control Valve MFR # 2002227003
36. #SPRING WASHER MFR # 7351136010
37. #APPLIANCE COMPONENTS RV; Glass Sight 2002220-00/8 MFR # 2002220008
38. #WASHER MFR # 2002351001
39. #BAFFLE, FLUE MFR # 172174013
40. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
41. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
42. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
44. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
46. #T-STAT, GAS USE 2890031038 MFR # 2890031020 Superseded: see description
47. #T-STAT, GAS MFR # V35P0111013
48. #T-STAT, GAS USE V35P0111013 MFR # 2890031038 Superseded: see description
49. #Thermostat Bypass Screw; Replaces #17 Bypass Screw On Ranco Gas Thermostat MFR # 172819021MC
50. #APPLIANCE COMPONENTS RV; Screw Bypass Alt 1728190 MFR # 172819021
51. #APPLIANCE COMPONENTS RV; Spring MFR # 2002381008
52. #THERMOCOUPLE, 18" MFR # 169372002MC
53. #T-COUPLE, 18" ALT 72-8143 CAN USE 50484MC UNTIL GONE. IF THEY NEED THE NUT (169386000) IF INSTALLING THIS T-COUPLE IN A FRIDGIKING REFER, YOU MUST ALSO ORDER THE SPLIT FITT... MFR # 169372000 Superseded: see description
54. #THERMOCOUPLE-JUNKERS 29" USE 47-1302 MFR # 454 Superseded: see description
55. #Thermocouple; 27 Inch Length; With 2 Metric Thermocouple Nuts SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#50484. SINCE THIS IS NOT AN ORIGINAL PART, IT... MFR # 50484MC
56. #QUICK CHECK MFR # 423
57. #THERMOCOUPLE MFR # 169372000MC
58. #T-COUPLE, 24" USE 72-0146 (DUPLICATE PART#) REPLACES: IS A USE # FOR 1639372002,330300,41511512,3800503SPECS: IF YOU ARE USING THIS T-COUPLE FOR INSTAMATIC OR COLD STAR: THIS IS THE JU... MFR # 169372002 Superseded: see description
59. #T-COUPLE, 24" (10+) USE 47-1302 IS A USE # FOR 169372002,169372000, 50484 WHEN USING TO REPLACE FRIGIKING TCOUPLE PART # 3800503 YOU MUST ALSO ORDER: 1 OF PART # SPLITFITTING AND... MFR # 290031 Superseded: see description
60. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
61. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
62. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 99426
63. #VALVE, SAFETY MFR # 293165
64. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
65. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
66. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
67. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
68. #LOCK NUT SNU 1219/17/40 MFR # 7337810416
69. #PROTECTOR, BURNER MFR # 2002730006
70. #INSULATION - NLA MFR # 2002442008
71. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
72. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
73. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512

Door Assembly

Components

33 items

1. #DOOR, FREEZER RM100 COMP RM100 MFR # 2002620025
2. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
3. #APPLIANCE COMPONENTS RV; Gasket Use 2002626006D MFR # 2002626006 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Gasket Set White Rm100 MFR # 3108700473
5. #FASTENING PLATE MFR # 2002707004
6. #N/A DECORATION, COMPLETE MFR # 2002690028
7. #N/A STRIP, DECORATION MFR # 2002691026
8. #DOOR MAIN RM100 MFR # 2002610026
9. #GASKET, MAIN USE 3108700473 MFR # 2002626014 Superseded: see description
10. #STRIP, DECORATION MFR # 2002675078
11. #STRIP, DECO USE 2002675078 MFR # 2002675128 Superseded: see description
12. #STRIP, DECOR USE 2002675128 MFR # 2002676027 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136
14. #SHELF, DOOR USE 2001732136 RM100 MFR # 2001733118 Superseded: see description
15. #LABEL, INSTRUCTION MFR # 2002356000
16. #NAMEPLATE MFR # 2002672000
17. #APPLIANCE COMPONENTS RV; Door Dairy MFR # 2005007113
18. #APPLIANCE COMPONENTS RV; Door Dairy Use 200500711 MFR # 2005007147 Superseded: see description
19. #COVER, BUTTER USE 2005007147 MFR # 2005007063 Superseded: see description
20. #HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description
21. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
22. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
23. #HOLDER, BOTTLE USE 2002794168 MFR # 2002794002 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168
25. #HOLDER, JUICE USE 2930533019 MFR # 2930533027 Superseded: see description
26. #RACK, WIRE MFR # 2007040005
27. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
28. #SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
30. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
31. #RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description
32. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
33. #PANEL, DOOR BLACK MFR # RM100L
