Dometic RM1272 Elite Product # 921148083 Beige Parts Diagram · Cabinet Rear View

Refrigerator · 8 assemblies · 9 diagram sheets · 196 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM1272 Elite Product # 921148083 Beige RV refrigerator: 8 assemblies (Cabinet Rear View, Door Assembly, Cabinet Exterior, Icemaker Exploded Assembly, Rear View and more) and 196 manufacturer part numbers. 38 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

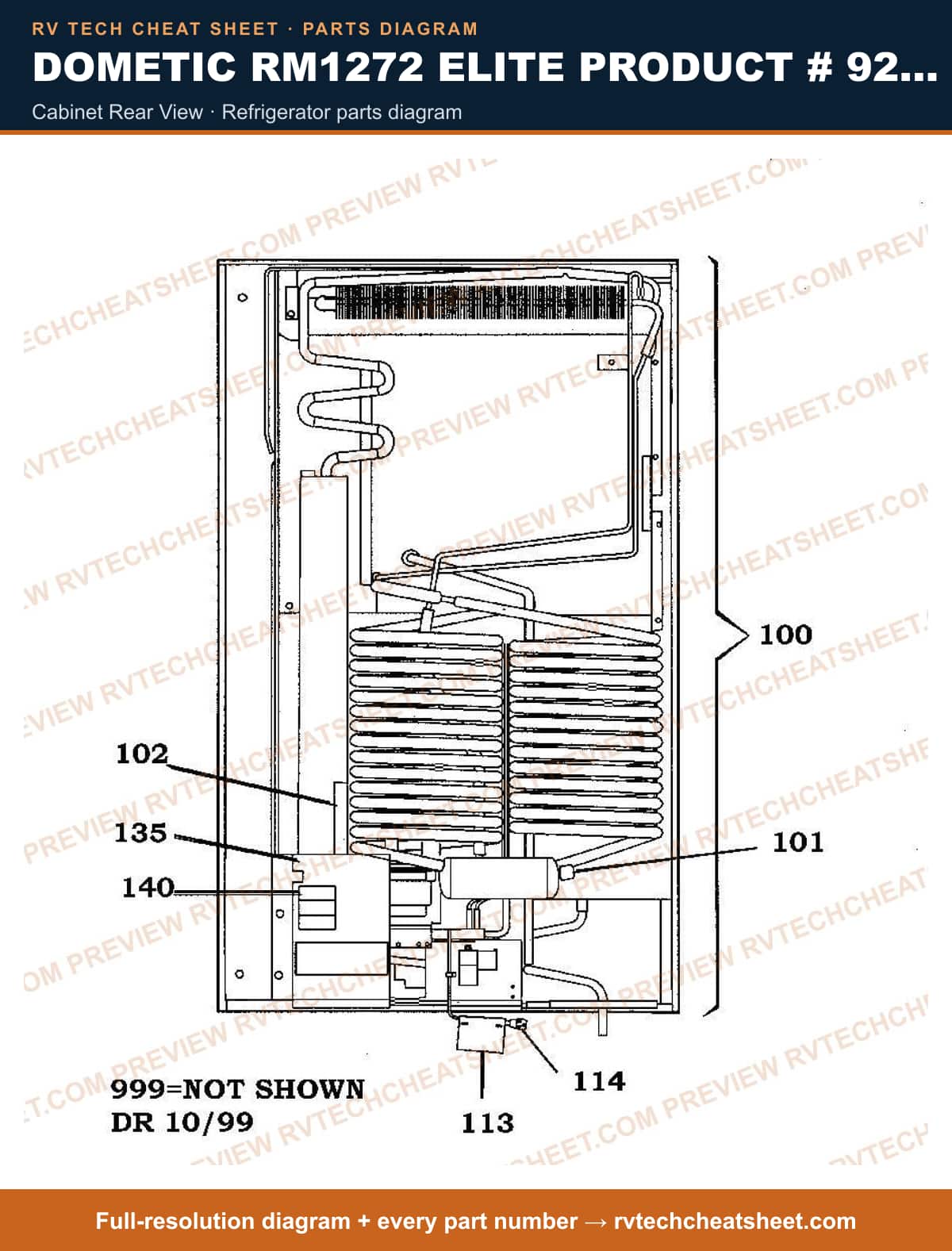

Cabinet Rear View

Components

10 items

1. #COOLING UNIT USE 2934945102 MFR # 2934945094N Superseded: see description
2. #A/C COMPONENTS RV; COOLING UNIT MFR # 5532
3. #REMAN C/U USE 5532 RM7732 MFR # 2934945094R Superseded: see description
4. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #S,PROTECTION PLATE,REAR MFR # 2932155019
10. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006

Door Assembly

Components

31 items

1. #Refrigerator Gasket; Replacement For Dometic NDR1272/ NDR1282 Refrigerators; Door Gasket MFR # 3108708458
2. #Appliance Components RV; Door Refer MFR # 2932985019
3. #APPLIANCE COMPONENTS RV; Door Asm Freezer MFR # 2932986017
4. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
5. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
6. #Appliance Components RV; Handle Door Beige MFR # 3850227012
7. #Handle, Door Use 3850227012 MFR # 2932094028 Superseded: see description
8. #Appliance Components RV; Control Right MFR # 2932407014
9. #Appliance Components RV; Control Left MFR # 2932407022
10. #Appliance Components RV; Screw MFR # 2801049020
11. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024
12. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
13. #SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description
14. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
15. #Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description
16. #S,DR DECOR,FRZ,BRN MFR # 3850381017
17. #Appliance Components RV; Strip, Decoration MFR # 3850919014
18. #DECORATION MFR # 2932642214
19. #Decoration, Freezer Bottom MFR # 2932642024
20. #DECORATION MFR # 2932642123
21. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
22. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
23. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
24. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
25. #Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018
26. #Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016
27. #APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014
28. #BRACKET MFR # 2932634013
29. #RIVET MFR # 2932679018
30. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
31. #Appliance Components RV; Repair Kit Hinge Beige MFR # 3307896005

Cabinet Exterior

Components

45 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Hinge Upper Lh MFR # 2932646017
3. #APPLIANCE COMPONENTS RV; Hinge Upper Rh MFR # 2932646025
4. #SCREW M6S 5 X 20 MFR # 7252331405
5. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
6. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
8. #Board Control Assm ***Us MFR # 2932884022
9. #APPLIANCE COMPONENTS RV; Strip Front MFR # 2932047026
10. #APPLIANCE COMPONENTS RV; Plate Side Left MFR # 2932040013
11. #APPLIANCE COMPONENTS RV; Plate Side Right MFR # 2932040021
12. #APPLIANCE COMPONENTS RV; Screw MFR # 2801026010
13. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
14. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
15. #APPLIANCE COMPONENTS RV; Latch Travel MFR # 2932048016
16. #PLUG MFR # 2932742014
17. #APPLIANCE COMPONENTS RV; Hinge Lwr Lh THE FOLLOWING CAN ONLY BE USED ON REFERS WITH BLACK OR BEIGE TRIM, NOT STAINLESS STEEL. MFR # 2932846013
18. #HINGE, LOWER RH BEIGE... MFR # 2932846021
19. #Refrigerator Door Hinge; Replacement For Dometic NDR1272/ RM1272/ RM1282/ RM7832/ RM7732/ RM7832/ NDR1292 Model Refrigerator; Fits Lower Cabinet Side; Bottom Right Hand; Black MFR # 2932846047
20. #S,HINGE PIN,LWR MFR # 2932649029
21. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
22. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
23. #APPLIANCE COMPONENTS RV; Strip Front Decoration MFR # 2932664051
24. #FLAP MFR # 2932655042
25. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
26. #Plate Freezer MFR # 2931476028
27. #Shelf MFR # 2931477026
28. #Plate Lower Freezer Tube MFR # 2931478016
29. #Plate Cover MFR # 2932853019
30. #SCREW MFR # 7243327405
31. #SCREW MFR # 7241333405
32. #SCREW MFR # 7241327407
33. #FREEZER UNIT MFR # 2931474015
34. #Refrigerator Shelf; Replacement For Dometic NDR1272/ RM1272/ RM7030 Model Refrigerators; Freezer Compartment MFR # 2931983023
35. #SHELF MFR # 2931982025
36. #SHELF MFR # 2931482026
37. #PLATE, FREEZER MFR # 2931483024
38. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
39. #DECAL MFR # 2932438001
40. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
41. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
42. #SCREW M4 X 10 S MFR # 7241289615
43. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
44. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
45. #APPLIANCE COMPONENTS RV; Label MFR # 2932091008

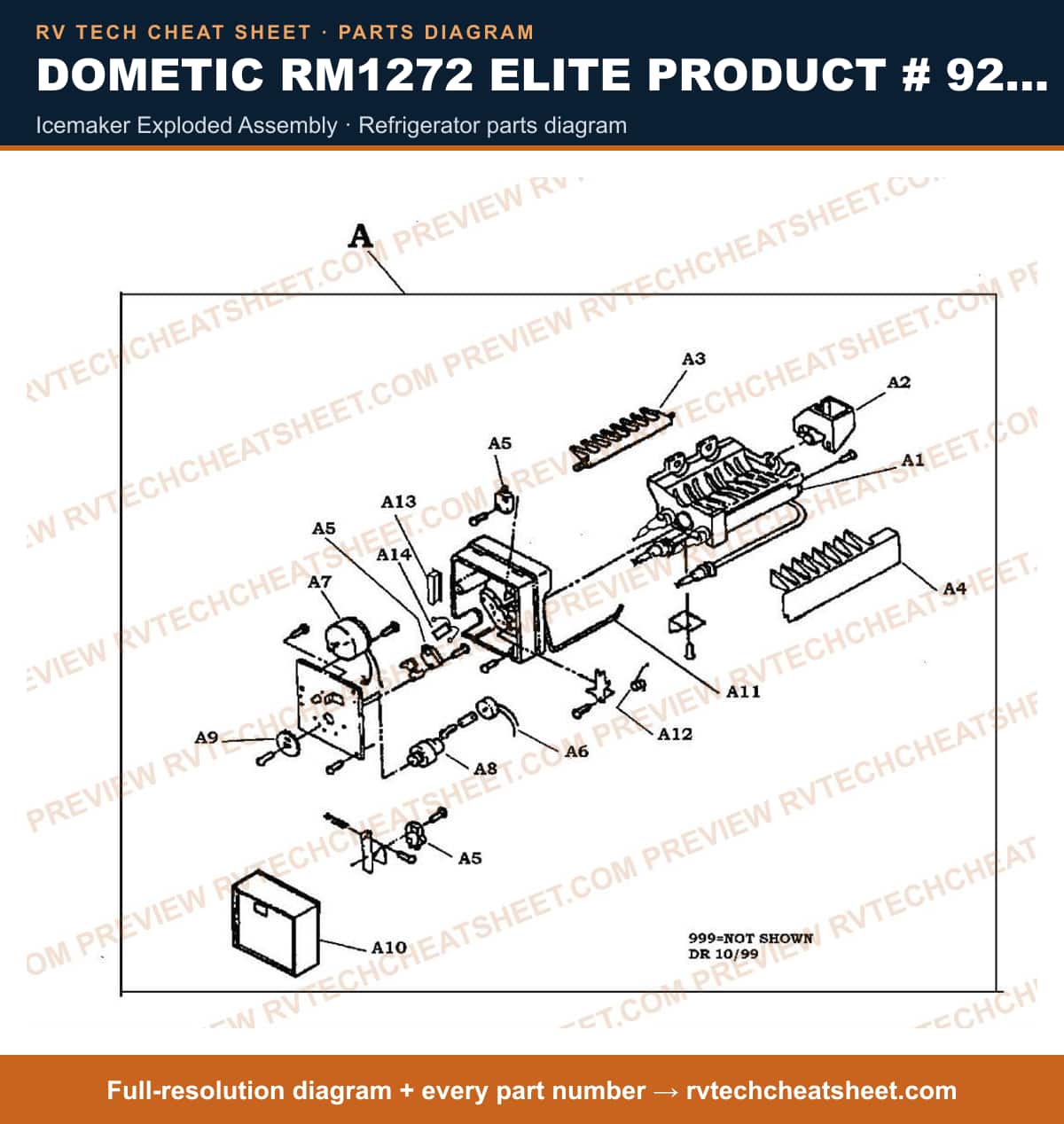

Icemaker Exploded Assembly

Components

16 items

1. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
2. #APPLIANCE COMPONENTS RV; Mold Body Asm W/Heater MFR # 3108702915
3. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
4. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
5. #EJECTOR MFR # 3108703434
6. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
7. #APPLIANCE COMPONENTS RV; Switch MFR # 3108703459
8. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
9. #APPLIANCE COMPONENTS RV; Motor MFR # 3108703475
10. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
11. #APPLIANCE COMPONENTS RV; Gear MFR # 3101296006
12. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
14. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
15. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907
16. #APPLIANCE COMPONENTS RV; Thermal Cutoff Icemaker MFR # 3108706445

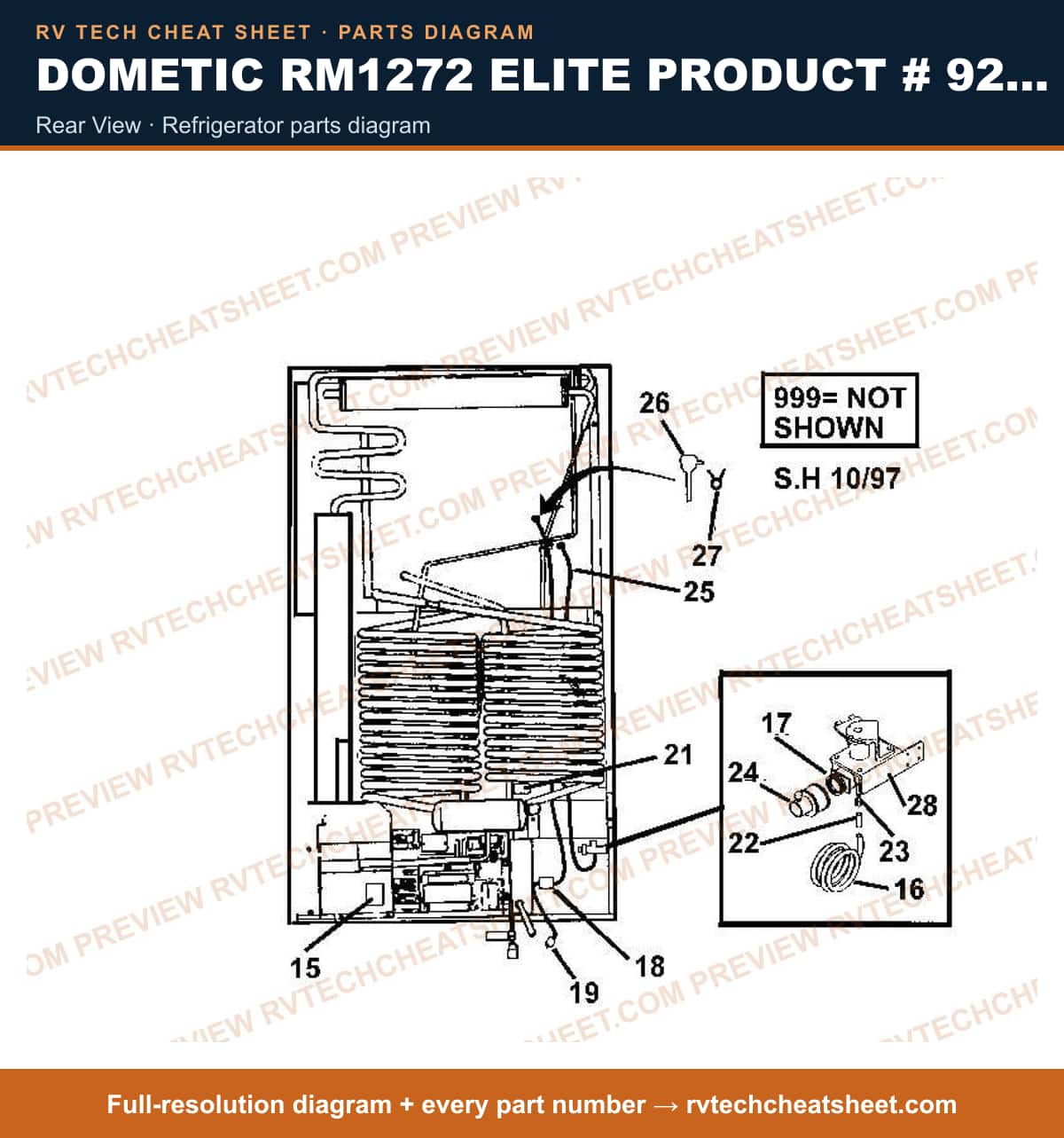

Rear View

Components

20 items

1. #FERRULE, WATER VALVE MFR # D7E3108706296
2. #NUT, WATER VALVE MFR # D7E3108706288
3. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
4. #APPLIANCE COMPONENTS RV; Diagram Wiring MFR # 2931988006
5. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM7732/ NDR1272/ NDR1282 Refrigerators MFR # 3108706080
6. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
7. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
8. #TERMINAL, 4-WAY MFR # 2931963018
9. #CORD, SET STRAIGHT MFR # 2002699080
10. #WARNING LABEL MFR # 2931975003
11. #VALVE KIT WATER MFR # 3108706114
12. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
13. #HARNESS, WIRE 73" RM7732 MFR # 3105585008
14. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
15. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
16. #RING, HOG MFR # 3107614012
17. #BRACKET, SOLENOID MFR # 3108703003
18. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
19. #HEATER KIT, ICEMAKER MFR # DMT3108706.080
20. #SCREW # 8 X 1/2" TA MFR # 3106317005

Burner & Controls

Components

54 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
3. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
4. #S,VALVE,GAS,SOLENOID-1350,1402 MFR # 2932615020
5. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
6. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
7. #APPLIANCE COMPONENTS RV; Electrode W/Lead MFR # 2932781020
8. #Dometic RM2652 RM2662 Refrigerator Door Shelf Bin MFR # 2932781053
9. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
10. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
11. #BRACKET,POWER MODULE MOUNTING MFR # 2932031012
12. #PLATE,MOUNTING MFR # 2932032010
13. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
14. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
15. #APPLIANCE COMPONENTS RV; THERMOCOUPLE MFR # 2931826024
16. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
18. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
19. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
20. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
21. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
22. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
23. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
24. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
25. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
26. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
27. #S,COVER,LESS DECALS MFR # 2931858019
28. #LEAD,PC BOARD MFR # 2931862029
29. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
30. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
31. #HARNESS, GAS SOLENOID MFR # 2954437048
32. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
33. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
34. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
35. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
36. #SCREW M4 X 10 S MFR # 7241289615
37. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
38. #SUPPORT PLATE MFR # 2932043017
39. #ELEMENT, HEATING, USE 3850644471 210W/120V 2WIRE 3/8 X 6 1/2 MFR # 173758038 Superseded: see description
40. #ELEMENT, HEATING 210W/120V 2WIRE 3/8 X 6 1/2 MFR # CHX17736
41. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
42. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
43. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
44. #3858022019 MFR # 3858022019
45. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
46. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
47. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
48. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
49. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
50. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
51. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
52. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
53. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
54. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018

Front View

Components

13 items

1. #SHELF, MOUNTING MFR # 2931984021
2. #APPLIANCE COMPONENTS RV; Bolt Hexagon Cap MFR # 7252335133
3. #SHELF, WIRE FOR ICE BUCKET/MAKER MFR # 2931985010
4. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
5. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
6. #APPLIANCE COMPONENTS RV; Screw #8 X 1/2" L Bracke MFR # 3108071006
7. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
8. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
9. #Refrigerator Basket; Use With Dometic RM7732 ELITE/ NDR1292/ NDR1492/ RM1272 ELITE/ RM3863 ROYALE/ RM4873 Refrigerators MFR # 3312986023 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Bucket Ice Use 3312986023 MFR # 3108702998 Superseded: see description
11. #WASHER MFR # 3108706007
12. #DECORATION, DOOR MFR # 3108706411
13. #DECORATION, DOOR MFR # 3108705322

Replacement Refrigerator

Components

11 items

1. #REFER, 14 CU FT STNLS W/ICEMAKR 59 1/16"H X 36 1/2"W X 24"D MFR # NDR1492SSIMHF
2. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description
3. #REFER, 14 CU FT 2WAY STAINLESS 59 1/16"H X 36 1/2"W X 24"D; SHIPPING WEIGHT IS 290 LBS. MFR # NDR1492SSFN
4. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; NEW DIMENSIONS 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492IMHFN MFR # NDR1492BIMHFN Superseded: see description
5. #REFER,12 CU FT 2 WAY 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292BF
6. #REFER,12 CU FT 2 WAY STAINLESS 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292SSFN
7. #REFER, 14 CU FT 2 WAY BLACK 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492N MFR # NDR1492BN Superseded: see description
8. #REFER,12 CU FT 2 WAY WHITE 63 1/4" X 32 11/16" X 24" MFR # 1200LRWH
9. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1492BIMHFN MFR # NDR1492IMHFN Superseded: see description
10. #REFER,12 CU FT STNLS USE 72-4861 MFR # 1200LRSSN Superseded: see description
11. #REFER, 14 CU FT 2 WAY BEIGE 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH TAUPE METAL FRAME FOR BLACK METAL FRAME USE NDR1492BN MFR # NDR1492N Superseded: see description
