Dometic RM1272 Elite Product # 921148084 Beige Parts Diagram · Rear View

Refrigerator · 9 assemblies · 9 diagram sheets · 194 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM1272 Elite Product # 921148084 Beige RV refrigerator: 9 assemblies (Rear View, Front View, Replacement Refrigerator, Cabinet Exterior, Burner & Controls and more) and 194 manufacturer part numbers. 44 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

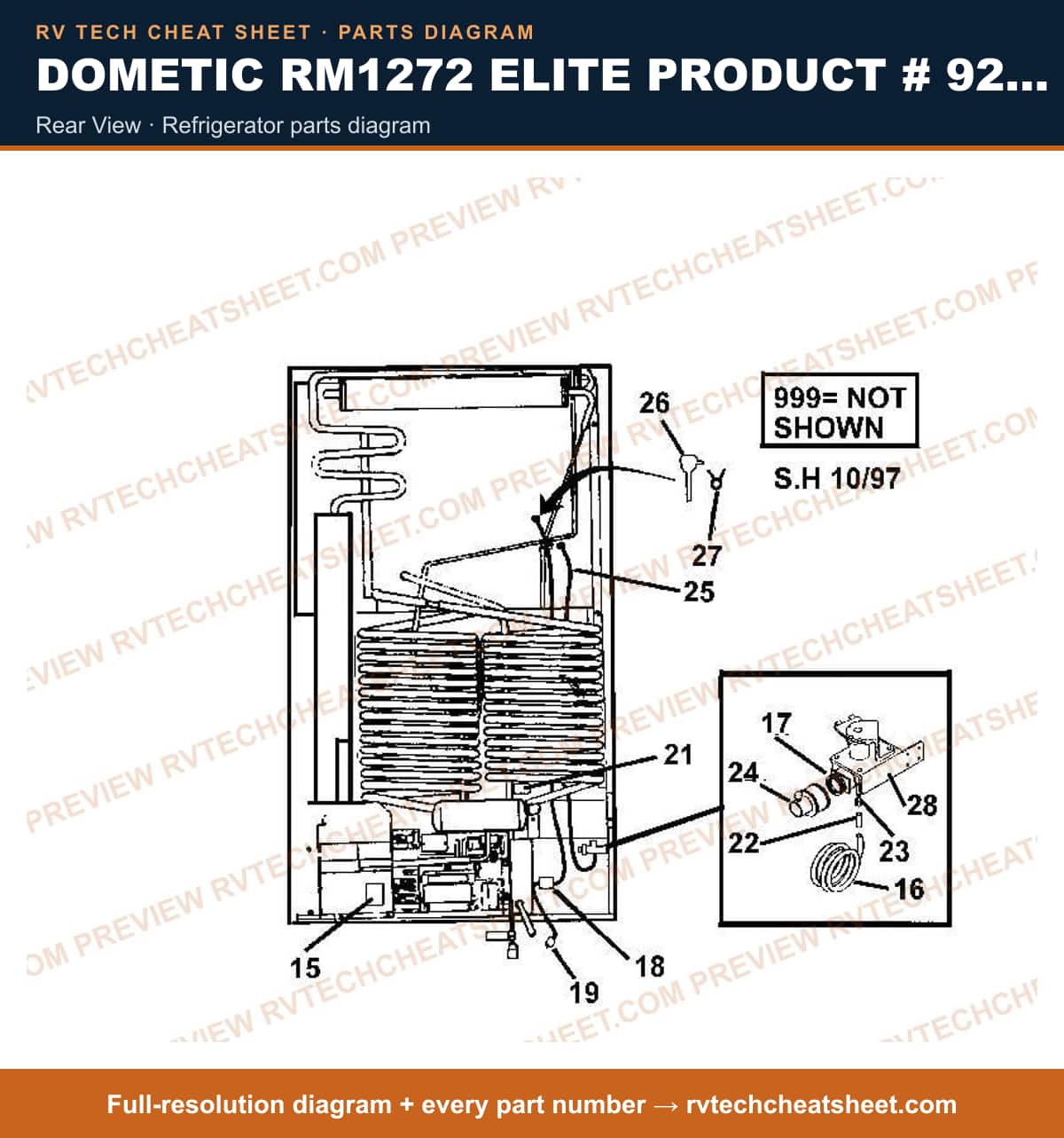

Rear View

Components

31 items

1. #Refrigerator Gasket; Replacement For Dometic NDR1272/ NDR1282 Refrigerators; Door Gasket MFR # 3108708458
2. #Appliance Components RV; Door Refer MFR # 2932985019
3. #APPLIANCE COMPONENTS RV; Door Asm Freezer MFR # 2932986017
4. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
5. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
6. #Handle, Door Use 3850227012 MFR # 2932094028 Superseded: see description
7. #Appliance Components RV; Handle Door Beige MFR # 3850227012
8. #Appliance Components RV; Control Right MFR # 2932407014
9. #Appliance Components RV; Control Left MFR # 2932407022
10. #Appliance Components RV; Screw MFR # 2801049020
11. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
12. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024
13. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
14. #SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description
15. #Appliance Components RV; Strip, Decoration MFR # 3850919014
16. #Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description
17. #S,DR DECOR,FRZ,BRN MFR # 3850381017
18. #DECORATION MFR # 2932642222
19. #Decoration, Freezer Bottom MFR # 2932642024
20. #DECORATION MFR # 2932642123
21. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
22. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
23. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
24. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
25. #Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018
26. #Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016
27. #APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014
28. #BRACKET MFR # 2932634013
29. #RIVET MFR # 2932679018
30. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
31. #Appliance Components RV; Repair Kit Hinge Beige MFR # 3307896005

Front View

Components

11 items

1. #APPLIANCE COMPONENTS RV; Bolt Hexagon Cap MFR # 7252335133
2. #SHELF, WIRE FOR ICE BUCKET/MAKER MFR # 2931985010
3. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
4. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
5. #APPLIANCE COMPONENTS RV; Screw #8 X 1/2" L Bracke MFR # 3108071006
6. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
7. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
8. #APPLIANCE COMPONENTS RV; Bucket Ice Use 3312986023 MFR # 3108702998 Superseded: see description
9. #Refrigerator Basket; Use With Dometic RM7732 ELITE/ NDR1292/ NDR1492/ RM1272 ELITE/ RM3863 ROYALE/ RM4873 Refrigerators MFR # 3312986023 Superseded: see description
10. #DECORATION, DOOR MFR # 3108706411
11. #DECORATION, DOOR MFR # 3108705322

Replacement Refrigerator

Components

12 items

1. #REFER, 14 CU FT 2 WAY BEIGE 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH TAUPE METAL FRAME FOR BLACK METAL FRAME USE NDR1492BN MFR # NDR1492N Superseded: see description
2. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; NEW DIMENSIONS 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492IMHFN MFR # NDR1492BIMHFN Superseded: see description
3. #REFER,12 CU FT STNLS USE 72-4861 MFR # 1200LRSSN Superseded: see description
4. #REFER, 14 CU FT STNLS W/ICEMAKR 59 1/16"H X 36 1/2"W X 24"D MFR # NDR1492SSIMHF
5. #REFER, 14 CU FT 2 WAY BLACK 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492N MFR # NDR1492BN Superseded: see description
6. #REFER,12 CU FT 2 WAY STAINLESS 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292SSFN
7. #REFER,12 CU FT 2 WAY WHITE 63 1/4" X 32 11/16" X 24" MFR # 1200LRWH
8. #REFER, 12 CU FT USE NDR1292BF 59 1/16" X 32 3/4" X 24" MFR # NDR1292BN Superseded: see description
9. #REFER, 14 CU FT 2WAY STAINLESS 59 1/16"H X 36 1/2"W X 24"D; SHIPPING WEIGHT IS 290 LBS. MFR # NDR1492SSFN
10. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1492BIMHFN MFR # NDR1492IMHFN Superseded: see description
11. #REFER,12 CU FT 2 WAY 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292BF
12. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description

Cabinet Exterior

Components

35 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Hinge Upper Lh MFR # 2932646017
3. #APPLIANCE COMPONENTS RV; Hinge Upper Rh MFR # 2932646025
4. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
5. #Board Control Assm ***Us MFR # 2932884022
6. #APPLIANCE COMPONENTS RV; Strip Front MFR # 2932047026
7. #APPLIANCE COMPONENTS RV; Plate Side Left MFR # 2932040013
8. #APPLIANCE COMPONENTS RV; Plate Side Right MFR # 2932040021
9. #APPLIANCE COMPONENTS RV; Screw MFR # 2801026010
10. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
11. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
12. #APPLIANCE COMPONENTS RV; Latch Travel MFR # 2932048016
13. #PLUG MFR # 2932742014
14. #APPLIANCE COMPONENTS RV; Hinge Lwr Lh THE FOLLOWING CAN ONLY BE USED ON REFERS WITH BLACK OR BEIGE TRIM, NOT STAINLESS STEEL. MFR # 2932846013
15. #Refrigerator Door Hinge; Replacement For Dometic NDR1272/ RM1272/ RM1282/ RM7832/ RM7732/ RM7832/ NDR1292 Model Refrigerator; Fits Lower Cabinet Side; Bottom Right Hand; Black MFR # 2932846047
16. #HINGE, LOWER RH BEIGE... MFR # 2932846021
17. #S,HINGE PIN,LWR MFR # 2932649029
18. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
19. #SCREW M4 X 10 S MFR # 7241289615
20. #APPLIANCE COMPONENTS RV; Strip Front Decoration MFR # 2932664051
21. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
22. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
23. #Plate Freezer MFR # 2931476028
24. #Shelf MFR # 2931477026
25. #SCREW MFR # 7243327405
26. #SCREW MFR # 7241333405
27. #SCREW MFR # 7241327407
28. #FREEZER UNIT MFR # 2931474015
29. #SHELF MFR # 2931982025
30. #PLATE, FREEZER MFR # 2931483024
31. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
32. #DECAL MFR # 2932438001
33. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
34. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
35. #APPLIANCE COMPONENTS RV; Label MFR # 2932091008

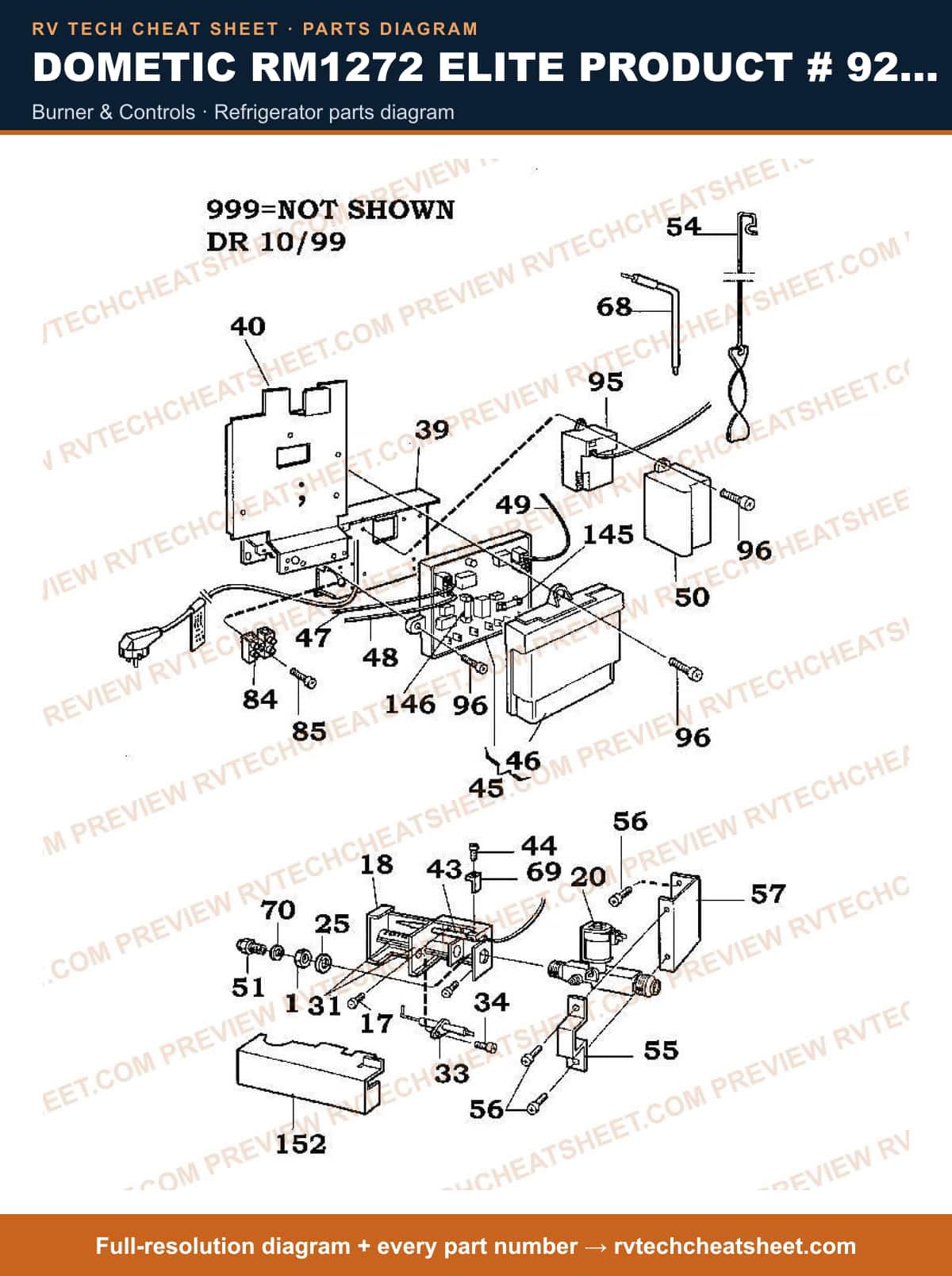

Burner & Controls

Components

54 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
3. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
4. #S,VALVE,GAS,SOLENOID-1350,1402 MFR # 2932615020
5. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
6. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
7. #APPLIANCE COMPONENTS RV; Electrode W/Lead MFR # 2932781020
8. #Dometic RM2652 RM2662 Refrigerator Door Shelf Bin MFR # 2932781053
9. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
10. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
11. #BRACKET,POWER MODULE MOUNTING MFR # 2932031012
12. #PLATE,MOUNTING MFR # 2932032010
13. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
14. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
15. #APPLIANCE COMPONENTS RV; THERMOCOUPLE MFR # 2931826024
16. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
17. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
19. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
20. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
21. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
22. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
23. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
24. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
25. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
26. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
27. #S,COVER,LESS DECALS MFR # 2931858019
28. #LEAD,PC BOARD MFR # 2931862029
29. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
30. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
31. #HARNESS, GAS SOLENOID MFR # 2954437048
32. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
33. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
34. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
35. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
36. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
37. #SCREW M4 X 10 S MFR # 7241289615
38. #SUPPORT PLATE MFR # 2932043017
39. #ELEMENT, HEATING 210W/120V 2WIRE 3/8 X 6 1/2 MFR # CHX17736
40. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
41. #ELEMENT, HEATING, USE 3850644471 210W/120V 2WIRE 3/8 X 6 1/2 MFR # 173758038 Superseded: see description
42. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
43. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
44. #3858022019 MFR # 3858022019
45. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
46. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
47. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
48. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
49. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
50. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
51. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
52. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
53. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
54. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018

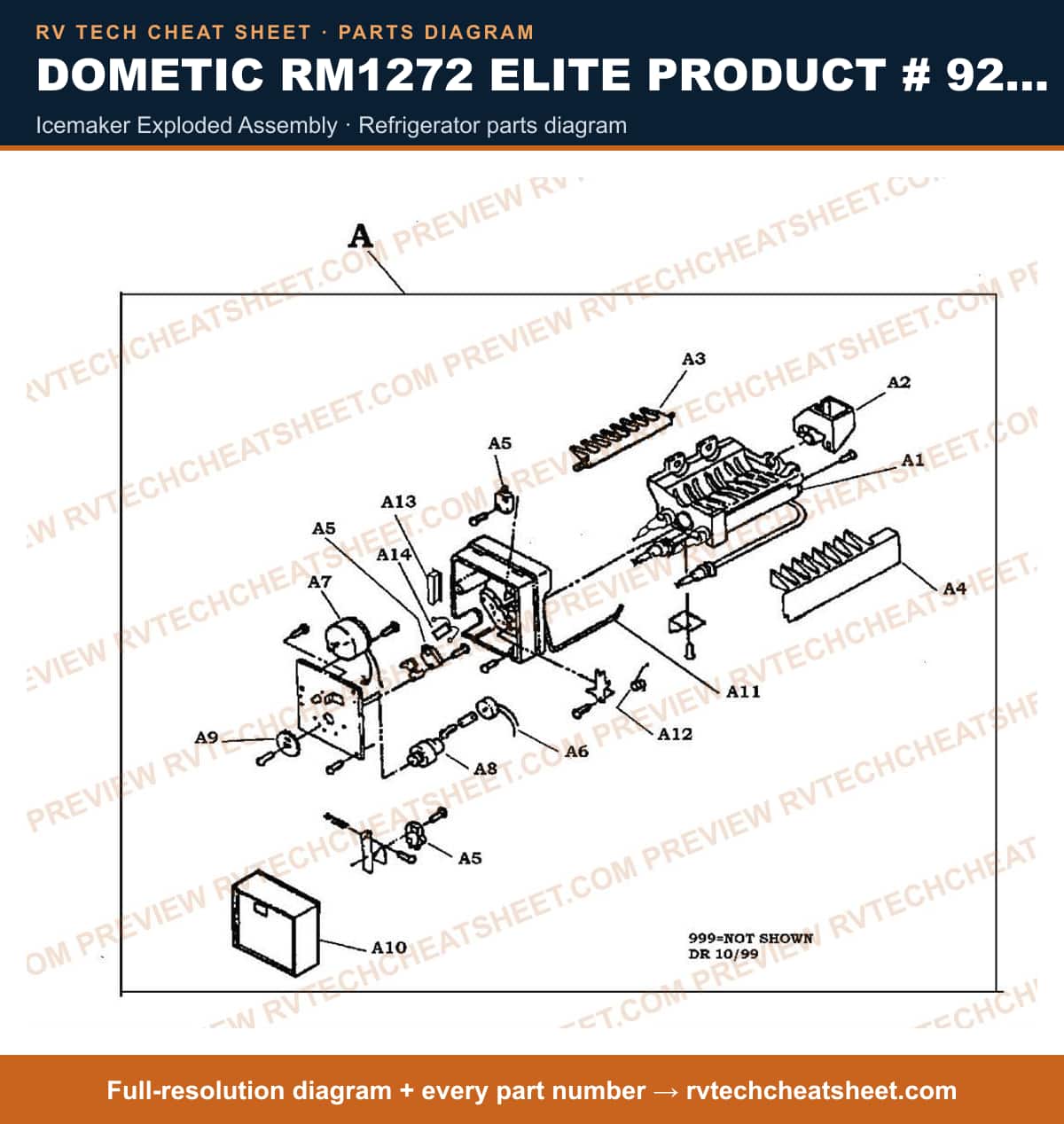

Icemaker Exploded Assembly

Components

10 items

1. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
2. #CYCLE, ICE USE 50-0780 MFR # D7E3108703517 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Bearing & Inlet MFR # 3108703426
4. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
5. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
6. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
7. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
9. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
10. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907

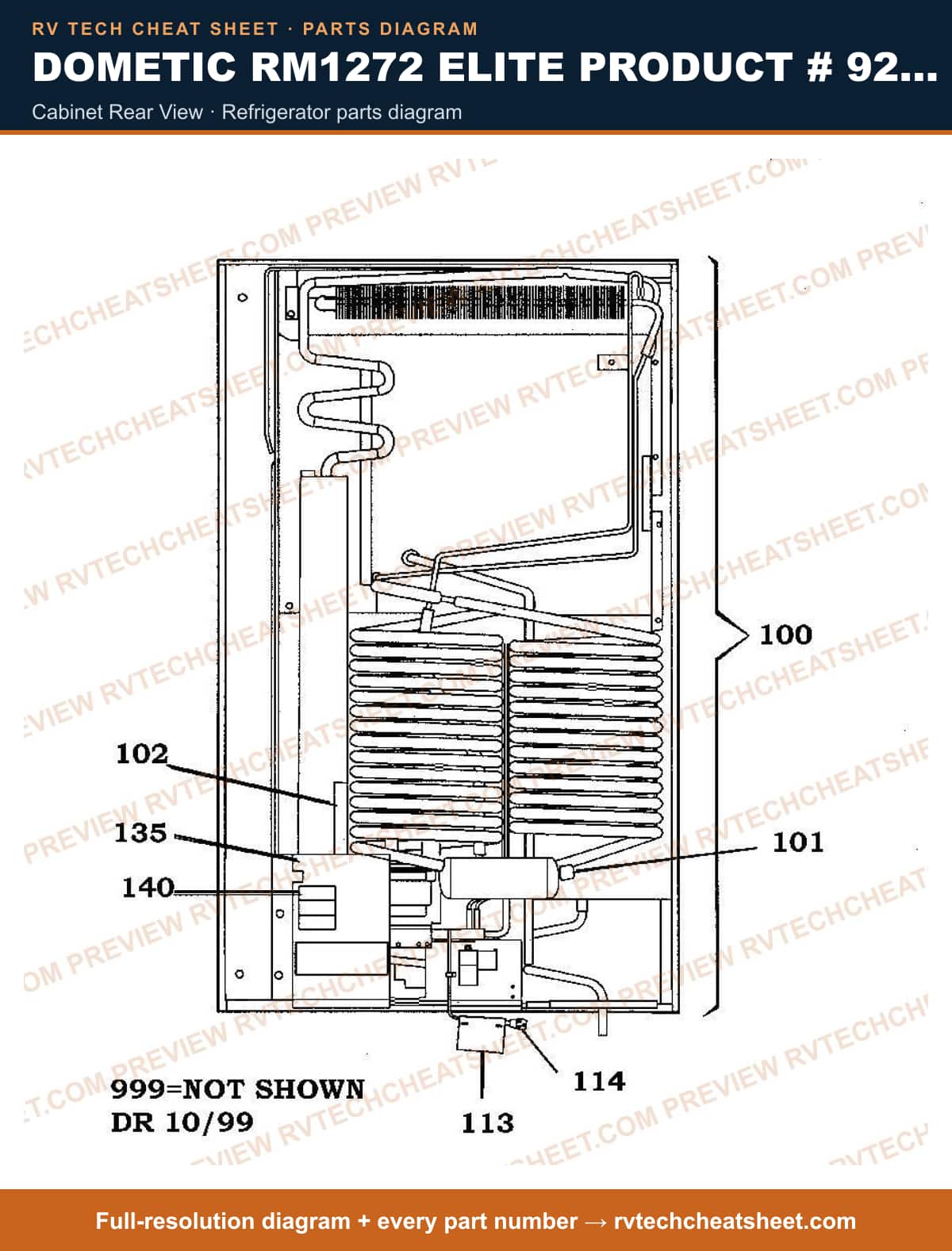

Cabinet Rear View

Components

10 items

1. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
2. #COOLING UNIT USE 2934945102 MFR # 2934945094N Superseded: see description
3. #A/C COMPONENTS RV; COOLING UNIT MFR # 5532
4. #REMAN C/U USE 5532 RM7732 MFR # 2934945094R Superseded: see description
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #S,PROTECTION PLATE,REAR MFR # 2932155019
10. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006

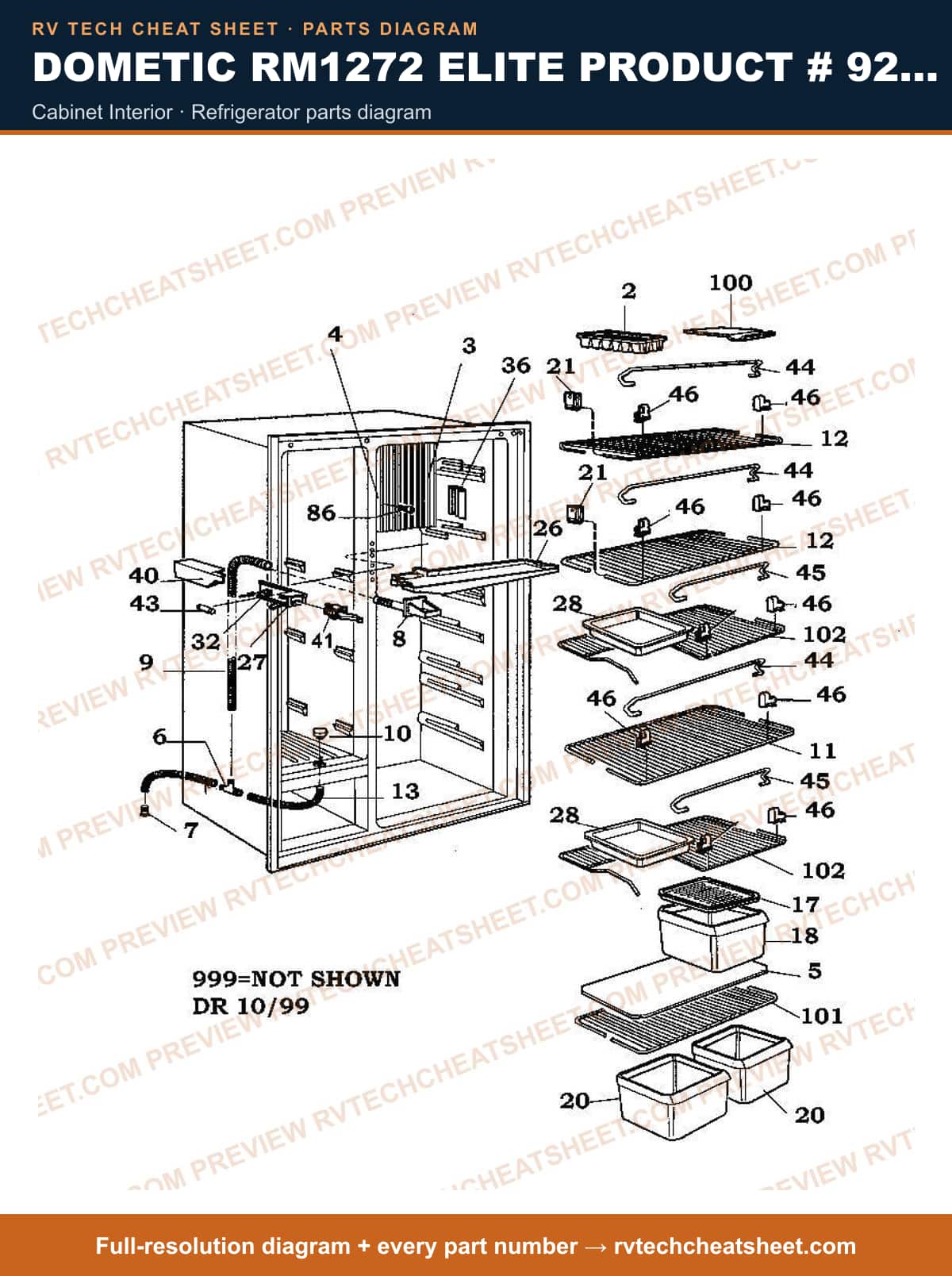

Cabinet Interior

Components

35 items

1. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
2. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
3. #COOLING FLANGE, LEFT MFR # 2932761030
4. #COVER, CRISPER SHELF MFR # 2931117101
5. #APPLIANCE COMPONENTS RV; Coupler Hose MFR # 2932877018
6. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
7. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Hose Drainage MFR # 2932749068
9. #S,COVER,NEA1402 MFR # 2931715011
10. #APPLIANCE COMPONENTS RV; Shelf Lower MFR # 2932979020
11. #Refrigerator Shelf; Replacement For Dometic NDR1062/ RM1282/ NDR1272/ NDR1282/ NDR1062/ RM1272 Model Refrigerator; Freezer Compartment; Wire; Without Cutout MFR # 2932979012
12. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
13. #APPLIANCE COMPONENTS RV; Cover Crisper MFR # 2932622018
14. #LOCKER, MEAT USE 3106749009 MFR # 2932621036 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Meat Locker Kit MFR # 3106749009
16. #APPLIANCE COMPONENTS RV; Crisper MFR # 2932621028
17. #Refrigerator Shelf Support; Replacement For Dometic RM2852/ RM2454/ RM3663 Refrigerators MFR # 2932668011
18. #TRAY, DRIP MFR # 2932972017
19. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
20. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
21. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
22. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
23. #BRACKET USE 2932456011 F/THERMISTER MFR # 2931976019 Superseded: see description
24. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
25. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
26. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
27. #BULB 2/PK MFR # 2007290006
28. #Refrigerator Shelf; Replacement For Dometic RM2620 CLASSIC/ NDR1272/ NDR1282/ RM2820 CLASSIC Series Refrigerators MFR # 2007337138
29. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
30. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
31. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
32. #SCREW MFR # 7241333405
33. #SHELF, PLASTIC MFR # 2932391010
34. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 2932979038
35. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 2932997014

Door Assembly

Components

31 items

1. #Appliance Components RV; Door Refer MFR # 2932985019
2. #Refrigerator Gasket; Replacement For Dometic NDR1272/ NDR1282 Refrigerators; Door Gasket MFR # 3108708458
3. #APPLIANCE COMPONENTS RV; Door Asm Freezer MFR # 2932986017
4. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
5. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
6. #Appliance Components RV; Handle Door Beige MFR # 3850227012
7. #Handle, Door Use 3850227012 MFR # 2932094028 Superseded: see description
8. #Appliance Components RV; Control Right MFR # 2932407014
9. #Appliance Components RV; Control Left MFR # 2932407022
10. #Appliance Components RV; Screw MFR # 2801049020
11. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024
12. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
13. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
14. #SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description
15. #Appliance Components RV; Strip, Decoration MFR # 3850919014
16. #Strip, Deco Use 3850381017 MFR # 2932642016 Superseded: see description
17. #S,DR DECOR,FRZ,BRN MFR # 3850381017
18. #DECORATION MFR # 2932642222
19. #Decoration, Freezer Bottom MFR # 2932642024
20. #DECORATION MFR # 2932642123
21. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
22. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
23. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
24. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
25. #Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018
26. #Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016
27. #APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014
28. #BRACKET MFR # 2932634013
29. #RIVET MFR # 2932679018
30. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
31. #Appliance Components RV; Repair Kit Hinge Beige MFR # 3307896005
