Dometic RM1272 Elite Product # 921148089 Black Parts Diagram · Cabinet Rear View

Refrigerator · 9 assemblies · 9 diagram sheets · 220 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM1272 Elite Product # 921148089 Black RV refrigerator: 9 assemblies (Cabinet Rear View, Rear View, Cabinet Interior, Icemaker Exploded Assembly, Front View and more) and 220 manufacturer part numbers. 53 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

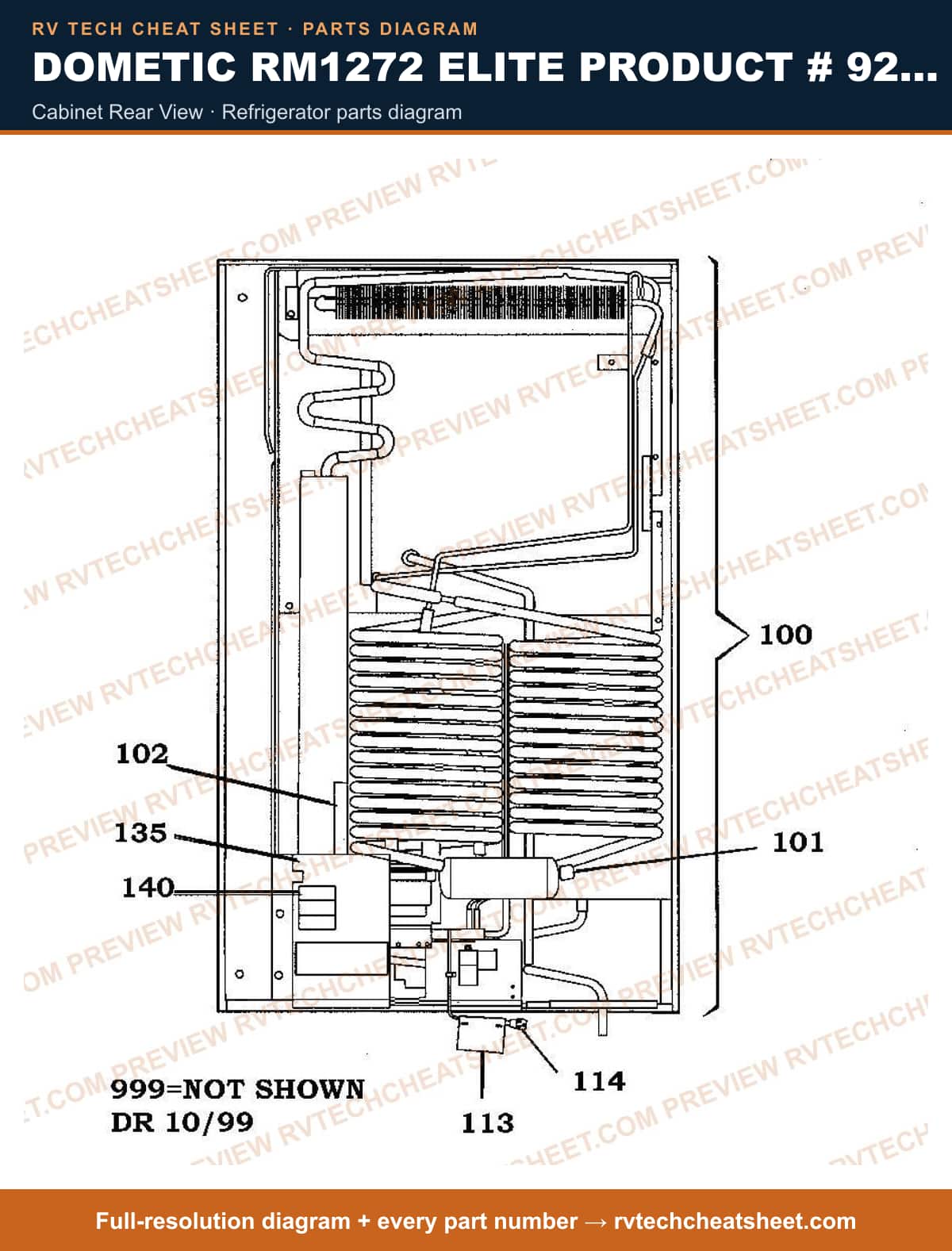

Cabinet Rear View

Components

12 items

1. #A/C COMPONENTS RV; COOLING UNIT MFR # 5532
2. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
3. #COOLING UNIT USE 2934945102 MFR # 2934945094N Superseded: see description
4. #REMAN C/U USE 5532 RM7732 MFR # 2934945094R Superseded: see description
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #S,PROTECTION PLATE,REAR MFR # 2932155019
10. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
11. #Refrigerator Vent Fan; For Use With Dometic RM1272/ RM1282 Double Door Refrigerators MFR # 3108705744 Superseded: see description
12. #VENTILATOR USE 3108705744 F/FRIDGE MFR # 3104131002 Superseded: see description

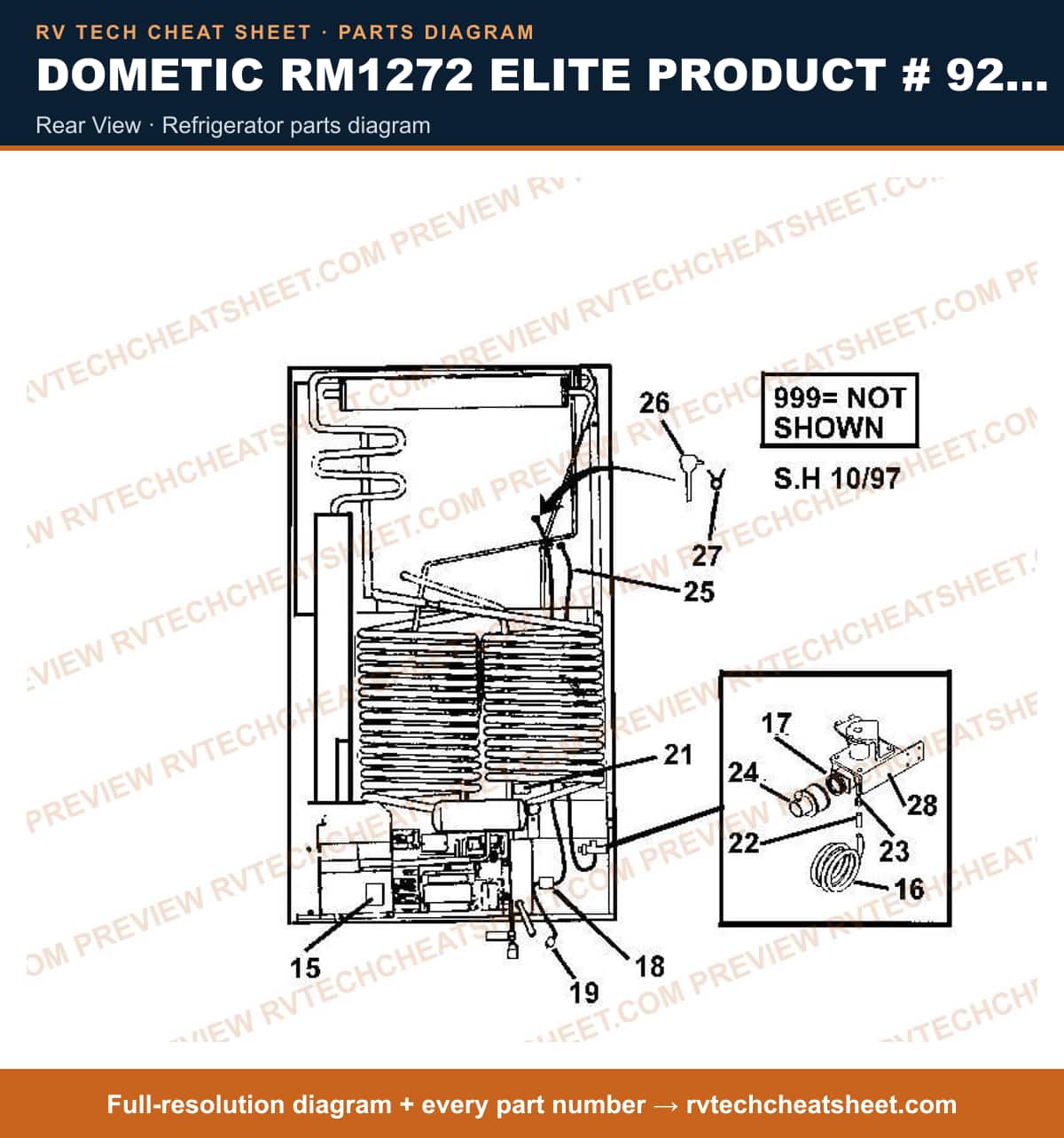

Rear View

Components

22 items

1. #FERRULE, WATER VALVE MFR # D7E3108706296
2. #NUT, WATER VALVE MFR # D7E3108706288
3. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
4. #APPLIANCE COMPONENTS RV; Diagram Wiring MFR # 2931988006
5. #Refrigerator Water Supply Line; Replacement For Norcold 1200/ 1210/ 2117/ N1095/ N641/ N84X Series Refrigerator Icemaker; 68 Inch Length MFR # 617869
6. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM7732/ NDR1272/ NDR1282 Refrigerators MFR # 3108706080
7. #Ice Maker Water Inlet Hose; Replacement For Dometic RM2862/ RM4872/ RM7030/ RM7832/ NDR1062 Model Refrigerator Ice Maker; 5 Foot Length; Plastic MFR # 3108705637
8. #TERMINAL, 4-WAY MFR # 2931963018
9. #CORD, SET STRAIGHT MFR # 2002699080
10. #WARNING LABEL MFR # 2931975003
11. #VALVE KIT WATER MFR # 3108706114
12. #APPLIANCE COMPONENTS RV; Insert Water Hose MFR # 3108708185
13. #INSERT,SOLENOID USE 3108708185 MFR # 2930841016 Superseded: see description
14. #HARNESS, WIRE 73" RM7732 MFR # 3105585008
15. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
16. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
17. #RING, HOG MFR # 3107614012
18. #Ring, Hog Use 3107614012 MFR # 3106315009 Superseded: see description
19. #Ice Maker Water Solenoid Valve; For Eaton Ice Maker; With Fittings MFR # 3108706270
20. #BRACKET, SOLENOID MFR # 3108703003
21. #SCREW # 8 X 1/2" TA MFR # 3106317005
22. #HEATER KIT, ICEMAKER MFR # DMT3108706.080

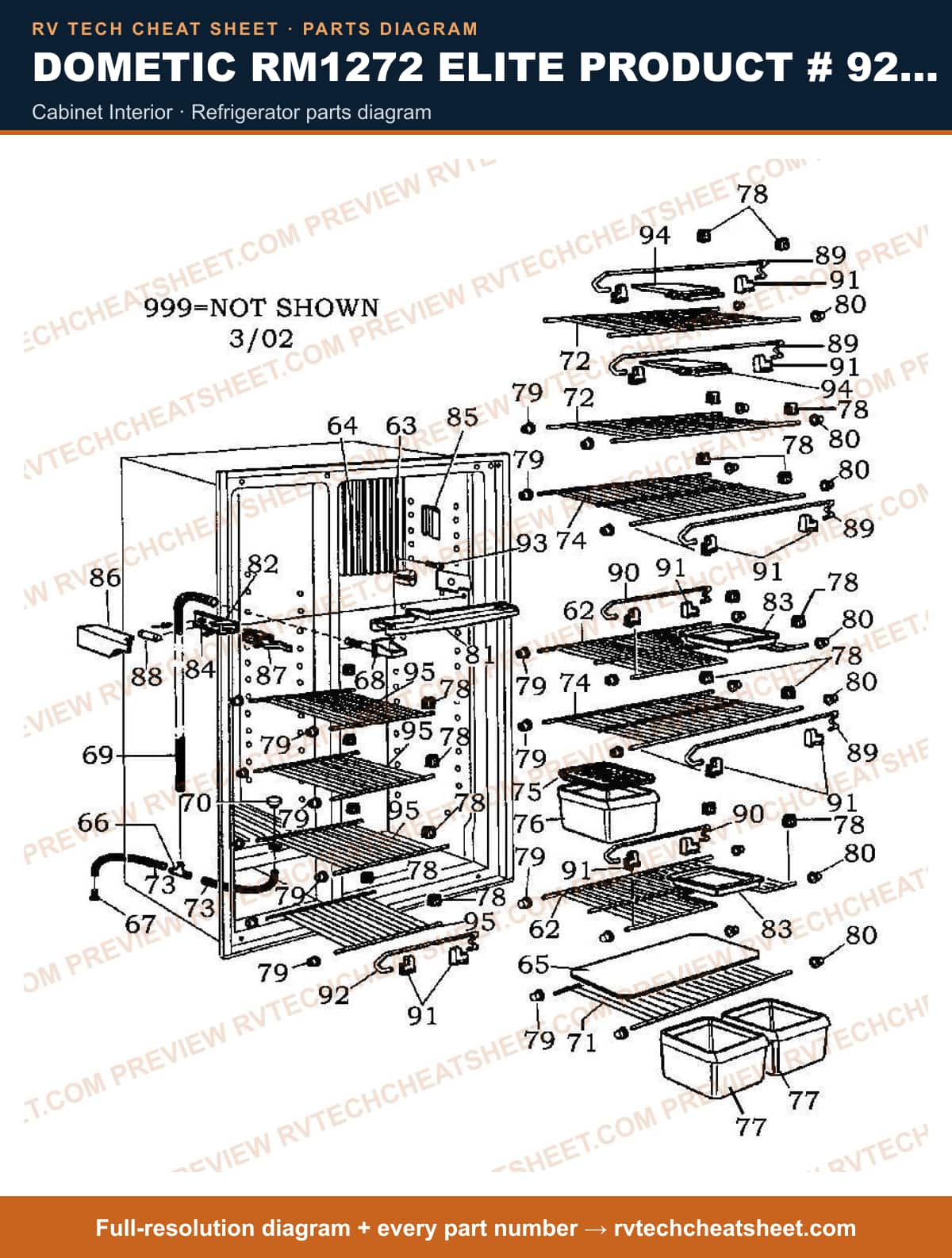

Cabinet Interior

Components

34 items

1. #SHELF MFR # 3850213012
2. #APPLIANCE COMPONENTS RV; Fins Cooling Rh MFR # 2932761014
3. #COOLING FLANGE, LEFT MFR # 2932761030
4. #SHELF, PLASTIC MFR # 2931117168
5. #APPLIANCE COMPONENTS RV; Coupler Hose MFR # 2932877018
6. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
7. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Hose Drainage MFR # 2932749068
9. #SHELF MFR # 3850212022
10. #SHELF MFR # 3850212014
11. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2932749035
12. #SHELF MFR # 3850212030
13. #APPLIANCE COMPONENTS RV; Meat Locker Kit MFR # 3106749009
14. #LOCKER, MEAT USE 3106749009 MFR # 2932621036 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Crisper MFR # 2932621028
16. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
17. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
18. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
19. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
20. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
21. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
22. #BRACKET USE 3851088017 F/THERMISTER MFR # 2932456011 Superseded: see description
23. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
24. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
25. #BULB 2/PK MFR # 2007290006
26. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
27. #Refrigerator Shelf; Replacement For Dometic NDR1062/ NDM1062 Series Refrigerators; Wire MFR # 2007337203
28. #S,RAIL,SHELF,236MM,NDM1062 MFR # 2007337187
29. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
30. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
31. #S,RAIL,SHELF,164MM MFR # 2007337161
32. #Screw; Use With Dometic RM1272 ELITE/ RM1282 ELITE/ NDR1292 Refrigerators MFR # 7241332019 Superseded: see description
33. #SHELF, PLASTIC MFR # 2932391010
34. #APPLIANCE COMPONENTS RV; Shelf Freezer MFR # 3850208012

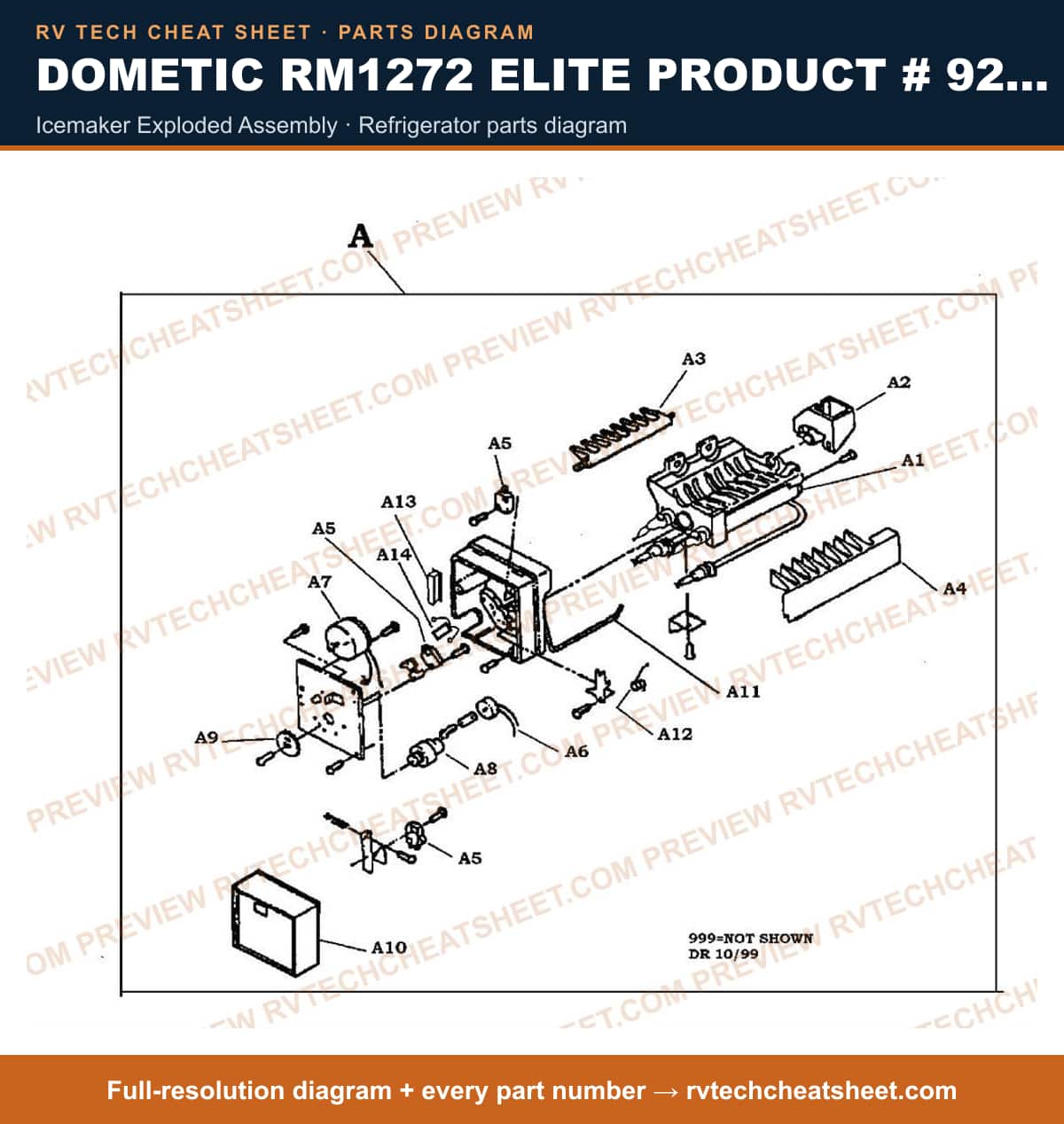

Icemaker Exploded Assembly

Components

9 items

1. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
2. #CYCLE, ICE USE 50-0780 MFR # D7E3108703517 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Stripper Ice MFR # 3108703442
4. #APPLIANCE COMPONENTS RV; T-Stat Mold MFR # 3108703467
5. #APPLIANCE COMPONENTS RV; Cam MFR # 3101295008
6. #Ice Maker Support Housing Cover; Use With Dometic Refrigerator Model RM7832; White MFR # 2930874025 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Arm Shut Off MFR # 3108702881
8. #Refrigerator Door Handle Spring; Replacement For Dometic RM3862/ RM7732/ NDR1292 Model Refrigerator; Shut Off Arm Spring MFR # 3108702899
9. #PLUG 4 -PRONG FEMALE ELEC. 110V MFR # 3108702907

Front View

Components

13 items

1. #SHELF, MOUNTING MFR # 2931984021
2. #APPLIANCE COMPONENTS RV; Bolt Hexagon Cap MFR # 7252335133
3. #SHELF, WIRE FOR ICE BUCKET/MAKER MFR # 2931985010
4. #ICE MAKER SVC KIT NO WIN MFR # 3313470080
5. #APPLIANCE COMPONENTS RV; Cycle Ice MFR # 3108703517
6. #APPLIANCE COMPONENTS RV; Screw #8 X 1/2" L Bracke MFR # 3108071006
7. #SCREW, USE 3312986064 #8 X 1/2 HEX SS MFR # 3108709027 Superseded: see description
8. #Screw; Replacement For Dometic NDA1402/ NDR1062/ NDR1272/ NEA1402/ RM1272/ RM1350/ RM7732 Model Refrigerator; Stainless Steel MFR # 3312986064
9. #Refrigerator Basket; Use With Dometic RM7732 ELITE/ NDR1292/ NDR1492/ RM1272 ELITE/ RM3863 ROYALE/ RM4873 Refrigerators MFR # 3312986023 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Bucket Ice Use 3312986023 MFR # 3108702998 Superseded: see description
11. #WASHER MFR # 3108706007
12. #DECORATION, DOOR MFR # 3108705322
13. #DECORATION, DOOR MFR # 3108706411

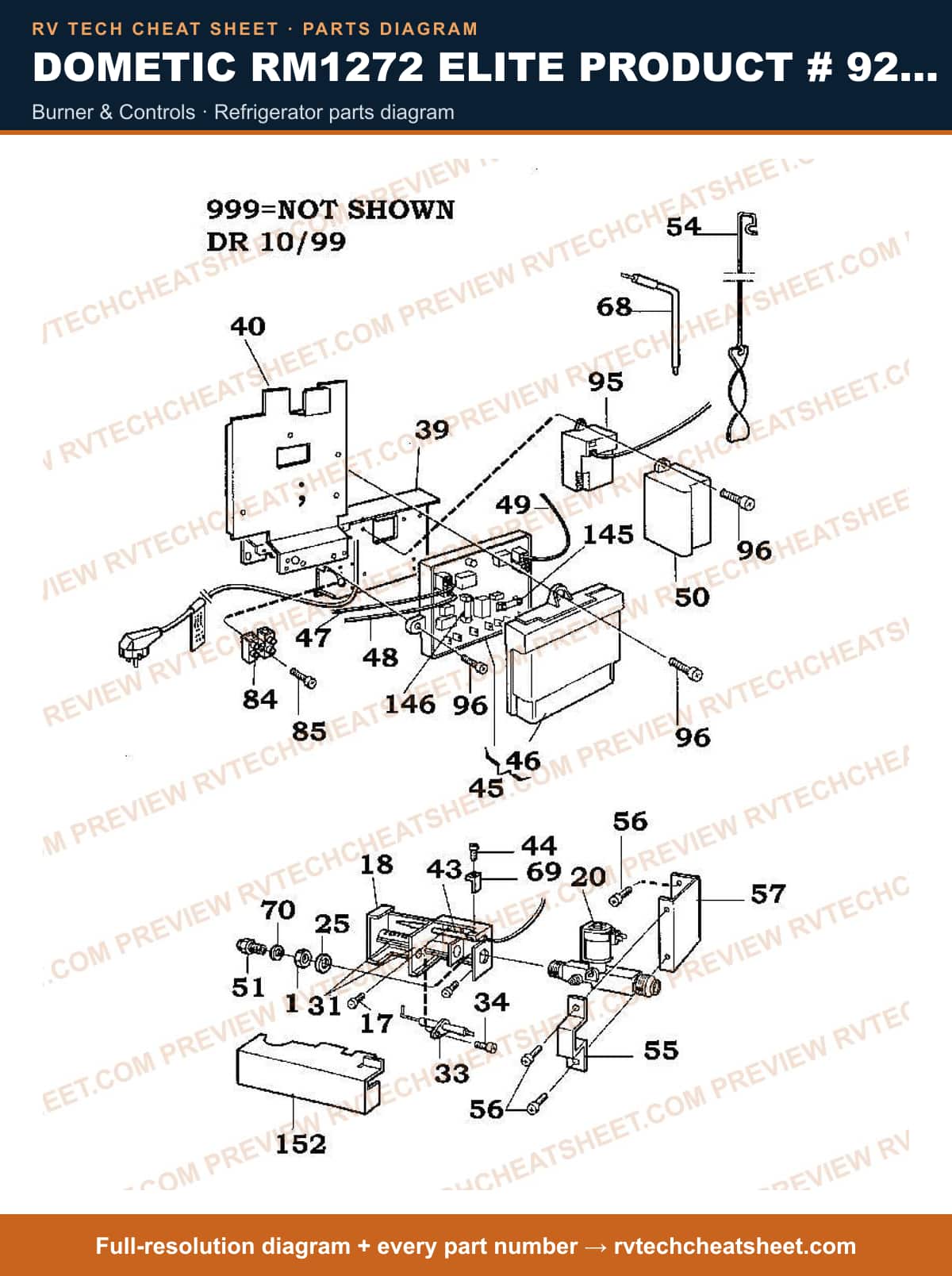

Burner & Controls

Components

54 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
3. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
4. #S,VALVE,GAS,SOLENOID-1350,1402 MFR # 2932615020
5. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
6. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
7. #Dometic RM2652 RM2662 Refrigerator Door Shelf Bin MFR # 2932781053
8. #APPLIANCE COMPONENTS RV; Electrode W/Lead MFR # 2932781020
9. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
10. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
11. #BRACKET,POWER MODULE MOUNTING MFR # 2932031012
12. #PLATE,MOUNTING MFR # 2932032010
13. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
14. #APPLIANCE COMPONENTS RV; THERMOCOUPLE MFR # 2931826024
15. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
16. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
18. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
19. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
20. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
21. #BOARD, W/COVER USE 3308741002 MFR # 2932881010 Superseded: see description
22. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
23. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
24. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
25. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
26. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
27. #S,COVER,LESS DECALS MFR # 2931858019
28. #LEAD,PC BOARD MFR # 2931862029
29. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
30. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
31. #HARNESS, GAS SOLENOID MFR # 2954437048
32. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
33. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
34. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
35. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
36. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
37. #SCREW M4 X 10 S MFR # 7241289615
38. #SUPPORT PLATE MFR # 2932043017
39. #ELEMENT, HEATING, USE 3850644471 210W/120V 2WIRE 3/8 X 6 1/2 MFR # 173758038 Superseded: see description
40. #ELEMENT, HEATING 210W/120V 2WIRE 3/8 X 6 1/2 MFR # CHX17736
41. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
42. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
43. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
44. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
45. #3858022019 MFR # 3858022019
46. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
47. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
48. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
49. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
50. #SCREW, RXS B6X13 MFR # 7295281404
51. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
52. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
53. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
54. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018

Door Assembly

Components

30 items

1. #Door, Refer Black MFR # 2932985027
2. #DOOR,FREEZER BLACK MFR # 2932986025
3. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
4. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
5. #S,HANDLE,BLK-1282,92, MFR # 3850227020
6. #LATCH,CONTROL RH BLACK MFR # 2932407030
7. #LATCH, CONTROL LH BLACK MFR # 2932407048
8. #Refrigerator Door Handle Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272 Model Refrigerator; Black MFR # 2801049038
9. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
10. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024
11. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
12. #SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description
13. #Trim, Deco Use 3850381165 Black MFR # 2932642248 Superseded: see description
14. #Refrigerator Trim; Replacement Decoration Trim; Black MFR # 3850381165
15. #Appliance Components RV; Trim Upper W/Logo Black MFR # 2932642313
16. #APPLIANCE COMPONENTS RV; TRIM,DOOR FREEZER BLACK IS A USE # FOR 2932642255 MFR # 3850381173 Superseded: see description
17. #Appliance Components RV; Trim, Door Freezer Black MFR # 2932642255
18. #STRIP,TRIM UPPER BLACK MFR # 2932642289
19. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
20. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
21. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
22. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
23. #Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018
24. #Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016
25. #APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014
26. #BRACKET MFR # 2932634013
27. #RIVET MFR # 2932679018
28. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010
29. #Refrigerator Gasket; Replacement For Dometic NDR1272/ NDR1282 Refrigerators; Door Gasket MFR # 3108708458
30. #Refrigerator Door Hinge Plate Reinforcement Kit; Replacement For Dometic RM1272/ RM3663/ RM3863/ NDR1292 Model Refrigerator; Black; With 2 Hinges/ 2 Bushing/ 3 Screws/ 1 Installation Instructions MFR # 3307910004

Cabinet Exterior

Components

39 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model NDR1292; Upper Left Hand; Black MFR # 2932646033 Superseded: see description
3. #HINGE, UPPER RH BLACK MFR # 2932646041
4. #SCREW MFR # 7252335406
5. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
6. #WASHER,STAINLESS MFR # 7341153091
7. #Appliance Components RV; Board, Display Black MFR # 2932884063
8. #Front, Black MFR # 2932047042
9. #Refrigerator Door Cap; Replacement For Dometic NDR1292/ RM1272 Model Refrigerator; Fits Upper Left Side Decorative Strip; Black MFR # 2932040039
10. #Refrigerator Door Cap; Replacement For Dometic NDR1292/ RM1272 Model Refrigerator; Fits Upper Right Side Decorative Strip; Black MFR # 2932040047
11. #APPLIANCE COMPONENTS RV; Screw MFR # 2801026010
12. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
13. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
14. #APPLIANCE COMPONENTS RV; LATCH, TRAVEL BLACK MFR # 2932048024
15. #Refrigerator Door Hinge; Replacement For Dometic NDR1492/ NDE1292/ NDR1292 Model Refrigerator; Lower Left Hand Side; Black MFR # 2932846039
16. #S,HINGE PIN,LWR MFR # 2932649029
17. #WASHER USE 3858010022 MFR # 7344880013 Superseded: see description
18. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
19. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
20. #FRONT,LOWER BLACK MFR # 2932664101
21. #COVER,BLACK MFR # 2932655067
22. #PLATE, FREEZER MFR # 2932078021
23. #COVERPLATE, PLASTIC MFR # 2932853027
24. #Screw; Use With Dometic RM1272 ELITE/ RM1282 ELITE/ NDR1292 Refrigerators MFR # 7241332019 Superseded: see description
25. #SCREW MFR # 7241327407
26. #FREEZER UNIT MFR # 2931474015
27. #SCREW MFR # 7297342409
28. #SCREW USE 3858037025 MFR # 2801059011 Superseded: see description
29. #PLATE, MOUNTING MFR # 3850206016
30. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
31. #DECAL MFR # 2932438001
32. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
33. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
34. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
35. #SCREW M4 X 10 S MFR # 7241289615
36. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
37. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
38. #APPLIANCE COMPONENTS RV; Label MFR # 2932091008
39. #APPLIANCE COMPONENTS RV; Shelf Freezer White MFR # 2932077023

Replacement Refrigerator

Components

11 items

1. #REFER, 14 CU FT 2 WAY BLACK 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492N MFR # NDR1492BN Superseded: see description
2. #REFER, 14 CU FT 2WAY STAINLESS 59 1/16"H X 36 1/2"W X 24"D; SHIPPING WEIGHT IS 290 LBS. MFR # NDR1492SSFN
3. #REFER, 14 CU FT STNLS W/ICEMAKR 59 1/16"H X 36 1/2"W X 24"D MFR # NDR1492SSIMHF
4. #REFER,12 CU FT 2 WAY STAINLESS 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292SSFN
5. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; NEW DIMENSIONS 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492IMHFN MFR # NDR1492BIMHFN Superseded: see description
6. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1492BIMHFN MFR # NDR1492IMHFN Superseded: see description
7. #REFER,12 CU FT STNLS USE 72-4861 MFR # 1200LRSSN Superseded: see description
8. #REFER,12 CU FT 2 WAY 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292BF
9. #REFER,12 CU FT 2 WAY WHITE 63 1/4" X 32 11/16" X 24" MFR # 1200LRWH
10. #REFER, 14 CU FT 2 WAY BEIGE 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH TAUPE METAL FRAME FOR BLACK METAL FRAME USE NDR1492BN MFR # NDR1492N Superseded: see description
11. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description
