Dometic RM1282 Elite Product # 921148088 Parts Diagram · Door Assembly

Refrigerator · 6 assemblies · 6 diagram sheets · 178 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM1282 Elite Product # 921148088 RV refrigerator: 6 assemblies (Door Assembly, Exploded View, Cabinet Rear View, Cabinet Exterior, Burner & Controls and more) and 178 manufacturer part numbers. 39 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

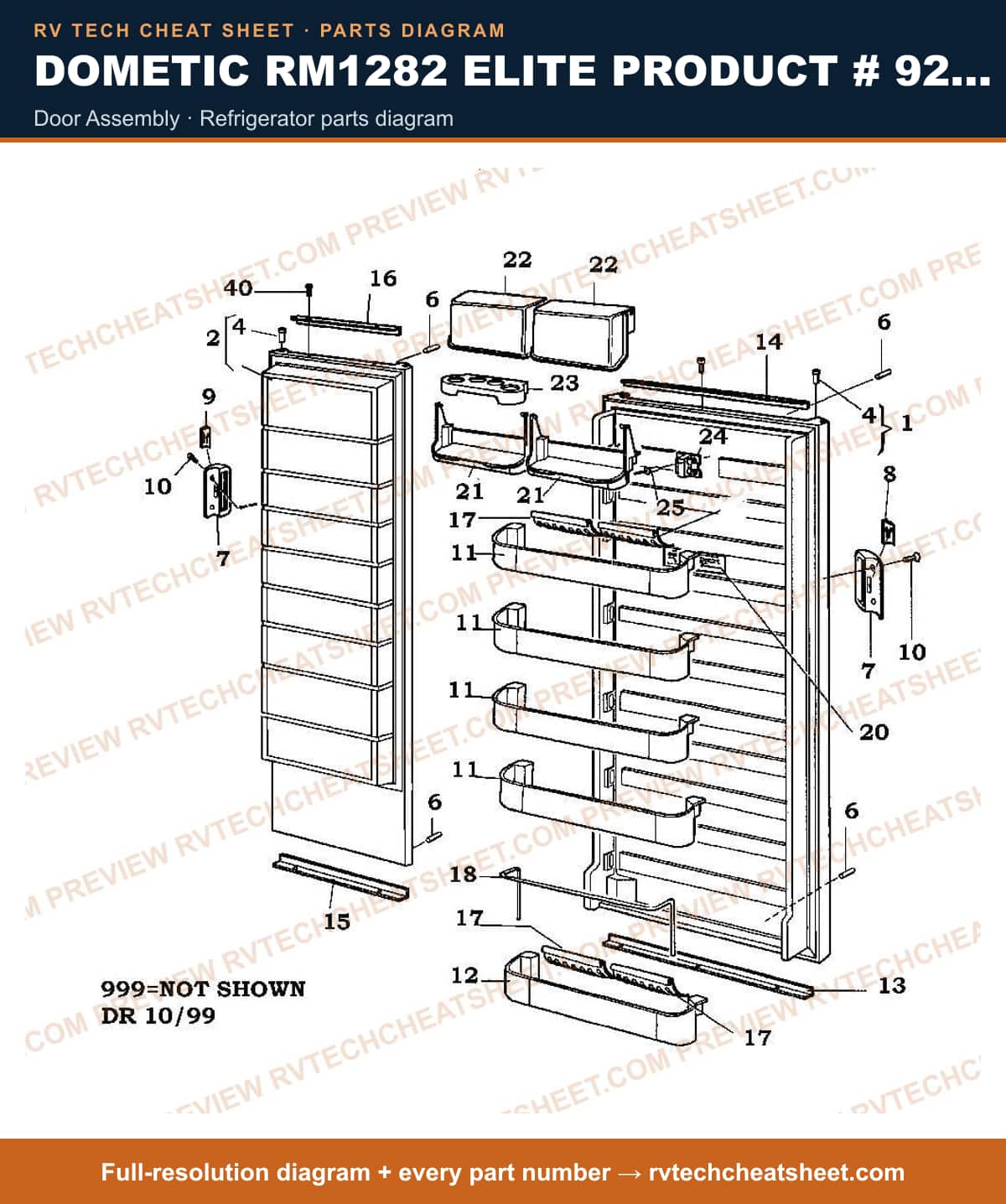

Door Assembly

Components

29 items

1. #Refrigerator Gasket; Replacement For Dometic NDR1272/ NDR1282 Refrigerators; Door Gasket MFR # 3108708458
2. #Appliance Components RV; Door Refer MFR # 2932985019
3. #APPLIANCE COMPONENTS RV; Door Asm Freezer MFR # 2932986017
4. #S,BUSH,DR HINGE,NYL,17,LT GRY MFR # 2931171041
5. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
6. #Handle, Door Use 3850227012 MFR # 2932094028 Superseded: see description
7. #Appliance Components RV; Handle Door Beige MFR # 3850227012
8. #Appliance Components RV; Control Right MFR # 2932407014
9. #Appliance Components RV; Control Left MFR # 2932407022
10. #Appliance Components RV; Screw MFR # 2801049020
11. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
12. #APPLIANCE COMPONENTS RV; Shelf Door MFR # 2932576024
13. #SHELF, DOOR USE 2932575018 MFR # 2932575026 Superseded: see description
14. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
15. #Appliance Components RV; Repair Kit Hinge Beige MFR # 3307896005
16. #Refrigerator Door Hinge Plate Reinforcement Kit; Replacement For Dometic RM1272/ RM3663/ RM3863/ NDR1292 Model Refrigerator; Black; With 2 Hinges/ 2 Bushing/ 3 Screws/ 1 Installation Instructions MFR # 3307910004
17. #DECORATION MFR # 2932642222
18. #Decoration, Freezer Bottom MFR # 2932642024
19. #DECORATION MFR # 2932642123
20. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
21. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
22. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
23. #Decal; Replacement For Dometic RM2652/ RM2852/ RM4873 Refrigerators MFR # 2932722008
24. #Refrigerator Door Bin; Replacement For Dometic RM4872/ RM4873 Refrigerators; Dairy MFR # 2932580018
25. #Refrigerator Door Bin; Replacement For Dometic RM1272/ NDR1492/ NDR1272 Refrigerators; Upper Door; Dairy MFR # 2932581016
26. #APPLIANCE COMPONENTS RV; Tray Egg MFR # 2932582014
27. #BRACKET MFR # 2932634013
28. #RIVET MFR # 2932679018
29. #Refrigerator Door Handle Screw; Replacement For Dometic RM2610/ RM1272/ RM2807 Model Refrigerator MFR # 7295225010

Exploded View

Components

23 items

1. #APPLIANCE COMPONENTS RV; Crisper MFR # 2931471011
2. #Spacer Screw MFR # 2001759006
3. #Refrigerator Grommet; Use With Dometic Refrigerator Model RM7832 MFR # 2005993007 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Compressor MFR # 2930850033
5. #APPLIANCE COMPONENTS RV; Device Start MFR # 955809009
6. #APPLIANCE COMPONENTS RV; Blade Fan RM4801 MFR # 2930854019
7. #Valve, Water MFR # 2932148022
8. #VALVE KIT WATER MFR # 3108706114
9. #Plate, Divider MFR # 2932174010
10. #APPLIANCE COMPONENTS RV; Motor Fan RM4804 MFR # 2943588000
11. #S,NUT,PLASTIC,1/4" TB,7-16"-20 MFR # 2930839010
12. #Plate, MTG. Comp./Fan MFR # 2932137017
13. #Coil, Condenser MFR # 2943926002
14. #Appliance Components RV; Heater Kit Icemaker Hose MFR # 3108706791
15. #WARNING LABEL MFR # 2931975003
16. #Cover MFR # 2932145010
17. #TUBE KIT, WATER USE 3105349017 MFR # 3105349009 Superseded: see description
18. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model NDR1062 MFR # 3105349017 Superseded: see description
19. #Coil, Evap. MFR # 2932134014
20. #Wire Harness MFR # 2932144013
21. #ICEMAKER ASM USE 3108703517 MFR # 2932147016 Superseded: see description
22. #Refrigerator Shelf; Use With Dometic Refrigerator Model RM7832 MFR # 2932160019 Superseded: see description
23. #Drier MFR # 2053836025

Cabinet Rear View

Components

15 items

1. #A/C COMPONENTS RV; COOLING UNIT MFR # 5532
2. #REMAN C/U USE 5532 RM7732 MFR # 2934945094R Superseded: see description
3. #COOLING UNIT USE 2934945102 MFR # 2934945094N Superseded: see description
4. #COOLING UNIT W/THERMAL FUSE TYPE 945 MFR # 2934945102
5. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
6. #COVER,HEATER MFR # 2933557023
7. #Cord Set for Absorption System MFR # 2002699086
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
10. #PLATE MFR # 2932176015
11. #PLATE MFR # 2932185016
12. #S,PROTECTION PLATE,REAR MFR # 2932155019
13. #APPLIANCE COMPONENTS RV; Label MFR # 2932723006
14. #Refrigerator Vent Fan; For Use With Dometic RM1272/ RM1282 Double Door Refrigerators MFR # 3108705744 Superseded: see description
15. #VENTILATOR USE 3108705744 F/FRIDGE MFR # 3104131002 Superseded: see description

Cabinet Exterior

Components

48 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Hinge Upper Lh MFR # 2932646017
3. #APPLIANCE COMPONENTS RV; Hinge Upper Rh MFR # 2932646025
4. #SCREW M6S 5 X 20 MFR # 7252331405
5. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
6. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
7. #Refrigerator Control Board Kit; Use With Dometic Refrigerators; 2 Way MFR # 2932884014 Superseded: see description
8. #Board Control Assm ***Us MFR # 2932884022
9. #APPLIANCE COMPONENTS RV; Strip Front MFR # 2932047026
10. #APPLIANCE COMPONENTS RV; Plate Side Left MFR # 2932040013
11. #APPLIANCE COMPONENTS RV; Plate Side Right MFR # 2932040021
12. #APPLIANCE COMPONENTS RV; Screw MFR # 2801026010
13. #Refrigerator Emblem; Use With Dometic RM Series/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2932779008 Superseded: see description
14. #S,HINGE PIN,UPR,RM2604 MFR # 2931288019
15. #APPLIANCE COMPONENTS RV; Latch Travel MFR # 2932048016
16. #PLUG MFR # 2932742014
17. #APPLIANCE COMPONENTS RV; Hinge Lwr Lh THE FOLLOWING CAN ONLY BE USED ON REFERS WITH BLACK OR BEIGE TRIM, NOT STAINLESS STEEL. MFR # 2932846013
18. #HINGE, LOWER RH BEIGE... MFR # 2932846021
19. #Refrigerator Door Hinge; Replacement For Dometic NDR1272/ RM1272/ RM1282/ RM7832/ RM7732/ RM7832/ NDR1292 Model Refrigerator; Fits Lower Cabinet Side; Bottom Right Hand; Black MFR # 2932846047
20. #S,HINGE PIN,LWR MFR # 2932649029
21. #APPLIANCE COMPONENTS RV; WASHER, HINGE MFR # 7344904037
22. #Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000
23. #APPLIANCE COMPONENTS RV; Strip Front Decoration MFR # 2932664051
24. #FLAP MFR # 2932655034
25. #APPLIANCE COMPONENTS RV; SWITCH,DOOR/CLIMATE CONTR MFR # 2932680024
26. #PLATE, FREEZER MFR # 2932078021
27. #APPLIANCE COMPONENTS RV; Shelf Freezer White MFR # 2932077023
28. #Plate Lower Freezer Tube MFR # 2931478016
29. #COVERPLATE, PLASTIC MFR # 2932853027
30. #SCREW USE 3858037025 MFR # 2801059011 Superseded: see description
31. #SCREW MFR # 7244332019
32. #SCREW MFR # 7241327407
33. #FREEZER UNIT MFR # 2931474015
34. #PLATE, MOUNTING MFR # 3850206016
35. #SHELF MFR # 2931982025
36. #PLATE, FREEZER MFR # 2931483024
37. #APPLIANCE COMPONENTS RV; Bracket Freezer Unit MFR # 2931484014
38. #INST. SIGN PLATE FROM SERIAL NO.737 INCLUSIVE MFR # 2932439009
39. #DECAL MFR # 2932060003
40. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
41. #SCREW M4 X 10 S MFR # 7241289615
42. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Washer MFR # 7341153018
44. #APPLIANCE COMPONENTS RV; Nut Hinge Pin MFR # 7314316014
45. #APPLIANCE COMPONENTS RV; Label MFR # 2932091008
46. #SWITCH, ICEMAKER MFR # 2930891011
47. #S,COVER,NEA1402 MFR # 2931715011
48. #ALARM, REFER TEMPERATURE (100); THIS ENABLES YOU TO MONITOR THE VITAL TEMP OF YOUR FOOD IN YOUR REFER WITHOUT OPENING THE DOOR. IT HAS A HIGH & LOW ALERT THAT PROVIDES YOU WITH AN AUDIBLE ALARM WHEN THE TEMPERATURE EXCEEDS A SET LIMIT MFR # 401012RV

Burner & Controls

Components

53 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1272/ RM2652/ RM2807/ RM2811/ RM2812/ RM2852/ RM3607/ RM3662/ RM7732 Model Refrigerator; M4 x 8 MFR # 7241287619
3. #Refrigerator Burner Box Cover; Replacement For Dometic RM1350/ NDA1402/ NDR1292 Model Refrigerator MFR # 2932161017
4. #S,VALVE,GAS,SOLENOID-1350,1402 MFR # 2932615020
5. #APPLIANCE COMPONENTS RV; Washer S MFR # 7345842012
6. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
7. #Dometic RM2652 RM2662 Refrigerator Door Shelf Bin MFR # 2932781053
8. #APPLIANCE COMPONENTS RV; Electrode W/Lead MFR # 2932781020
9. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
10. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
11. #BRACKET,POWER MODULE MOUNTING MFR # 2932031012
12. #PLATE,MOUNTING MFR # 2932032010
13. #THERMOCOUPLE FOR DOMETIC MFR # 2931826016
14. #APPLIANCE COMPONENTS RV; THERMOCOUPLE MFR # 2931826024
15. #Thermocouple; Use With Dometic Refrigerator Models RM2607/ RM2611/ RM2612/ RM2807/ RM2811/ RM2812/ RM3607/ RM3807/ RM7030/ RM7130/ RM7732/ RM7832/ S1521/ S1531/ S1821/ S1831; 2-Wire Plug-In Unit MFR # 2931826016MC Superseded: see description
16. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
17. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
18. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
19. #FUSE, 3 AMP USE BPAGC3 OR 55-9690 MFR # AGX3 Superseded: see description
20. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
21. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
22. #Refrigerator Control Board Kit; Replacement For Dometic RM2607/ NDR1492/ RM1272/ RM2652/ RM2811/ RM3807/ RM2620/ RM2820/ RM2812 Series Refrigerators; 2-Way; Universal; With Screws/ Board/ Wire And Installation Instructions MFR # 3308741002
23. #Fuse; Replacement Fuse For Dometic Refrigerators; Glass Tube; 5 Amp MFR # 3308897002
24. #FUSE, 5 AMP BUSS USE 55-9692 MFR # AGC5 Superseded: see description
25. #FUSE, 3 AMP USE AGX3 OR 55-9690 MFR # 3308897010 Superseded: see description
26. #S,COVER,LESS DECALS MFR # 2931858019
27. #LEAD,PC BOARD MFR # 2931862029
28. #S,THERMISTOR,W/LEAD 126" MFR # 2931863027
29. #Refrigerator Thermistor Assembly; Replacement For Dometic RM2852/ RM1272/ RM3807/ RM3663/ RM2807/ RM3807/ RM2812/ RM3662 Series Refrigerators MFR # 3307872006
30. #HARNESS, GAS SOLENOID MFR # 2954437048
31. #Refrigerator Reigniter Board Cover; Replacement For Dometic NDR1282/ RM1730/ S1821/ S1831/ RM4873/ RM4872/ RM3807/ RM/ NDR1272 Model Refrigerator MFR # 2931886010
32. #Refrigerator Burner Orifice; Replacement For Dometic RM1350/ NDR1282/ RM1292/ NDA1402/ RG1350 Series Refrigerators; #76 MFR # 2007419332
33. #S,BAFFLE ASM-RM1350,1402 MFR # 2932667054
34. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
35. #SCREW M4 X 10 S MFR # 7241289615
36. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
37. #SUPPORT PLATE MFR # 2932043017
38. #ELEMENT, HEATING, USE 3850644471 210W/120V 2WIRE 3/8 X 6 1/2 MFR # 173758038 Superseded: see description
39. #ELEMENT, HEATING 210W/120V 2WIRE 3/8 X 6 1/2 MFR # CHX17736
40. #REFRIGERATOR HEATING ELEMENT, (2X), 60V, 210W MFR # 3850644471
41. #Refrigerator Thermocouple Bracket; Replacement For Dometic RM2820/ RM2812/ RM2611 Refrigerators MFR # 2930660010
42. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
43. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
44. #3858022019 MFR # 3858022019
45. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
46. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
47. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
48. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
49. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
50. #APPLIANCE COMPONENTS RV; S, FUSE, 3AMP MFR # 2943541009
51. #NO GENERIC NAME; Fuse 3 Amp Buss S (5) MFR # AGC3
52. #FUSE, 5 AMP USE AGC5 MFR # 2943542007 Superseded: see description
53. #S,SUPPORT,PRE-ELECTRODE MFR # 2931401018

Replacement Refrigerator

Components

12 items

1. #REFER, 14 CU FT 2 WAY BEIGE 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH TAUPE METAL FRAME FOR BLACK METAL FRAME USE NDR1492BN MFR # NDR1492N Superseded: see description
2. #REFER, 12 CU FT USE NDR1292BF 59 1/16" X 32 3/4" X 24" MFR # NDR1292BN Superseded: see description
3. #REFER,12 CU FT STNLS USE 72-4861 MFR # 1200LRSSN Superseded: see description
4. #REFER, 14 CU FT STNLS W/ICEMAKR 59 1/16"H X 36 1/2"W X 24"D MFR # NDR1492SSIMHF
5. #REFER, 14 CU FT 2WAY STAINLESS 59 1/16"H X 36 1/2"W X 24"D; SHIPPING WEIGHT IS 290 LBS. MFR # NDR1492SSFN
6. #REFER,12 CU FT 2 WAY STAINLESS 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292SSFN
7. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; NEW DIMENSIONS 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492IMHFN MFR # NDR1492BIMHFN Superseded: see description
8. #REFER,12 CU FT 2 WAY WHITE 63 1/4" X 32 11/16" X 24" MFR # 1200LRWH
9. #REFER,12 CU FT 2 WAY 59 1/16"H X 32 3/4"W X 24"D MFR # NDR1292BF
10. #REFER, 14 CU FT W/ICEMAKER 59 31/32 X 37 3/8 X 26 11/16; 2 WAY SIDE BY SIDE WITH ICE MAKER & FAN TAUPE METAL FRAME. FOR BLACK METAL FRAME USE NDR1492BIMHFN MFR # NDR1492IMHFN Superseded: see description
11. #REFER, 14 CU FT 2 WAY BLACK 59 1/16"H X 36 1/2"W X 24"D; 2 WAY EXTRA LARGE SIDE BY SIDE WITH BLACK METAL FRAME. FOR TAUPE METAL FRAME USE NDR1492N MFR # NDR1492BN Superseded: see description
12. #REFER, 12 CU FT 2 W USE 1210LR USE 72-4886; REFER IS 8.4 CU FT AND FREEZER SECTIONS 3.6 CU FT. USE PART # 1200LRL FOR BLACK PLEXIGLASS DOOR PANELS USE PART # 1200LRW FOR WHITE PLEXIGLASS MFR # 1200LRN Superseded: see description
