Dometic RM1300 Parts Diagram · Replacement Refrigerator

Refrigerator · 7 assemblies · 7 diagram sheets · 246 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM1300 RV refrigerator: 7 assemblies (Replacement Refrigerator, Vibration Suppression Kit, Cabinet Assy, Cooling Unit, Door Assy and more) and 246 manufacturer part numbers. 66 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

8 items

1. #Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N
2. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS
3. #APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS
4. #REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description
5. #Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK
6. #Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK
7. #Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N
8. #REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH

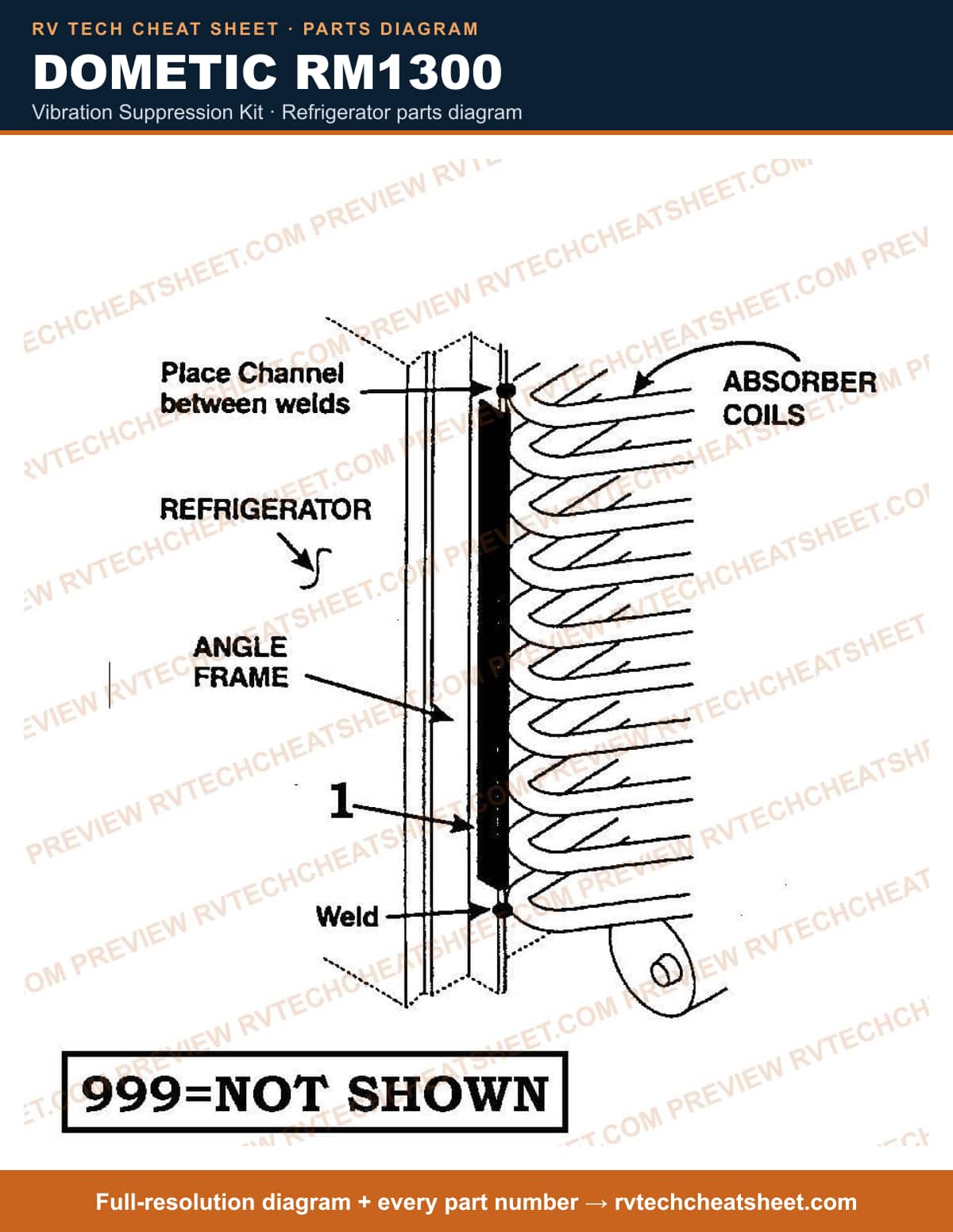

Vibration Suppression Kit

Components

1 item

1. #VIBRATION SUSPENSION KIT PRICED PER FOOT MFR # 3108704515

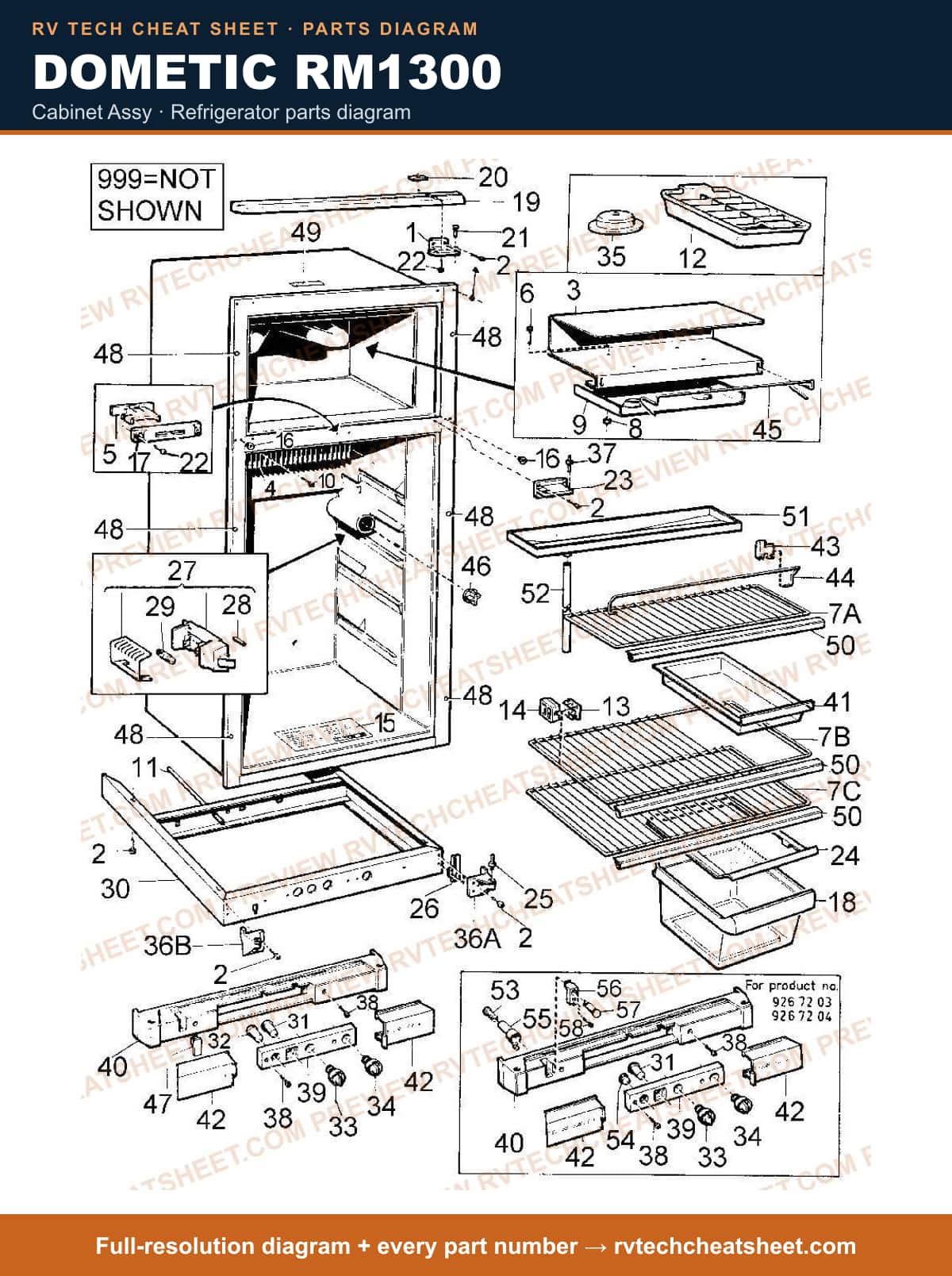

Cabinet Assy

Components

99 items

1. #Appliance Components RV; Hinge Upper MFR # 2007270008
2. #APPLIANCE COMPONENTS RV; Screw MFR # 7241328611
3. #SHELF, FREEZER MFR # 2007535012
4. #Refrigerator Shelf; Replacement For Dometic RM1300/ RA1302/ RM2807/ RM2811/ RM2812/ RM2820/ RM3804/ RM3807 Model Refrigerator; Freezer Compartment MFR # 2007535038
5. #Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description
6. #Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description
7. #Appliance Components RV; Latch Brown MFR # 2007681030
8. #LATCH, TRAVEL MFR # 2007681006
9. #APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134
10. #Shelf, Upper Use 2002652267 MFR # 2002652176 Superseded: see description
11. #SHELF USE 2930133117 MFR # 2002650071 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117
13. #APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267
14. #APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259
15. #Shelf, Middle Use 2002652259 MFR # 2002652168 Superseded: see description
16. #Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409
17. #NUT USE 7312314409 MFR # 7314314134 Superseded: see description
18. #PLATE, FREEZER USE 2007649011 4 HOLE MFR # 2007649003 Superseded: see description
19. #PLATE RETAINING MFR # 2007649011
20. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
21. #Hose, Protecting MFR # 2007349026
22. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
23. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
24. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
25. #SHELF LOCK, OUTER MFR # 2007303016
26. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
27. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
28. #Instruction Plate MFR # 2007690007
29. #INSTRUCTION PLATE MFR # 2007693001
30. #N/A PLUG MFR # 2007063007
31. #APPLIANCE COMPONENTS RV; Housing Latch 1303 MFR # 2007680032
32. #HOUSING, LATCH MFR # 2007680008
33. #Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129
34. #CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description
35. #CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description
36. #DECORATION, FRONT MFR # 2007545037
37. #APPLIANCE COMPONENTS RV; Plate Fixing MFR # 2007276005
38. #Pin, Hinge MFR # 2007271006
39. #SCREW USE 7295281401 MFR # 7295281013 Superseded: see description
40. #Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401
41. #HINGE, MIDDLE MFR # 2007272004
42. #APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description
43. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RB2405 MFR # 2007313006 Superseded: see description
44. #Plate, Sealing MFR # 2930074006
45. #Appliance Components RV; Lamp Inside MFR # 2007282003
46. #Refrigerator Power Cord Fuse; Replacement For Dometic RM761/ RM1303/ RM760/ RM763/ RM1300/ RM1301/ RM24 Series Refrigerator; 8 Amp MFR # 2002578025
47. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
48. #BULB 2/PK MFR # 2007290006
49. #Base, Cabinet MFR # 2007465020
50. #APPLIANCE COMPONENTS RV; Button Push MFR # 2007479005
51. #Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088
52. #Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description
53. #BUTTON, PUSH MFR # 2007479013
54. #Dometic RM2193 RM2652 Refrigerator Main Control Board MFR # 2007480094
55. #Knob, T-Stat; Use 2007480094 MFR # 2007480102 Superseded: see description
56. #KNOB, SELECTOR MFR # 2007480011
57. #Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177
58. #Appliance Components RV; Knob Selector 115V MFR # 2007480029
59. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
60. #LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description
61. #APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000
62. #APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008
63. #Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003
64. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
65. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
66. #SCREW MFR # 7298285402
67. #PANEL, GREY MFR # 32007463058
68. #PANEL, GREY MFR # 2007463009
69. #APPLIANCE COMPONENTS RV; Base Front RM1303 MFR # 2007461144
70. #BASE FRONT MFR # 2007461060
71. #BASE FRONT USE 2007461144 RA1302 MFR # 2007461128 Superseded: see description
72. #BASE FRONT MFR # 2007461029
73. #APPLIANCE COMPONENTS RV; Drawer 11-15/16" D x 6-11/16 W. SMOKED COLORED. MFR # 2005766049
74. #Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015
75. #Refrigerator Door Panel Retainer; Use With Dometic Refrigerator Model RM361 MFR # 2007336007 Superseded: see description
76. #Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description
77. #Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039
78. #Bar, L Approx 9" RM1300 MFR # 2007337070
79. #Appliance Components RV; Bar Freezer Shelf MFR # 2007537000
80. #CLAMP F/CABLE RM760 MFR # 2007627009
81. #PLUG W/O REIGNITOR MFR # 2930083007
82. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
83. #PLUG, FACE BROWN MFR # 2002352033
84. #SCREW MFR # 2930431008
85. #Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description
86. #Appliance Components RV; Strip Decoration MFR # 2055366013
87. #Strip, Decor Use 2005111071 MFR # 2005111113 Superseded: see description
88. #Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description
89. #APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013
90. #Tray, Drip Use 2007610013 MFR # 2007610005 Superseded: see description
91. #APPLIANCE COMPONENTS RV; Hose Drain MFR # 2002604029
92. #Appliance Components RV; Sleeve Sealing MFR # 2007626001
93. #PLUG W/REIGNITOR MFR # 2007662006
94. #Appliance Components RV; Sleeve Protector RM130 MFR # 2007673003
95. #Appliance Components RV; Socket Lamp MFR # 2007674001
96. #Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019
97. #Lamp, Pilot Use 2932810019 MFR # 2007675008 Superseded: see description
98. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
99. #SCREW MFR # 7295231018

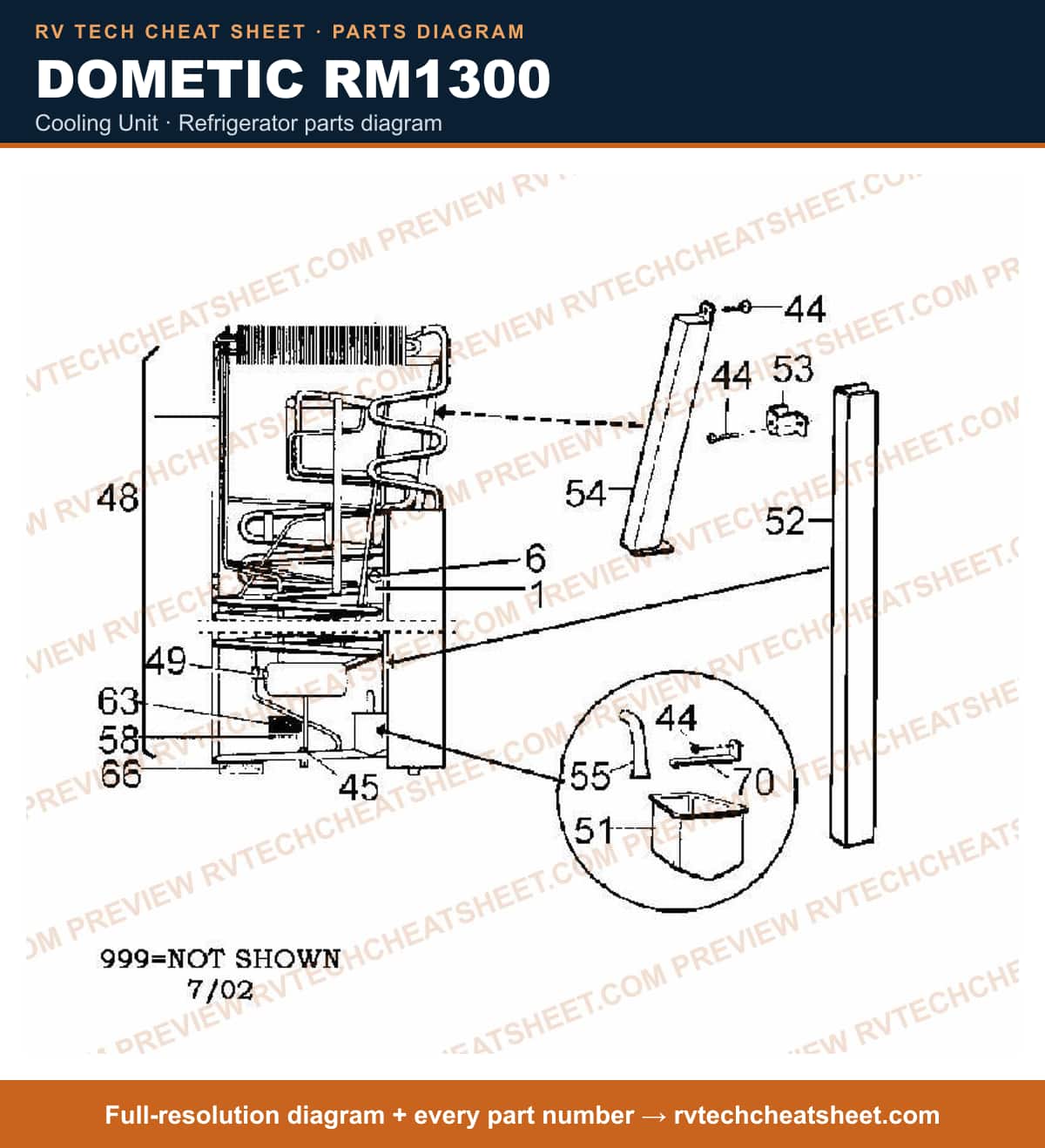

Cooling Unit

Components

19 items

1. #RETAINING PLATE MFR # 2007653005
2. #PLUG MFR # 2001192000
3. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
4. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
6. #SCREW #17 MFR # 7241289011
7. #REMAN C/U USE 5513 RM1300/1301,1303,RA1302 MFR # 9286169009R Superseded: see description
8. #Refrigerator Cooling Unit; Use With Dometic RM1300/ RM1301/ RM1302/ RM1303 Model Refrigerators; Steel Tubing MFR # 5513 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Cooling Unit (Ups) MFR # 9286169009N
10. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
11. #APPLIANCE COMPONENTS RV; Tray Evaporator 1300-130 MFR # 2007618008
12. #N/A CHANNEL MFR # 2007520014
13. #RETAINER MFR # 2007619006
14. #FLUE MFR # 2007521012
15. #DRAIN TRAP RM100 MFR # 2002603005
16. #DECAL RM38 04 MFR # 2007574029
17. #APPLIANCE COMPONENTS RV; Decal Installation MFR # 2007571009
18. #DECAL, WARNING 2807/4801 MFR # 2002577001
19. #RETAINER MFR # 2007634005

Door Assy

Components

41 items

1. #DOOR,UPPER MFR # 2007613033
2. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
3. #APPLIANCE COMPONENTS RV; Gasket Upper MFR # 2002626154
4. #RETAINER, CATCH USE 2007679026 MFR # 2007679000 Superseded: see description
5. #CATCH, RETAINER USE 2007544006 MFR # 2007679026 Superseded: see description
6. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
7. #RIVET, POP MFR # 7227835027
8. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
9. #Screw Use 3858002052 MFR # 7295221019 Superseded: see description
10. #STRIP,DECORATION MFR # 2007538065
11. #STRIP, DECORATION MFR # 2002675078
12. #STRIP,DECO USE 2002675078 IS A USE # FOR 2002675029,2002675102,2002676027 MFR # 2002675029 Superseded: see description
13. #STRIP,DECOR USE 2002675128 MFR # 2002675102 Superseded: see description
14. #BOX, ICE WHITE MFR # 2930536020
15. #ICEBOX USE 2930536020 MFR # 2006136002 Superseded: see description
16. #RACK, WIRE MFR # 2007040005
17. #Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description
18. #HOLDER, JUICE USE 2930533019 MFR # 2930533027 Superseded: see description
19. #SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description
20. #SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description
21. #SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057
23. #RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description
24. #Gasket Kit (100) Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008D
25. #Gasket Kit Use 3103690008D Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008 Superseded: see description
26. #DOOR,LOWER FOR GASKET KIT USE PART # 3103690008 MFR # 2007611045 Superseded: see description
27. #GASKET,LOWER USE 3103690008 MFR # 2002626147 Superseded: see description
28. #DECORATION STRIP MFR # 2007538057
29. #DAIRY DOOR MFR # 2002623029
30. #NAMEPLATE MFR # 2002672000
31. #Door Shelf MFR # 200132136
32. #Shelf, Door Use 2001732136 MFR # 2001732128 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136
34. #SHELF, DOOR USE 2001732136 RM1300,1303 MFR # 2001732110 Superseded: see description
35. #Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061
36. #Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053
37. #HOLDER, BOTTLE USE 2002794168 BROWN MFR # 2002794010 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168
39. #APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009
40. #LABEL, INSTRUCTION MFR # 2002356000
41. #HANDLE,FREEZER RM76 0 MFR # 2007542010

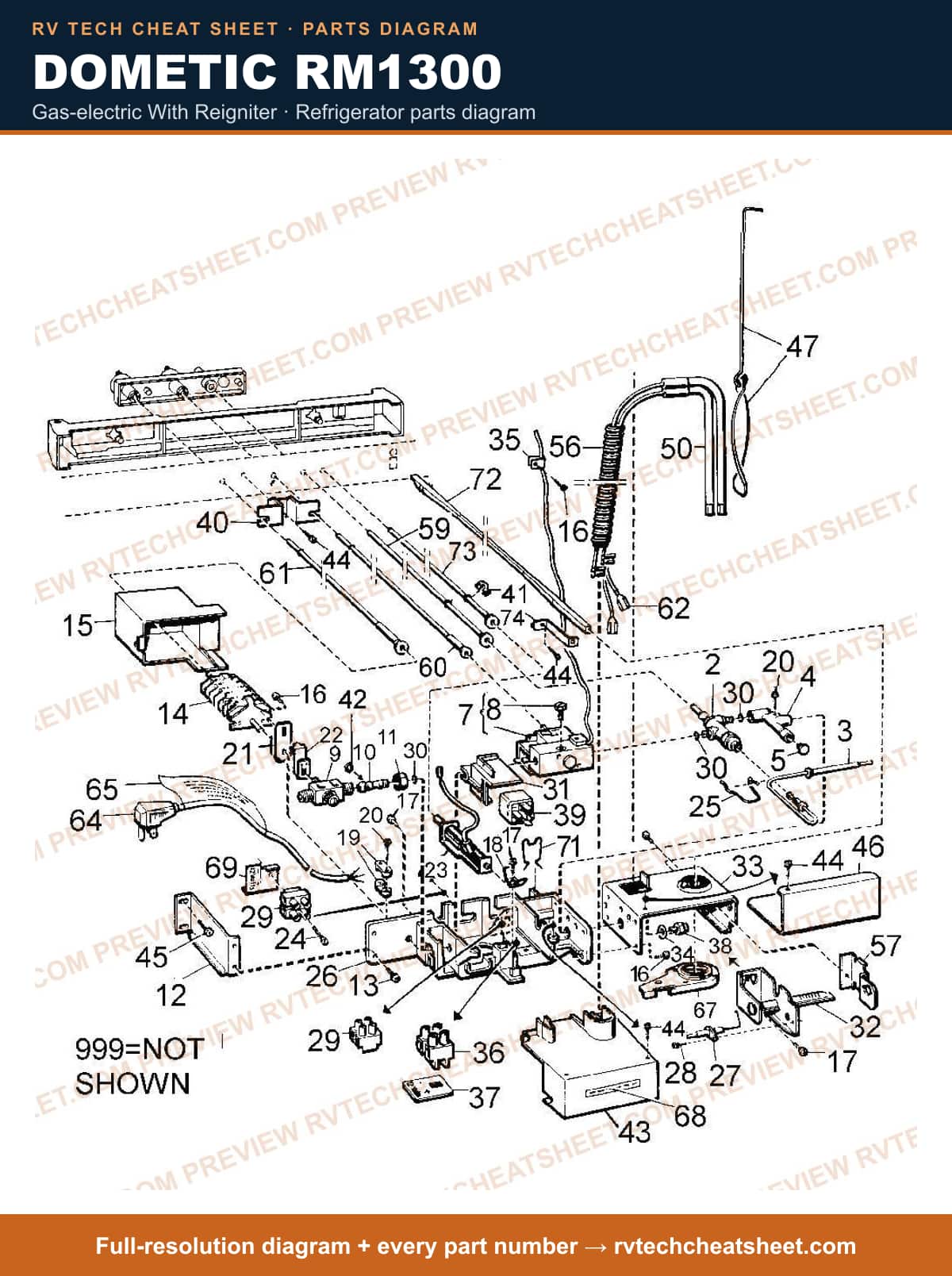

Gas-electric W-o Reigniter

Components

86 items

1. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
2. #Valve, Safety Use 2931657015 w/o-Rings MFR # 2007422999 Superseded: see description
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
4. #T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description
5. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
6. #S,THERMOCOUPLE-232MM MFR # 2931496042
7. #Coupling MFR # 2007518000
8. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
9. #Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description
10. #T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description
11. #DOMETIC DUAL T-STAT MFR # 2007199009
12. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
13. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
14. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
15. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
16. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
17. #Appliance Components RV; Nut Union MFR # 172809006
18. #Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003
19. #SCREW - RXS B8X13 - Z. PL. MFR # 7295342013
20. #S,SWITCH,RM2410-2810 MFR # 2007432004
21. #Appliance Components RV; Cover Switch MFR # 2007439009
22. #Screw MFR # 140730011
23. #SCREW, RX 4X8, Z. PL. MFR # 7241287015
24. #TAB CONNECTOR MFR # 7602896701
25. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
26. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
27. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
28. #APPLIANCE COMPONENTS RV; Spring MFR # 2007577006
29. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
30. #Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description
31. #Igniter, Piezo MFR # 2007423003
32. #SCREW MFR # 7295231018
33. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
34. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
35. #Bracket Mount MFR # 2007410000
36. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
37. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
38. #Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description
39. #Screw - RXS B4X6 - NI. PL. MFR # 7295221118
40. #Block Terminal Small 3 Poi MFR # 7627202562
41. #Ring, Sealing 2 Req. MFR # 140748005
42. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
43. #Burner Use 2007503036 MFR # 2007503028 Superseded: see description
44. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
45. #Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038
46. #APPLIANCE COMPONENTS RV; Housing Burner Use 200750 MFR # 2007502004 Superseded: see description
47. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
48. #Clamp MFR # 2007395003
49. #3858022019 MFR # 3858022019
50. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
51. #PLATE/SIGN,12 VOLT DC MFR # 2007452002
52. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
53. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
54. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
55. #Appliance Components RV; Relay For 12/115V RM760; Fits Models: RM2601, 2800, 2801; 0 332 019 151 # ON RELAY; 5 Terminals MFR # 2007329010
56. #Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007
57. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
58. #APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231
59. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
60. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
61. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
62. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
63. #SCREW #17 MFR # 7241289011
64. #Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007
65. #Baffle, Flue MFR # 2007179027
66. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM1300; 120 Volt; 325 Watts MFR # 173742016MC Superseded: see description
67. #Element, Heating 275W 12V 3/8" DIA 6" LONG; Suggested Alternate For Dometic: This Part Is Not A Dometic Original But Can Be Used As An Alternate To The Dometic P#173743022. MFR # CS000039
68. #Element, Heating 275W 12V (25); Use 48-9515; [[[ When Inventory Is Depleted On This Item, Please Order Suggested Alternate P# CS000039. IS A USE # FOR 173743022D MFR # 173743022 Superseded: see description
69. #Element, Heating 325W 120V MFR # CS000006
70. #Element, Heating Use 45-4098 MFR # 173742016D Superseded: see description
71. #Protection Hose MFR # 2007069046
72. #Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009
73. #S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016
74. #S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002
75. #S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003
76. #APPLIANCE COMPONENTS RV; Conductor MFR # 2007445006
77. #FLEXIBLE CORD MFR # 2002699001
78. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
79. #Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017
80. #LABEL, IMPORTANT MFR # 2007689009
81. #PLATE,12V MFR # 2007686005
82. #Appliance Components RV; Retainer MFR # 2007424001
83. #Conductor, Light; IS A USE # FOR 2007476015, 2007478015 MFR # 2007478031 Superseded: see description
84. #Conductor, Light; Use 2007478031 MFR # 2007478015 Superseded: see description
85. #APPLIANCE COMPONENTS RV; Rod Push RM4-6-760 MFR # 2007468008
86. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005

Gas-electric With Reigniter

Components

86 items

1. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
3. #Valve, Safety Use 2931657015 w/o-Rings MFR # 2007422999 Superseded: see description
4. #T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description
5. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
6. #S,THERMOCOUPLE-232MM MFR # 2931496042
7. #Coupling MFR # 2007518000
8. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
9. #T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description
10. #DOMETIC DUAL T-STAT MFR # 2007199009
11. #Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description
12. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
13. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
14. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
15. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
16. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
17. #Appliance Components RV; Nut Union MFR # 172809006
18. #Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003
19. #SCREW - RXS B8X13 - Z. PL. MFR # 7295342013
20. #S,SWITCH,RM2410-2810 MFR # 2007432004
21. #Appliance Components RV; Cover Switch MFR # 2007439009
22. #Screw MFR # 140730011
23. #SCREW, RX 4X8, Z. PL. MFR # 7241287015
24. #TAB CONNECTOR MFR # 7602896701
25. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
26. #SCREW USE 7295285402 MFR # 7295285014 Superseded: see description
27. #Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402
28. #APPLIANCE COMPONENTS RV; Spring MFR # 2007577006
29. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
30. #Igniter, Piezo MFR # 2007423003
31. #Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description
32. #Screw; Replacement For Dometic RM1300/ S1521/ RM2607 Model Refrigerators; Use With 3 Point 115 Volt AC Terminal Block MFR # 7295287408 Superseded: see description
33. #SCREW MFR # 7295231018
34. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
35. #Bracket Mount MFR # 2007410000
36. #Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description
37. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
38. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
39. #Screw - RXS B4X6 - NI. PL. MFR # 7295221118
40. #Block Terminal Small 3 Poi MFR # 7627202562
41. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
42. #Ring, Sealing 2 Req. MFR # 140748005
43. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
44. #Burner Use 2007503036 MFR # 2007503028 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Housing Burner Use 200750 MFR # 2007502004 Superseded: see description
46. #Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038
47. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
48. #Clamp MFR # 2007395003
49. #3858022019 MFR # 3858022019
50. #APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description
51. #PLATE/SIGN,12 VOLT DC MFR # 2007452002
52. #Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191
53. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
54. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
55. #Appliance Components RV; Relay For 12/115V RM760; Fits Models: RM2601, 2800, 2801; 0 332 019 151 # ON RELAY; 5 Terminals MFR # 2007329010
56. #Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007
57. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
58. #APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231
59. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
60. #APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512
61. #Screw; Use 7295279512 MFR # 7295279405 Superseded: see description
62. #SCREW USE 7295279405 MFR # 7295279017 Superseded: see description
63. #SCREW #17 MFR # 7241289011
64. #Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007
65. #Baffle, Flue MFR # 2007179027
66. #Element, Heating 275W 12V 3/8" DIA 6" LONG; Suggested Alternate For Dometic: This Part Is Not A Dometic Original But Can Be Used As An Alternate To The Dometic P#173743022. MFR # CS000039
67. #Element, Heating Use 45-4098 MFR # 173742016D Superseded: see description
68. #Element, Heating 275W 12V (25); Use 48-9515; [[[ When Inventory Is Depleted On This Item, Please Order Suggested Alternate P# CS000039. IS A USE # FOR 173743022D MFR # 173743022 Superseded: see description
69. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM1300; 120 Volt; 325 Watts MFR # 173742016MC Superseded: see description
70. #Element, Heating 325W 120V MFR # CS000006
71. #Protection Hose MFR # 2007069046
72. #Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009
73. #S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016
74. #S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002
75. #S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003
76. #APPLIANCE COMPONENTS RV; Conductor MFR # 2007445006
77. #FLEXIBLE CORD MFR # 2002699001
78. #ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003
79. #Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017
80. #LABEL, IMPORTANT MFR # 2007689009
81. #PLATE,12V MFR # 2007686005
82. #Appliance Components RV; Retainer MFR # 2007424001
83. #Conductor, Light; IS A USE # FOR 2007476015, 2007478015 MFR # 2007478031 Superseded: see description
84. #Conductor, Light; Use 2007478031 MFR # 2007478015 Superseded: see description
85. #APPLIANCE COMPONENTS RV; Rod Push RM4-6-760 MFR # 2007468008
86. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005
