Diagrams › Dometic › RM1301 Dometic RM1301 Parts Diagram · Refrigerator Replacement
Refrigerator · 6 assemblies · 6 diagram sheets · 236 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM1301 RV refrigerator: 6 assemblies (Refrigerator Replacement, Gas-electric, Vibration Suppression Kit, Gas-electric W-out Reigniter, Door Assy and more) and 236 manufacturer part numbers. 77 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Refrigerator Replacement
Dometic RM1301 refrigerator replacement — parts list sheet Full-resolution diagram + every part number →
Components 9 items # REFER,6 CU FT 3W WHITE 52 7/8"H X 23 1/2"W X 2 MFR # N641IMWH # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N641SS # Refrigerator; 57 1/4" H x 23 3/4" W x 24 3/4" D MFR # RM1301N # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 52-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Door; With Crispers/ Shelving And Door Bins MFR # N641IMBK # APPLIANCE COMPONENTS RV;;Refrigerator/Lp-Ac/Ss MFR # N641IMSS # Refrigerator / Freezer;;Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand MFR # N641N # Refrigerator - Built In; N641; 6.3 cu ft; 2 Door; Without Ice Maker; AC/ LP; 52-7/8 Inches High x 23-1/2 Inches Wide x 24 Inches Deep; Not Included; Black; Gas Absorption; MFR # N641BK # Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N # REFER,6 CU 2-W 52 7/8"H X 23 1/2"W X 24"D SUGGESTED ALTERNATE: STAINLESS IS NOW N/A. USE BLACK, RM2652B, FOR A SUGGESTED ALTERNATE. MFR # N641WH Superseded: see description

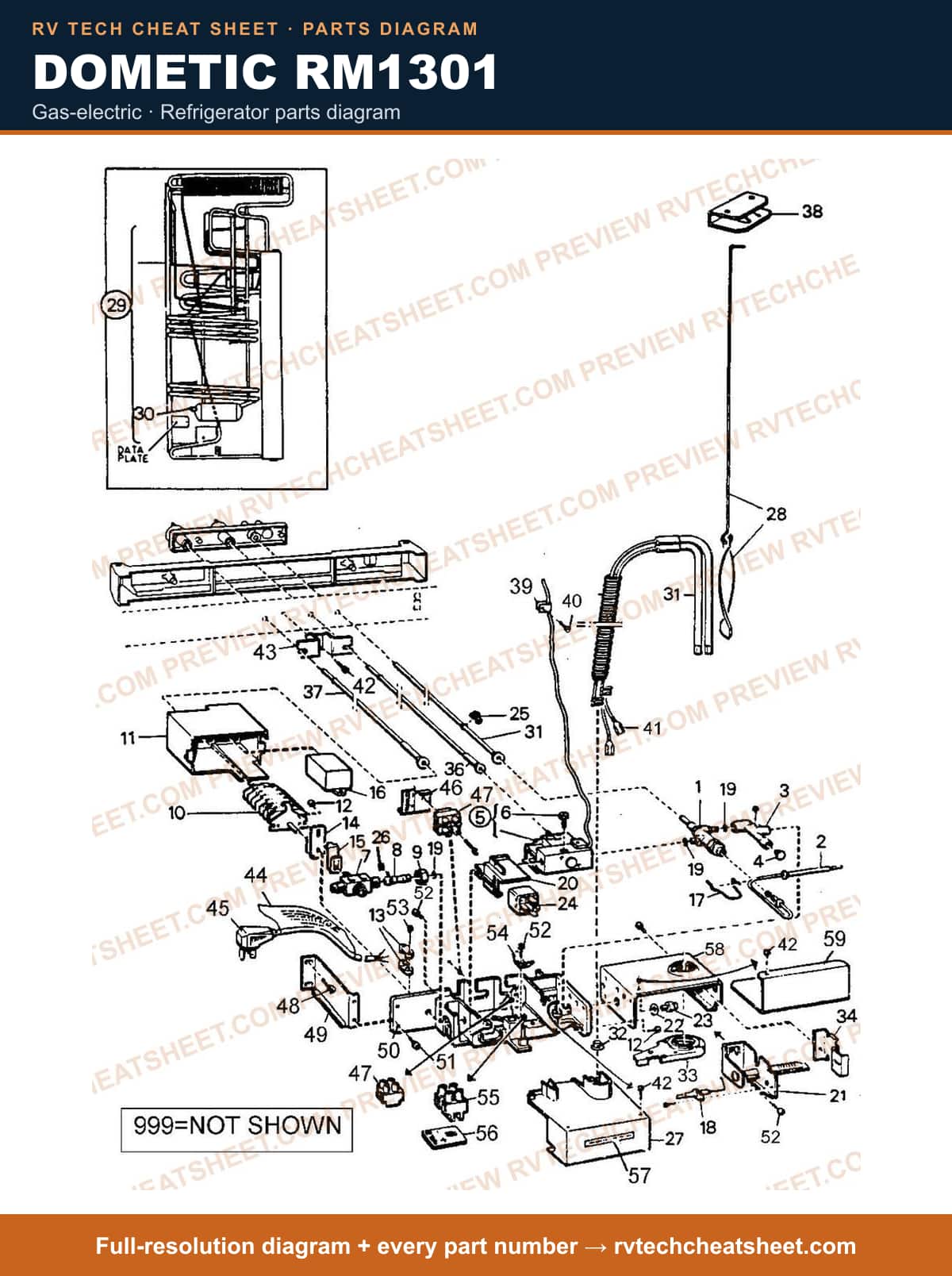

Gas-electric
Dometic RM1301 gas-electric — parts list sheet Full-resolution diagram + every part number →
Components 89 items # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # S,THERMOCOUPLE-232MM MFR # 2931496042 # T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # SWITCH, SELECTOR MFR # 2007664002 # S,SWITCH,PWR/SELECTOR-MCT MFR # 2007664010 # S,COVER,CONTROLS,INNER MFR # 2007661008 # SCREW MFR # 140730011D # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # APPLIANCE COMPONENTS RV; Spring MFR # 2007577006 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description # DOMETIC REIGNITOR RM1303 MFR # 2931132019 # Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description # Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # SEALING RING MFR # 140748005D # Catch Snap 12/120 (Fus) MFR # 2930066028 # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # RELAY USE 2930385006 MFR # 2930385014 Superseded: see description # Refrigerator Relay; Use On Dometic Refrigerator Models QCS135B/ RM100/ RM1303/ RM1350-921148302/ RM1350-921148307/ RM1350-921148319/ RM1350-921148320/ RM2354-921145025/ RM2354-921145027/ RM2354-921145030/ RM2354-921145031/ RM2354-921145051/ RM2354-921145052/ RM2454-921140114/ RM2454-921140115/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604-921580101/ RM3604-921580201/ RM3800/ RM3801/ RM3804-921600101/ RM3804-921600301/ RM4801/ RM4804/ RM4804002/ RM4804004/ RM4804005/ RM4804006/ RM4804006/ RM663/ RM76/ RM763/ RM76D/ RM77/ RM77D MFR # 2930385006MC Superseded: see description # APPLIANCE COMPONENTS RV; Relay 12V MFR # 2930385006 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # Appliance Components RV; Baffle Flue MFR # 2007590033 # Refrigerator Cooling Unit; Use With Dometic RM1300/ RM1301/ RM1302/ RM1303 Model Refrigerators; Steel Tubing MFR # 5513 Superseded: see description # APPLIANCE COMPONENTS RV; Cooling Unit (Ups) MFR # 9286169009N # FILLING CAP MFR # 173558008 # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM1300; 120 Volt; 325 Watts MFR # 173742016MC Superseded: see description # ELEMENT, HEATING Q (25) 12V 275W 3/8" DIA 6-1/2 LONG MFR # 173743014 # Element, Heating Use 45-4098 MFR # 173742016D Superseded: see description # ELEMENT, HEATING USE 173743014 12V 275W RA1300 MFR # 173743014D Superseded: see description # Element, Heating 325W 120V MFR # CS000006 # BUSHING USE 2002619001 MFR # 2930103003 Superseded: see description # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # S,CAP,FLUE MFR # 2007598010 # CLAMP MFR # 2007595003 # APPLIANCE COMPONENTS RV; Conductor MFR # 2007445006 # SCREW USE 7295279405 MFR # 7295279017 Superseded: see description # APPLIANCE COMPONENTS RV; Screw Rxs B6 X 10 MFR # 7295279512 # Screw; Use 7295279512 MFR # 7295279405 Superseded: see description # Refrigerator Burner Control Module Mounting Bracket; Replacement For Dometic RM1302/ RM1300/ RM661/ RM2410/ RM2510/ RGE400/ RM2810 Series Refrigerator MFR # 2007567007 # ELEC. GROUNDING INSTRUCTIONS MFR # 2002576003 # FLEXIBLE CORD MFR # 2002699001 # PLATE,12V MFR # 2007686005 # Block Terminal Small 3 Poi MFR # 7627202562 # SCREW #17 MFR # 7241289011 # Refrigerator Door Panel Retainer; Replacement For Dometic RM460/ RM660/ RM2410/ RM2510/ RM761/ RM461/ RM1300/ RM1301/ RM2810/ RA1302/ RM360/ RM760/ RM2310/ RM361/ RA1302 Series Refrigerators MFR # 2007418003 # Bracket Mount MFR # 2007410000 # SCREW - RXS B8X13 - Z. PL. MFR # 7295342013 # SCREW, RX 4X8, Z. PL. MFR # 7241287015 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # SCREW MFR # 7298285402 # TAB CONNECTOR MFR # 7602896701 # 3858022019 MFR # 3858022019 # BLOCK, TERMINA USE 2930463019 LARGE RM2800, 2801 MFR # 2002633010 Superseded: see description # APPLIANCE COMPONENTS RV; Block Terminal Use 385802 MFR # 2930463019 Superseded: see description # PLATE/SIGN,12 VOLT DC MFR # 2007452002 # LABEL, IMPORTANT MFR # 2007689009 # APPLIANCE COMPONENTS RV; Housing Burner Use 200750 MFR # 2007502004 Superseded: see description # Refrigerator Burner Box Cover; Replacement For Dometic RM763/ RM1300/ RGE400 Model Refrigerator MFR # 2007502038 # Refrigerator Burner Box Cover; Replacement For Dometic RM2410/ RM361/ RM2510/ RM360/ RM2310/ RGE400/ RM1303/ RM1301/ RM760/ RM661 Model Refrigerator MFR # 2007505007

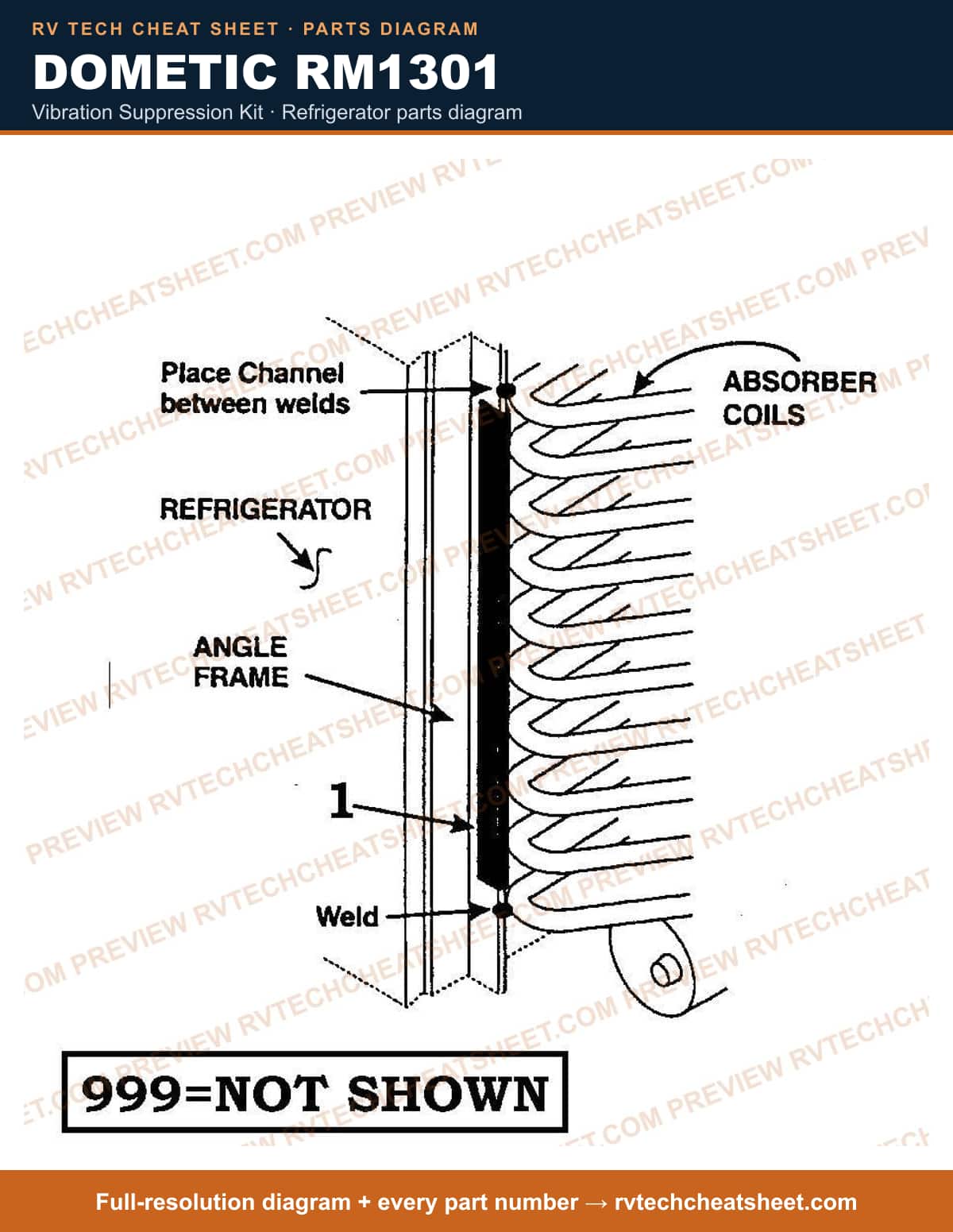

Vibration Suppression Kit

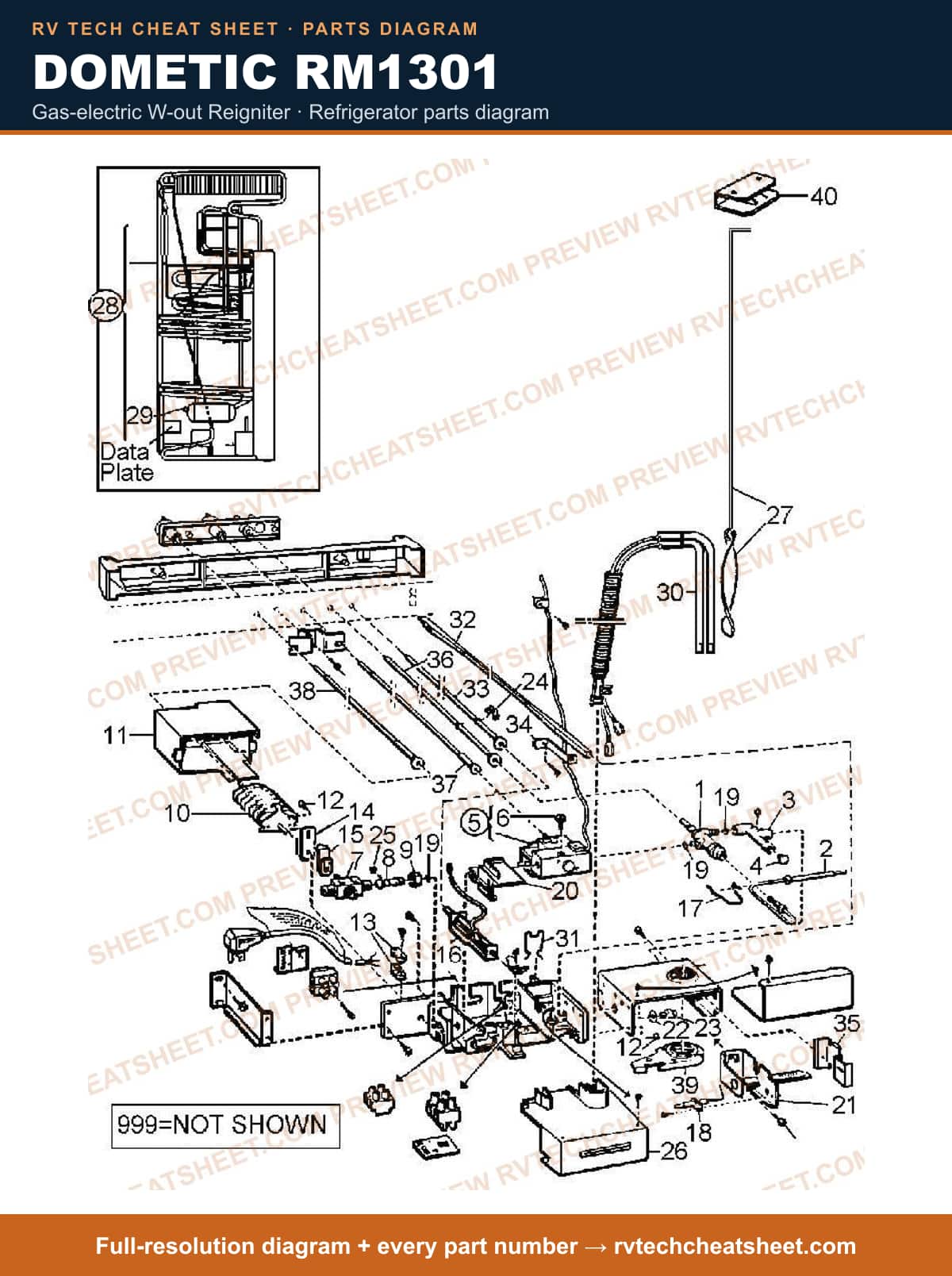

Gas-electric W-out Reigniter
Dometic RM1301 gas-electric w-out reigniter — parts list sheet Full-resolution diagram + every part number →
Components 63 items # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # THERMOCOUPLE (350MM) MFR # 2931496091 # T-COUPLE USE 2931496026 RM3801,3601,2802 MFR # 2930326018 Superseded: see description # T-Couple Use 2931496091 MFR # 2931496026 Superseded: see description # T-COUPLE MFR # 2930326000 # Thermocouple MFR # 2931496091MC # Thermocouple; Use On Dometic Refrigerator Model RM1303 MFR # 2930326000MC Superseded: see description # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # S,THERMOCOUPLE-232MM MFR # 2931496042 # Thermocouple; Use On Dometic Refrigerator Model RM3800 MFR # 2930326018MC Superseded: see description # Coupling MFR # 2007518000 # APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003 # DOMETIC DUAL T-STAT MFR # 2007199009 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # S,SWITCH,RM2410-2810 MFR # 2007432004 # Appliance Components RV; Cover Switch MFR # 2007439009 # Screw MFR # 140730011 # Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010 # APPLIANCE COMPONENTS RV; Spring MFR # 2007577006 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description # Igniter, Piezo MFR # 2007423003 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # ELECTRODE MFR # 2930379000 # Ring, Sealing 2 Req. MFR # 140748005 # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # Catch Snap 12/120 (Fus) MFR # 2930066028 # CATCH, SNAP USE 2930071010 MFR # 2007428002 Superseded: see description # Burner Use 2007503036 MFR # 2007503028 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569 # Refrigerator Burner Orifice; Replacement For Dometic RM2612/ RM2620/ RM2611/ RM2607/ RM2603/ RM2600/ RM2800/RM2802/ RM3607/RM761/RM4801/ RM3600 Series Refrigerators; #53 MFR # 2007419191 # Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # Appliance Components RV; Baffle Flue MFR # 2007590033 # Refrigerator Cooling Unit; Use With Dometic RM1300/ RM1301/ RM1302/ RM1303 Model Refrigerators; Steel Tubing MFR # 5513 Superseded: see description # APPLIANCE COMPONENTS RV; Cooling Unit (Ups) MFR # 9286169009N # COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084 # Element, Heating Use 45-4098 MFR # 173742016D Superseded: see description # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Model RM1300; 120 Volt; 325 Watts MFR # 173742016MC Superseded: see description # Element, Heating 325W 120V MFR # CS000006 # Appliance Components RV; Retainer MFR # 2007424001 # Conductor, Light; IS A USE # FOR 2007476015, 2007478015 MFR # 2007478031 Superseded: see description # APPLIANCE COMPONENTS RV; Rod Push RM4-6-760 MFR # 2007468008 # Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009 # S,PUSH ROD ASM,RM2410/2510.2 MFR # 2007468016 # S,SHAFT ASM,T-STAT,RM2410-2510 MFR # 2007471002 # S,SHAFT EXT ASM,RM2410/2510.2 MFR # 2007475003 # Refrigerator Door Latch Plate; Replacement For Dometic RGE400/ RM663/ RM2510/ RM1300/ RM660/ RA1302/ RGE400/ RM761/ RM1303/ RM763 Series Refrigerators MFR # 2007458017 # S,CAP,FLUE MFR # 2007598010

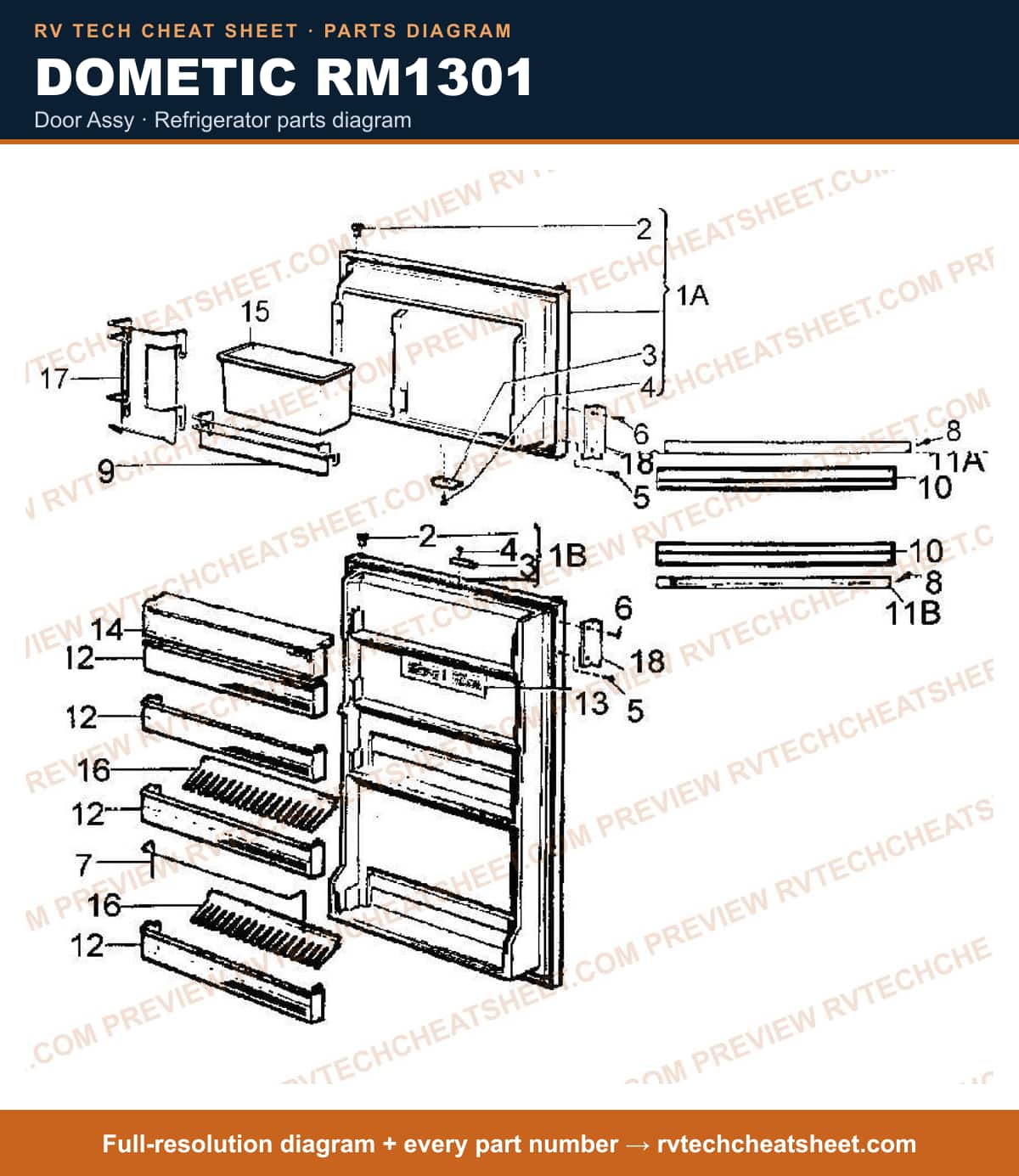

Door Assy
Dometic RM1301 door assy — parts list sheet Full-resolution diagram + every part number →
Components 38 items # Door, Lower RM1303; Is A Use # For 20515000. For Gasket Set Use 3103690008 MFR # 2930129040 Superseded: see description # Gasket Kit (100) Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008D # Gasket Kit Use 3103690008D Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008 Superseded: see description # Door, Upper, W/O Basket & Shelf MFR # 2930130300 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # NO PART # GIVEN BY VENDOR MFR # NPG # Plug, Beige; Is A Use # For 2006460055 MFR # 2006460279 Superseded: see description # Plug Beige MFR # 20026460279 # Plug, Beige; Is A Use # For 2006460071 MFR # 2006460055 Superseded: see description # Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019 # APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009 # RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description # SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description # SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057 # SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description # STRIP, DECORATION MFR # 2002675078 # STRIP, DECO USE 2002675078 MFR # 2002675128 Superseded: see description # Strip, Decoration MFR # 2930137019 # Strip, Decoration MFR # 2930137126 # Door Shelf MFR # 200132136 # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # Shelf, Door Use 2001732136 MFR # 2001732128 Superseded: see description # SHELF, DOOR USE 2001732136 RM1300,1303 MFR # 2001732110 Superseded: see description # APPLIANCE COMPONENTS RV; Door Dairy MFR # 2005007113 # Lid, Butter Use 2005007113 Compartment MFR # 2005007121 Superseded: see description # APPLIANCE COMPONENTS RV; Door Dairy Use 200500711 MFR # 2005007147 Superseded: see description # COVER, BUTTER USE 2005007147 MFR # 2005007063 Superseded: see description # Box, Ice Center Use 2930536020. Look At Inventory In All W/H's On This Part Before Using Use #. This Is Smoke Colored And The Use # Is White. Offer Customer Their Choice Of Color. MFR # 2930536004 Superseded: see description # BOX, ICE WHITE MFR # 2930536020 # APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168 # Holder, Bottle Use 2002794168; Can Use 2002794010 For Brown MFR # 2002794069 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description # HOLDER, JUICE USE 2930533019 MFR # 2930533027 Superseded: see description # RACK, WIRE MFR # 2007040005 # Appliance Components RV; Handle Door RM1303 MFR # 2930283003

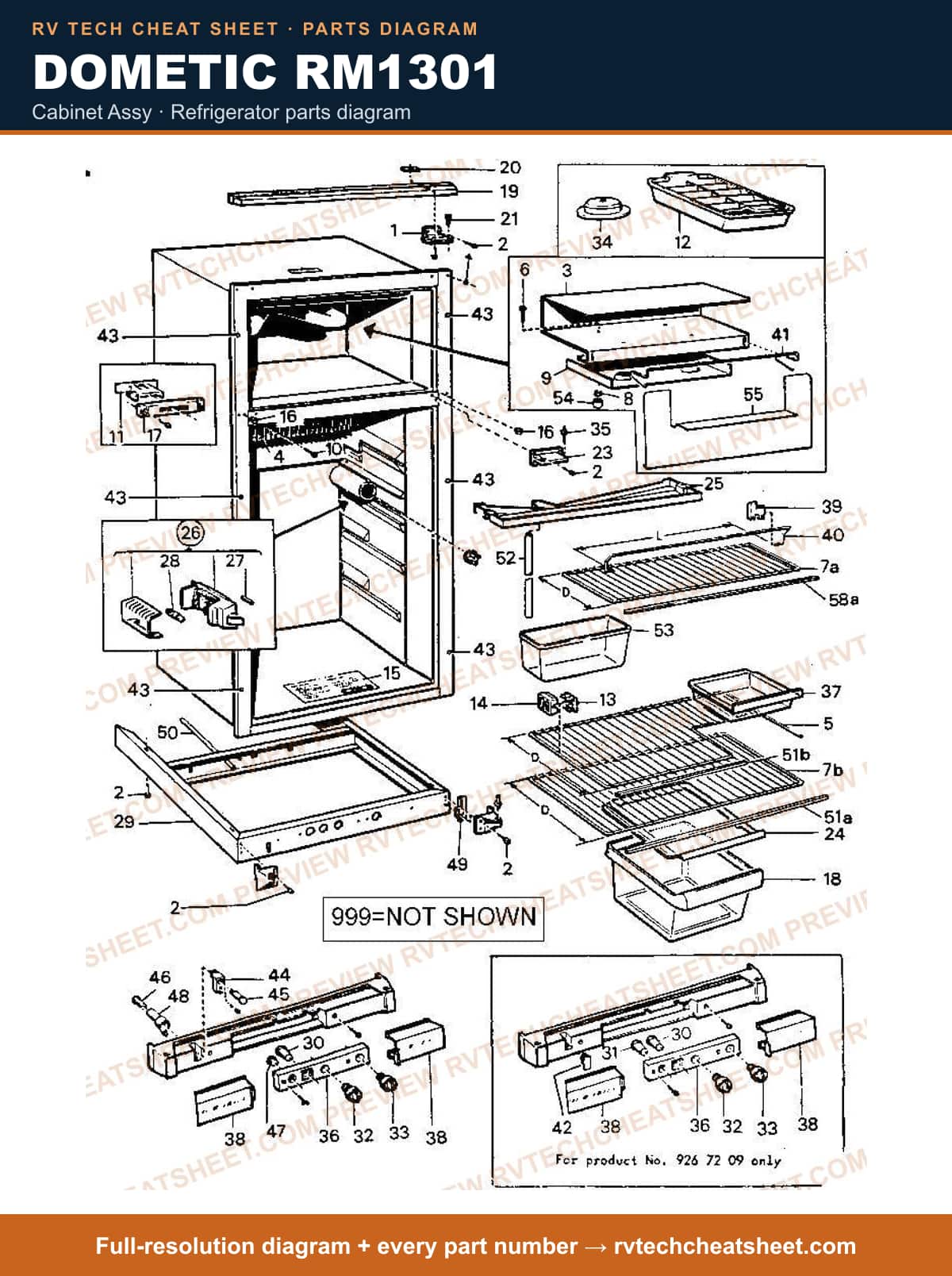

Cabinet Assy
Dometic RM1301 cabinet assy — parts list sheet Full-resolution diagram + every part number →
Components 79 items # Appliance Components RV; Hinge Upper MFR # 2007270008 # NO PART # GIVEN BY VENDOR MFR # NPG # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # SHELF USE 2930133117 MFR # 2930133042 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # Shelf, Milk Use 2930133042 11-3/4" W X 19-7/8" Long RM1303 MFR # 2930133018 Superseded: see description # APPLIANCE COMPONENTS RV; Bolt Freezer Mounting MFR # 7252330134 # Shelf, Middle Use 2002652259 MFR # 2002652168 Superseded: see description # Shelf, Upper Use 2002652267 MFR # 2002652176 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # Appliance Components RV; Latch Brown MFR # 2007681030 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # Instruction Plate MFR # 2007690007 # Housing, Latch 1301 MFR # 2007689032 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # Appliance Components RV; Decoration Front Upper R MFR # 2007652015 # Pin, Hinge MFR # 2007271006 # Appliance Components RV; Hinge Middle RA1302 MFR # 2007272046 # APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description # Tray, Drip Use 2007610013 MFR # 2007610005 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Appliance Components RV; Lamp Inside MFR # 2007282003 # Refrigerator Power Cord Fuse; Replacement For Dometic RM761/ RM1303/ RM760/ RM763/ RM1300/ RM1301/ RM24 Series Refrigerator; 8 Amp MFR # 2002578025 # BULB 2/PK MFR # 2007290006 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # Base, Cabinet MFR # 2007465020 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # Knob, Push Use 2007479054 Black/Red MFR # 2007479047 Superseded: see description # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # Knob, T-Stat; Use 2007480094 MFR # 2007480102 Superseded: see description # Dometic RM2193 RM2652 Refrigerator Main Control Board MFR # 2007480094 # Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177 # Appliance Components RV; Knob Selector 115V MFR # 2007480029 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003 # APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058 # Panel, Beige Use 2007463058 MFR # 2007463033 Superseded: see description # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015 # Refrigerator Door Panel Retainer; Use With Dometic Refrigerator Model RM361 MFR # 2007336007 Superseded: see description # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # Plug Use 2930083031 MFR # 2930083023 Superseded: see description # Appliance Components RV; Plug Grey/Brown MFR # 2930083031 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # Plug, Face Use 2930132069 Brown MFR # 2930132028 Superseded: see description # Appliance Components RV; Socket Lamp MFR # 2007674001 # Lamp, Pilot Use 2932810019 MFR # 2007675008 Superseded: see description # Refrigerator Flame Indicator; Replacement For Dometic RM2401/ RM2501/ RM2601 Model Refrigerator; Clear; Single. WHEN USING PART# 2932810019 TO REPLACE PART# 2007675008 MODIFICATIONS TO THE WIRE LEAD CONNECTIONS TO THE LAMP WILL NEED TO BE MADE. MFR # 2932810019 # Appliance Components RV; Sleeve Sealing MFR # 2007626001 # Plug, Grey/Brown MFR # 2007662022 # Plug, Beige Use 2007662022 MFR # 2007662014 Superseded: see description # Appliance Components RV; Sleeve Protector RM130 MFR # 2007673003 # Plate, Sealing MFR # 2930074006 # Hose, Protecting MFR # 2007349026 # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Appliance Components RV; Strip Decoration MFR # 2055366013 # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Strip, Decor Use 2005111071 MFR # 2005111113 Superseded: see description # Appliance Components RV; Decoration Strip MFR # 2005111121 # HOSE USE 2002604029 MFR # 2002604003 Superseded: see description # APPLIANCE COMPONENTS RV; Hose Drain MFR # 2002604029 # Drip Tray MFR # 162322002D # Screw; Replacement For Dometic NDR1272/ NDR1282/ NDR1292/ RM1282/ RM1301/ RM2600/ RM2820/ RM3600 Model Refrigerator; Retaining Plate Screw MFR # 2930487000 # Plate, Covering Freezer MFR # 2930486036
