Diagrams › Dometic › RM1303 Dometic RM1303 Parts Diagram · Door Assy
Refrigerator · 4 assemblies · 4 diagram sheets · 154 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM1303 RV refrigerator: 4 assemblies (Door Assy, Gas-electric, Vibration Suppression Kit, Cabinet Assy) and 154 manufacturer part numbers. 55 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Door Assy

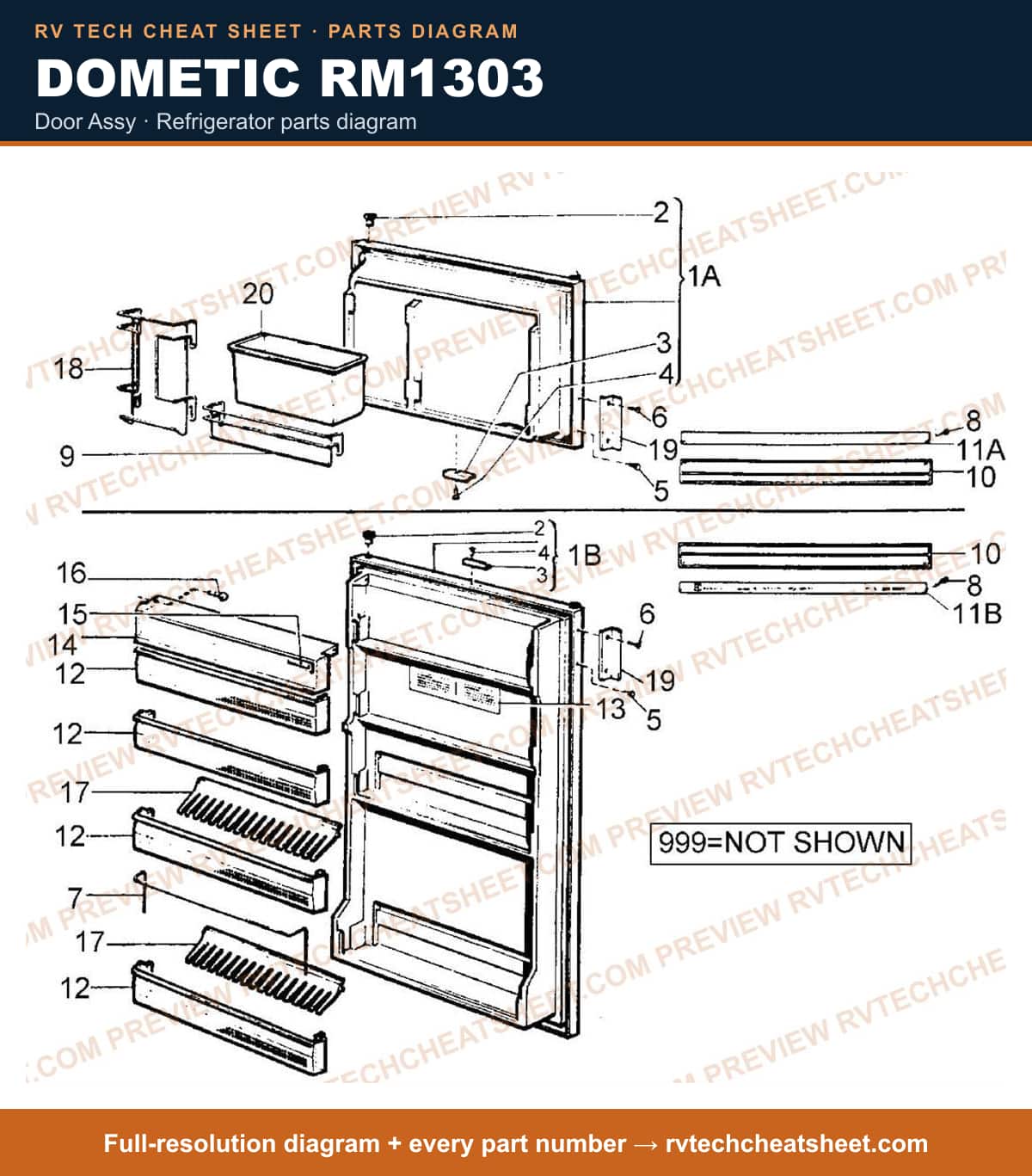

Dometic RM1303 door assy — parts list sheet Full-resolution diagram + every part number →
Components 49 items # Gasket Kit Use 3103690008D Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008 Superseded: see description # Gasket Kit (100) Contains: 1 - 3304001 Freezer Gasket 16-3/16 X 24-3/16, 1 - 3304002 Main Gasket 24-3/16 X 36-9/16, 1 - DC732RTV Tube Silicone, 1 - 6141 6... MFR # 3103690008D # DOOR, FREEZER MFR # 2930130030 # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # Door, Lower RM1303; Is A Use # For 20515000. For Gasket Set Use 3103690008 MFR # 2930129040 Superseded: see description # CATCH, RETAINER USE 2007544006 MFR # 2007679026 Superseded: see description # CATCH,RETAINER RM3-4-660 MFR # 2007544006 # RIVET, POP MFR # 7227835027 # Plug, Beige; Is A Use # For 2006460071 MFR # 2006460055 Superseded: see description # Plug, Beige; Is A Use # For 2006460055 MFR # 2006460279 Superseded: see description # Plug Beige MFR # 20026460279 # PLUG, GREY USE 2006460055 MFR # 2006460071 Superseded: see description # Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019 # APPLIANCE COMPONENTS RV; Rack Wire MFR # 2001734009 # S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052 # Screw Use 3858002052 MFR # 7295221019 Superseded: see description # SHELF, DOOR USE 2930558057 MFR # 2930558024 Superseded: see description # SHELF, FREEZER USE 2930558016 MFR # 2930558008 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Freezer Door MFR # 2930558057 # RACK, WIRE USE 2930558016 FREEZER DOOR MFR # 2007043009 Superseded: see description # SHELF, BROWN USE 2930558024 MFR # 2930558016 Superseded: see description # STRIP, DECO USE 2002675078 MFR # 2002675128 Superseded: see description # STRIP, DECORATION MFR # 2002675078 # NAMEPLATE MFR # 2930137209 # Strip, Decoration MFR # 2930137019 # DECORATION LW METAL 1303 MFR # 2930485128 # Door Shelf MFR # 200132136 # Shelf, Door Use 2001732136 MFR # 2001732128 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Door Clear MFR # 2001732136 # SHELF, DOOR USE 2001732136 RM1300,1303 MFR # 2001732110 Superseded: see description # LABEL, INSTRUCTION MFR # 2002356000 # APPLIANCE COMPONENTS RV; Door Dairy MFR # 2005007113 # APPLIANCE COMPONENTS RV; Door Dairy Use 200500711 MFR # 2005007147 Superseded: see description # Lid, Butter Use 2005007113 Compartment MFR # 2005007121 Superseded: see description # NAMEPLATE MFR # 2002672000 # SHAFT USE 2001170014 MFR # 2001170006 Superseded: see description # Refrigerator Door Bin; Replacement For Dometic RM47D/ RM75/ RM760/ RM763/ RM36A/ M28C Model Refrigerator; Journal Axle Only MFR # 2001170014 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # Holder, Bottle Use 2002794168; Can Use 2002794010 For Brown MFR # 2002794069 Superseded: see description # APPLIANCE COMPONENTS RV; Holder Btlwhite MFR # 2002794168 # HOLDER, JUICE USE 2930533019 MFR # 2930533027 Superseded: see description # RACK, WIRE MFR # 2007040005 # Refrigerator Shelf; Use With Dometic RM2607/ RM100/ RA1302 Refrigerators; Juice Rack; Beige MFR # 2930533019 Superseded: see description # Appliance Components RV; Handle Door RM1303 MFR # 2930283003 # BOX, ICE WHITE MFR # 2930536020 # ICEBOX CTR USE 2930536020 MFR # 2006136069 Superseded: see description # PANEL, DOOR WOOD GRAIN MFR # RM1303G # PANEL, DOOR BLACK PLEXIGLASS MFR # RM1303L
Gas-electric

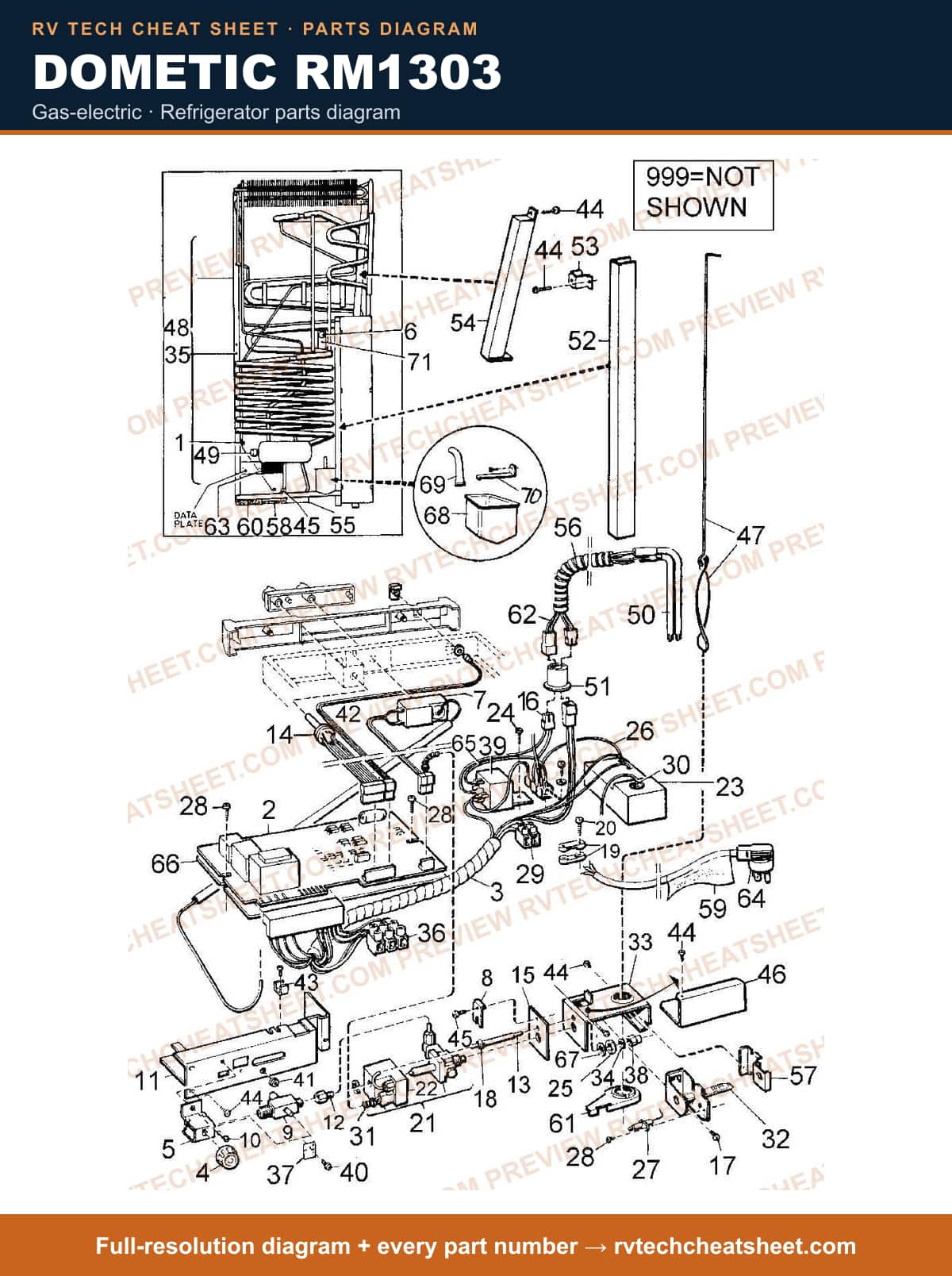

Dometic RM1303 gas-electric — parts list sheet Full-resolution diagram + every part number →
Components 12 items # REFER,8 CU.FT USE RM2852B 2-WAY BEIGE MFR # RM2852N Superseded: see description # REFER,8 CU FT 2-W WHITE 59 7/8"H X 29 1/2"W X MFR # N841WH # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841SSR # REFER,8 CU FT BLK 59 15/16" X 23 11/16" X 24" MFR # RM2852B # Refer, 8 Cu Ft. 2 Way 55 3/8 X 23 5/8 X 24 MFR # RM2820N # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Doors; With Crispers/ Shelving And Door Bins MFR # N841IMBK # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 3 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Trim; With Crispers/ Shelving And Door Bins; Door Panels Sold Separately MFR # N841N # Refer, 7.5 Cu Ft W/IM 59 7/8"H X 29 1/2"W X 24"D MFR # N841IMWH # REFER,8CUFT BEIGE USE RM3862BN MFR # RM3862N Superseded: see description # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; Right Hand Hinge; 6.3 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Black Frame; Stainless Steel Wrapped Edge Door; With Crispers/ Shelving And Door Bins MFR # NX841IMSSR # Refer, 8 Cu Ft 2-W White 59 7/8"H X 29 1/2"W X MFR # N841R # Refrigerator; Dual Compartment 2 Door Refrigerator With Freezer; Flush Mount; 7.5 Cubic Foot; 23-1/2 Inch Width x 24 Inch Depth x 59-7/8 Inch Height; 4.2 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; LCD Temperature Control Panel; With Door Ajar Alarm And Automatic Cabinet Light Shut Off; Stainless Steel Doors; With Crispers/ Shelving And Door Bins MFR # N841IMSS

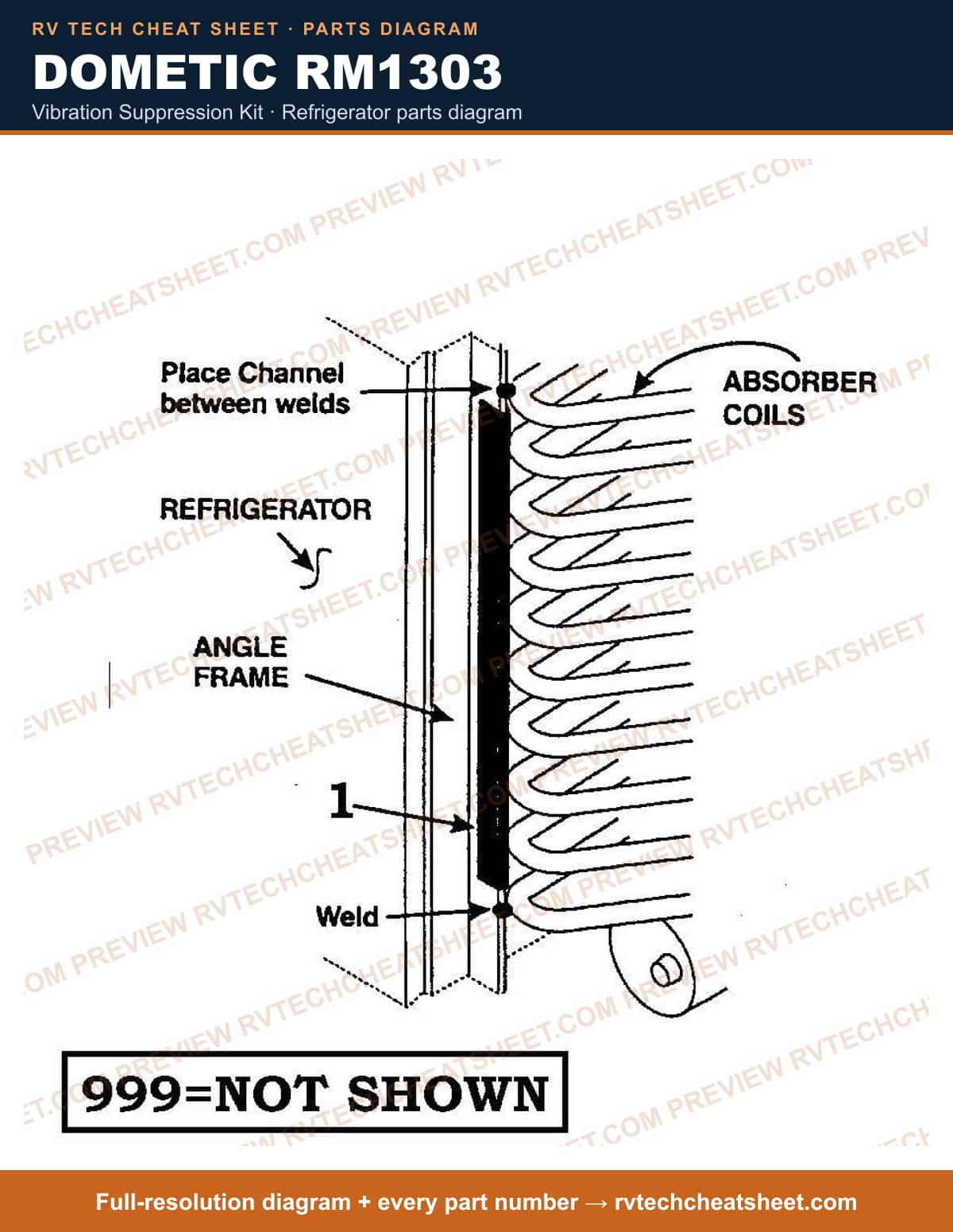

Vibration Suppression Kit
Cabinet Assy
Dometic RM1303 cabinet assy — parts list sheet Full-resolution diagram + every part number →
Components 92 items # Appliance Components RV; Hinge Upper MFR # 2007270008 # APPLIANCE COMPONENTS RV; Screw MFR # 7241328611 # SHELF, FREEZER MFR # 2007535004 # Refrigerator Cooling Unit; Use With Dometic RM2807/ RM3807/ RM2820/ RM3807/ RM2811/ RM2807/ RM1303/ RM4804 Model Refrigerators MFR # 2007605013 Superseded: see description # Flange, Cooling Use 2007605013 MFR # 2007605005 Superseded: see description # SHELF USE 2930133117 MFR # 2002650071 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Milk MFR # 2930133117 # SCREW, FREEZER M65 5X22 BRASS N.I PL. MFR # 7252332130 # APPLIANCE COMPONENTS RV; Shelf Wire 7.5" X 19 3/4" MFR # 2002652267 # Shelf, Upper Use 2002652267 MFR # 2002652176 Superseded: see description # APPLIANCE COMPONENTS RV; Shelf Wire 11 5/8" X 19 3 MFR # 2002652259 # Shelf, Middle Use 2002652259 MFR # 2002652168 Superseded: see description # Nut; Replacement For Dometic RM2807/ RM2811/ RM2612 Model Refrigerators MFR # 7312314409 # NUT USE 7312314409 MFR # 7314314134 Superseded: see description # PLATE RETAINING MFR # 2007649011 # PLATE, FREEZER USE 2007649011 4 HOLE MFR # 2007649003 Superseded: see description # Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112 # T-LATCH USE 2007681030 MFR # 2007681022 Superseded: see description # Appliance Components RV; Latch Brown MFR # 2007681030 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # TUBE MFR # 2930340001 # N/A PLUG MFR # 2007063007 # HOUSING, LATCH USE 2007680032 MFR # 2007680024 Superseded: see description # APPLIANCE COMPONENTS RV; Housing Latch 1303 MFR # 2007680032 # CRISPER, SMOKE USE 2002726129 RM2810 MFR # 2002726095 Superseded: see description # Refrigerator Crisper Bin; Replacement For Dometic RM2801/ RM2802/ RM3800 Model Refrigerators; White MFR # 2002726129 # CRISPER, SMOKE USE 2002726095 MFR # 2002726020 Superseded: see description # Appliance Components RV; Decoration Front Upper R MFR # 2007652015 # APPLIANCE COMPONENTS RV; Plate Fixing MFR # 2007276005 # Pin, Hinge MFR # 2007271006 # SCREW USE 7295281401 MFR # 7295281013 Superseded: see description # Refrigerator Door Latch Plate Screw; Replacement For Dometic NDR1062/ NDR1292/ NDR1492/ RM1303/ RM2510/ RM2551/ RM360/ RM3862/ RM3863/ RM663/ RM760/ RM761/ RM763 Model Refrigerator; B6 x 13 MFR # 7295281401 # HINGE, MIDDLE MFR # 2007272004 # HINGE, MIDDLE USE 2007272004 MFR # 2007272038 Superseded: see description # APPLIANCE COMPONENTS RV; Cover Crisper Use 2002727 MFR # 2002727010 Superseded: see description # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RB2405 MFR # 2007313006 Superseded: see description # Tray, Drip Use 2007610013 MFR # 2007610005 Superseded: see description # APPLIANCE COMPONENTS RV; PAN, DRIP MFR # 2007610013 # Appliance Components RV; Lamp Inside MFR # 2007282003 # Refrigerator Power Cord Fuse; Replacement For Dometic RM761/ RM1303/ RM760/ RM763/ RM1300/ RM1301/ RM24 Series Refrigerator; 8 Amp MFR # 2002578025 # APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P # BULB 2/PK MFR # 2007290006 # CABINET BASE MFR # 2930314014 # PANEL, DECOR RM1303 MFR # 2930302001 # BRACKET MOUNTING RM13 03 MFR # 2930303009 # APPLIANCE COMPONENTS RV; Knob T-Stat MFR # 2007480136 # Refrigerator Control Knob; Use With Dometic Refrigerator Model RM66E; Switch Knob MFR # 2007480144 Superseded: see description # LEVEL USE 2007645019 MFR # 2007645001 Superseded: see description # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000 # Refrigerator Door Hinge Pin; Replacement For Dometic RA1302/ RM75/ RM76/ RM77D/ RM100/ RM1300/ RM1301/ RM763/ RM75D Series Refrigerators; Fits Middle Hinge MFR # 2002326003 # SCREW MFR # 7298285402 # Refrigerator Support Rail Screw; Replacement For Dometic RM3662/ RM2652/ RM2607 Refrigerator Models; Terminal Block Screw; RXS; B6 x 19; Stainless Steel MFR # 7295285402 # SCREW USE 7295285402 MFR # 7295285014 Superseded: see description # Panel, Beige Use 2007463058 MFR # 2007463033 Superseded: see description # APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058 # APPLIANCE COMPONENTS RV; Base Front RM1303 MFR # 2007461144 # BASE FRONT USE 2007461144 RA1302 MFR # 2007461128 Superseded: see description # APPLIANCE COMPONENTS RV; Drawer 11-15/16" D x 6-11/16 W. SMOKED COLORED. MFR # 2005766049 # Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015 # Refrigerator Door Panel Retainer; Use With Dometic Refrigerator Model RM361 MFR # 2007336007 Superseded: see description # Refrigerator Evaporator Door Torsion Bar; Use With Dometic RM2800/ RM2801 Model Refrigerators; 16-1/2 Inch Length MFR # 2007337047 Superseded: see description # Bar, L Approx 9" RM1300 MFR # 2007337070 # Appliance Components RV; Bar L Approx 15" 460-66 MFR # 2007337039 # Appliance Components RV; Bar Freezer Shelf MFR # 2007537000 # CLAMP F/CABLE RM760 MFR # 2007627009 # Refrigerator Eyebrow Power Control Circuit Board Mount Clip; Replacement For Dometic RM663/ RM763 Refrigerators MFR # 2930304007 # Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069 # LABEL MFR # 2007688001 # ADAPTER, T-STAT MFR # 2930305004 # APPLIANCE COMPONENTS RV; Lead Indicator Lamp RM130 MFR # 2930310004 # ADAPTER, SWITCH MFR # 2930360009 # SCREW RXS B6X5 MFR # 7295275015 # APPLIANCE COMPONENTS RV; Lamp Indicator Red MFR # 2930311002 # APPLIANCE COMPONENTS RV; Socket Lamp RM1303 MFR # 2930309006 # Plate, Sealing MFR # 2930074006 # BUSHING MFR # 149585010 # Strip, Deco Use 2055366013 MFR # 2005111360 Superseded: see description # Appliance Components RV; Strip Decoration MFR # 2055366013 # Strip, Deco Use 2005111360 RM3601 MFR # 2005111071 Superseded: see description # Strip, Decor Use 2005111071 MFR # 2005111113 Superseded: see description # APPLIANCE COMPONENTS RV; Hose Drain MFR # 2002604029 # APPLIANCE COMPONENTS RV; Shelf Tray MFR # 2930136011 # APPLIANCE COMPONENTS RV; Shelf Wire 12" MFR # 2930133067 # TRAY, MILK USE 2930136011 MFR # 2930136003 Superseded: see description # SHELF,WIRE USE 2930133067 MFR # 2930133000 Superseded: see description
