Dometic RM182 Series RM182A Parts Diagram · Wall Vent Assembly

Refrigerator · 2 assemblies · 2 diagram sheets · 117 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM182 Series RM182A RV refrigerator: 2 assemblies (Wall Vent Assembly, Exploded View) and 117 manufacturer part numbers. 38 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Wall Vent Assembly

Components

14 items

1. #TUBE,EXHAUST RM182B MFR # 2929424006
2. #FLEX STAINLESS TUBE COMB AIR 380 MM LONG MFR # 2929423098
3. #RING F/FLEX COMB. TUBE RM182B MFR # 2929384002
4. #Refrigerator Vent O-Ring MFR # 2929384010
5. #APPLIANCE COMPONENTS RV; Gasket Wall Ventrm182/219 MFR # 2929456008
6. #LOCKING PLATE FOR ALL VENT HOUSING MFR # 292946500
7. #HOUSING,VENT USE 2929379002 MFR # 2929379011 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Housing Exhaust MFR # 2929379002
9. #APPLIANCE COMPONENTS RV; Slide RM182 MFR # 2929381008
10. #SEPARATING PLATE MFR # 292982006
11. #WINDSCREEN MFR # 2929830000
12. #COVER, BURNER USE 2929489009 MFR # 2929489000 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Cap Cover Plastic RM182A MFR # 2929489009
14. #SEALING SLEEVE SILICONE MFR # 2929425003

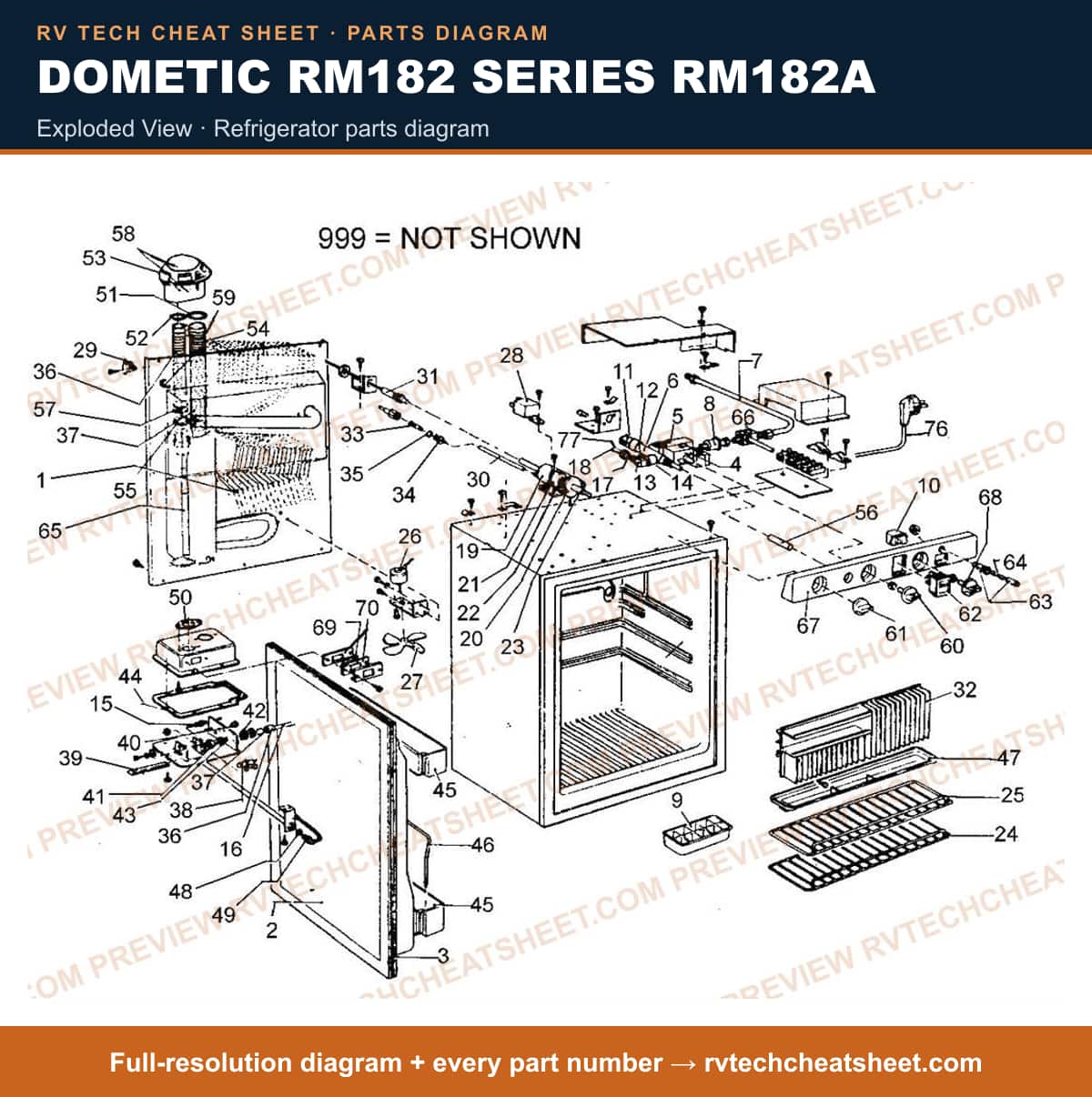

Exploded View

Components

107 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit RM182 MFR # 2929302004N
2. #REMAN COOLING UNIT (UPS) RM182 MFR # 2929302004R
3. #DOOR, COMPLETE MFR # 2929310007
4. #GASKET, DOOR MFR # 2929311008
5. #T-STAT, DUAL MFR # 2929363006
6. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
7. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
8. #SCREW, BYPASS USE 172819039 MFR # 342737149 Superseded: see description
9. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
10. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
11. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
12. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
13. #VALVE, SAFETY MFR # 293165
14. #VALVE, SAFETY USE 2931656017 MFR # 2922006016 Superseded: see description
15. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
16. #TUBE, GAS RM182 MFR # 2929468002
17. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
18. #APPLIANCE COMPONENTS RV; Tray Ice 2/Set MFR # 2922021015
19. #TRAY, ICE USE 2922021015 MFR # 2923061002 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Indicator Flame Use 29234 MFR # 2929353015 Superseded: see description
21. #Refrigerator Flame Indicator; Use With Dometic Refrigerators RC2000/ RM182AGA MFR # 2923499004 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Adapter Therm. MFR # 2929353007
23. #FASTENING SCREW MFR # 292838700
24. #HOUSING FOR GAS TEST MFR # 292838601
25. #NUT, HEX MFR # 2928388004
26. #APPLIANCE COMPONENTS RV MFR # 2902551106
27. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
28. #THERMOCOUPLE USE 2902551106 MFR # 2928742044 Superseded: see description
29. #THERMOCOUPLE USE 2902551106 760MM MFR # 2902551098 Superseded: see description
30. #PIPE, GAS MFR # 2929361006
31. #FERRULE, GAS LINE USE 173213000 2201 (OLIVE) MFR # 2902612007 Superseded: see description
32. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
34. #HOUSING FOR AIRPUMP MFR # 2929356018
35. #PUMP, AIR COMPLETE MFR # 2929360028
36. #COVER, AIR PUMP USE 2929360028 MFR # 2929357008 Superseded: see description
37. #PISTON/SEAL AIR PUMP RM182 MFR # 2929359004
38. #SECURING SLIDE 6 DIN 6799 MFR # 7353110203
39. #SHAFT, AIR PMP USE 2929360028 (SPINDLE 182) MFR # 2929358048 Superseded: see description
40. #SPINDLE, AIR PMP USE 2929360028 MFR # 2929358031 Superseded: see description
41. #SHELF, LOWER RM182 WHITE MFR # 2929427009
42. #SHELF, UPPER, WHITE MFR # 292942701
43. #ELECTRICAL MOTOR 12 VOLTS USE # 2929492508 MFR # 2929515001 Superseded: see description
44. #MOTOR USE 2929492516 FC140 MFR # 2929492508 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Motor MFR # 2929492516
46. #Refrigerator Vent Fan; Use With Dometic Refrigerator Model RC30A/ RC182A/ RC182B MFR # 2929517007 Superseded: see description
47. #RELAY USE 2928109004 MFR # 2928109000 Superseded: see description
48. #RELAY RM182 MFR # 2928109004
49. #SWITCH, T-STAT USE 3104723006 MFR # 2929518005 Superseded: see description
50. #SWITCH, T-STAT USE 3104723006 MFR # 2929518054 Superseded: see description
51. #APPLIANCE COMPONENTS RV; Switch T-Stat MFR # 3104723006
52. #TUBE TYPE: PP4 POLYAMID, 90 LG MFR # 2929480004
53. #PIEZO MFR # 2923024109
54. #LIGHTER, PIEZO USE 2922043050 MFR # 2923024000 Superseded: see description
55. #IGNITER, PIEZO USE 2923024000 RC150TED,182 MFR # 2922043045 Superseded: see description
56. #LIGHTER,PIEZO MFR # 2923024208
57. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
58. #LIGHTER, PIEZO USE 2923024208 RC160EGP MFR # 2922043050 Superseded: see description
59. #ICE TRAY SUPPORT COMPLETE MFR # 292930600
60. #APPLIANCE COMPONENTS RV; Valve Check RM182B MFR # 2929413009
61. #VALVE, RETURN USE 2929413009 MFR # 2929413001 Superseded: see description
62. #FASTENING BOLT FOR VALVE MFR # 2929411011
63. #SEALING RING 6, 5 X 1, 6 MFR # 2929437008
64. #TUBE,EXHAUST RM182B MFR # 2929424006
65. #FLEX STLESS TUBE FOR COMBUSTION AIR 380 MM LONG MFR # 2929423008
66. #ELECTRODE W/CABLE 29" LNG RM182B MFR # 2928727078
67. #ELECTRODE USE 2928727078 W/CABLE MFR # 2928727011 Superseded: see description
68. #Stove Burner Tube MFR # 2928749023
69. #TUBE,BURNER USE 2928749023 MFR # 2928749007 Superseded: see description
70. #SEAL FOR THERMOCOUPLE MFR # 2929346001
71. #APPLIANCE COMPONENTS RV; Orifice Burner #24 MFR # 2928787049
72. #GASKET, BURNER JET MFR # 2929362000
73. #APPLIANCE COMPONENTS RV; Gasket Burner Housing MFR # 2929352009
74. #Refrigerator Shelf Support MFR # 2928160049
75. #RACK,BOTTLE MFR # 2928160048
76. #RETAINER, BOTTLE RM182BEGI MFR # 2928179031
77. #RETAINER, BOTTLE BROWN MFR # 2928179015
78. #TRAY,DRIP MFR # 2928091004
79. #TRAY,DRIP USE 2928091004 MFR # 2928091046 Superseded: see description
80. #SCREW PLUG M8X1 MFR # 2929435002
81. #GASKET,EXHAUST TUBE MFR # 2929397004
82. #RING F/FLEX COMB. TUBE RM182B MFR # 2929384002
83. #Refrigerator Vent O-Ring MFR # 2929384010
84. #APPLIANCE COMPONENTS RV; Gasket Wall Ventrm182/219 MFR # 2929456008
85. #Ring Locking MFR # 2929459002
86. #SEALING RING 30 / 20 MFR # 2929460000
87. #KNOB, SAFETY DEVICE MFR # 2929487004
88. #Refrigerator Pressure Tap Fitting Nut MFR # 2929458004
89. #WALL,VENT COMP MFR # 2929307003
90. #FLUE,COMLETE MFR # 2904547003
91. #KNOB, T-STAT USE 2929400022 MFR # 2929400014 Superseded: see description
92. #APPLIANCE COMPONENTS RV; Knob Gas RM182B MFR # 2929401012
93. #KNOB, AIR PUMP RM182 MFR # 2929422018
94. #SWITCH RM182 MFR # 2929369011
95. #Refrigerator Power Cord Fuse; Use With Dometic RC2000/ RM182AGA/ RC1600EGP Refrigerators MFR # 2929368039 Superseded: see description
96. #HOLDER, FUSE USE 2929368039 MFR # 2929368005 Superseded: see description
97. #APPLIANCE COMPONENTS RV; Fuse 10 Amp MFR # 2929354047
98. #FUSE, 10 AMP USE 2929354047 MFR # 2929354046 Superseded: see description
99. #ELEMENT, HEATING 85W 12/120V 11/16" DIA 3-1/4" LONG MFR # 2929430003
100. #VALVE, GAS RM182 MFR # 2929366009
101. #CONTROL PANEL, USA MFR # 292936704
102. #BURNER WINDOW MFR # 2929350011
103. #GASKET FOR BURNER WINDOW MFR # 2929347017
104. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
105. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
106. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
107. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
