Dometic RM182 Series RM182AGA Parts Diagram · Wall Vent Assembly

Refrigerator · 2 assemblies · 2 diagram sheets · 125 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM182 Series RM182AGA RV refrigerator: 2 assemblies (Wall Vent Assembly, Exploded View) and 125 manufacturer part numbers. 34 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

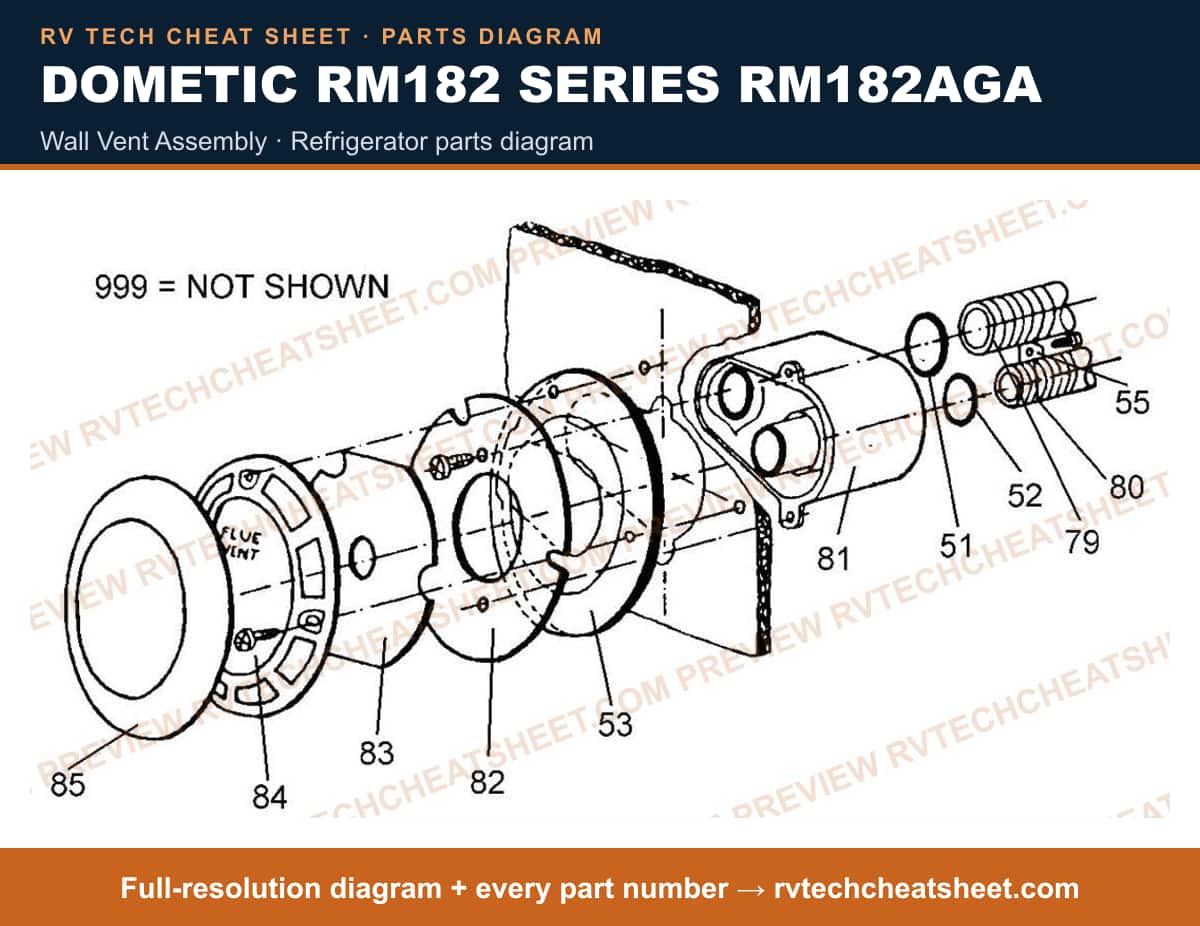

Wall Vent Assembly

Components

15 items

1. #RING F/FLEX COMB. TUBE RM182B MFR # 2929384002
2. #Refrigerator Vent O-Ring MFR # 2929384010
3. #APPLIANCE COMPONENTS RV; Gasket Wall Ventrm182/219 MFR # 2929456008
4. #SECURING PLATE FOR WALL VENT HOUSING MFR # 2929465008
5. #FLEX STLESS TUBE FOR COMBUSTION AIR 380 MM LONG MFR # 2929423008
6. #TUBE,EXHAUST RM182B MFR # 2929424006
7. #HOUSING,VENT USE 2929379002 MFR # 2929379011 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Housing Exhaust MFR # 2929379002
9. #APPLIANCE COMPONENTS RV; Slide RM182 MFR # 2929381008
10. #APPLIANCE COMPONENTS RV; Slide Dividing RM182 MFR # 2929382006
11. #APPLIANCE COMPONENTS RV; Cover RM182 MFR # 2929380000
12. #COVER CAP MFR # 2929489001
13. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
14. #CONNECTION NUT MFR # 901369005
15. #FERRULE, GAS LINE USE 173213000 2201 (OLIVE) MFR # 2902612007 Superseded: see description

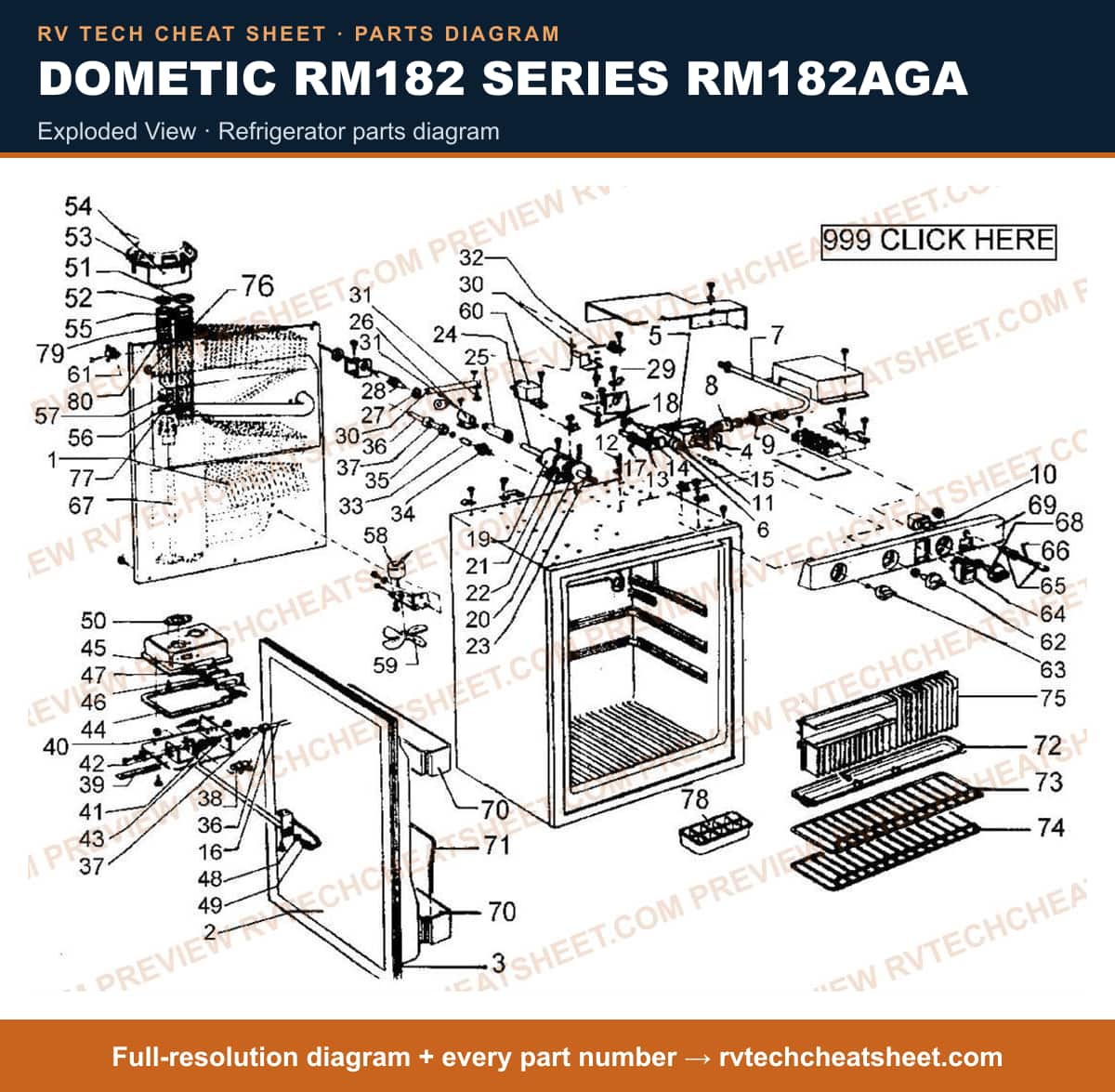

Exploded View

Components

116 items

1. #REMAN COOLING UNIT (UPS) RM182 MFR # 2929302004R
2. #APPLIANCE COMPONENTS RV; Cooling Unit RM182 MFR # 2929302004N
3. #INNER DOOR COMPLETE FOAMED MFR # 2929301007
4. #DOOR GASKET, BROWN MFR # 2929211008
5. #T-STAT, DUAL MFR # 2929363006
6. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
7. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
8. #SCREW, BYPASS USE 172819039 MFR # 342737149 Superseded: see description
9. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
10. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
11. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
12. #VALVE, SAFETY MFR # 293165
13. #VALVE, SAFETY USE 2931656017 MFR # 2922006016 Superseded: see description
14. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
15. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
16. #TUBE, GAS RM182 MFR # 2929468002
17. #FILTER W/NIPPLE & NUT MFR # 2929365001
18. #VALVE, GAS RM182 MFR # 2929366009
19. #Refrigerator Flame Indicator; Use With Dometic Refrigerators RC2000/ RM182AGA MFR # 2923499004 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Indicator Flame Use 29234 MFR # 2929353015 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Adapter Therm. MFR # 2929353007
22. #FASTENING SCREW MFR # 292838700
23. #HOUSING FOR GAS TEST MFR # 292838601
24. #NUT 1/8" MFR # 292838004
25. #THERMOCOUPLING 1100 MM LONG MFR # 2938742044
26. #PIPE, GAS MFR # 2929361006
27. #SEALING CONE MFR # 2928384005
28. #NUT M 11 X 1 MFR # 292838500
29. #HOUSING, AIR PUMP RM182BEGI MFR # 2929356000
30. #PUMP, AIR COMPLETE MFR # 2929360028
31. #COVER, AIR PUMP USE 2929360028 MFR # 2929357008 Superseded: see description
32. #PISTON/SEAL AIR PUMP RM182 MFR # 2929359004
33. #SECURING SLIDE 6 DIN 6799 MFR # 7353110203
34. #SHAFT, AIR PMP USE 2929360028 (SPINDLE 182) MFR # 2929358048 Superseded: see description
35. #SPINDLE, AIR PMP USE 2929360028 MFR # 2929358031 Superseded: see description
36. #SQUARE SPINDLE MFR # 292935802
37. #SHELL FOR AIRPUMP MFR # 292939200
38. #PILLOW BLOCK MFR # 292939100
39. #NUT M 16 X 1 MFR # 292939400
40. #IGNITER, PIEZO USE 2923024000 RC150TED,182 MFR # 2922043045 Superseded: see description
41. #PIEZO MFR # 2923024109
42. #LIGHTER, PIEZO USE 2922043050 MFR # 2923024000 Superseded: see description
43. #LIGHTER,PIEZO MFR # 2923024208
44. #LIGHTER, PIEZO USE 2923024208 RC160EGP MFR # 2922043050 Superseded: see description
45. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
46. #BOLT 12/4 MFR # 292941501
47. #SECURING SLIDE 3,2 MFR # 735310720
48. #BOLT MFR # 292941500
49. #TENSION SPRING MFR # 292942100
50. #APPLIANCE COMPONENTS RV; Valve Check RM182B MFR # 2929413009
51. #VALVE, RETURN USE 2929413009 MFR # 2929413001 Superseded: see description
52. #FASTENING BOLT FOR VALVE MFR # 2929411001
53. #SCREWING FOR VALVE MFR # 292941200
54. #NUT MFR # 2929351001
55. #ELECTRODE W/CABLE 29" LNG RM182B MFR # 2928727078
56. #ELECTRODE USE 2928727078 W/CABLE MFR # 2928727011 Superseded: see description
57. #Stove Burner Tube MFR # 2928749023
58. #TUBE,BURNER USE 2928749023 MFR # 2928749007 Superseded: see description
59. #SEAL FOR THERMOCOUPLE MFR # 2929346001
60. #APPLIANCE COMPONENTS RV; Orifice Burner #24 MFR # 2928787049
61. #NUT, HEX MFR # 2928388004
62. #GASKET, BURNER JET MFR # 2929362000
63. #APPLIANCE COMPONENTS RV; Gasket Burner Housing MFR # 2929352009
64. #GASKET FOR BURNER WINDOW MFR # 2929347017
65. #GASKET, SILICONE FOR BURNER WINDOW MFR # 2929349000
66. #BURNER WINDOW MFR # 2929350003
67. #SEALING RING 6, 5 X 1, 6 MFR # 2929437008
68. #SCREW PLUG M8X1 MFR # 2929435002
69. #GASKET,EXHAUST TUBE MFR # 2929397004
70. #RING F/FLEX COMB. TUBE RM182B MFR # 2929384002
71. #Refrigerator Vent O-Ring MFR # 2929384010
72. #APPLIANCE COMPONENTS RV; Gasket Wall Ventrm182/219 MFR # 2929456008
73. #WALL,VENT COMP MFR # 2929307003
74. #FLUE,COMLETE MFR # 2904547003
75. #SECURING PLATE FOR WALL VENT HOUSING MFR # 2929465008
76. #SEALING SLEEVE SILICONE MFR # 2929425003
77. #Refrigerator Pressure Tap Fitting Nut MFR # 2929458004
78. #APPLIANCE COMPONENTS RV; Motor MFR # 2929492516
79. #MOTOR USE 2929492516 FC140 MFR # 2929492508 Superseded: see description
80. #ELECTRICAL MOTOR 12 VOLTS USE # 2929492508 MFR # 2929515001 Superseded: see description
81. #Refrigerator Vent Fan; Use With Dometic Refrigerator Model RC30A/ RC182A/ RC182B MFR # 2929517007 Superseded: see description
82. #RELAY RM182 MFR # 2928109004
83. #RELAY USE 2928109004 MFR # 2928109000 Superseded: see description
84. #APPLIANCE COMPONENTS RV; Switch T-Stat MFR # 3104723006
85. #SWITCH, T-STAT USE 3104723006 MFR # 2929518054 Superseded: see description
86. #SWITCH, T-STAT USE 3104723006 MFR # 2929518005 Superseded: see description
87. #KNOB, T-STAT USE 2929400022 MFR # 2929400014 Superseded: see description
88. #APPLIANCE COMPONENTS RV; Knob T-Stat MFR # 2929400022
89. #KNOB, AIR PUMP RM182 MFR # 2929422018
90. #SWITCH RM182 MFR # 2929369011
91. #HOLDER, FUSE USE 2929368039 MFR # 2929368005 Superseded: see description
92. #Refrigerator Power Cord Fuse; Use With Dometic RC2000/ RM182AGA/ RC1600EGP Refrigerators MFR # 2929368039 Superseded: see description
93. #APPLIANCE COMPONENTS RV; Fuse 10 Amp MFR # 2929354047
94. #FUSE, 10 AMP USE 2929354047 MFR # 2929354046 Superseded: see description
95. #ELEMENT, HEATING 85W 12/120V 11/16" DIA 3-1/4" LONG MFR # 2929430003
96. #APPLIANCE COMPONENTS RV; Knob Gas RM182B MFR # 2929401012
97. #CONTROL PANEL, USA MFR # 292936700
98. #RACK,BOTTLE MFR # 2928160048
99. #Refrigerator Shelf Support MFR # 2928160049
100. #RETAINER, BOTTLE BROWN MFR # 2928179015
101. #RETAINER, BOTTLE RM182BEGI MFR # 2928179031
102. #TRAY,DRIP MFR # 2928091004
103. #TRAY,DRIP USE 2928091004 MFR # 2928091046 Superseded: see description
104. #SHELF, UPPER, WHITE MFR # 292942701
105. #SHELF, LOWER, WHITE MFR # 292942700
106. #ICE TRAY SUPPORT COMPLETE MFR # 292930600
107. #Ring Locking MFR # 2929459002
108. #SEALING RING 30 / 20 MFR # 2929460000
109. #APPLIANCE COMPONENTS RV; Tray Ice 2/Set MFR # 2922021015
110. #TRAY, ICE USE 2922021015 MFR # 2923061002 Superseded: see description
111. #FLEX STLESS TUBE FOR COMBUSTION AIR 380 MM LONG MFR # 2929423008
112. #TUBE,EXHAUST RM182B MFR # 2929424006
113. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
114. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
115. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
116. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
