Dometic RM182 Series RM182B Parts Diagram · Wall Vent Assembly

Refrigerator · 2 assemblies · 2 diagram sheets · 124 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM182 Series RM182B RV refrigerator: 2 assemblies (Wall Vent Assembly, Exploded View) and 124 manufacturer part numbers. 36 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Wall Vent Assembly

Components

14 items

1. #TUBE,EXHAUST RM182B MFR # 2929424006
2. #FLEX STLESS TUBE FOR COMBUSTION AIR 380 MM LONG MFR # 2929423008
3. #RING F/FLEX COMB. TUBE RM182B MFR # 2929384002
4. #Refrigerator Vent O-Ring MFR # 2929384010
5. #APPLIANCE COMPONENTS RV; Gasket Wall Ventrm182/219 MFR # 2929456008
6. #Refrigerator Vent Cover Back Plate MFR # 2929465009
7. #APPLIANCE COMPONENTS RV; Housing Exhaust MFR # 2929379002
8. #HOUSING,VENT USE 2929379002 MFR # 2929379011 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Slide RM182 MFR # 2929381008
10. #APPLIANCE COMPONENTS RV; Slide Dividing RM182 MFR # 2929382006
11. #APPLIANCE COMPONENTS RV; Cover RM182 MFR # 2929380000
12. #APPLIANCE COMPONENTS RV; Cap Cover Plastic RM182A MFR # 2929489009
13. #SEALING SLEEVE SILICONE MFR # 2929425003
14. #SLIDE FOR VENT HOUSING MFR # 292381008

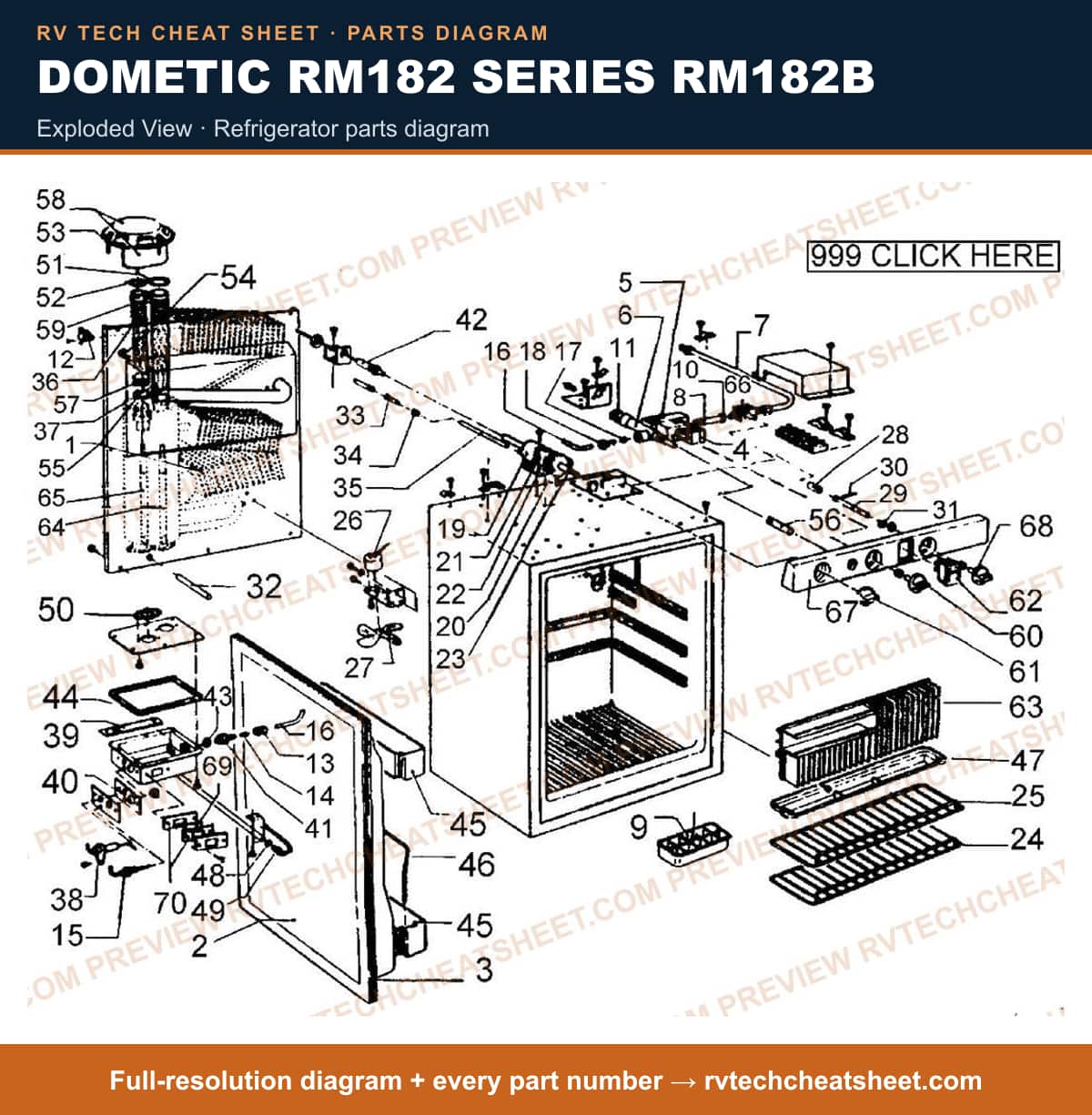

Exploded View

Components

115 items

1. #Refrigerator Cooling Unit; Use With Dometic Refrigerators RM182B/ RM182BEGI MFR # 2929302061N Superseded: see description
2. #COOLING UNIT USE 2929302061N MFR # 2929302053N Superseded: see description
3. #REMAN COOLING UNIT (UPS) RM182B MFR # 2929302053R
4. #LINER, DOOR MFR # 2929301014
5. #GASKET, DOOR MFR # 2929311013
6. #T-STAT, DUAL RM182B MFR # 2929363014
7. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
8. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
9. #SCREW, BYPASS USE 172819039 MFR # 342737149 Superseded: see description
10. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
11. #VALVE, SAFETY USE 2931656017 MFR # 2922006016 Superseded: see description
12. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
13. #S,VALVE,THERMO ELEC,4601,S410G MFR # 2931656017
14. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
15. #VALVE, SAFETY MFR # 293165
16. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
17. #TUBE, GAS RM182 MFR # 2929468002
18. #FILTER, PIPE CONNECTION RM182 MFR # 2928745013
19. #APPLIANCE COMPONENTS RV; Tray Ice 2/Set MFR # 2922021015
20. #TRAY, ICE USE 2922021015 MFR # 2923061002 Superseded: see description
21. #Nut; Use With Dometic Refrigerators RM182B/ RM182BEGI MFR # 2928746003 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Adapter Therm. MFR # 2929353007
23. #APPLIANCE COMPONENTS RV; Switch T-Stat MFR # 3104723006
24. #SWITCH, T-STAT USE 3104723006 MFR # 2929518054 Superseded: see description
25. #NUT USE 2922559006 MFR # 2922559022 Superseded: see description
26. #OLIVE RM182BEG RC150 TEG RM 182 MFR # 2922559006
27. #RING, SEALING USE 2922559006 MFR # 2922559030 Superseded: see description
28. #THERMOCOUPLE USE 2902551106 760MM MFR # 2928742036 Superseded: see description
29. #APPLIANCE COMPONENTS RV MFR # 2902551106
30. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
31. #THERMOCOUPLE USE 2902551106 MFR # 2928742044 Superseded: see description
32. #APPLIANCE COMPONENTS RV MFR # 2922245002
33. #APPLIANCE COMPONENTS RV MFR # 2922364019
34. #APPLIANCE COMPONENTS RV MFR # 2922396011
35. #HOUSING FOR AIRPUMP MFR # 2929356018
36. #PUMP, AIR COMPLETE MFR # 2929360028
37. #COVER, AIR PUMP USE 2929360028 MFR # 2929357008 Superseded: see description
38. #PISTON, AIR PUMP 182B MFR # 2929359012
39. #SECURING SLIDE 6 DIN 6799 MFR # 7353110203
40. #SPINDLE USE 2929360028 MFR # 2929358014 Superseded: see description
41. #SHAFT, AIR PMP USE 2929360028 (SPINDLE 182) MFR # 2929358048 Superseded: see description
42. #SPINDLE, AIR PMP USE 2929360028 MFR # 2929358031 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Shelf Lower RM182 Alum MFR # 2929427058
44. #SHELF, LOWER USE 2929427058 MFR # 2929427025 Superseded: see description
45. #APPLIANCE COMPONENTS RV; Shelf Wire Use 2928950159 MFR # 2929427066 Superseded: see description
46. #SHELF UPPER MFR # 2928950159
47. #SHELF, WIRE USE 2929427066 MFR # 2929427033 Superseded: see description
48. #MOTOR USE 2929492516 FC140 MFR # 2929492508 Superseded: see description
49. #APPLIANCE COMPONENTS RV; Motor MFR # 2929492516
50. #ELECTRICAL MOTOR 12 VOLTS USE # 2929492508 MFR # 2929515001 Superseded: see description
51. #Refrigerator Vent Fan; Use With Dometic Refrigerator Model RC30A/ RC182A/ RC182B MFR # 2929517007 Superseded: see description
52. #Refrigerator Gas Valve Adapter Fitting; Use With Dometic Refrigerators RM182B/ RM182BEGI MFR # 2929321004 Superseded: see description
53. #EXTENSION SHAFT MFR # 2929439004
54. #GROOVED DOWEL PIN MFR # 7211190305
55. #SECURING SLIDE MFR # 7353109213
56. #Refrigerator Interior Light Contact Pin; Replacement For Dometic RM182B Refrigerators; Single MFR # 2928167002
57. #APPLIANCE COMPONENTS RV; Valve Check RM182B MFR # 2929413009
58. #VALVE, RETURN USE 2929413009 MFR # 2929413001 Superseded: see description
59. #NUT, UNION RM182B MFR # 2929411029
60. #HOSE RM182 MFR # 2929480008
61. #TUBE USE 2929480008 RM182B MFR # 2929480115 Superseded: see description
62. #TUBE,EXHAUST RM182B MFR # 2929424006
63. #FLEX STLESS TUBE FOR COMBUSTION AIR 380 MM LONG MFR # 2929423008
64. #ELECTRODE W/CABLE 29" LNG RM182B MFR # 2928727078
65. #TUBE,BURNER USE 2928749023 MFR # 2928749007 Superseded: see description
66. #Stove Burner Tube MFR # 2928749023
67. #SEAL,THERMOCOUPLE MFR # 2929346019
68. #BURNER,ORIFICE MFR # 2928787506
69. #JET,BURNER #24 MFR # 2928787510
70. #JET,BURNER #24 MFR # 2928787502
71. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
72. #LIGHTER, PIEZO USE 2923024208 RC160EGP MFR # 2922043050 Superseded: see description
73. #LIGHTER,PIEZO MFR # 2923024208
74. #IGNITER, PIEZO USE 2923024000 RC150TED,182 MFR # 2922043045 Superseded: see description
75. #PIEZO MFR # 2923024109
76. #Refrigerator Gasket MFR # 2929362016
77. #Gasket MFR # 2929352017
78. #Refrigerator Shelf Support MFR # 2928160049
79. #RACK,BOTTLE MFR # 2928160048
80. #RETAINER, BOTTLE BROWN MFR # 2928179015
81. #TRAY,DRIP USE 2928091004 MFR # 2928091046 Superseded: see description
82. #TRAY,DRIP MFR # 2928091004
83. #SEALING RING TYPE &7, 1 X 12 X 1 MFR # 2929437024
84. #SCREW PLUG M7 MFR # 2929436018
85. #GASKET,EXHAUST TUBE MFR # 2929397004
86. #RING F/FLEX COMB. TUBE RM182B MFR # 2929384002
87. #Refrigerator Vent O-Ring MFR # 2929384010
88. #APPLIANCE COMPONENTS RV; Gasket Wall Ventrm182/219 MFR # 2929456008
89. #Ring Locking MFR # 2929459002
90. #SEALING RING 30 / 20 MFR # 2929460000
91. #KNOB,SAFETY VLV MFR # 2929487029
92. #Refrigerator Thermostat Control Knob MFR # 2929487037
93. #Refrigerator Pressure Tap Fitting Nut MFR # 2929458004
94. #WALL,VENT COMP MFR # 2929307003
95. #FLUE,COMLETE MFR # 2904547003
96. #NO PART # GIVEN BY VENDOR MFR # NPG
97. #KNOB,T-STAT GAS RM182B MFR # 2929400006
98. #Knob Air Pump RM1828 MFR # 2929422000
99. #SWITCH,120V MFR # 2929369003
100. #ICE TRAY SUPPORT, COMPLETE MFR # 2929306005
101. #ELEMENT,HEATING MFR # 2929374045
102. #ELEMENT,HEATING MFR # 2929491468
103. #ELEMENT,HEATING MFR # 2929374045D
104. #Element Heating 12V Dc 85 MFR # 2929491484
105. #ELEMENT,HEATING MFR # 2929375042
106. #Element Heating MFR # 2929491070
107. #GAS COCK MFR # 29293660l7
108. #BASE FRONT MFR # 2929367171
109. #KNOB FOR GAS COCK MFR # 29294010l2
110. #WINDOW,BURNER 182B MFR # 2929350029
111. #GASKET,BURNER WINDOW RM182B MFR # 2929347025
112. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
113. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
114. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
115. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
