Dometic RM182 Series RM182BEGI Parts Diagram

Refrigerator · 1 diagram sheet · 100 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Dometic RM182 Series RM182BEGI RV refrigerator: 100 manufacturer part numbers. 20 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

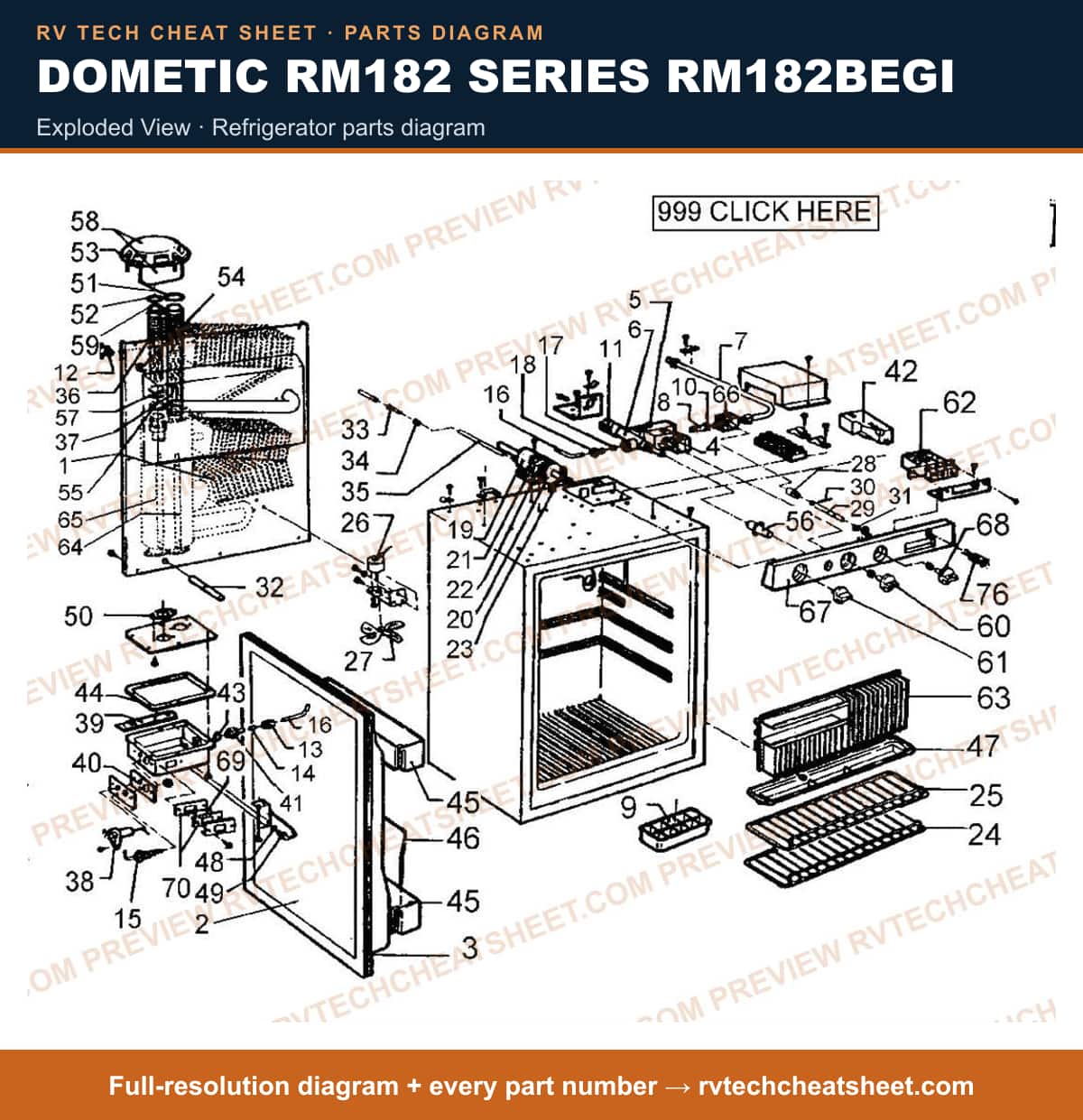

Exploded View

Components

100 items

1. #COOLING UNIT RECON MFR # 2929302061R
2. #COOLING UNIT NEW MFR # 2929302031N
3. #COOLING UNIT RECON MFR # 2929302031R
4. #Refrigerator Cooling Unit; Use With Dometic Refrigerators RM182B/ RM182BEGI MFR # 2929302061N Superseded: see description
5. #Refrigerator Cooling Unit; Use With Dometic Refrigerators RM182B/ RM182BEGI MFR # 2929302061 Superseded: see description
6. #DOOR RM182B MFR # 2929301030
7. #DOOR GASKET MFR # 2929211020
8. #T-STAT, DUAL RM182B MFR # 2929363014
9. #BY PASS SCREW #12 MFR # 341913127
10. #VALVE, SAFETY USE 293165 MFR # 170755003 Superseded: see description
11. #VALVE, SAFETY CV100041 NATURAL PIPE THREADING MFR # 8332921160100
12. #Refrigerator Gas Valve; Use On Dometic Refrigerators; Safety Gas Valve MFR # 170755003MC Superseded: see description
13. #VALVE, SAFETY MFR # 293165
14. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Gas Valves 0170755003/ 2000999009/ 2922006016; Use On Dometic Refrigerators Including RM2553/ RM2453/ RM2330 And RM4601; Safety Gas Valve MFR # 2931656017MC Superseded: see description
15. #GAS CONNECTION TUBE COMPLETE MFR # 2929468011
16. #PIPE MFR # 2928745005
17. #TRAY, ICE USE 2922021015 MFR # 2923061002 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Tray Ice 2/Set MFR # 2922021015
19. #Nut; Use With Dometic Refrigerators RM182B/ RM182BEGI MFR # 2928746003 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Adapter Therm. MFR # 2929353007
21. #APPLIANCE COMPONENTS RV; Switch T-Stat MFR # 3104723006
22. #SWITCH, T-STAT USE 3104723006 MFR # 2929518054 Superseded: see description
23. #NUT USE 2922559006 MFR # 2922559022 Superseded: see description
24. #OLIVE RM182BEG RC150 TEG RM 182 MFR # 2922559006
25. #THERMOCOUPLE USE 2902551106 MFR # 2928742044 Superseded: see description
26. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
27. #APPLIANCE COMPONENTS RV MFR # 2902551106
28. #THERMOCOUPLE USE 2902551106 760MM MFR # 2928742036 Superseded: see description
29. #APPLIANCE COMPONENTS RV MFR # 2922245002
30. #OLIVE FOR GAS PIPE MFR # 2922464017
31. #APPLIANCE COMPONENTS RV MFR # 2922396011
32. #HOUSING, AIR PUMP RM182BEGI MFR # 2929356000
33. #COVER, AIR PUMP USE 2929360028 MFR # 2929357008 Superseded: see description
34. #PUMP, AIR COMPLETE MFR # 2929360028
35. #PISTON, AIR PUMP 182B MFR # 2929359012
36. #SECURING SLIDE 6 DIN 6799 MFR # 7353110203
37. #SHAFT, AIR PMP USE 2929360028 (SPINDLE 182) MFR # 2929358048 Superseded: see description
38. #APPLIANCE COMPONENTS RV; Shelf Lower RM182 Alum MFR # 2929427058
39. #APPLIANCE COMPONENTS RV; Shelf Wire Use 2928950159 MFR # 2929427066 Superseded: see description
40. #SHELF UPPER MFR # 2928950159
41. #ELECTRICAL MOTOR 12 VOLTS USE # 2929492508 MFR # 2929515001 Superseded: see description
42. #MOTOR USE 2929492516 FC140 MFR # 2929492508 Superseded: see description
43. #APPLIANCE COMPONENTS RV; Motor MFR # 2929492516
44. #BLADE,FAN MFR # 292951707
45. #Refrigerator Gas Valve Adapter Fitting; Use With Dometic Refrigerators RM182B/ RM182BEGI MFR # 2929321004 Superseded: see description
46. #EXTENSION SHAFT MFR # 2929439004
47. #PIN MFR # 7211190306
48. #SECURING SLIDE MFR # 7353109213
49. #Refrigerator Interior Light Contact Pin; Replacement For Dometic RM182B Refrigerators; Single MFR # 2928167002
50. #APPLIANCE COMPONENTS RV; Valve Check RM182B MFR # 2929413009
51. #NUT, UNION RM182B MFR # 2929411029
52. #TUBE USE 2929480008 RM182B MFR # 2929480115 Superseded: see description
53. #HOSE RM182 MFR # 2929480008
54. #APPLIANCE COMPONENTS RV; Tube Rm182Begi MFR # 2929424030
55. #TUBE, COMBUSTION AIR MFR # 2929423032
56. #ELECTRODE W/CABLE 40" LNG RM18 2BEGI MFR # 2928727060
57. #Stove Burner Tube MFR # 2928749023
58. #SEAL,THERMOCOUPLE MFR # 2929346019
59. #JET,BURNER #24 MFR # 2928787502
60. #JET,BURNER #24 MFR # 2928787510
61. #APPLIANCE COMPONENTS RV; Igniter Rm182 Begi MFR # 2929498000
62. #Refrigerator Gasket MFR # 2929362016
63. #Gasket MFR # 2929352017
64. #BOTTLE HOLDER, SMOKE COLORED MFR # 2928160148
65. #RETAINER, BOTTLE BROWN MFR # 2928179015
66. #RETAINER, BOTTLE RM182BEGI MFR # 2928179031
67. #TRAY,DRIP USE 2928091004 MFR # 2928091046 Superseded: see description
68. #TRAY,DRIP MFR # 2928091004
69. #SEALING RING TYPE &7, 1 X 12 X 1 MFR # 2929437024
70. #SCREW PLUG M7 MFR # 2929436018
71. #GASKET,EXHAUST TUBE MFR # 2929397004
72. #RING F/FLEX COMB. TUBE RM182B MFR # 2929384002
73. #Refrigerator Vent O-Ring MFR # 2929384010
74. #APPLIANCE COMPONENTS RV; Gasket Wall Ventrm182/219 MFR # 2929456008
75. #Ring Locking MFR # 2929459002
76. #SEALING RING 30 / 20 MFR # 2929460000
77. #Knob For Safety Device MFR # 2929487045
78. #Refrigerator Pressure Tap Fitting Nut MFR # 2929458004
79. #Wall Vent Housing MFR # 2929307011
80. #Refrigerator Vent Cover Back Plate MFR # 2929465009
81. #APPLIANCE COMPONENTS RV; Knob T-Stat MFR # 2929400022
82. #Knob For Air Pump MFR # 2929422026
83. #Switch RM182 BEGI MFR # 2929496012
84. #ICE TRAY SUPPORT, COMPLETE MFR # 2929306005
85. #ELEMENT,HEATING MFR # 2929491468
86. #ELEMENT,HEATING MFR # 2929374045
87. #Element Heating MFR # 2929491070
88. #ELEMENT,HEATING MFR # 2929375042
89. #Element Heating 12V Dc 85 MFR # 2929491484
90. #Valve, Gas MFR # 2929366017
91. #Control Panel MFR # 2929367353
92. #Knob For Gas Cock MFR # 2929401020
93. #WINDOW,BURNER 182B MFR # 2929350029
94. #GASKET,BURNER WINDOW RM182B MFR # 2929347025
95. #Appliance Components RV; Lamp Signal RM182Egi MFR # 2929495006
96. #APPLIANCE COMPONENTS RV; Housing Exhaust MFR # 2929379002
97. #APPLIANCE COMPONENTS RV; Cap Cover Plastic RM182A MFR # 2929489009
98. #APPLIANCE COMPONENTS RV; Slide Dividing RM182 MFR # 2929382006
99. #APPLIANCE COMPONENTS RV; Slide RM182 MFR # 2929381008
100. #APPLIANCE COMPONENTS RV; Cover RM182 MFR # 2929380000
