Dometic RM190 Parts Diagram · Gas-electric

Refrigerator · 3 assemblies · 3 diagram sheets · 86 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM190 RV refrigerator: 3 assemblies (Gas-electric, Cabinet Assembly, Refrigerator Replacement) and 86 manufacturer part numbers. 23 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Gas-electric

Components

64 items

1. #TOP, FLUE MFR # 2903361000
2. #CLIP, RETAINING MFR # 2903388003
3. #BAFFLE SUPPORT WIRE 24, 190, 211, 211B MFR # 2900246014
4. #BAFFLE FLUE RM21 92 MFR # 339202004
5. #ELEMENT, HEATING USE 2902192108 MFR # 2901466017 Superseded: see description
6. #ELEMENT, HEATING USE 2902192108 RM190 RM2150 12V 95W MFR # 2902192108D Superseded: see description
7. #ELEMENT, HEATING Q(25) 95W 12V 3/8" DIA 4-1/2" LONG - 8 AMPS MFR # 2902192108
8. #BOTTOM PLATE FOR BOILER CASING MFR # 2903470009
9. #Refrigerator Burner Box Base; Use With Dometic Refrigerator Models RM2190 Side Mount/ RM2150 MFR # 2903359004 Superseded: see description
10. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
11. #SPIRAL NUT FOR BOILER CASING BOTTOM PLATE MFR # 273127001
12. #RETAINER F/ TERMINAL BLOCK RM2190, RM190 MFR # 2903262000
13. #BLOCK, TERMINAL USE 7627202562 MFR # 2903261028 Superseded: see description
14. #Block Terminal Small 3 Poi MFR # 7627202562
15. #APPLIANCE COMPONENTS RV; Flue Balanced/Flexible MFR # 2903360002
16. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
17. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
18. #VALVE, GAS USE 2901885000 MFR # 2901884003 Superseded: see description
19. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
20. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
21. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
22. #Appliance Components RV; Nut Union MFR # 172809006
23. #APPLIANCE COMPONENTS RV; Nipple Union MFR # 172808008
24. #FILTER MFR # 2901676003
25. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
26. #BRACKET FOR THERMOSTAT MFR # 2901831020
27. #T-COUPLE USE 2928742028 2192, MFR # 2902551023 Superseded: see description
28. #APPLIANCE COMPONENTS RV MFR # 2902551106
29. #THERMOCOUPLE MFR # 2902551023MC
30. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
31. #VALVE, SAFETY USE 2904991003 MFR # 2901156006 Superseded: see description
32. #VALVE MFR # 2904991003
33. #LOCK NUT MFR # 173366006D
34. #HOUSING FOR PLUG SCREW MFR # 173214008D
35. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
36. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
37. #CLAMP, CAP TUBE 2201 MFR # 2901604005
38. #T-STAT, GAS (200) MFR # V35P01151
39. #T-STAT USE V35P01151 MFR # 2900703147 Superseded: see description
40. #SCREW, BYPASS USE 172819039 MFR # 342737149 Superseded: see description
41. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
42. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
43. #Igniter Electrode; For Use With Dometic RM2200A/ RM2201/ RM211B Refrigerators; Single Electrode; With Lead MFR # 2905546004 Superseded: see description
44. #CABLE, ELECTRODE USE 2905546004 MFR # 2902205000 Superseded: see description
45. #ELECTRODE USE 2905546004 W/LEAD MFR # 2902552002 Superseded: see description
46. #IGNITER, PIEZO USE 2901181010 USE 2901181010 FIRST UNTIL GONE. MFR # 2901181012 Superseded: see description
47. #Igniter; For Use With Dometic RM2200A/ RM211B/ RM211 Refrigerators; Piezo Spark MFR # 2901181010 Superseded: see description
48. #SCREW, PAN WASHER HD., 1/2" NO. 6 FOR GAS MFR # 340484004D
49. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
50. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
51. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
52. #SCREW RM2190, RM190 TRY A LOCAL HARDWARE MFR # 2902611009
53. #APPLIANCE COMPONENTS RV; Washer Lock Ext. Teeth MFR # 7352124007
54. #BURNER ASM RM21 90 RM2150 RM2201 MFR # 2903403000
55. #PLATE SECURING FOR BRNR TUBE RM2190, RM190 MFR # 2902548011
56. #BRACKET,BURNER 190, 2150,2201 MFR # 2902542006
57. #ORIFICE, BURNER MFR # 2902540059
58. #SHIELD, AERATION RM19 0,2150,2201 MFR # 2902546007
59. #WASHER, LOCK RM12 5 INTERNAL TEETH (JET) MFR # 341747004
60. #NUT, LOCKING MFR # 2902550009
61. #OLIVE MFR # 173213000D
62. #NUT, UNION FEMALE MFR # 2902553003
63. #PIPE, GAS RM19 0, RM2150 MFR # 2903310007
64. #ORANGE MARKER FOR THERMOSTAT SETTINGS MFR # 292611029

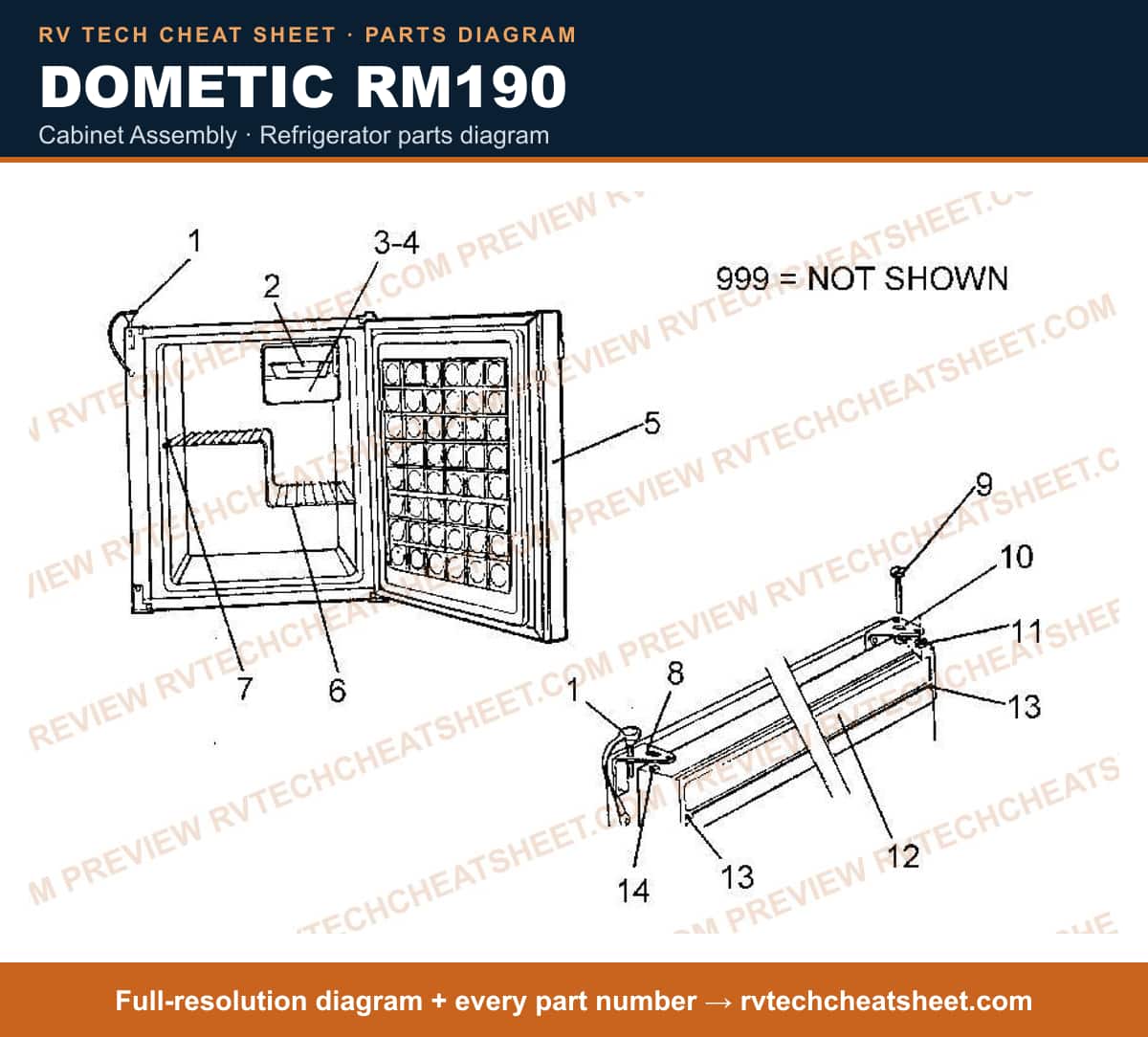

Cabinet Assembly

Components

19 items

1. #CATCH, TRAVEL RM190 MFR # 2903369003
2. #APPLIANCE COMPONENTS RV; Tray Ice MFR # 2901681000
3. #DIVIDER, ICE TRAY 2201 MFR # 2901713000
4. #EVAPORATOR SHELF COMPLETE MFR # 2903362016
5. #PLASTIC FRONT FOR EVAPORATOR SHELF MFR # 2903644017
6. #DOOR, MAIN USE 2903364053 MFR # 2903364004 Superseded: see description
7. #DOOR, MAIN; IS A USE # FOR 2903364095 MFR # 2903364053 Superseded: see description
8. #SHELF, WIRE MFR # 2903367013
9. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
10. #HINGE, UPPER LH MFR # 2903354013
11. #SCREW, PIVOT USE 2904095003 MFR # 2903365001 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Pin Hinge Rm2192 2150 Rb MFR # 2904095003
13. #HINGE, UPPER MFR # 2903354005
14. #NUT,PIVOT SCREW RM21 50 MFR # 2904096001
15. #NUT USE 2904096001 RM2190 MFR # 2903366009 Superseded: see description
16. #STRIP, NAME PLATE MFR # 2901479034
17. #SCREW MFR # 2903404007
18. #BEARING, DOOR HINGE MFR # 2903384002
19. #REMAN COOLING UNIT RM190 (UPS) MFR # 9281152000R

Refrigerator Replacement

Components

3 items

1. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
2. #N/A REFER 22 11/16 X 19 5/8 X 17 5/8 MFR # RM211
3. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
