Dometic RM211 Series RM211B Parts Diagram · LP Gas

Refrigerator · 5 assemblies · 5 diagram sheets · 160 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM211 Series RM211B RV refrigerator: 5 assemblies (LP Gas, Cabinet Assembly, Cooling Unit, Electric Assembly, Refrigerator Replacement) and 160 manufacturer part numbers. 30 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

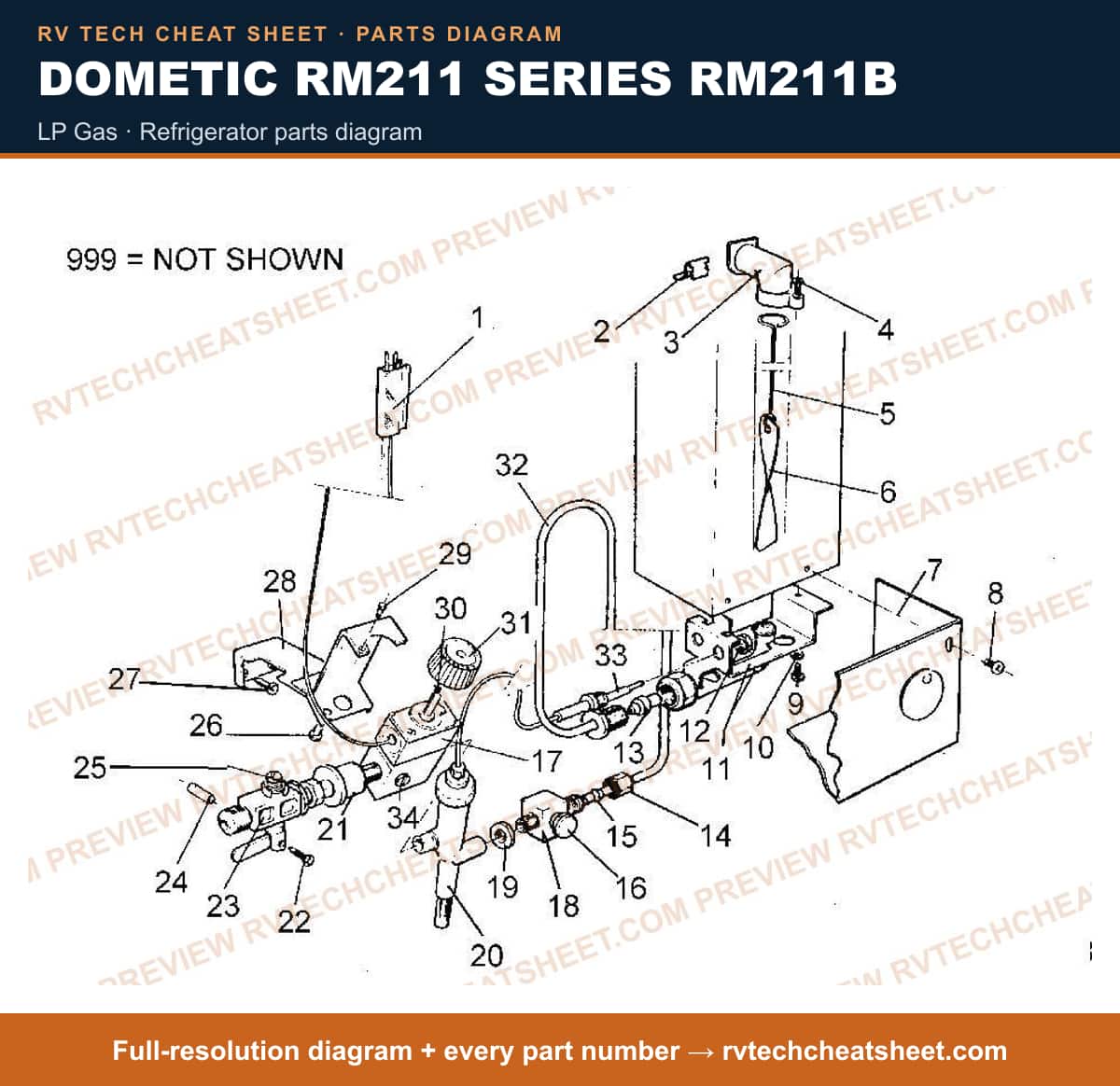

LP Gas

Components

54 items

1. #CLAMP, CAP TUBE 2201 MFR # 2901604005
2. #CLIP MFR # 2901929006
3. #ANGLED TOP FOR FLUE MFR # 2901712006
4. #SCREW MFR # 341733004
5. #BAFFLE SUPPORT WIRE 24, 190, 211, 211B MFR # 2900246014
6. #BAFFLE, FLUE W/O WIRE 24 1 MFR # 339202000
7. #SHIELD, BURNER MFR # 2901733002
8. #SCREW, POZ. PAN HEAD, 1/4" NO. 4 MFR # 290583002
9. #SCREW FOR BURNER RM21 1B MFR # 294112008
10. #SPRING WASHER FOR ITEM 9 MFR # 23857006
11. #BURNER ASM RM211 MFR # 2901764000
12. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
13. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
14. #ORIFICE RM21 1/2200A MFR # 2901860010
15. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
16. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
17. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
18. #T-STAT USE V35P01151 MFR # 2900703147 Superseded: see description
19. #T-STAT, GAS (200) MFR # V35P01151
20. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
21. #CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description
22. #NUT, LOCK USE 272562000 MFR # 173366006 Superseded: see description
23. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
24. #VALVE, SAFETY USE 2904991003 MFR # 2901156006 Superseded: see description
25. #VALVE MFR # 2904991003
26. #FILTER MFR # 2901676003
27. #NIPPLE UNION RM22 MFR # 2903584007
28. #Appliance Components RV; Nut Union MFR # 172809006
29. #SCREW RM2200A MFR # 2901886008
30. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
31. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
32. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
33. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
34. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
35. #PROTECTOR, TUBE MFR # 2002582001
36. #APPLIANCE COMPONENTS RV; Locknut Gas Valve MFR # 2901849006
37. #SCREW MFR # 2900680006
38. #SCREW, RD. HD., 3/8" NO. 8 MFR # 273611004
39. #BRACKET, T-STAT RM22 00A MFR # 2901831004
40. #INDICATOR, T-STAT MFR # 292611001
41. #CLIP, SPRING USE 2901183026 F/KNOB MFR # 163382005 Superseded: see description
42. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
43. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2901737000
44. #THERMOCOUPLE USE 2902551098 MFR # 2901738000 Superseded: see description
45. #T-COUPLE USE 2902551098 MFR # 2901425039 Superseded: see description
46. #APPLIANCE COMPONENTS RV MFR # 2902551106
47. #THERMOCOUPLE USE 2902551106 760MM MFR # 2902551098 Superseded: see description
48. #SCREW, BYPASS USE 172819039 MFR # 342737149 Superseded: see description
49. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
50. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
51. #ELECTRODE USE 2902205000 MFR # 2901788020 Superseded: see description
52. #Igniter Electrode; For Use With Dometic RM2200A/ RM2201/ RM211B Refrigerators; Single Electrode; With Lead MFR # 2905546004 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Filter Gas MFR # 172810004
54. #CABLE, ELECTRODE USE 2905546004 MFR # 2902205000 Superseded: see description

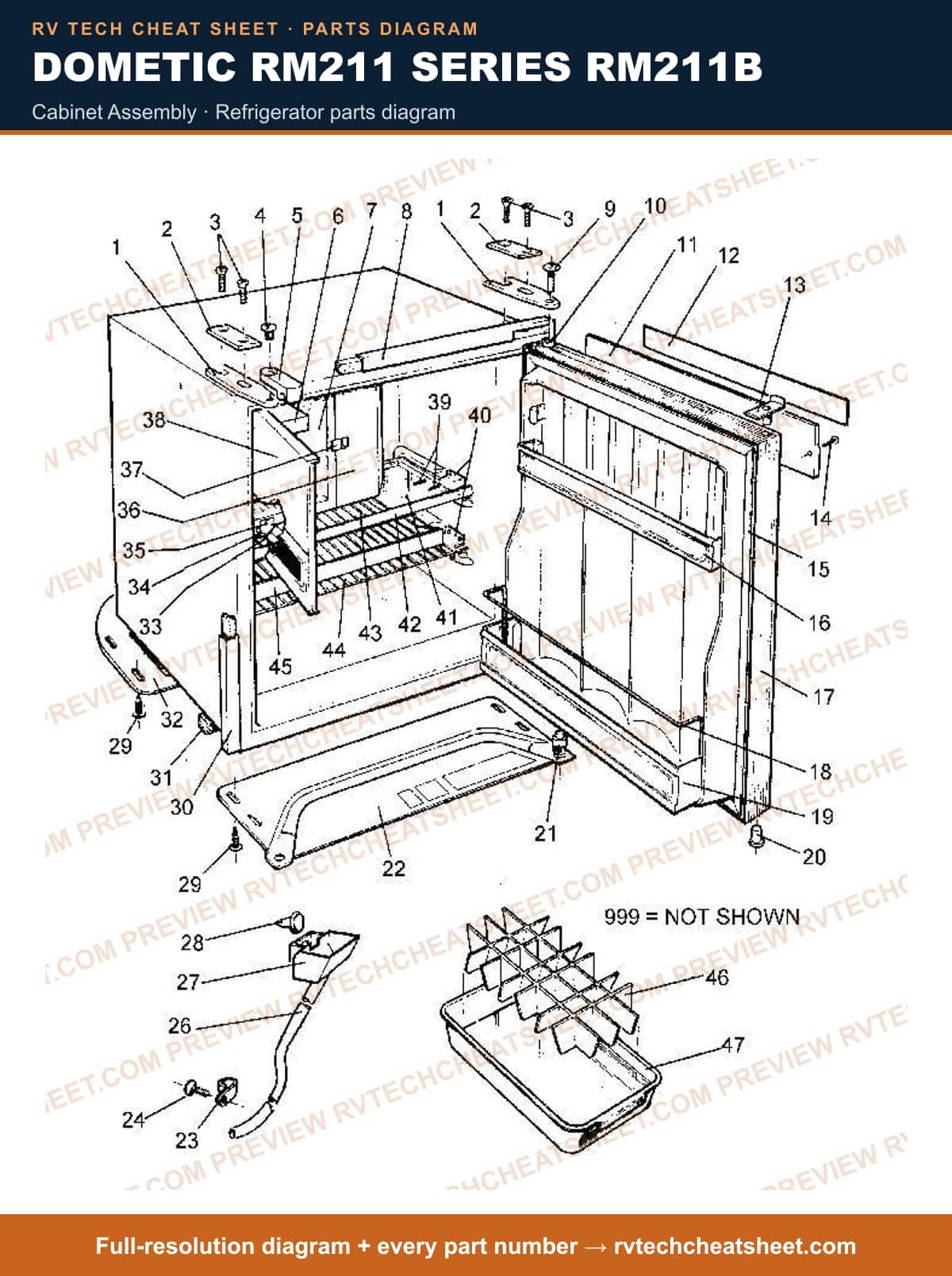

Cabinet Assembly

Components

51 items

1. #BLADE, TRAVEL CATCH MFR # 2901572010
2. #CLAMP MFR # 2901952000
3. #SCREW MFR # 341733004
4. #SCREW F/CATCH RM211 MFR # 2901615000
5. #CATCH, TRAVEL RM21 MFR # 2901566022
6. #SHELF FOR EVAPORATOR MFR # 2901636007
7. #COLD CHAMBER (LESS DOOR) MFR # 2901685004
8. #SEALING CHANNEL, TOP SECTION MFR # 2901232005
9. #PIN, UPPER HINGE MFR # 2901570000
10. #APPLIANCE COMPONENTS RV; Bearing Hinge MFR # 2901617000
11. #STRIP, NAME PLATE RM21 1 MFR # 2901479010
12. #DECAL, NAME PLATE RM21 MFR # 2901504020
13. #STOP, LATCH USE 2902631023 MFR # 2901616000 Superseded: see description
14. #LATCH STOP RESOURCED - 7-3-98 MFR # 2902631023
15. #SCREW, NO. 4 X 16MM, FOR NAMEPLATE STRIP MFR # 293105011
16. #GASKET, MAIN RM23-4 RM21 1/24/23 18-3/8 X 21 MFR # 2900733003
17. #DOOR SHELF, UPPER MFR # 2900608080
18. #DOOR COMP, LESS DOOR SHELVES AND FRONT PANEL MFR # 2903073025
19. #APPLIANCE COMPONENTS RV; Retainer Shelf MFR # 2900963000
20. #SHELF, LOWER USE 2900607108 MFR # 2900607066 Superseded: see description
21. #APPLIANCE COMPONENTS RV; Shelf Lower Door Ra217 MFR # 2900607108
22. #APPLIANCE COMPONENTS RV; Bearing Hinge Pin MFR # 2900348000
23. #APPLIANCE COMPONENTS RV; Pin Lower Hinge 2201 MFR # 2900352002
24. #PLATE, FRONT FOOT MFR # 2901270021
25. #"P" CLIP FOR ITEM 25 MFR # 2901869000
26. #SCREW, 5/16" NO. 6 MFR # 273133009
27. #Defroster Duct Hose; Use With Dometic Refrigerator Models RM211/ RM211B; Tube MFR # 2901762027 Superseded: see description
28. #APPLIANCE COMPONENTS RV; Tray Drip MFR # 2901702007
29. #PLASTIC FIX FOR DRIP CHANNEL MFR # 2901763009
30. #SCREW M4 X 8 MFR # 341624005
31. #SEALING CHANNEL, LEFT-HAND SIDE MFR # 2901231015
32. #SEALING CHANNEL, RIGHT-HAND SIDE MFR # 2901231007
33. #STRIP, BOTTOM SEALING MFR # 2901230025
34. #PLATE, REAR FOOT RM22 00A MFR # 2901272019
35. #GASKET, FREEZER USE 2904645013 DOOR MFR # 2901668000 Superseded: see description
36. #DOOR, FRONT FREEZER RESOURCED MJR MFR # 2904645013
37. #APPLIANCE COMPONENTS RV; Hinge Lower Frz Door MFR # 2901580000
38. #RIVET, TRUSS HEAD RM22 00A MFR # 342257029
39. #SIDE COVER FOR EVAPORATOR FINS MFR # 2901578000
40. #CATCH RM2200A MFR # 2901670000
41. #DOOR, FREEZER MFR # 2901581010
42. #PIN,RETAINING MFR # 2001281019
43. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
44. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
45. #TRAY, UPPER SHELF MFR # 2901439000
46. #FACING STRIP FOR UPPER CABINET SHELF MFR # 2901796000
47. #SHELF, WIRE W/WRAP UPPER MFR # 2901174009
48. #SHELF, LOWER MFR # 2901171005
49. #SLIDING BAR FOR LOWER CABINET MFR # 2901521000
50. #DIVIDER, ICE TRAY 2201 MFR # 2901713000
51. #APPLIANCE COMPONENTS RV; Tray Ice MFR # 2901681000

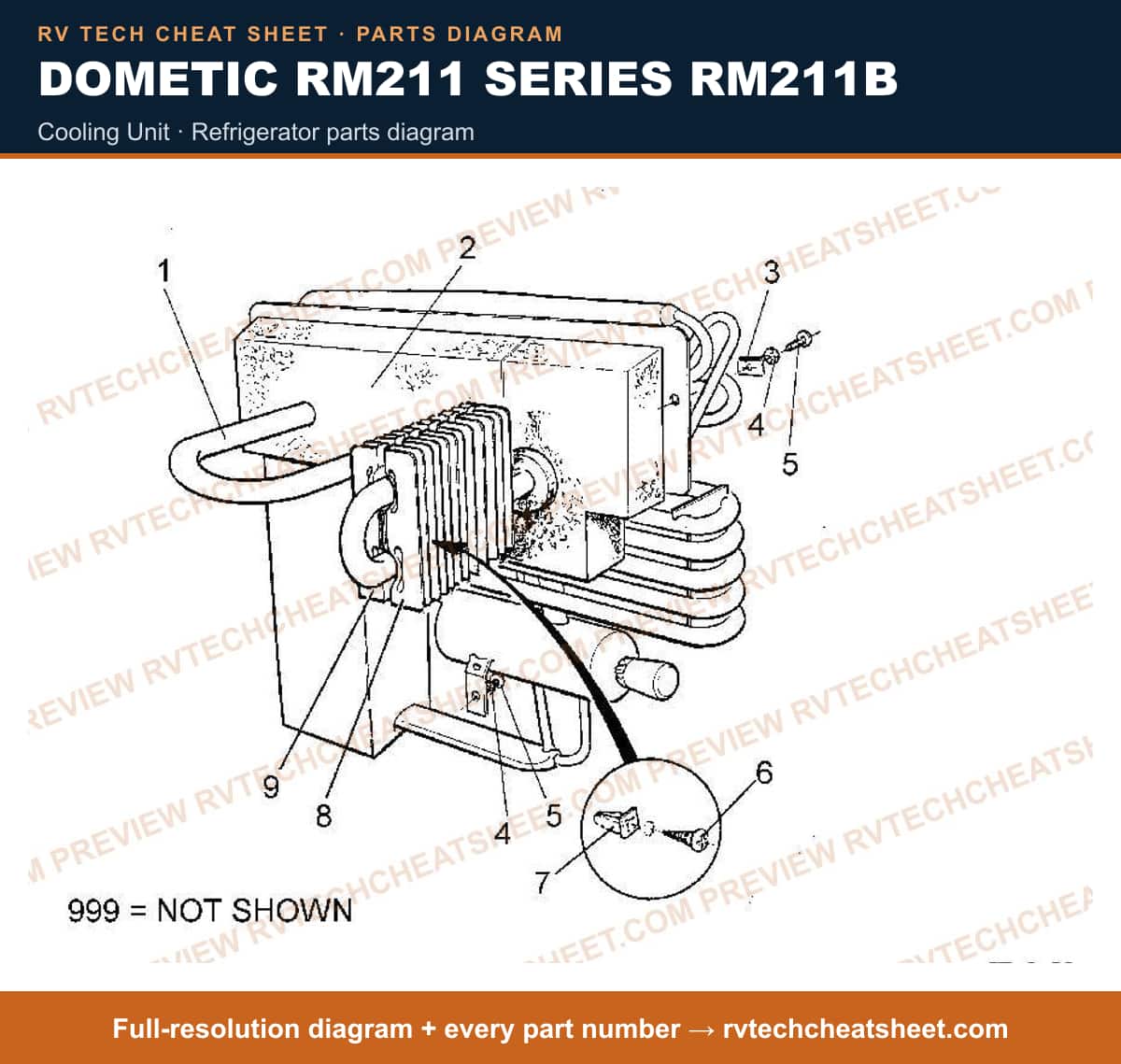

Cooling Unit

Components

15 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit Ups MFR # 9282743013N
2. #REMAN COOLING UNIT RM211 (UPS) MFR # 9282740010R
3. #COOLING UNIT THIS ITEM CAN ONLY BE SHIPPED GROUND (ORM-D) MFR # 9282743005N
4. #COOLING UNIT USE 9282743013N RM211 MFR # 9282740010N Superseded: see description
5. #REMAN COOLING UNIT RM211B (UPS) MFR # 9282743005R
6. #INSULATION, WINDOW 274A 3/RM2118 MFR # 2901657011
7. #SET OF WINDOW INSULATION RM211 MFR # 2901657003
8. #NUT, SPIRE RM2200A MFR # 2900493004
9. #LOCKWASHER, 3/16", INTERNAL TOOTH MFR # 290660000
10. #SCREW MFR # 2900884004
11. #SCREW RM2200A MFR # 7295342427
12. #NUT, PLASTIC F/EVAPORATOR FINS RM2200A MFR # 2901750006
13. #FIN ASM, RIGHT & LEFT RM21 1/211B MFR # 2905404006
14. #FINS, RH EVAP. USE 2905404006 MFR # 2901997003 Superseded: see description
15. #FINS LH EVAP. USE 2905404006 MFR # 2901997011 Superseded: see description

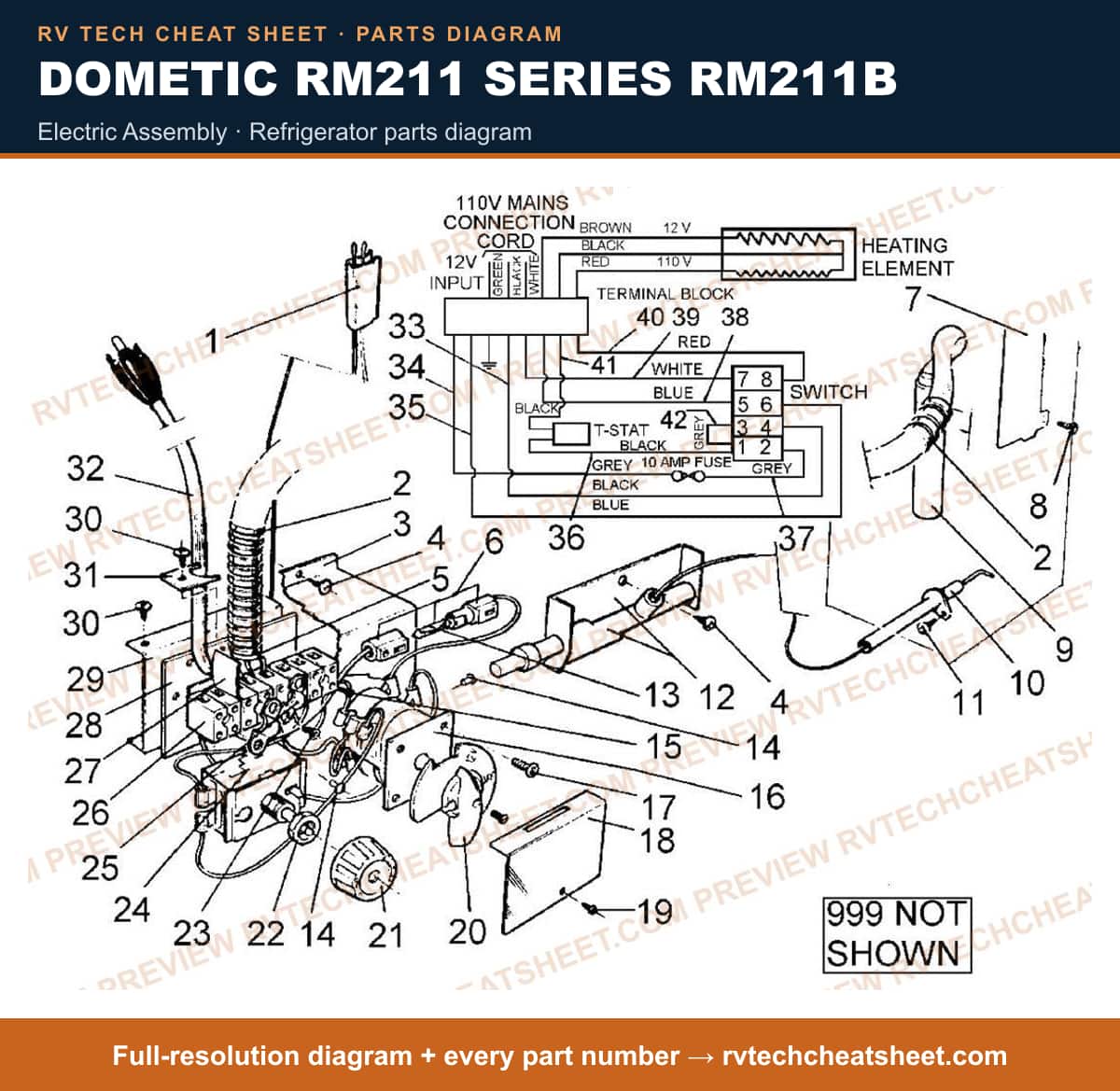

Electric Assembly

Components

46 items

1. #CLAMP, CAP TUBE 2201 MFR # 2901604005
2. #SLEEVE, ARMOURED MFR # 2901806006
3. #HOUSING, TERMINAL BLOCK RM22 00A MFR # 2901829008
4. #SCREW, 5/16" NO. 6 MFR # 273133009
5. #BRACKET SUPPORT MFR # 2901861001
6. #APPLIANCE COMPONENTS RV; Holder Fuse RM211-2201 MFR # 2901844000
7. #SHUTTER FOR BOILER CASING MFR # 2900644002
8. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
9. #APPLIANCE COMPONENTS RV; UNIV ELEMENT 95W SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#2901943000. MFR # 2901943000MC
10. #APPLIANCE COMPONENTS RV; Element Heating Alts Available. WHEN INVENTORY IS DEPLETED ON THIS ITEM, PLEASE ORDER SUGGESTED ALTERNATE P# CS000027 OR 2901943000MC. MFR # 2901943000
11. #ELEMENT, HEATING (25) USE 72-8460 SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#2901943000. MFR # CS000027 Superseded: see description
12. #Igniter Electrode; For Use With Dometic RM2200A/ RM2201/ RM211B Refrigerators; Single Electrode; With Lead MFR # 2905546004 Superseded: see description
13. #CABLE, ELECTRODE USE 2905546004 MFR # 2902205000 Superseded: see description
14. #ELECTRODE USE 2902205000 MFR # 2901788020 Superseded: see description
15. #IGNITER, PIEZO USE 2901181010 USE 2901181010 FIRST UNTIL GONE. MFR # 2901181012 Superseded: see description
16. #Igniter; For Use With Dometic RM2200A/ RM211B/ RM211 Refrigerators; Piezo Spark MFR # 2901181010 Superseded: see description
17. #INDICATOR, T-STAT MFR # 292611001
18. #SCREW, RD. HD., 5/8" NO. 4 MFR # 293105003
19. #SWITCH, CONTROL MFR # 2002586002
20. #SCREW, 3/8" NO. 10, FOR SWITCH MFR # 291072007
21. #KNOB MFR # 2002582004
22. #SCREW RM2200A MFR # 158130005
23. #KNOB, T-STAT USE 2901183026 2150, 2201 MFR # 2901183018 Superseded: see description
24. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
25. #NUT, HEX F/T-STAT RM22 01, RB2195 MFR # 2900705001
26. #SCREW RM2200A MFR # 7295277011
27. #T-STAT USE K50P2022 MFR # K50P2022 Superseded: see description
28. #CLIP, SADDLE MFR # 271019002
29. #APPLIANCE COMPONENTS RV; Block Terminal 8 Pos. RM21 MFR # 2901749000
30. #INSULATION PIECE 0343903-00/1 MFR # 343903001
31. #INSULATION F/TERM BLOCK RM2200A MFR # 2901736005
32. #FASTENER, PLATE MFR # 2901743001
33. #SCREW RM2200A MFR # 272662008
34. #CLAMP F/ARMOURED SLEEVE MFR # 2901859005
35. #CONNECTION CORD, 3-CORE, W/3-BLADE MOULDED PLUG MFR # 343530002
36. #LEAD, BLACK RM211 MFR # 2901841010
37. #WIRE ASM, GREY MFR # 2902649009
38. #LEAD, BLUE SWITCH TO FUSE RM2200A RM211 MFR # 2901841050
39. #LEAD, GRAY, FUSE TO SWITCH MFR # 2901824010
40. #WIRE ASM, GREY MFR # 2902650007
41. #LEAD, BLUE MFR # 2901841030
42. #LEAD, WHITE RM2200A, RM211 MFR # 2901841020
43. #LEAD, RED MFR # 2901841040
44. #LEAD, BLACK THERMO TO TERMINAL BLOCK RM2200A MFR # 2901841060
45. #LEAD, GRAY RM2200A RM211 MFR # 2901842000
46. #SWITCH COVER MFR # 2002587000

Refrigerator Replacement

Components

2 items

1. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
2. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
