Dometic RM215 Van Fridge Parts Diagram · Cabinet Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 154 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM215 Van Fridge RV refrigerator: 5 assemblies (Cabinet Assembly, LP Gas Assembly, Cooling Unit, 12 Volt Electric, Wall Vent Assembly) and 154 manufacturer part numbers. 21 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

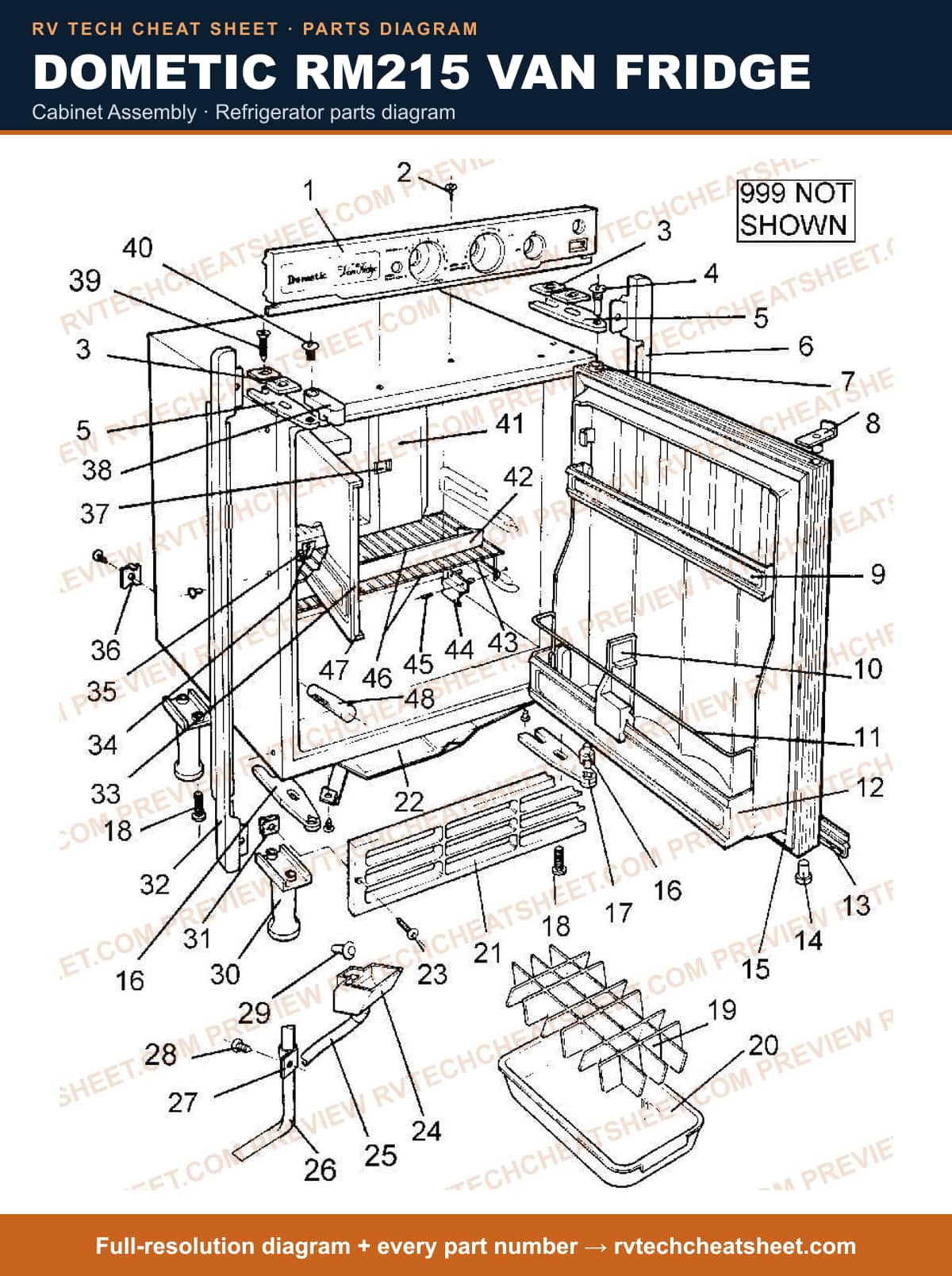

Cabinet Assembly

Components

51 items

1. #PANEL, FASCIA MFR # 2902665011
2. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
3. #CLAMPING PLATE MFR # 2901952008
4. #PIN, UPPER HINGE MFR # 2901570014
5. #Refrigerator Door Hinge; Use With Dometic Refrigerator Model RM215 Van Fridge; Fits Upper Door Side MFR # 2901572020 Superseded: see description
6. #FRONT SIDE MEMBER, RH MFR # 2002754007
7. #HINGE BEARING, UPPER MFR # 2901617023
8. #STOP FOR TRAVEL CATCH MFR # 2902054208
9. #DOOR SHELF, UPPER MFR # 2900608080
10. #BOTTLE RETAINER (PLASTIC) MFR # 2901567004
11. #APPLIANCE COMPONENTS RV; Retainer Shelf MFR # 2900963000
12. #SHELF, LWR DOOR USE 2900607066 MFR # 2900607040 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Shelf Lower Door Ra217 MFR # 2900607108
14. #SHELF, LOWER USE 2900607108 MFR # 2900607066 Superseded: see description
15. #PLASTIC INSERT STRIP MFR # 2902009024
16. #APPLIANCE COMPONENTS RV; Bearing Hinge Pin MFR # 2900348000
17. #DOOR W/O SHELVES MFR # 2902183025
18. #APPLIANCE COMPONENTS RV; Pin Lower Hinge 2201 MFR # 2900352002
19. #PLATE, HINGE MFR # 2901573002
20. #SCREW, M4X16 MFR # 321689002
21. #DIVIDER, ICE TRAY 2201 MFR # 2901713000
22. #APPLIANCE COMPONENTS RV; Tray Ice MFR # 2901681000
23. #APPLIANCE COMPONENTS RV; Ventilator Lower NLA MFR # 2902664008
24. #INFORMATION PLATE MFR # 2902732003
25. #SCREW, RD. HD., 3/4" NO. 6 MFR # 290520006
26. #APPLIANCE COMPONENTS RV; Tray Drip MFR # 2901702007
27. #DRAIN TUBE (FLEXIBLE) MFR # 2901762001
28. #DRAIN TUBE (RIGID) MFR # 2901705000
29. #"P" CLIP FOR ITEM 25 MFR # 2901869000
30. #SCREW, 5/16" NO. 6 MFR # 273133009
31. #PLASTIC FIX FOR DRIP CHANNEL MFR # 2901763009
32. #FOOT MFR # 2901302014
33. #SPIRAL NUT MFR # 2902755006
34. #MEMBER, FRONT SIDE LEFT HAND MFR # 2902754015
35. #DOOR, FRONT FREEZER RESOURCED MJR MFR # 2904645013
36. #GASKET, FREEZER USE 2904645013 DOOR MFR # 2901668000 Superseded: see description
37. #RIVET, TRUSS HEAD RM22 00A MFR # 342257029
38. #APPLIANCE COMPONENTS RV; Hinge Lower Frz Door MFR # 2901580000
39. #BRACKET FOR VIEWING ROD MFR # 2901942009
40. #CATCH RM2200A MFR # 2901670000
41. #CATCH, TRAVEL RM21 MFR # 2901566022
42. #SCREW, M4X18 MFR # 343148000
43. #SCREW MFR # 2901615019
44. #SIDE COVER FOR EVAPORATOR FINS MFR # 2901578000
45. #SLIDING BAR FOR LOWER CABINET MFR # 2901521000
46. #N/A CABINET SHELF ONLY MFR # 2902743000
47. #RETAINER MFR # 2902624001
48. #PIN,RETAINING MFR # 2001281019
49. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
50. #DOOR, FREEZER MFR # 2901581010
51. #VIEWING ROD MFR # 2902741004

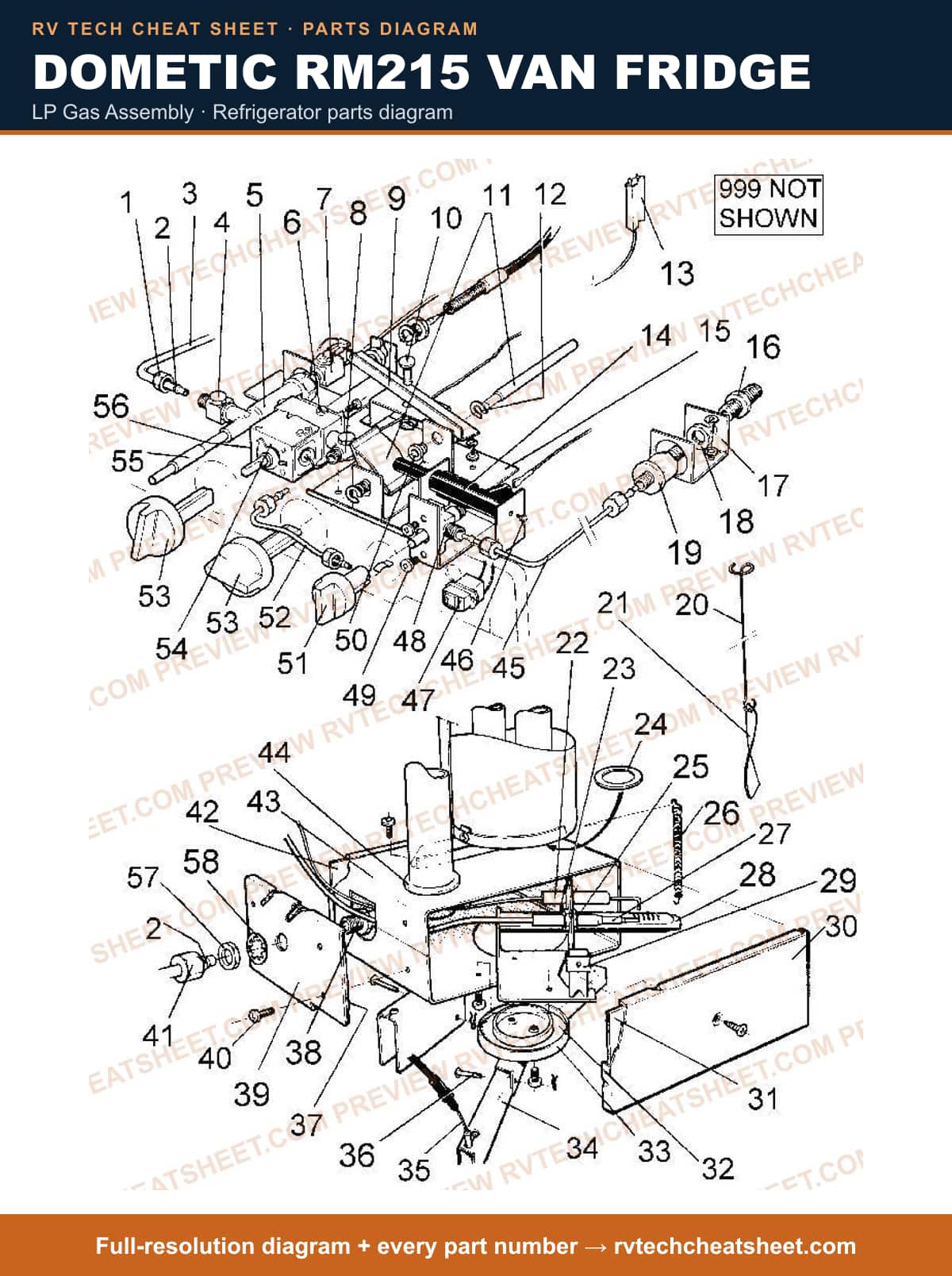

LP Gas Assembly

Components

67 items

1. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
2. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
3. #FERRULE, GAS LINE USE 173213000 2201 (OLIVE) MFR # 2902612007 Superseded: see description
4. #PIPE, GAS TO BURNER MFR # 2902693007
5. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
6. #VALVE, SAFETY USE 2904991003 MFR # 2901156006 Superseded: see description
7. #VALVE MFR # 2904991003
8. #SCREW, BYPASS USE 172819039 MFR # 342737149 Superseded: see description
9. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
10. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
11. #APPLIANCE COMPONENTS RV; Adapter Flame MFR # 2902688007
12. #ADAPTER, ELBOW MFR # 2902686001
13. #OPERATING LEVER MFR # 2902701008
14. #LEVER BEARING MFR # 2902786009
15. #CAM & SHAFT RM215 MFR # 2902690003
16. #CIRCLIP MFR # 2902692009
17. #CLAMP, CAP TUBE 2201 MFR # 2901604005
18. #APPLIANCE COMPONENTS RV; Igniter Piezo 215 MFR # 2901559001
19. #GAS EQUIPMENT PLATE COMPLETE MFR # 2902695002
20. #INLET ADAPTOR MFR # 2902784004
21. #INLET/FILTER BRACKET MFR # 2902780002
22. #NUT, LOCKING MFR # 2902783006
23. #APPLIANCE COMPONENTS RV; Filter MFR # 2902781000
24. #SUPPORT WIRE MFR # 2900246006
25. #BAFFLE, FLUE W/O WIRE 24 1 MFR # 339202000
26. #CABLE, ELECTRODE USE 2905546004 MFR # 2902205000 Superseded: see description
27. #Igniter Electrode; For Use With Dometic RM2200A/ RM2201/ RM211B Refrigerators; Single Electrode; With Lead MFR # 2905546004 Superseded: see description
28. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
29. #GASKET FOR EQUIPMENT BRACKET MFR # 2902740006
30. #NUT, T-COUPLE ALT 45-3744 MFR # 169386000
31. #Nut; Use To Mount 0169372002 Thermocouple On Older RV Refrigerators; 3/8 Inch Female Thread SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#169386000. MFR # 169386000MC Superseded: see description
32. #SPRING MFR # 2902716006
33. #APPLIANCE COMPONENTS RV; Thermocouple MFR # 45-8844
34. #T-COUPLE USE 2928742028 MFR # 2902551065 Superseded: see description
35. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
36. #THERMOCOUPLE USE 2902551106 760MM MFR # 2902551098 Superseded: see description
37. #TUBE, BURNER MFR # 2902705009
38. #SPIRAL SPEED NUT MFR # 291420024
39. #BURNER BOX COVER MFR # 2902709001
40. #GASKET MFR # 2902877006
41. #GASKET FOR FLAP MFR # 2902872007
42. #FLAP COMPLETE WITH GASKET MFR # 2902874003
43. #FLAP LEVER MFR # 2902717004
44. #CONTROL CABLE MFR # 2902694005
45. #CLEVIS PIN MFR # 2902718002
46. #JET PLATE GASKET MFR # 2902707005
47. #APPLIANCE COMPONENTS RV; Orifice Burner Rm MFR # 2902540075
48. #PLATE, JET MFR # 2902706007
49. #SCREW, M4X10 MFR # 2902880000
50. #NUT, UNION FEMALE MFR # 2902553003
51. #REAR SEALING GASKET MFR # 2902877016
52. #BURNER BOX COMPLETE MFR # 2902703004
53. #GROMMET MFR # 2902708002
54. #GAS PIPE MFR # 2902799002
55. #SCREW MFR # 2901560009
56. #APPLIANCE COMPONENTS RV; Indicator Flame MFR # 2902738000
57. #VALVE, GAS MFR # 2902782008
58. #SCREW M4X10 MFR # 2902764006
59. #CAM SHAFT BEARING MFR # 2902691001
60. #APPLIANCE COMPONENTS RV; Knob Gas Valve MFR # 2902733019
61. #PIPE, GAS MFR # 2902778006
62. #KNOB, T-STAT MFR # 2902733001
63. #T-STAT, GAS ALT 2902687146MC MFR # 2902687146
64. #PUSH BUTTON MFR # 2902813001
65. #CONTROL BRACKET COMPLETE MFR # 2902776000
66. #NUT, LOCKING MFR # 2902550009
67. #WASHER, LOCK RM12 5 INTERNAL TEETH (JET) MFR # 341747004

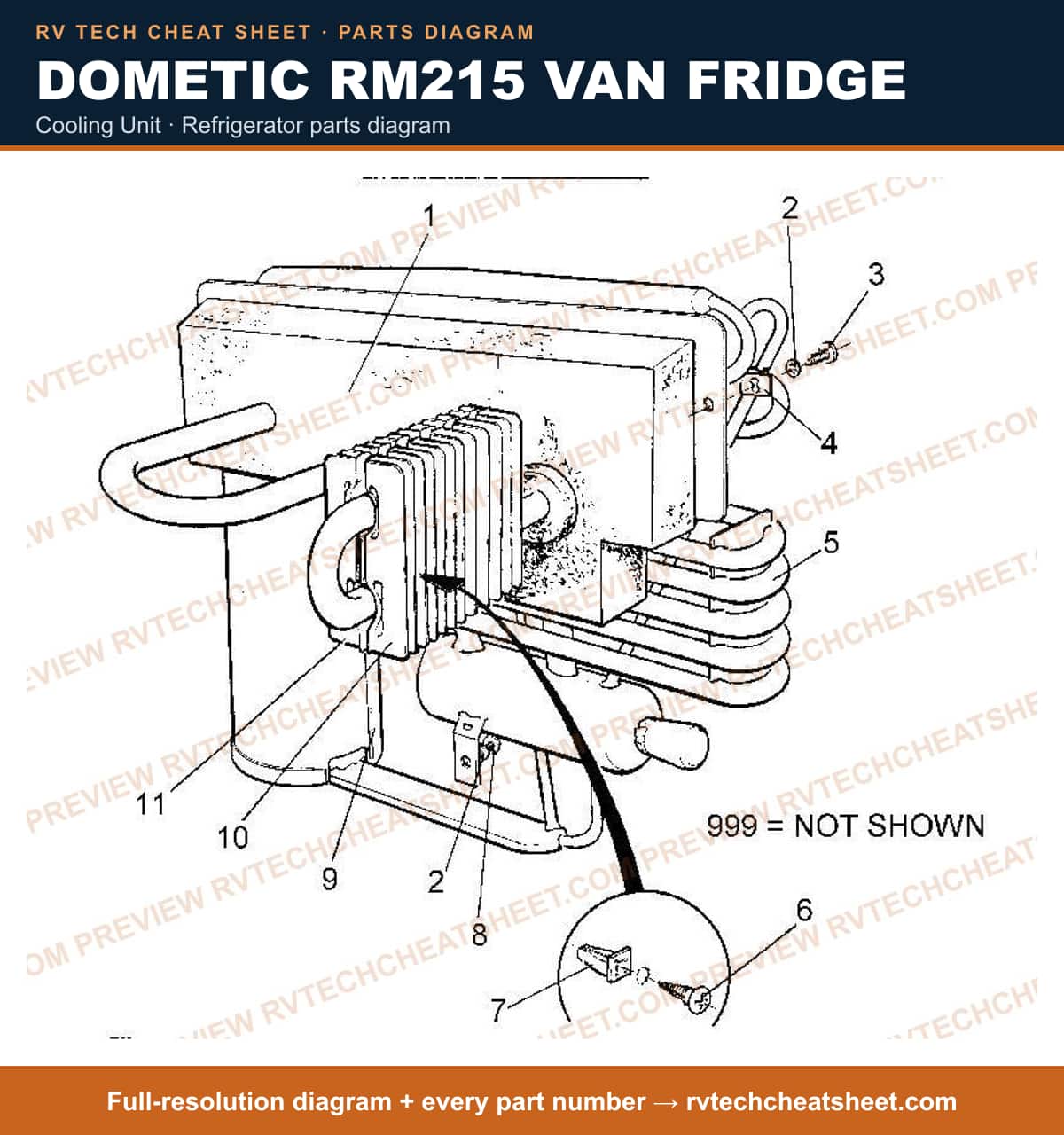

Cooling Unit

Components

13 items

1. #SET OF WINDOW INSULATION RM211 MFR # 2901657003
2. #LOCKWASHER, 3/16", INTERNAL TOOTH MFR # 290660000
3. #SCREW MFR # 2900884004
4. #NUT, SPIRE RM2200A MFR # 2900493004
5. #REMAN COOLING UNIT RM215 (UPS) MFR # 9282761000R
6. #COOLING UNIT RM215 MFR # 9282761000N
7. #SCREW, 13MM X NO. 8 MFR # 7295342409
8. #NUT, PLASTIC F/EVAPORATOR FINS RM2200A MFR # 2901750006
9. #SCREW, POZ. PAN 1/2" NO. LO MFR # 338804008
10. #CLIP MFR # 2902263017
11. #EVAPORATOR FINS, RH MFR # 2901997000
12. #FIN ASM, RIGHT & LEFT RM21 1/211B MFR # 2905404006
13. #FINS LH EVAP. USE 2905404006 MFR # 2901997011 Superseded: see description

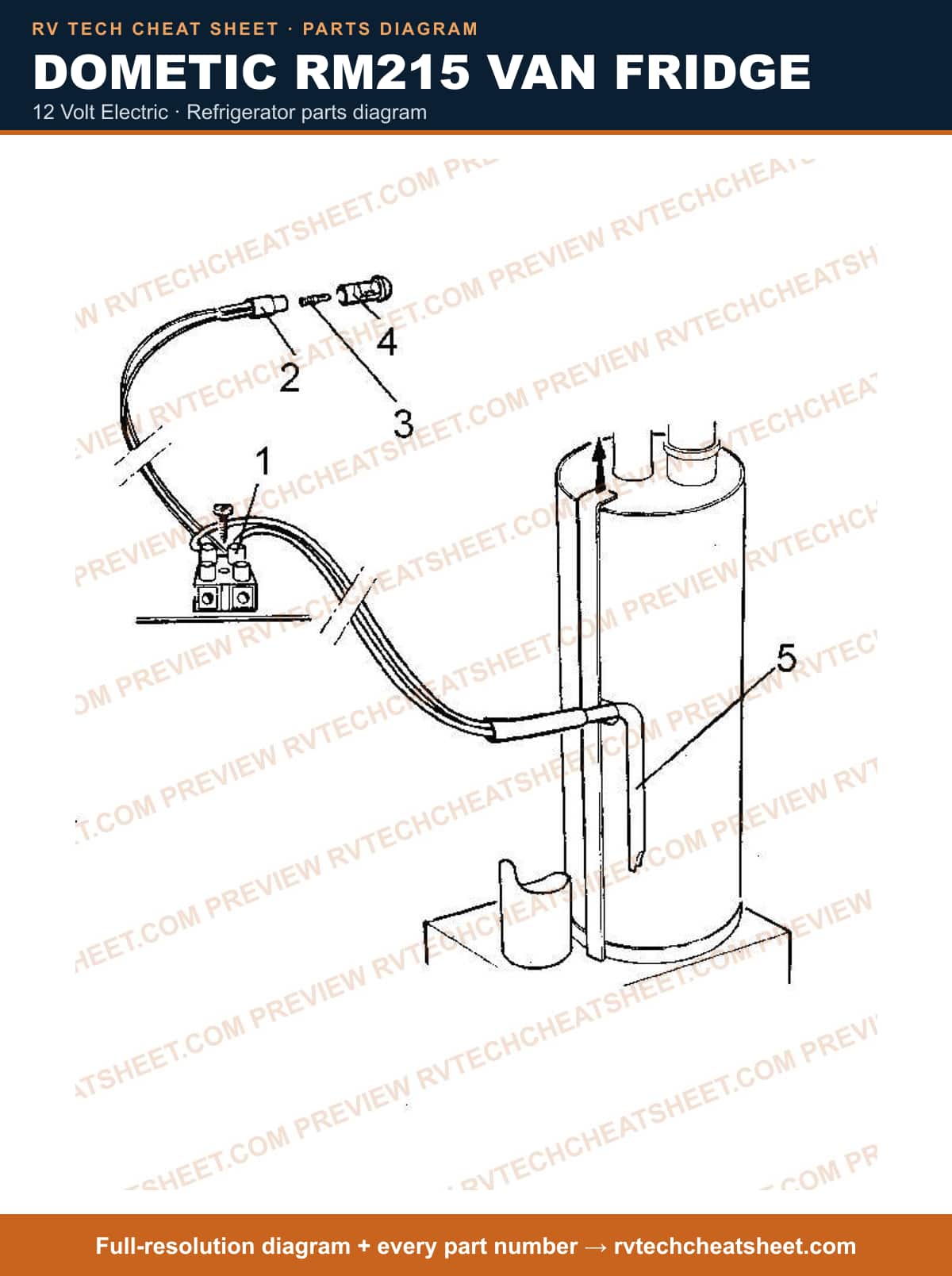

12 Volt Electric

Components

6 items

1. #BLOCK, TERMINAL RM21 5 MFR # 2901365029
2. #HOLDER, LIGHT MFR # 2901239034
3. #Refrigerator Light Bulb; Use With Dometic Refrigerator Model RM215 Van Fridge; 12 Volts MFR # 2901233003 Superseded: see description
4. #LENS MFR # 2901321014
5. #ELEMENT, HEATING 95W 12V 3/8" DIA 4-1/2 LONG 8 AMPS MFR # 2902192125
6. #ELEMENT, HEATING USE 2902192125 MFR # 2902761002 Superseded: see description

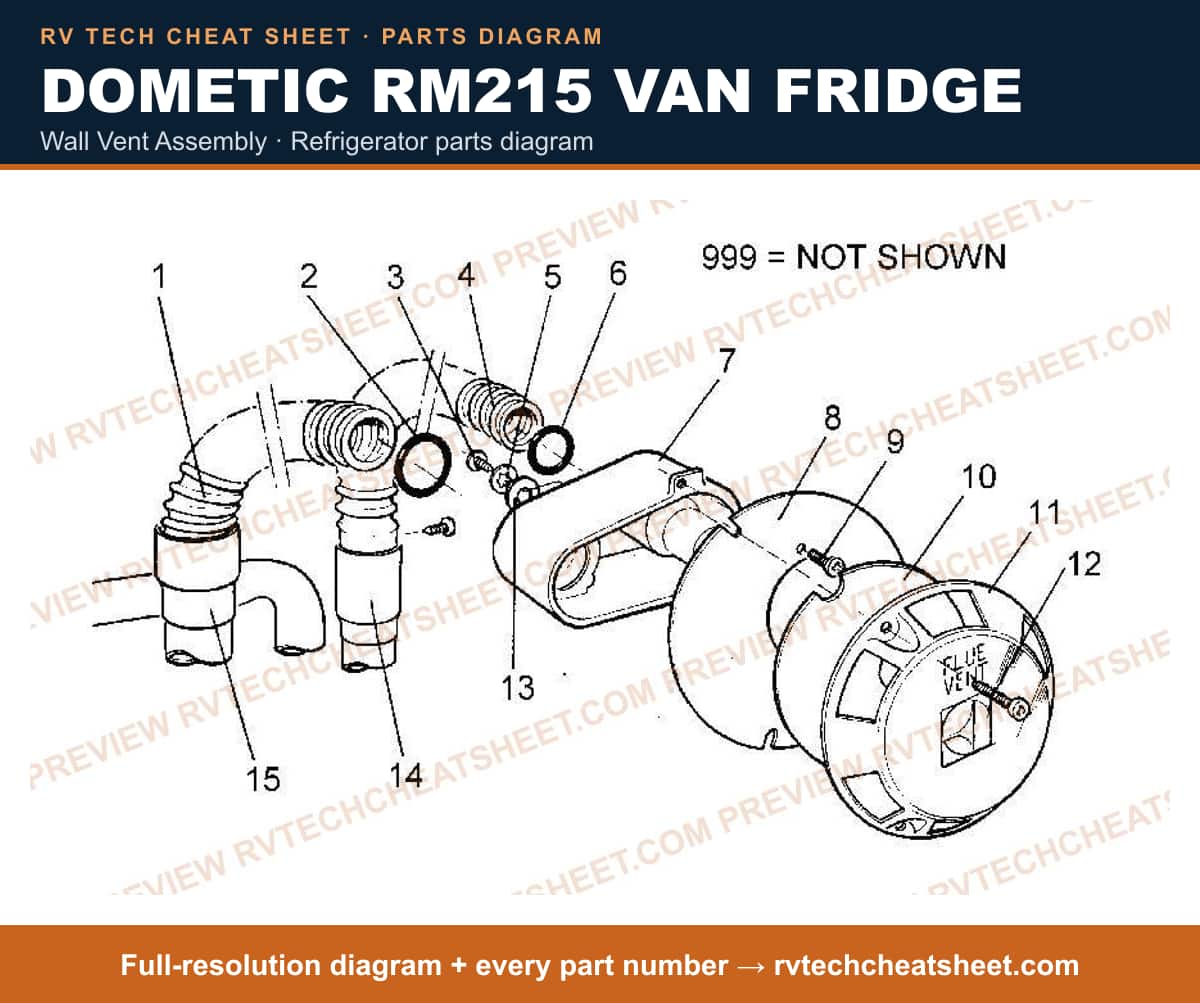

Wall Vent Assembly

Components

19 items

1. #FLEXIBLE TUBE (INLET) MFR # 2902770993
2. #APPLIANCE COMPONENTS RV; O-Ring Large MFR # 2902803010
3. #SCREW, POZ. PAN 1/2" NO. LO MFR # 338804008
4. #APPLIANCE COMPONENTS RV; Tube Flex Longer 3/4 Id MFR # 2902771991
5. #LOCKWASHER, 3/16", INTERNAL MFR # 290660005
6. #O-RING SMALL RM215 MFR # 2902803002
7. #APPLIANCE COMPONENTS RV; Housing Exhaust MFR # 2929379002
8. #CASTING,FLUE USE 2929379002 RM2192 MFR # 2902750005 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Slide RM182 MFR # 2929381008
10. #PLATE,LOCATING USE 2929381008 RM2192 MFR # 2902751003 Superseded: see description
11. #SCREW M4 X 8 MFR # 341624005
12. #DISC SEPARATOR RM21 92 MFR # 2902752001
13. #COVER,OUTER USE 2929380000 MFR # 2902749007 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Cover RM182 MFR # 2929380000
15. #SCREW, 1-1/4" NO. 6 MFR # 7295298405
16. #WASHER,RETAINER MFR # 2902875000
17. #SLEEVE,SEALING SMALL RM21 5 MFR # 2902773007
18. #SLEEVE,LARGE RUBBER RM21 5 MFR # 2902769005
19. #FLUE TERMINAL KIT COMPLETE MFR # 2902747001
