Dometic RM2150 Parts Diagram · Upper Sidewall Vents

Refrigerator · 6 assemblies · 6 diagram sheets · 100 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2150 RV refrigerator: 6 assemblies (Upper Sidewall Vents, Cabinet Assembly, Refrigerator Replacement, Gas-electric Equipment, Cooling Unit Wiring Diagram and more) and 100 manufacturer part numbers. 22 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Upper Sidewall Vents

Components

8 items

1. #VENT INSTALLATION MFR # 3100451057
2. #DESIGNER BEIGE VENT PANEL MFR # 8030211361
3. #Refrigerator Grille; Replacement For Dometic RM2201/ RM2190/ RM2150 Model Refrigerators; Upper Side; Polar White MFR # 8030122320
4. #VENT, UPPER USE 3100451016 CORNERS MIL FINISH MFR # 8030211331 Superseded: see description
5. #DESIGNER BEIGE VENT PANEL FOR RM2300, RM2400 MFR # 8030122360
6. #VENT, UPPER MFR # 8030211311
7. #VENT, INSTALLATION 17-3/4 X 7 MFR # 3100451016
8. #VENT, UPPER USE 8030122320 COLONIAL WHITE MFR # 8030122330 Superseded: see description

Cabinet Assembly

Components

23 items

1. #CATCH,TRAVEL BLACK MFR # 2904817018
2. #LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description
3. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
4. #LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description
5. #APPLIANCE COMPONENTS RV; Screw Travel Latch 2150 MFR # 2904818008
6. #APPLIANCE COMPONENTS RV; Stop Travel Latch MFR # 2904841000
7. #FIN BANK RH MFR # 2904330012
8. #BOTTLE FINGERS MFR # 2904780067
9. #SHELF,DOOR MFR # 2904723018
10. #DOOR, COMPLETE MFR # 2904881014
11. #SHELF, CRANKED MFR # 2904888019
12. #APPLIANCE COMPONENTS RV; Hinge Upper Lh MFR # 2904910078
13. #APPLIANCE COMPONENTS RV; Pin Hinge Rm2192 2150 Rb MFR # 2904095003
14. #HINGE,UPPER MFR # 2904910060
15. #NUT,PIVOT SCREW RM21 50 MFR # 2904096001
16. #NAMEPLATE RM2150 MFR # 2901479218
17. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2150/ RM2190/ RM2192/ RM2201 Model Refrigerator MFR # 2901431003
18. #Refrigerator Cooling Unit Heat Deflector; Replacement For Dometic RM2150/ RM2190/ RM2192 Refrigerators MFR # 2904330004
19. #CLAMP,EVAP FIN MFR # 2904394000
20. #CAPTIVE NUT MFR # 2904359003
21. #SCREW, POZ. PAN HD., 1" NO. 8 MFR # 7295348010
22. #HINGE,LOWER MFR # 2904910045
23. #HINGE,LOWER RH MFR # 2904910052

Refrigerator Replacement

Components

6 items

1. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
2. #N/A REFER 17 1/2 X 17 3/4 X 21 1/2 MFR # RM2150
3. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
4. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
5. #REFER, 1.7 CU FT 2W USE 323TN 20 5/8 X 17 1/4 X 21 1/4 MFR # 322N Superseded: see description
6. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description

Gas-electric Equipment

Components

57 items

1. #CLIP, RETAINING MFR # 2903388003
2. #BAFFLE SUPPORT WIRE 24, 190, 211, 211B MFR # 2900246014
3. #BAFFLE FLUE RM21 92 MFR # 339202004
4. #ELEMENT, HEATING USE 2902192108 RM190 RM2150 12V 95W MFR # 2902192108D Superseded: see description
5. #ELEMENT, HEATING USE 2902192108 12V MFR # 2902192109 Superseded: see description
6. #ELEMENT, HEATING Q(25) 95W 12V 3/8" DIA 4-1/2" LONG - 8 AMPS MFR # 2902192108
7. #SWITCH, ON/OFF TOGGLE MFR # 2903845002
8. #BRACKET, SWITCH RM21 50 MFR # 2903810006
9. #Refrigerator Burner Box Base; Use With Dometic Refrigerator Models RM2190 Side Mount/ RM2150 MFR # 2903359004 Superseded: see description
10. #RETAINER F/ TERMINAL BLOCK RM2190, RM190 MFR # 2903262000
11. #Block Terminal Small 3 Poi MFR # 7627202562
12. #BLOCK, TERMINAL USE 7627202562 MFR # 2903261028 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Flue Balanced/Flexible MFR # 2903360002
14. #VALVE, GAS USE 2901885000 MFR # 2901884003 Superseded: see description
15. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
16. #Appliance Components RV; Nut Union MFR # 172809006
17. #APPLIANCE COMPONENTS RV; Nipple Union MFR # 172808008
18. #FILTER MFR # 2901676003
19. #CLAMP, CAP TUBE 2201 MFR # 2901604005
20. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
21. #T-STAT, GAS (200) MFR # V35P01151
22. #T-STAT USE V35P01151 MFR # 2900703147 Superseded: see description
23. #APPLIANCE COMPONENTS RV MFR # 2902551106
24. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
25. #THERMOCOUPLE MFR # 2902551023MC
26. #VALVE MFR # 2904991003
27. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
28. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
29. #CONNECTION USE 2002470009 MFR # 173214008 Superseded: see description
30. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
31. #BRACKET, T-STAT RM22 01 MFR # 2901739009
32. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
33. #Igniter Electrode; For Use With Dometic RM2200A/ RM2201/ RM211B Refrigerators; Single Electrode; With Lead MFR # 2905546004 Superseded: see description
34. #IGNITER, PIEZO USE 2901181010 USE 2901181010 FIRST UNTIL GONE. MFR # 2901181012 Superseded: see description
35. #Igniter; For Use With Dometic RM2200A/ RM211B/ RM211 Refrigerators; Piezo Spark MFR # 2901181010 Superseded: see description
36. #SCREW POSI-PAN MFR # 340484005
37. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
38. #LOCKNUT, T-COUPLE 2201 ,2150 MFR # 2902535000
39. #SCREW RM2190, RM190 TRY A LOCAL HARDWARE MFR # 2902611009
40. #APPLIANCE COMPONENTS RV; Washer Lock Ext. Teeth MFR # 7352124007
41. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
42. #BURNER ASM RM21 90 RM2150 RM2201 MFR # 2903403000
43. #PLATE SECURING FOR BRNR TUBE RM2190, RM190 MFR # 2902548011
44. #N/A HOUSING, BURNER MFR # 2905560005
45. #ORIFICE, BURNER MFR # 2902540059
46. #SHIELD, AERATION RM19 0,2150,2201 MFR # 2902546007
47. #WASHER, LOCK RM12 5 INTERNAL TEETH (JET) MFR # 341747004
48. #NUT, LOCKING MFR # 2902550009
49. #FERRULE, GAS LINE USE 173213000 2201 (OLIVE) MFR # 2902612007 Superseded: see description
50. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
51. #NUT, UNION FEMALE MFR # 2902553003
52. #PIPE, GAS RM19 0, RM2150 MFR # 2903310007
53. #STRAP FOR BROILER INSULATION RM2190, RM190 MFR # 2903774004
54. #APPLIANCE COMPONENTS RV; Locknut Gas Valve MFR # 2901849006
55. #TOP, FLUE MFR # 2903361000
56. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2904377039N
57. #INSULATION, WINDOW MFR # 2905225005

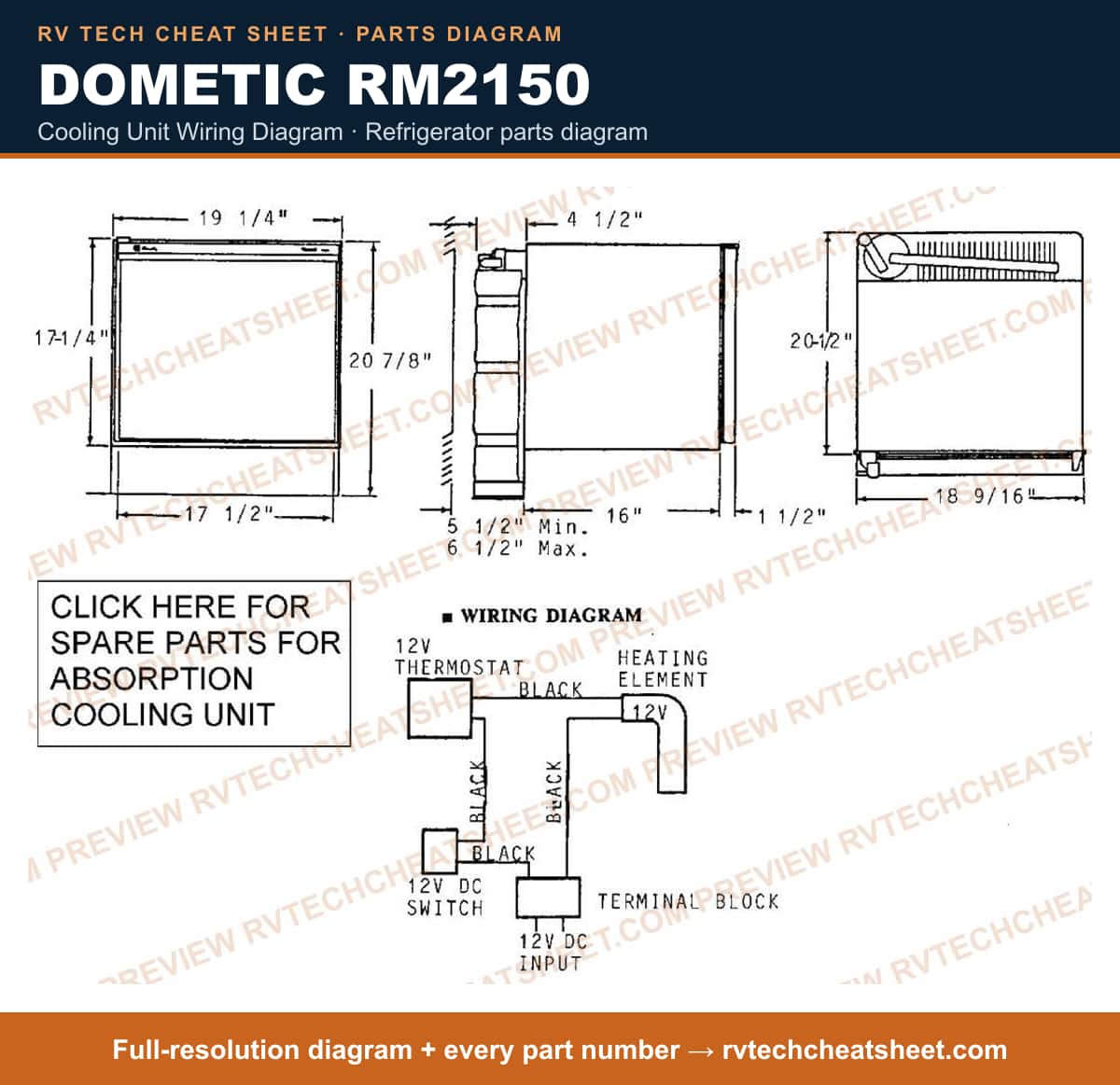

Cooling Unit Wiring Diagram

Components

3 items

1. #SPIRE NUT, DNU 1219 MFR # 291420026
2. #APPLIANCE COMPONENTS RV; Cooling Unit Rm2150 219 MFR # 2904377005N
3. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004

Lower Sidewall Vents

Components

4 items

1. #Refrigerator Vent; Use With Most Norcold Refrigerator; Air Intake Side Vent; 21-3/4 Inch Width x 13-3/4 Inch Height; Square; Polar White; Mill Finish Metal Frame; With Piano Hinge And Screw Cover METAL SQUARE CORNER SIDE VENT, MILL FINISH FRAME WITH PIANO HINGE AND SCREW COVER PROVISION DIMENSIONS: 13 3/4" X 21 3/4". MFR # 616010PW Superseded: see description
2. #VENT, LOWER COL. WHT 19 X 10 MFR # 8030211332
3. #VENT, SIDE SQ CORNERS DESIGNER BEIGE MFR # 8030211362
4. #VENT, LOWER PW (20) 19X10 MFR # 8030211322
