Dometic RM2190 Parts Diagram · Upper Sidewall Vents

Refrigerator · 10 assemblies · 10 diagram sheets · 157 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2190 RV refrigerator: 10 assemblies (Upper Sidewall Vents, Sidemount Front View Cabinet Assy, Sidemount Burner & Control, Cabinet&door Assy, Cooling Unit and more) and 157 manufacturer part numbers. 40 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Upper Sidewall Vents

Components

8 items

1. #VENT, UPPER MFR # 8030211311
2. #VENT INSTALLATION MFR # 3100451057
3. #VENT, UPPER USE 8030122320 COLONIAL WHITE MFR # 8030122330 Superseded: see description
4. #VENT, INSTALLATION 17-3/4 X 7 MFR # 3100451016
5. #VENT, UPPER USE 3100451016 CORNERS MIL FINISH MFR # 8030211331 Superseded: see description
6. #DESIGNER BEIGE VENT PANEL MFR # 8030211361
7. #DESIGNER BEIGE VENT PANEL FOR RM2300, RM2400 MFR # 8030122360
8. #Refrigerator Grille; Replacement For Dometic RM2201/ RM2190/ RM2150 Model Refrigerators; Upper Side; Polar White MFR # 8030122320

Sidemount Front View Cabinet Assy

Components

22 items

1. #NUT,PIVOT SCREW RM21 50 MFR # 2904096001
2. #PIN,HINGE BLADE RM21 92 MFR # 2903803027
3. #APPLIANCE COMPONENTS RV; Pin Hinge Rm2192 2150 Rb MFR # 2904095003
4. #POP RIVET MFR # 2904005002
5. #Hinge bearing, mushroom MFR # 2900348067
6. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2150/ RM2190/ RM2192/ RM2201 Model Refrigerator MFR # 2901431003
7. #APPLIANCE COMPONENTS RV; Rail Side MFR # 2903802003
8. #APPLIANCE COMPONENTS RV; Plate Name Use 290147907 MFR # 2901479168 Superseded: see description
9. #NAMEPLATE USE 2901479168 MFR # 2901479226 Superseded: see description
10. #DOOR, MAIN; IS A USE # FOR 2903364095 MFR # 2903364053 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Blade Hinge Rb2195 MFR # 2903803035
12. #SHELF MFR # 2904491046
13. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
14. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
15. #PIN,RETAINING MFR # 2001281019
16. #APPLIANCE COMPONENTS RV; Rail Top & Bottom Rm2190 MFR # 2903801005
17. #RETAINER, TRAVEL USE 2904047012 CATCH MFR # 2904047020 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Retainer Travel Catch MFR # 2904047012
19. #PIN, LOCKING FOR TRAVEL CATCH RM2190 MFR # 2905594012
20. #Refrigerator Slide Tray; Use With Dometic RM2190/ RM2192 Refrigerators; With Divider MFR # 2904416001 Superseded: see description
21. #Cover plate (plastic) MFR # 2905461006
22. #Rivet, plastic for cover PLATE (10 REQ.) MFR # 2905466005

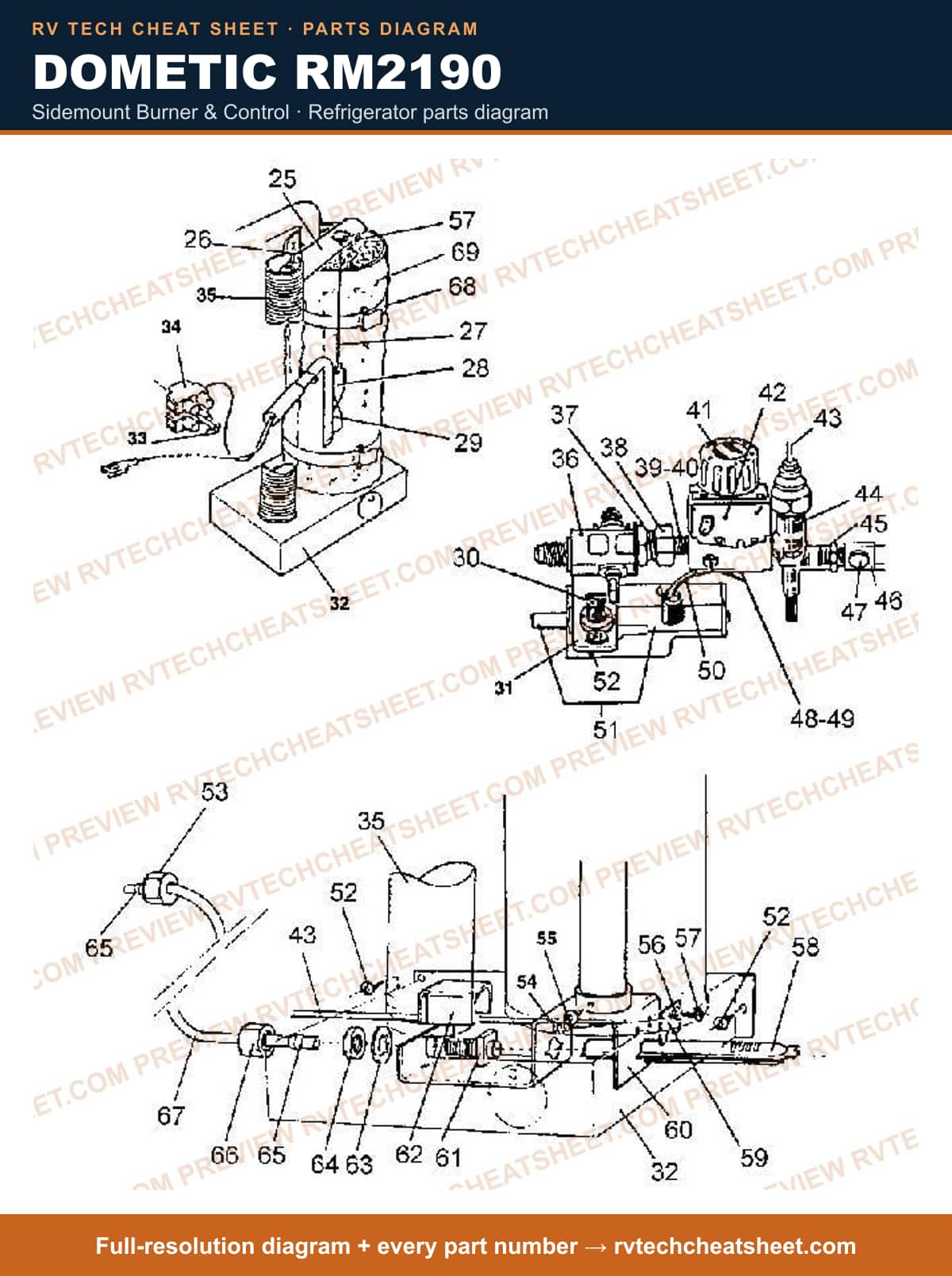

Sidemount Burner & Control

Components

56 items

1. #TOP, FLUE MFR # 2903361000
2. #CLIP, RETAINING MFR # 2903388003
3. #BAFFLE SUPPORT WIRE 24, 190, 211, 211B MFR # 2900246014
4. #BAFFLE FLUE RM21 92 MFR # 339202004
5. #ELEMENT, HEATING Q(25) 95W 12V 3/8" DIA 4-1/2" LONG - 8 AMPS MFR # 2902192108
6. #ELEMENT, HEATING USE 2902192108 12V MFR # 2902192109 Superseded: see description
7. #ELEMENT, HEATING USE 2902192108 RM190 RM2150 12V 95W MFR # 2902192108D Superseded: see description
8. #SWITCH, ON/OFF TOGGLE MFR # 2903845002
9. #BRACKET, SWITCH RM21 50 MFR # 2903810006
10. #Refrigerator Burner Box Base; Use With Dometic Refrigerator Models RM2190 Side Mount/ RM2150 MFR # 2903359004 Superseded: see description
11. #RETAINER F/ TERMINAL BLOCK RM2190, RM190 MFR # 2903262000
12. #BLOCK, TERMINAL USE 7627202562 MFR # 2903261028 Superseded: see description
13. #Block Terminal Small 3 Poi MFR # 7627202562
14. #APPLIANCE COMPONENTS RV; Flue Balanced/Flexible MFR # 2903360002
15. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
16. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
17. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
18. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
19. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
20. #APPLIANCE COMPONENTS RV; Locknut Gas Valve MFR # 2901849006
21. #Appliance Components RV; Nut Union MFR # 172809006
22. #APPLIANCE COMPONENTS RV; Nipple Union MFR # 172808008
23. #FILTER MFR # 2901676003
24. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
25. #T-STAT, GAS (200) MFR # V35P01151
26. #T-STAT USE V35P01151 MFR # 2900703147 Superseded: see description
27. #APPLIANCE COMPONENTS RV MFR # 2902551106
28. #THERMOCOUPLE MFR # 2902551023MC
29. #T-COUPLE USE 2928742028 2192, MFR # 2902551023 Superseded: see description
30. #VALVE MFR # 2904991003
31. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
32. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
33. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
34. #BRACKET, T-STAT RM22 01 MFR # 2901739009
35. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
36. #CABLE, ELECTRODE USE 2905546004 MFR # 2902205000 Superseded: see description
37. #Igniter Electrode; For Use With Dometic RM2200A/ RM2201/ RM211B Refrigerators; Single Electrode; With Lead MFR # 2905546004 Superseded: see description
38. #IGNITER, PIEZO USE 2901181010 USE 2901181010 FIRST UNTIL GONE. MFR # 2901181012 Superseded: see description
39. #SCREW POSI-PAN MFR # 340484005
40. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
41. #LOCKNUT, T-COUPLE 2201 ,2150 MFR # 2902535000
42. #SCREW RM2190, RM190 TRY A LOCAL HARDWARE MFR # 2902611009
43. #APPLIANCE COMPONENTS RV; Washer Lock Ext. Teeth MFR # 7352124007
44. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
45. #BURNER ASM RM21 90 RM2150 RM2201 MFR # 2903403000
46. #PLATE SECURING FOR BRNR TUBE RM2190, RM190 MFR # 2902548011
47. #N/A HOUSING, BURNER MFR # 2905560005
48. #ORIFICE, BURNER MFR # 2902540059
49. #SHIELD, AERATION RM19 0,2150,2201 MFR # 2902546007
50. #WASHER, LOCK RM12 5 INTERNAL TEETH (JET) MFR # 341747004
51. #NUT, LOCKING MFR # 2902550009
52. #OLIVE MFR # 173213000D
53. #NUT, UNION FEMALE MFR # 2902553003
54. #PIPE, GAS RM19 0, RM2150 MFR # 2903310007
55. #STRAP FOR BROILER INSULATION RM2190, RM190 MFR # 2903774004
56. #INSULATION,BOILER MFR # 2903934004

Cabinet&door Assy

Components

29 items

1. #LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description
2. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
3. #APPLIANCE COMPONENTS RV; Stop Travel Latch MFR # 2904841000
4. #APPLIANCE COMPONENTS RV; Retainer Travel Catch MFR # 2904047012
5. #CATCH,TRAVEL BLACK MFR # 2904817018
6. #LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Pin Locking MFR # 2901509022
8. #USE 342108000 DIVIDER FOR ICE TRAY MFR # 342108000D Superseded: see description
9. #Refrigerator Slide Tray; Use With Dometic RM2190/ RM2192 Refrigerators; With Divider MFR # 2904416001 Superseded: see description
10. #DIVIDER,ICETRAY USE 2904416001 MFR # 342108000 Superseded: see description
11. #TRAY,ICE USE 342304003 MFR # 342107000 Superseded: see description
12. #TRAY,ICE CUBE USE 2904416001 MFR # 342304003 Superseded: see description
13. #CHAMBER,COLD MFR # 2904396005
14. #DOOR, MAIN; IS A USE # FOR 2903364095 MFR # 2903364053 Superseded: see description
15. #SHELF MFR # 2904491046
16. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
17. #APPLIANCE COMPONENTS RV; Blade Hinge Rb2195 MFR # 2903803035
18. #APPLIANCE COMPONENTS RV; Pin Hinge Rm2192 2150 Rb MFR # 2904095003
19. #SCREW, PIVOT USE 2904095003 MFR # 2903365001 Superseded: see description
20. #PIN,HINGE BLADE RM21 92 MFR # 2903803027
21. #NUT,PIVOT SCREW RM21 50 MFR # 2904096001
22. #NUT USE 2904096001 RM2190 MFR # 2903366009 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Plate Name Use 290147907 MFR # 2901479168 Superseded: see description
24. #NAMEPLATE USE 2901479168 MFR # 2901479226 Superseded: see description
25. #STRIP, NAME PLATE MFR # 2901479077
26. #SCREW MFR # 2903404007
27. #APPLIANCE COMPONENTS RV; Bearing Hinge Pin MFR # 2900348034
28. #APPLIANCE COMPONENTS RV; Door Cold Chamber Rm 2 MFR # 2904920010
29. #PANEL, DOOR WOODGRAIN MFR # RM2190G

Cooling Unit

Components

8 items

1. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
2. #SPIRAL NUT FOR BOILER CASING BOTTOM PLATE MFR # 273127001
3. #REMAN COOLING UNIT (UPS) RM2150,2190 MFR # 2904377005R
4. #SPIRE NUT, DNU 1219 MFR # 291420026
5. #WINDOW INSULATION - LOWER MFR # 2904358003
6. #BOTTOM PLATE FOR BOILER CASING MFR # 2903470009
7. #APPLIANCE COMPONENTS RV; Cooling Unit Rm2150 219 MFR # 2904377005N
8. #WINDOW INSULATION - UPPER MFR # 2904357005

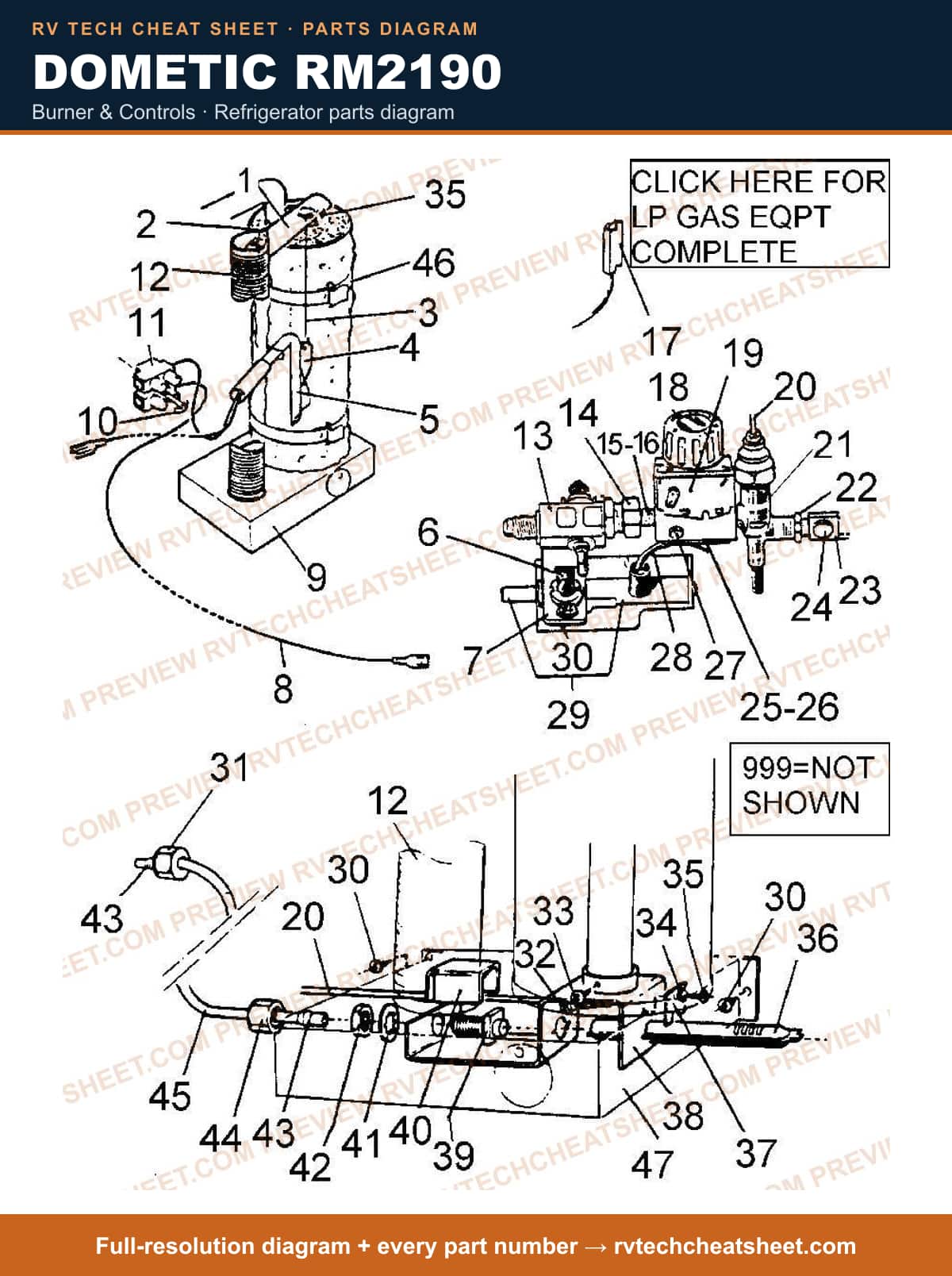

Burner & Controls

Components

63 items

1. #TOP, FLUE MFR # 2903361000
2. #CLIP, RETAINING MFR # 2903388003
3. #BAFFLE SUPPORT WIRE 24, 190, 211, 211B MFR # 2900246014
4. #BAFFLE FLUE RM21 92 MFR # 339202004
5. #ELEMENT, HEATING Q(25) 95W 12V 3/8" DIA 4-1/2" LONG - 8 AMPS MFR # 2902192108
6. #ELEMENT, HEATING USE 2902192108 RM190 RM2150 12V 95W MFR # 2902192108D Superseded: see description
7. #SWITCH, ON/OFF RM190, RM2150 MFR # 2903845001
8. #BRACKET, SWITCH RM21 50 MFR # 2903810006
9. #WIRE MFR # 2903955005
10. #Refrigerator Burner Box Base; Use With Dometic Refrigerator Models RM2190 Side Mount/ RM2150 MFR # 2903359004 Superseded: see description
11. #RETAINER F/ TERMINAL BLOCK RM2190, RM190 MFR # 2903262000
12. #BLOCK, TERMINAL USE 7627202562 MFR # 2903261028 Superseded: see description
13. #VERIFY WHETHER LARGE OR SMALL. LARGE (6 POINT) IS PART 2930463001. IS A USE # F/2903261028 USE THIS STOCK FIRST MFR # APPLIANCE COMPONENTS RV; Block Terminal Small3 Poi Superseded: see description
14. #APPLIANCE COMPONENTS RV; Flue Balanced/Flexible MFR # 2903360002
15. #VALVE, GAS USE 2901885000 MFR # 2901884003 Superseded: see description
16. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
17. #Appliance Components RV; Nut Union MFR # 172809006
18. #APPLIANCE COMPONENTS RV; Nipple Union MFR # 172808008
19. #FILTER MFR # 2901676003
20. #CLAMP, CAP TUBE 2201 MFR # 2901604005
21. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
22. #T-STAT, GAS (200) MFR # V35P01151
23. #T-STAT USE V35P01151 MFR # 2900703147 Superseded: see description
24. #T-COUPLE USE 2928742028 2192, MFR # 2902551023 Superseded: see description
25. #THERMOCOUPLE USE 2902551106 760MM MFR # 2902551098 Superseded: see description
26. #APPLIANCE COMPONENTS RV MFR # 2902551106
27. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
28. #THERMOCOUPLE MFR # 2902551023MC
29. #VALVE USE 2904991003 MFR # 2903955009 Superseded: see description
30. #VALVE MFR # 2904991003
31. #LOCK NUT MFR # 173366006D
32. #HOUSING FOR PLUG SCREW MFR # 173214008D
33. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
34. #BRACKET, T-STAT RM190, RM2190 MFR # 2901739017
35. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
36. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
37. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
38. #SCREW BY PASS USE 172819039 MFR # 342737145 Superseded: see description
39. #Igniter Electrode; For Use With Dometic RM2200A/ RM2201/ RM211B Refrigerators; Single Electrode; With Lead MFR # 2905546004 Superseded: see description
40. #CABLE, ELECTRODE USE 2905546004 MFR # 2902205000 Superseded: see description
41. #ELECTRODE USE 2905546004 W/LEAD MFR # 2902552002 Superseded: see description
42. #IGNITER, PIEZO USE 2901181010 USE 2901181010 FIRST UNTIL GONE. MFR # 2901181012 Superseded: see description
43. #Igniter; For Use With Dometic RM2200A/ RM211B/ RM211 Refrigerators; Piezo Spark MFR # 2901181010 Superseded: see description
44. #SCREW, PAN WASHER HD., 1/2" NO. 6 FOR GAS MFR # 340484004D
45. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
46. #LOCKNUT, T-COUPLE 2201 ,2150 MFR # 2902535000
47. #SCREW RM2190, RM190 TRY A LOCAL HARDWARE MFR # 2902611009
48. #APPLIANCE COMPONENTS RV; Washer Lock Ext. Teeth MFR # 7352124007
49. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
50. #BURNER ASM RM21 90 RM2150 RM2201 MFR # 2903403000
51. #PLATE SECURING FOR BRNR TUBE RM2190, RM190 MFR # 2902548011
52. #BRACKET,BURNER 190, 2150,2201 MFR # 2902542006
53. #ORIFICE, BURNER MFR # 2902540059
54. #SHIELD, AERATION RM19 0,2150,2201 MFR # 2902546007
55. #WASHER, LOCK RM12 5 INTERNAL TEETH (JET) MFR # 341747004
56. #NUT, LOCKING MFR # 2902550009
57. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
58. #FERRULE, GAS LINE USE 173213000 2201 (OLIVE) MFR # 2902612007 Superseded: see description
59. #UNION NUT MFR # 173215005D
60. #PIPE, GAS RM19 0, RM2150 MFR # 2903310007
61. #STRAP FOR BROILER INSULATION RM2190, RM190 MFR # 2903774004
62. #EQUIPMENT PLATE, REAR RM2190 MFR # 2903357057
63. #N/A L.P. GAS EQUIPMENT, COMPLETE MFR # 2903389027

Replacement Refrigerator

Components

5 items

1. #REFER, 1.9 CU FT 21 1/2" X 19 1/4" X 22 1/4" MFR # RM2190N
2. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
3. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description
4. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
5. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description

Sidemount Evaporator Fins Assy

Components

9 items

1. #Clamp, evaporator fins MFR # 2904394001
2. #Refrigerator Cooling Unit Heat Deflector; Replacement For Dometic RM2150/ RM2190/ RM2192 Refrigerators MFR # 2904330004
3. #CAPTIVE NUT MFR # 2904359003
4. #SCREW, POZ. PAN HD., 1" NO. 8 MFR # 7295348010
5. #FINS,COMPLETE EVAPORATOR RM2192 MFR # 2904395007
6. #SHELF, EVAPORATOR MFR # 2904814007
7. #SCREW 6 X 8.8 MFR # 2903649008
8. #Nut; Replacement For Dometic RB2192 Refrigerator MFR # 2903205009
9. #CLAMP, CAP TUBE 2201 MFR # 2901604005

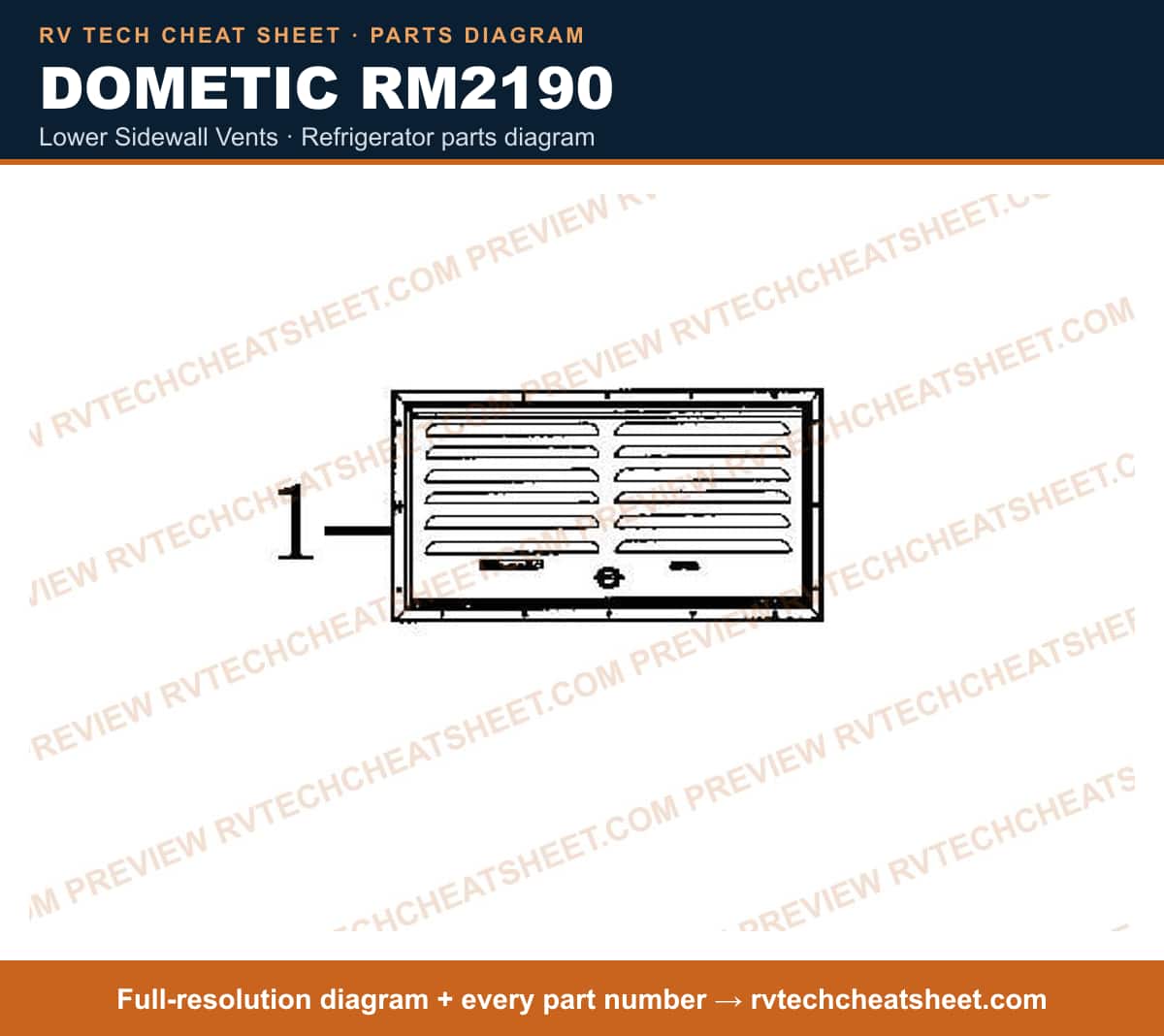

Lower Sidewall Vents

Components

4 items

1. #VENT, LOWER COL. WHT 19 X 10 MFR # 8030211332
2. #VENT, SIDE SQ CORNERS DESIGNER BEIGE MFR # 8030211362
3. #Refrigerator Vent; Use With Most Norcold Refrigerator; Air Intake Side Vent; 21-3/4 Inch Width x 13-3/4 Inch Height; Square; Polar White; Mill Finish Metal Frame; With Piano Hinge And Screw Cover METAL SQUARE CORNER SIDE VENT, MILL FINISH FRAME WITH PIANO HINGE AND SCREW COVER PROVISION DIMENSIONS: 13 3/4" X 21 3/4". MFR # 616010PW Superseded: see description
4. #VENT, LOWER PW (20) 19X10 MFR # 8030211322

Sidemount Cooling Assy

Components

6 items

1. #Cooling Unit MFR # 290443377005
2. #INSULATION, WINDOW MFR # 2905225005
3. #Mounting Plate MFR # 2905457004
4. #Insulation (Inside Mounting Plate) MFR # 2905459000
5. #Support Angle (Upper) MFR # 2905458002
6. #Support Angle (Lower) MFR # 2905458010
