Dometic RM2191 Parts Diagram · Cooling Unit Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 59 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2191 RV refrigerator: 5 assemblies (Cooling Unit Assembly, Replacement Refrigerator, Cabinet Assembly, Controls Assembly, Door Assembly) and 59 manufacturer part numbers. 26 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

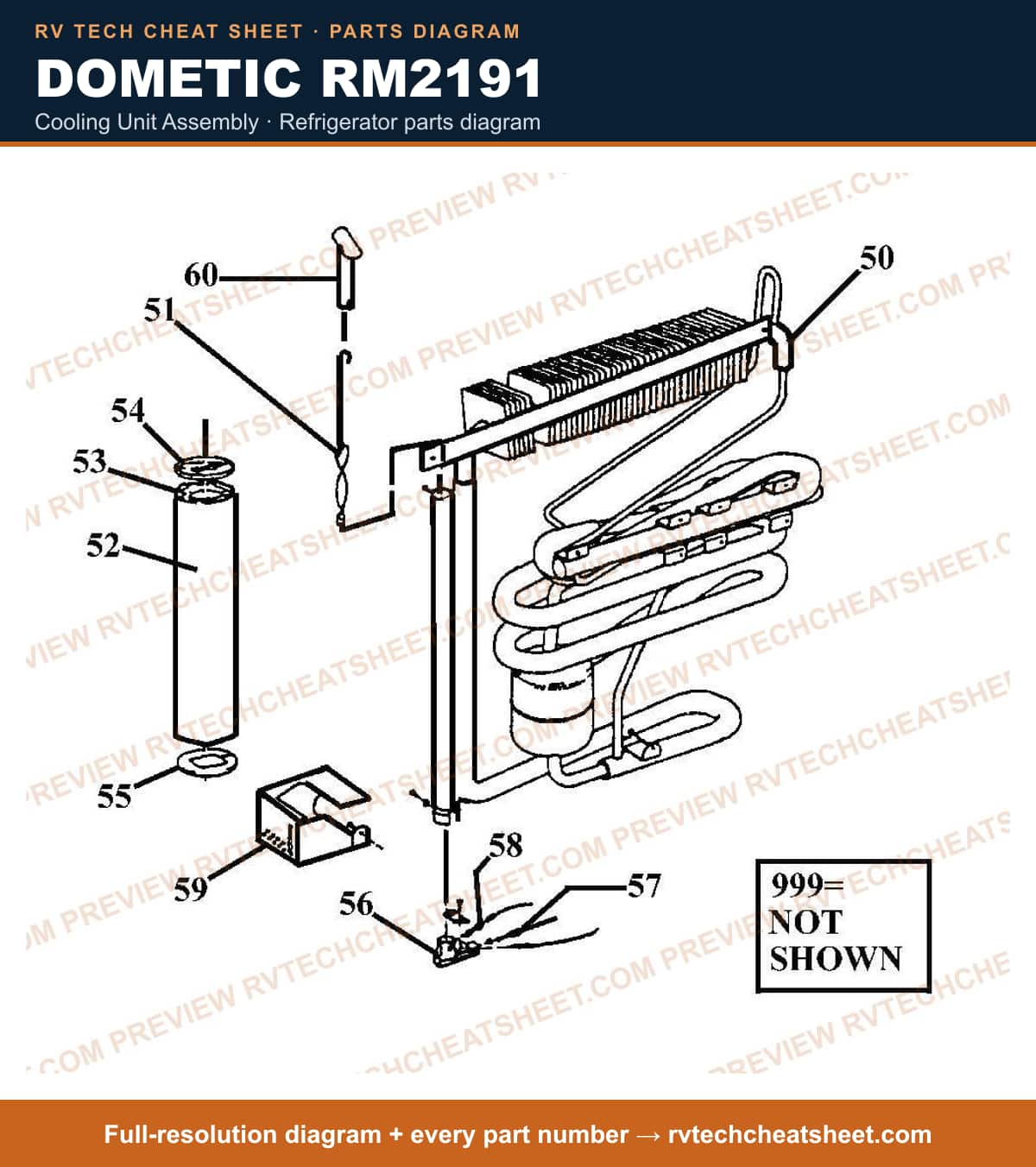

Cooling Unit Assembly

Components

14 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit W/Htr 115W/1 MFR # 2936360003
2. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
3. #TUBE MFR # 2924082205
4. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #LID LOWER BOILER MFR # 2924089002
7. #BURNER ASM USE 2923430207 MFR # 2923430108 Superseded: see description
8. #BURNER ASM USE 2923928408 MFR # 2923430207 Superseded: see description
9. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 2923928408
10. #REFRIG BURNER ORIFICE 45 MFR # 2922033044
11. #Awning-Accessories RV; Electrode Ign RM225X RML8330 MFR # 2923626002
12. #COVER,BURNER USE 2952083000 RM2193 MFR # 2951890009 Superseded: see description
13. #Cover RM22 02 MFR # 2952083000
14. #Appliance Components RV; Tube Exhaust MFR # 2923033308

Replacement Refrigerator

Components

4 items

1. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
2. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description
3. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
4. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description

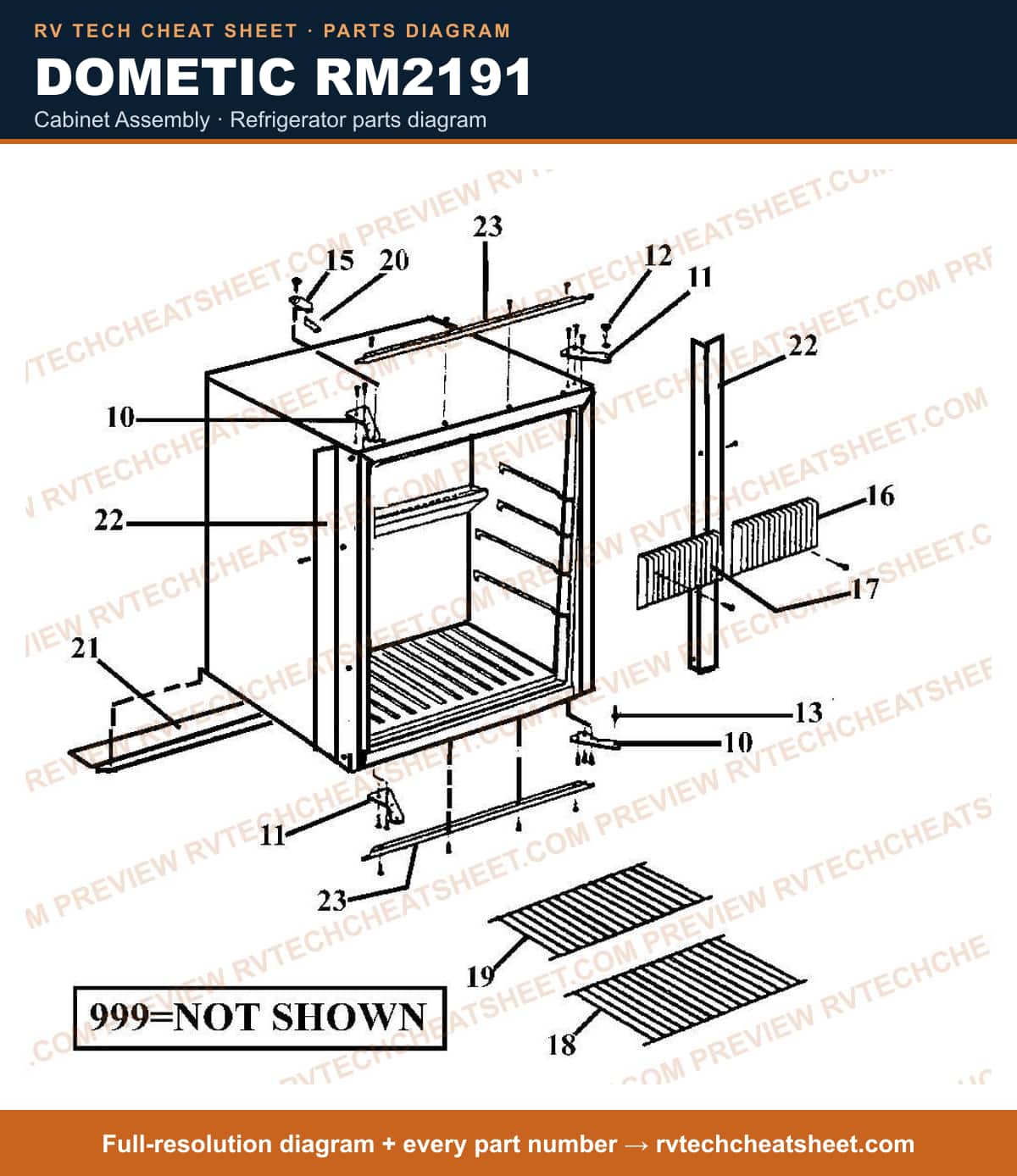

Cabinet Assembly

Components

15 items

1. #HINGE, UPPER LH/LOWER RH MFR # 2951888003
2. #Refrigerator Door Hinge; Replacement For Dometic RM2193 Model Refrigerators; Fits Upper/Bottom Cabinet Side; Upper Right Hand/Lower Left Hand MFR # 2951889001
3. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
4. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
5. #PIN, LOWER HINGE MFR # 2926265006
6. #Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model RM2193 Compact MFR # 2951880000 Superseded: see description
7. #LATCH, TRAVEL USE 2951880000 MFR # 2951964002 Superseded: see description
8. #FIN, RH EVAPORATOR MFR # 2951911003
9. #FIN, LH EVAPORATOR MFR # 2951911102
10. #Refrigerator Shelf; Replacement For Dometic RM2193/ RM2191 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2951892054
11. #Refrigerator Shelf; Use With Dometic RM2191/ RM2193 Refrigerators; Wire Type MFR # 2951891056 Superseded: see description
12. #CATCH, DOOR USE 2951880000 MFR # 2951883004 Superseded: see description
13. #Refrigerator Support Rail; Replacement For Dometic RM2191/ RM2193 Refrigerators; Cabinet Bottom Rail MFR # 2951896006
14. #Refrigerator Trim; Use With Dometic 921130228 Refrigerators; Right hand And Left Hand; 539 Millimeter Height MFR # 2951886007 Superseded: see description
15. #Refrigerator Door Frame; Use With Dometic RM2193 Compact/ RM2191 Refrigerators; Upper And Lower Frame MFR # 2951887005 Superseded: see description

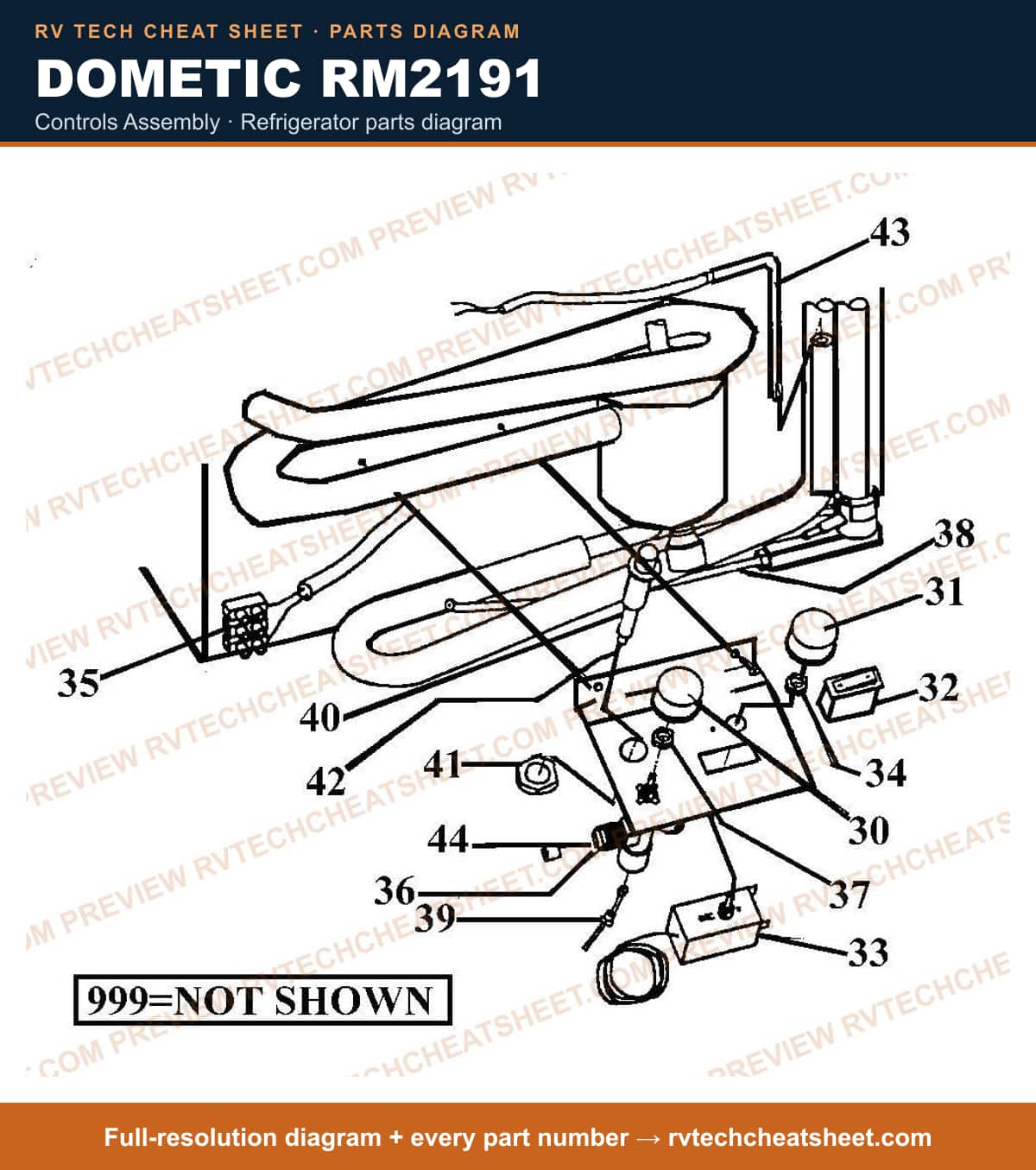

Controls Assembly

Components

22 items

1. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Round MFR # 2923334441 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Knob T-Stat Black/White MFR # 2923468249
3. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
4. #Switch, 12V Use 2951398201 W/O Light Red MFR # 2951398003 Superseded: see description
5. #T-Stat, Electric Use 2926528130 MFR # 2926528031 Superseded: see description
6. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
7. #T-Stat, Elec. Use 2926528106 RM2193 MFR # 2926528130 Superseded: see description
8. #NUT M10 RH25 MFR # 2927881009
9. #Refrigerator Terminal Block; For Dometic RM2193/ RM2202 Model Refrigerator; 3-Pole MFR # 2923466037
10. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 2951955109
11. #VALVE, GAS USE 2951955109 MFR # 2951955000 Superseded: see description
12. #Nut; Use With Dometic Refrigerator RM2193; 12 Inch x 1 Inch MFR # 2923676007 Superseded: see description
13. #Refrigerator Gas Inlet Tube; Use With Dometic RM2193 Compact/ RM2191 Refrigerators MFR # 2951945001 Superseded: see description
14. #THERMOCOUPLE USE 2923435230 MFR # 2923435131 Superseded: see description
15. #LIGHTER,PIEZO MFR # 2923024208
16. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
17. #PIEZO MFR # 2923024109
18. #Nut, Lock MFR # 2927898003
19. #APPLIANCE COMPONENTS RV; LEAD, IGNITER MFR # 2951918040
20. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerators; 12 Volts; 115 Watts MFR # 2951917000 Superseded: see description
21. #Appliance Components RV; Filter, Gas MFR # 2923191007
22. #Appliance Components RV; Filter Use 2923191007 MFR # 2922212010 Superseded: see description

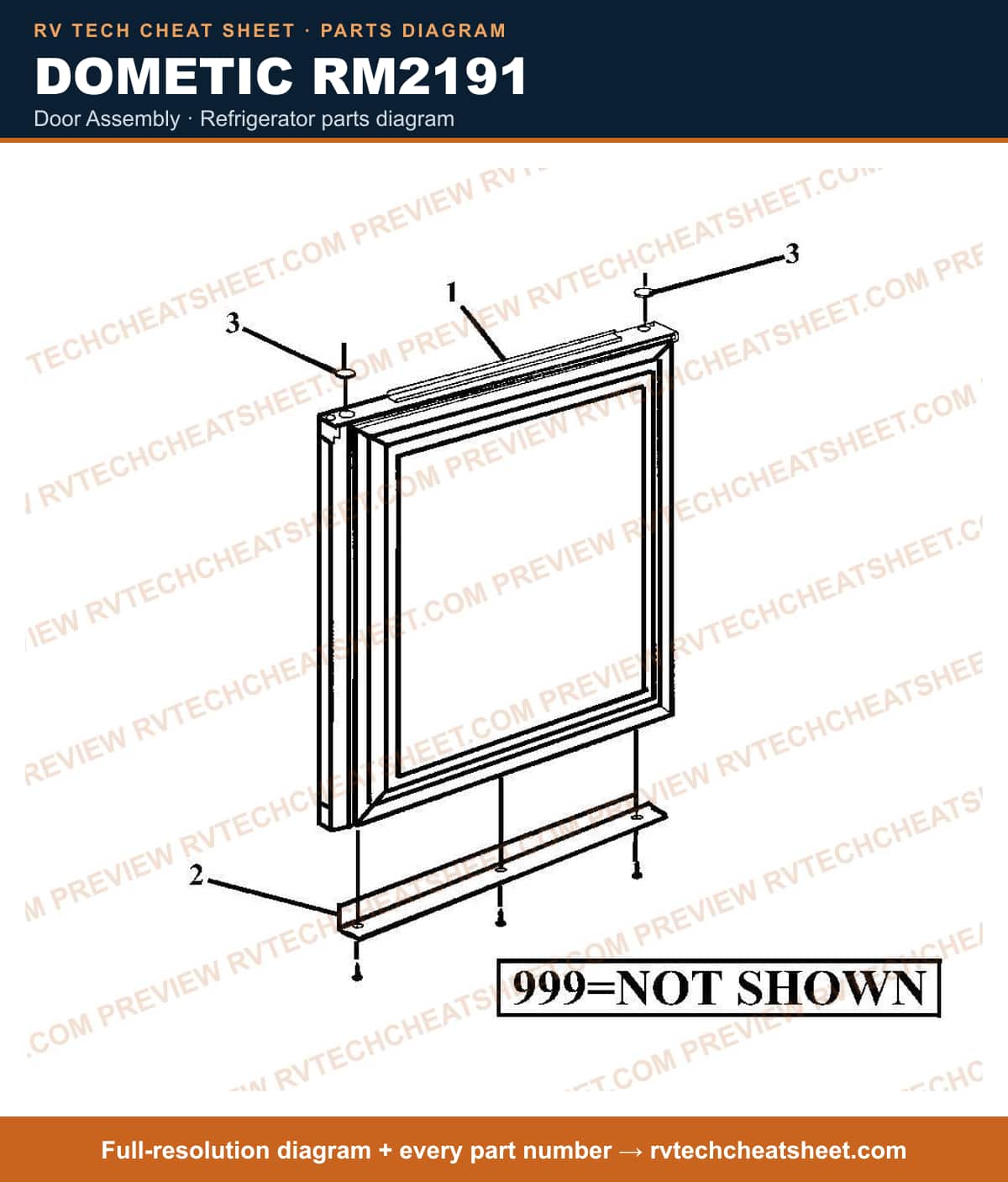

Door Assembly

Components

4 items

1. #DOOR,MAIN USE 2936361001 MFR # 2936361100 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Door Main Refer MFR # 2936361001
3. #Trim, Door Gray/Brown MFR # 2951240106
4. #Refrigerator Trim Hole Plug; Plug; Use With Dometic RM Series Refrigerators; Gray/ Brown MFR # 2951297007 Superseded: see description
