Dometic RM2192 Parts Diagram · Burner Assembly

Refrigerator · 7 assemblies · 7 diagram sheets · 161 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2192 RV refrigerator: 7 assemblies (Burner Assembly, Cabinet Assembly, Replacement Refrigerator, Elec. Htrs. & Connection Cord, Gas-electric Control Assembly and more) and 161 manufacturer part numbers. 33 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Burner Assembly

Components

32 items

1. #BAFFLE FLUE RM21 92 MFR # 339202004
2. #NUT, UNION FEMALE MFR # 2902553003
3. #OLIVE MFR # 173213000D
4. #SEAL,THERMOCOUPLE & IGNITER MFR # 2904463003
5. #NUT, LOCKING MFR # 2902550009
6. #WASHER, LOCK RM12 5 INTERNAL TEETH (JET) MFR # 341747004
7. #PIPE,AIR INLET RM21 92 MFR # 2904542004
8. #SEAL,BURNER BOX MFR # 2902708003
9. #GASKET,BURNER RM 2 192 MFR # 2904454002
10. #ELECTRODE W/WIRE RM21 92 MFR # 2904147028
11. #BRACKET,BURNER MFR # 2904462005
12. #BURNER ASM RM21 90 RM2150 RM2201 MFR # 2903403000
13. #SECURING PLATE FOR BURNER TUBE MFR # 2902548017
14. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
15. #SCREW, TAPTITE, 1/2" NO. 8 MFR # 2904431000
16. #APPLIANCE COMPONENTS RV; Gasket Silicone Rm2192 MFR # 2904425002
17. #SCREW, POZ. PAN HD., 1/4" NO. 6 MFR # 2904602006
18. #BOX,BOTTOM BURNER RM21 92 MFR # 2904415003
19. #SCREW, POZ. PAN HD., L/4" NO. 6 MFR # 158130005D
20. #WASHER,LOCK INT/TOOTH RM21 92 MFR # 2904518004
21. #NUT,LOCK MFR # 2904516008
22. #Refrigerator Burner Box Cover; Replacement For Dometic RM2192 Refrigerators; Cap Only MFR # 2904466006
23. #Refrigerator Drain Tube; Replacement For Dometic RM2192 Refrigerator MFR # 2904517006
24. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
25. #APPLIANCE COMPONENTS RV MFR # 2902551106
26. #T-COUPLE USE 2928742028 2192, MFR # 2902551023 Superseded: see description
27. #THERMOCOUPLE MFR # 2902551023MC
28. #LOCKNUT, T-COUPLE 2201 ,2150 MFR # 2902535000
29. #ORIFICE, BURNER MFR # 2902540059
30. #GROMMET,SIGHT GLASS RM21 92 MFR # 2904522006
31. #Refrigerator Burner Sight Glass; Replacement For Dometic RM2192 Refrigerator MFR # 2904521008
32. #Refrigerator Burner Box Base; Replacement For Dometic RM2192 Refrigerator; Top MFR # 2904415011

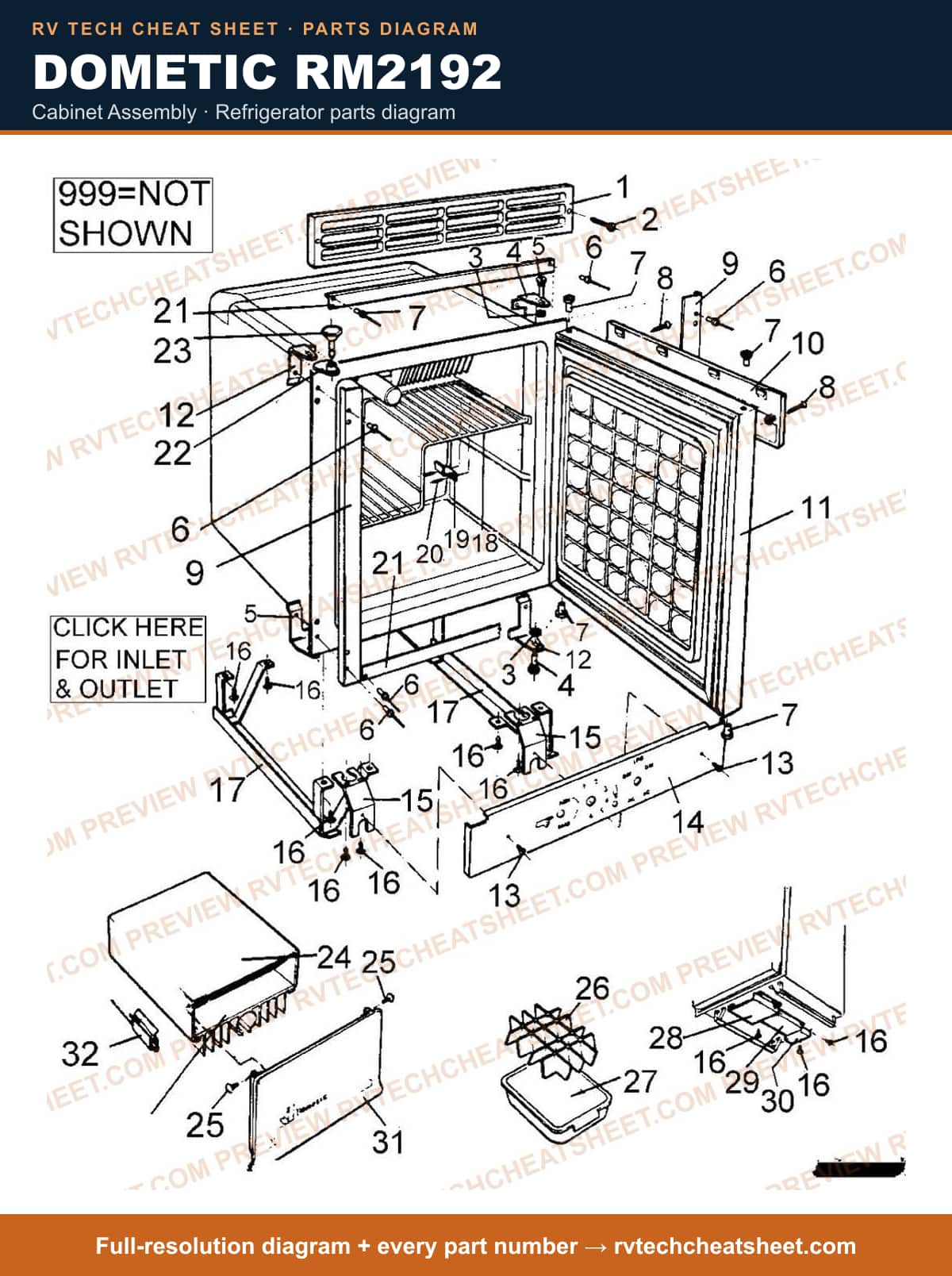

Cabinet Assembly

Components

41 items

1. #GRILLE USE 2900603030 MFR # 2900603032 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Grille Ventrm2192W MFR # 2900603030
3. #SCREW, RD. HD., 3/4" NO. 6 MFR # 290520006
4. #NUT,PIVOT SCREW RM21 50 MFR # 2904096001
5. #PIN,HINGE BLADE RM21 92 MFR # 2903803027
6. #APPLIANCE COMPONENTS RV; Pin Hinge Rm2192 2150 Rb MFR # 2904095003
7. #POP RIVET MFR # 2904005002
8. #APPLIANCE COMPONENTS RV; Bearing Hinge Pin MFR # 2900348034
9. #SCREW MFR # 2903404007
10. #APPLIANCE COMPONENTS RV; Rail Side MFR # 2903802003
11. #PANEL,NAMEPLATE MFR # 2901479002
12. #DOOR, MAIN USE 2903364053 MFR # 2903364004 Superseded: see description
13. #DOOR, MAIN; IS A USE # FOR 2903364095 MFR # 2903364053 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Blade Hinge Rb2195 MFR # 2903803035
15. #SCREW, POS. PAN, 3/4" NO. 4 MFR # 2903996003
16. #APPLIANCE COMPONENTS RV; Panel Faciarm2192 MFR # 2904432002
17. #APPLIANCE COMPONENTS RV; Bracket Rm2192 MFR # 2904441004
18. #SCREW POSI-PAN MFR # 340484005
19. #SLEIGH,COMPLETE RM2192 MFR # 2904523004
20. #SHELF MFR # 2904491046
21. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
22. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
23. #PIN,RETAINING MFR # 2001281019
24. #APPLIANCE COMPONENTS RV; Rail Top & Bottom Rm2190 MFR # 2903801005
25. #APPLIANCE COMPONENTS RV; Retainer Travel Catch MFR # 2904047012
26. #APPLIANCE COMPONENTS RV; Pin Locking MFR # 2901509022
27. #CHAMBER,COLD MFR # 2904396005
28. #PIN,HINGE USE 2904095003 MFR # 2902497003 Superseded: see description
29. #TRAY,ICE CUBE USE 2904416001 MFR # 342304003 Superseded: see description
30. #USE 342108000 DIVIDER FOR ICE TRAY MFR # 342108000D Superseded: see description
31. #DIVIDER,ICETRAY USE 2904416001 MFR # 342108000 Superseded: see description
32. #Refrigerator Slide Tray; Use With Dometic RM2190/ RM2192 Refrigerators; With Divider MFR # 2904416001 Superseded: see description
33. #TRAY,ICE USE 342304003 MFR # 342107000 Superseded: see description
34. #COVER MFR # 2904429004
35. #Wire Junction Box Cover Plate; Use With Dometic RM2192 Refrigerator MFR # 2904427008 Superseded: see description
36. #Refrigerator Terminal Block; Replacement For Dometic RM2192 Refrigerators; Cover Only MFR # 2904428006
37. #APPLIANCE COMPONENTS RV; Door Cold Chamber Rm 2 MFR # 2904920010
38. #DOOR USE 2904920010 MFR # 2904360019 Superseded: see description
39. #CLAMP, CAP TUBE 2201 MFR # 2901604005
40. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model RM2192; 26 Inch Length MFR # 2904587009 Superseded: see description
41. #TUBE,OUTLET MFR # 2904556002

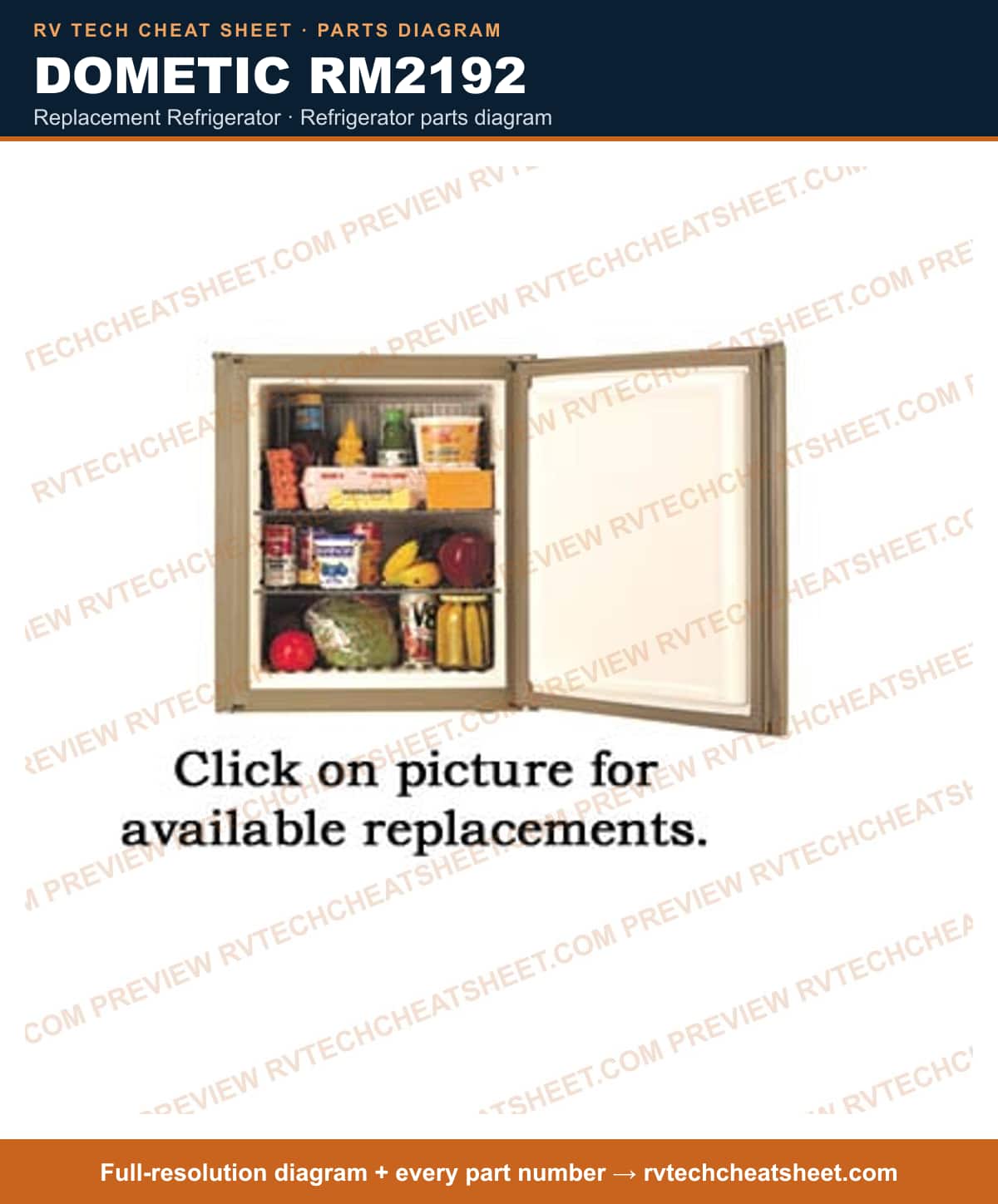

Replacement Refrigerator

Components

3 items

1. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
2. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
3. #REFER NEW 3-WAY USE RM2193N 24 1/4 X 17 3/4 X 20 3/4 MFR # RM2192N Superseded: see description

Elec. Htrs. & Connection Cord

Components

15 items

1. #SLEEVE FOR HEATER LEADS MFR # 340197086
2. #PLASTIC TIE MFR # 2904306004
3. #ELEMENT, HEATING 95W 12V 3/8" DIA 4-1/2 LONG 8 AMPS MFR # 2902192125
4. #ELEMENT, HEATING 95W 120V 3/8 DIA 4-1/4 LONG L SHAPE ELEMENT 152 OHMS & .79 AMPS MFR # 2903296024
5. #STRAP FOR BROILER INSULATION RM2190, RM190 MFR # 2903774004
6. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
7. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
8. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
9. #PLUG W/CORD USE 2002699037 MFR # 2002699003 Superseded: see description
10. #GROMMET, FOR HEATER LEADS MFR # 2904465008
11. #SCREW MFR # 341733004
12. #CORD CLAMP MFR # 2903104004
13. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2150/ RM2190/ RM2192/ RM2201 Model Refrigerator MFR # 2901431003
14. #BLOCK,TERMINAL 9-WAY RM21 92 MFR # 2904430002
15. #INSULATION,BOILER MFR # 2903934004

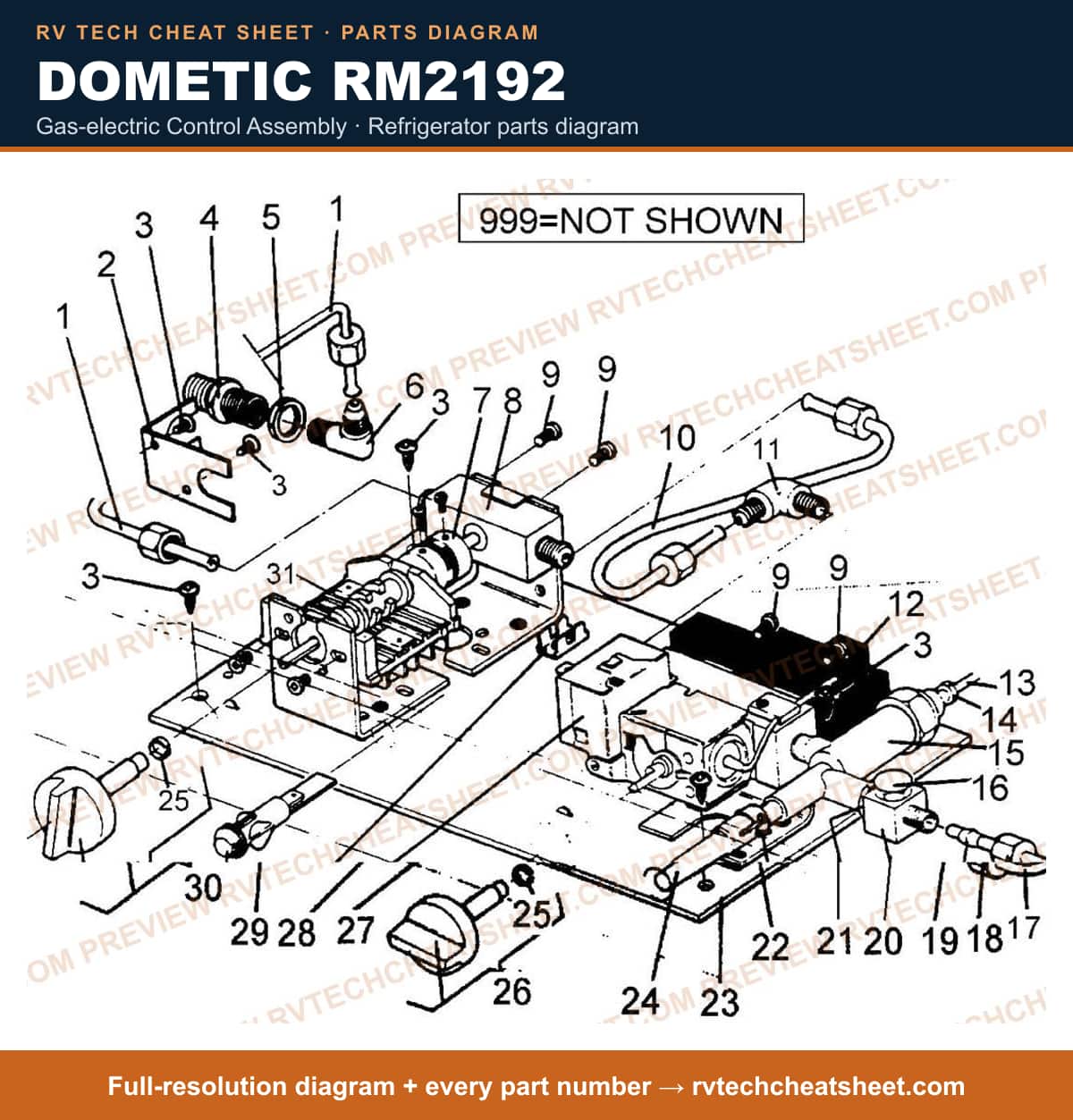

Gas-electric Control Assembly

Components

41 items

1. #PIPE,GAS INLET 3/16" FLAREF/3/8" MFR # 2904451008
2. #BRACKET MFR # 2904441017
3. #SCREW POSI-PAN MFR # 340484005
4. #INLET ADAPTOR MFR # 2902784004
5. #NUT, LOCKING MFR # 2902783006
6. #ADAPTER, ELBOW MFR # 2902686001
7. #COUPLING,UNIVERSAL MFR # 2904445009
8. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 2904452006
9. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
10. #PIPE,GAS CONN. MFR # 2904450000
11. #APPLIANCE COMPONENTS RV; Adapter Elbow MFR # 2904601008
12. #DOMETIC REIGNITOR RM1303 MFR # 2931132019
13. #Refrigerator Reigniter Board; Fits Dometic Refrigerator Models RM1272/ RM1301/ RM1303/ RM2192/ RM2500/ RM2510/ RM2552/ RM2553/ RM2600/ RM2601/ RM2602/ RM2603/ RM2604/ RM2607/ RM2610/ RM2611/ RM2612/ RM2620/ RM2652/ RM2800/ RM2801/ RM2803/ RM2804/ RM2807/ RM2810/ RM2811/ RM2812/ RM2820/ RM2852/ RM3500/ RM3501/ RM3600/ RM3601/ RM3604/ RM3607/ RM3662/ RM3663/ RM3800/ RM3801/ RM3804/ RM3807/ RM3862/ RM3863/ RM4801/ RM4804/ RM4872/ RM4873/ RM661/ RM663/ RM7030/ RM7130 MFR # 2931132019MC
14. #IGNITER USE 7679100003 MFR # 2904136005 Superseded: see description
15. #IGNITER USE 2931132019 MFR # 7679100003 Superseded: see description
16. #Refrigerator Reigniter Board; Use With Dometic Models With Separate Reignitor Board MFR # REIGNITOR MODULE Superseded: see description
17. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
18. #T-COUPLE USE 2928742028 2192, MFR # 2902551023 Superseded: see description
19. #APPLIANCE COMPONENTS RV MFR # 2902551106
20. #THERMOCOUPLE MFR # 2902551023MC
21. #LOCKNUT, T-COUPLE 2201 ,2150 MFR # 2902535000
22. #VALVE MFR # 2904991003
23. #VALVE USE 2904991003 MFR # 2903955009 Superseded: see description
24. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
25. #PIPE,GAS RM21 92 MFR # 2904449002
26. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
27. #OLIVE MFR # 173213000D
28. #HOUSING FOR PLUG SCREW MFR # 173214008D
29. #LOCK NUT MFR # 173366006D
30. #LIP REPLACE W/COMPLETE KNOB MFR # 2903768006
31. #PLATE,EQUIPMENT COMPL RM21 92 MFR # 2904444003
32. #BUTTON,PUSH RM21 92 MFR # 2903769004
33. #CLIP,CONTROL KNOB RM21 92, RB2195 MFR # 2900686003
34. #KNOB,T-STAT MFR # 2903530083
35. #KNOB,T-STAT USE 2903530083 MFR # 2903530075 Superseded: see description
36. #Dometic RM2652 Refrigerator Ignitor Electrode Assembly MFR # 2007199025
37. #POST,EARTH 4-WAY MFR # 2904455009
38. #LIGHT,INDICATOR MFR # 2903722011
39. #KNOB,CONTROL USE 2903530109 MFR # 2903530091 Superseded: see description
40. #KNOB,CONTROL MFR # 2903530109
41. #SWITCH,SELECT ELEC. MFR # 2904453000

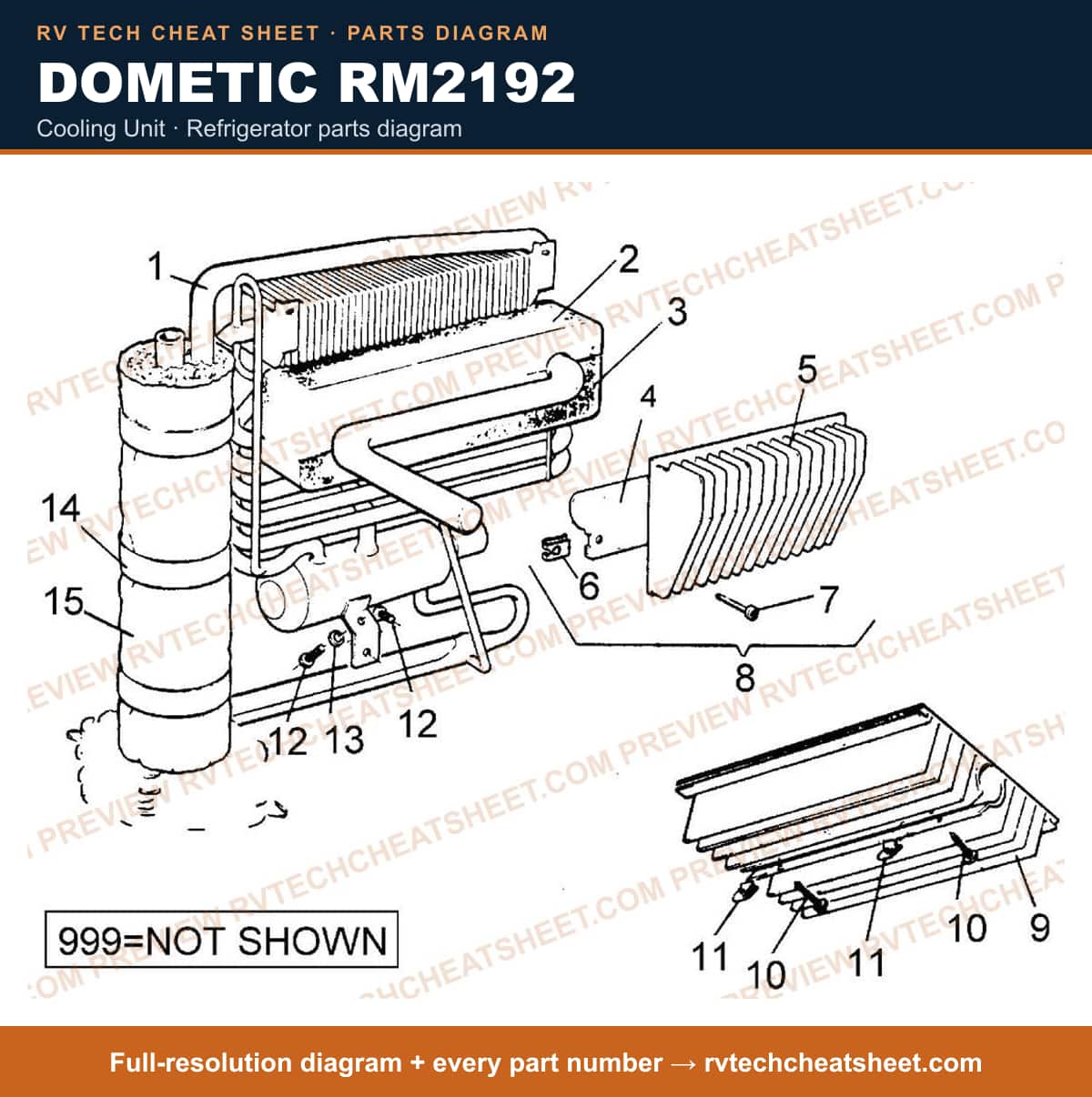

Cooling Unit

Components

17 items

1. #REMAN COOLING UNIT (UPS) RM2192 MFR # 2904433006R
2. #COOLING UNIT MFR # 2904433006N
3. #INSULATION,WINDOW UPPER RM21 92 MFR # 2904357007
4. #Refrigerator Insulation; Use With Dometic RM2192 Refrigerator; Lower MFR # 2904358005 Superseded: see description
5. #CLAMP,EVAP FIN MFR # 2904394000
6. #Refrigerator Cooling Unit Heat Deflector; Replacement For Dometic RM2150/ RM2190/ RM2192 Refrigerators MFR # 2904330004
7. #CAPTIVE NUT MFR # 2904359003
8. #SCREW, POZ. PAN HD., 1" NO. 8 MFR # 7295348010
9. #FINS,COMPLETE EVAPORATOR RM2192 MFR # 2904395007
10. #SHELF,EVAPORATOR MFR # 2904397003
11. #SCREW 6 X 8.8 MFR # 2903649008
12. #Nut; Replacement For Dometic RB2192 Refrigerator MFR # 2903205009
13. #SCREW, TAPTITE, 1/2" NO. 8 MFR # 341873016
14. #LOCKWASHER, INTERNAL TOOTH, 5/32" MFR # 291511004
15. #STRAP FOR BROILER INSULATION RM2190, RM190 MFR # 2903774004
16. #INSULATION,BOILER MFR # 2903934004
17. #Refrigerator Support Rail; Use With Dometic Refrigerator Model RM2192 MFR # 2900246048 Superseded: see description

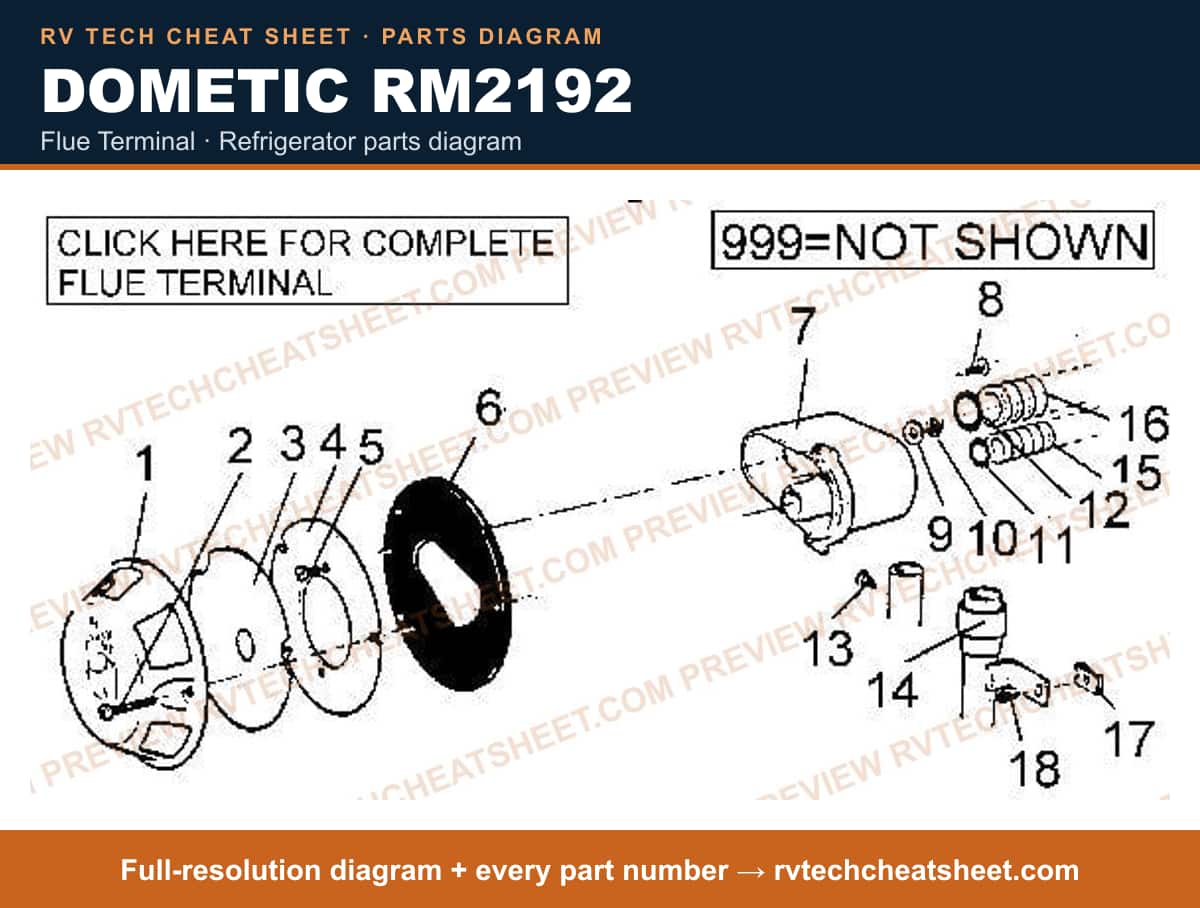

Flue Terminal

Components

23 items

1. #COVER,OUTER USE 2929380000 MFR # 2902749007 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Cover RM182 MFR # 2929380000
3. #SCREW 6 X 1 1/4 POZIPAN MFR # 7295289404
4. #DISC SEPARATOR RM21 92 MFR # 2902752001
5. #PLATE,LOCATING USE 2929381008 RM2192 MFR # 2902751003 Superseded: see description
6. #APPLIANCE COMPONENTS RV; Slide RM182 MFR # 2929381008
7. #SCREW, POZ. ROUND HD., M4X8 MFR # 341624005D
8. #GASKET,WALL USE 2929456008 VENT MFR # 2904603004 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Gasket Wall Ventrm182/219 MFR # 2929456008
10. #CASTING,FLUE USE 2929379002 RM2192 MFR # 2902750005 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Housing Exhaust MFR # 2929379002
12. #SCREW, POZ. PAN 1/2" NO. LO MFR # 338804008
13. #WASHER,RETAINER MFR # 2902875000
14. #LOCKWASHER, 3/16", INTERNAL TOOTH MFR # 290660000
15. #O-RING,EXHAUST USE 2929384010 MFR # 2904588007 Superseded: see description
16. #Refrigerator Vent O-Ring MFR # 2929384010
17. #APPLIANCE COMPONENTS RV; O-Ring Inlet MFR # 2904588015
18. #Screw; Replacement For Dometic RM2192 Model Refrigerator; Fits Flue Terminal MFR # 2900930005
19. #SLEEVE,LARGE RUBBER RM21 5 MFR # 2902769005
20. #TUBE,OUTLET MFR # 2904556002
21. #Refrigerator Drain Tube; Use With Dometic Refrigerator Model RM2192; 26 Inch Length MFR # 2904587009 Superseded: see description
22. #CAPTIVE NUT MFR # 291420024D
23. #SCREW, POZ. PAN HD., 3/8" NO. 6 MFR # 291419000
