Dometic RM2193 Compact Product # 921131009 Parts Diagram · Cooling Unit

Refrigerator · 5 assemblies · 5 diagram sheets · 72 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2193 Compact Product # 921131009 RV refrigerator: 5 assemblies (Cooling Unit, Cabinet, Replacement Refrigerator, Controls, Door) and 72 manufacturer part numbers. 29 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

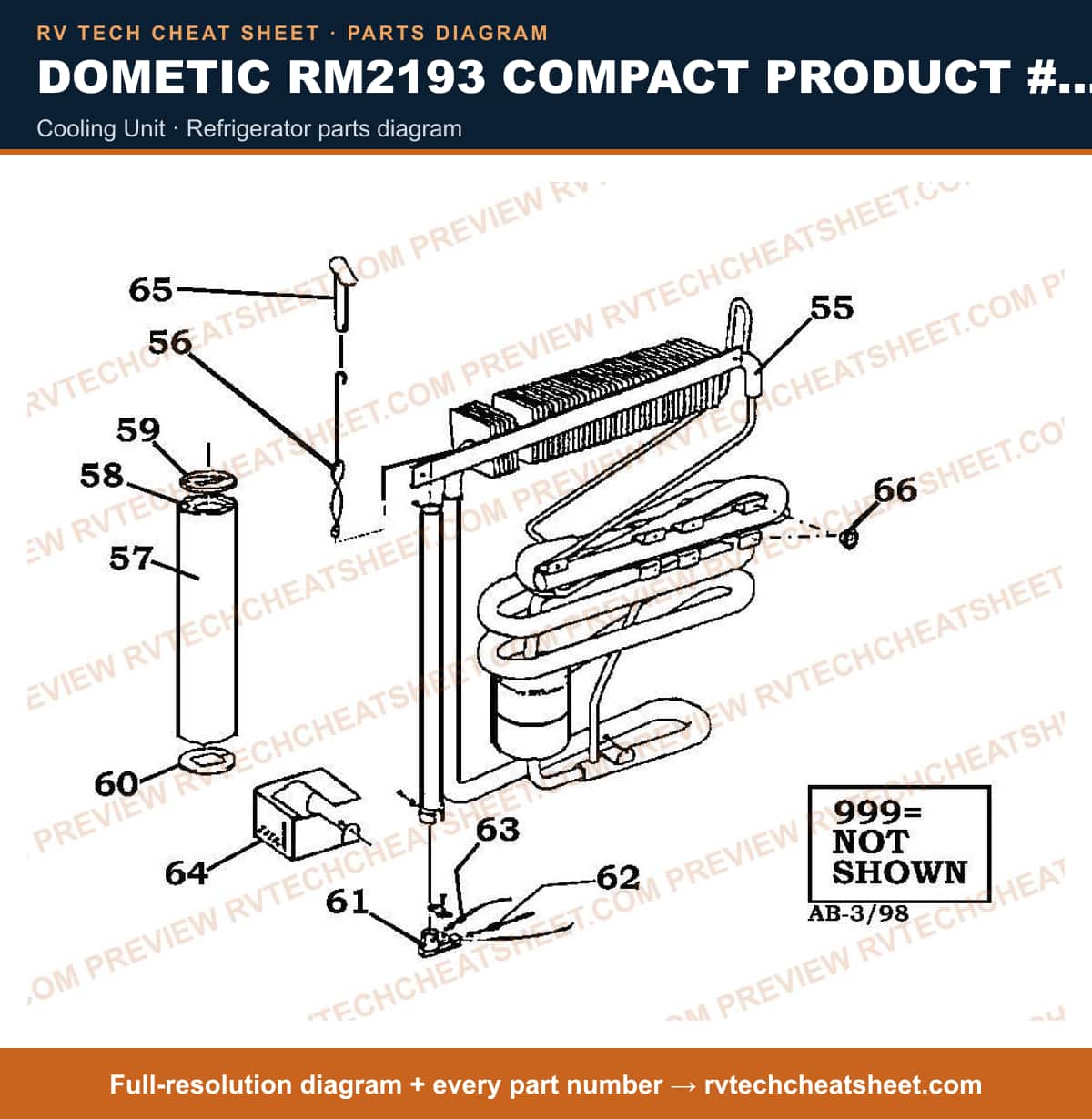

Cooling Unit

Components

15 items

1. #Cooling Unit; Use With 2936360110N W/ Heater 115W MFR # 2936360102N Superseded: see description
2. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model RM2193 Compact MFR # 2936360110N Superseded: see description
3. #Appliance Components RV; Helix Complete MFR # 2926212206
4. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
5. #TUBE MFR # 2924082205
6. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
7. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
8. #LID LOWER BOILER MFR # 2924089002
9. #BURNER ASM USE 2923430207 MFR # 2923430108 Superseded: see description
10. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 2923928408
11. #BURNER ASM USE 2923928408 MFR # 2923430207 Superseded: see description
12. #REFRIG BURNER ORIFICE 45 MFR # 2922033044
13. #Awning-Accessories RV; Electrode Ign RM225X RML8330 MFR # 2923626002
14. #Cover RM22 02 MFR # 2952083000
15. #Appliance Components RV; Tube Exhaust MFR # 2923033308

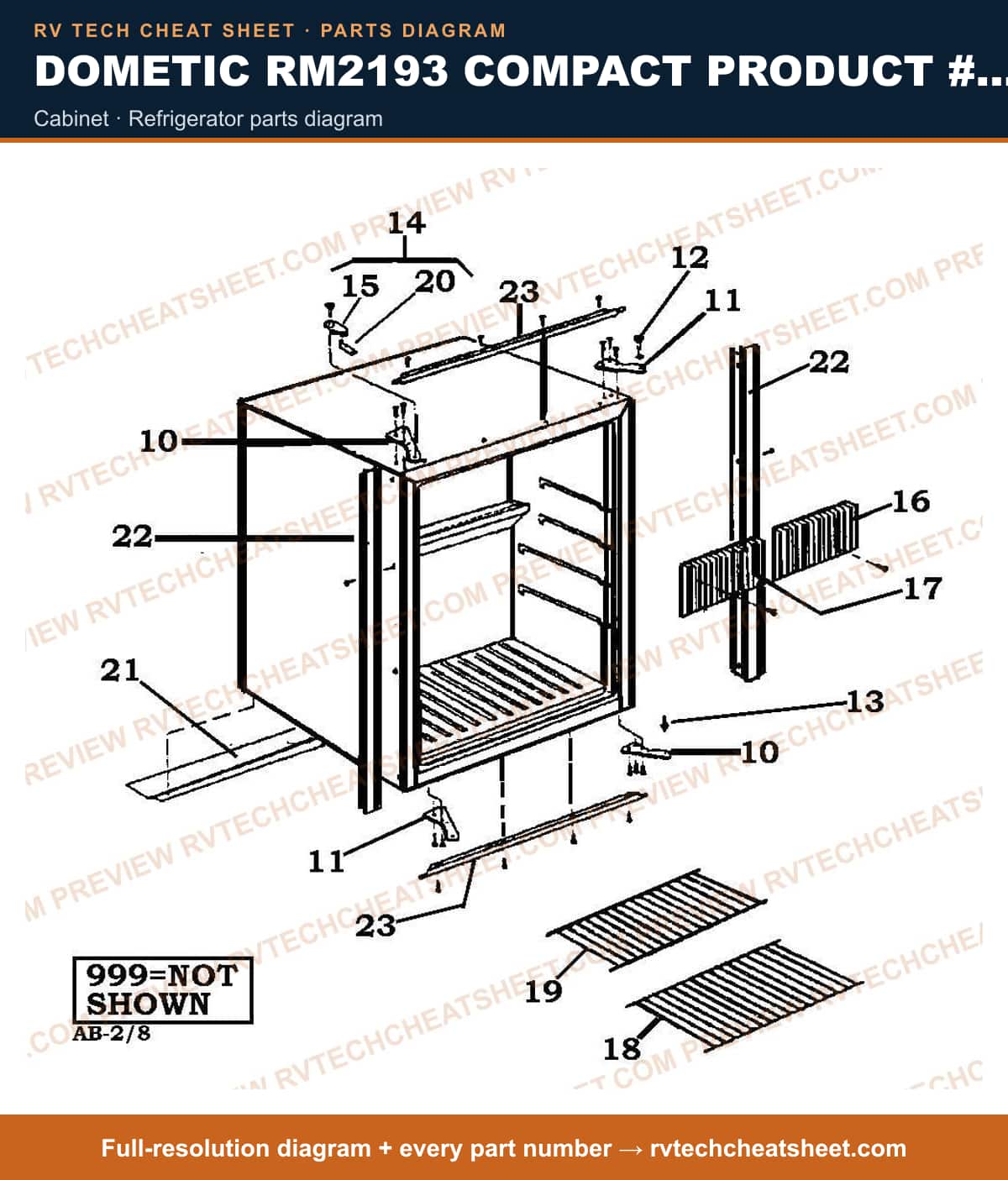

Cabinet

Components

14 items

1. #HINGE, UPPER LH/LOWER RH MFR # 2951888003
2. #Refrigerator Door Hinge; Replacement For Dometic RM2193 Model Refrigerators; Fits Upper/Bottom Cabinet Side; Upper Right Hand/Lower Left Hand MFR # 2951889001
3. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
4. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
5. #PIN, LOWER HINGE MFR # 2926265006
6. #Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model RM2193 Compact MFR # 2951880000 Superseded: see description
7. #FIN, RH EVAPORATOR MFR # 2951911003
8. #FIN, LH EVAPORATOR MFR # 2951911102
9. #Refrigerator Shelf; Replacement For Dometic RM2193/ RM2191 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2951892054
10. #Refrigerator Shelf; Use With Dometic RM2191/ RM2193 Refrigerators; Wire Type MFR # 2951891056 Superseded: see description
11. #CATCH, DOOR USE 2951880000 MFR # 2951883004 Superseded: see description
12. #Refrigerator Support Rail; Replacement For Dometic RM2191/ RM2193 Refrigerators; Cabinet Bottom Rail MFR # 2951896006
13. #Refrigerator Trim; Use With Dometic 921130228 Refrigerators; Right hand And Left Hand; 539 Millimeter Height MFR # 2951886007 Superseded: see description
14. #Refrigerator Door Frame; Use With Dometic RM2193 Compact/ RM2191 Refrigerators; Upper And Lower Frame MFR # 2951887005 Superseded: see description

Replacement Refrigerator

Components

4 items

1. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description
2. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
3. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
4. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB

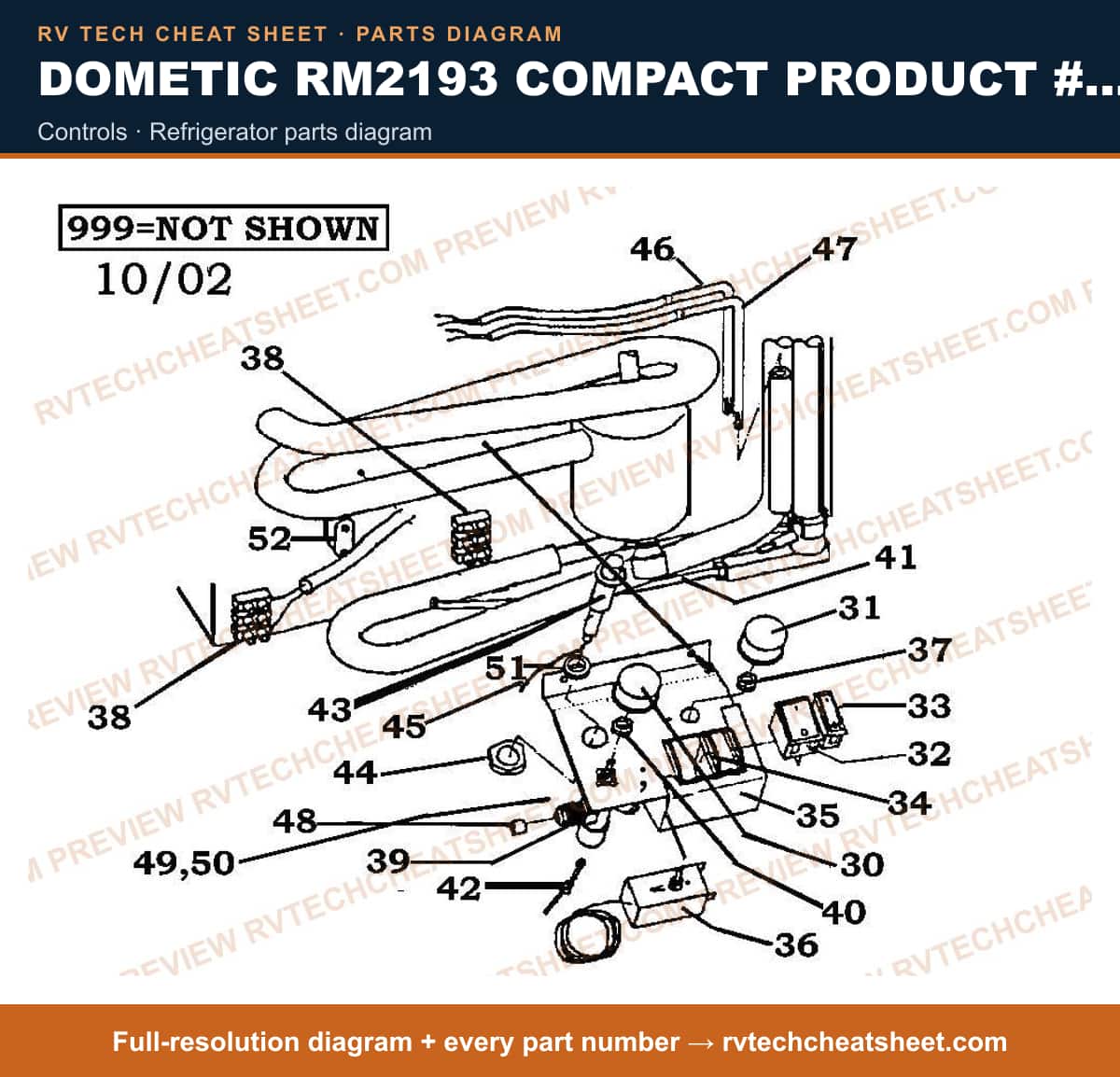

Controls

Components

31 items

1. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Round MFR # 2923334441 Superseded: see description
2. #Appliance Components RV; Knob, T-Stat Brown/White MFR # 2923468348
3. #Appliance Components RV; Switch W/O Light 120V MFR # 2951433107
4. #Switch, 12V Use 2951398201 W/O Light Red MFR # 2951398003 Superseded: see description
5. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
6. #Switch Plate Cover Mounting Bracket; Use With Dometic Refrigerator RM4223; 2 Openings; Gray/ Brown MFR # 2923815134 Superseded: see description
7. #Frame, Switch Use 2923815134 MFR # 2923815035 Superseded: see description
8. #Electrical Box; Use With Dometic RM4223 Series Refrigerator; Multi Purpose Box MFR # 2952005003 Superseded: see description
9. #Cover; Use 2952005003 Electrical Connections MFR # 2952005011 Superseded: see description
10. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
11. #NUT M10 RH25 MFR # 2927881009
12. #Refrigerator Terminal Block; For Dometic RM2193/ RM2202 Model Refrigerator; 3-Pole MFR # 2923466037
13. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 2951955109
15. #Nut; Use With Dometic Refrigerator RM2193; 12 Inch x 1 Inch MFR # 2923676007 Superseded: see description
16. #Refrigerator Gas Inlet Tube; Use With Dometic RM2193 Compact/ RM2191 Refrigerators MFR # 2951945001 Superseded: see description
17. #THERMOCOUPLE USE 2923435230 MFR # 2923435131 Superseded: see description
18. #PIEZO MFR # 2923024109
19. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
20. #LIGHTER,PIEZO MFR # 2923024208
21. #Nut, Lock MFR # 2927898003
22. #APPLIANCE COMPONENTS RV; LEAD, IGNITER MFR # 2951918040
23. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerators; 12 Volts; 115 Watts MFR # 2951917000 Superseded: see description
24. #Element Heating 110V 115W 8" Long 3/8" Diameter; Suggested Alternate for Dometic: CH000361 MFR # 2951996012
25. #ELEMENT, HEATING 110V 115W 8" LONG 3/8" DIAM MFR # CH000361
26. #ELEMENT HEATING USE 46-1379 120V 115W MFR # 2951996004 Superseded: see description
27. #Appliance Components RV; Filter, Gas MFR # 2923191007
28. #Appliance Components RV; Filter Use 2923191007 MFR # 2922212010 Superseded: see description
29. #Panel, Control MFR # 2951893102
30. #Appliance Components RV; Plate Control MFR # 2951900105
31. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000

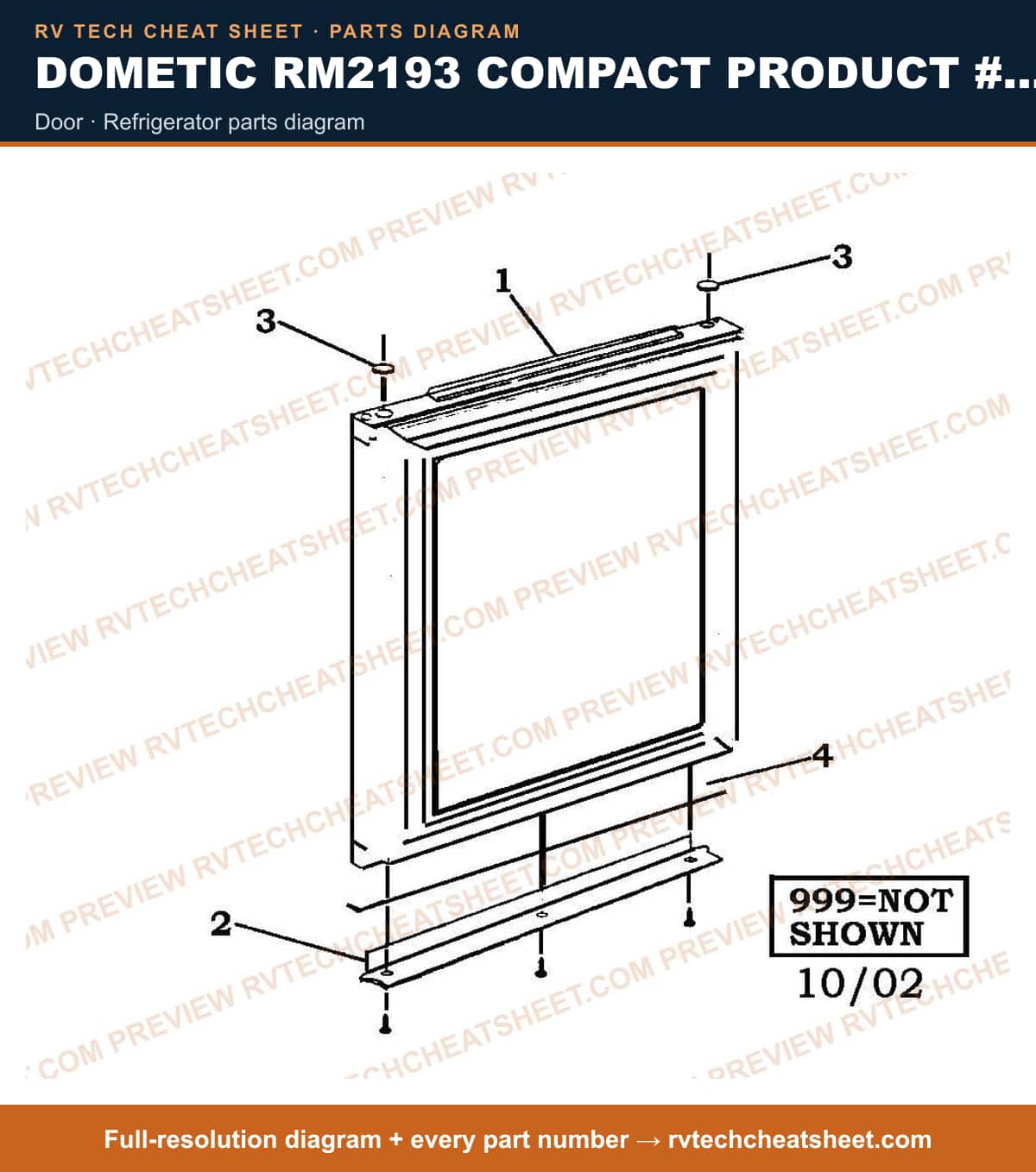

Door

Components

8 items

1. #DOOR,MAIN USE 2936361001 MFR # 2936361100 Superseded: see description
2. #Panel, Door Woodgrain For RM2193 MFR # 3106863099B
3. #Panel, Door Woodgrain One Panel 19-3/4" x 17-27/32" MFR # RM2193G
4. #APPLIANCE COMPONENTS RV; Door Main Refer MFR # 2936361001
5. #Panel, Door Black Acrylic For RM2193 MFR # 3106863099C
6. #Trim, Door Gray/Brown MFR # 2951240106
7. #Refrigerator Trim Hole Plug; Plug; Use With Dometic RM Series Refrigerators; Gray/ Brown MFR # 2951297007 Superseded: see description
8. #Panels, Door Black Plexiglass One Panel 19-3/4" x 17-27/32" MFR # RM2193L
