Dometic RM2193 Compact Product # 921131017 Parts Diagram · Cabinet

Refrigerator · 5 assemblies · 5 diagram sheets · 66 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2193 Compact Product # 921131017 RV refrigerator: 5 assemblies (Cabinet, Replacement Refrigerator, Cooling Unit, Controls, Door) and 66 manufacturer part numbers. 23 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

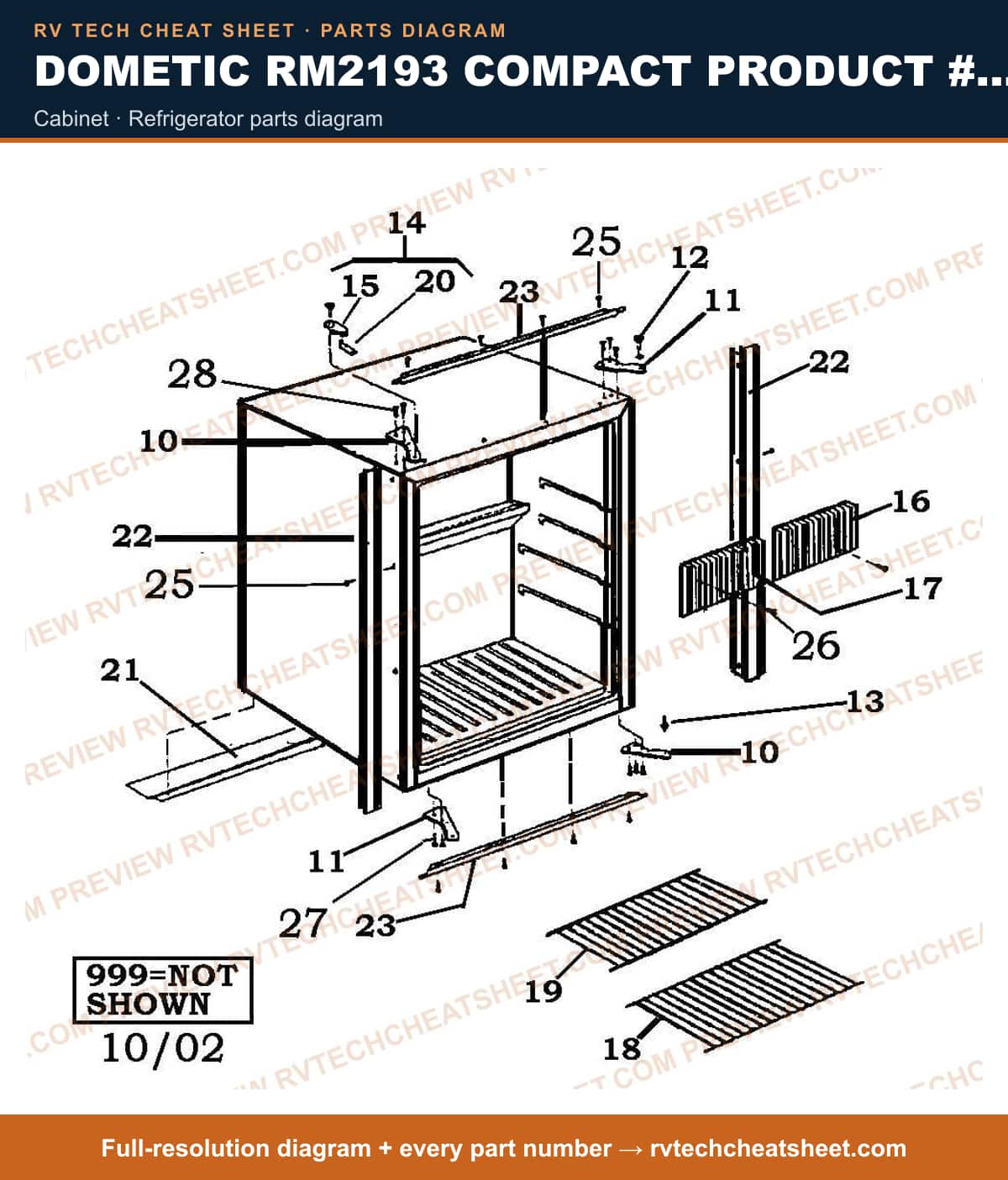

Cabinet

Components

18 items

1. #HINGE, UPPER LH/LOWER RH MFR # 2951888003
2. #Refrigerator Door Hinge; Replacement For Dometic RM2193 Model Refrigerators; Fits Upper/Bottom Cabinet Side; Upper Right Hand/Lower Left Hand MFR # 2951889001
3. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
4. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
5. #PIN, LOWER HINGE MFR # 2926265006
6. #Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model RM2193 Compact MFR # 2951880000 Superseded: see description
7. #LATCH, BROWN USE 2951880000 MFR # 2951964101 Superseded: see description
8. #FIN, RH EVAPORATOR MFR # 2951911003
9. #FIN, LH EVAPORATOR MFR # 2951911102
10. #Refrigerator Shelf; Replacement For Dometic RM2193/ RM2191 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2951892054
11. #Refrigerator Shelf; Use With Dometic RM2191/ RM2193 Refrigerators; Wire Type MFR # 2951891056 Superseded: see description
12. #CATCH, DOOR USE 2951880000 MFR # 2951883004 Superseded: see description
13. #Refrigerator Support Rail; Replacement For Dometic RM2191/ RM2193 Refrigerators; Cabinet Bottom Rail MFR # 2951896006
14. #Refrigerator Trim; Use With Dometic 921130228 Refrigerators; Right hand And Left Hand; 539 Millimeter Height MFR # 2951886007 Superseded: see description
15. #Refrigerator Door Frame; Use With Dometic RM2193 Compact/ RM2191 Refrigerators; Upper And Lower Frame MFR # 2951887005 Superseded: see description
16. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
17. #SCREW, SHEET METAL MFR # 2951230008
18. #SCREW, COUNTERSINK MFR # 2924417021

Replacement Refrigerator

Components

4 items

1. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
2. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description
3. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
4. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB

Cooling Unit

Components

15 items

1. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model RM2193 Compact MFR # 2936360110N Superseded: see description
2. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
3. #TUBE MFR # 2924082205
4. #INSULATION, BOILER MFR # 2926680139
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #LID LOWER BOILER MFR # 2924089002
7. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 2923928408
8. #BURNER ASM USE 2923928408 MFR # 2923430207 Superseded: see description
9. #REFRIG BURNER ORIFICE 45 MFR # 2922033044
10. #Awning-Accessories RV; Electrode Ign RM225X RML8330 MFR # 2923626002
11. #Cover RM22 02 MFR # 2952083000
12. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
13. #SCREW MFR # 2952435408
14. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
15. #NUT, INSERT MFR # 2106626100

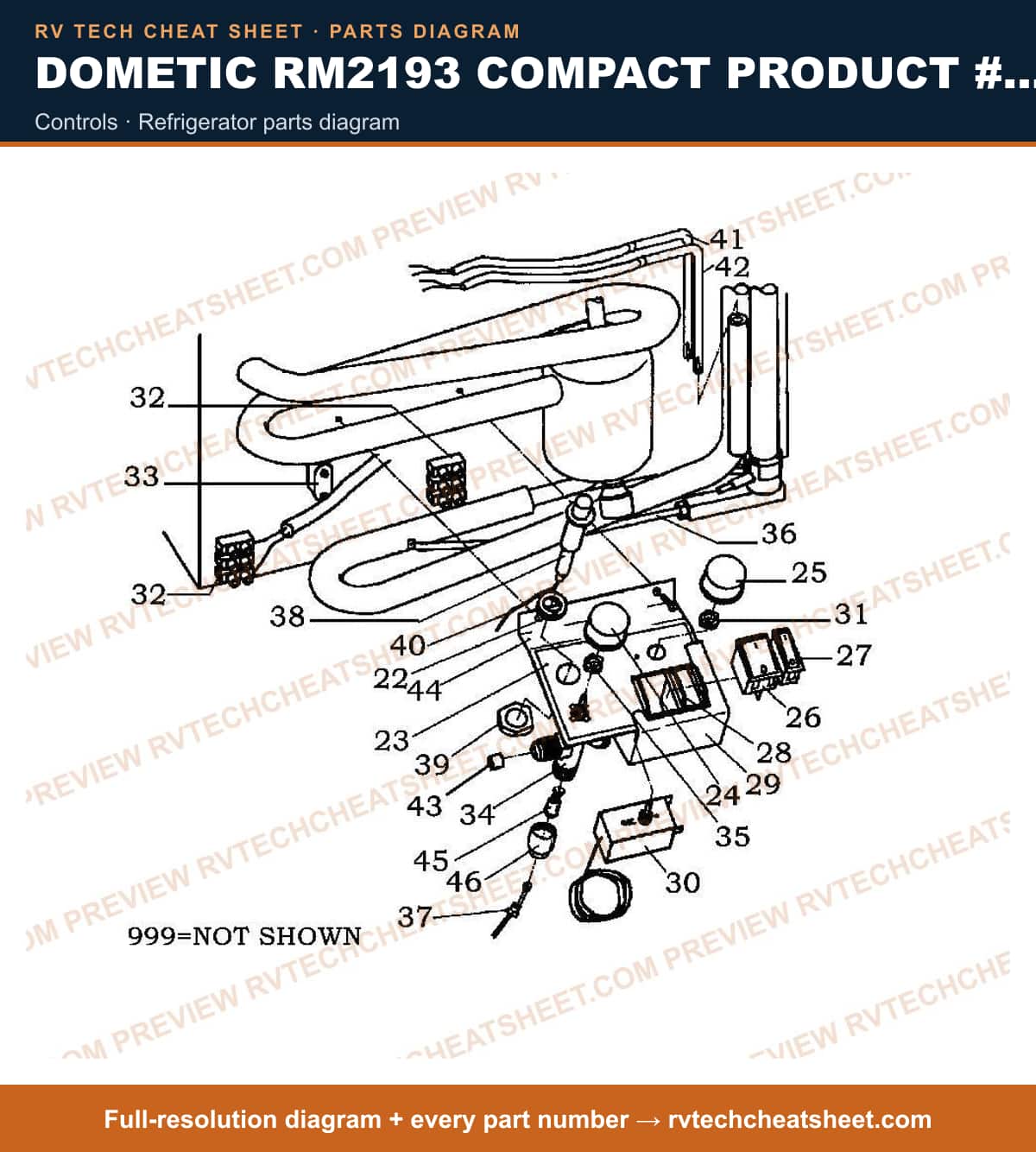

Controls

Components

25 items

1. #SPACER WASHER MFR # 2952193007
2. #Panel, Control MFR # 2951893102
3. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Round MFR # 2923334441 Superseded: see description
4. #Appliance Components RV; Knob, T-Stat Brown/White MFR # 2923468348
5. #Appliance Components RV; Switch W/O Light 120V MFR # 2951433107
6. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
7. #Switch Plate Cover Mounting Bracket; Use With Dometic Refrigerator RM4223; 2 Openings; Gray/ Brown MFR # 2923815134 Superseded: see description
8. #Electrical Box; Use With Dometic RM4223 Series Refrigerator; Multi Purpose Box MFR # 2952005003 Superseded: see description
9. #T-Stat, Elec. Use 2926528106 RM2193 MFR # 2926528130 Superseded: see description
10. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
11. #NUT M10 RH25 MFR # 2927881009
12. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
14. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 2951955109
15. #Nut; Use With Dometic Refrigerator RM2193; 12 Inch x 1 Inch MFR # 2923676007 Superseded: see description
16. #Refrigerator Gas Inlet Tube; Use With Dometic RM2193 Compact/ RM2191 Refrigerators MFR # 2951945001 Superseded: see description
17. #APPLIANCE COMPONENTS RV; THERMOCOUPLE 450MM MFR # 2923435230
18. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
19. #PIEZO MFR # 2923024109
20. #Nut, Lock MFR # 2927898003
21. #APPLIANCE COMPONENTS RV; LEAD, IGNITER MFR # 2951918040
22. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerators; 12 Volts; 115 Watts MFR # 2951917000 Superseded: see description
23. #ELEMENT, HEATING 110V 115W 8" LONG 3/8" DIAM MFR # CH000361
24. #Appliance Components RV; Filter, Gas MFR # 2923191007
25. #Appliance Components RV; Plate Control MFR # 2951900105

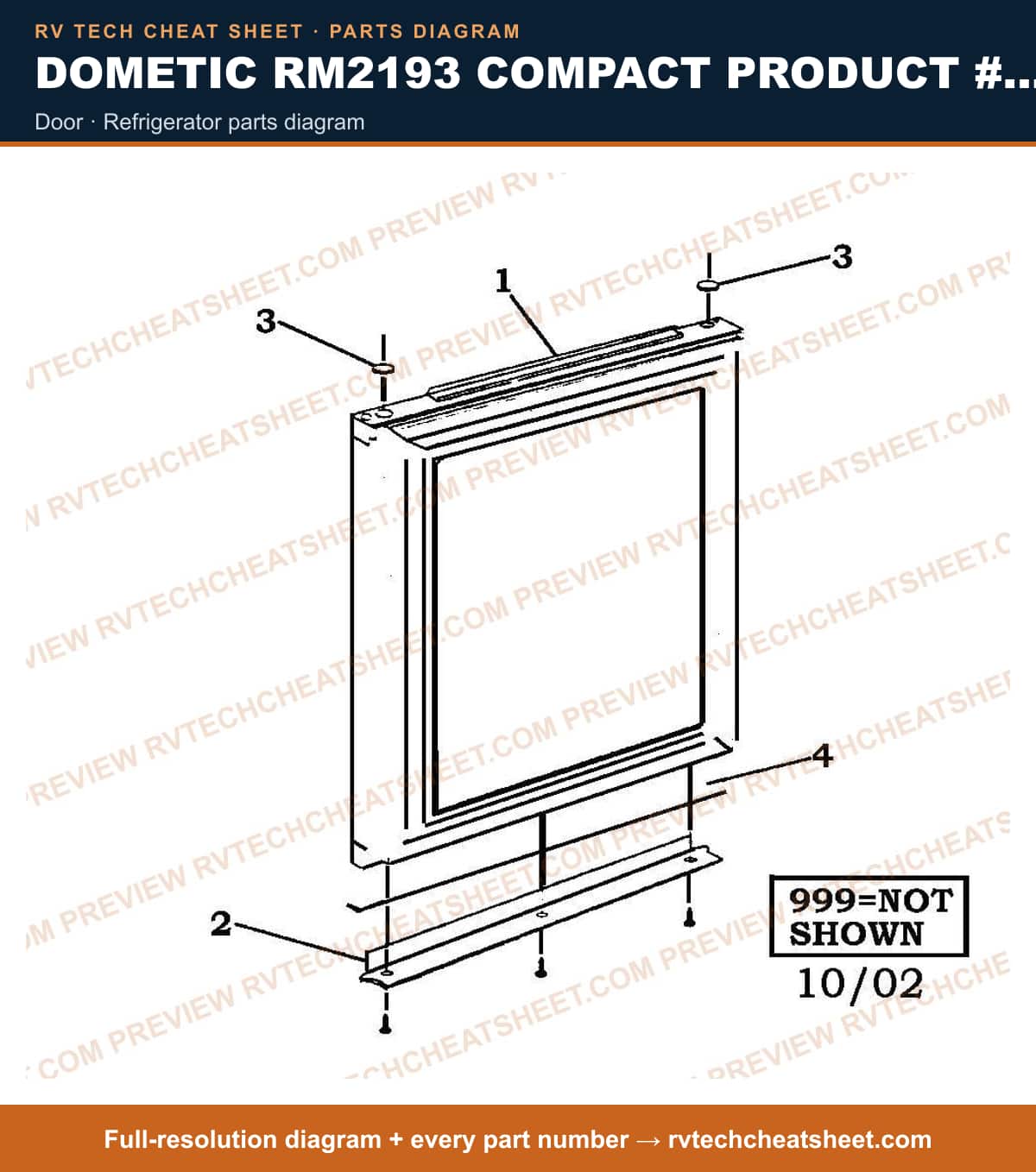

Door

Components

4 items

1. #APPLIANCE COMPONENTS RV; Door Main Refer MFR # 2936361001
2. #DOOR,MAIN USE 2936361001 MFR # 2936361100 Superseded: see description
3. #Trim, Door Gray/Brown MFR # 2951240106
4. #Refrigerator Trim Hole Plug; Plug; Use With Dometic RM Series Refrigerators; Gray/ Brown MFR # 2951297007 Superseded: see description
