Dometic RM2193 Compact Product # 921131022 Parts Diagram · Replacement Refrigerator

Refrigerator · 5 assemblies · 5 diagram sheets · 61 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2193 Compact Product # 921131022 RV refrigerator: 5 assemblies (Replacement Refrigerator, Cooling Unit, Cabinet, Controls, Door) and 61 manufacturer part numbers. 16 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement Refrigerator

Components

4 items

1. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
2. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
3. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
4. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description

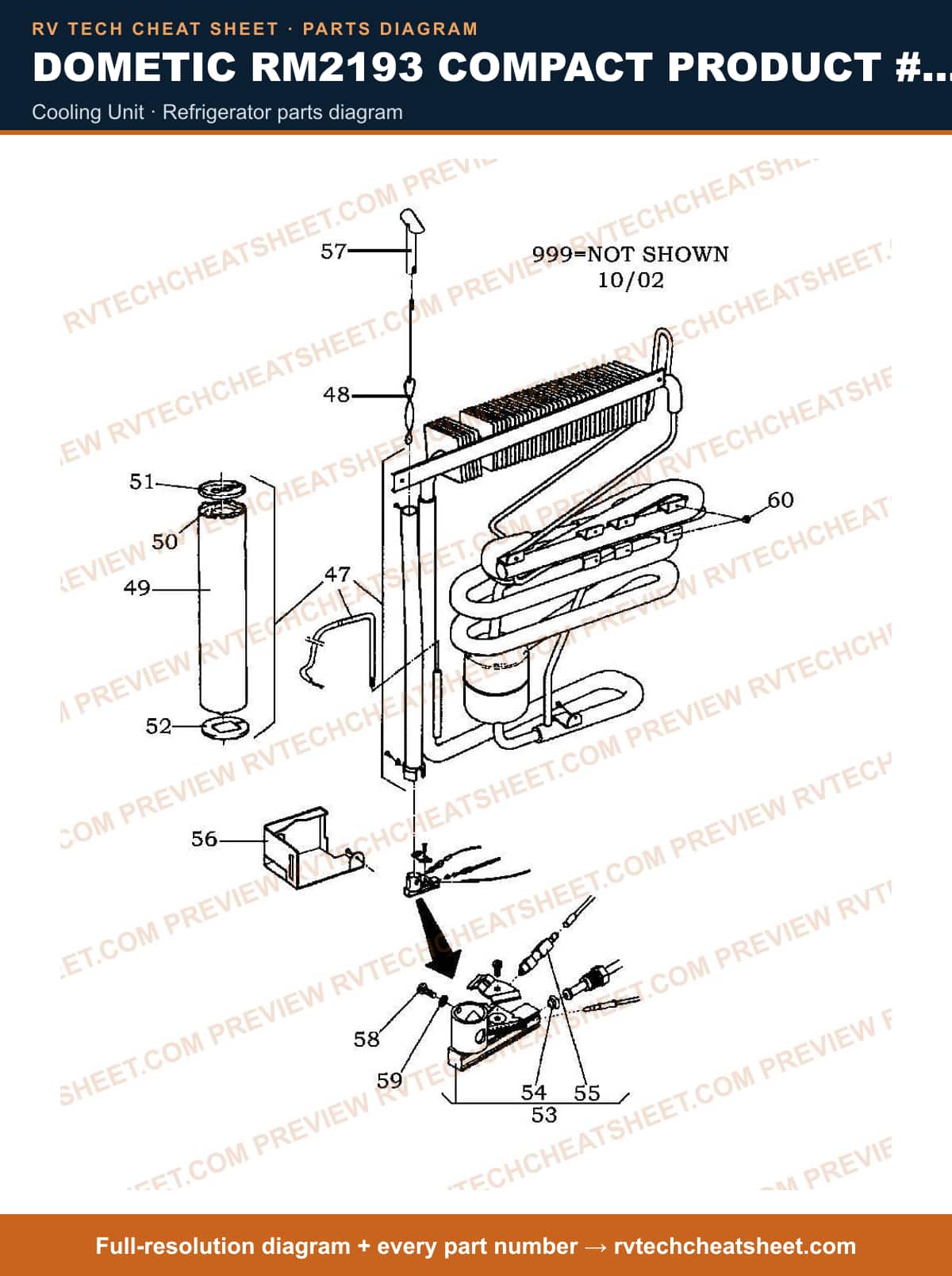

Cooling Unit

Components

40 items

1. #SPACER WASHER MFR # 2952193007
2. #Panel, Control MFR # 2951893102
3. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Round; Gray MFR # 2923334458 Superseded: see description
4. #APPLIANCE COMPONENTS RV; KNOB, T-STAT GREY MFR # 2923468355
5. #Appliance Components RV; Switch W/O Light 120V MFR # 2951433107
6. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
7. #Switch Plate Cover; 2 Openings; Gray MFR # 2923815167
8. #Electrical Box; Use With Dometic RM4223 Series Refrigerator; Multi Purpose Box MFR # 2952005003 Superseded: see description
9. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
10. #T-Stat, Elec. Use 2926528106 RM2193 MFR # 2926528130 Superseded: see description
11. #NUT M10 RH25 MFR # 2927881009
12. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
14. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 2951955109
15. #Nut; Use With Dometic Refrigerator RM2193; 12 Inch x 1 Inch MFR # 2923676007 Superseded: see description
16. #Refrigerator Gas Inlet Tube; Use With Dometic RM2193 Compact/ RM2191 Refrigerators MFR # 2951945001 Superseded: see description
17. #APPLIANCE COMPONENTS RV; THERMOCOUPLE 450MM MFR # 2923435230
18. #PIEZO MFR # 2923024109
19. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
20. #Nut, Lock MFR # 2927898003
21. #APPLIANCE COMPONENTS RV; LEAD, IGNITER MFR # 2951918040
22. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerators; 12 Volts; 115 Watts MFR # 2951917000 Superseded: see description
23. #ELEMENT, HEATING 110V 115W 8" LONG 3/8" DIAM MFR # CH000361
24. #Appliance Components RV; Filter, Gas MFR # 2923191007
25. #Appliance Components RV; Plate Control MFR # 2951900105
26. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model RM2193 Compact MFR # 2936360110N Superseded: see description
27. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
28. #TUBE MFR # 2924082205
29. #INSULATION, BOILER MFR # 2926680139
30. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
31. #LID LOWER BOILER MFR # 2924089002
32. #APPLIANCE COMPONENTS RV; Burner Gas MFR # 2923430504
33. #BURNER USE 49-9405 MFR # 2923430603 Superseded: see description
34. #REFRIG BURNER ORIFICE 45 MFR # 2922033044
35. #Awning-Accessories RV; Electrode Ign RM225X RML8330 MFR # 2923626002
36. #COVER, BURNER MFR # 2952083018
37. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
38. #SCREW MFR # 2952435408
39. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
40. #NUT, INSERT MFR # 2106626100

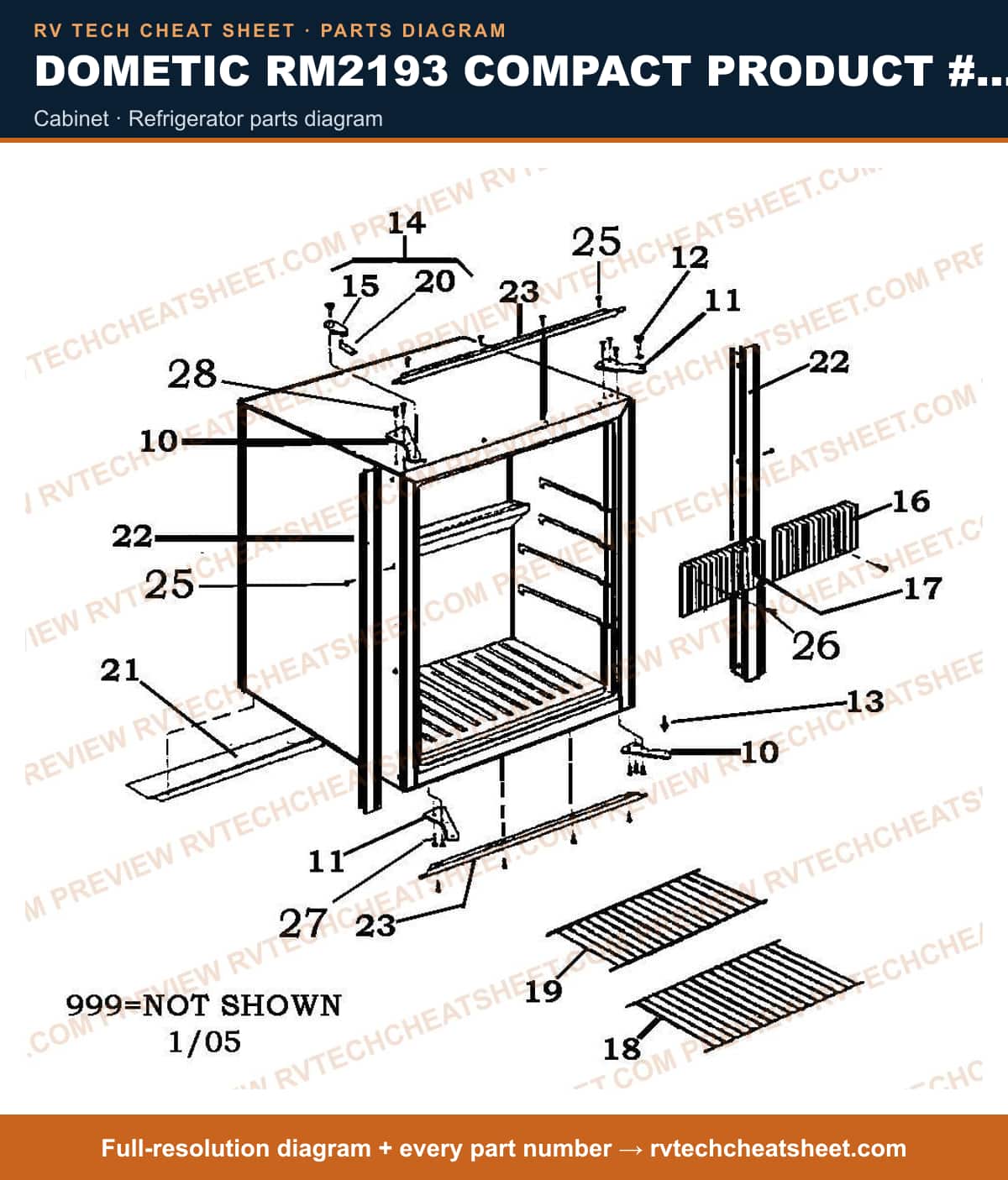

Cabinet

Components

17 items

1. #HINGE, UPPER LH/LOWER RH MFR # 2951888003
2. #Refrigerator Door Hinge; Replacement For Dometic RM2193 Model Refrigerators; Fits Upper/Bottom Cabinet Side; Upper Right Hand/Lower Left Hand MFR # 2951889001
3. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
4. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
5. #PIN, LOWER HINGE MFR # 2926265006
6. #Door Catch; Use With Dometic Refrigerator Model RM2193 Compact; Gray MFR # 2951880109 Superseded: see description
7. #APPLIANCE COMPONENTS RV; LOCK, GREY MFR # 2951964119
8. #FINS MFR # 2412606606
9. #SCREW, SHEET METAL MFR # 2951230008
10. #Refrigerator Shelf; Replacement For Dometic RM2193/ RM2191 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2951892054
11. #Refrigerator Shelf; Use With Dometic RM2191/ RM2193 Refrigerators; Wire Type MFR # 2951891056 Superseded: see description
12. #APPLIANCE COMPONENTS RV; SUPPORT, DOOR LOCK MFR # 2951883012
13. #Refrigerator Support Rail; Replacement For Dometic RM2191/ RM2193 Refrigerators; Cabinet Bottom Rail MFR # 2951896006
14. #S,FRAME,SIDE,RM4223R MFR # 2951886015
15. #FRAME, TOP MFR # 2951887013
16. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
17. #SCREW B8 X 13 MFR # 7296342012

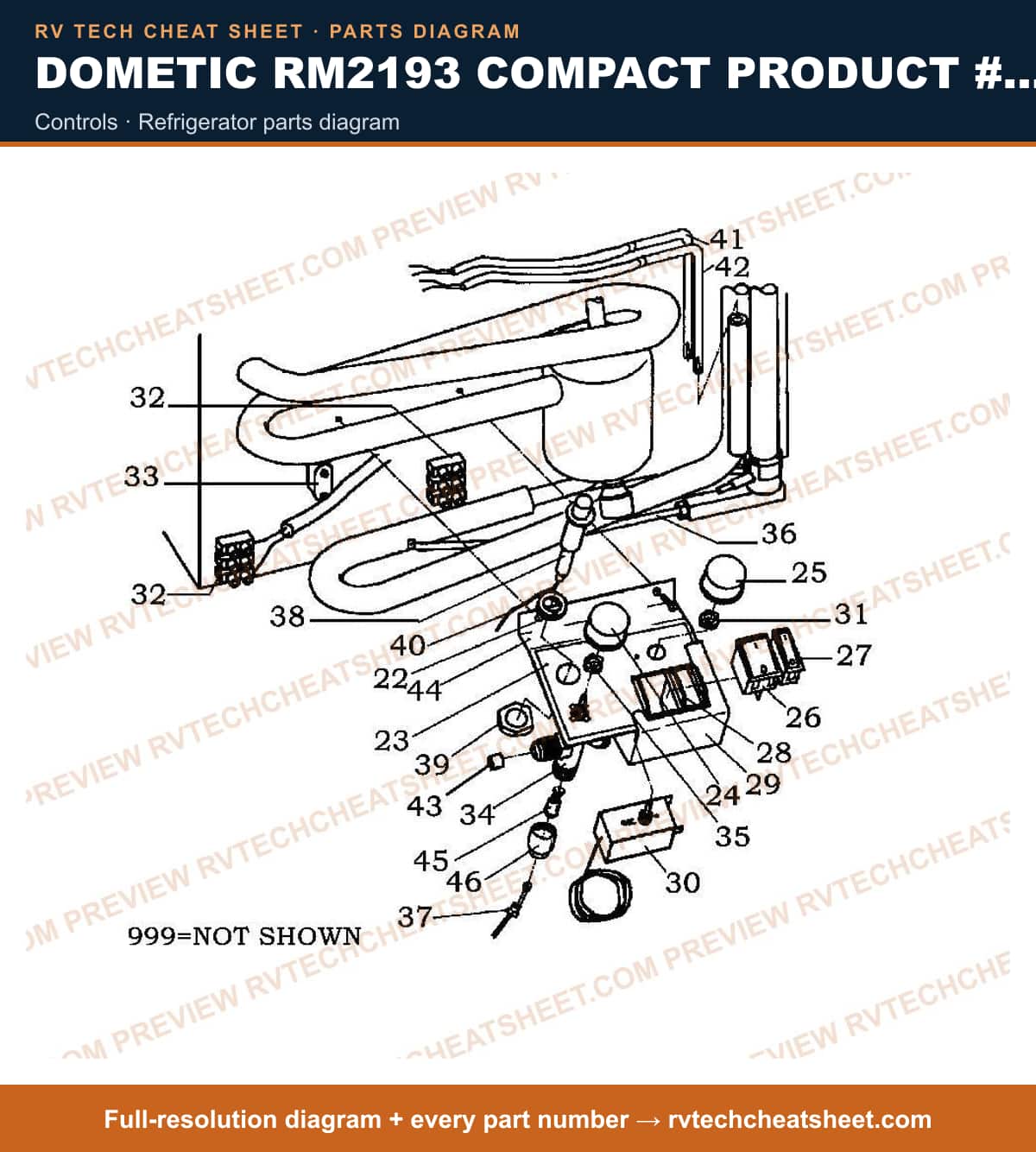

Controls

Components

25 items

1. #SPACER WASHER MFR # 2952193007
2. #Panel, Control MFR # 2951893102
3. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Round; Gray MFR # 2923334458 Superseded: see description
4. #APPLIANCE COMPONENTS RV; KNOB, T-STAT GREY MFR # 2923468355
5. #Appliance Components RV; Switch W/O Light 120V MFR # 2951433107
6. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
7. #Switch Plate Cover; 2 Openings; Gray MFR # 2923815167
8. #Electrical Box; Use With Dometic RM4223 Series Refrigerator; Multi Purpose Box MFR # 2952005003 Superseded: see description
9. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
10. #T-Stat, Elec. Use 2926528106 RM2193 MFR # 2926528130 Superseded: see description
11. #NUT M10 RH25 MFR # 2927881009
12. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
14. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 2951955109
15. #Nut; Use With Dometic Refrigerator RM2193; 12 Inch x 1 Inch MFR # 2923676007 Superseded: see description
16. #Refrigerator Gas Inlet Tube; Use With Dometic RM2193 Compact/ RM2191 Refrigerators MFR # 2951945001 Superseded: see description
17. #APPLIANCE COMPONENTS RV; THERMOCOUPLE 450MM MFR # 2923435230
18. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
19. #PIEZO MFR # 2923024109
20. #Nut, Lock MFR # 2927898003
21. #APPLIANCE COMPONENTS RV; LEAD, IGNITER MFR # 2951918040
22. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerators; 12 Volts; 115 Watts MFR # 2951917000 Superseded: see description
23. #ELEMENT, HEATING 110V 115W 8" LONG 3/8" DIAM MFR # CH000361
24. #Appliance Components RV; Filter, Gas MFR # 2923191007
25. #Appliance Components RV; Plate Control MFR # 2951900105

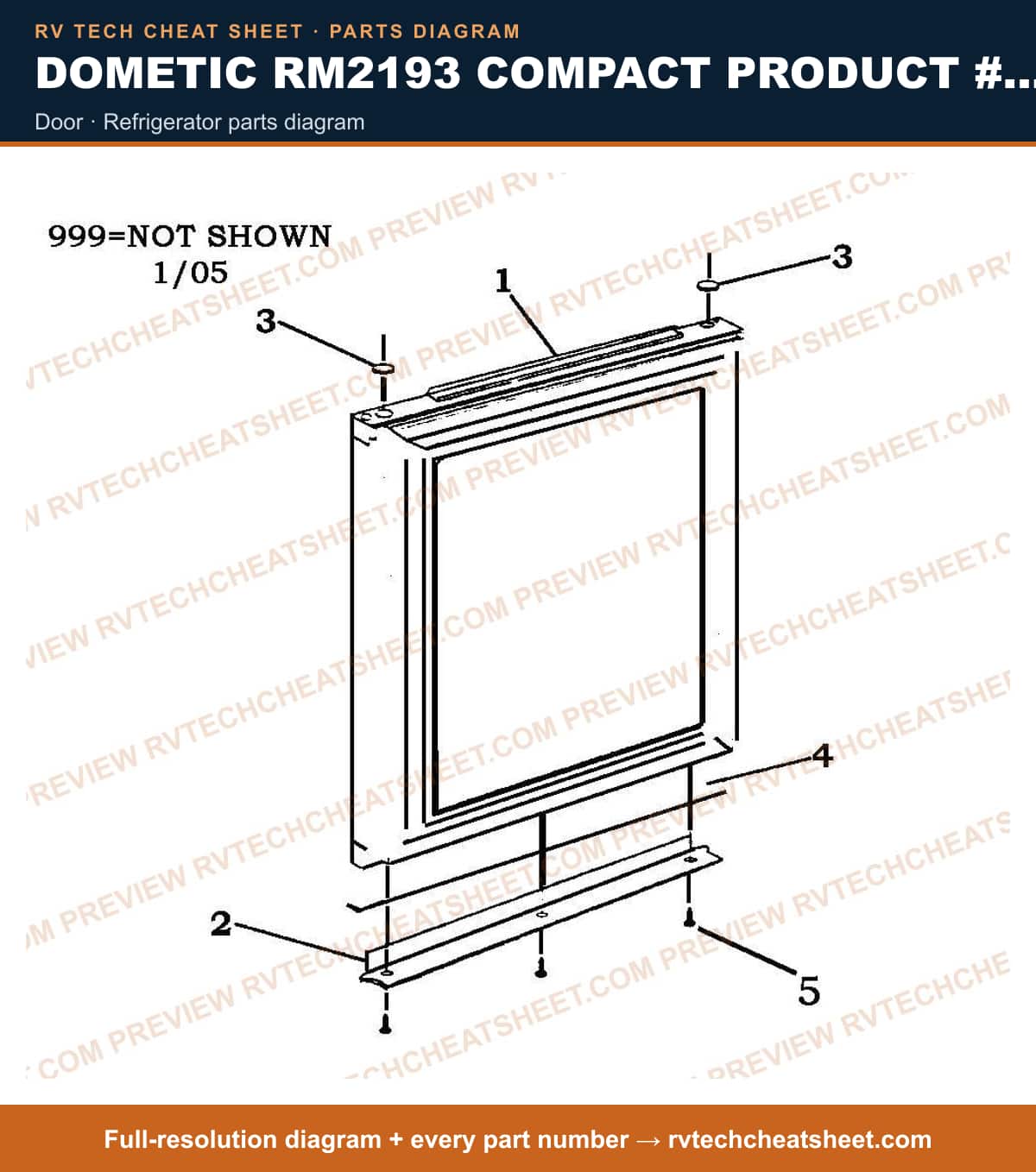

Door

Components

40 items

1. #SPACER WASHER MFR # 2952193007
2. #Panel, Control MFR # 2951893102
3. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Round; Gray MFR # 2923334458 Superseded: see description
4. #APPLIANCE COMPONENTS RV; KNOB, T-STAT GREY MFR # 2923468355
5. #Appliance Components RV; Switch W/O Light 120V MFR # 2951433107
6. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
7. #Switch Plate Cover; 2 Openings; Gray MFR # 2923815167
8. #Electrical Box; Use With Dometic RM4223 Series Refrigerator; Multi Purpose Box MFR # 2952005003 Superseded: see description
9. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
10. #T-Stat, Elec. Use 2926528106 RM2193 MFR # 2926528130 Superseded: see description
11. #NUT M10 RH25 MFR # 2927881009
12. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
13. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
14. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 2951955109
15. #Nut; Use With Dometic Refrigerator RM2193; 12 Inch x 1 Inch MFR # 2923676007 Superseded: see description
16. #Refrigerator Gas Inlet Tube; Use With Dometic RM2193 Compact/ RM2191 Refrigerators MFR # 2951945001 Superseded: see description
17. #APPLIANCE COMPONENTS RV; THERMOCOUPLE 450MM MFR # 2923435230
18. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
19. #PIEZO MFR # 2923024109
20. #Nut, Lock MFR # 2927898003
21. #APPLIANCE COMPONENTS RV; LEAD, IGNITER MFR # 2951918040
22. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerators; 12 Volts; 115 Watts MFR # 2951917000 Superseded: see description
23. #ELEMENT, HEATING 110V 115W 8" LONG 3/8" DIAM MFR # CH000361
24. #Appliance Components RV; Filter, Gas MFR # 2923191007
25. #Appliance Components RV; Plate Control MFR # 2951900105
26. #Refrigerator Cooling Unit; Use With Dometic Refrigerator Model RM2193 Compact MFR # 2936360110N Superseded: see description
27. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
28. #TUBE MFR # 2924082205
29. #INSULATION, BOILER MFR # 2926680139
30. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
31. #LID LOWER BOILER MFR # 2924089002
32. #BURNER USE 49-9405 MFR # 2923430603 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Burner Gas MFR # 2923430504
34. #REFRIG BURNER ORIFICE 45 MFR # 2922033044
35. #Awning-Accessories RV; Electrode Ign RM225X RML8330 MFR # 2923626002
36. #COVER, BURNER MFR # 2952083018
37. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
38. #SCREW MFR # 2952435408
39. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
40. #NUT, INSERT MFR # 2106626100
