Dometic RM2193 Compact Product # 921131026 Parts Diagram · Controls

Refrigerator · 3 assemblies · 3 diagram sheets · 65 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2193 Compact Product # 921131026 RV refrigerator: 3 assemblies (Controls, Cooling Unit, Cabinet Assembly) and 65 manufacturer part numbers. 17 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Controls

Components

26 items

1. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Round; Gray MFR # 2923334458 Superseded: see description
2. #APPLIANCE COMPONENTS RV; KNOB, T-STAT GREY MFR # 2923468355
3. #Appliance Components RV; Switch W/O Light 120V MFR # 2951433107
4. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
5. #Switch Plate Cover; 2 Openings; Gray MFR # 2923815167
6. #Electrical Box; Use With Dometic RM4223 Series Refrigerator; Multi Purpose Box MFR # 2952005003 Superseded: see description
7. #T-Stat, Elec. Use 2926528106 RM2193 MFR # 2926528130 Superseded: see description
8. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
9. #T-Stat, Electric Use 2926528130 MFR # 2926528031 Superseded: see description
10. #NUT M10 RH25 MFR # 2927881009
11. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
13. #VALVE, GAS MFR # 2926276110
14. #Nut; Use With Dometic Refrigerator RM2193; 12 Inch x 1 Inch MFR # 2923676007 Superseded: see description
15. #NUT, UNION M15X1 MFR # 2923189001
16. #FERRELL .8MM DIA. MFR # 2923190009
17. #Refrigerator Gas Inlet Tube; Use With Dometic RM2193 Compact/ RM2191 Refrigerators MFR # 2951945001 Superseded: see description
18. #APPLIANCE COMPONENTS RV; THERMOCOUPLE 450MM MFR # 2923435230
19. #GAS CONNECTION COMPLETE MFR # 2923188219
20. #PIEZO MFR # 2923024109
21. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
22. #APPLIANCE COMPONENTS RV; LEAD, IGNITER MFR # 2951918040
23. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerators; 12 Volts; 115 Watts MFR # 2951917000 Superseded: see description
24. #ELEMENT, HEATING 105W 230V MFR # 2952173009
25. #Appliance Components RV; Filter, Gas MFR # 2923191007
26. #Appliance Components RV; Plate Control MFR # 2951900105

Cooling Unit

Components

15 items

1. #COOLING UNIT MFR # 2936360128
2. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
3. #TUBE MFR # 2924082205
4. #INSULATION, BOILER MFR # 2926680139
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #LID LOWER BOILER MFR # 2924089002
7. #BURNER USE 49-9405 MFR # 2923430603 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Burner Gas MFR # 2923430504
9. #REFRIG BURNER ORIFICE 45 MFR # 2922033044
10. #Awning-Accessories RV; Electrode Ign RM225X RML8330 MFR # 2923626002
11. #COVER, BURNER MFR # 2952083018
12. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
13. #SCREW MFR # 2952435408
14. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
15. #NUT, INSERT MFR # 2106626100

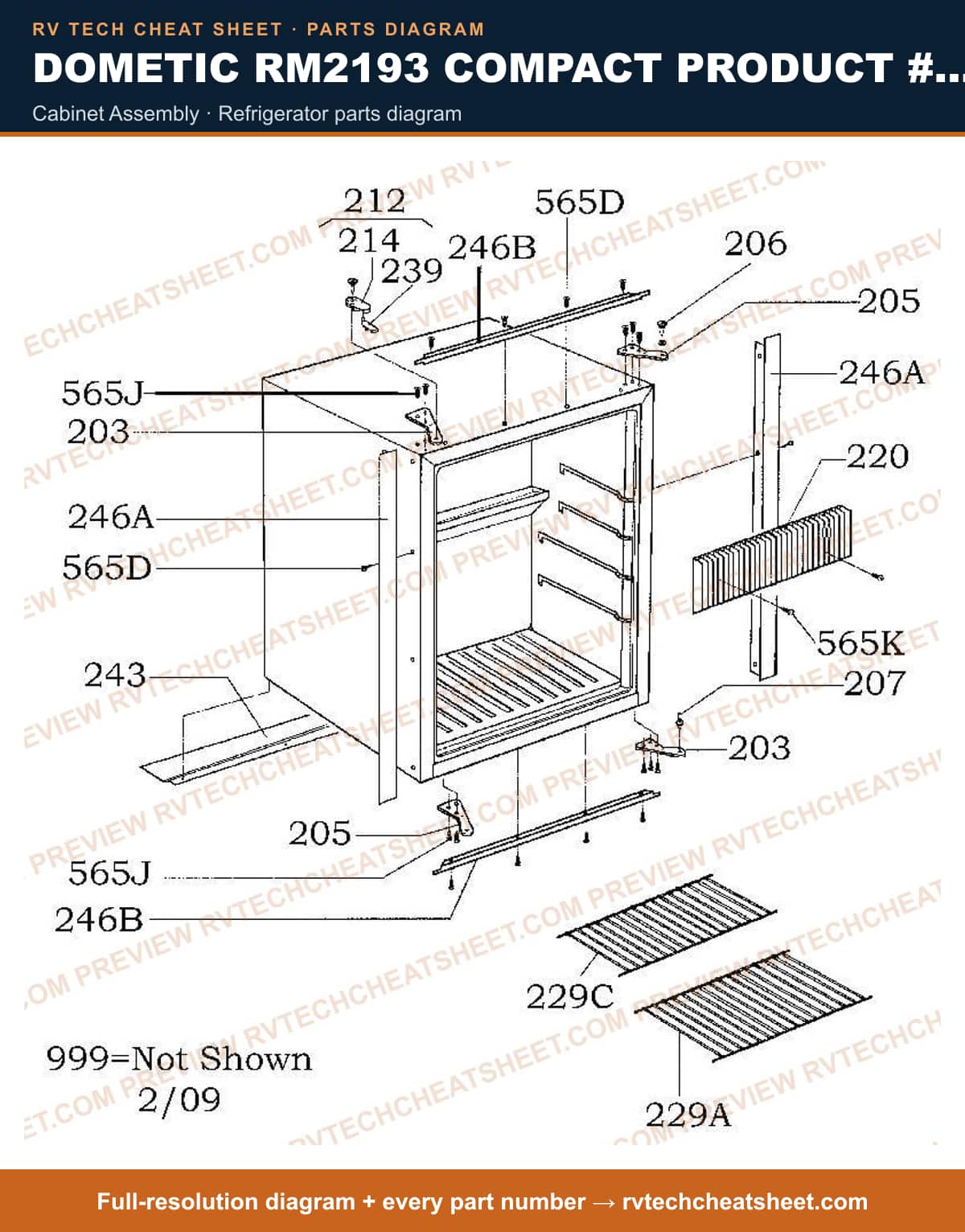

Cabinet Assembly

Components

24 items

1. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
2. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description
3. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
4. #Refrigerator Door; Use With Dometic Refrigerator Model RM2193 Compact MFR # 2936361407 Superseded: see description
5. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
6. #TRIM, DOOR GRAY/BROWN MFR # 2951240155
7. #COVER GRAY/BROWN MFR # 2951297056
8. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
9. #HINGE, UPPER LH/LOWER RH MFR # 2951888003
10. #Refrigerator Door Hinge; Replacement For Dometic RM2193 Model Refrigerators; Fits Upper/Bottom Cabinet Side; Upper Right Hand/Lower Left Hand MFR # 2951889001
11. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
12. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
13. #PIN, LOWER HINGE MFR # 2926265006
14. #Door Catch; Use With Dometic Refrigerator Model RM2193 Compact; Gray MFR # 2951880109 Superseded: see description
15. #APPLIANCE COMPONENTS RV; LOCK, GREY MFR # 2951964119
16. #FINS MFR # 2412606606
17. #Refrigerator Shelf; Replacement For Dometic RM2193/ RM2191 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2951892054
18. #Refrigerator Shelf; Use With Dometic RM2191/ RM2193 Refrigerators; Wire Type MFR # 2951891056 Superseded: see description
19. #APPLIANCE COMPONENTS RV; SUPPORT, DOOR LOCK MFR # 2951883012
20. #Refrigerator Support Rail; Replacement For Dometic RM2191/ RM2193 Refrigerators; Cabinet Bottom Rail MFR # 2951896006
21. #S,FRAME,SIDE,RM4223R MFR # 2951886015
22. #FRAME, TOP MFR # 2951887013
23. #SCREW, COUNTERSINK MFR # 2924417021
24. #SCREW, SHEET METAL MFR # 2951230008
