Dometic RM2193 Compact Product # 921131030 Parts Diagram · Cabinet Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 69 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2193 Compact Product # 921131030 RV refrigerator: 5 assemblies (Cabinet Assembly, Replacement Refrigerator, Cooling Unit, Door Assembly, Controls) and 69 manufacturer part numbers. 13 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

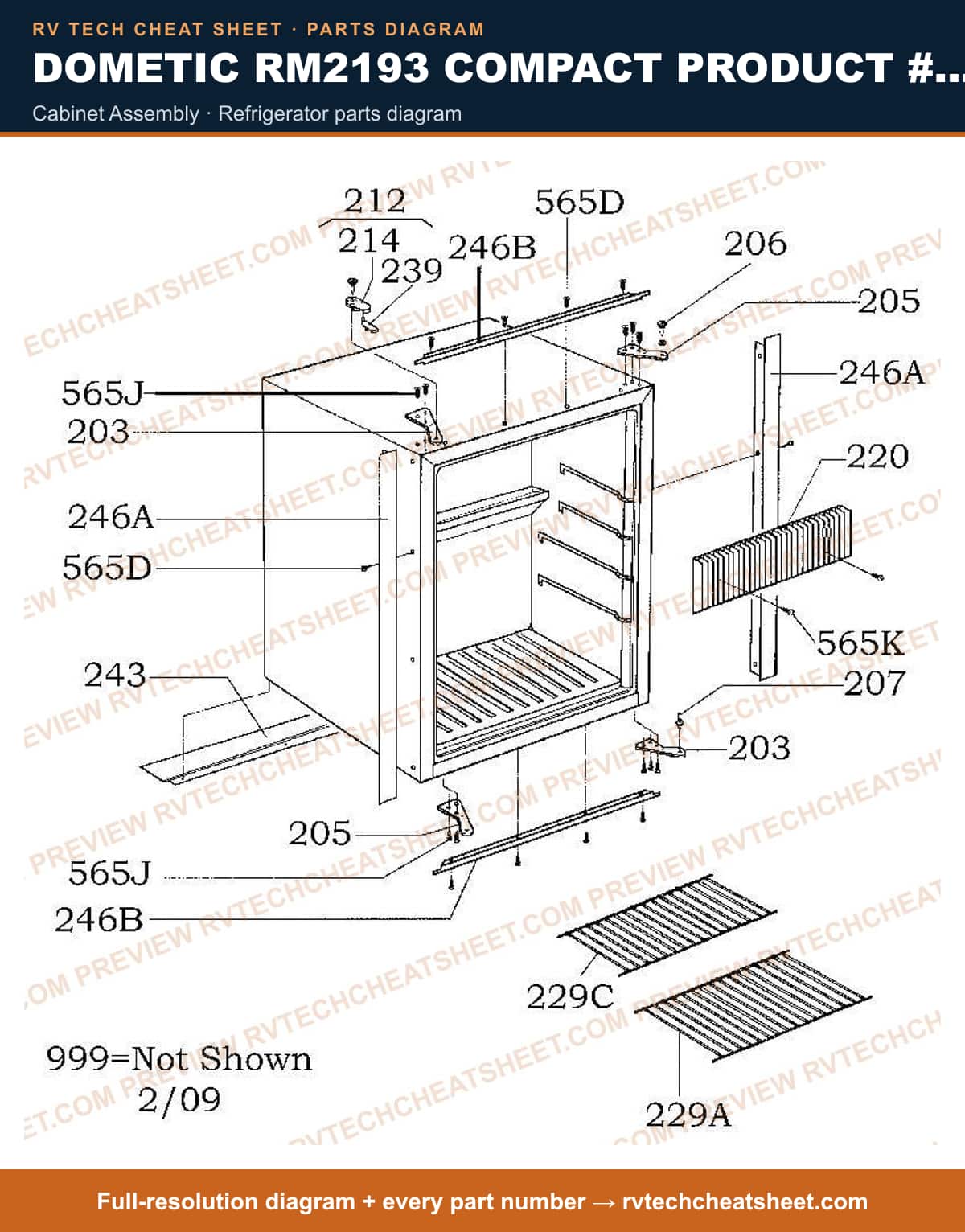

Cabinet Assembly

Components

18 items

1. #HINGE, UPPER LH/LOWER RH MFR # 2951888003
2. #Refrigerator Door Hinge; Replacement For Dometic RM2193 Model Refrigerators; Fits Upper/Bottom Cabinet Side; Upper Right Hand/Lower Left Hand MFR # 2951889001
3. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
4. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
5. #PIN, HINGE MFR # 2926265402
6. #APPLIANCE COMPONENTS RV; BLK DOOR LOCK ASSEMBLY MFR # 2951880117
7. #DOORS RV; DOOR LOCK BLACK/GREY MFR # 2951964176
8. #FINS MFR # 2412606606
9. #Refrigerator Shelf; Use With Dometic RM2191/ RM2193 Refrigerators; Wire Type MFR # 2951891056 Superseded: see description
10. #Refrigerator Shelf; Replacement For Dometic RM2193/ RM2191 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2951892054
11. #SUPPORT, DOOR LOCK BLACK/GREY MFR # 2951883020
12. #Refrigerator Support Rail; Replacement For Dometic RM2191/ RM2193 Refrigerators; Cabinet Bottom Rail MFR # 2951896006
13. #FRAME, SIDE BLACK/GREY MFR # 2961886023
14. #APPLIANCE COMPONENTS RV; STOP RAIL UPPER BOTTOM MFR # 2951887021
15. #SCREW B8 X 13 MFR # 7296342012
16. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
17. #SCREW, SHEET METAL MFR # 2951230008
18. #SCREW, COUNTERSINK MFR # 2924417021

Replacement Refrigerator

Components

4 items

1. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description
2. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
3. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
4. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR

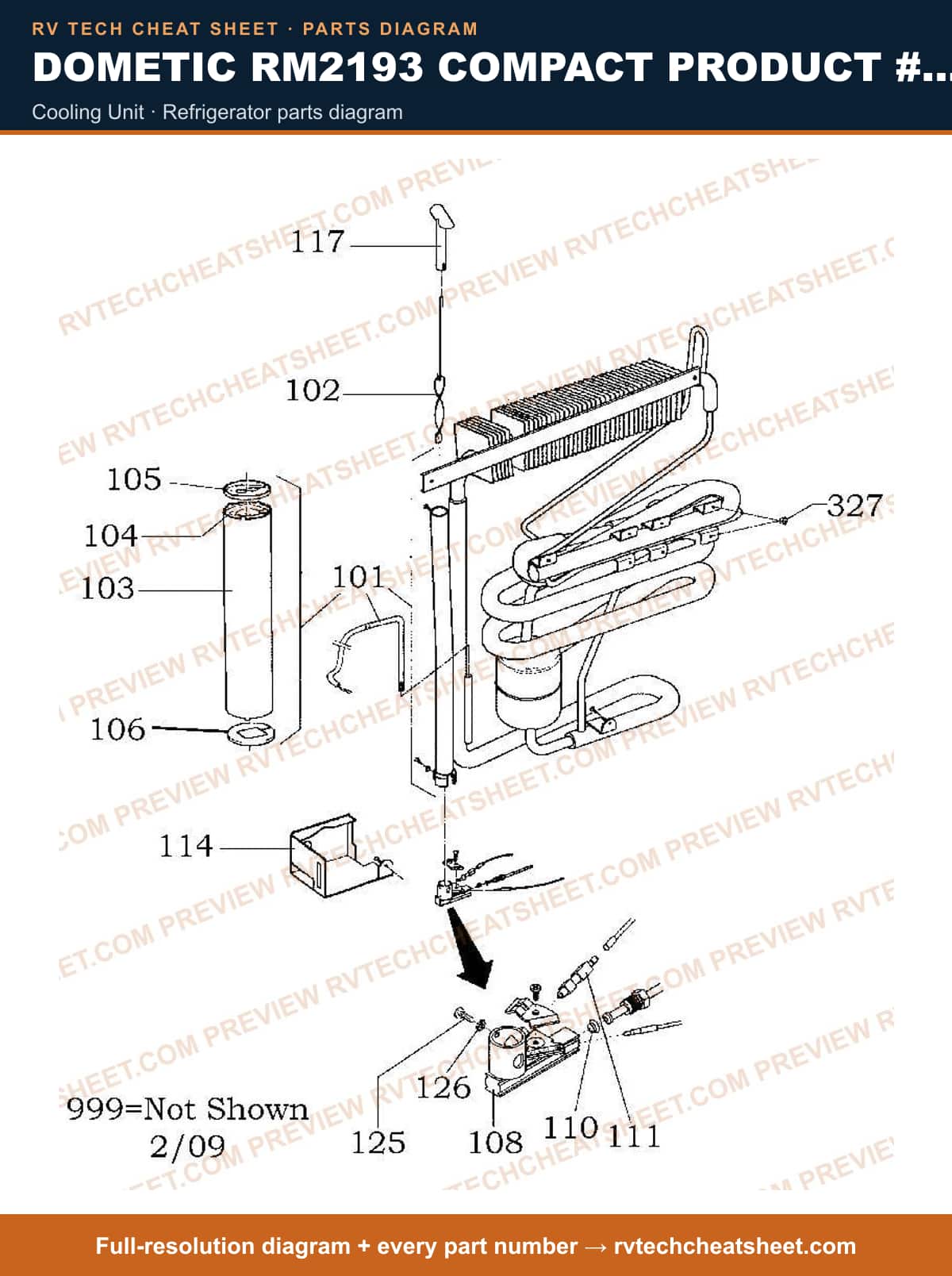

Cooling Unit

Components

14 items

1. #COOLING UNIT MFR # 2936360607
2. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
3. #TUBE MFR # 2924082205
4. #INSULATION, BOILER MFR # 2926680139
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #LID LOWER BOILER MFR # 2924089002
7. #BURNER W/O ORIFICE MFR # 2923430512
8. #REFRIG BURNER ORIFICE 45 MFR # 2922033044
9. #Awning-Accessories RV; Electrode Ign RM225X RML8330 MFR # 2923626002
10. #COVER, BURNER MFR # 2952083018
11. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301
12. #SCREW MFR # 2952435408
13. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
14. #NUT, INSERT MFR # 2106626100

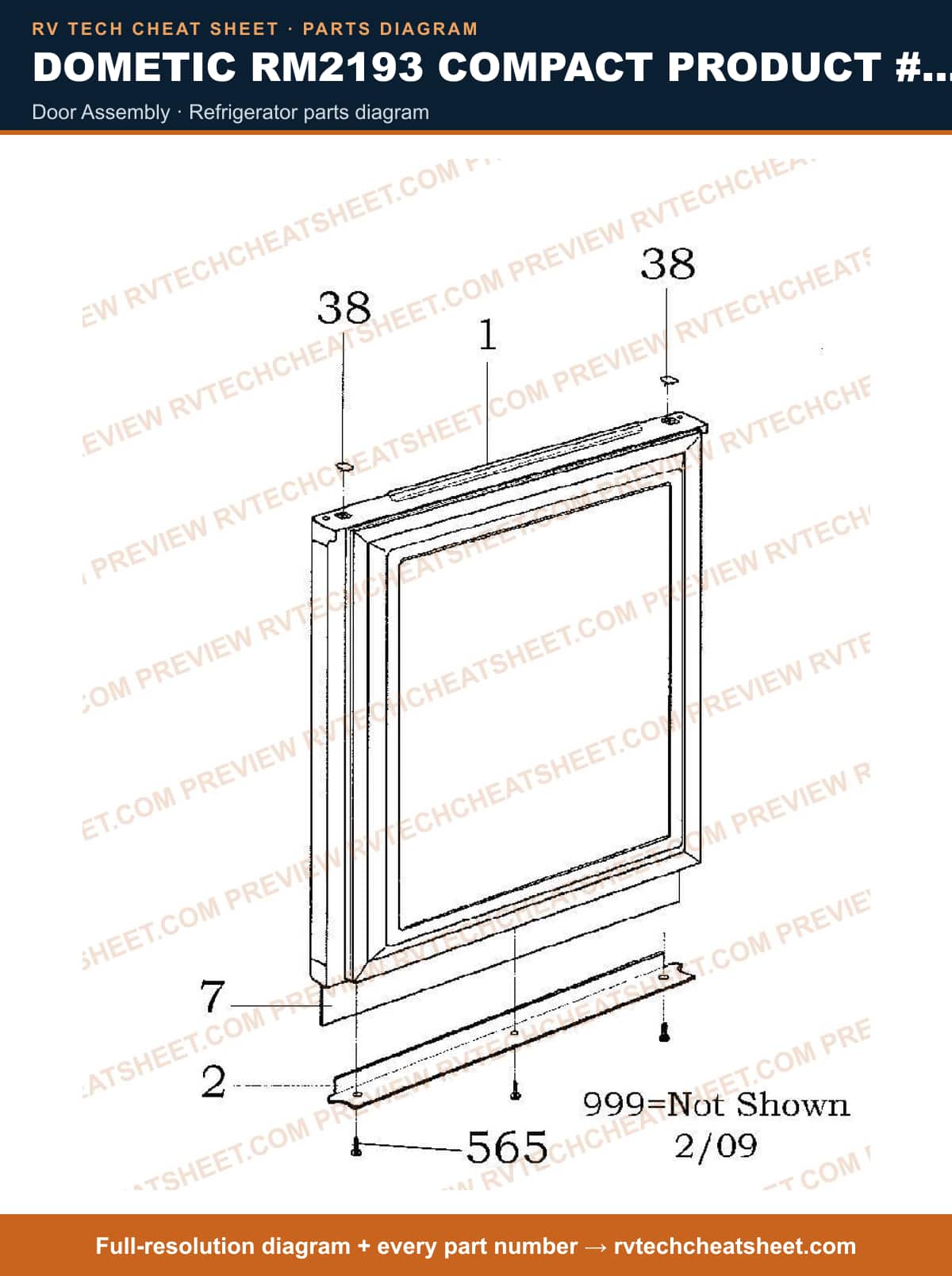

Door Assembly

Components

8 items

1. #DOORS RV; DOOR COMPLETE MFR # 2936361506
2. #AWNING-REPAIR PARTS RV; COVER LEDGE BLACK/GREY MFR # 2951240163
3. #Panels, Door Black Plexiglass One Panel 19-3/4" x 17-27/32" MFR # RM2193L
4. #Panel, Door Black Acrylic For RM2193 MFR # 3106863099C
5. #Panel, Door Woodgrain One Panel 19-3/4" x 17-27/32" MFR # RM2193G
6. #Panel, Door Woodgrain For RM2193 MFR # 3106863099B
7. #COVER, UPPER BLACK/GREY MFR # 2951297072
8. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016

Controls

Components

26 items

1. #SPACER WASHER MFR # 2952193007
2. #Panel, Control MFR # 2951893102
3. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Round; Gray MFR # 2923334458 Superseded: see description
4. #APPLIANCE COMPONENTS RV; KNOB, T-STAT GREY MFR # 2923468355
5. #Appliance Components RV; Switch W/O Light 120V MFR # 2951433107
6. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
7. #Switch Plate Cover; 2 Openings; Gray MFR # 2923815167
8. #Electrical Box; Use With Dometic RM4223 Series Refrigerator; Multi Purpose Box MFR # 2952005003 Superseded: see description
9. #T-Stat, Electric Use 2926528130 MFR # 2926528031 Superseded: see description
10. #T-Stat, Elec. Use 2926528106 RM2193 MFR # 2926528130 Superseded: see description
11. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
12. #NUT M10 RH25 MFR # 2927881009
13. #APPLIANCE COMPONENTS RV; TERMINAL BOARD MFR # 2413255015
14. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
15. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 2951955109
16. #Nut; Use With Dometic Refrigerator RM2193; 12 Inch x 1 Inch MFR # 2923676007 Superseded: see description
17. #Refrigerator Gas Inlet Tube; Use With Dometic RM2193 Compact/ RM2191 Refrigerators MFR # 2951945001 Superseded: see description
18. #APPLIANCE COMPONENTS RV; THERMOCOUPLE 450MM MFR # 2923435230
19. #PIEZO MFR # 2923024109
20. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
21. #APPLIANCE COMPONENTS RV; LEAD, IGNITER MFR # 2951918040
22. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerators; 12 Volts; 115 Watts MFR # 2951917000 Superseded: see description
23. #Element Heating 110V 115W 8" Long 3/8" Diameter; Suggested Alternate for Dometic: CH000361 MFR # 2951996012
24. #Appliance Components RV; Filter, Gas MFR # 2923191007
25. #Appliance Components RV; Plate Control MFR # 2951900105
26. #MAGNET MFR # 2106030105
