Dometic RM2193 Compact Product # 921131033 Parts Diagram · Door Assembly

Refrigerator · 5 assemblies · 5 diagram sheets · 51 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2193 Compact Product # 921131033 RV refrigerator: 5 assemblies (Door Assembly, Cabinet Assembly, Cooling Unit, Controls, Replacement) and 51 manufacturer part numbers. 8 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

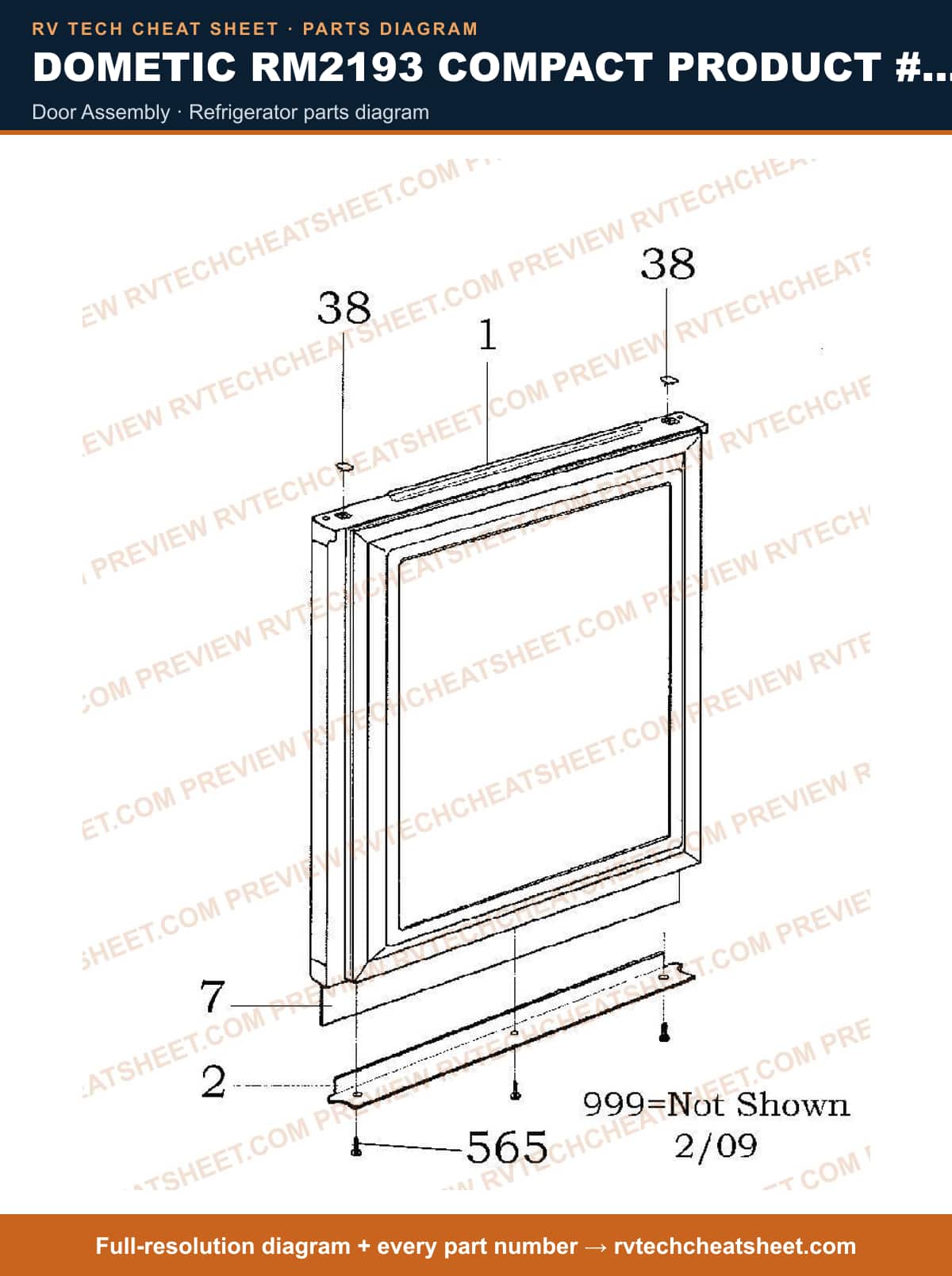

Door Assembly

Components

4 items

1. #DOOR, COMPLETE MFR # 293636151
2. #AWNING-REPAIR PARTS RV; COVER LEDGE BLACK/GREY MFR # 2951240163
3. #COVER, UPPER BLACK/GREY MFR # 2951297072
4. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016

Cabinet Assembly

Components

17 items

1. #HINGE, UPPER LH/LOWER RH MFR # 2951888003
2. #Refrigerator Door Hinge; Replacement For Dometic RM2193 Model Refrigerators; Fits Upper/Bottom Cabinet Side; Upper Right Hand/Lower Left Hand MFR # 2951889001
3. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
4. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
5. #PIN, HINGE MFR # 2926265402
6. #APPLIANCE COMPONENTS RV; BLK DOOR LOCK ASSEMBLY MFR # 2951880117
7. #DOORS RV; DOOR LOCK BLACK/GREY MFR # 2951964176
8. #REAR-EVAPORATOR, FRIDGE MFR # 241294841
9. #Refrigerator Shelf; Replacement For Dometic RM2193/ RM2191 Model Refrigerator; Fresh Food Compartment; Wire; Without Cutout MFR # 2951892054
10. #Refrigerator Shelf; Use With Dometic RM2191/ RM2193 Refrigerators; Wire Type MFR # 2951891056 Superseded: see description
11. #SUPPORT, DOOR LOCK BLACK/GREY MFR # 2951883020
12. #Refrigerator Support Rail; Replacement For Dometic RM2191/ RM2193 Refrigerators; Cabinet Bottom Rail MFR # 2951896006
13. #APPLIANCE COMPONENTS RV; STOP RAIL UPPER BOTTOM MFR # 2951887021
14. #APPLIANCE COMPONENTS RV; STOP RAIL SIDE BLACK/GREY MFR # 2951886023
15. #APPLIANCE COMPONENTS RV; SCREW FXS B6X9 MFR # 7296279016
16. #SCREW B8 X 13 MFR # 7296342012
17. #LENS SCREW; TORX B4/ 8X19 MFR # 295123000

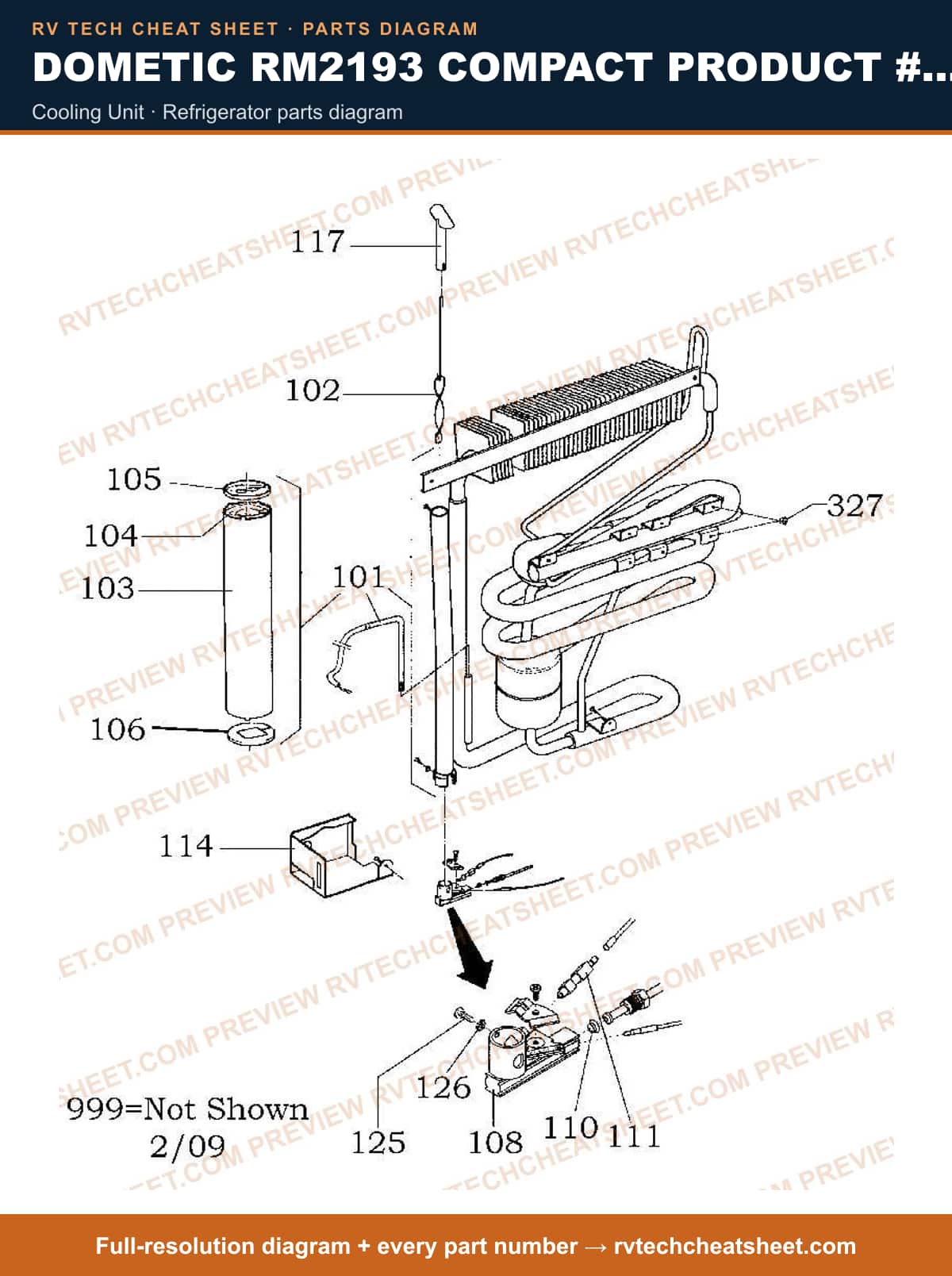

Cooling Unit

Components

9 items

1. #HELIX MFR # 292621263
2. #TUBE MFR # 2924082205
3. #INSULATION, BOILER MFR # 2926680139
4. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
5. #LID LOWER BOILER MFR # 2924089002
6. #BURNER WITHOUT NOZZLE MFR # 292343053
7. #REFRIG BURNER ORIFICE 45 MFR # 2922033044
8. #COVER, BURNER MFR # 2952083018
9. #APPLIANCE COMPONENTS RV; T-PIECE COMPLETE MFR # 2952444301

Controls

Components

21 items

1. #Panel, Control MFR # 2951893102
2. #Refrigerator Control Knob; Use With Dometic Refrigerator RM2193; Round; Gray MFR # 2923334458 Superseded: see description
3. #Appliance Components RV; Switch W/O Light 120V MFR # 2951433107
4. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
5. #Switch Plate Cover; 2 Openings; Gray MFR # 2923815167
6. #COVER, ELECTRIC, BLACK, USA MFR # 295200502
7. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
8. #T-Stat, Electric Use 2926528130 MFR # 2926528031 Superseded: see description
9. #NUT M10 RH25 MFR # 2927881009
10. #TERMINAL BOARD 3-POLIG MFR # 241325503
11. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
12. #SVC, VALVE, GAS MFR # 2951955208
13. #Nut; Use With Dometic Refrigerator RM2193; 12 Inch x 1 Inch MFR # 2923676007 Superseded: see description
14. #Refrigerator Gas Inlet Tube; Use With Dometic RM2193 Compact/ RM2191 Refrigerators MFR # 2951945001 Superseded: see description
15. #APPLIANCE COMPONENTS RV; THERMOCOUPLE 450MM MFR # 2923435230
16. #PIEZO MFR # 2923024109
17. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
18. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerators; 12 Volts; 115 Watts MFR # 2951917000 Superseded: see description
19. #Element Heating 110V 115W 8" Long 3/8" Diameter; Suggested Alternate for Dometic: CH000361 MFR # 2951996012
20. #Appliance Components RV; Plate Control MFR # 2951900105
21. #MAGNET MFR # 2106030105

Replacement

Components

1 item

1. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
