Dometic RM2200A Parts Diagram · Refrigerator Replacement

Refrigerator · 5 assemblies · 5 diagram sheets · 153 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2200A RV refrigerator: 5 assemblies (Refrigerator Replacement, Absorption C-u, L.p. Gas Assembly, Cabinet Assembly, Electric Assembly) and 153 manufacturer part numbers. 29 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

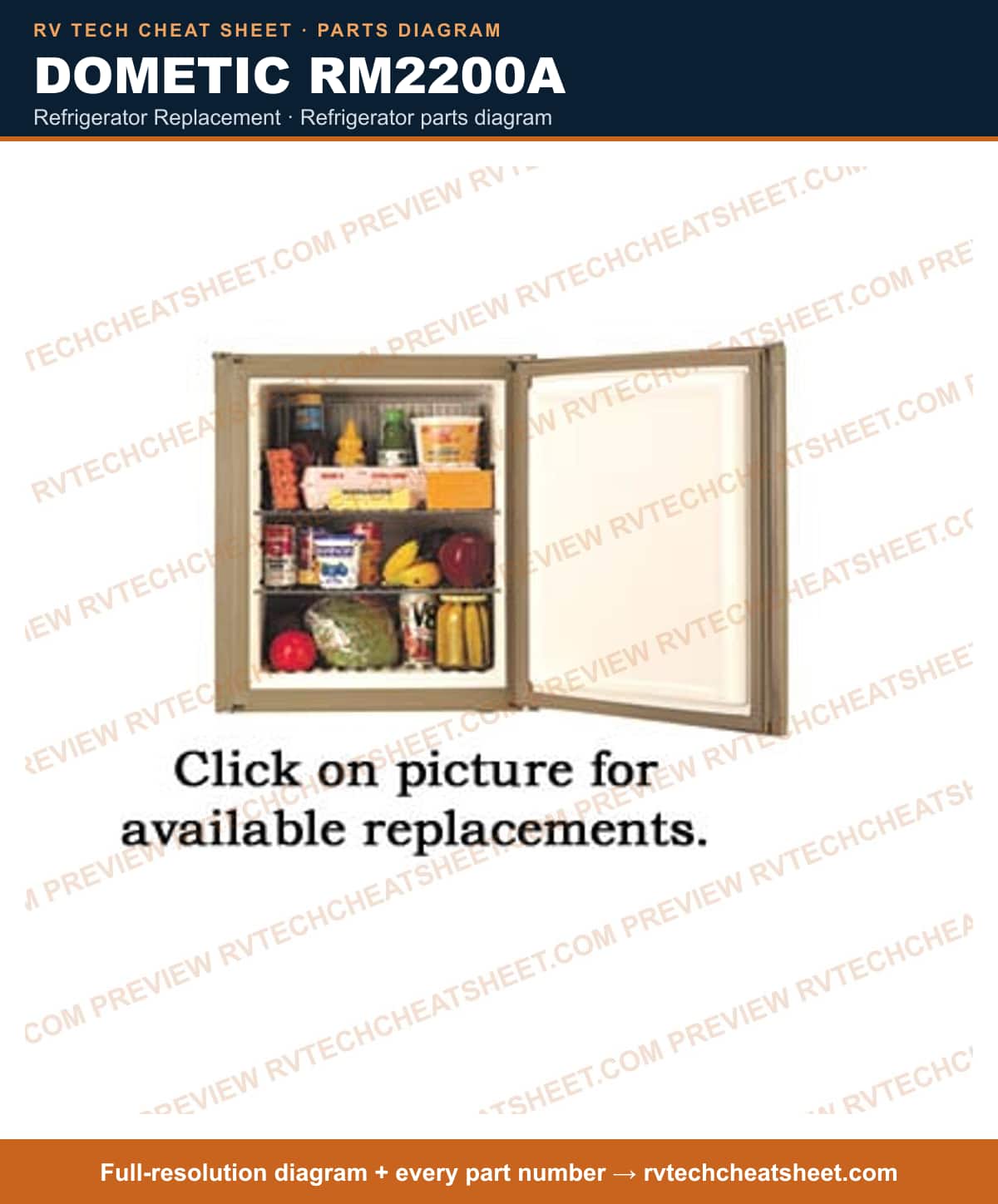

Refrigerator Replacement

Components

5 items

1. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description
2. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
3. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
4. #N/A REFER 22 1/4 X 19 1/2 X 18 1/4 MFR # RM2200
5. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description

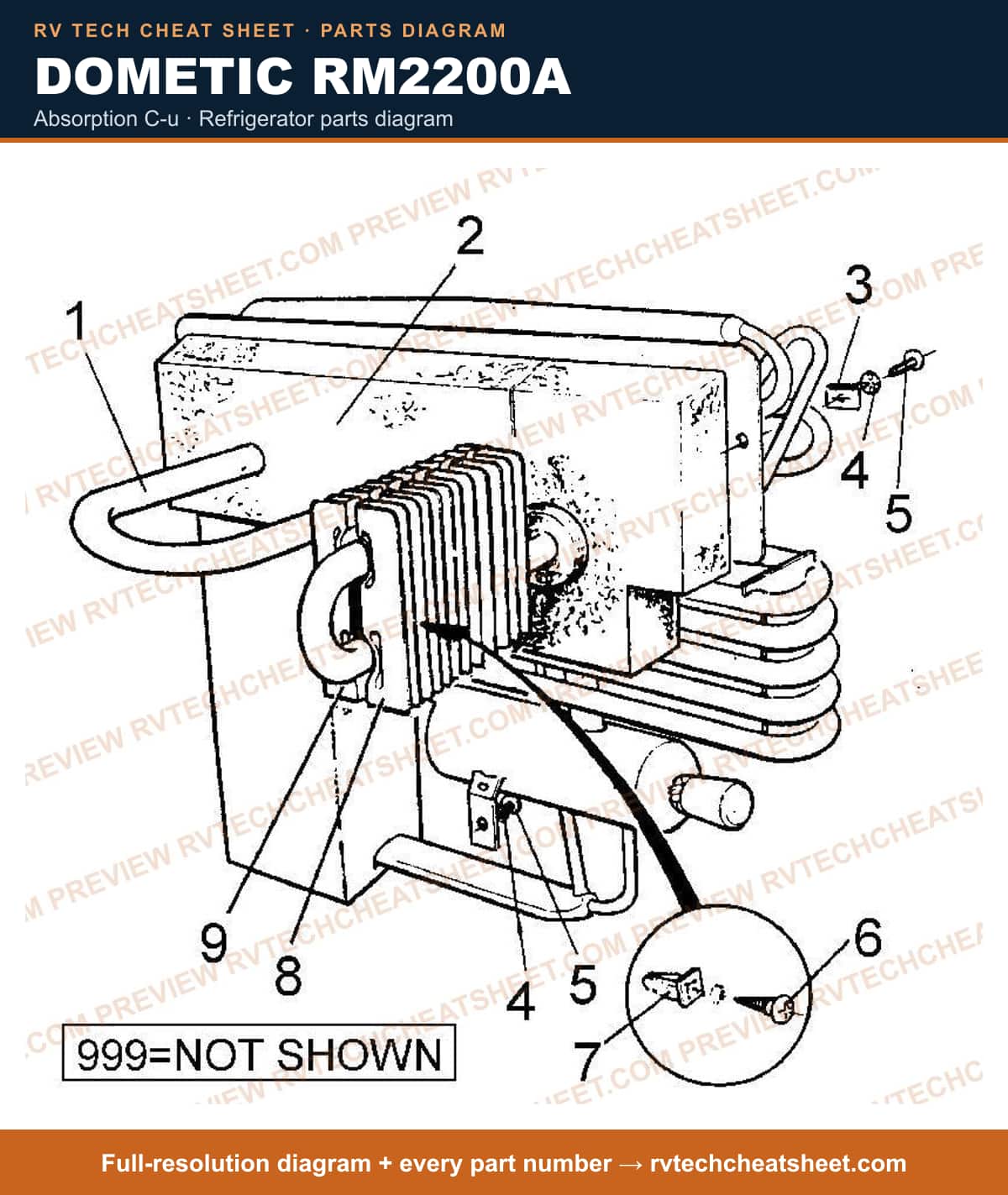

Absorption C-u

Components

10 items

1. #APPLIANCE COMPONENTS RV; Cooling Unit Ups MFR # 9282743013N
2. #INSULATION, WINDOW 274A 3/RM2118 MFR # 2901657011
3. #NUT, SPIRE RM2200A MFR # 2900493004
4. #LOCKWASHER, 3/16", INTERNAL TOOTH MFR # 290660000
5. #SCREW MFR # 2900884004
6. #SCREW RM2200A MFR # 7295342427
7. #NUT, PLASTIC F/EVAPORATOR FINS RM2200A MFR # 2901750006
8. #FIN ASM, RIGHT & LEFT RM21 1/211B MFR # 2905404006
9. #FINS, RH EVAP. USE 2905404006 MFR # 2901997003 Superseded: see description
10. #FINS LH EVAP. USE 2905404006 MFR # 2901997011 Superseded: see description

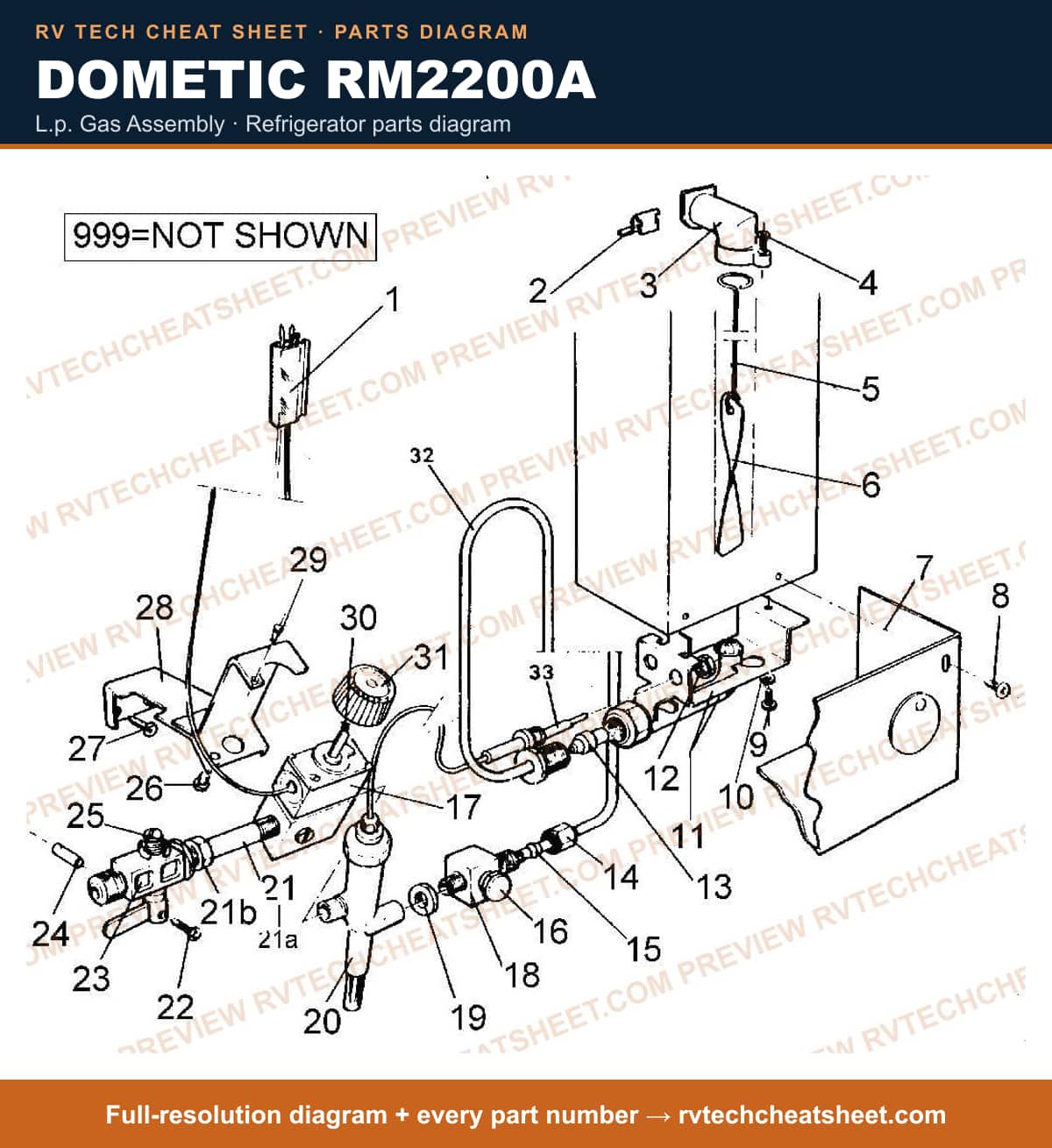

L.p. Gas Assembly

Components

45 items

1. #CLAMP, CAP TUBE 2201 MFR # 2901604005
2. #CLIP MFR # 2901929006
3. #ANGLED TOP FOR FLUE MFR # 2901712006
4. #SCREW MFR # 341733004
5. #SUPPORT, FLUE WIRE MFR # 200246010
6. #BAFFLE FLUE RM21 92 MFR # 339202004
7. #SHIELD, BURNER MFR # 2901733002
8. #SCREW, POZ. PAN HEAD, 1/4" NO. 4 MFR # 290583002
9. #SCREW FOR BURNER RM21 1B MFR # 294112008
10. #SPRING WASHER FOR ITEM 9 MFR # 23857006
11. #BURNER ASM RM211 MFR # 2901764000
12. #NUT MFR # 169386000D
13. #ORIFICE RM21 1/2200A MFR # 2901860010
14. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
15. #OLIVE MFR # 173213000D
16. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
17. #T-STAT USE V35P01151 MFR # 2900703147 Superseded: see description
18. #T-STAT, GAS (200) MFR # V35P01151
19. #HOUSING FOR PLUG SCREW MFR # 173214008D
20. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
21. #DEVICE, FLAME USE 2904991003 FAILURE MFR # 2901156000 Superseded: see description
22. #VALVE MFR # 2904991003
23. #Appliance Components RV; Nut Union MFR # 172809006
24. #FILTER MFR # 2901676003
25. #NIPPLE UNION RM22 MFR # 2903584007
26. #SCREW RM2200A MFR # 2901886008
27. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
28. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
30. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
31. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
32. #PROTECTOR, TUBE MFR # 2002582001
33. #APPLIANCE COMPONENTS RV; Locknut Gas Valve MFR # 2901849006
34. #SCREW MFR # 2900680006
35. #SCREW, RD. HD., 3/8" NO. 8 MFR # 273611004
36. #BRACKET, T-STAT RM22 00A MFR # 2901831004
37. #INDICATOR, T-STAT MFR # 292611001
38. #SPRING CLIP FOR THERMOSTAT KNOB MFR # 163382005D
39. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
40. #APPLIANCE COMPONENTS RV; Pipe Gas MFR # 2901737000
41. #T-COUPLE USE 2902551098 MFR # 2901425039 Superseded: see description
42. #THERMOCOUPLE USE 2902551098 MFR # 2901738000 Superseded: see description
43. #APPLIANCE COMPONENTS RV MFR # 2902551106
44. #THERMOCOUPLE USE 2902551106 760MM MFR # 2902551098 Superseded: see description
45. #BY-PASS SCREW, SIZE 14, FOR GAS THERMOSTAT MFR # 341912143

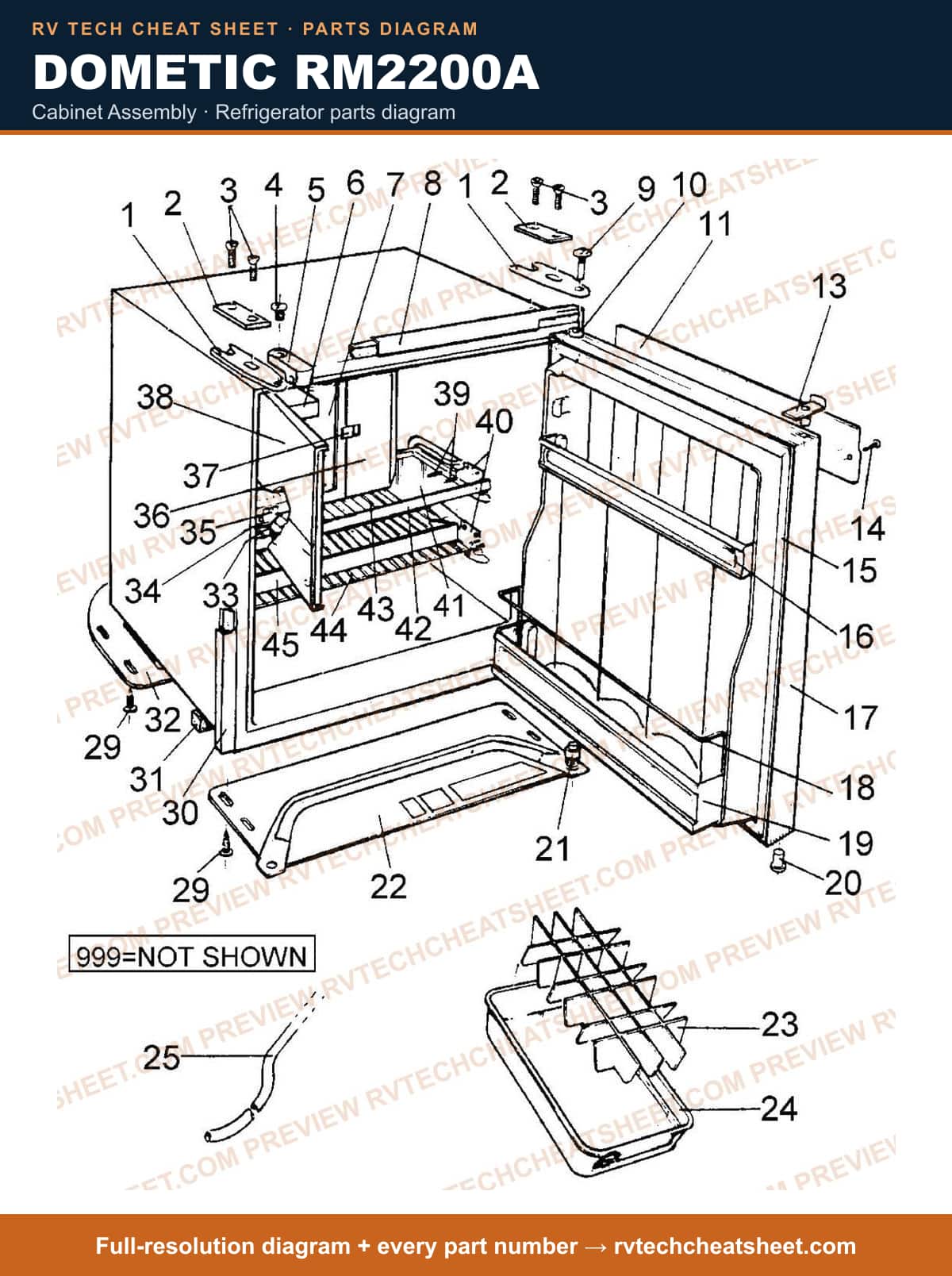

Cabinet Assembly

Components

46 items

1. #APPLIANCE COMPONENTS RV; Blade Hinge MFR # 2901572053
2. #CLAMP MFR # 2901952000
3. #SCREW, C/SK. HD., 3/4" NO. 6 MFR # 343401006
4. #SCREW F/CATCH RM211 MFR # 2901615000
5. #CATCH, TRAVEL RM21 MFR # 2901566022
6. #CATCH USE 2901566022 MFR # 2903194039 Superseded: see description
7. #SHELF FOR EVAPORATOR MFR # 2901636007
8. #CHAMBER, COLD RM22 00A MFR # 2901685012
9. #SEAL, CHANNEL TOP RM22 00 MFR # 2904447006
10. #PIN, UPPER HINGE MFR # 2901570000
11. #APPLIANCE COMPONENTS RV; Bearing Hinge Pin MFR # 2900348034
12. #Refrigerator Door Latch Plate Screw; Use With Dometic Refrigerator Models RM2201/ RM2150/ RM2192 MFR # 2901479093 Superseded: see description
13. #CATCH, TRAVEL MFR # 2901631031
14. #SCREW, NO. 4 X 16MM, FOR NAMEPLATE STRIP MFR # 293105011
15. #APPLIANCE COMPONENTS RV; Gasket Door Rm22 00A 2 MFR # 2902012042
16. #SHELF, UPPER DOOR MFR # 2900608130
17. #APPLIANCE COMPONENTS RV; Door RM211 2200A 2201 MFR # 2904836000
18. #DOOR COMPL USE 2904836000 MFR # 2903895015 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Retainer Shelf MFR # 2900963000
20. #SHELF, LOWER MFR # 2900607110
21. #APPLIANCE COMPONENTS RV; Pin Lower Hinge 2201 MFR # 2900352002
22. #PLATE, FRONT FOOT RM22 00A MFR # 2901270062
23. #DIVIDER, ICE TRAY 2201 MFR # 2901713000
24. #APPLIANCE COMPONENTS RV; Tray Ice MFR # 2901681000
25. #Defroster Duct Hose; Use With Dometic Refrigerator Models RM211/ RM211B; Tube MFR # 2901762027 Superseded: see description
26. #SCREW, POZ. PAN HD., 3/8" NO. 6 MFR # 291419000
27. #SEAL, CHANNEL LH MFR # 2904446014
28. #SEALING CHANNEL RH MFR # 2904446006
29. #STRIP, BOTTOM SEALING MFR # 2901230025
30. #PLATE, REAR FOOT RM22 00A MFR # 2901272019
31. #DOOR, FRONT FREEZER RESOURCED MJR MFR # 2904645013
32. #GASKET, FREEZER USE 2904645013 DOOR MFR # 2901668000 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Hinge Lower Frz Door MFR # 2901580000
34. #RIVET, TRUSS HEAD RM22 00A MFR # 342257029
35. #COVER, SIDE EVAP FINS RM22 00 MFR # 2901578043
36. #CATCH RM2200A MFR # 2901670000
37. #APPLIANCE COMPONENTS RV; Door Freezer MFR # 2901581161
38. #PIN,RETAINING MFR # 2001281019
39. #PIN,LOCKING USE 2001281019 MFR # 2001281001 Superseded: see description
40. #APPLIANCE COMPONENTS RV; Retainer MFR # 2002624001
41. #TRAY, PLASTIC RM22 00A MFR # 2901439014
42. #STRIP, FACING UPPER SHELF RM22 00A MFR # 2901289038
43. #SHELF, UPPER MFR # 2901171070
44. #SHELF, LOWER USE 2905102014 MFR # 2903079057 Superseded: see description
45. #SHELF, LOWER MFR # 2905102014
46. #SHELF, LOWER SLIDING RM22 00A MFR # 2901521043

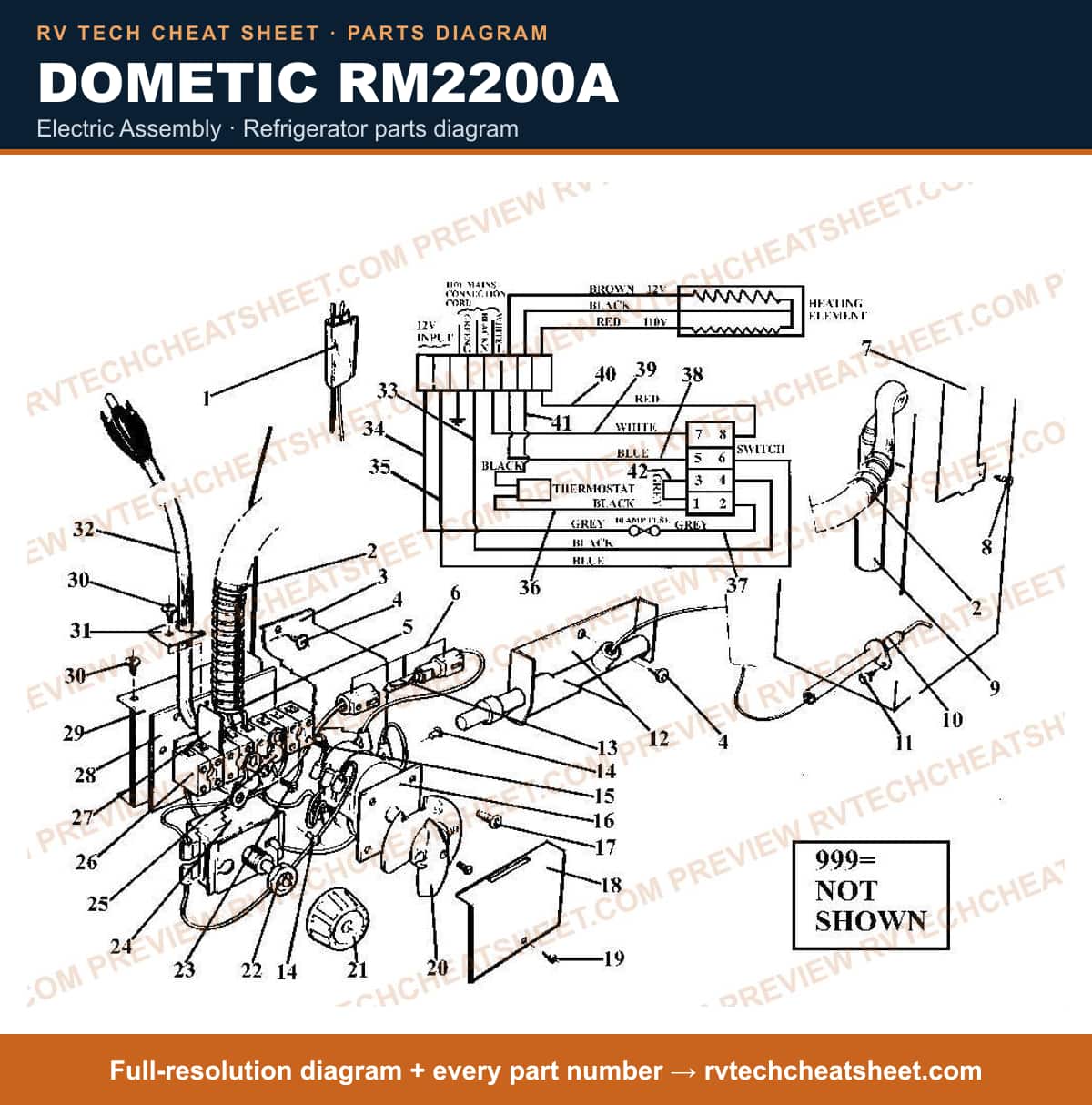

Electric Assembly

Components

50 items

1. #CLAMP, CAP TUBE 2201 MFR # 2901604005
2. #SLEEVE, ARMOURED MFR # 2901806006
3. #HOUSING, TERMINAL BLOCK RM22 00A MFR # 2901829008
4. #SCREW, 5/16" NO. 6 MFR # 273133009
5. #BRACKET SUPPORT MFR # 2901861001
6. #APPLIANCE COMPONENTS RV; Holder Fuse RM211-2201 MFR # 2901844000
7. #SHUTTER FOR BOILER CASING MFR # 2900644002
8. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
9. #ELEMENT, HEATING (25) USE 72-8460 SUGGESTED ALTERNATE F/DOMETIC: THIS PART IS NOT A DOMETIC ORIGINAL BUT CAN BE USED AS AN ALTERNATE TO THE DOMETIC P#2901943000. MFR # CS000027 Superseded: see description
10. #APPLIANCE COMPONENTS RV; UNIV ELEMENT 95W SUGGESTED ALTERNATE: THIS PART IS NOT AN OE ORIGINAL BUT CAN BE USED AS AN ALTERNATE FOR P#2901943000. MFR # 2901943000MC
11. #APPLIANCE COMPONENTS RV; Element Heating Alts Available. WHEN INVENTORY IS DEPLETED ON THIS ITEM, PLEASE ORDER SUGGESTED ALTERNATE P# CS000027 OR 2901943000MC. MFR # 2901943000
12. #Igniter Electrode; For Use With Dometic RM2200A/ RM2201/ RM211B Refrigerators; Single Electrode; With Lead MFR # 2905546004 Superseded: see description
13. #ELECTRODE USE 2902205000 MFR # 2901788020 Superseded: see description
14. #CABLE, ELECTRODE USE 2905546004 MFR # 2902205000 Superseded: see description
15. #Igniter; For Use With Dometic RM2200A/ RM211B/ RM211 Refrigerators; Piezo Spark MFR # 2901181010 Superseded: see description
16. #IGNITER, PIEZO USE 2901181010 USE 2901181010 FIRST UNTIL GONE. MFR # 2901181012 Superseded: see description
17. #HOLDER W/FUSE RM21 92 MFR # 2002579005
18. #FUSE USE 2002579005 MFR # 343804001 Superseded: see description
19. #INDICATOR, T-STAT MFR # 292611001
20. #SCREW, RD. HD., 5/8" NO. 4 MFR # 293105003
21. #SWITCH, CONTROL MFR # 2002586002
22. #SCREW, 3/8" NO. 10, FOR SWITCH MFR # 291072007
23. #COVER FOR TERMINAL BLOCK HOUSING MFR # 2901740007
24. #SCREW RM2200A MFR # 158130005
25. #APPLIANCE COMPONENTS RV; Knob Gas/Electric Rm22 MFR # 2002585004
26. #KNOB, T-STAT USE 2901183026 2150, 2201 MFR # 2901183018 Superseded: see description
27. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
28. #NUT, HEX F/T-STAT RM22 01, RB2195 MFR # 2900705001
29. #SCREW RM2200A MFR # 7295277011
30. #T-STAT, ELEC. USE K50P2022 MFR # 2902595004 Superseded: see description
31. #CLIP, SADDLE MFR # 271019002
32. #APPLIANCE COMPONENTS RV; Block Terminal 8 Pos. RM21 MFR # 2901749000
33. #INSULATION PIECE 0343903-00/1 MFR # 343903001
34. #INSULATION F/TERM BLOCK RM2200A MFR # 2901736005
35. #FASTENER, PLATE MFR # 2901743001
36. #SCREW RM2200A MFR # 272662008
37. #CLAMP F/ARMOURED SLEEVE MFR # 2901859005
38. #S,CORD,AC POWER,1000MM,RM2351 MFR # 2002699110
39. #CORD, POWER USE 2002699110 MFR # 2002699037 Superseded: see description
40. #CORD, FLEXIBLE USE 2002699037 MFR # 2002699029 Superseded: see description
41. #LEAD, BLACK RM211 MFR # 2901841010
42. #WIRE ASM, GREY MFR # 2902649009
43. #LEAD, BLUE SWITCH TO FUSE RM2200A RM211 MFR # 2901841050
44. #LEAD, BLACK RM21 1, RM2200A MFR # 2901842010
45. #WIRE ASM, GREY MFR # 2902650007
46. #LEAD, BLUE MFR # 2901841030
47. #LEAD, WHITE RM2200A, RM211 MFR # 2901841020
48. #LEAD, RED MFR # 2901841040
49. #LEAD, BLACK THERMO TO TERMINAL BLOCK RM2200A MFR # 2901841060
50. #LEAD, GRAY RM2200A RM211 MFR # 2901842000
