Dometic RM2201 Parts Diagram · Cooling Unit Assembly

Refrigerator · 6 assemblies · 6 diagram sheets · 114 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2201 RV refrigerator: 6 assemblies (Cooling Unit Assembly, Cabinet Assembly, Gas Assembly, Lower Sidewall Vents, Upper Sidewall Vents and more) and 114 manufacturer part numbers. 17 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

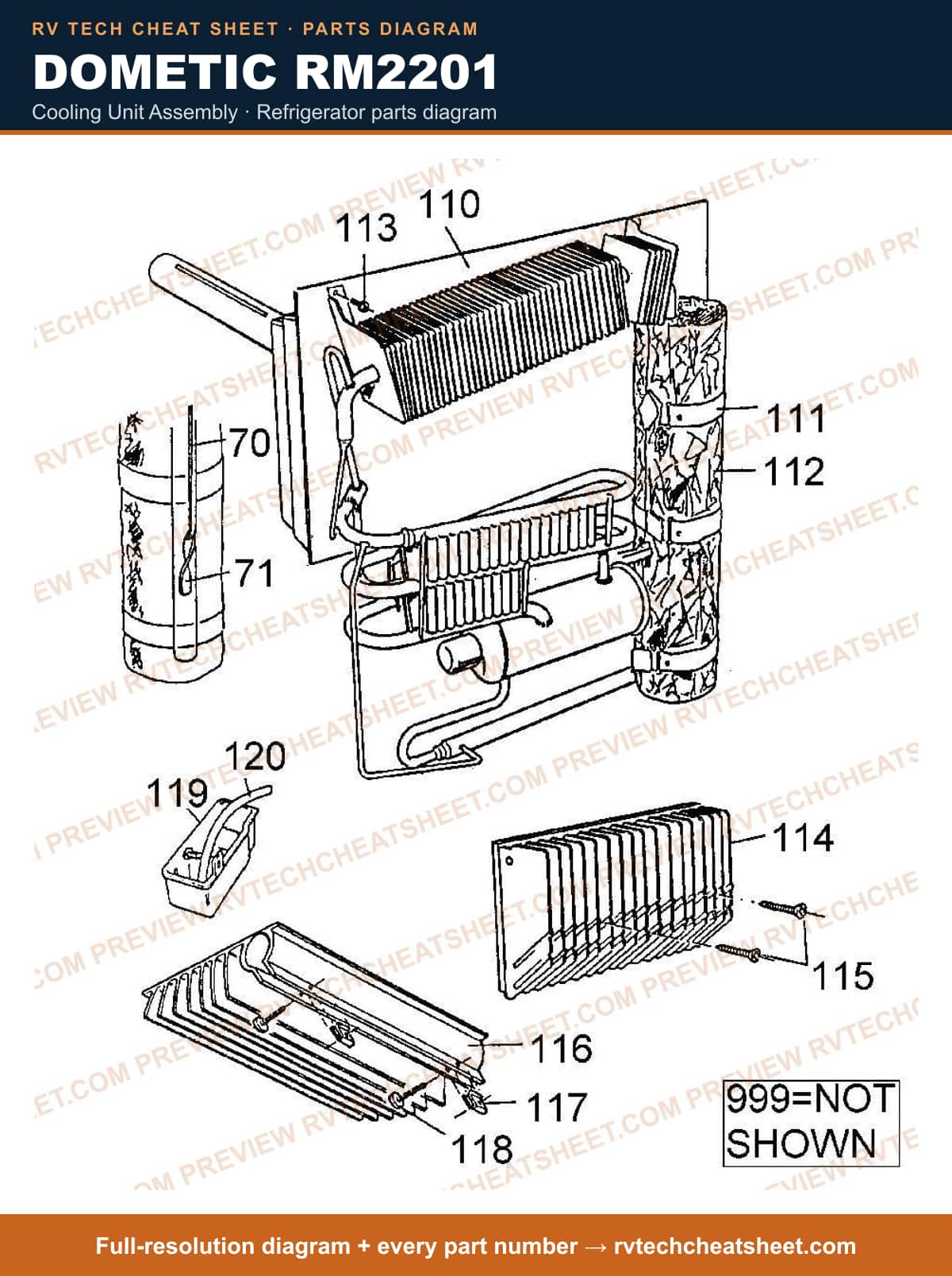

Cooling Unit Assembly

Components

15 items

1. #Refrigerator Support Rail; Replacement For Dometic RM2201 Refrigerator; For Use With Baffle MFR # 2900246030 Superseded: see description
2. #BAFFLE FLUE RM21 92 MFR # 339202004
3. #REMAN COOLING UNIT (UPS) RM2201 MFR # 2904586019R
4. #COOLING UNIT 25LB S. MFR # 2904586019N
5. #STRAP FOR BROILER INSULATION RM2190, RM190 MFR # 2903774004
6. #INSULATION, BOILER MFR # 2903934020
7. #SCREW, 8X3/4 MFR # 2902848015
8. #FIN BANK, COMPLETE MFR # 2904597008
9. #SCREW, 10 X 1.5 (2 REQ) MFR # 2900798006
10. #SHELF, EVAPORATOR MFR # 2904814007
11. #Nut; Replacement For Dometic RB2192 Refrigerator MFR # 2903205009
12. #SCREW 6 X 8.8 MFR # 2903649008
13. #VESSEL, DRAINAGE MFR # 2901824009
14. #OPERATING INSTRUCTIONS MFR # 8213853008
15. #TUBE, DRAIN MFR # 2904751019

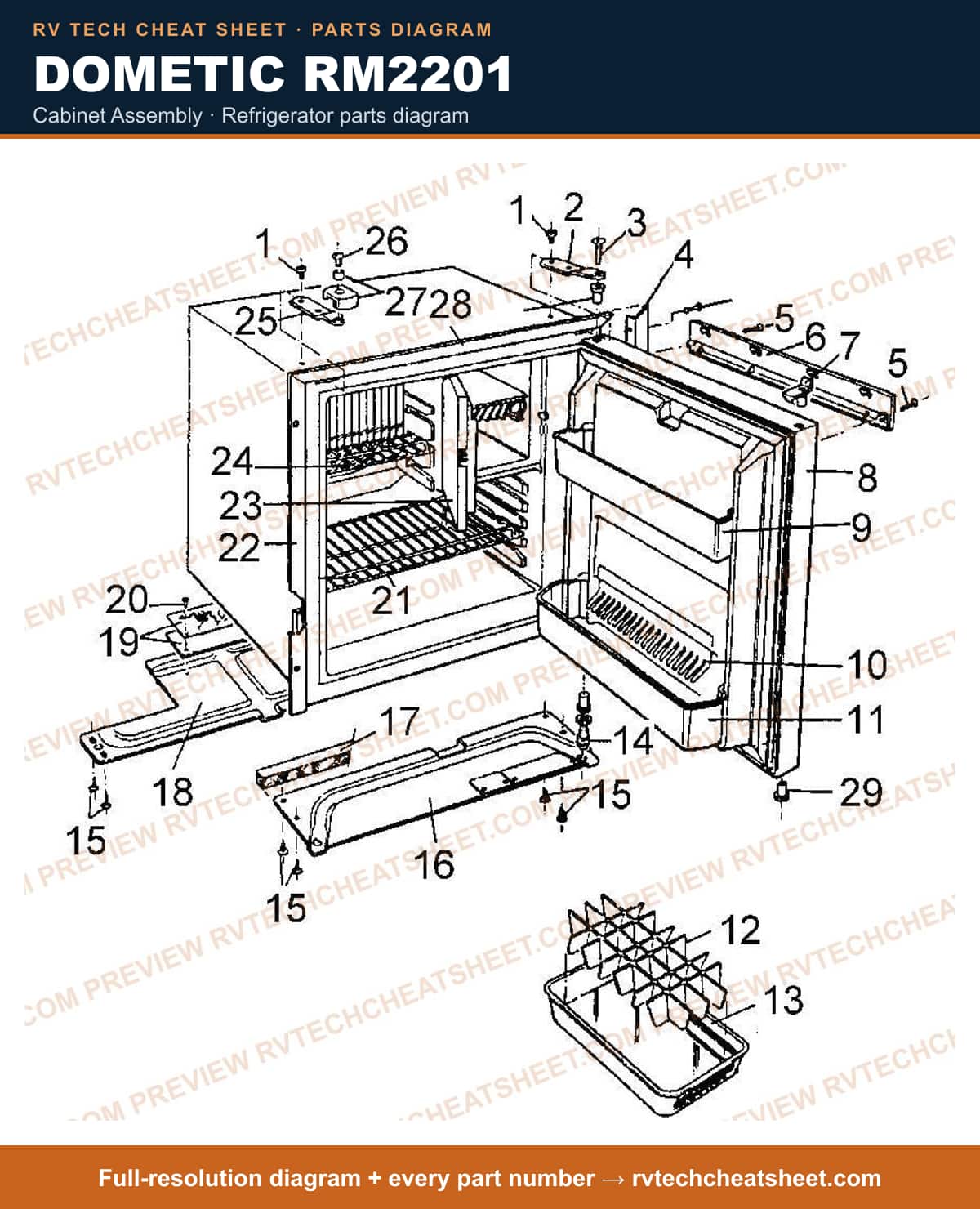

Cabinet Assembly

Components

36 items

1. #SCREW MFR # 272088006
2. #HINGE, RH UPPER MFR # 2904671050
3. #PIN, HINGE UPPER MFR # 2904753033
4. #APPLIANCE COMPONENTS RV; Pin Hinge Rm2192 2150 Rb MFR # 2904095003
5. #Channel RH Sealing 2201 MFR # 2904802028
6. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2150/ RM2190/ RM2192/ RM2201 Model Refrigerator MFR # 2901431003
7. #Nameplate MFR # 2901479127
8. #APPLIANCE COMPONENTS RV; Stop Travel Latch MFR # 2904841000
9. #DOOR, COMPL. MFR # 2904836091
10. #APPLIANCE COMPONENTS RV; Door RM211 2200A 2201 MFR # 2904836000
11. #SHELF, UPPER DOOR; Use With Dometic Refrigerator Model RM2201 MFR # 2904618018 Superseded: see description
12. #SHELF, DOOR UPPER MFR # 2904618028
13. #RETAINER, BOTTLE MFR # 2904780018
14. #SHELF, DOOR LOWER MFR # 2904619000
15. #ICE CUBE DIVIDER N/A MFR # 2901713004
16. #TRAY, ICE MFR # 2901681003
17. #APPLIANCE COMPONENTS RV; Pin Lower Hinge 2201 MFR # 2900352002
18. #SCREW POSI-PAN MFR # 340484005
19. #Refrigerator Door Latch Plate; Use With Dometic Refrigerator Model RM2201 MFR # 2900354057 Superseded: see description
20. #STRIP, BOTTOM SEALING MFR # 2901230025
21. #PLATE, REAR & FRONT RM22 01 MFR # 2900355021
22. #INSTRUCTION PLATE, W/LABEL REAR FOOT PLATE MFR # 2904985005
23. #RIVET, BREAK STEM MFR # 339414013
24. #SHELF MFR # 2905290025
25. #CHANNEL, LH SEALING MFR # 2904802036
26. #DOOR, FRONT FREEZER RESOURCED MJR MFR # 2904645013
27. #SHELF, TOP MFR # 2905346009
28. #BLADE, UPPER HINGE LH RM2201 MFR # 2904672033
29. #HINGE, LH Use 2904672033 MFR # 2904672058 Superseded: see description
30. #APPLIANCE COMPONENTS RV; Screw Travel Latch 2150 MFR # 2904818008
31. #CATCH,TRAVEL BLACK MFR # 2904817018
32. #CATCH,RETAINER RM3-4-660 MFR # 2007544006
33. #LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description
34. #LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description
35. #CHANNEL, SEALING TOP MFR # 2904803018
36. #HINGE, BEARING MFR # 2900348059

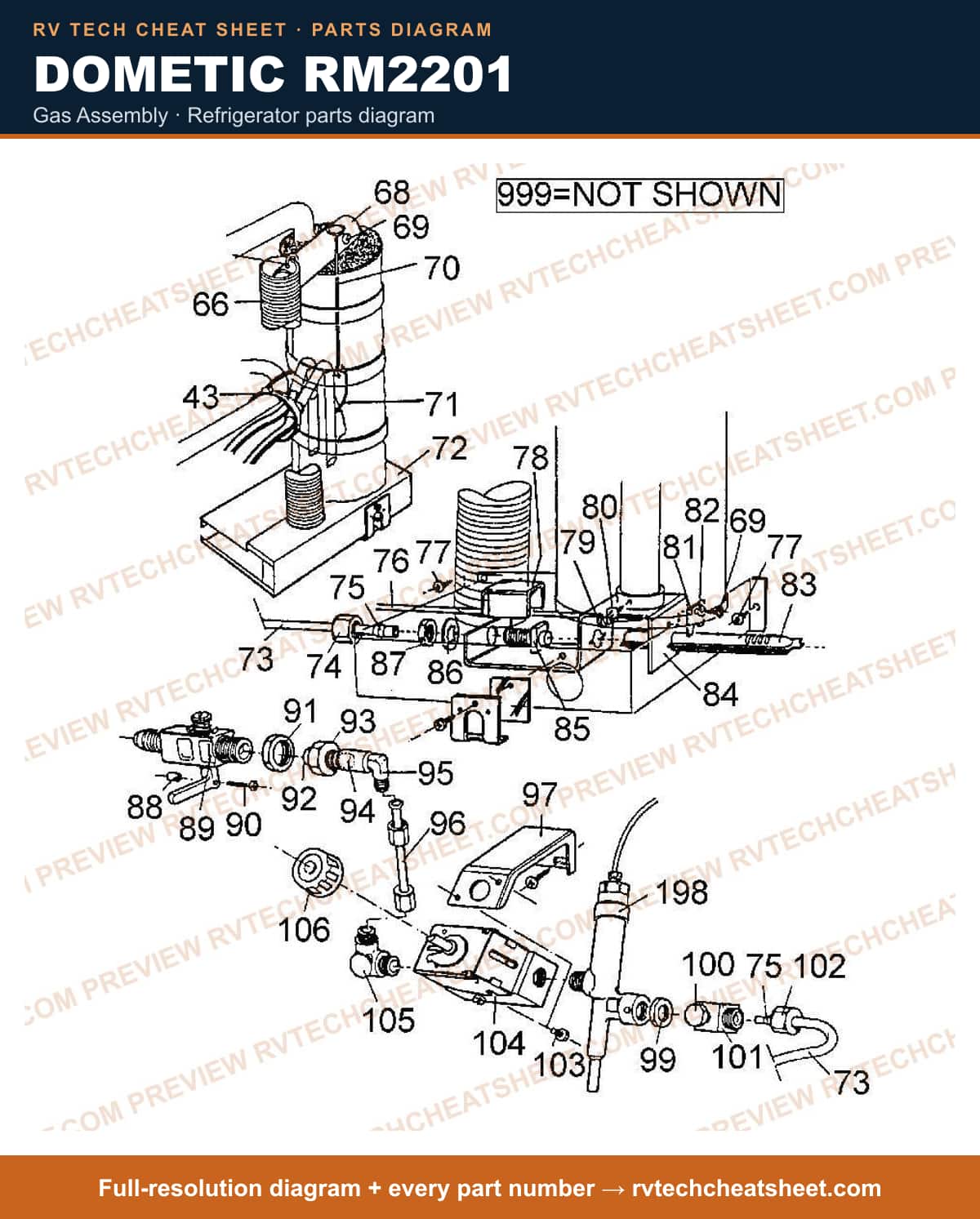

Gas Assembly

Components

48 items

1. #CABLE STRAP (2 REQ) MFR # 2900962008
2. #APPLIANCE COMPONENTS RV; Flue Balanced/Flexible MFR # 2903360002
3. #TOP, FLUE MFR # 2903361000
4. #SCREW, PAN HEAD 1/4" RM19 0,2190 MFR # 290583004
5. #Refrigerator Support Rail; Replacement For Dometic RM2201 Refrigerator; For Use With Baffle MFR # 2900246030 Superseded: see description
6. #BAFFLE FLUE RM21 92 MFR # 339202004
7. #SHIELD, BURNER MFR # 2904980006
8. #PIPE, GAS INLET MFR # 2904812001
9. #NUT, UNION FEMALE MFR # 2902553003
10. #APPLIANCE COMPONENTS RV; Ferrule Gas Line Use 2001 MFR # 173213000 Superseded: see description
11. #APPLIANCE COMPONENTS RV MFR # 2902551106
12. #THERMOCOUPLE USE 2902551106 MFR # 2928742028 Superseded: see description
13. #THERMOCOUPLE MFR # 2902551023MC
14. #SCREW POSI-PAN MFR # 340484005
15. #SHIELD, AERATION RM19 0,2150,2201 MFR # 2902546007
16. #LOCKNUT, T-COUPLE 2201 ,2150 MFR # 2902535000
17. #SCREW RM2190, RM190 TRY A LOCAL HARDWARE MFR # 2902611009
18. #PLATE SECURING FOR BRNR TUBE RM2190, RM190 MFR # 2902548011
19. #APPLIANCE COMPONENTS RV; Washer Lock Ext. Teeth MFR # 7352124007
20. #BURNER ASM RM21 90 RM2150 RM2201 MFR # 2903403000
21. #N/A HOUSING, BURNER MFR # 2905560005
22. #ORIFICE, BURNER MFR # 2902540059
23. #WASHER, LOCK RM12 5 INTERNAL TEETH (JET) MFR # 341747004
24. #NUT, LOCKING MFR # 2902550009
25. #PROTECTOR, TUBE MFR # 2002582001
26. #APPLIANCE COMPONENTS RV; Valve Gas MFR # 172807000
27. #VALVE, CUT OFF USE 172807000 MFR # 671059860 Superseded: see description
28. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
29. #VALVE, GAS USE 2007430008 MFR # 2901885000 Superseded: see description
30. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
31. #SCREW MFR # 341733004
32. #APPLIANCE COMPONENTS RV; Locknut Gas Valve MFR # 2901849006
33. #APPLIANCE COMPONENTS RV; Nipple Union MFR # 172808008
34. #Appliance Components RV; Nut Union MFR # 172809006
35. #FILTER MFR # 2901676003
36. #ELBOW MFR # 2904826001
37. #PIPE, GAS MFR # 2904813009
38. #BRACKET, T-STAT RM22 01 MFR # 2901739009
39. #APPLIANCE COMPONENTS RV; NUT LOCK MFR # 272562000
40. #PLUG SCREW MFR # 16938003
41. #HOUSING, PRESSURE TEST - NLA MFR # 2002470009
42. #APPLIANCE COMPONENTS RV; Nut Union MFR # 2901369005
43. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM1272/ RM1282 Model Refrigerator; M4 x 6 Pan MFR # 7241285019
44. #T-STAT, GAS (200) MFR # V35P01151
45. #T-STAT USE V35P01151 MFR # 2900703147 Superseded: see description
46. #APPLIANCE COMPONENTS RV; Adapter Elbow MFR # 2904601008
47. #Refrigerator Control Knob; Replacement For Dometic RM2200A/ RM2201/ RM3804 Refrigerators; Thermostat Control Knob MFR # 2901183026
48. #VALVE MFR # 2904991003

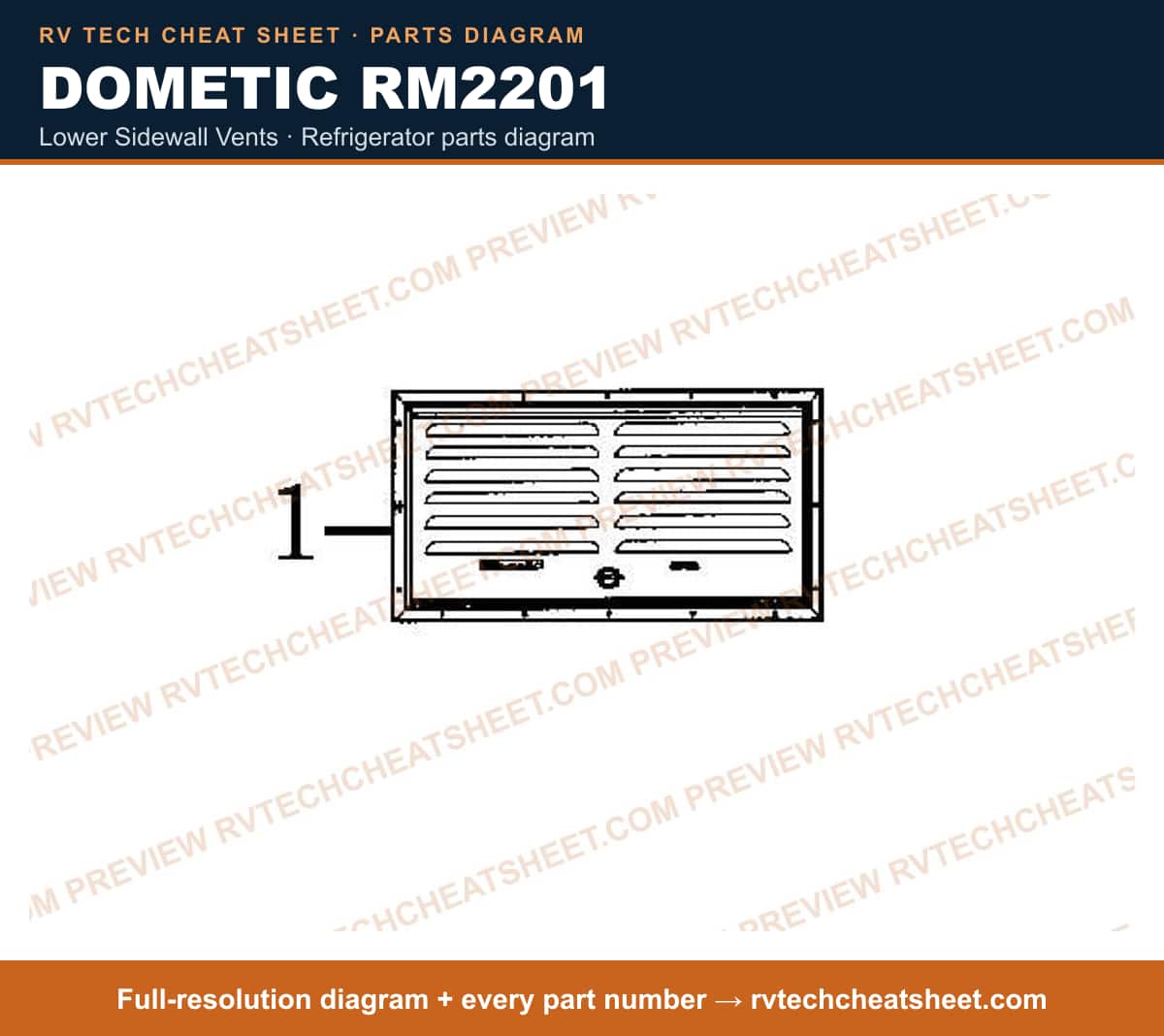

Lower Sidewall Vents

Components

4 items

1. #VENT, LOWER COL. WHT 19 X 10 MFR # 8030211332
2. #VENT, SIDE SQ CORNERS DESIGNER BEIGE MFR # 8030211362
3. #VENT, LOWER PW (20) 19X10 MFR # 8030211322
4. #Refrigerator Vent; Use With Most Norcold Refrigerator; Air Intake Side Vent; 21-3/4 Inch Width x 13-3/4 Inch Height; Square; Polar White; Mill Finish Metal Frame; With Piano Hinge And Screw Cover METAL SQUARE CORNER SIDE VENT, MILL FINISH FRAME WITH PIANO HINGE AND SCREW COVER PROVISION DIMENSIONS: 13 3/4" X 21 3/4". MFR # 616010PW Superseded: see description

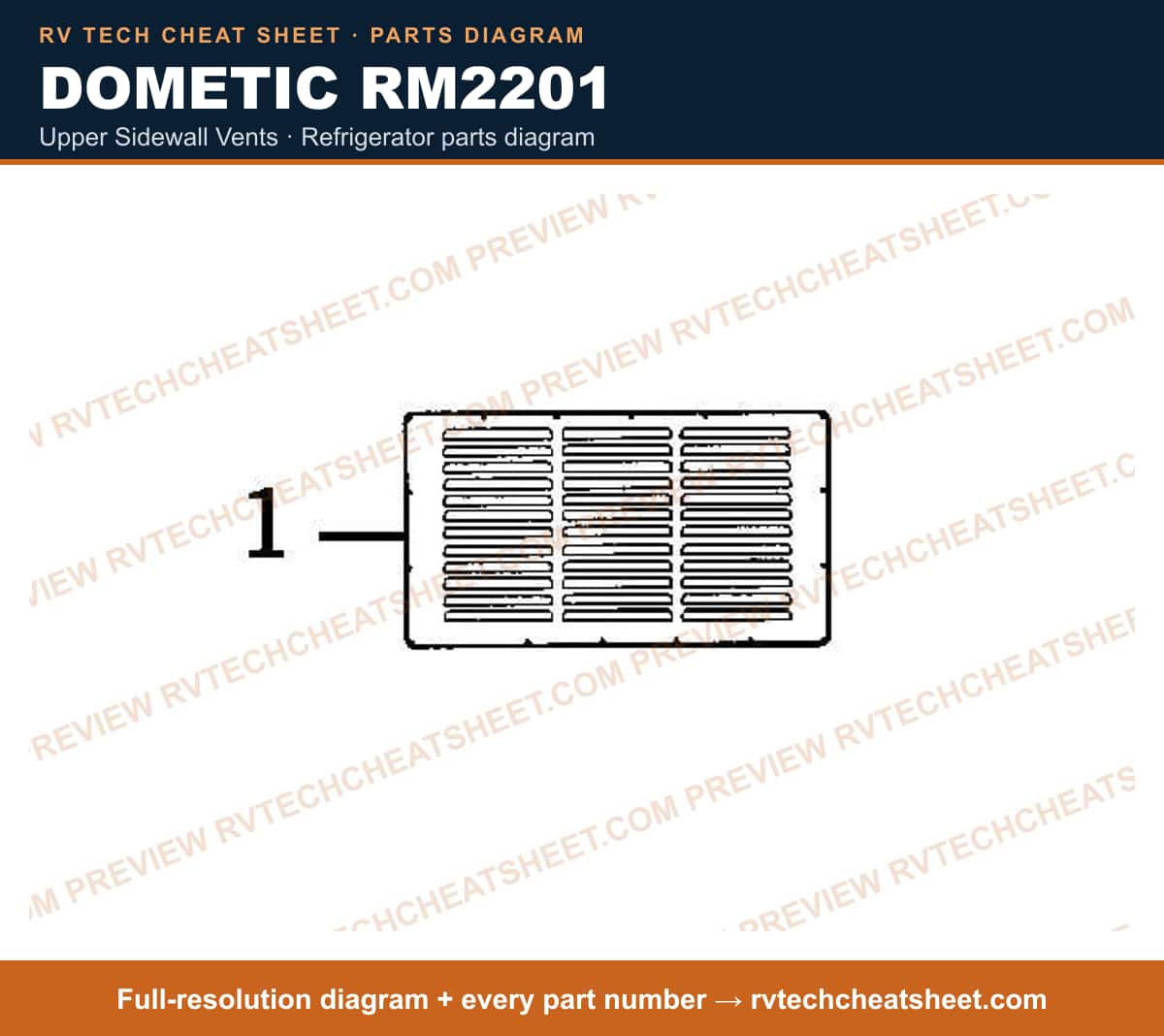

Upper Sidewall Vents

Components

8 items

1. #VENT INSTALLATION MFR # 3100451057
2. #VENT, UPPER USE 3100451016 CORNERS MIL FINISH MFR # 8030211331 Superseded: see description
3. #DESIGNER BEIGE VENT PANEL FOR RM2300, RM2400 MFR # 8030122360
4. #VENT, UPPER USE 8030122320 COLONIAL WHITE MFR # 8030122330 Superseded: see description
5. #DESIGNER BEIGE VENT PANEL MFR # 8030211361
6. #Refrigerator Grille; Replacement For Dometic RM2201/ RM2190/ RM2150 Model Refrigerators; Upper Side; Polar White MFR # 8030122320
7. #VENT, UPPER MFR # 8030211311
8. #VENT, INSTALLATION 17-3/4 X 7 MFR # 3100451016

Replacement Refrigerator

Components

6 items

1. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
2. #REFER, NEW 2 CU FT 3 WAY 22 1/4 H X 19 1/4 W X 19 3/8 D MFR # RM22013N
3. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description
4. #REFER USE RM22013N 22 7/16" X 20 1/8" X 18 1/16" MFR # RM2201N Superseded: see description
5. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
6. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
