Dometic RM2202 Compact Product # 921130101 Parts Diagram · Cooling Unit

Refrigerator · 5 assemblies · 5 diagram sheets · 86 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2202 Compact Product # 921130101 RV refrigerator: 5 assemblies (Cooling Unit, Door, Cabinet Asm, Controls, Replacement Refrigerator) and 86 manufacturer part numbers. 28 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

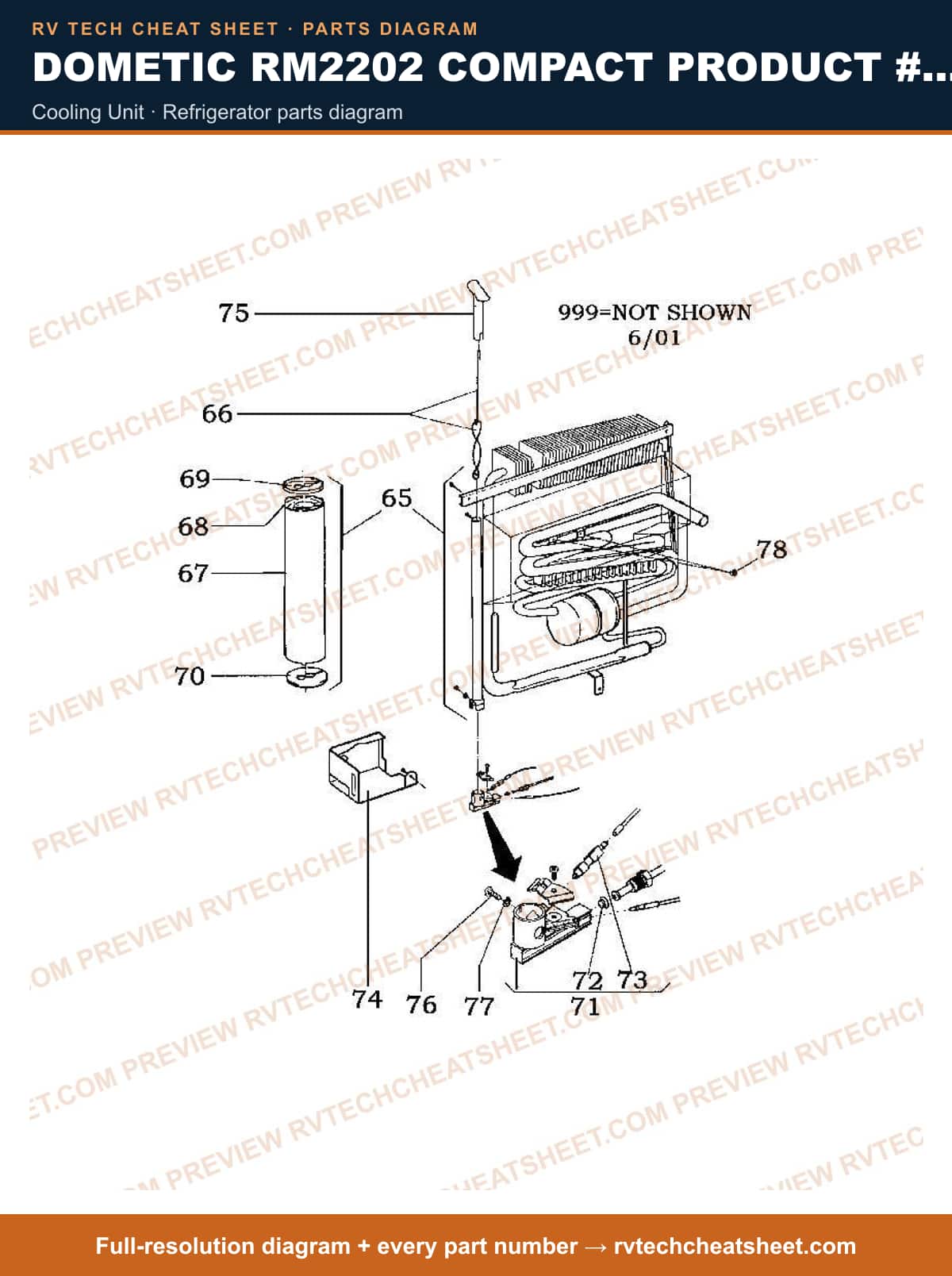

Cooling Unit

Components

13 items

1. #Cooling Unit Use 2952610117N MFR # 2952610109N Superseded: see description
2. #Appliance Components RV; Cooling Unit MFR # 2952610117N
3. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
4. #TUBE MFR # 2924082205
5. #APPLIANCE COMPONENTS RV; Insulation MFR # 2926680030
6. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
7. #LID LOWER BOILER MFR # 2924089002
8. #Burner Use 2923877506 MFR # 2923432104 Superseded: see description
9. #Refrigerator Burner Tube; Refrigerator Burner Orifice; Use With Dometic Refrigerators RM4290/ RM4223/ RM2202; With Jet MFR # 2923877506 Superseded: see description
10. #Refrigerator Burner Orifice; Replacement For Dometic RM4223/ RM4292/ RM4223 Refrigerators MFR # 2922033069
11. #Awning-Accessories RV; Electrode Ign RM225X RML8330 MFR # 2923626002
12. #Cover RM22 02 MFR # 2952083000
13. #Appliance Components RV; Tube Exhaust MFR # 2923033308

Door

Components

9 items

1. #Panel, Door Woodgrain MFR # 3106863107B
2. #Door, Complete RM2202 MFR # 2951290804
3. #Panel, Door Black Plexiglass MFR # 3106863107C
4. #Trim, Door Gray/Brown MFR # 2951240106
5. #Refrigerator Content Brace; Replacement For Dometic RM2202/ RM4202/ RM4223/ RM4290/ RM4292 Refrigerators MFR # 2951237003
6. #Shelf, Door White MFR # 2951238100
7. #Refrigerator Door Bin; Replacement For Dometic RM2202/ RM4223/ RM2202 Model Refrigerator; Upper Door; Plastic MFR # 2951239009
8. #Refrigerator Trim Hole Plug; Plug; Use With Dometic RM Series Refrigerators; Gray/ Brown MFR # 2951297007 Superseded: see description
9. #Refrigerator Trim Hole Plug; Cap; Use With Dometic RM4290/ RM4292/ RM4180M/ RM2202 Compact Refrigerators; Gray/ Brown MFR # 2951296009 Superseded: see description

Cabinet Asm

Components

23 items

1. #Hinge, Upper RH MFR # 2951246400
2. #Hinge, Upper LH MFR # 2951247408
3. #Refrigerator Door Hinge; Replacement For Dometic RM4223/ RM4202 Model Refrigerators; Fits Bottom Cabinet Side; Lower Right Hand MFR # 2951248000
4. #Refrigerator Door Hinge; Replacement For Dometic RM2202/ RM4223/ RM4290/ RM4292 Model Refrigerators; Fits Bottom Cabinet Side; Lower Left Hand MFR # 2951249008
5. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
6. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #Appliance Components RV; Latch Travel Use 29521481 MFR # 2952148001 Superseded: see description
9. #Refrigerator Door Latch; Travel Latch; Use With Dometic Refrigerator Model RM2202 Compact MFR # 2952148100 Superseded: see description
10. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2202/ RM4180M/ RM4290/ RM4292 Model Refrigerator; M6 x 6 MFR # 2952169007
11. #Screw M6x6 Use 2952169007 MFR # 7231360046 Superseded: see description
12. #Hose, Drain MFR # 2926441177
13. #Fins, Evaporator MFR # 2927993101
14. #Retainer MFR # 2926235033
15. #Door, Freezer MFR # 2951280417
16. #Gasket, Freezer Door MFR # 2926152006
17. #Appliance Components RV; Shelf Wire MFR # 2951281159
18. #Refrigerator Shelf; Replacement For Dometic RM2202/ RM4202 Model Refrigerator; Freezer Compartment; Wire MFR # 2951282157
19. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
20. #Frame RH/LH MFR # 2951886106
21. #Frame, Upper MFR # 2951887104
22. #Frame, Lower MFR # 2951887203
23. #Shelf, Ice Tray MFR # 2951979000

Controls

Components

36 items

1. #Knob, Gas Valve RM4223 MFR # 2923334342
2. #Dometic RM2820 Series Refrigerator Door Handle Black MFR # 2923468140
3. #Switch W/O Use 2951433107 Light 120V MFR # 2951433008 Superseded: see description
4. #Appliance Components RV; Switch W/O Light 120V MFR # 2951433107
5. #Switch, 12V Use 2951398201 W/O Light Red MFR # 2951398003 Superseded: see description
6. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
7. #Frame, Switch Use 2923815134 MFR # 2923815035 Superseded: see description
8. #Switch Plate Cover Mounting Bracket; Use With Dometic Refrigerator RM4223; 2 Openings; Gray/ Brown MFR # 2923815134 Superseded: see description
9. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
10. #T-Stat, Electric Use 2926528130 MFR # 2926528031 Superseded: see description
11. #T-Stat, Elec. Use 2926528106 RM2193 MFR # 2926528130 Superseded: see description
12. #Appliance Components RV; T-Stat Gas MFR # 2923755025
13. #NUT M10 RH25 MFR # 2927881009
14. #Refrigerator Terminal Block; For Dometic RM2193/ RM2202 Model Refrigerator; 3-Pole MFR # 2923466037
15. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
16. #Appliance Components RV; T-Stat/Valve, Gas MFR # 2952168314
17. #Line, Gas MFR # 2952034003
18. #Thermocouple Use 2923435115 MFR # 2923435149 Superseded: see description
19. #T-Couple Use 2923435321 1250MM MFR # 2923435115 Superseded: see description
20. #Appliance Components RV; Thermocouple MFR # 2923435321
21. #Elbow, 5/8-18 Use 2952220008 MFR # 2952220000 Superseded: see description
22. #Fitting, Gas Connect Use 46-1406 MFR # 2952011001 Superseded: see description
23. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2202/ RM4223/ RM4290 Model Refrigerator; Elbow Assembly MFR # 2923846204
24. #Elbow, Gas Conn. Use 2923846204 MFR # 2952220008 Superseded: see description
25. #PIEZO MFR # 2923024109
26. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
27. #LIGHTER,PIEZO MFR # 2923024208
28. #Nut, Lock MFR # 2927898003
29. #Appliance Components RV; Lead, Ignition MFR # 2927880142
30. #Refrigerator Cooling Unit Heater Element; Replacement For Dometic RM2202 Model Refrigerator; 12 Volt MFR # 2951997002
31. #Element, Heating Use 2951998117 120V MFR # 2951998000 Superseded: see description
32. #WASHER MFR # 2926639002
33. #Screw, By-Pass Use 2923755025 MFR # 2951148002 Superseded: see description
34. #Appliance Components RV; Filter, Gas MFR # 2923191007
35. #Appliance Components RV; Filter Use 2923191007 MFR # 2922212010 Superseded: see description
36. #Refrigerator Control Knob; Replacement For Dometic RM4223/ RM2202 Model Refrigerators; Thermostat Control Knob MFR # 2923530246

Replacement Refrigerator

Components

5 items

1. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
2. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
3. #Refer, New 2 Cu Ft 3 Way 22-1/4"H x 19 1/4"W x 18 1/4"D MFR # RM2202N
4. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
5. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description
