Dometic RM2202 Compact Product # 921130102 Parts Diagram · Cabinet Asm

Refrigerator · 5 assemblies · 5 diagram sheets · 84 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2202 Compact Product # 921130102 RV refrigerator: 5 assemblies (Cabinet Asm, Door, Replacement Refrigerator, Cooling Unit, Controls) and 84 manufacturer part numbers. 25 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Asm

Components

24 items

1. #Hinge, Upper RH MFR # 2951246400
2. #Hinge, Upper LH MFR # 2951247408
3. #Refrigerator Door Hinge; Replacement For Dometic RM4223/ RM4202 Model Refrigerators; Fits Bottom Cabinet Side; Lower Right Hand MFR # 2951248000
4. #Refrigerator Door Hinge; Replacement For Dometic RM2202/ RM4223/ RM4290/ RM4292 Model Refrigerators; Fits Bottom Cabinet Side; Lower Left Hand MFR # 2951249008
5. #PIN, LOWER HINGE USE 2924892009 MFR # 2923005009 Superseded: see description
6. #Refrigerator Bolt; Use With Dometic Refrigerator RM2193; Upper Hinge Bolt MFR # 2924892009 Superseded: see description
7. #PIN, LOWER HINGE MFR # 2926265006
8. #Refrigerator Door Latch; Complete Door Lock; Use With Dometic RM4223 Refrigerators; Gray/Brown MFR # 2952140008 Superseded: see description
9. #SUPPORT, LATCH USE 2952140008 MFR # 2952139000 Superseded: see description
10. #LATCH, TURN GRAY/BROWN MFR # 2952161006
11. #Refrigerator Door Latch Plate Screw; Replacement For Dometic RM2202/ RM4180M/ RM4290/ RM4292 Model Refrigerator; M6 x 6 MFR # 2952169007
12. #Screw M6x6 Use 2952169007 MFR # 7231360046 Superseded: see description
13. #Hose, Drain MFR # 2926441177
14. #Fins, Evaporator MFR # 2927993101
15. #RETAINER MFR # 2926235132
16. #Door, Freezer MFR # 2951280417
17. #Gasket, Freezer Door MFR # 2926152006
18. #Appliance Components RV; Shelf Wire MFR # 2951281159
19. #Refrigerator Shelf; Replacement For Dometic RM2202/ RM4202 Model Refrigerator; Freezer Compartment; Wire MFR # 2951282157
20. #Ice Cube Tray; Use With Dometic Refrigerator Model RM7401; Plastic MFR # 2951132006 Superseded: see description
21. #Frame RH/LH MFR # 2951886106
22. #Frame, Upper MFR # 2951887104
23. #Frame, Lower MFR # 2951887203
24. #Shelf, Ice Tray MFR # 2951979000

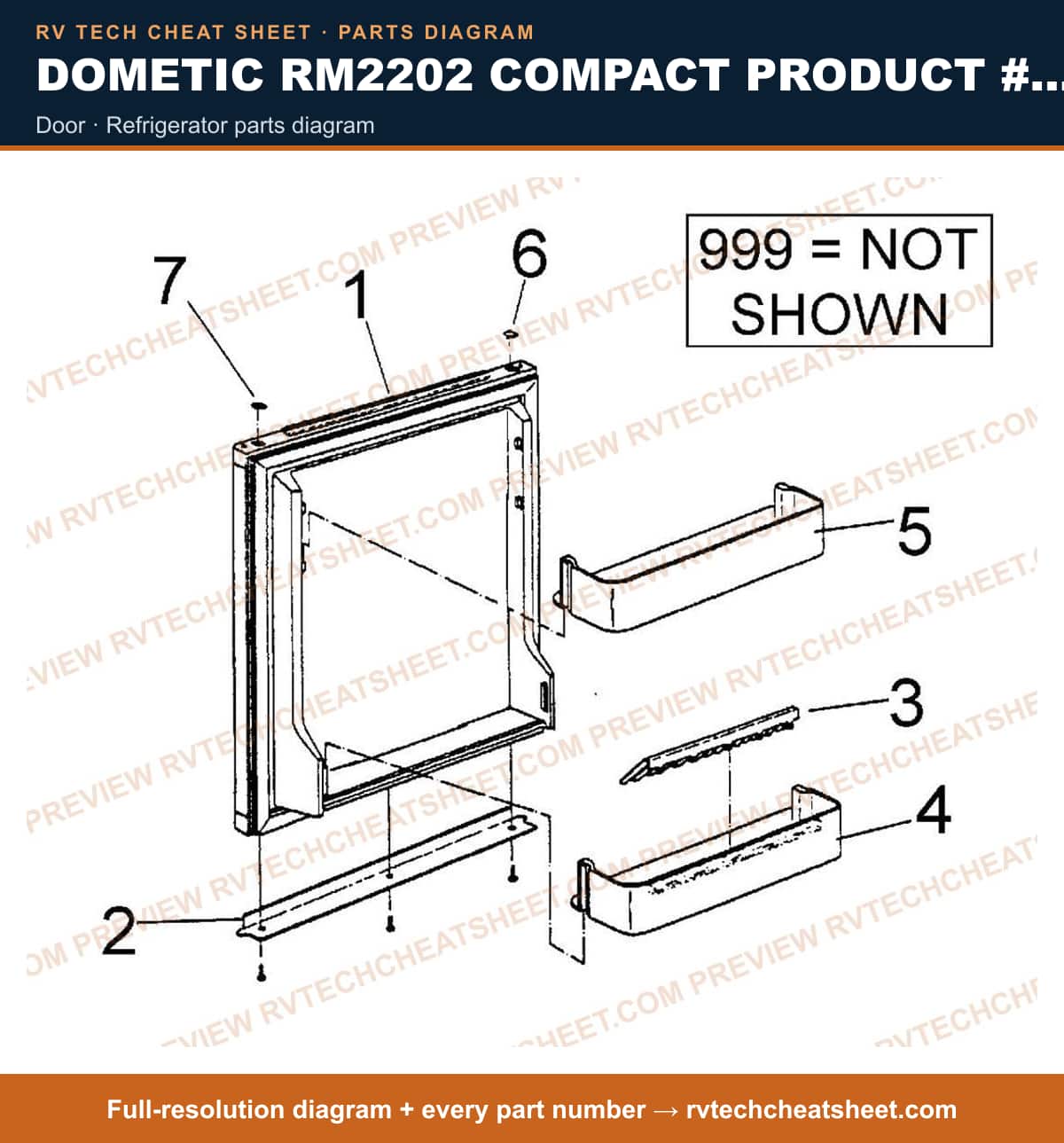

Door

Components

9 items

1. #Door, Complete RM2202 MFR # 2951290804
2. #Panel, Door Woodgrain MFR # 3106863107B
3. #Panel, Door Black Plexiglass MFR # 3106863107C
4. #Trim, Door Gray/Brown MFR # 2951240106
5. #Refrigerator Content Brace; Replacement For Dometic RM2202/ RM4202/ RM4223/ RM4290/ RM4292 Refrigerators MFR # 2951237003
6. #Shelf, Door White MFR # 2951238100
7. #Refrigerator Door Bin; Replacement For Dometic RM2202/ RM4223/ RM2202 Model Refrigerator; Upper Door; Plastic MFR # 2951239009
8. #Refrigerator Trim Hole Plug; Plug; Use With Dometic RM Series Refrigerators; Gray/ Brown MFR # 2951297007 Superseded: see description
9. #Refrigerator Trim Hole Plug; Cap; Use With Dometic RM4290/ RM4292/ RM4180M/ RM2202 Compact Refrigerators; Gray/ Brown MFR # 2951296009 Superseded: see description

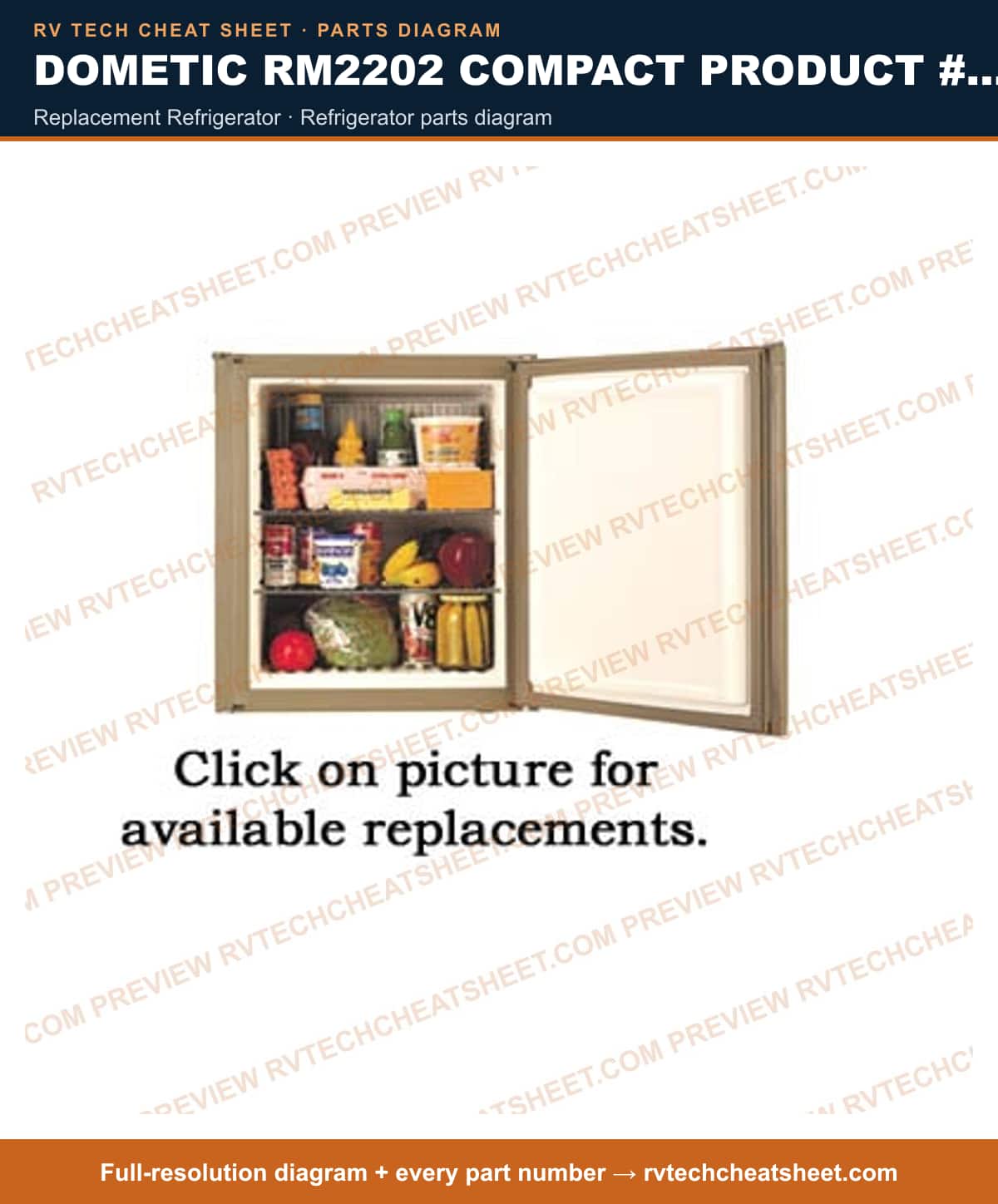

Replacement Refrigerator

Components

5 items

1. #Refrigerator; Single Compartment Adjustable For Refrigerator; Flange Mount; Right Hand Hinge; 1.7 Cubic Foot; 17-1/2 Inch Width x 21-1/4 Inch Depth x 20-5/8 Inch Height; 1.4 Amps At 120 Volt AC/ 11.7 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Taupe Door; With Shelving MFR # 323TR
2. #REFER, 1.9 CF, 3 WAY, RH, BLK, 21" X 17 3/4" X 21 1/2" MFR # RM2193RB
3. #REFER, 1.7 CU FT.3WAY ***USE 72-4823*** MFR # 323TN Superseded: see description
4. #REFER, 1.9 CU FT 3 WAY USE RM2193RB MFR # RM2193N Superseded: see description
5. #Refer, New 2 Cu Ft 3 Way 22-1/4"H x 19 1/4"W x 18 1/4"D MFR # RM2202N

Cooling Unit

Components

15 items

1. #Appliance Components RV; Cooling Unit MFR # 2952610117N
2. #Refrigerator Cooling Unit Baffle Diffuser; Use With Dometic Refrigerator RM2193 MFR # 2926212602 Superseded: see description
3. #TUBE MFR # 2924082205
4. #INSULATION, BOILER MFR # 2926680139
5. #Refrigerator Cooling Unit Cap; Replacement For Dometic RM2193/ RM4223/ RM4290/ RM7401/ RM7551/ RM8501/ RM8505/ RM8551/ RM8555 Refrigerators MFR # 2924979004
6. #LID LOWER BOILER MFR # 2924089002
7. #Refrigerator Burner Tube; Refrigerator Burner Orifice; Use With Dometic Refrigerators RM4290/ RM4223/ RM2202; With Jet MFR # 2923877506 Superseded: see description
8. #BURNER USE 2923877506 W/ELECTRODE & JET MFR # 2923432203 Superseded: see description
9. #Refrigerator Burner Orifice; Replacement For Dometic RM4223/ RM4292/ RM4223 Refrigerators MFR # 2922033069
10. #Awning-Accessories RV; Electrode Ign RM225X RML8330 MFR # 2923626002
11. #Cover RM22 02 MFR # 2952083000
12. #Appliance Components RV; Tube Exhaust MFR # 2923033308
13. #SCREW MFR # 2952435408
14. #Washer; Replacement For Dometic RM4290/ RM4223/ RM7401 Model Refrigerator; Star Washer MFR # 2926559036
15. #Nut; Replacement For Dometic RM2193/ RM4292/ RML855 Model refrigerator; Fits Cooling Unit; Push-In MFR # 2926545209

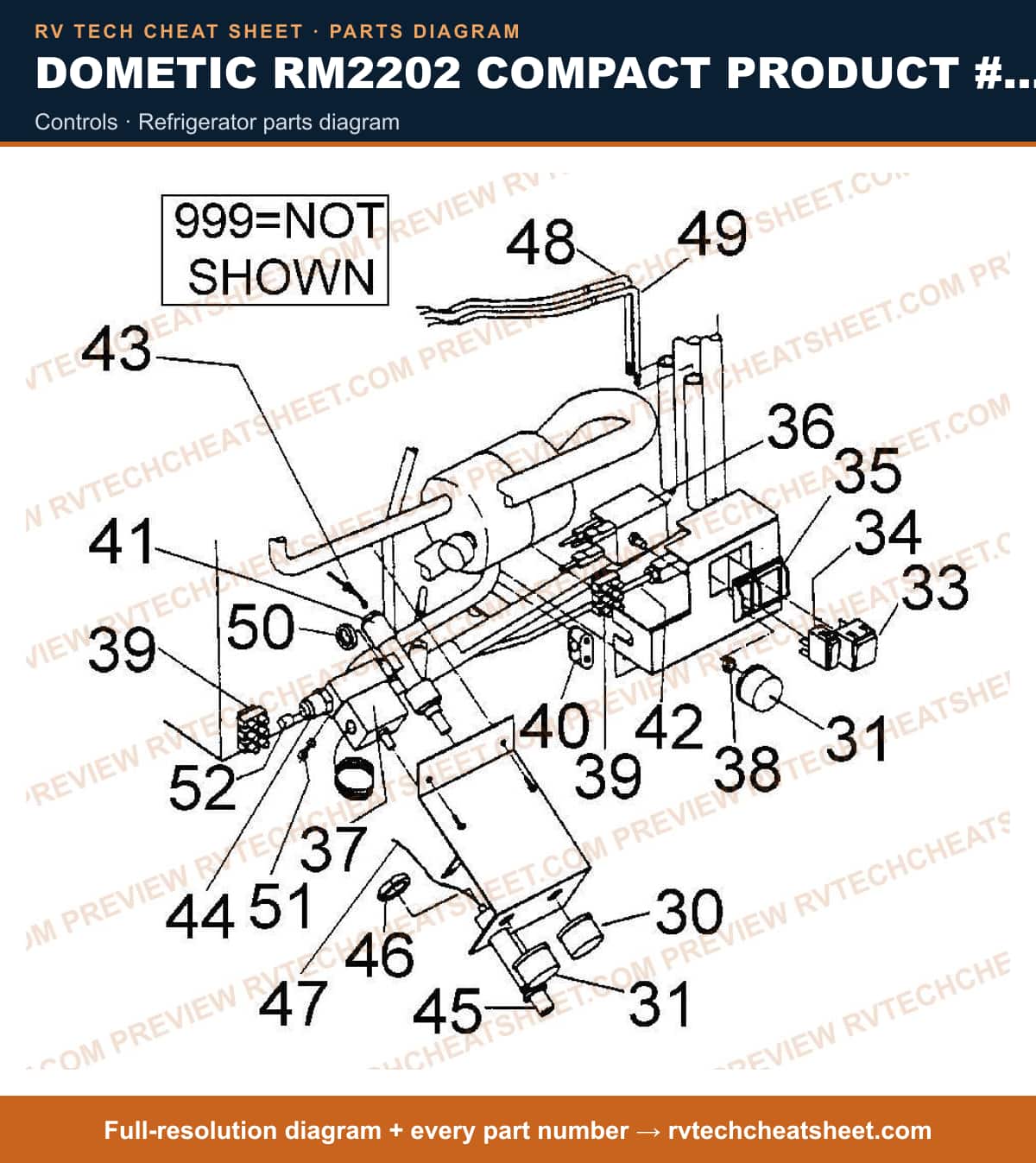

Controls

Components

31 items

1. #Knob, Gas Valve RM4223 MFR # 2923334342
2. #Dometic RM2820 Series Refrigerator Door Handle Black MFR # 2923468140
3. #Appliance Components RV; Switch W/O Light 120V MFR # 2951433107
4. #Switch W/O Use 2951433107 Light 120V MFR # 2951433008 Superseded: see description
5. #S, SWITCH, 12V, W/O LIGHT MFR # 2951398201
6. #Switch, 12V Use 2951398201 W/O Light Red MFR # 2951398003 Superseded: see description
7. #Switch Plate Cover Mounting Bracket; Use With Dometic Refrigerator RM4223; 2 Openings; Gray/ Brown MFR # 2923815134 Superseded: see description
8. #Frame, Switch Use 2923815134 MFR # 2923815035 Superseded: see description
9. #Appliance Components RV; T-Stat, Electric MFR # 2926528106
10. #T-Stat, Elec. Use 2926528106 RM2193 MFR # 2926528130 Superseded: see description
11. #T-Stat, Electric Use 2926528130 MFR # 2926528031 Superseded: see description
12. #Appliance Components RV; T-Stat Gas MFR # 2923755025
13. #NUT M10 RH25 MFR # 2927881009
14. #Refrigerator Terminal Block; For Use With Dometic Refrigerators; 3 Pole Terminal Block MFR # 2923466045 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Relief Strain Blk. MFR # 2926560000
16. #Appliance Components RV; T-Stat/Valve, Gas MFR # 2952168314
17. #Line, Gas MFR # 2952034003
18. #THERMOCOUPLE USE 2923435230 MFR # 2923435131 Superseded: see description
19. #Elbow, Gas Conn. Use 2923846204 MFR # 2952220008 Superseded: see description
20. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2202/ RM4223/ RM4290 Model Refrigerator; Elbow Assembly MFR # 2923846204
21. #PIEZO IGNITER FOR DOMETIC REFRIGERATORS MFR # 2923024109MC
22. #PIEZO MFR # 2923024109
23. #Nut, Lock MFR # 2927898003
24. #Appliance Components RV; Lead, Ignition MFR # 2927880142
25. #APPLIANCE COMPONENTS RV; ELEMENT, HEATING MFR # 2951998117
26. #Element, Heating Use 2951998117 120V MFR # 2951998000 Superseded: see description
27. #WASHER MFR # 2926639002
28. #Screw, By-Pass Use 2923755025 MFR # 2951148002 Superseded: see description
29. #Appliance Components RV; Filter, Gas MFR # 2923191007
30. #Appliance Components RV; Filter Use 2923191007 MFR # 2922212010 Superseded: see description
31. #Refrigerator Control Knob; Replacement For Dometic RM4223/ RM2202 Model Refrigerators; Thermostat Control Knob MFR # 2923530246
