Dometic RM2300 Parts Diagram · Gas-electric

Refrigerator · 4 assemblies · 4 diagram sheets · 153 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic RM2300 RV refrigerator: 4 assemblies (Gas-electric, Replacement Refrigerator, Door Assembly, Cabinet Assembly) and 153 manufacturer part numbers. 42 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Gas-electric

Components

64 items

1. #NO PART # GIVEN BY VENDOR MFR # NPG
2. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015
3. #Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC
4. #VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description
5. #S,THERMOCOUPLE-232MM MFR # 2931496042
6. #T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description
7. #Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC
8. #Coupling MFR # 2007518000
9. #APPLIANCE COMPONENTS RV; PLUG SCREWS FOR HOUSING MFR # 169380003
10. #Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description
11. #T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description
12. #DOMETIC DUAL T-STAT MFR # 2007199009
13. #SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039
14. #Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC
15. #S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008
16. #SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC
17. #Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000
18. #Appliance Components RV; Nut Union MFR # 172809006
19. #S,SWITCH,RM2410-2810 MFR # 2007432004
20. #Appliance Components RV; Cover Switch MFR # 2007439009
21. #Screw MFR # 140730011
22. #APPLIANCE COMPONENTS RV; Spring MFR # 2007577006
23. #Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004
24. #Igniter, Piezo MFR # 2007423003
25. #Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description
26. #Appliance Components RV; Retainer MFR # 2007424001
27. #Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008
28. #Burner Use 2007503036 MFR # 2007503028 Superseded: see description
29. #Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036
30. #IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC
31. #DOMETIC ELECTRODE 663-763 MFR # 2930379009
32. #Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description
33. #Ring, Sealing 2 Req. MFR # 140748005
34. #CATCH, SNAP USE 2930066028 MFR # 2930071010 Superseded: see description
35. #Catch Snap 12/120 (Fus) MFR # 2930066028
36. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
37. #Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159
38. #ORIFICE #32 BUTANE 360 MFR # 2007419134
39. #Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004
40. #Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007
41. #APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009
42. #REMAN C/U USE 5536R (UPS) RM2300/2301 RM336/361 MFR # 9283349000R Superseded: see description
43. #APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934334091N
44. #Refrigerator Cooling Unit; Use With Dometic RM2300/ RM 2301/ RM360/ RM361 Model Refrigerators; Steel Tubing MFR # 5536 Superseded: see description
45. #REMAN C/U USE 9283349000R (UPS) RM360/2310 MFR # 2934334091R Superseded: see description
46. #COOLING UNIT USE 2934334091N RM360 MFR # 9283349000N Superseded: see description
47. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
48. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2300/ RM2400; 120 Volt; 160 Watts MFR # 173756016MC Superseded: see description
49. #APPLIANCE COMPONENTS RV; Element Heating 120V MFR # 173756016
50. #ELEMENT,HEATING 120V MFR # CS000012
51. #ELEMENT, HEATING 125W 12V (25) USE 48-9516 MFR # 173735010 Superseded: see description
52. #ELEMENT, HEATING 125W 12V MFR # CS000045
53. #BUSHING USE 2002619001 MFR # 2930103003 Superseded: see description
54. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
55. #FLUE TOP USE 45-5828* MFR # 2007598002 Superseded: see description
56. #S,CAP,FLUE MFR # 2007598010
57. #APPLIANCE COMPONENTS RV; Conductor Light MFR # 2007478023
58. #PUSH ROD MFR # 2007467024
59. #APPLIANCE COMPONENTS RV; Rod Push RM360 MFR # 2007468032
60. #APPLIANCE COMPONENTS RV; Shaft T-Stat RM360 MFR # 2007471010
61. #APPLIANCE COMPONENTS RV; Shaft Switch RM360 MFR # 2007475011
62. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005
63. #APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231
64. #Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009

Replacement Refrigerator

Components

8 items

1. #64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N
2. #29 3\4 X 20 1\2 X 21 3\8 MFR # RM2300
3. #REFER, 3 CU.FT USE RM2354N 3-WAY MFR # RM2353N Superseded: see description
4. #REFER, 3 CU.FT USE RM2351 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2352N Superseded: see description
5. #REFER, 3 CU FT. 2 WAY TAUPE 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2351N
6. #Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N300N
7. #REFER, 3 CU FT 3-WAY TAUPE 29 3/4"H X 20 1/2"W MFR # RM2354N
8. #Refrigerator; Americana; Single Compartment Refrigerator With Freezer; 3 Cubic Foot Capacity; 30-3/8 Inch Height x 21-11/16 Inch Width x 22-1/16 Inch Depth; 110 Volt AC/ 12 Volt DC; 3 Way Alternating Current/ Direct Current/ LP Gas; Without Ice Maker; Automatic Temperature Control; Right Hand Door Hinge Location; Black Frame; With CFC/HCFC-Free Foam Insulation/ 2 Liter Bottle And 1/2 Gallon Container Shelf Storage/ Defrost Water Drain System; Door Panel Must Be Ordered Separately MFR # RM2354RB

Door Assembly

Components

14 items

1. #GASKET KIT, DOOR USE 3103689 MFR # 3103689000 Superseded: see description
2. #APPLIANCE COMPONENTS RV; Door W/O Shelves MFR # 2930921131
3. #GASKET KIT, DOOR MFR # 3103689
4. #APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001
5. #APPLIANCE COMPONENTS RV; Retainer Catch 2300 MFR # 2930994013
6. #APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Screw 8.4 X 13 MFR # 7296227056
8. #APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012
9. #Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019
10. #Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242
11. #SHELF,DOOR USE 2002261143 MFR # 2002261184 Superseded: see description
12. #STRIP,DECORATION MFR # 2930640046
13. #HOLDER,BOTTLE 7" BROWN MFR # 2930715012
14. #APPLIANCE COMPONENTS RV; Holder Bottle 8" Brown MFR # 2930715020

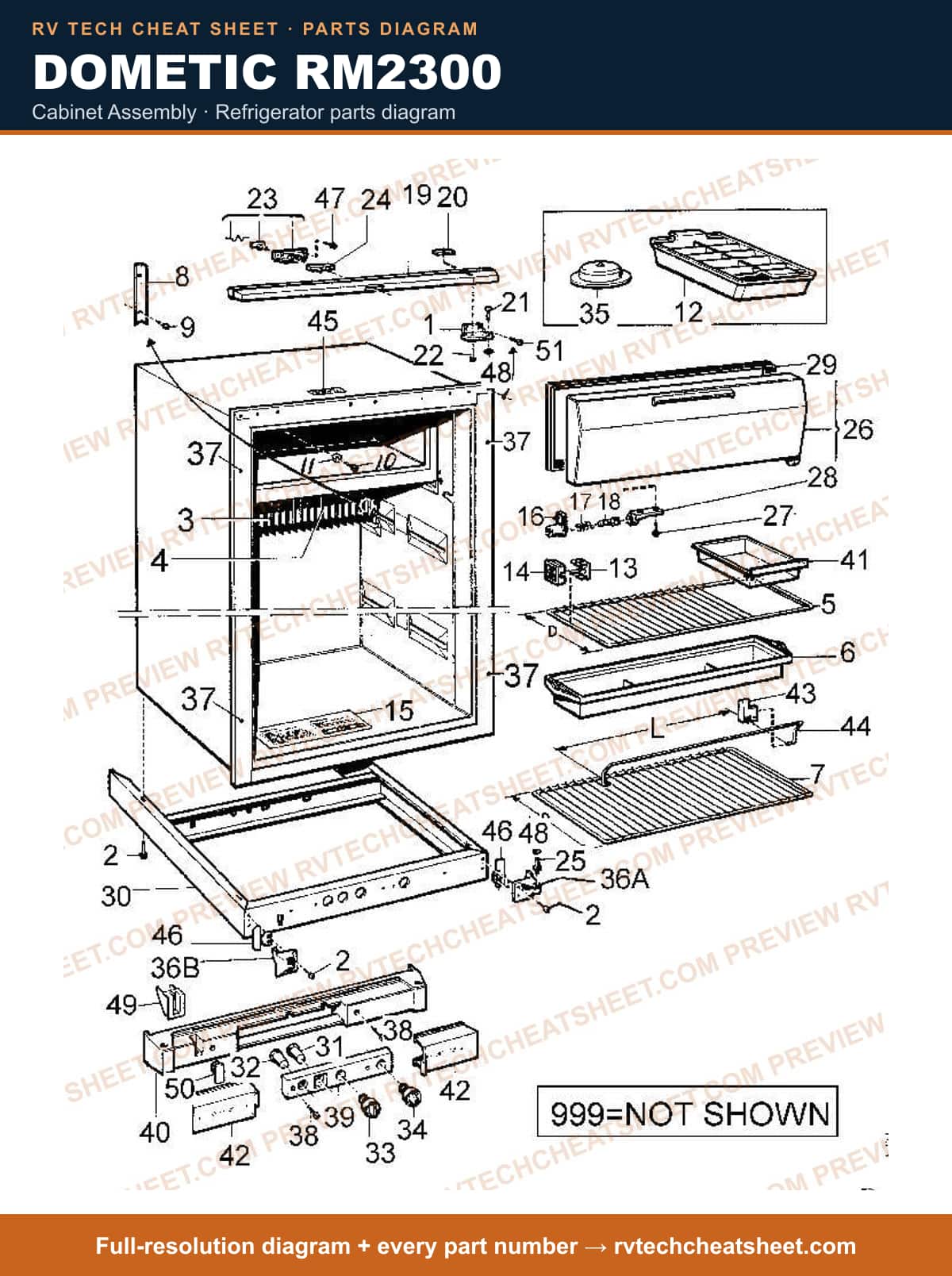

Cabinet Assembly

Components

69 items

1. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Models RM3600/ RM3800 MFR # 2007270016 Superseded: see description
2. #NO PART # GIVEN BY VENDOR MFR # NPG
3. #Appliance Components RV; Flange Cooling MFR # 2007394006
4. #SHELF, WIRE USE 2002650139 MFR # 2002650089 Superseded: see description
5. #Appliance Components RV; Shelf 7" 2301 7"W X 17 7 MFR # 2002650139
6. #Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description
7. #S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011
8. #SHELF, 10" MFR # 2002652101
9. #Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004
10. #SCREW USE 7295344407 MFR # 7295344118 Superseded: see description
11. #APPLIANCE COMPONENTS RV; Screw MFR # 7295344407
12. #Appliance Components RV; Screw RXSB 10X38 Ni.Pl MFR # 7295422112
13. #WASHER MFR # 7344888206
14. #S,TRAY,ICE CUBE-RM2510 MFR # 2930400003
15. #Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description
16. #TRAY, ICE USE 2930400003 MFR # 2007330000 Superseded: see description
17. #S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024
18. #Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description
20. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026
21. #Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012
22. #Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004
23. #Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002
24. #Spring, Freezer Door RH MFR # 2002237010
25. #Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000
26. #DECORATION,DOOR UPPER MFR # 2007545045
27. #Pin, Hinge Upper MFR # 2930612003
28. #LATCH USE 2007546027 MFR # 2007546019 Superseded: see description
29. #APPLIANCE COMPONENTS RV; Latch Travel MFR # 2007546027
30. #APPLIANCE COMPONENTS RV; Key Rm 2500 MFR # 2930135021
31. #Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description
32. #S,LID,FRZ,RM2410,RM2350 MFR # 2002239271
33. #SHUTTER USE 2002239271 MFR # 2002239198 Superseded: see description
34. #SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description
35. #SCREW USE 7295286657 MFR # 7295285659 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Screw MFR # 7295286657
37. #Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008
38. #S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019
39. #Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088
40. #Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description
41. #Knob, Push Use 2007479054 Black/Red MFR # 2007479047 Superseded: see description
42. #BUTTON, PUSH MFR # 2007479013
43. #KNOB,T-STAT MFR # 2007480151
44. #APPLIANCE COMPONENTS RV; Knob T-Stat Use 200748015 MFR # 2007480193 Superseded: see description
45. #Appliance Components RV; Knob Grey/Brown 12V/120V MFR # 2007480177
46. #KNOB, SELECTOR MFR # 2007480011
47. #Appliance Components RV; Knob Selector 115V MFR # 2007480029
48. #APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019
49. #APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000
50. #APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008
51. #Plug, Face Use 2930132069 Brown MFR # 2930132028 Superseded: see description
52. #Dometic RM2193 RM2652 Refrigerator Cooling Unit MFR # 2930132069
53. #APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058
54. #Panel, Beige Use 2007463058 MFR # 2007463033 Superseded: see description
55. #BASE FRONT MFR # 2930591082
56. #DRAWER USE 2007625011 MFR # 2007625003 Superseded: see description
57. #BOX MFR # 2007625011
58. #Dometic Refrigerator Main Control Board RM2652 RM2662 RM2852 RM2862 MFR # 2007464015
59. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
60. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
61. #RETAINER USE 2930693029 MFR # 2930693011 Superseded: see description
62. #APPLIANCE COMPONENTS RV; Bar L Approx 14.5" Rm360 MFR # 2007337021
63. #SCREW MFR # 2930431008
64. #PLATE, SEALING MFR # 2930696014
65. #Washer; Replacement For Dometic RM2301/ RM2600/ RM3600 Model Refrigerator MFR # 2930714015
66. #Retainer, Lamp MFR # 2930557000
67. #Plug Use 2930083031 MFR # 2930083023 Superseded: see description
68. #Appliance Components RV; Plug Grey/Brown MFR # 2930083031
69. #APPLIANCE COMPONENTS RV; Screw MFR # 7241323612
