Diagrams › Dometic › RM2301 Dometic RM2301 Parts Diagram · Gas-electric
Refrigerator · 4 assemblies · 4 diagram sheets · 131 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Dometic RM2301 RV refrigerator: 4 assemblies (Gas-electric, Cabinet Assembly, Replacement Refrigerator, Door Assembly) and 131 manufacturer part numbers. 36 parts are marked as superseded — the description gives the replacement number to order instead.
The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.
Gas-electric
Dometic RM2301 gas-electric — parts list sheet Full-resolution diagram + every part number →
Components 58 items # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015MC # Refrigerator Gas Valve; Replacement For Dometic Refrigerator Models RA1302-926724501/ RA1302-926727101/ RGE400-921172008/ RGE400-921172010/ RM1300/ RM1301/ RM2300/ RM2301-9266930/ RM2310-926693401/ RM2310-926693501/ RM2310-926694001/ RM2310-926694101/ RM2310-926694401; Compression Mount; Safety Gas Valve; With O-Rings MFR # 2931657015 # VALVE,SAFETY USE 2931657015 MFR # 2007422005 Superseded: see description # Thermocouple; Replacement For Dometic RGE400/ RM2310/ RM1303 Refrigerators; Probe Sensor MFR # 2931496042MC # S,THERMOCOUPLE-232MM MFR # 2931496042 # T-COUPLE USE 2931496042 MFR # 2007417005 Superseded: see description # Coupling MFR # 2007518000 # Refrigerator Thermostat Control Assembly; Use On Dometic RM Series Refrigerators Requiring Combination Gas/ Electric Thermostat; With O-Rings MFR # 2007199009MC Superseded: see description # DOMETIC DUAL T-STAT MFR # 2007199009 # T-STAT USE 2007199009 ALSO NEED 140748005 (2) MFR # V61P105003 Superseded: see description # Thermostat Bypass Screw; Replaces #14 Bypass Screw On Ranco Gas Thermostat MFR # 172819039MC # SCREW, BYPASS ALT 172819039MC S14 MFR # 172819039 # SHUT OFF VALVE FOR DOMETIC REFRIGERATORS MFR # 2007430008MC # S,VALVE,GAS SHUT OFF,RM2410, MFR # 2007430008 # Refrigerator Gas Valve Adapter Fitting; Replacement For Dometic RM2310/ RM2601/ RGE400/ RM1301/ RM661 Model Refrigerator MFR # 2007429000 # Appliance Components RV; Nut Union MFR # 172809006 # S,SWITCH,RM2410-2810 MFR # 2007432004 # Appliance Components RV; Cover Switch MFR # 2007439009 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM1350/ RM2352/ RM2601/ RM2353/ RGE400/ RM2452/ RM2333/ RM2510 Series Refrigerators MFR # 2007577014 # Refrigerator Door Handle Spring; Replacement For Dometic RG1350/ RM361/ RM2510/ RM2552/ RM2553/ RG1350/ RM2310/ RM1300/ RM1301/ RM2452/ RM2410 Series Refrigerators MFR # 2007578004 # Igniter, Piezo MFR # 2007423003 # Igniter; Use On Push Button Start Refrigerators; With Piezo/ Jumper Wire And Electrode MFR # 2007423003MC Superseded: see description # Appliance Components RV; Retainer MFR # 2007424001 # Refrigerator Door Handle Spring; Replacement For Dometic RM2310/ RM2510/ RM661/ RM2400/ RM1301/ RM360/ RGE400/ RM461/ RM660/ RM2301 Series Refrigerators MFR # 2007425008 # Burner Use 2007503036 MFR # 2007503028 Superseded: see description # Refrigerator Burner Tube; Replacement For Dometic RGE400/ RK400/ RM2310/ RM2510/ RM763/ RM1301/ RM1302/ RM1300/ RM460 Model Refrigerators; With Electrode MFR # 2007503036 # DOMETIC ELECTRODE 663-763 MFR # 2930379009 # Electrode Use 2930379009MC MFR # 2007416007 Superseded: see description # IGNITER ELECTRODE FOR DOMETIC REFRIGERATORS MFR # 2930379009MC # Refrigerator Gasket; Use With Dometic 2007199009 And MC Enterprise 2007199009MC Thermostats; Rubber O-Ring; Set Of 2 MFR # 140748005MC Superseded: see description # Ring, Sealing 2 Req. MFR # 140748005 # Catch Snap 12/120 (Fus) MFR # 2930066028 # Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001 # Refrigerator Burner Orifice; Replacement For Dometic RM2354/ RM2333/ RM2351/ RM2410/ RM2310/ RM2301/ RM2300 Series Refrigerators; #39 MFR # 2007419159 # ORIFICE #32 BUTANE 360 MFR # 2007419134 # Refrigerator Drain Tube Clamp; Replacement For Dometic RGE400 Model Refrigerators MFR # 2005112004 # Refrigerator Burner Box Cover; Replacement For Dometic RM2400/ RM2800/ RGE400/ RM2801/ RM2601/ RGE2601/ RM661/ RM761/ RM2510 Series Refrigerator MFR # 2007440007 # APPLIANCE COMPONENTS RV; Baffle MFR # 2007590009 # REMAN C/U USE 5536R (UPS) RM2300/2301 RM336/361 MFR # 9283349000R Superseded: see description # APPLIANCE COMPONENTS RV; Cooling Unit MFR # 2934334091N # Refrigerator Cooling Unit; Use With Dometic RM2300/ RM 2301/ RM360/ RM361 Model Refrigerators; Steel Tubing MFR # 5536 Superseded: see description # COOLING UNIT USE 2934334091N RM360 MFR # 9283349000N Superseded: see description # REMAN C/U USE 9283349000R (UPS) RM360/2310 MFR # 2934334091R Superseded: see description # APPLIANCE COMPONENTS RV; Element Heating 120V MFR # 173756016 # ELEMENT,HEATING 120V MFR # CS000012 # ELEMENT, HEATING 125W 12V (25) USE 48-9516 MFR # 173735010 Superseded: see description # Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models RM2300/ RM2400; 120 Volt; 160 Watts MFR # 173756016MC Superseded: see description # ELEMENT, HEATING 125W 12V MFR # CS000045 # S,CAP,FLUE MFR # 2007598010 # FLUE TOP USE 45-5828* MFR # 2007598002 Superseded: see description # APPLIANCE COMPONENTS RV; Conductor Light MFR # 2007478023 # APPLIANCE COMPONENTS RV; Rod Push MFR # 2007468024 # APPLIANCE COMPONENTS RV; Rod Push RM360 MFR # 2007468032 # APPLIANCE COMPONENTS RV; Shaft T-Stat RM360 MFR # 2007471010 # APPLIANCE COMPONENTS RV; Shaft Switch RM360 MFR # 2007475011 # Refrigerator Door Panel Retainer; Replacement For Dometic RM2301/ RM2410/ RGE400 Series Refrigerators MFR # 2007648005 # APPLIANCE COMPONENTS RV; Ring Retainer MFR # 7353113231 # Refrigerator Door Panel Retainer; Replacement For Dometic RM661/ RM2510/ RM360/ RM760/ RM761/ RM2310 Series Refrigerators MFR # 2007651009
Cabinet Assembly

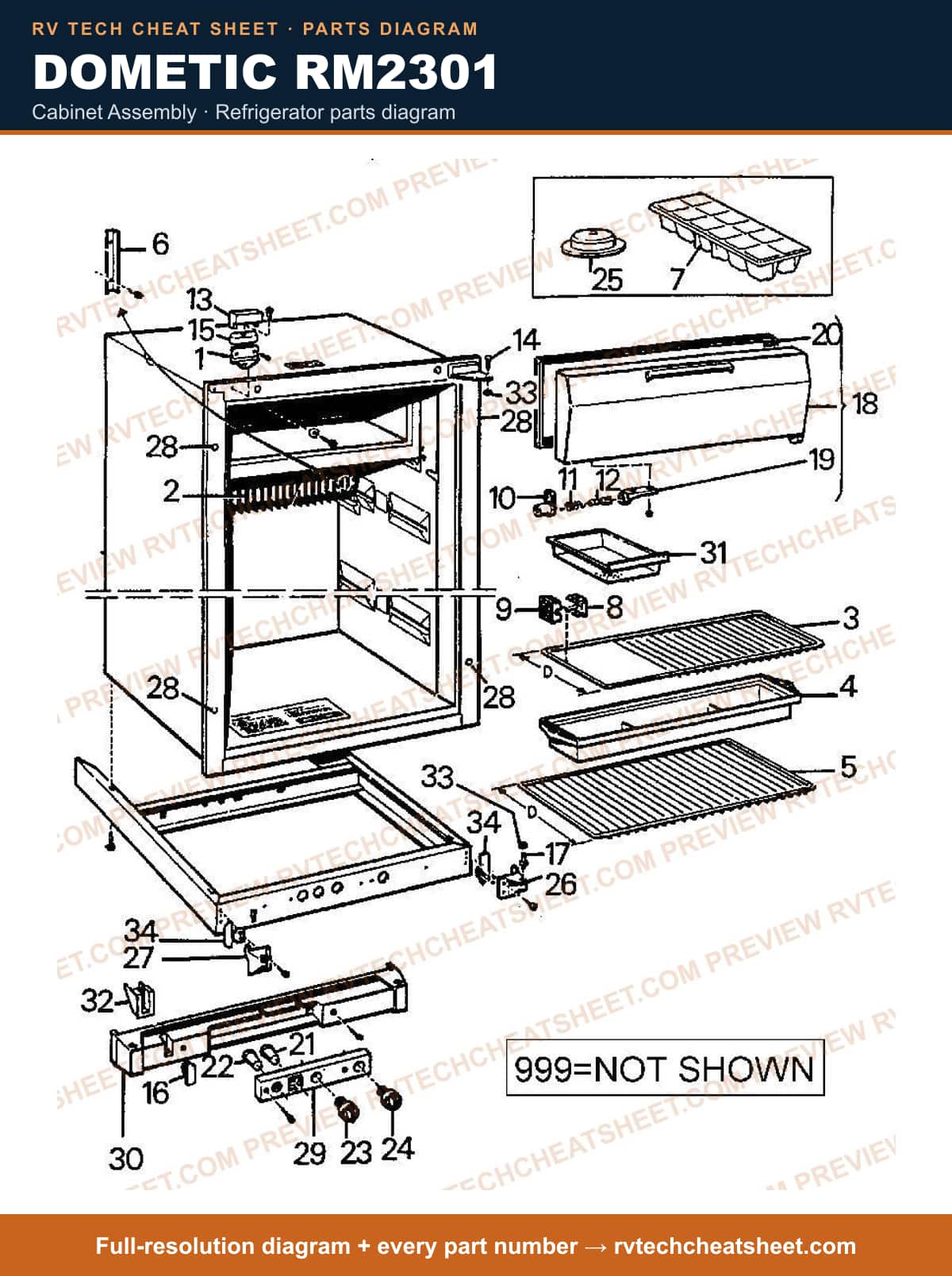

Dometic RM2301 cabinet assembly — parts list sheet Full-resolution diagram + every part number →
Components 51 items # Appliance Components RV; Hinge Lh MFR # 2007621044 # Appliance Components RV; Hinge Rh MFR # 2007622059 # Appliance Components RV; Flange Cooling MFR # 2007394006 # Appliance Components RV; Shelf 7" 2301 7"W X 17 7 MFR # 2002650139 # Chute, Drip Use 2007507011 MFR # 2007507003 Superseded: see description # S,DRIP TRAY,WHT,RM2410/2510.2 MFR # 2007507011 # Appliance Components RV; Shelf Lower Rm2301 MFR # 2002652192 # Refrigerator Thermostat Cover Plate; Replacement For Dometic RM2452/ RGE400/ RM36/ RM360/ RM2510/ RM2552/ RM2332/ RM2353/ RM2452 Model Refrigerator; Clamp MFR # 2890050004 # Ice Cube Tray; Use With Dometic RM361/ RM36A/ RM2607 Refrigerators; Plastic MFR # 2943422002 Superseded: see description # S,TRAY,ICE CUBE-RM2510 MFR # 2930400003 # Lock, Shelf Use 2007393024 N MFR # 2007393016 Superseded: see description # S,CASING LID,OUTER,WHT,RM2410, MFR # 2007393024 # Dometic RM2652 Refrigerator Lower Door Bin MFR # 2007392026 # APPLIANCE COMPONENTS RV; Lock Shelf Use 2007392026 MFR # 2007392018 Superseded: see description # Dometic RM2652 RM2652RB Refrigerator Door Bin Shelf MFR # 2002236012 # Dometic RM2652 Refrigerator Door Panel Assembly MFR # 2002236004 # Spring, Freezer Door RH MFR # 2002237010 # Appliance Components RV; Spring, Freezer Door LH MFR # 2002237002 # Refrigerator Door Hinge Pin; Replacement For Dometic RM2451/ RM2301/ RM2352/ RM2410/ RM2501/ RM2551/ RM2354/ RM2510/ RM2552 Series Refrigerators MFR # 2002238000 # Appliance Components RV; Cover Dn1070 Brown Grey MFR # 2931110015 # Pin, Hinge Upper MFR # 2930612003 # LATCH,TRAVEL USE 2904817018 RM2301 MFR # 2904817000 Superseded: see description # CATCH,RETAINER RM3-4-660 MFR # 2007544006 # LATCH,TRAVEL USE 2904817000 RM2301 MFR # 2931140012 Superseded: see description # CATCH,TRAVEL BLACK MFR # 2904817018 # Latch, Travel Use 2904817000 Brown/Grey MFR # 2904817026 Superseded: see description # Appliance Components RV; Plug Grey/Brown MFR # 2930083031 # Refrigerator Door Hinge Pin; Use With Dometic Refrigerator Model RM2301; Fits Bottom Hinge MFR # 2930614009 Superseded: see description # SHUTTER,BROWN; USE 2002239271 MFR # 2002239164 Superseded: see description # DOOR,FREEZER MFR # 2002239081 # S,LID,FRZ,RM2410,RM2350 MFR # 2002239271 # DOOR,FREEZER WHITE MFR # 2002239263 # DOOR,FREEZER;IS A USE # FOR 2002239271 MFR # 2002239065 Superseded: see description # Refrigerator Door Hinge Plate; Replacement For Dometic RM66E/ RM67/ RM66D/ RM2352/ RM663/ RM66F/ RM2501/RM2301/ RM2354/ RM2351 Series Refrigerators; Polar White MFR # 2002244008 # S,GASKET,EVAP FLAP,6"*17",WHT MFR # 2000917019 # Refrigerator Door Light Switch; Replacement For Dometic RM2401/ RM2501/ RGE400/ RM2800/ RM760/ RM2310/ RM2810/ RM361/ RM2400 Series Refrigerators; Push Button MFR # 2007479088 # Button, Push Use 2007479088 Grey/Brown MFR # 2007479054 Superseded: see description # APPLIANCE COMPONENTS RV; Knob T-Stat Use 200748015 MFR # 2007480193 Superseded: see description # S,KNOB ASM,SELECTOR,2410/2510 MFR # 2007480185 # KNOB Sr'LECTOR 12/12OV, GREY/BROWN MFR # 20074801717 # APPLIANCE COMPONENTS RV; Level Spirit MFR # 2007645019 # APPLIANCE COMPONENTS RV; Hinge Lower Rh MFR # 2930232000 # APPLIANCE COMPONENTS RV; Hinge Lower Lh MFR # 2930233008 # APPLIANCE COMPONENTS RV; Plug Masking MFR # 2930132051 # APPLIANCE COMPONENTS RV; Panel Grey/Brown MFR # 2007463058 # BASE FRONT GREY/BROWN RM 2301 MFR # 2930591157 # BOX MFR # 2007625011 # DRAWER USE 2007625011 MFR # 2007625003 Superseded: see description # RETAINER,LAMP USE 2930557000 MFR # 2930557018 Superseded: see description # Washer; Replacement For Dometic RM2301/ RM2600/ RM3600 Model Refrigerator MFR # 2930714015 # PLATE, SEALING MFR # 2930696014
Replacement Refrigerator
Dometic RM2301 replacement refrigerator — parts list sheet Full-resolution diagram + every part number →
Components 3 items # REFER, 3 CU.FT USE RM2351 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2352N Superseded: see description # 64602 Refrigerator; Single Compartment Refrigerator With Freezer; Flange Mount; Right Hand Hinge; 2.7 Cubic Foot; 20-1/2 Inch Width x 21-3/8 Inch Depth x 29-3/4 Inch Height; 1.5 Amps At 120 Volt AC/ 12 Amps At 12 Volt DC; 3-Way Alternating Current/ Direct Current/ LP Gas; With Ice Maker; Dial Temperature Control; With Cabinet Light; Beige Trim; With Shelving And Door Bins; Door Panels Sold Separately MFR # N3003N # REFER, 3 CU FT. 2 WAY TAUPE 29 3/4H X 20 1/2W X 21 3/8D MFR # RM2351N
Door Assembly

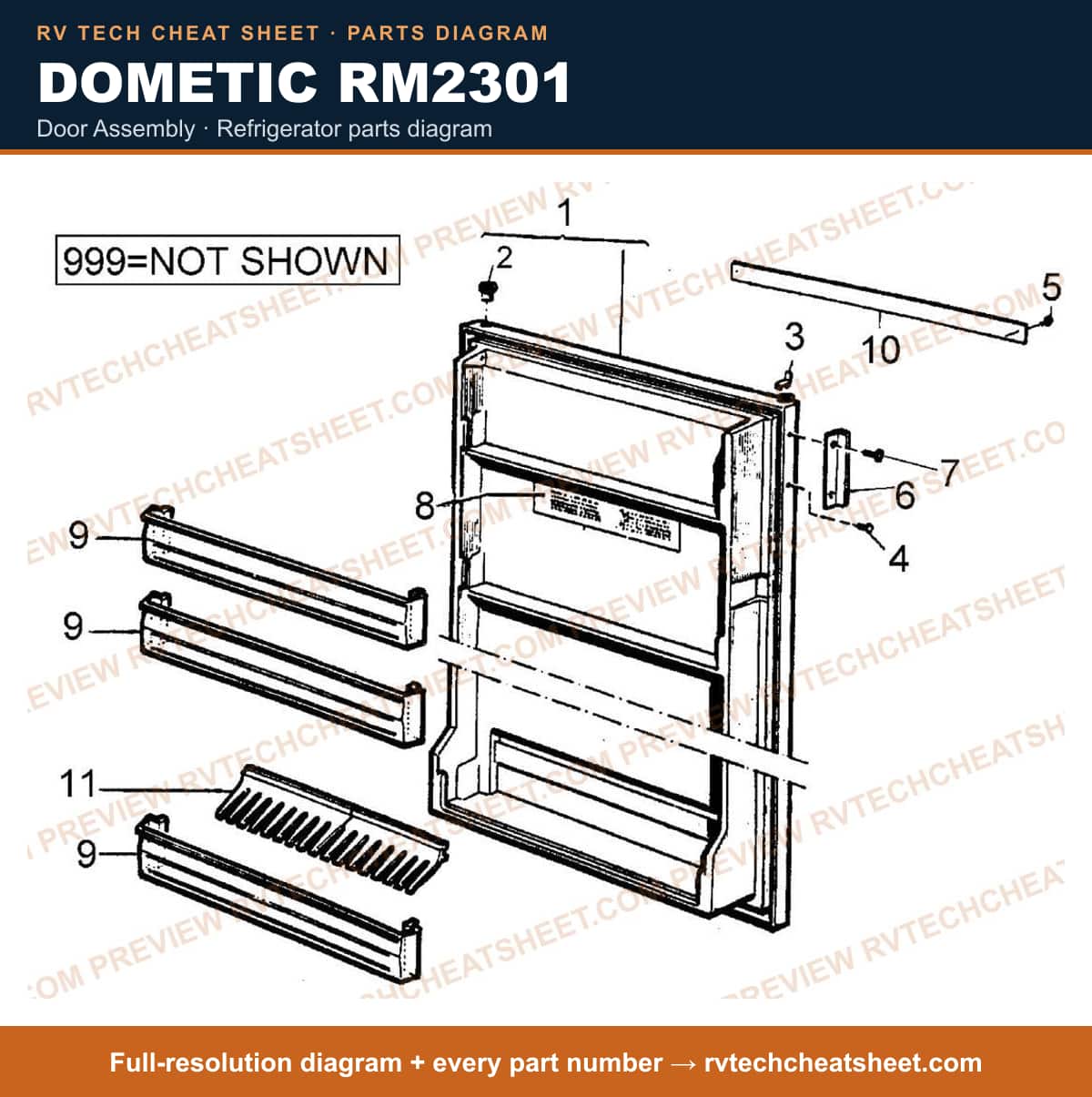

Dometic RM2301 door assembly — parts list sheet Full-resolution diagram + every part number →
Components 19 items # APPLIANCE COMPONENTS RV; Door W/O Shelves MFR # 2930921131 # GASKET KIT, DOOR MFR # 3103689 # GASKET KIT, DOOR USE 3103689 MFR # 3103689000 Superseded: see description # APPLIANCE COMPONENTS RV; Bushing Door Hinge Lower MFR # 2002619001 # RETAINER, CATCH MFR # 2931111013 # APPLIANCE COMPONENTS RV; Catch Travel Strike MFR # 2931111021 # APPLIANCE COMPONENTS RV; Plug Use 2930736026 MFR # 2930736018 Superseded: see description # Refrigerator Trim Screw; Replacement For Dometic RM2301/ RM2310/ RM2333/ RM2401/ RM2501/ RM4801 Model Refrigerator MFR # 7296229011 # APPLIANCE COMPONENTS RV; Handle Door MFR # 2930763012 # Appliance Components RV; Screw 4 X 9.5 MFR # 7296225019 # SHELF,DOOR USE 2002261242 BROWN/BLACK MFR # 2002261143 Superseded: see description # Refrigerator Shelf; Replacement For Dometic RM2300/ RM2500/ RM661/ RM66E/ RM66F/ RM2353/ RM2352/ RM2510/ RM2351/ RB2405/ RM77D/ RM2333 Series Refrigerators MFR # 2002261242 # Refrigerator Gasket; Replacement For Dometic RM2301 Refrigerator; Door Gasket MFR # 2930640400 # Refrigerator Shelf Support; Replacement For Dometic RM2620/ RM2353/ RM2354 Refrigerators; 8 Inch; White MFR # 2930715061 # HOLDER,BOTTLE USE 2930715061 GREY/BEIGE 8" MFR # 2930715046 Superseded: see description # Refrigerator Shelf Support; Replacement For Dometic RM2354/ RM2353/ RM2510 Refrigerators; 7 Inch; White MFR # 2930715053 # HOLDER,BOTTLE USE 2930715053 GREY/BEIGE 7" MFR # 2930715038 Superseded: see description # PANEL, DOOR WOODGRAIN SINGLE PANEL 25-1/2" X 21-1/16 MFR # RM2310G # PANEL,DOOR USE RM2310G RM2310 MFR # 3106863040B Superseded: see description
